Upgrade to high performance with the Pioneer A-series sound design which acoustically matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics with dynamic, high impact bass that lets you hear and feel the music.

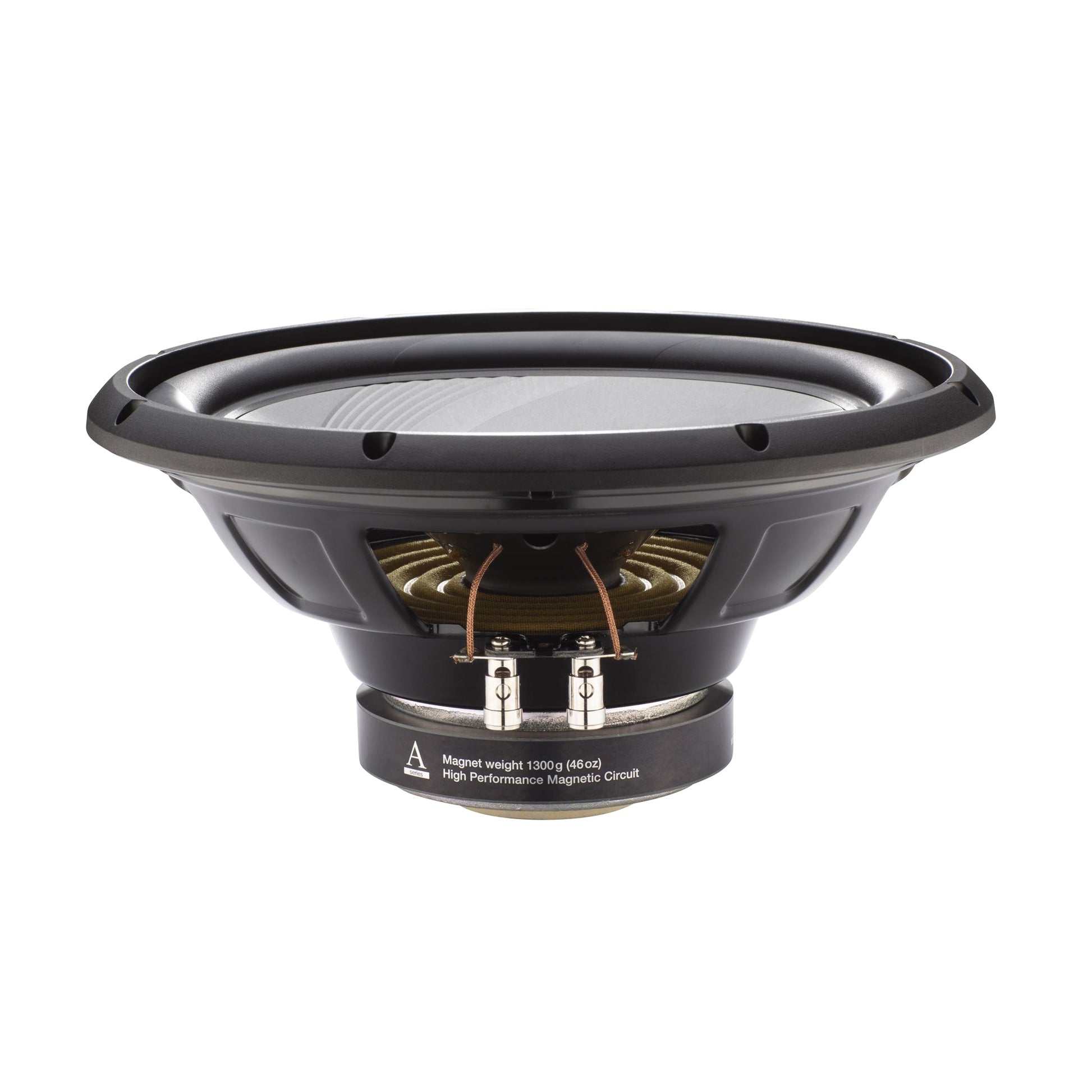

A subwoofer motor structure consists of the voice coil and magnet assembly. Increasing the diameter and length of the voice coil provides greater control of the woofer cone and higher power handling. To take full advantage, however, the magnet must also be increased, both in magnetic power and physical size.
This A-series speaker cone has a blend of Aramid fibers interlaced with Polypropylene during the injection molding process to meet Pioneer's standards for sensitivity, low distortion, rigidity and strength.
Pioneer’s Car Sound Fit app is actually a car sound simulator for experiencing in-car sound with your own smartphone. Hear the difference between original car speakers and different Pioneer audio upgrades: convince yourself of the level of quality Pioneer can offer for your vehicle. For a virtual listening demonstration of these and many other Pioneer car speakers, download the free Pioneer CarSoundFit app.
| PRODUCT PERFORMANCE | |
|---|---|
|
Continuous Power handling (RMS) - Watts
400 W
|
Frequency Response
22 Hz to 1.6 kHz
|
|
Maximum Peak Power Handling - Watts
1400 W
|
Nominal Impedance - Ohm
4-Ohm
|
|
Sensitivity (1W/1m)
87 dB
|
System-Type
Component
|
| FEATURES | |
|---|---|
|
CarSoundFit
Yes
|
Cut Out dimensions
11-1/8",28 cm
|
|
Equivalent Compliance (VAS)
56.1 Liters,2 Cu. Ft.
|
Free Air ResoNAnce (Fs)
32.1
|
|
Linear Excursion (Xmax)
8.25 mm,0.33"
|
Mounting Depth
5-3/8",13.65cm
|
|
Port Diameter
3",8 cm
|
Port Length
6-1/2",17 cm
|
|
Recommended Ported Box Internal volume
42.5 Liters,1.5 Cu. Ft
|
Recommended Sealed Enclosure Volume
35.4 Liters,1.25 Cu Ft
|
|
Total Speaker "Q" (Qts)
0.7
|
|
| MATERIALS | |
|---|---|
|
Basket Material
Stamped Metal
|
Center Cap Material
ABS
|
|
Cone Material
IMPP - Composite
|
Damper
Poly cotton/Aramid Fiber
|
|
Installation Ring
ABS
|
Magnet Material
Ferrite
|
|
Magnet Weight
46 oz
|
Surround Material
Rubber
|
|
Surround Type
Rolled
|
Voice Coil Bobbin
Aluminum
|
|
Voice Coil Special Feature
VCCS
|
Voice Coil Type
Single Voice Coil 4-ohm
|
|
Voice Coil wire
Copper
|
Wire Terminals
Push Type
|
