Pioneer TS-D10LB

SLIM ENCLOSURE

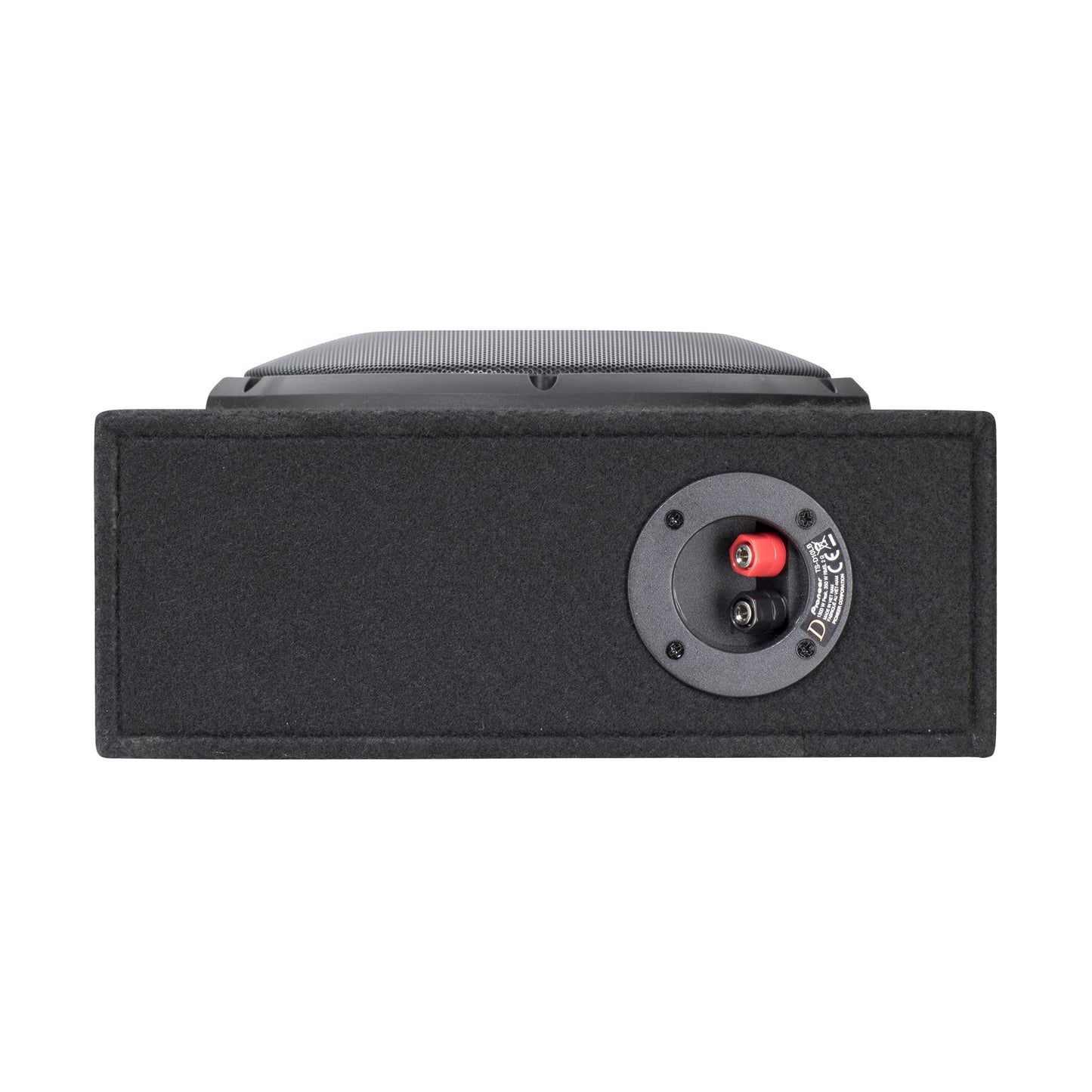

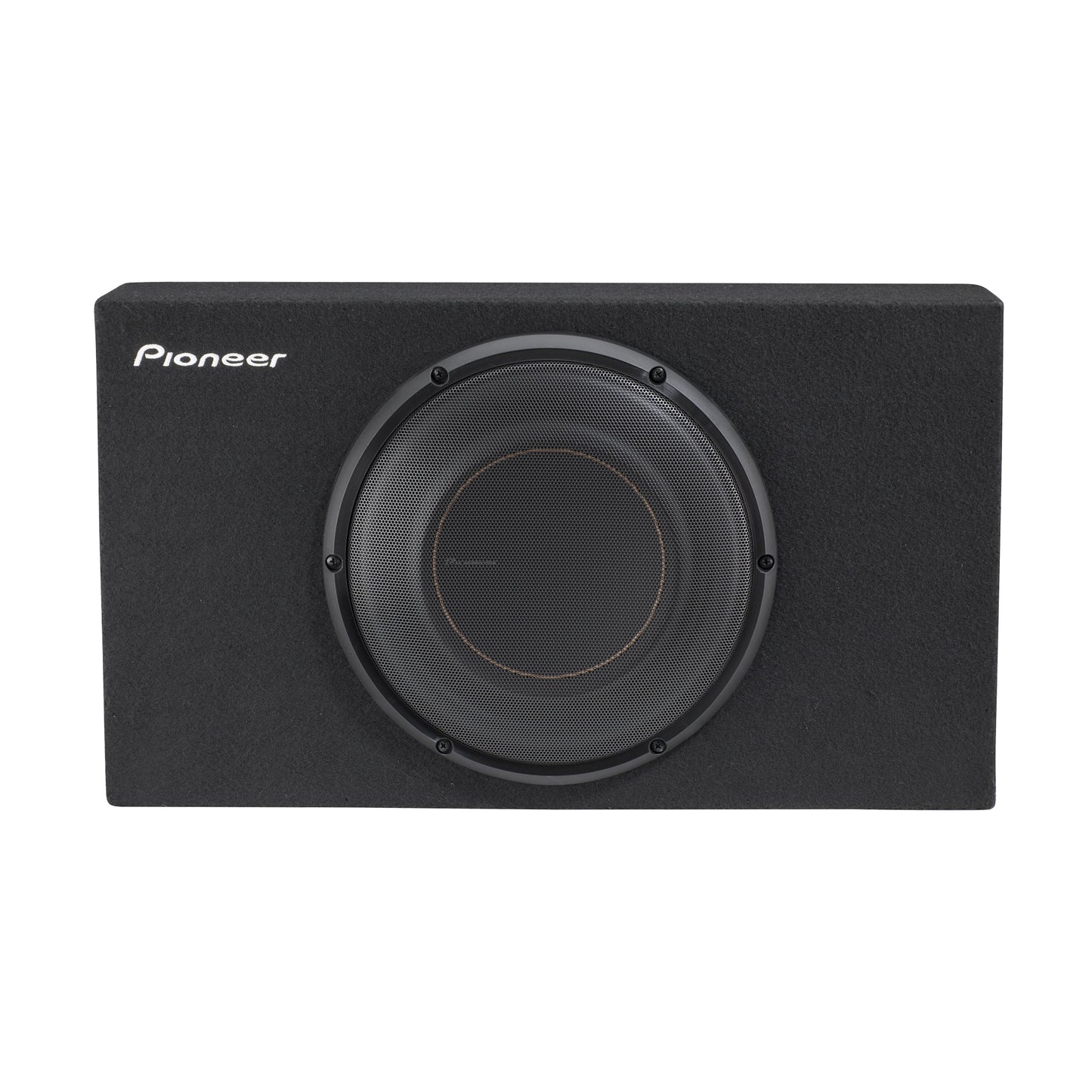

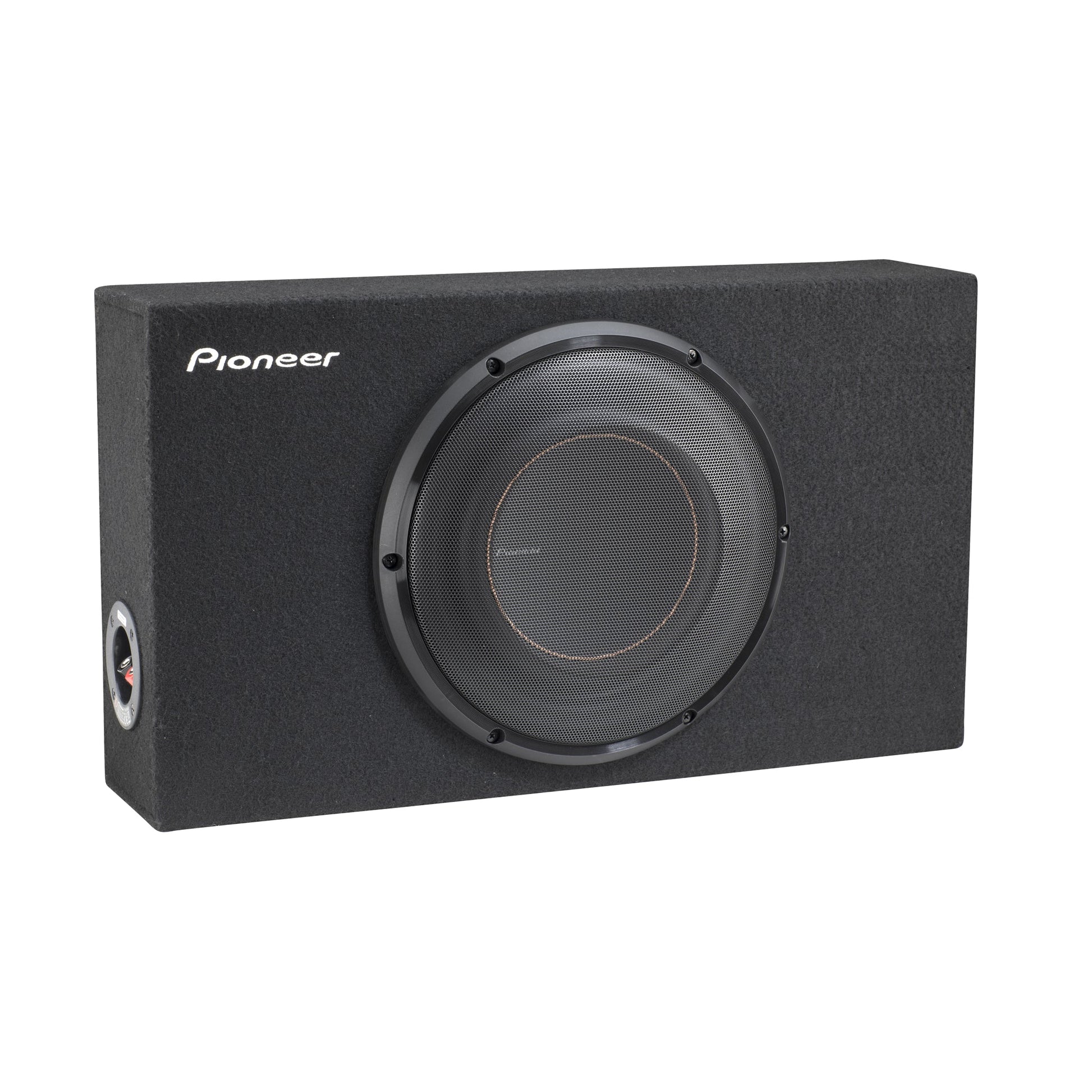

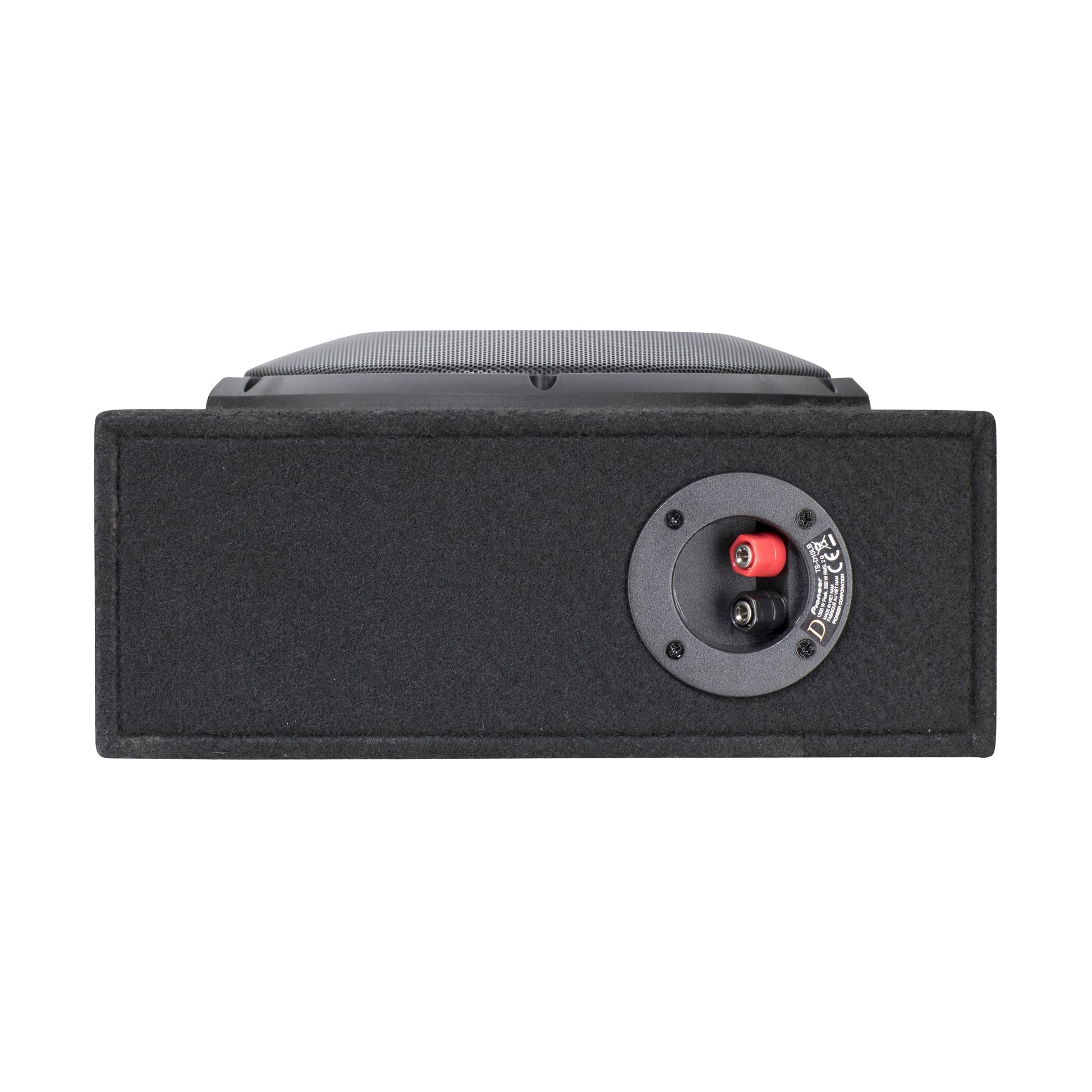

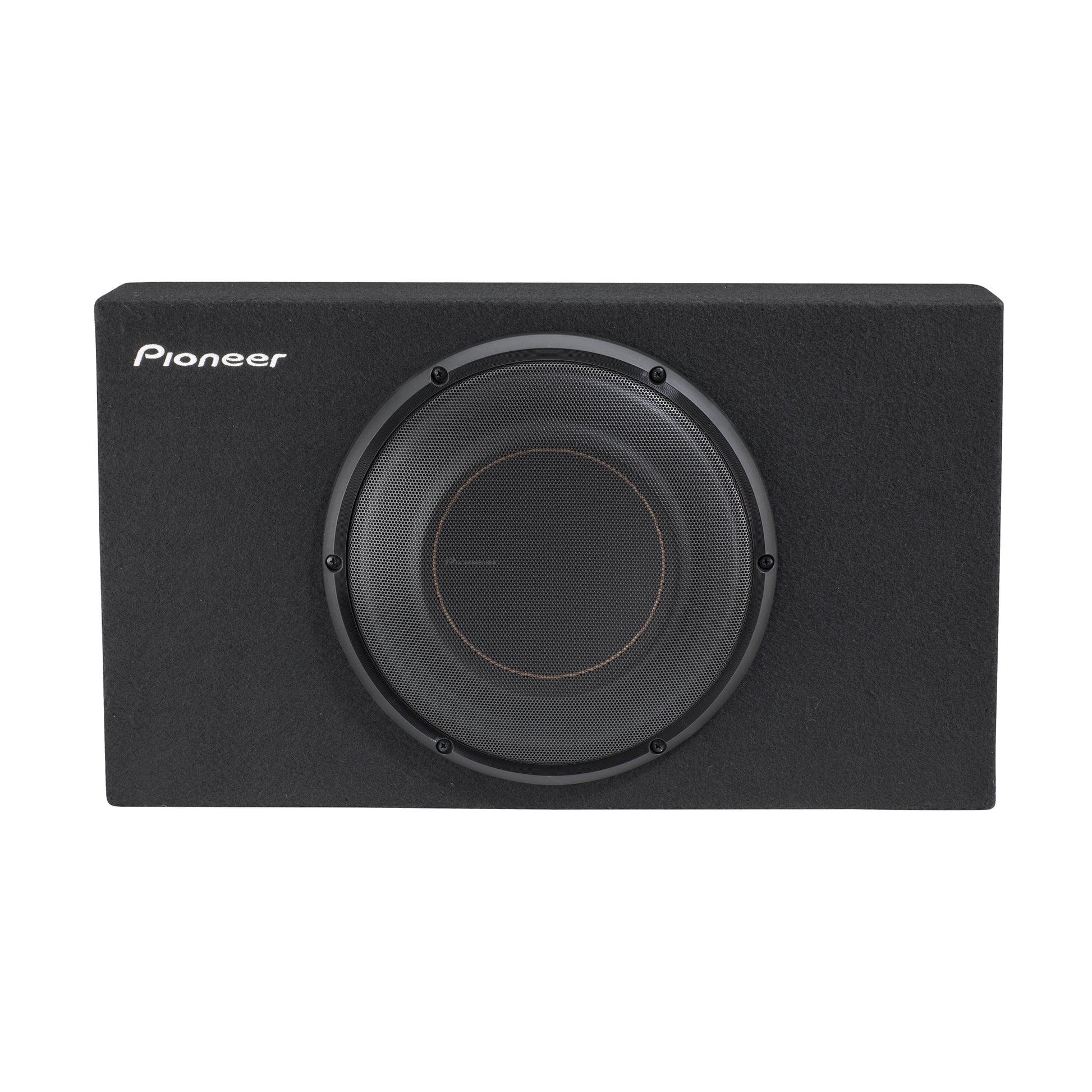

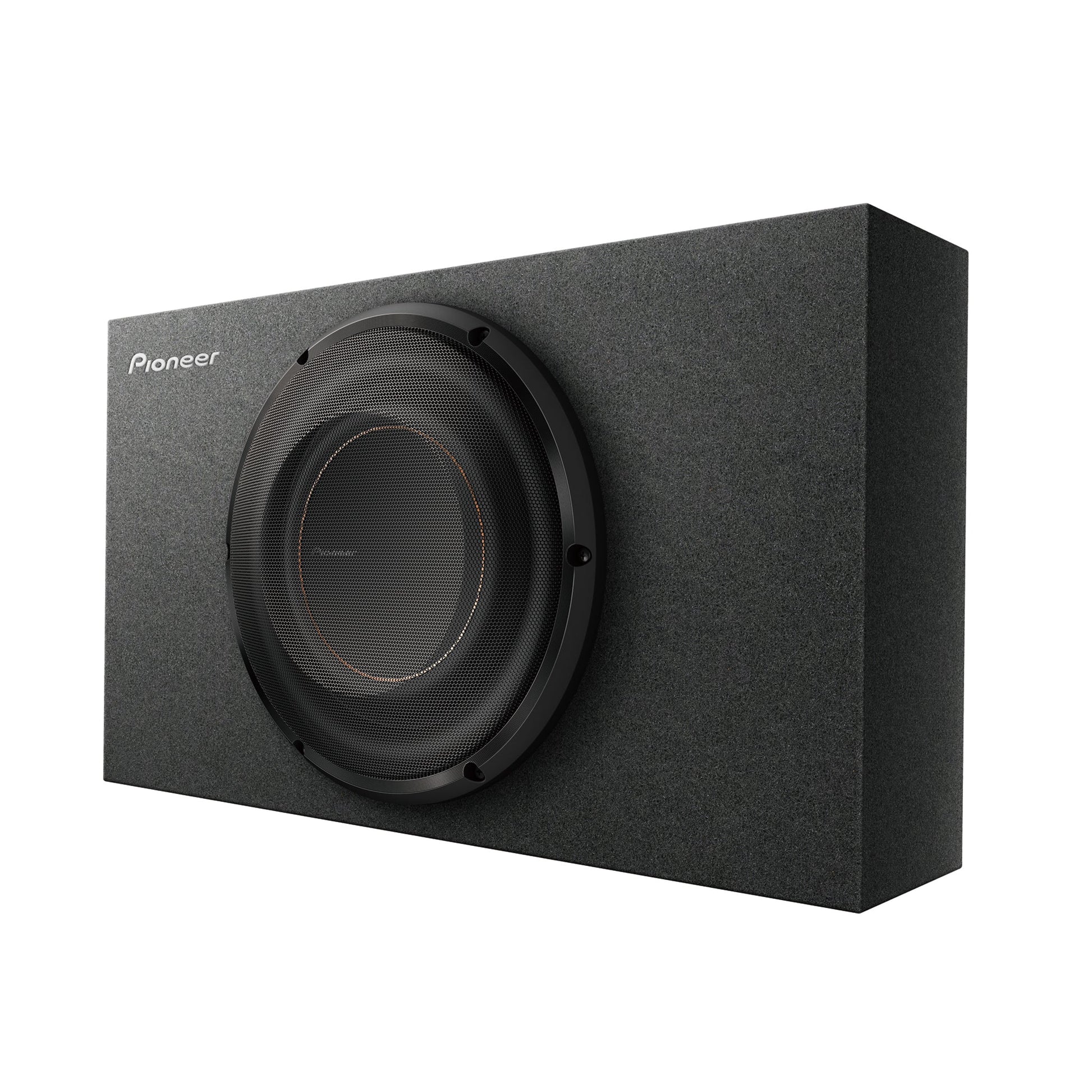

The innovative shape of the enclosure is designed to create greater rigidity and reduce internal standing waves while increasing flexibility and installation possibilities. It can be installed in the rear case, under the seats, and positioned in different ways—backwards, forwards, or upwards—for bass optimization depending on your cabin. The enclosure is fully carpeted, creating a non-slip, durable, and scratch-resistant surface.

ARAMID FIBER INTERLACED IMPP™

Polypropylene (PP) is a tough thermoplastic resin that is an ideal material for a speaker cone with low mass and high damping. PP cones offer good sensitivity and low distortion. However, basic raw polypropylene cones lack the rigidity and strength required for high output and extreme low bass. To resolve this, Pioneer engineers, using advanced Computer Aided Manufacturing, developed a process to blend aramid fibers into the polypropylene resin during the injection molding process. The resulting aramid fiber interlaced IMPP™ cone is ultra-thin and low mass with high rigidity and superior strength, producing natural, detailed sound with deep and powerful bass.

BUTYL RUBBER SUSPENSION

Made from a specially blended, highly durable, and moisture-resistant compound, the butyl rubber keeps the cone moving in a precise linear direction. Not only does it provide greater consistency across various excursions, but it also reduces unwanted vibration from the cone to the basket during signal changes and stops. This results in less distortion and superior bass frequency response.

CONEX META-ARAMID FIBER

Pioneer's Conex Meta-Aramid Fiber spider design effectively supports the voice coil by damping cone vibrations and improving the linearity of sound reproduction. Its soft part ensures smooth movement and clear sound reproduction even under high power, while its firmer part controls excessive vibrations and prevents unwanted movements that cause distortion.

The design of a slim subwoofer requires a smaller distance between the front and rear suspensions (spider) of the subwoofer, reducing their effectiveness in maintaining the required linearity during low-frequency excursions. To counter this problem, Pioneer has developed a dual rear suspension design (Conex), which increases the precision of movement without increasing mechanical resistance. The goal is simple: to provide all the details of your music while offering excellent control during long excursions and maintaining a small footprint in your car.

DEEP BASS

To achieve deep and tight bass, a rigid and lightweight cone is essential. However, without a proper motor structure, it’s useless if you’re looking for a good bass punch. This subwoofer uses a strontium magnet paired with a large copper voice coil and a glass-imide voice-coil former for better bass control under high excursions. This also helps achieve better heat dissipation.

CARSOUNDFIT

Pioneer’s Car Sound Fit app is actually a car sound simulator for experiencing in-car sound with your own smartphone. Hear the difference between original car speakers and different Pioneer audio upgrades: convince yourself of the level of quality Pioneer can offer for your vehicle. For a virtual listening demonstration of these and many other Pioneer car speakers, download the free Pioneer CarSoundFit app.

• 1300 Watts Max. Power / 350 Watts Nominal Power
• 10" Aramid Fiber Interlaced IMPP™ cone
• Butyl Rubber Surround & Dual Meta-Aramid fiber spider
• Frequency range: 20 Hz to 3.4 kHz
• Speaker Impedance: 2 ohms
• Speaker Efficiency: 76 dB (1W/1M)
• Box dimensions (WxHxD) : 20.875 (530mm) x 11.750 (300mm) x 5.875 (150mm)
• Rigid mesh grill included
