Pioneer TS-G690

Pioneer TS-G690

In stock

6" x 9" - 3-way, 400 W Max Power, IMPP™ cone, 11mm Tweeter and 2" Cone Midrange - Coaxial Speakers (pair)

  • price-tag logoNew Launch
$59.99
$59.99
Save: $-59.99 (% Off)*
Sale Sold out
Shipping calculated at checkout.
  • cargo-truck logoFree shipping Over $99
Sold in last hours
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • USDC
  • Visa
  • free logo
    Fast, FREE Delivery

    Free, Fast, Doorstep Delight!

  • return logo
    Delivery & Returns

    Effortless Delivery, Easy Returns

View full details
  • Overview
  • Details
  • Accessories
The Pioneer TS-G690 6" x 9" is a 3-way speaker system with 400 W maximum power handling/45 W continuous power handling. In addition, it has a 30mm Tweeter and a 2" Cone to enrich high-range reproduction. The speaker cone comprises of polypropylene IMPP™ cone and a rubber-coated cloth surround giving your music more impact and presence.

G-SERIES SPEAKERS

This G-series speaker sets you up with quality materials and a durable design for a better listening experience. The sensitive yet strong polypropylene woofer and a rubber-coated cloth surround give your music more impact and presence. Its large balanced dome tweeter allows accuracy for high-range rich reproductions of all the details in your favorite vocal and instrumentation.

MIDRANGE

The mid-range is an 11mm Light Weight Balanced Dome with Magnetic Fluid for high-performance reproduction with low distortion, and the 2” Dome Tweeter delivers smooth, accurate highs.

PIONEER EXCLUSIVE PFSS SPIDER

The Progressive Flex Suspension System (PFSS) effectively supports the voice coil by damping cone vibrations and improving the linearity of sound reproduction. Its soft part ensures smooth movement and clear sound even under high power, while its firmer part controls excessive vibrations and prevents unwanted movements that cause distortion. The goal is simple: to provide all the details of your music while maintaining control during the large excursions generated by the bass.

INSTALLATION AND SOUND TO SUITE ANY CAR

These speakers are excellent choices to replace a bad set of factory speakers. Their two-way design features Pioneer’s extremely strong and lightweight Injected Molded Polypropylene™ (IMPP) with MICA composite cone woofer for improved sensitivity and reduced distortion. You don't get just basic, run-of-the-mill features either. The conex damper delivers higher power handling and deeper bass, and the Balanced dome tweeter reproduces highs with great performance and musicality. These speakers are designed with a shallow mounting depth for easy installation and custom-fit baskets for select Ford and Mazda vehicles.

  • G-Series 6"x9" 3-way car speakers
  • Injection molded polypropylene IMPP™ and mica-reinforced composite woofer cone
  • Rubber-coated cloth surround
  • 11mm PET dome tweeter and 2" mixed pulp midrange driver
  • Handles up to 45 W RMS (400 W peak power)
  • Frequency range: 32-32,000 Hz
  • Sensitivity: 90 dB

Specification:

PRODUCT PERFORMANCE
Continuous Power handling (RMS) - Watts
45W
Frequency Response
32 Hz to 32 kHz
Maximum Peak Power Handling - Watts
400W
Nominal Impedance - Ohm
4-Ohm
Sensitivity (1W/1m)
90 dB
System-Type
Coaxial 3-way,Dome - Tweeter
FEATURES

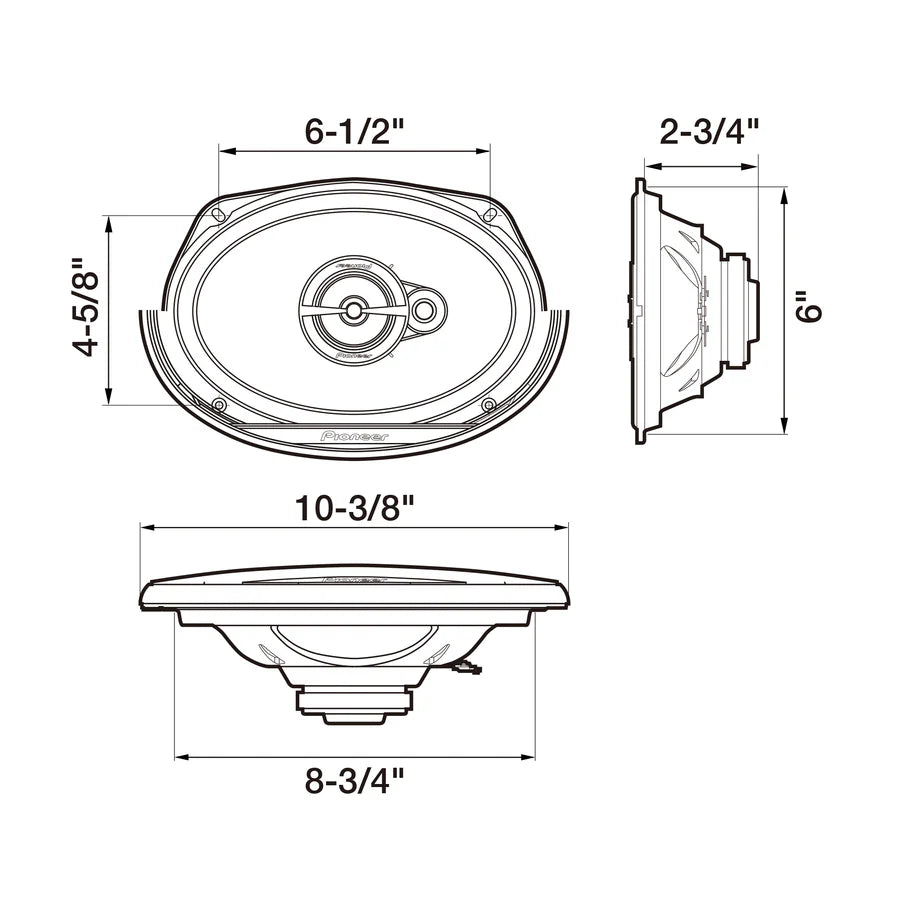

Cut Out dimensions
6 x 8-3/4
Midrange
2"
Mounting Depth
2-3/4" - Midrange
Tweeter
11mm
MATERIALS
Basket Material
Stamped Metal
Cone Material
IMPP - with MICA
Damper
Cotton
Diaphragm Material
Cellulose fiber - Midrange,Polyethylene terephthalate (PET) - Tweeter
Magnet Material
Ferrite - Speaker,Ferrite - Midrange
Magnet Weight
5.4 oz - Speaker,0.7 oz - Midrange
Surround Material
Rubber Coated Cloth
Surround Type
Rolled
Voice Coil Bobbin
Kapton
Voice Coil wire
Copper
Wire Terminals
Lug Type
