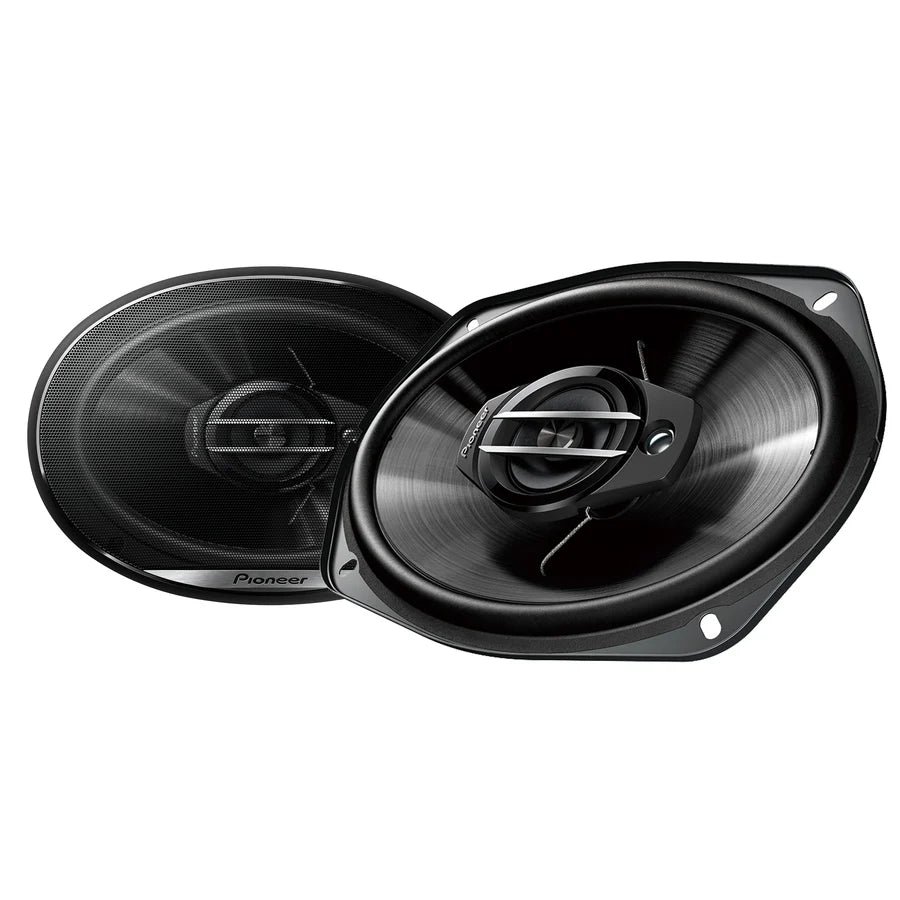

Pioneer TS-G6930F

AFFORDABLE & RELIABLE OEM SPEAKER REPLACEMENT

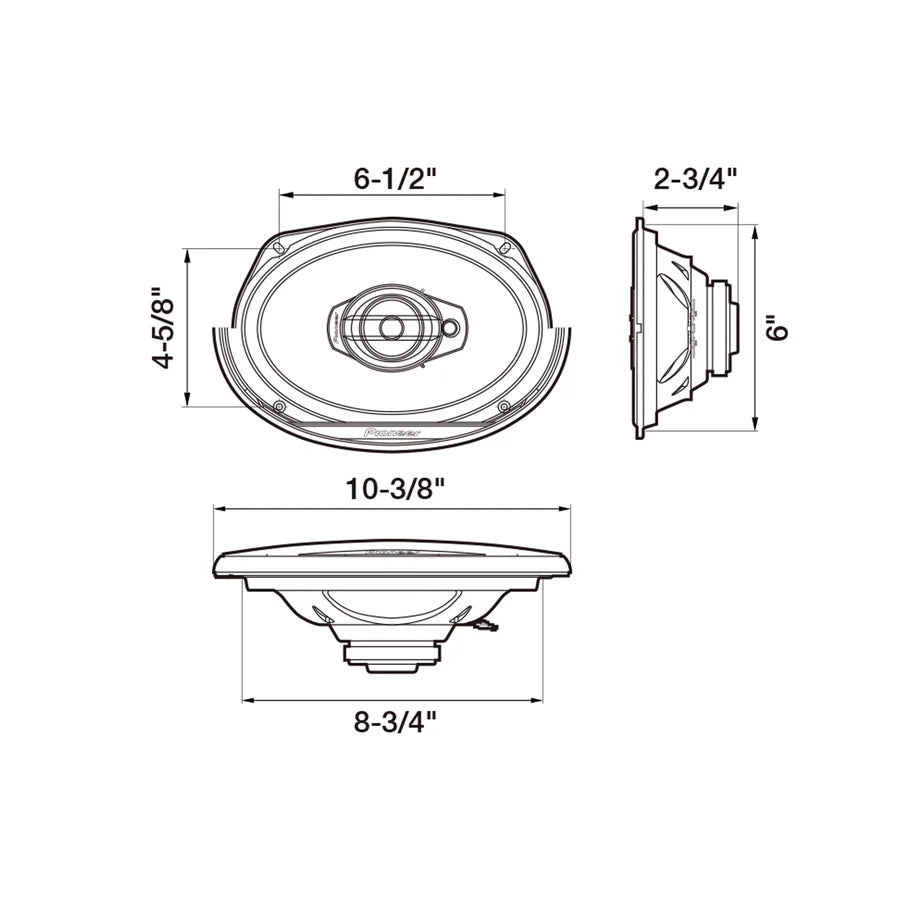

These speakers are excellent choices for replacing a bad set of factory speakers. Their two-way design features Pioneer's extremely strong and lightweight Injected Molded Polypropylene (IMPP™) with a MICA composite cone woofer for improved sensitivity and reduced distortion. You don't just get basic, run-of-the-mill features either. The Conex damper delivers higher power handling and deeper bass, while the balanced dome tweeter reproduces highs with great performance and musicality. These speakers are designed with a shallow mounting depth for easy installation.

MICA REINFORCED IMPP™ CONE

An extremely rigid yet lightweight cone is essential to avoid cone failure and distortion under high power. Pioneer's IMPP™ composite cones meet this need perfectly. To further improve this rigidity-to-weight ratio, Pioneer uses an advanced process that integrates different materials, such as mica, which resonate at different frequencies, creating a perfectly balanced cone across the entire bandwidth.

CELLULOSE FIBER MIDRANGE WITH (PET) HARD DOME TWEETER

The stable electrical and mechanical properties over a wide frequency range, as well as the strength-to-weight ratio of these materials, make them perfect for the high-frequency vibrations of the dome. We have also carefully designed these components with a front diffuser to help maintain a perfect audio balance during the transition from on-axis to off-axis listening. This allows for a more balanced sound source between the different audio points in the car.

PIONEER EXCLUSIVE PFSS SPIDER

The Progressive Flex Suspension System (PFSS) effectively supports the voice coil by damping cone vibrations and improving the linearity of sound reproduction. Its soft part ensures smooth movement and clear sound even under high power, while its firmer part controls excessive vibrations and prevents unwanted movements that cause distortion. The goal is simple: to provide all the details of your music while maintaining control during the large excursions generated by the bass.

• 400 Watts Max. Power / 45 Watts Nominal Power
• 6” x 9” Mica reinforced IMPP™ cone
• 1-7/8" (48mm) cellulose fiber cone midrange
• 11mm (PET) hard dome tweeter
• Frequency range: 32 Hz to 32 kHz
• Speaker Impedance: 4 ohms
• Speaker Efficiency: 90 dB (1W/1M)
• Patented Pioneer PFSS Spider
