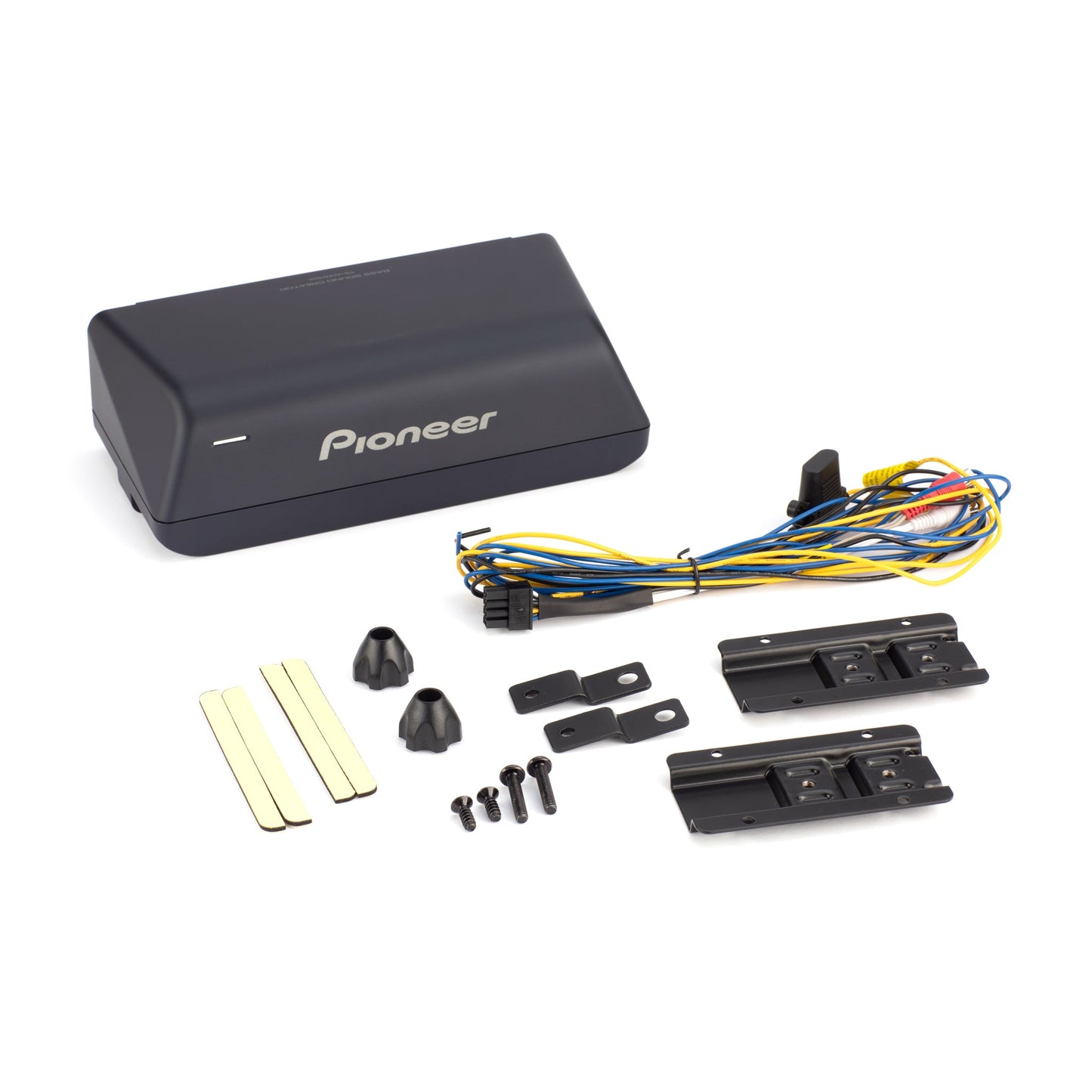

Pioneer TS-WX010A

EASY INSTALLATION

This speaker is particularly compact, allowing for installation in a wide range of vehicle applications. While the unit is primarily designed for the passenger side footwell, its small size and high output power may make you want to use it in other applications as well.

ULTRA-LOW CURRENT CONSUMPTION

The TS-WX010A features built-in high-efficiency Class-D amplification, offering an ultra-low average current consumption of only 4.2 amps (max). This allows the unit to be installed without the need for heavy-gauge wires to power the internal amplification. In fact, this current consumption is so low that this amplified subwoofer is the ideal solution for adding bass to music in an electric vehicle.

NO RCAS, NO PROBLEM!

With the included RCA (low-voltage) input and speaker line (high-voltage) input cables, you can start your setup right out of the box. Designed for easy integration, this powered subwoofer makes installation easy, whether or not your source unit has pre-outs.

VERTICAL OR HORIZONTAL INSTALLATION

The compact dimensions of the TS-WX010A allows installation inside the passenger compartment of most vehicles, providing the potential to integrate acoustically with the vehicle’s full range speakers and seamlessly enhance both output and overall sound quality. With installation options that include vertical or horizontal mounting, the TS-WX010A is optimized for installation in the passenger side footwell, where its small size affords the ability to be attached near the underside of the dashboard or the center console. Warning: This product must never be installed anywhere in the driver area or elsewhere in the vehicle where it might interfere with its safe operation or impair the performance of operating systems or safety features, including air bags, controls and indicators (lights). Appropriate installation locations will depend on the vehicle model including, specific to hybrid and electric vehicles, the location of the vehicle battery and battery charging system, and where the TS-WX010A can be attached securely.

CARSOUNDFIT

Pioneer’s Car Sound Fit app is actually a car sound simulator for experiencing in-car sound with your own smartphone. Hear the difference between original car speakers and different Pioneer audio upgrades: convince yourself of the level of quality Pioneer can offer for your vehicle. For a virtual listening demonstration of these and many other Pioneer car speakers, download the free Pioneer CarSoundFit app.

• Built-in 160 W (Max.) Class D amplifier
• Low current consumption: 4.2 amps (Max.)
• 6.625" x 3.125" Aluminum Rectangular cone
• Speaker Efficiency: 98 dB (pass. side footwell)
• Built-in cross-over : 50 Hz to 125 Hz @ 12dB/Oct.
• Built-in phase control: 0-180deg.
• Adjustable Gain Control
• Box dimensions (WxHxD) : 9.0" (230mm) x 2.75" (70mm) x 4.625" (116mm)
