Pioneer TS-WX140DA

EASY INSTALLATION

This speaker is particularly compact, allowing for installation in a wide range of vehicle applications. While it is primarily designed for under-seat use, its small size and high output power may make you want to use it in other applications as well.

ULTRA-LOW CURRENT CONSUMPTION

The TS-WX140DA features built-in high-efficiency Class-D amplification, offering an ultra-low average current consumption of only 4.3 amps (max). This allows the unit to be installed without the need for heavy-gauge wires to power the internal amplification. In fact, this current consumption is so low that this amplified subwoofer is the ideal solution for adding bass to music in an electric vehicle.

NO RCAS, NO PROBLEM!

With the included RCA (low-voltage) input and speaker line (high-voltage) input cables, you can start your setup right out of the box. Designed for easy integration, this powered subwoofer makes installation easy, whether or not your source unit has pre-outs.

SMALL SIZE, BIG DELIVERIES!

This amplified subwoofer features a built-in, high-quality, low-distortion Class D amplifier, specifically designed to work in partnership with the high-sensitivity woofers. The built-in DSP optimizes the output. Don’t be fooled by its small size; it’s surprisingly powerful!

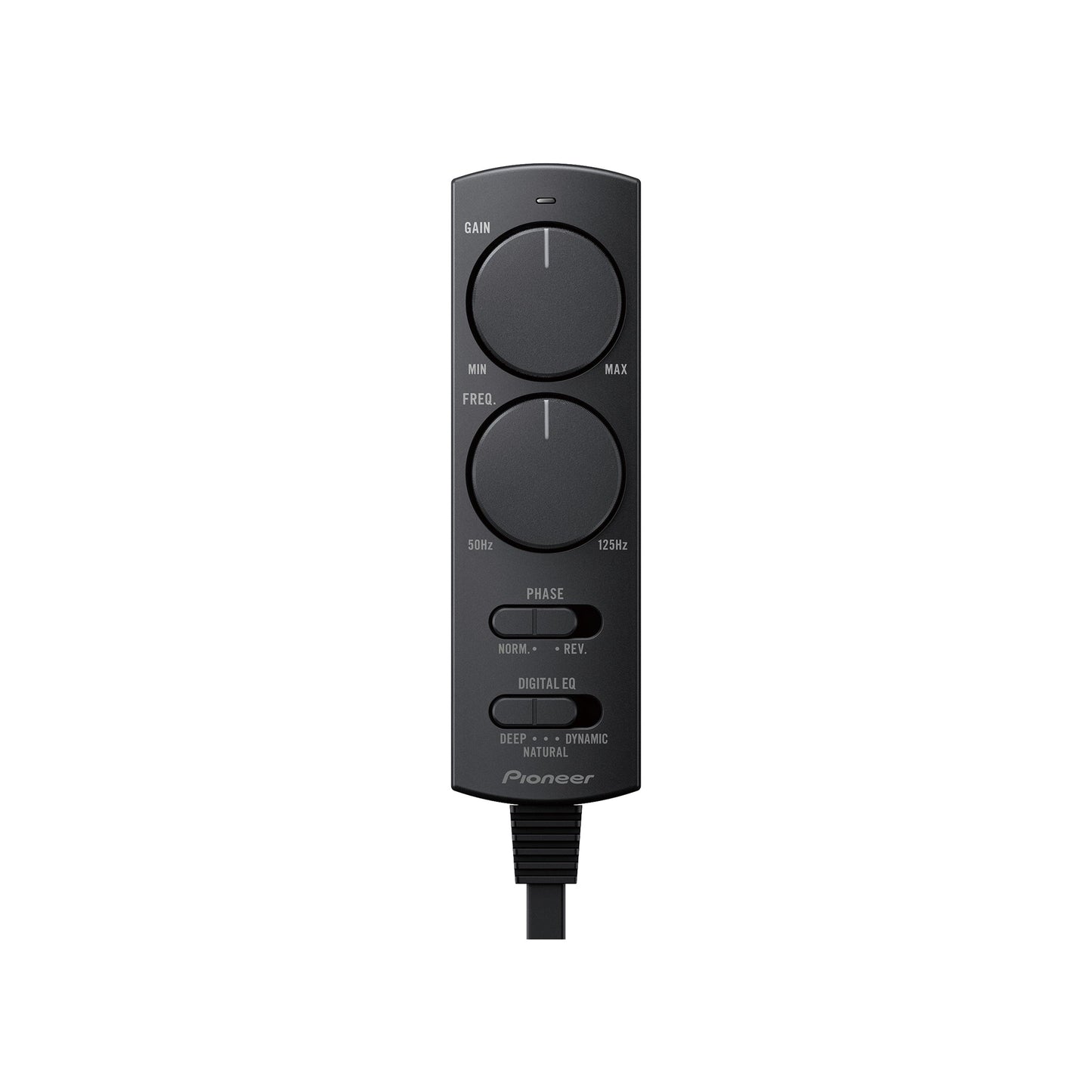

Since this powered subwoofer has a built-in DSP, we have designed a cable remote control to give you all the control required to fine-tune the sound according to your acoustic preferences. You can adjust the volume, bass cut-off frequencies, phase selection, and even choose a DSP mode. DEEP Mode achieves rich, deep bass sound quality in the car; NATURAL Mode provides clean, lifelike bass; and DYNAMIC Mode emphasizes powerful, strong, and dynamic bass sound in the car.

HONEYCOMB STRUCTURE

The TS-WX140DA main chassis is designed with an optimized honeycomb structure, making the shallow and compact composite body more rigid and reducing mechanical vibrations. The result is cleaner bass output with lower distortion, even at high volume levels.

CARSOUNDFIT APP

Pioneer's Car Sound Fit app is a car sound simulator that lets you experience what your car could sound like using your own smartphone. You'll be able to hear the difference between stock speakers and Pioneer's various audio options, and see how the quality of Pioneer speakers can enhance your in-car experience. For a virtual listening demo of these and many other Pioneer car speakers, download the free Pioneer CarSoundFit app.

• Built-in 170 W (Max.) Class D amplifier
• 8" x 5.25" Aluminum Rectangular cone
• Speaker Efficiency: 95dB to 100 dB (in-car with 2V input)
• Built-in cross-over : 50 Hz to 125 Hz @ 12dB/Oct.
• Bass Modes (DSP) : Deep / Natural / Dynamic mode
• Wired Bass Remote Control (included)
• Volume, cross-over, bass modes, phase control from the remote
• Box dimensions (WxHxD) : 11.75" (299mm) x 2.75" (70mm) x 7.785" (200mm)
