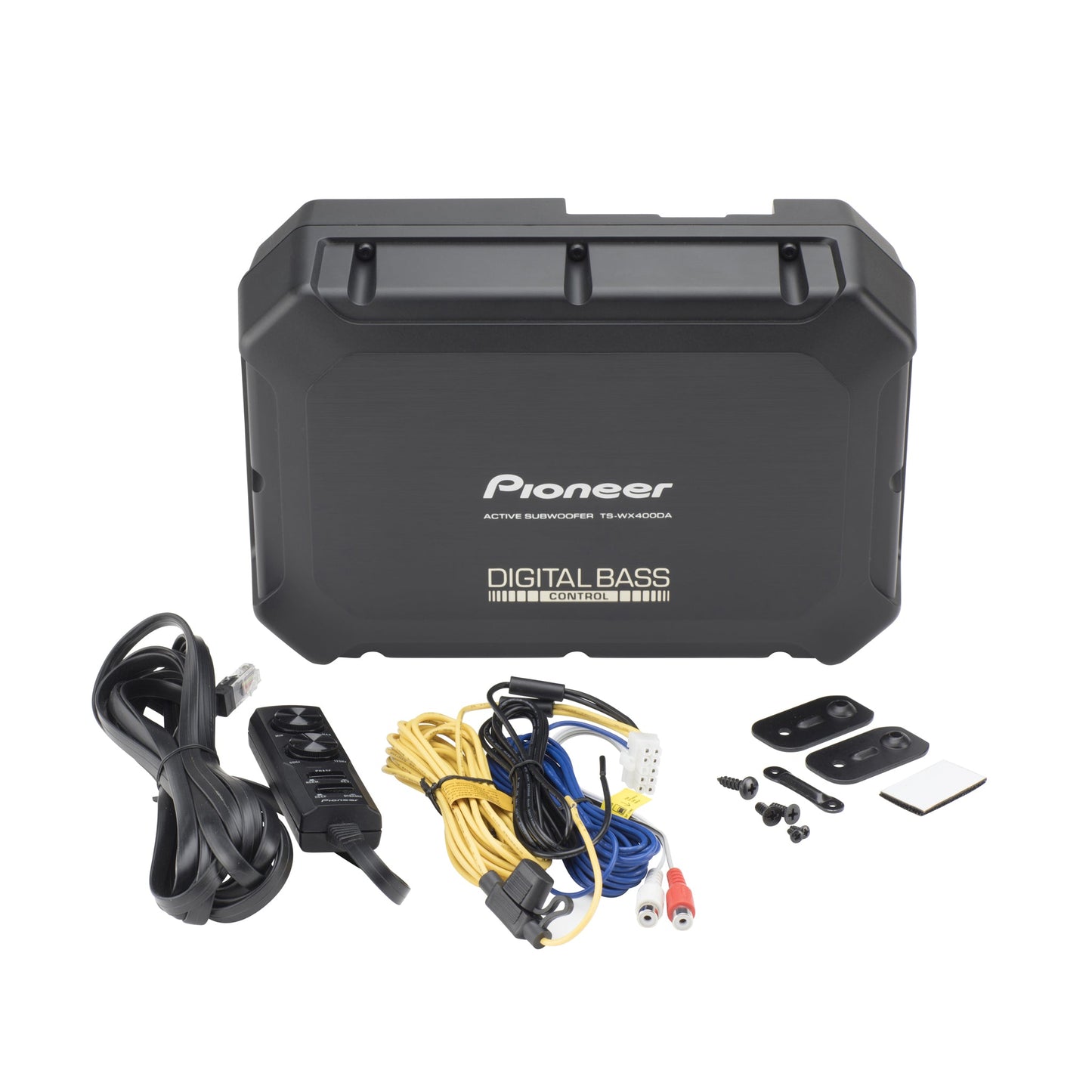

Pioneer TS-WX400DA

EASY INSTALLATION

This speaker is particularly compact, allowing for installation in a wide range of vehicle applications. While it is primarily designed for under-seat use, its small size and high output power may make you want to use it in other applications as well.

LOW CURRENT CONSUMPTION

The TS-WX400DA features built-in high-efficiency Class-D amplification, offering a low average current consumption of only 9.4 amps (max). This allows the unit to be installed without the need for heavy-gauge wires to power the internal amplification.

NO RCAS, NO PROBLEM!

With the included RCA (low-voltage) input and speaker line (high-voltage) input cables, you can start your setup right out of the box. Designed for easy integration, this powered subwoofer makes installation easy, whether or not your source unit has pre-outs.

SMALL SIZE, BIG DELIVERIES!

This amplified subwoofer features a built-in, high-quality, low-distortion Class D amplifier, specifically designed to work in partnership with the high-sensitivity woofers. The built-in DSP optimizes the output. Don’t be fooled by its small size; it’s surprisingly powerful!

Since this powered subwoofer has a built-in DSP, we have designed a cable remote control to give you all the control required to fine-tune the sound according to your acoustic preferences. You can adjust the volume, bass cut-off frequencies, phase selection, and even choose a DSP mode. DEEP Mode achieves rich, deep bass sound quality in the car; NATURAL Mode provides clean, lifelike bass; and DYNAMIC Mode emphasizes powerful, strong, and dynamic bass sound in the car.

CARSOUNDFIT

Pioneer’s Car Sound Fit app is actually a car sound simulator for experiencing in-car sound with your own smartphone. Hear the difference between original car speakers and different Pioneer audio upgrades: convince yourself of the level of quality Pioneer can offer for your vehicle. For a virtual listening demonstration of these and many other Pioneer car speakers, download the free Pioneer CarSoundFit app.

• Built-in 250 W Max (100 W RMS) Class D amplifier
• 9" x 5.5" Rectangular cone (8" effective surface area)
• Speaker Efficiency: 100 dB (in-car with 2V input)
• Built-in cross-over : 50 Hz to 125 Hz @ 12dB/Oct.
• Bass Modes (DSP) : Deep & Dynamic mode
• Wired Bass Remote Control (included)
• Volume, cross-over, bass modes, phase control from the remote
• Box dimensions (WxHxD) : 11.75" (300mm) x 3.785" (100mm) x 7.785" (200mm)
