Rockford Fosgate 1130-72997-01

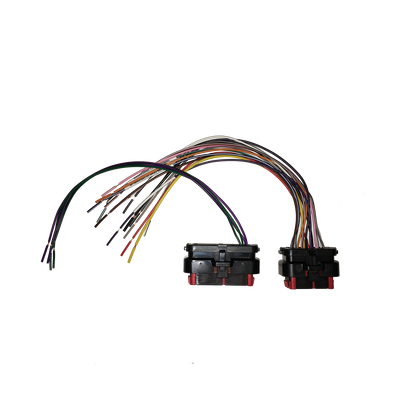

Replacement harnesses to operate the PMX-HD9813 source unit.  To be used for dealer displays or for installations where the factory Harley-Davidson® harnesses have been cut off or damaged beyond repair.

The SMALL connector harness contains power, ground, ACC, illumination, and front speaker outputs. The LARGE connector harness contains rear speaker outputs.  Harnesses are sold as a pair. We are providing these replacement harnesses for instances such as:

- Dealers with product demo displays.
- Customers with aftermarket radios where the OEM plug(s) have been cut-off.
- Customers adding rear speakers to a motortcycle that did not have rear speakers.

The PMX-HD9813 source unit utilizes the factory wiring and therefore wiring harnesses are not supplied.

POWER
B+ (12v) Yellow
Switched (+12v) Red
Ground (-) Black

FRONT SPEAKERS
LEFT (+) White
LEFT (-) White/Black
RIGHT (+) Grey
RIGHT (-) Grey/Black

REAR SPEAKERS
LEFT (+) Green
LEFT (-) Green/Black
RIGHT (+) Purple
RIGHT (-) Purple/Black

Features:

• Sold in pairs (2 each)
• Replacement harnesses for PMX-HD9813
• Moisture-proof seals

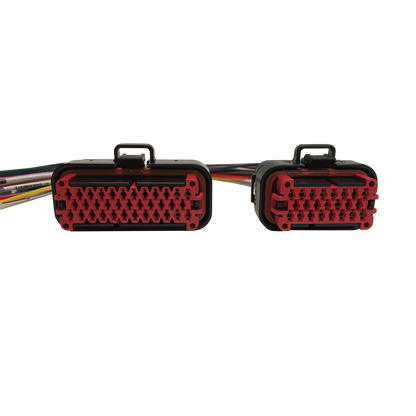

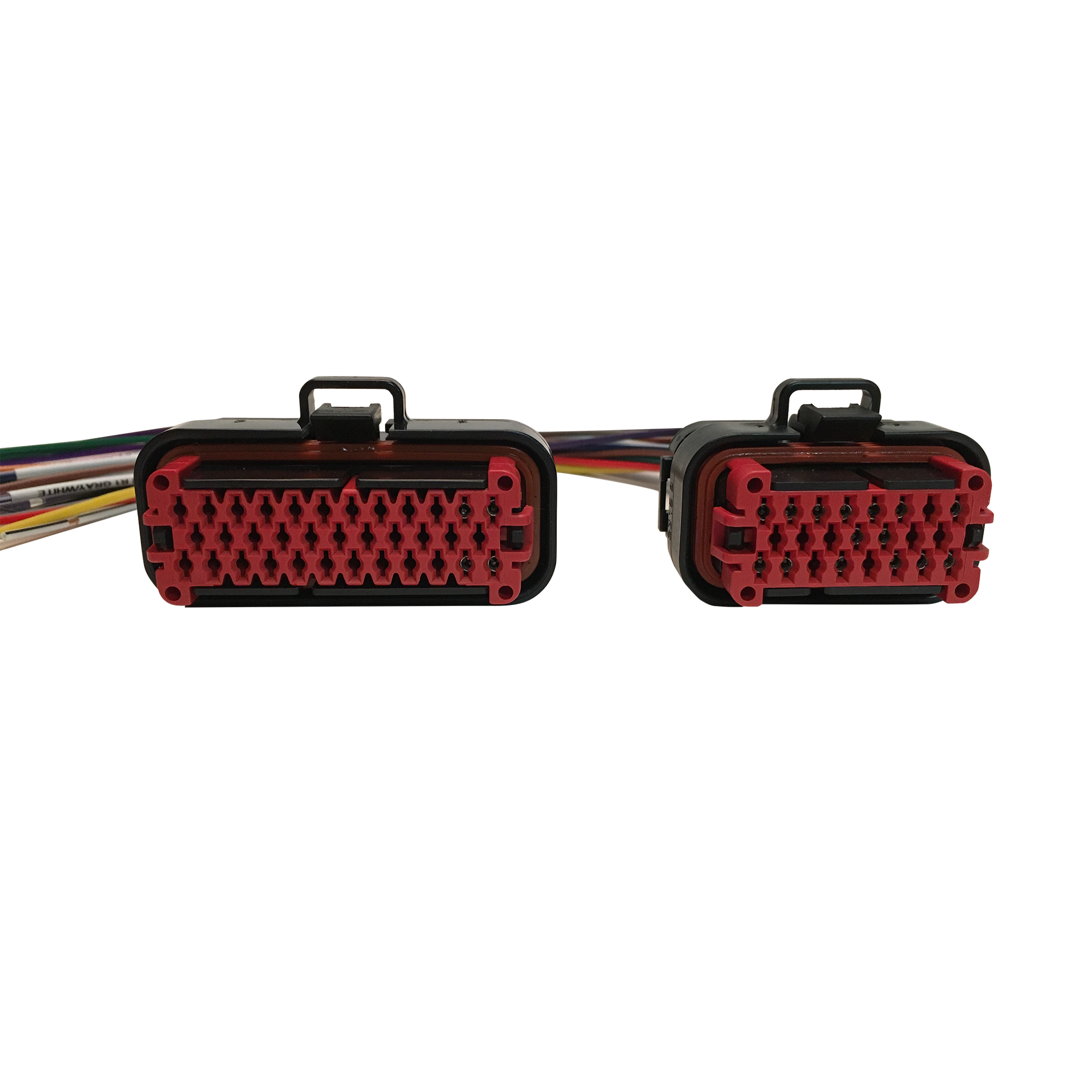

• Supplied with 23-pin harness (power & front speakers)
• Supplied with 35-pin harness (rear speakers)
• Harley-Davidson compatible connectors
