1 5

Rockford Fosgate

Rockford Fosgate M1D2-10B

Rockford Fosgate M1D2-10B

In stock

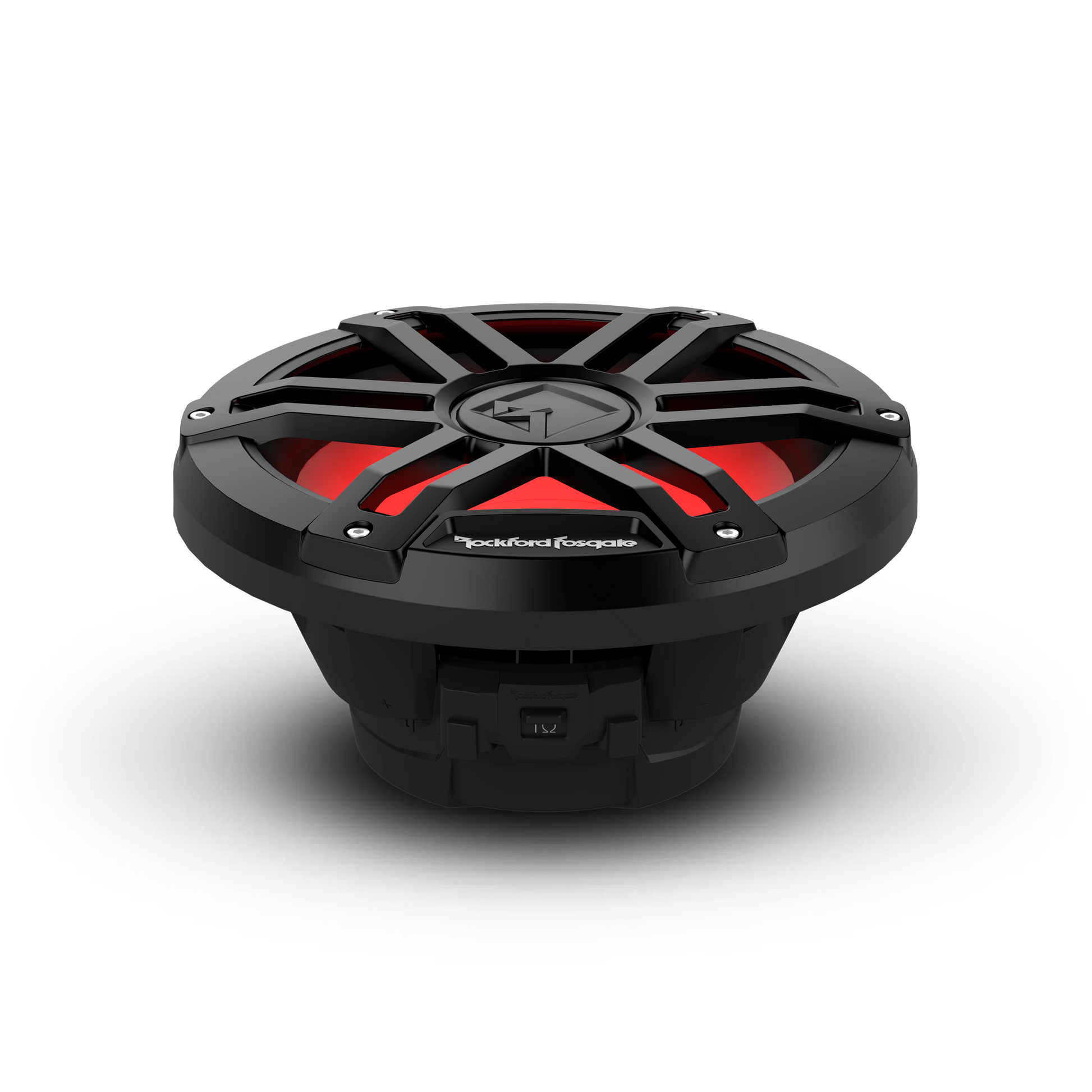

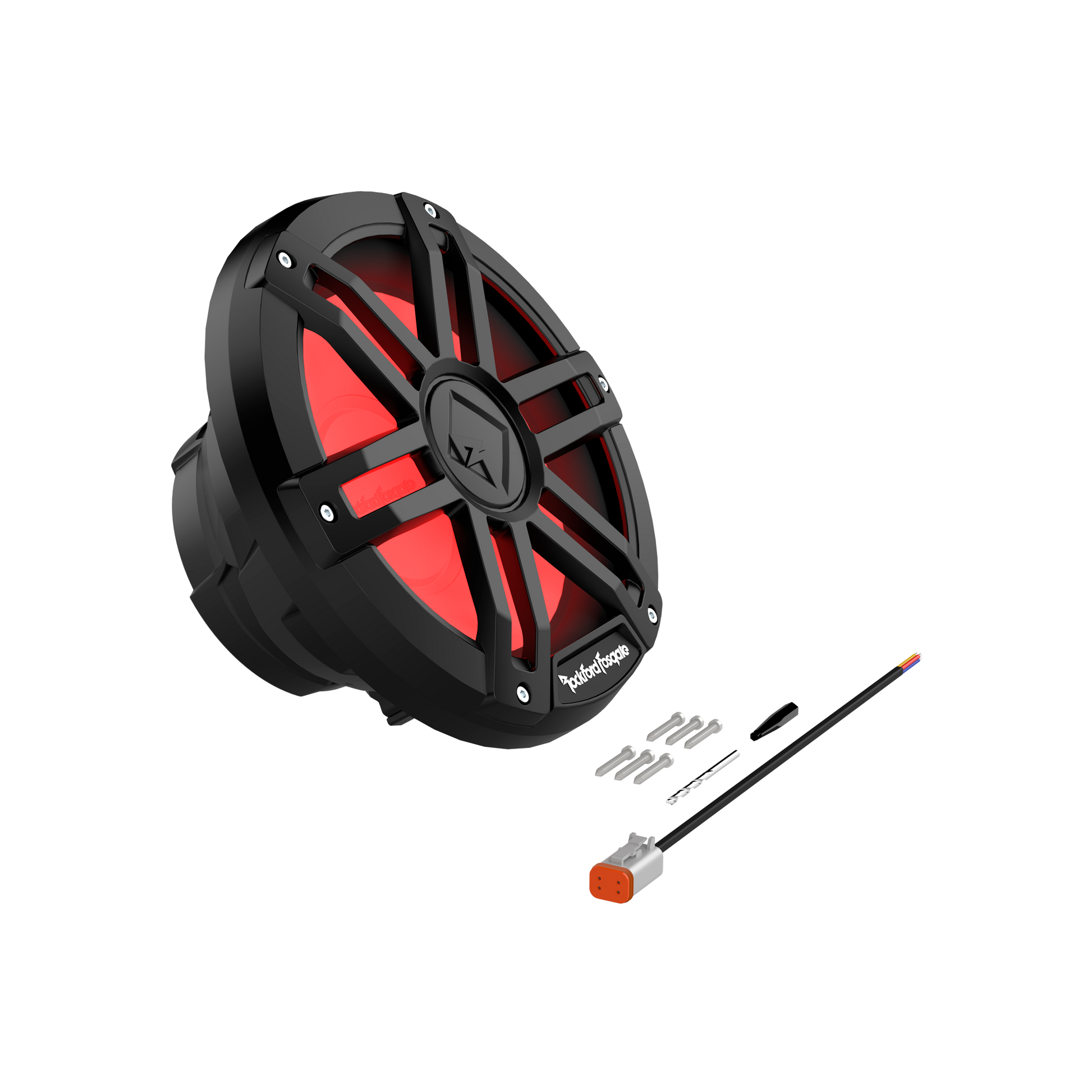

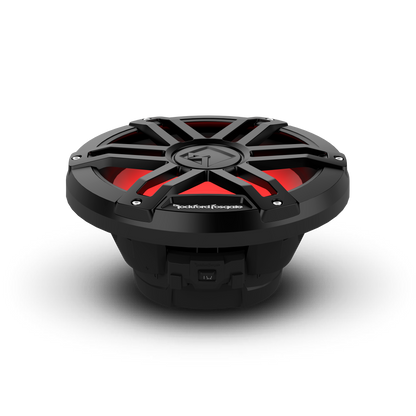

M1 10" DVC 2Ω Color Optix™ Marine Subwoofer - Black

  • New Launch
$219.99
$219.99
Save: $-219.99 (% Off)*
Sale Sold out
Shipping calculated at checkout.
  • Free shipping Over $99
Sold in last hours
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
  • Fast, FREE Delivery

    Free, Fast, Doorstep Delight!

  • Delivery & Returns

    Effortless Delivery, Easy Returns

View full details
  • Overview
  • Details
  • Accessories

The M1D2-10B Color Optix™ 10” DVC 2-Ohm subwoofers deliver loud, clear, accurate bass, and light the way for your journey! The subwoofers connect with the Rockford Fosgate Color Optix™ Controller and RF Connect App, allowing you to customize your own color patterns. The Element Ready™ design and IPX6 certification makes them truly purpose-built for marine or motorsport applications where protection from damaging UV rays and water spray is essential.

The M1 series of Element Ready™ subwoofers are designed to pair with the Rockford Fosgate Color Optix™ Controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. This combined with their IP67 certification make these speakers Element Ready™ and truly purpose built for marine applications. To compliment the plug and play connectivity and streamline installation, M1 subwoofers are equipped with a VersaSwitch™ to make changing impedance between 1 and 4 ohms as easy as flipping a switch.

Requires ColorOptix™ (PMX-RGB) controller to change LED color functions.

Features:

  • Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
  • Optically clear UV stable RGB Lighting Encapsulation
  • 2" (50mm) High Temp Kapton™ Woofer Voice Coil Former
  • 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
  • Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
  • Fully insulated silicone tinsel leads
  • Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof
  • 2-Year Warranty
  • Co-molded surround and mineral filled polypropylene cone body
  • Zinc Nickel-plated Marine grade brass connection terminals
  • Linear Synthetic Fiber Blend Spiders
  • Santoprene VAST Surround
  • Injection molded mineral filled polypropylene cone body with UV inhibitors
  • Vented motor design with water-repelling nano coated mesh screen
  • VAST vertical attach surround technique increases effective radiating cone area up to 25%
  • VERSA impedance switch quickly allows series or parallel configuration without additional wiring

Specifications:

Size 10"
Voice Coil Type Dual Voice Coil
Frequency Response 20 Hz - 750 Hz
Nominal Impedance (Ohms) 1-Ohm or 4-Ohm Switchable
Power Handling (Watts RMS) 300 Watts RMS
Power Handling (Peak) 1200 Watts PEAK
Voice Coil Diameter 2.0" (50 mm)
Magnet Weight 47.70 oz. (1.35 Kg)
Fs (Hz) 34
Re (Ohms) 3.7
Le (mH) 2.22
Sd (cm²) 394.1
Qms 7.80
Qes 0.47
Qts 0.44
Vas (Liters) 44.2
Xmax (mm) 7.0
SPL (dB @ 1w/1m) 91.5 dB
Woofer Displacement 0.10 cu. ft. (2.80 Liters)
Speaker Connector Deutsch™
Cutout Diameter 8.90 in. (226 mm)
Mounting Depth 4.23 in. (107.4 mm)
Shipping Weight 8.6 Lbs. (3.9 Kg)
