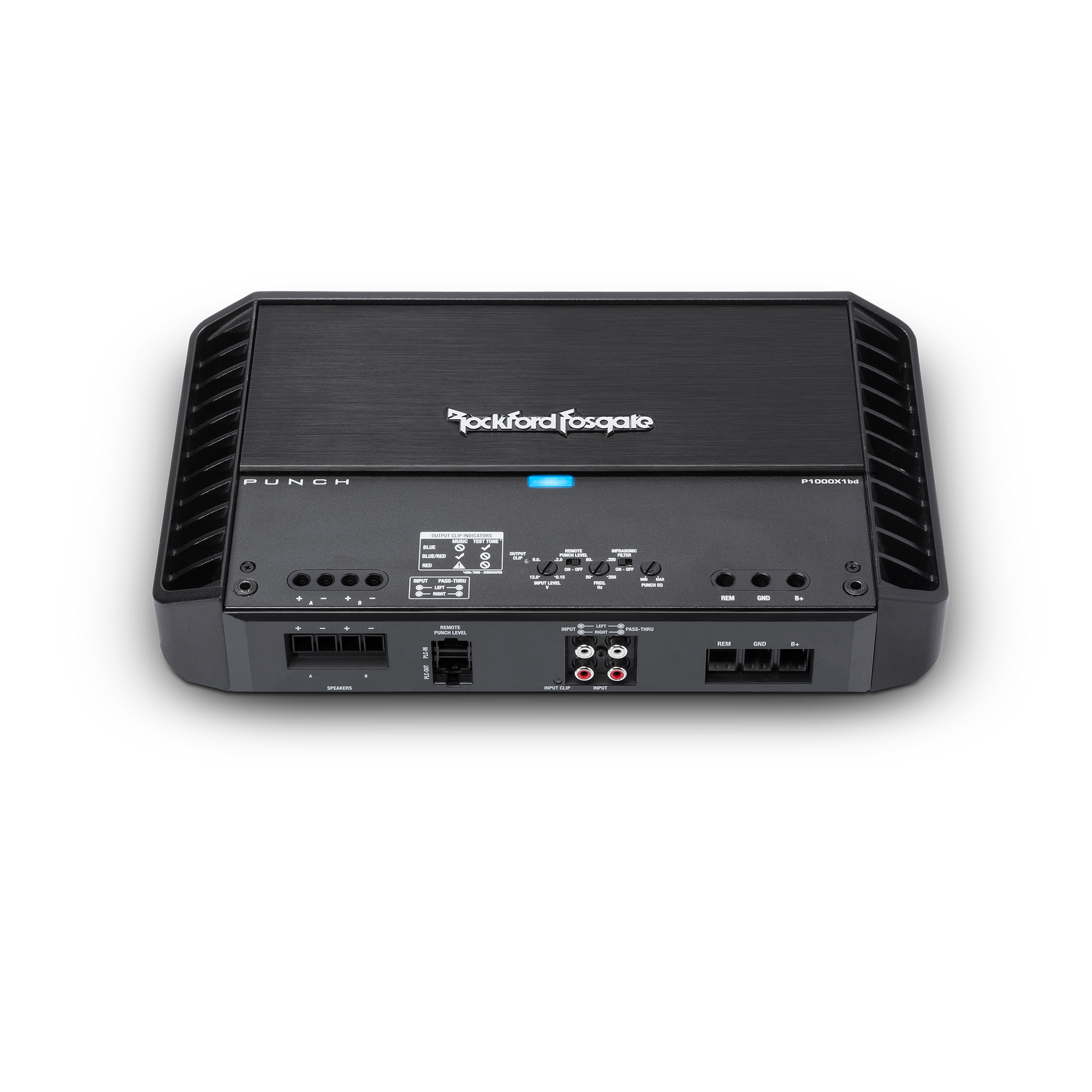

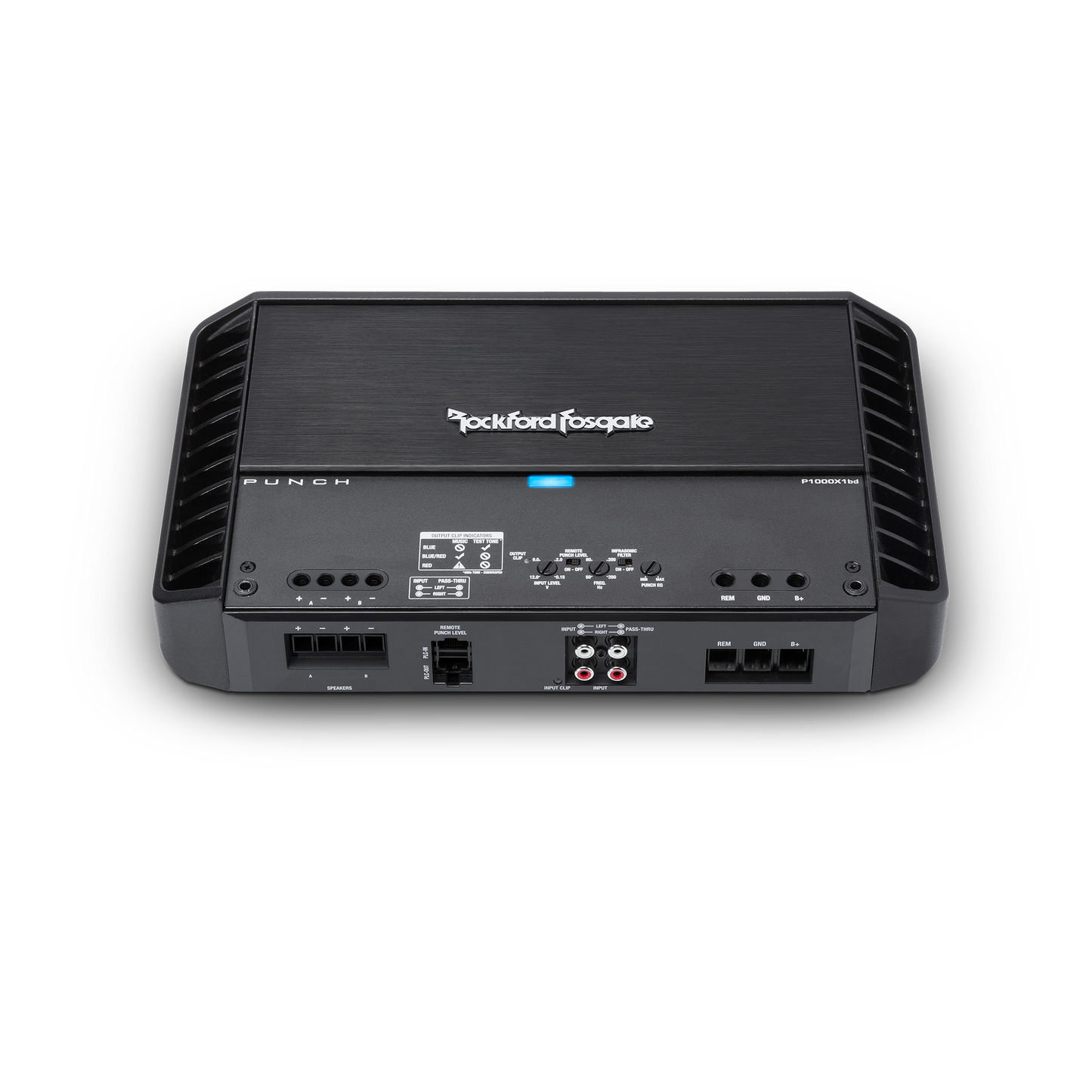

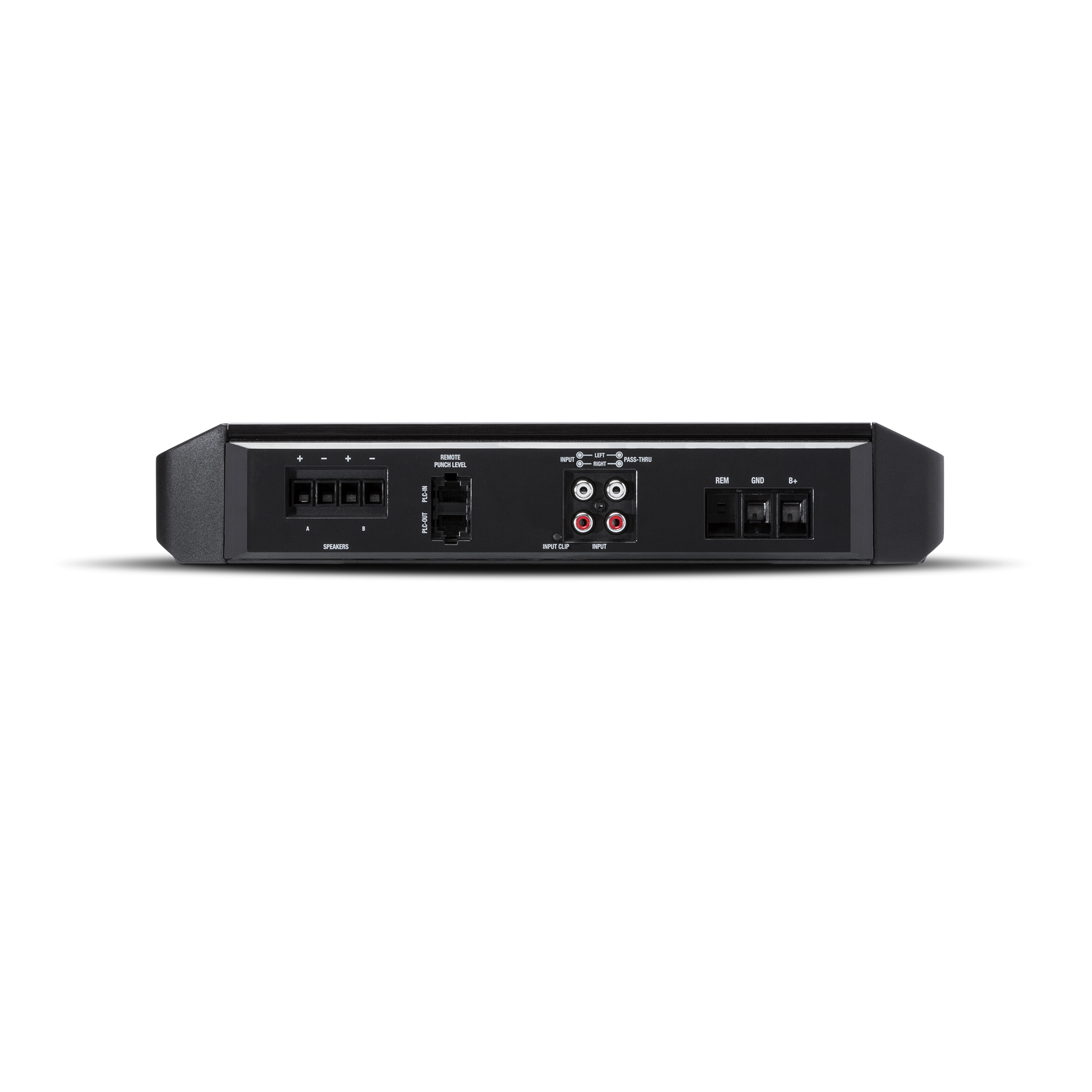

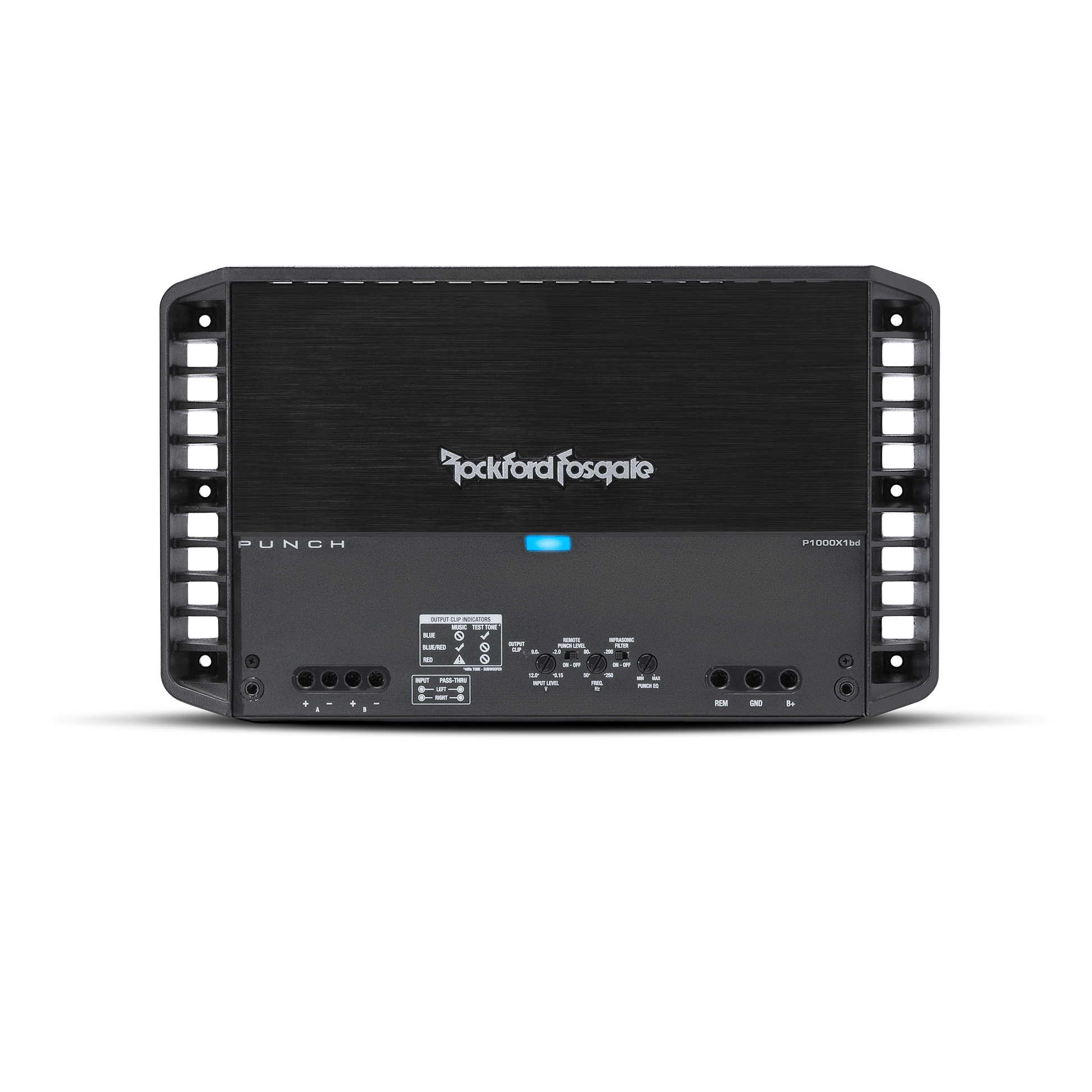

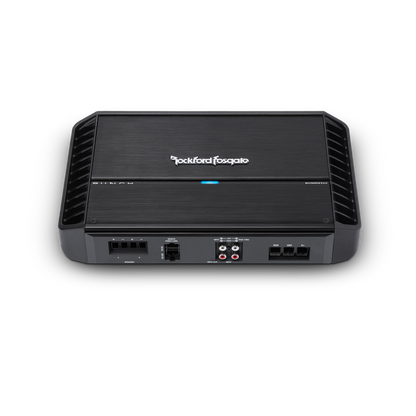

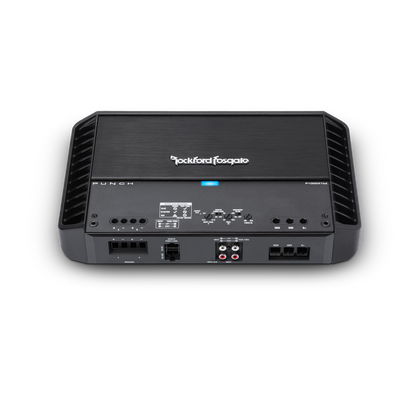

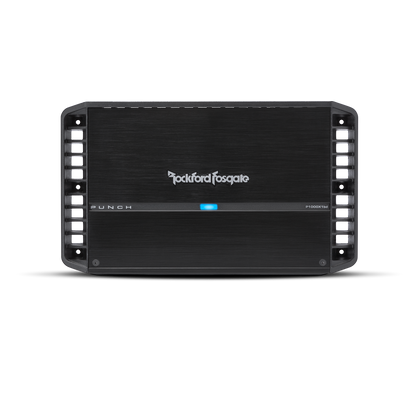

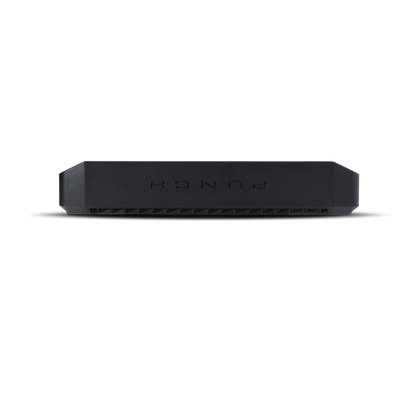

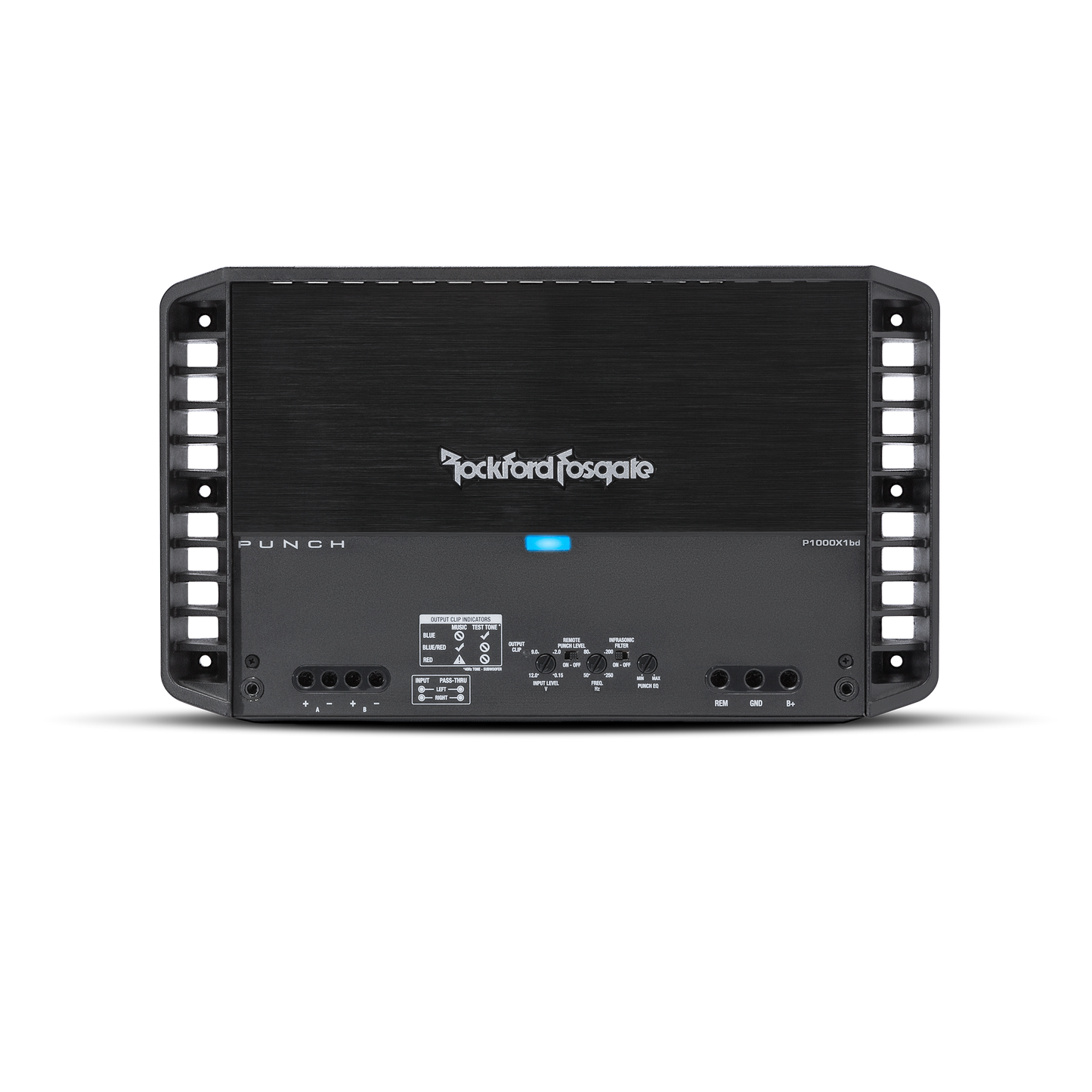

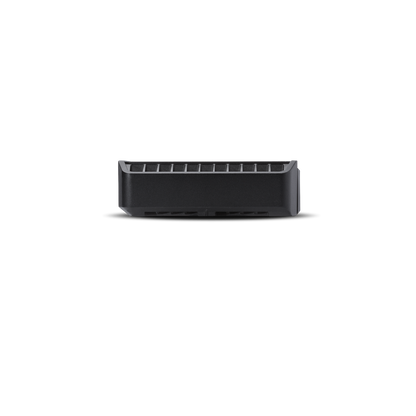

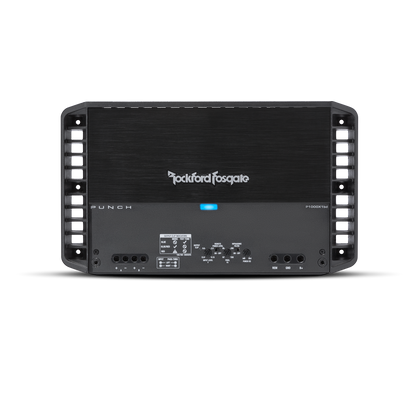

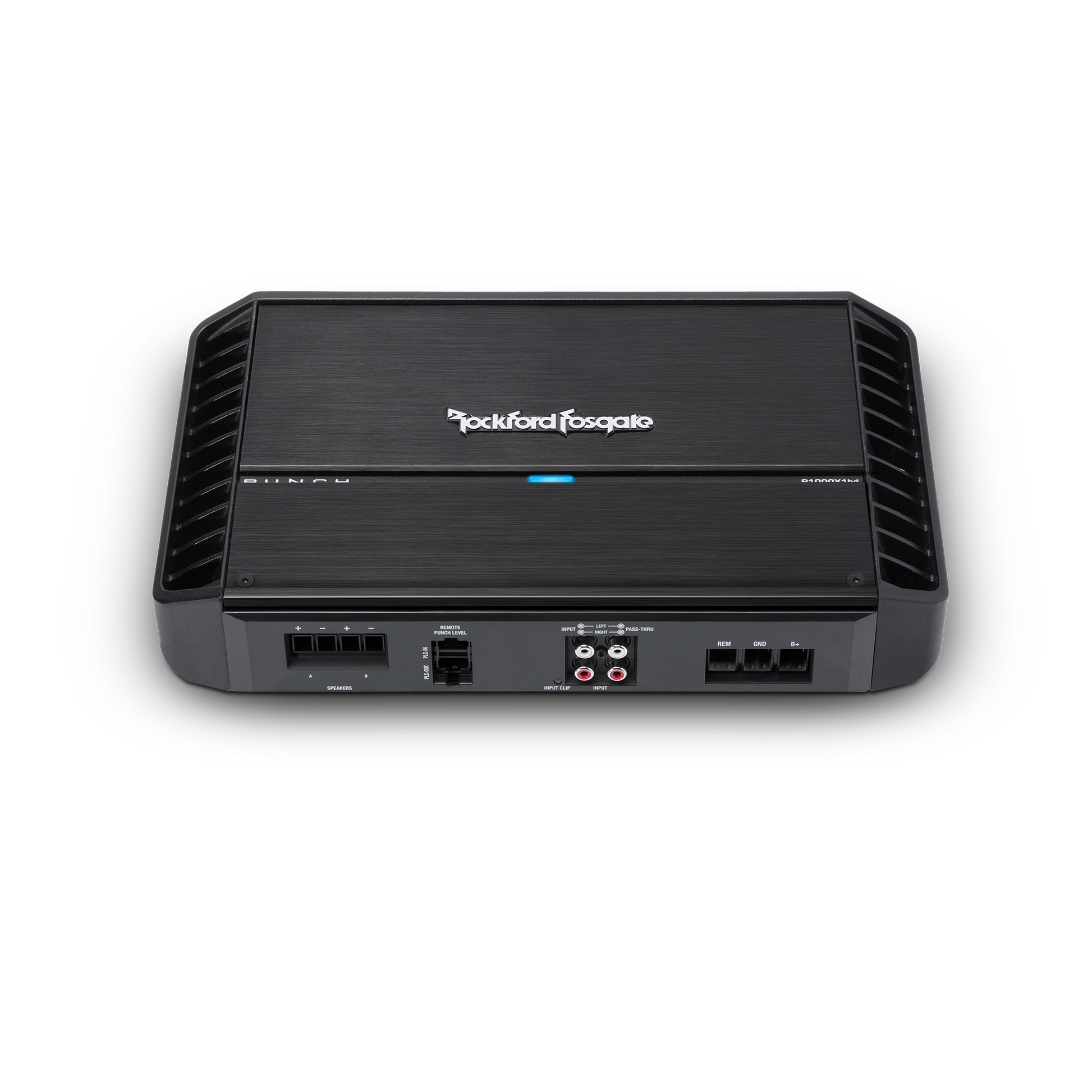

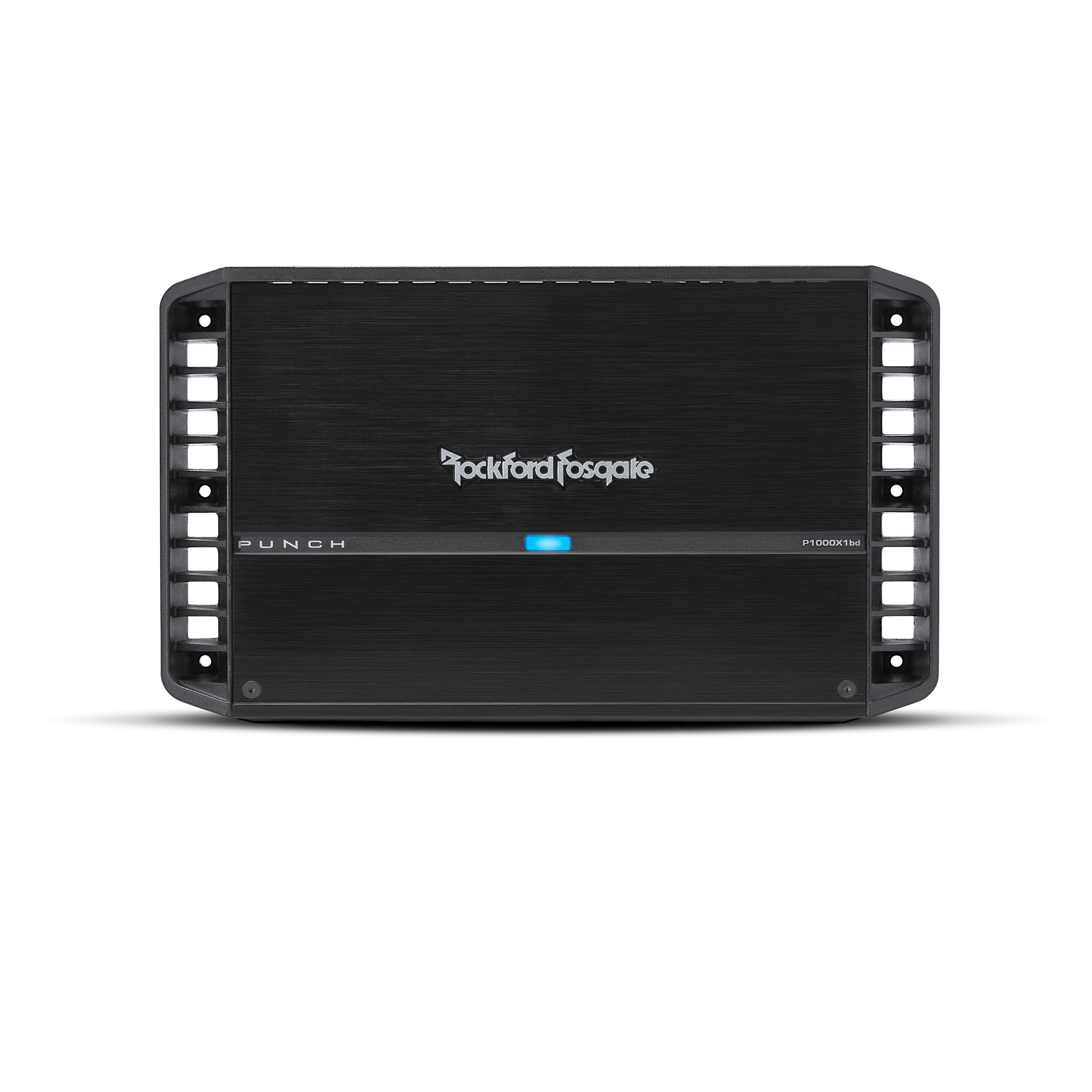

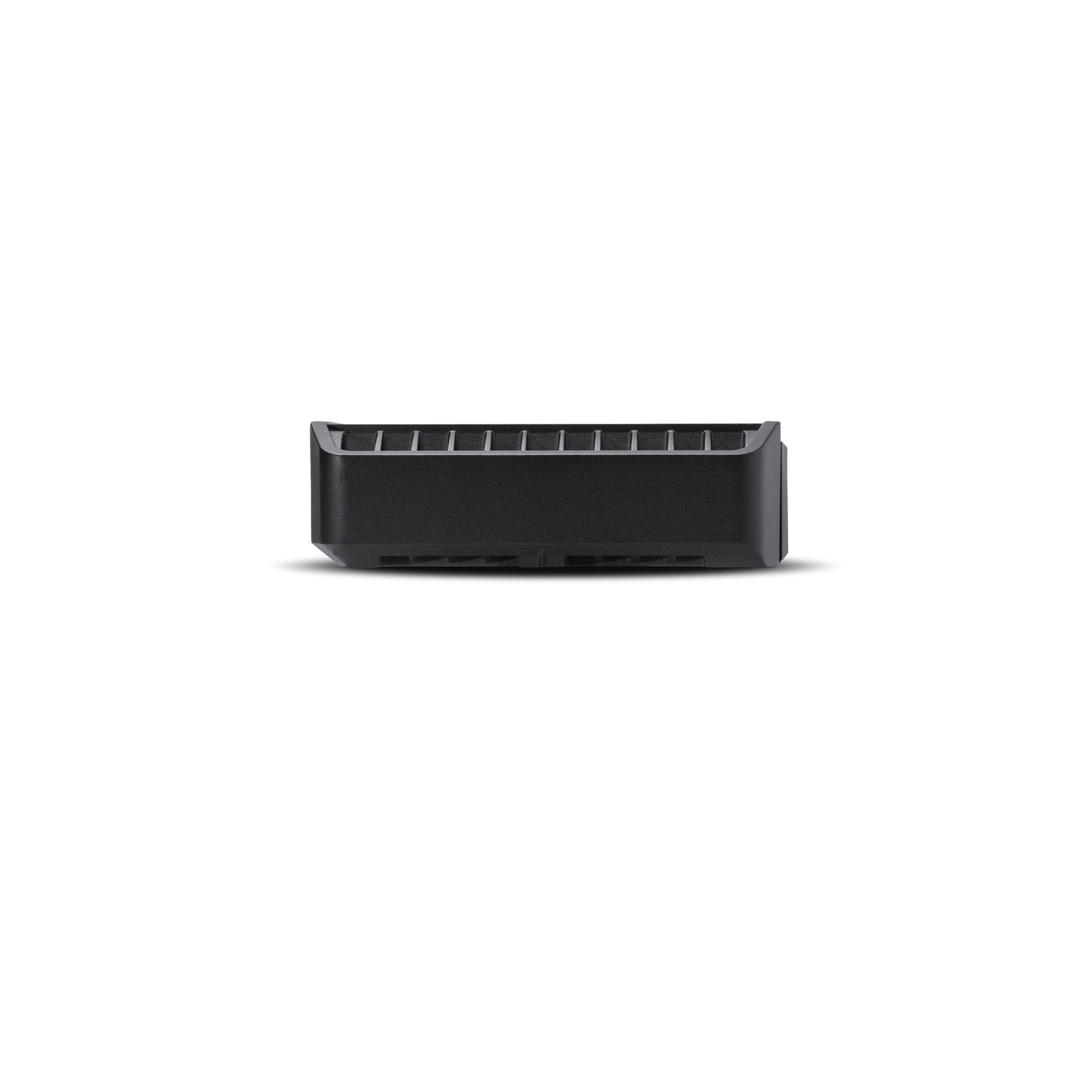

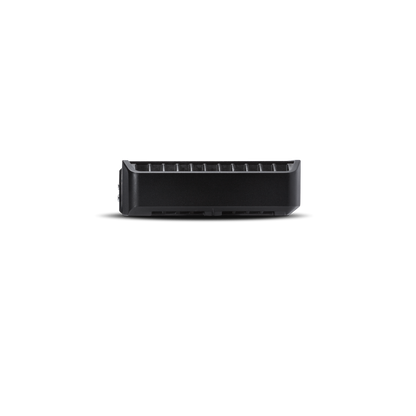

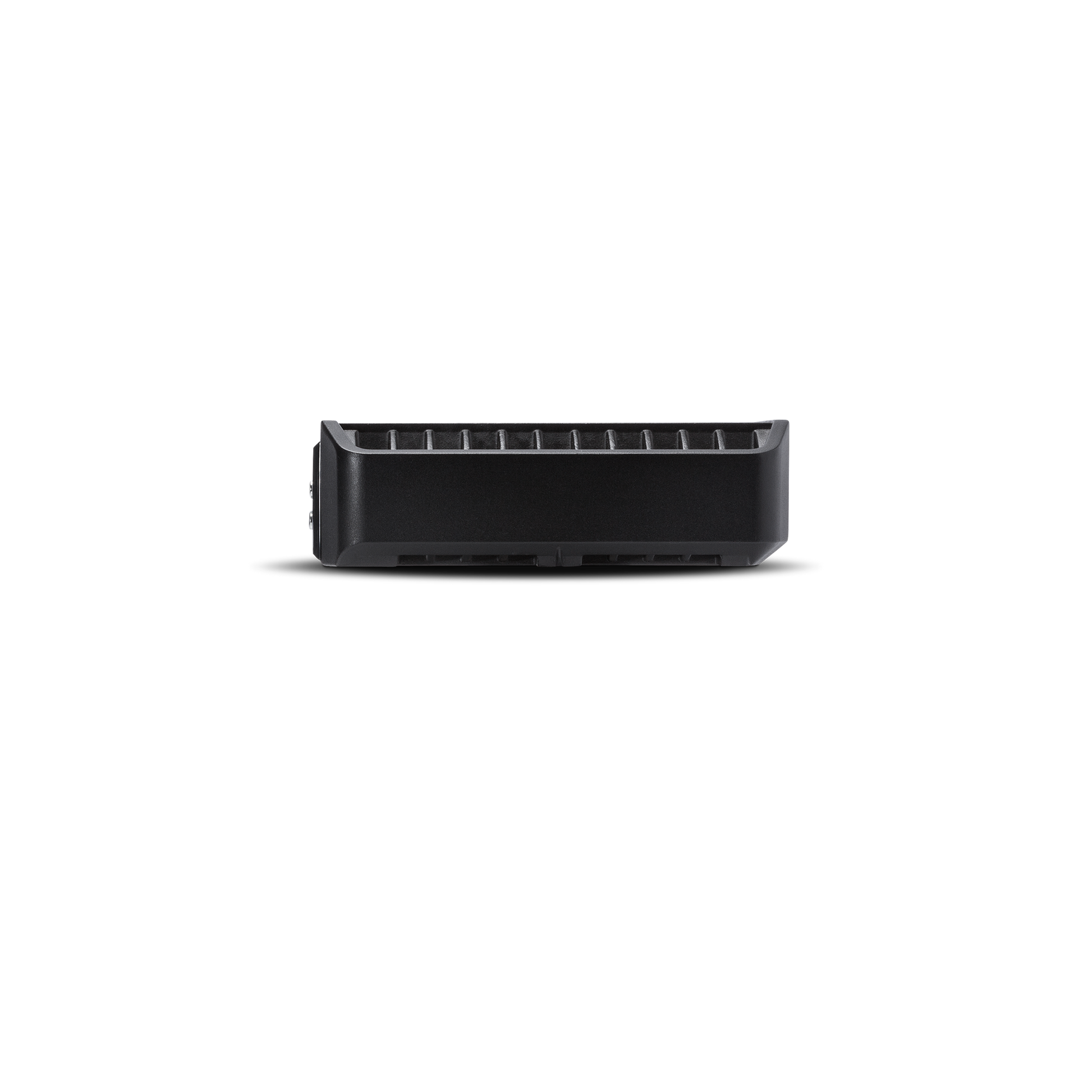

The Punch P1000X1bd mono amplifier pumps out 1,000 Watts into a 1-Ohm load. The Class-BD technology produces bass more efficiently over traditional amps, and its frequency response is optimized for subwoofers.
With its super efficient Class-BD circuit topology, the P1000X1bd assures maximum BOOM for your buck! Due to its dedicated low frequency response, this amplifier is optimized for mid-bass speakers or subwoofers only. No need to worry because its 1-ohm capability will drive a pair of 4-ohm DVC subwoofers or quad-configuration of 2-ohm DVC subwoofers with ease.
With its super efficient Class-BD circuit topology, the P1000X1bd assures maximum BOOM for your buck! Due to its dedicated low frequency response, this amplifier is optimized for mid-bass speakers or subwoofers only. No need to worry because its 1-ohm capability will drive a pair of 4-ohm DVC subwoofers or quad-configuration of 2-ohm DVC subwoofers with ease.
| Category | Specification |
|---|---|
| Compliance | CTA-2006 Compliant |
| Number of Channels | 1 |
| Total Power (Sum of Rated Power) | 1000 Watts |
| Rated Power (RMS Continuous Power) | 300 Watts x 1 @ 4-Ohm 500 Watts x 1 @ 2-Ohm 1000 Watts x 1 @ 1-Ohm |
| Dynamic Power (PVC/PowerCube®) | 491 Watts x 1 @ 4-Ohms 874 Watts x 1 @ 2-Ohms 1,430 Watts x 1 @ 1-Ohm |
| Bridgeable | No |
| Frequency Response | 20Hz to 250Hz +/- 1.0dB |
| Input Sensitivity | 150 mV - 12 V |
| Circuit Topology Class | Class BD |
| Efficiency (average) | 86% @ 4-Ohm |
| Total Harmonic Distortion (THD+Noise) | 4-Ohm: <1.0% 2-Ohm: <1.0% 1-Ohm: <1.0% |
| Signal Input | Hi/Low level: 1 RCA pair |
| Signal Output | Hi/Low level: 1 RCA pair |
| Tone Controls | Punch EQ2 Bass: 0dB to +18dB @ 45Hz |
| Crossover Controls | Low-Pass (LP): 50-250Hz @ 12dB/octave Butterworth Infrasonic Filter (IF): 28Hz @ 12dB/Octave Butterworth All-Pass: No |
| Remote Controls | Optional Punch Level Control (PLC2) Ready |
| Visual Indicators | Power/Protect/Thermal LED Input Clip LED3 Output Clip LED1,2,3 |
| LED Color Legend | 1 BLUE: <0.5% THD 2 VIOLET: 1% THD 3 RED: 10%+ THD |
| Power Wire Gauge | 4 AWG |
| Power Input Connector | Captive C-Clamp |
| Speaker Wire Gauge | 8 AWG to 18 AWG |
| Speaker Output Connector | Captive C-Clamp |
| Cooling | Convection Heatsink |
| Operating Voltage | 9 - 16 VDC |
| Recommended Fuse (not included) | 140 A |
| Average Current Draw (13.8V Music) | 65 A |
| Max. Current Draw (13.8V Sinewave) | 130 A |
| Suggested Alternator | 100 A |
| Included In The Box | - |
| Dimensions (H x W x D) | 2.38 x 7.76 x 13.28 (in) 6.05 x 19.71 x 33.73 (cm) |
| Shipping Weight | 12.9 Lbs. (5.85 Kg.) |
