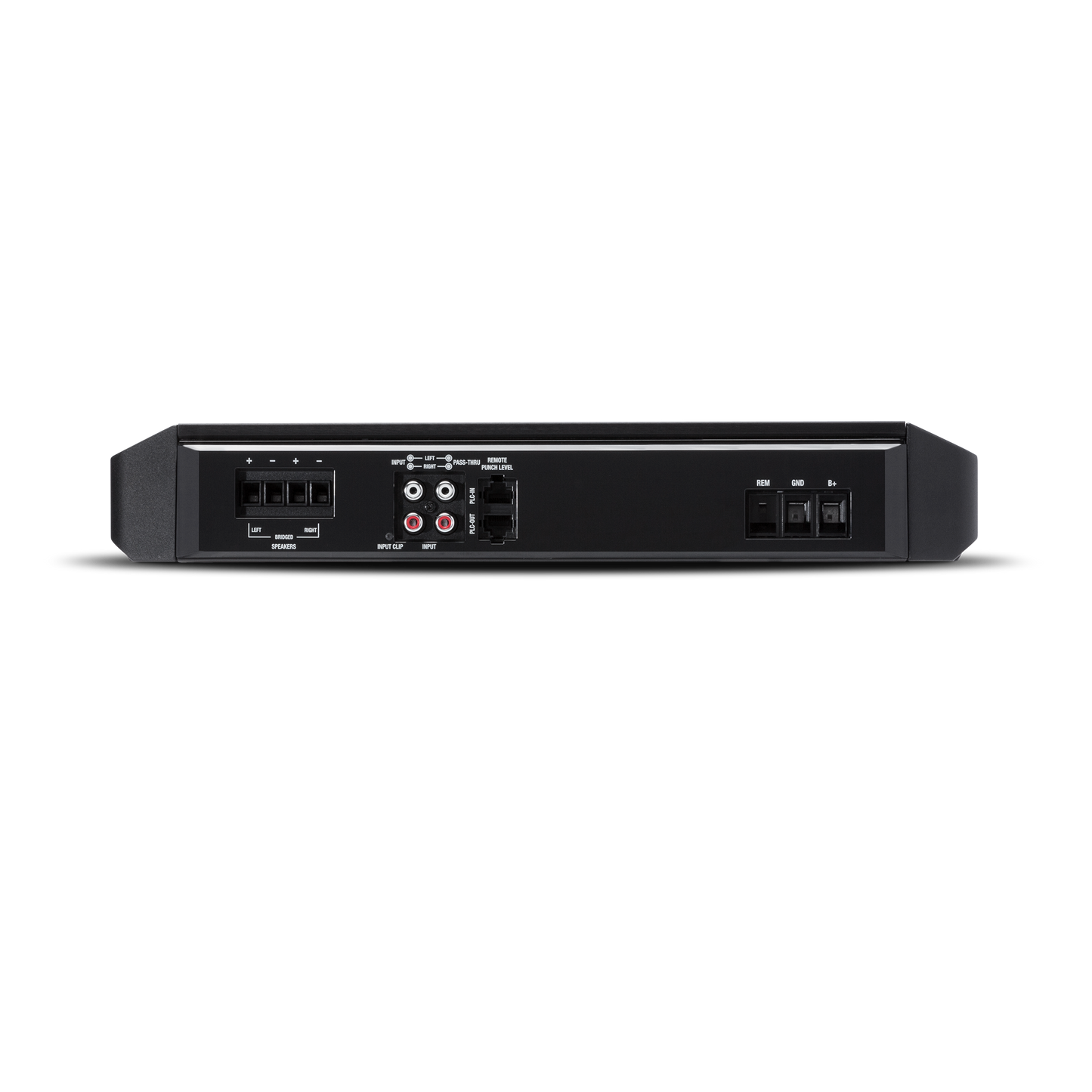

The Punch P1000X2 is a 2-channel stereo amplifier capable of producing 500 Watts into each channel at 2-Ohms. The P1000X2 amplifier is great with full-range or component systems or can be bridged for use with several subwoofers.
The P1000X2 is an excellent way to PUNCH up your sound system without monopolizing your entire trunk - that way you have more room for subs! With its massive output stage, this amplifier is best suited for driving a pair of 8-ohm SVC subwoofers or four 2-ohm DVC subwoofers. Remember to utilize the recommended power and speaker cables to optimize power delivery.
| CTA-2006 Compliant | Yes |
| Number of Channels | 2 |
| Total Power (Sum of Rated Power) | 1000 Watts RMS |
| Rated Power (RMS Continuous Power) | 300 Watts x 2 @ 4-Ohm 500 Watts x 2 @ 2-Ohm 1000 Watts x 1 @ 4-Ohm Bridged |
| Dynamic Power (PVC/PowerCube®) | 401 Watts x 2 @ 4-Ohms 0° Res 656 Watts x 2 @ 2-Ohms 0° Res |
| Bridgeable | Yes |
| Frequency Response | 20Hz to 20kHz +/- 1.0dB |
| Input Sensitivity | 150 mV - 12 V |
| Circuit Topology Class | Class A/B |
| Efficiency (average) | 69% @ 4-Ohm 64% @ 2-Ohm |
| Total Harmonic Distortion (THD+Noise) | 4-Ohm: <1.0% 2-Ohm: <1.0% |
| Signal Input | Hi/Low level: 1 RCA pair |
| Signal Output | Low level: 1 RCA pair |
| Tone Controls | Punch EQ2 Bass: 0dB to +18dB @ 45Hz Punch EQ2 Treble: 0dB to +12dB @ 12.5kHz Function depends upon LP/AP/HP switch position |
| Crossover Controls | High-Pass/Low-Pass (HP/LP): 50Hz-250Hz 12dB/octave Butterworth |
| Remote Controls | Optional Punch Level Control (PLC2) Ready |
| Visual Indicators | Power/Protect/Thermal LED Input Clip LED3 Output Clip LED1,2,3 |
| LED Color Legend | 1BLUE: <0.5% THD 2VIOLET: 1% THD 3RED: 10%+ THD |
| Power Wire Gauge | 4 AWG |
| Power Input Connector | Captive C-Clamp |
| Speaker Wire Gauge | 8 AWG to 18 AWG |
| Speaker Output Connector | Captive C-Clamp |
| Cooling | Convection |
| Heatsink | Yes |
| Operating Voltage | 9 - 16 VDC |
| Recommended Fuse (not included) | 140 A |
| Average Current Draw (13.8V Music) | 70 A |
| Max. Current Draw (13.8V Sinewave) | 140 A |
| Suggested Alternator | 100 A |
| Included In The Box | Yes |
| Dimensions (H x W x D) | 2.38 x 7.76 x 15.03 (in) 6.05 x 19.71 x 38.18 (cm) |
| Shipping Weight | 15 Lbs. (6.80 Kg.) |
