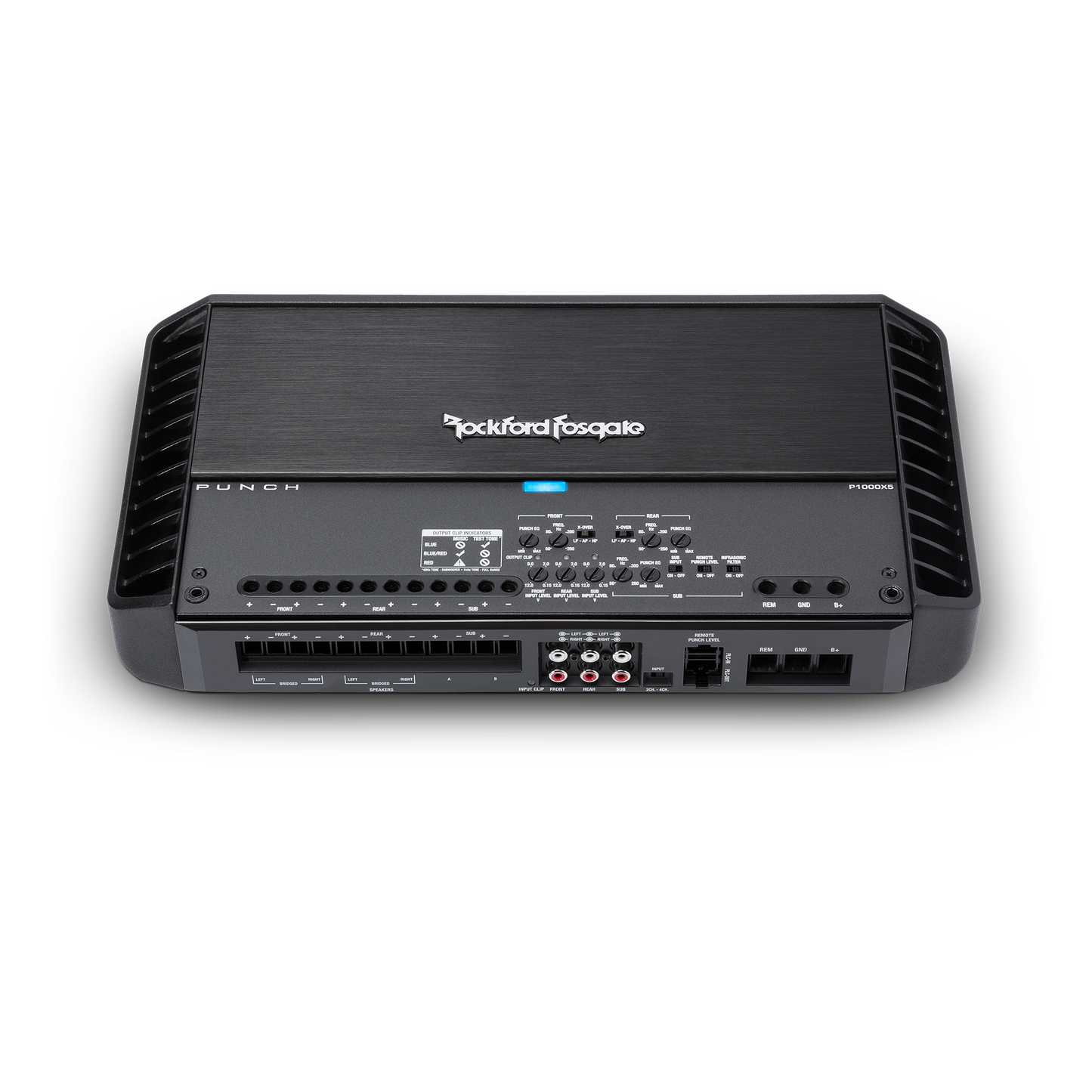

The Punch P1000X5 is an ultra-efficient 5-channel amplifier capable of running your entire system without excessive drain on your charging system. The P1000X5 is perfect for running a front/rear system and a dedicated subwoofer.
The P1000X5 1,000 Watt full-range 5-channel is the one-and-only amplifier you will need to run your entire system. Run dash speakers off the front channels, run back speakers off the rear channels and run subwoofer(s) off the 5th channel! Known world-wide for brute power, this amplifier offers a higher level of efficiency along with a tri-stage protection that covers thermal, over-current and short circuits.
| CTA-2006 Compliant | Yes |
| Number of Channels | 5 |
| Total Power (Sum of Rated Power) | 1000 Watts |
| Rated Power (RMS Continuous Power) | 75 Watts x 4 + 150 Watts x 1 @ 4Ω 125 Watts x 4 + 300 Watts x 1 @ 2Ω N/A Watts x 4 + 500 Watts x 1 @ 1Ω 250 Watts x 2 + N/A Watts x 1 @ 4Ω Bridged |
| Dynamic Power (PVC/PowerCube®) | 115 Watts x 4 + 299 Watts x 1 @ 4Ω 0° Res 190 Watts x 4 + 540 Watts x 1 @ 2Ω 0° Res N/A Watts x 4 + 863 Watts x 1 @ 1Ω 0° Res 380 Watts x 2 + N/A Watts x 1 @ 4Ω Bridged 0° Res |
| Bridgeable | Yes (front/rear channels) |
| Frequency Response | Front/Rear: 20Hz - 20kHz +/-3dB Sub: 20Hz - 500Hz +/-3dB |
| Input Sensitivity | 150 mV - 12 V |
| Circuit Topology Class | Class A/B + Class BD (Sub) |
| Efficiency (average) | Front/Rear: 66% @ 4-Ohm Sub Channel: 80% @ 4-Ohm |
| Total Harmonic Distortion (THD+Noise) | <1.0% |
| Signal Input | Input Switch: Hi/Low level input Input Switch: 2/4 channel input Hi/Low Level: 3 RCA Pair Sub: front/sub input switch |
| Signal Output | - |
| Tone Controls | Sub: 0dB to +18dB @ 45Hz |
| Crossover Controls | Front: 50Hz - 250Hz High-Pass @ 12dB/Octave Rear: 50Hz - 250Hz High-Pass @ 12dB/Octave Sub: 50Hz - 250Hz Low-Pass Sub: 28Hz infrasonic filter @ 12dB/Octave |
| Remote Controls | Optional Punch Level Control (PLC2) Ready |
| Visual Indicators | Power/Protect/Thermal LED Input Clip LED3 Output Clip LED1,2,3 |
| LED Color Legend | 1BLUE: <0.5% THD 2VIOLET: 1% THD 3RED: 10%+ THD |
| Power Wire Gauge | 4 AWG |
| Power Input Connector | Block |
| Speaker Wire Gauge | 12 AWG |
| Speaker Output Connector | Block |
| Cooling | Convection |
| Heatsink | Yes |
| Operating Voltage | 9 - 16 VDC |
| Recommended Fuse (not included) | 150 A |
| Average Current Draw (13.8V Music) | 75 A |
| Max. Current Draw (13.8V Sinewave) | 150 A |
| Suggested Alternator | 100 A |
| Included In The Box | Yes |
| Dimensions (H x W x D) | 2.38 x 7.76 x 15.03 (in) 6.05 x 19.71 x 38.18 (cm) |
| Shipping Weight | 15.3 Lbs. (6.93 Kg.) |
