Rockford Fosgate

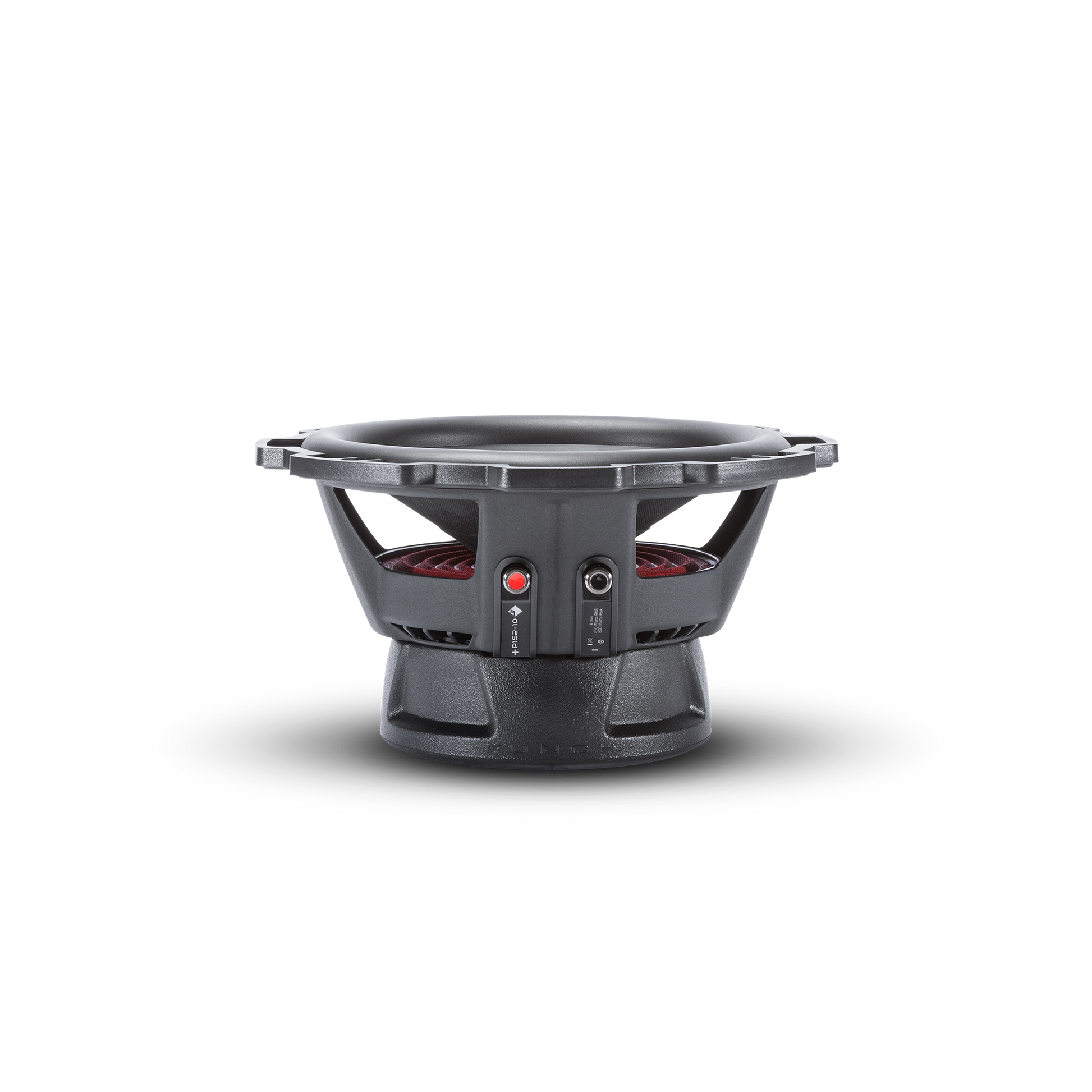

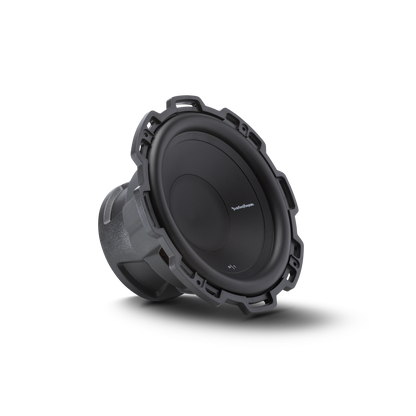

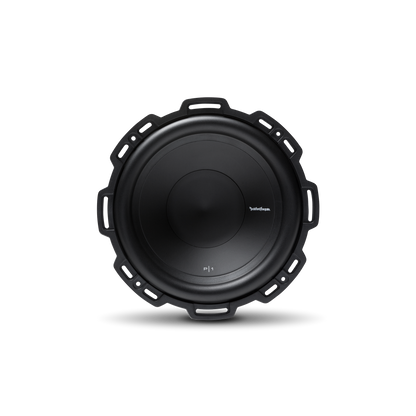

Rockford Fosgate P1S2-10

Rockford Fosgate P1S2-10

In stock

Punch 10" P1 2-Ohm SVC Subwoofer

  • New Launch
Regular price $89.99
Regular price Sale price $89.99
Save: $-89.99 (% Off)*
Sale Sold out
Shipping calculated at checkout.
  • Free shipping Over $99
Sold in last hours
  • Fast, FREE Delivery

    Free, Fast, Doorstep Delight!

  • Delivery & Returns

    Effortless Delivery, Easy Returns

View full details
  • Overview
  • Details
  • Accessories

Rockford Fosgate P1 10” is the first in a family of famous “Punch” subwoofers. The P1S2-10 features a 2-Ohm voice coil, 250 Watts RMS power handling, and can accommodate a grille insert using the included soft touch ABS trim ring.

Rockford Fosgate P1 10" are the first in a family of world famous subwoofers called "The Punch". During their inception in the 1980's, they quickly became "The Woofer of Choice" for fanatic car audio systems, with a continued tradition today. Kevlar fiber reinforced paper cones deliver bass impact you can feel, and our VAST technology increases surface cone area up to 25%. Best in standard sealed and vented enclosures. Includes soft touch ABS trim ring.

Features:

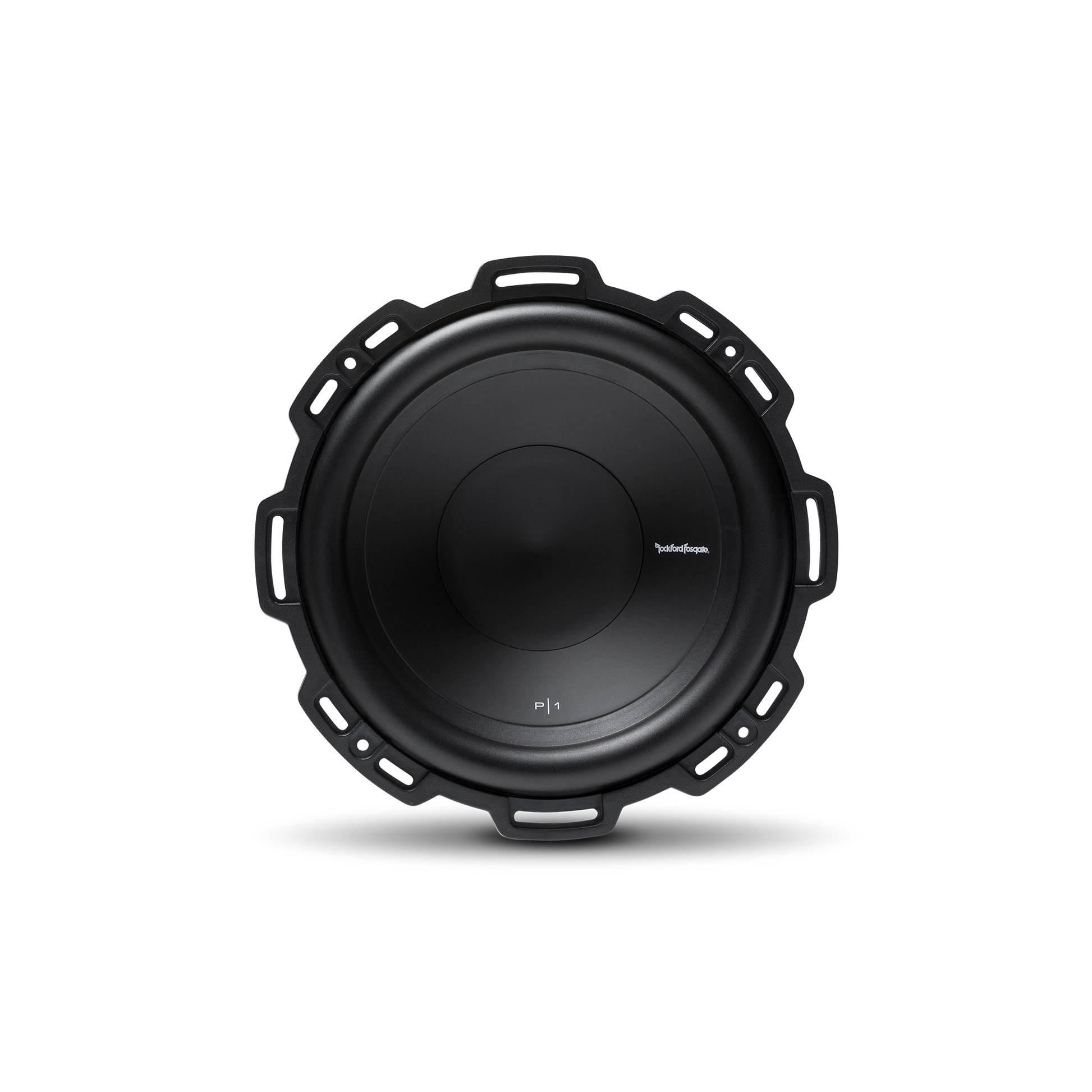

  • StampCast basket with integrated spider venting
  • Kevlar fiber reinforced paper cone

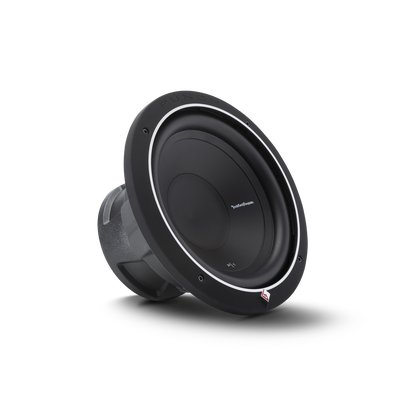

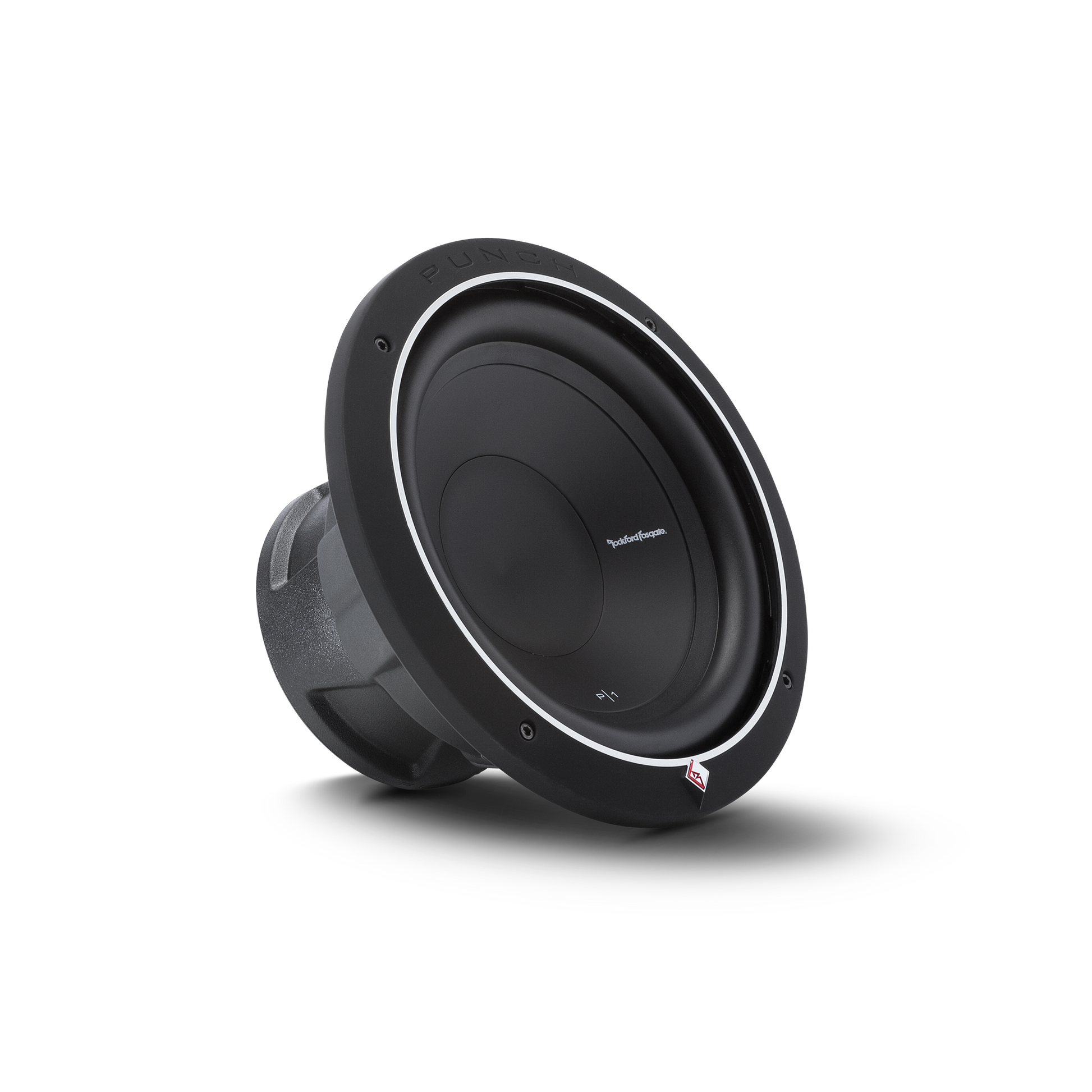

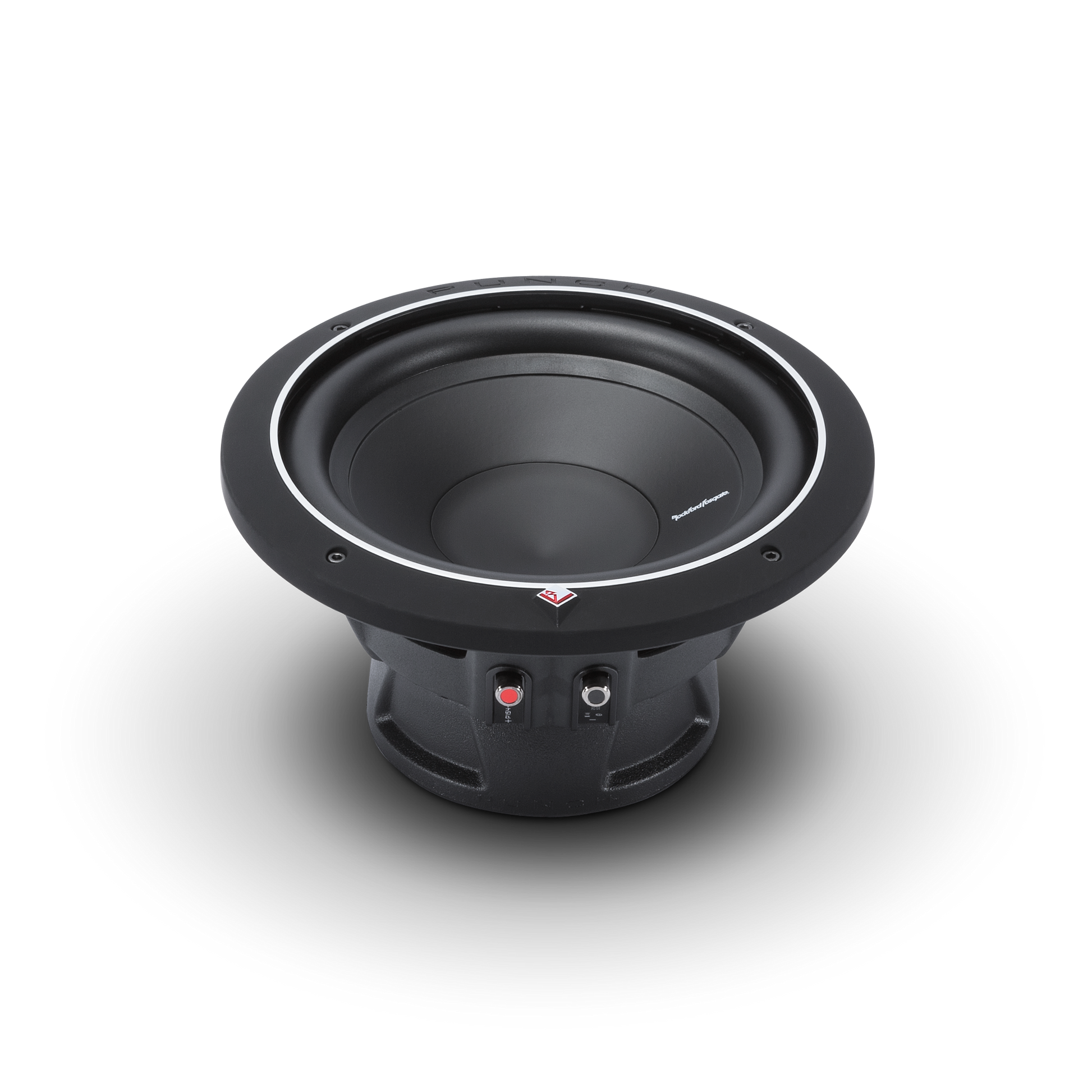

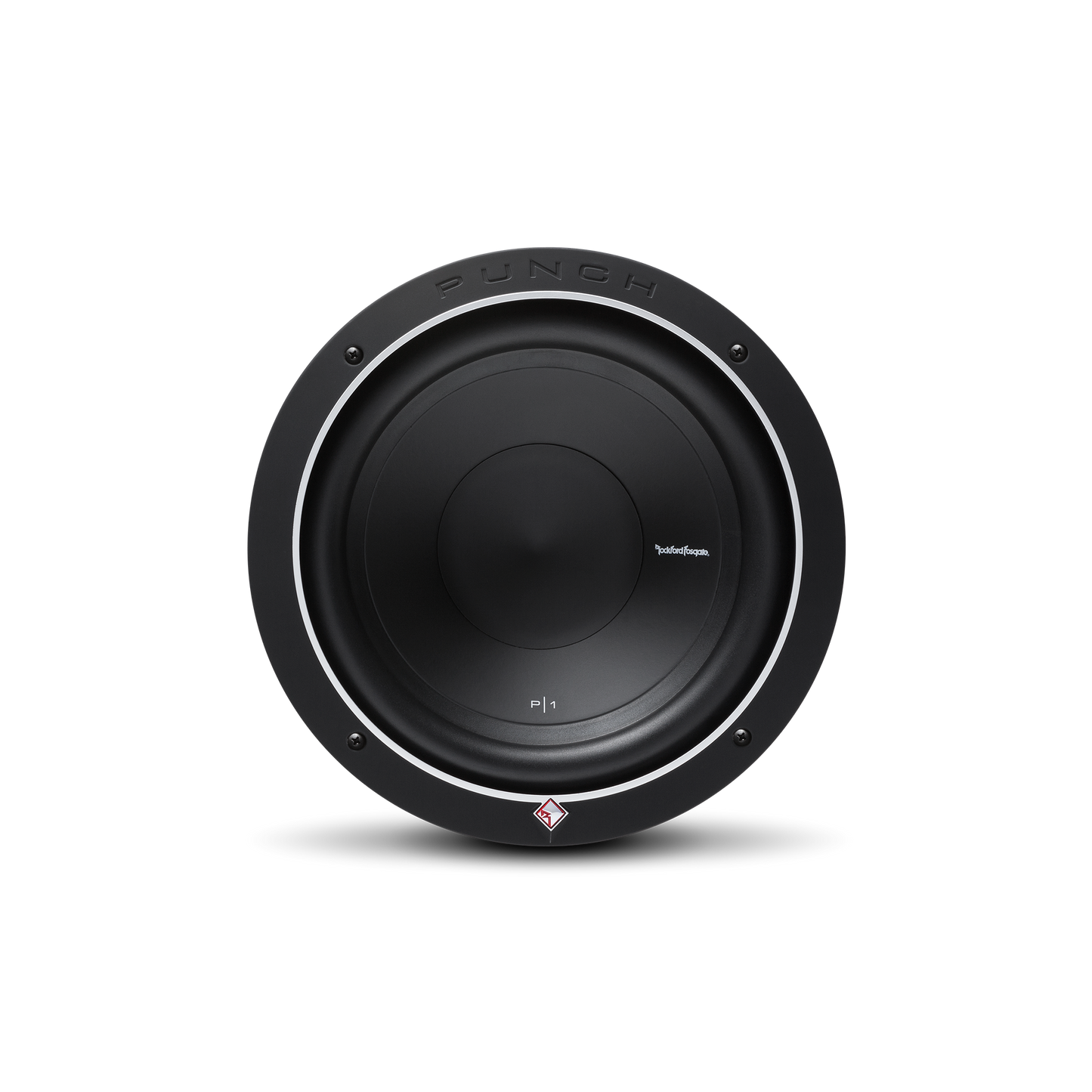

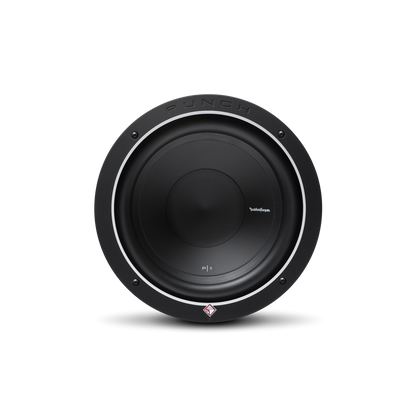

  • Rubberized ABS trim ring with optional grille
  • Linear spider with embedded 16 AWG tinsel leads
  • Extended pole piece and bumped vented backplate

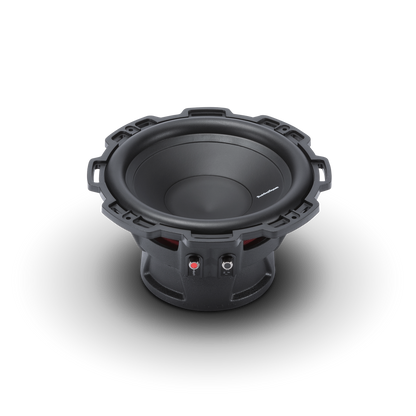

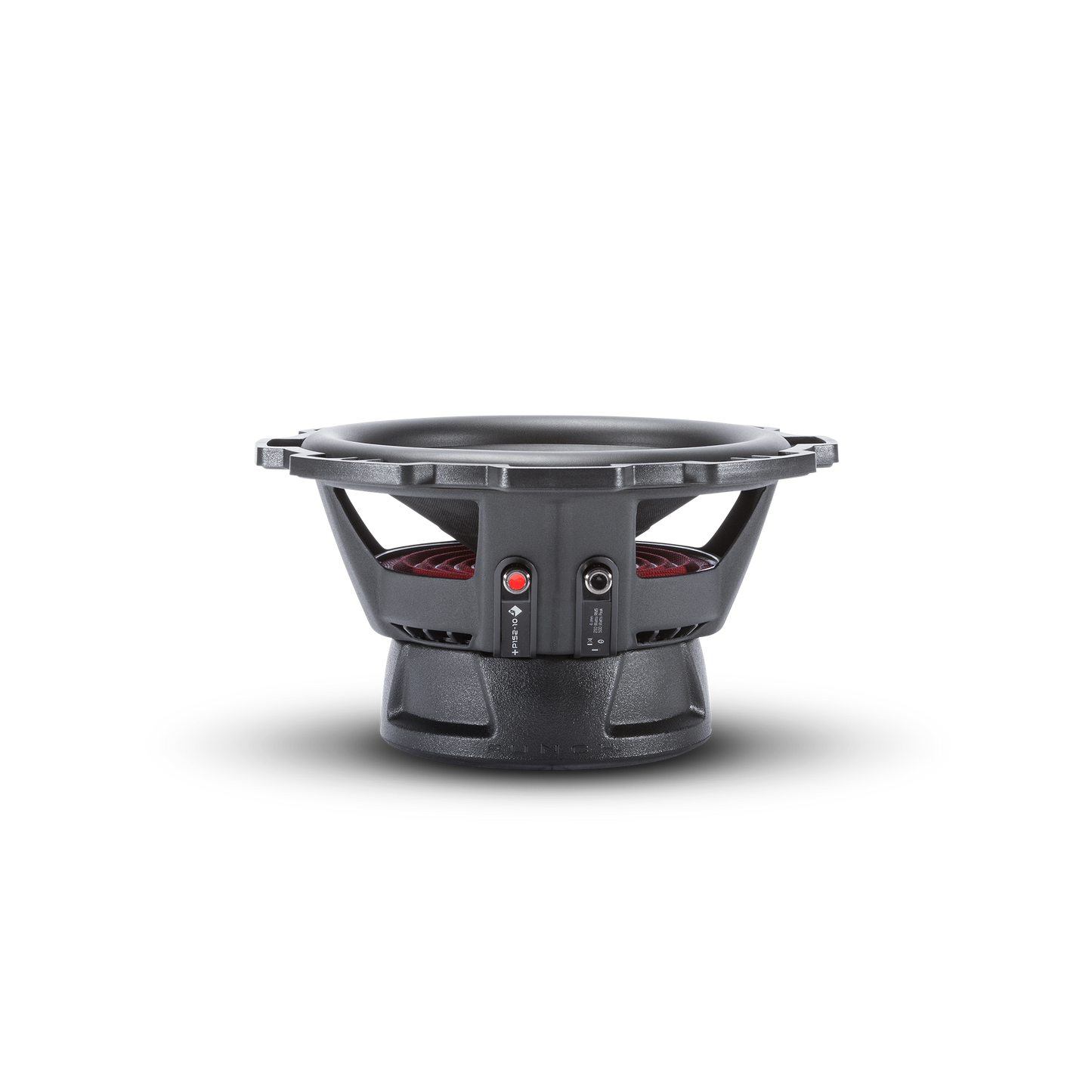

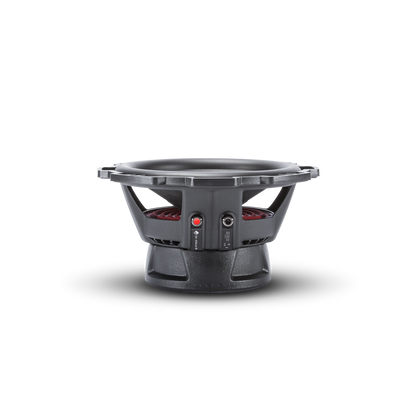

  • Custom 10-AWG nickel plated push terminals
  • 1 Year Warranty
  • High-temp voice coil with spun-laced Nomex® re-inforcement collar

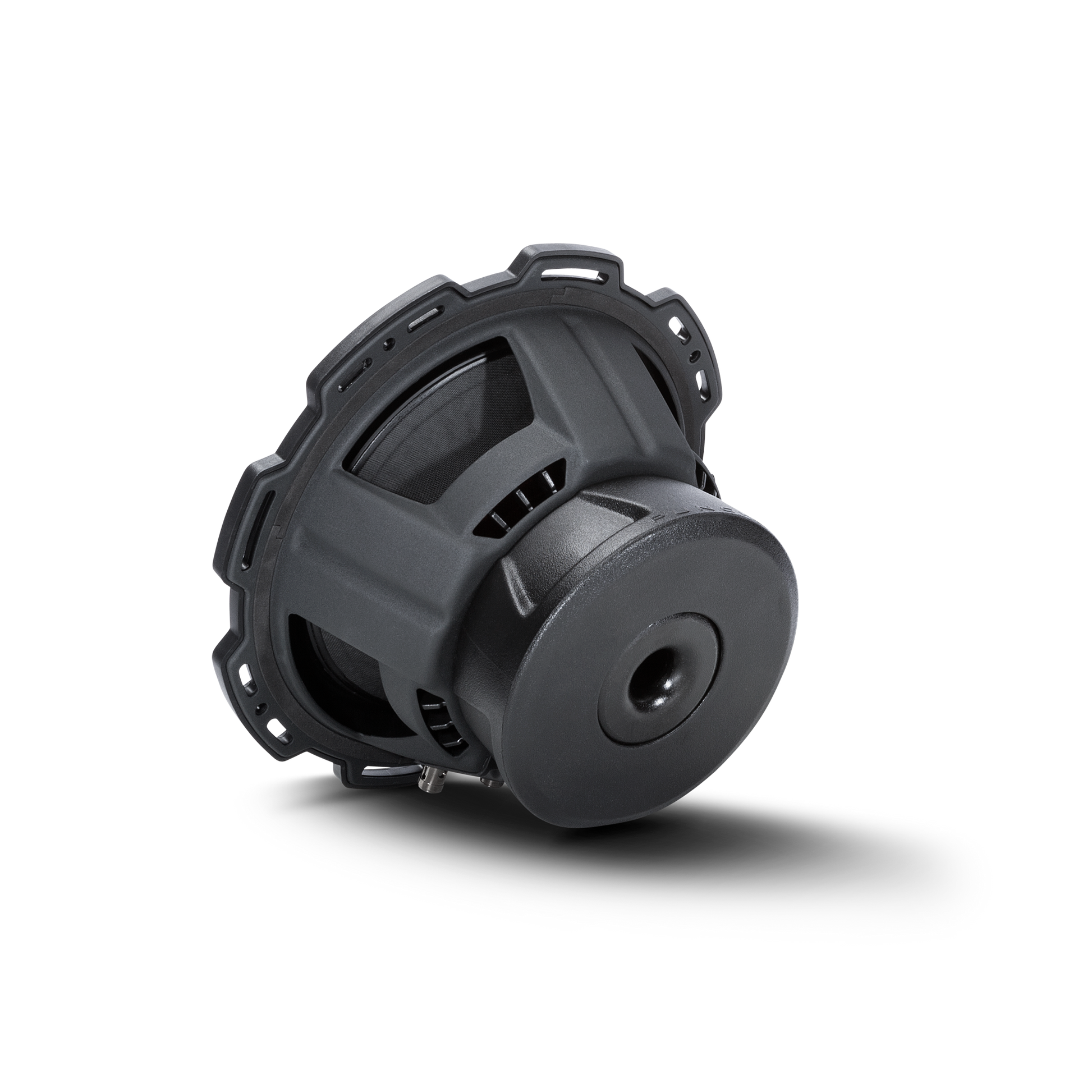

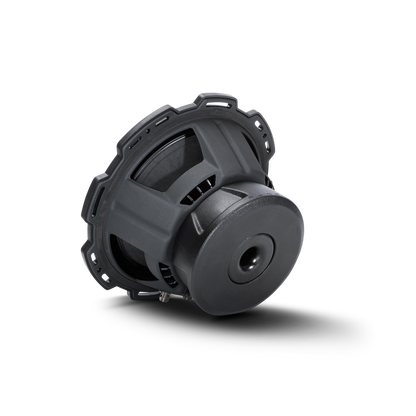

  • Protective PVC textured magnet cover

Specifications:

Power Handling (Watts RMS) 250 Watts RMS / 500 Watts Max
Voice Coil Type Single Voice Coil
Subwoofer Type Standard
CEA-2031 Compliant Yes
Magnet Weight 45 oz. (1.28 kg.)
Size 10"
Qts 0.52
Xmax (mm) 9.0
Qms 2.70
Fs (Hz) 30
Nominal Impedance 2-Ohm
Re (Ohms) 1.60
Voice Coil Diameter 2.0" (51.6 mm)
Speaker Connector Dual 10 AWG compression
Mounting Depth 5.33 in. (135.4 mm)
Le (mH) 1.16
Vas (Liters) 35.4
Qes 0.75
SPL (dB @ 1w/1m) 85 dB
Sd (cm²) 370
Cutout Diameter 9.14 in. (232 mm)
SPL (dB @ 2.8v/1m) 88 dB
Woofer Displacement 0.056 cu. ft. (1.6 Liters)
Sealed Box Volume (Vb) 0.59 cu. ft. (16.7 Liters)
Vented Box Volume (Vb) 1.4 cu. ft. (39.6 Liters)
Shipping Weight 11.1 Lbs. (5.03 kg)
