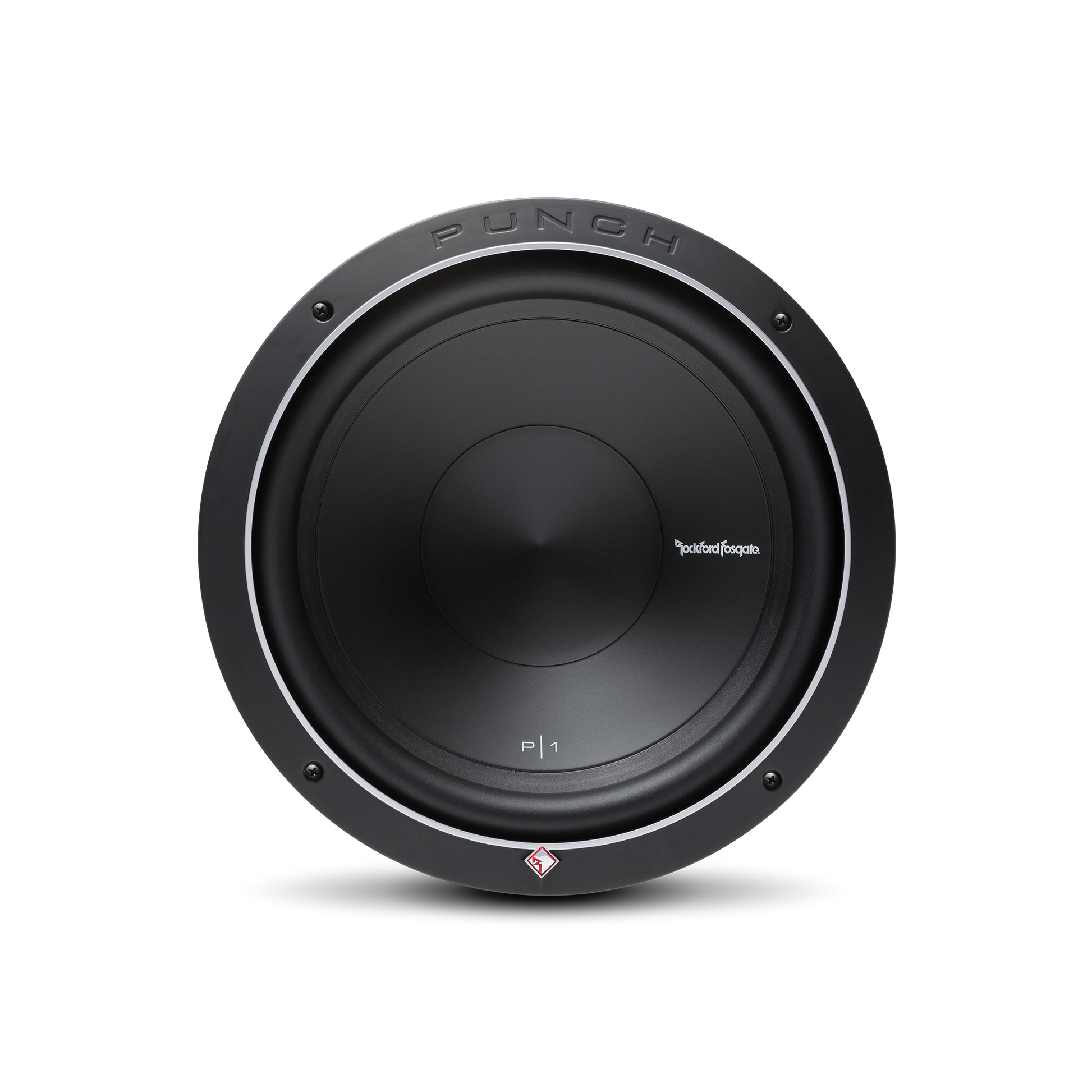

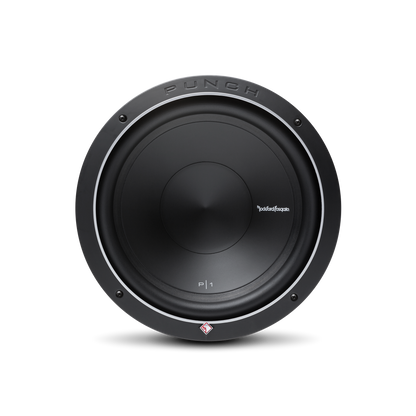

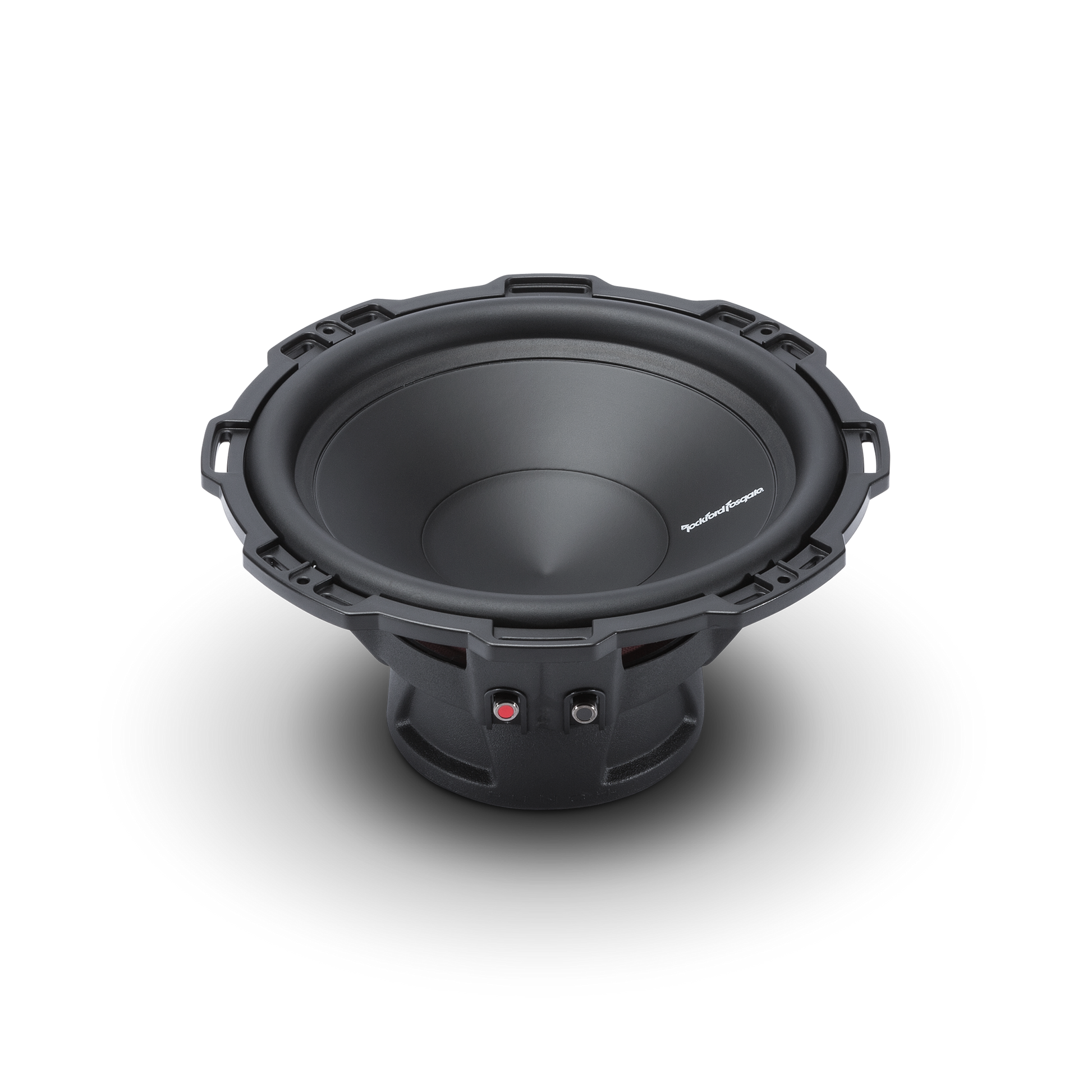

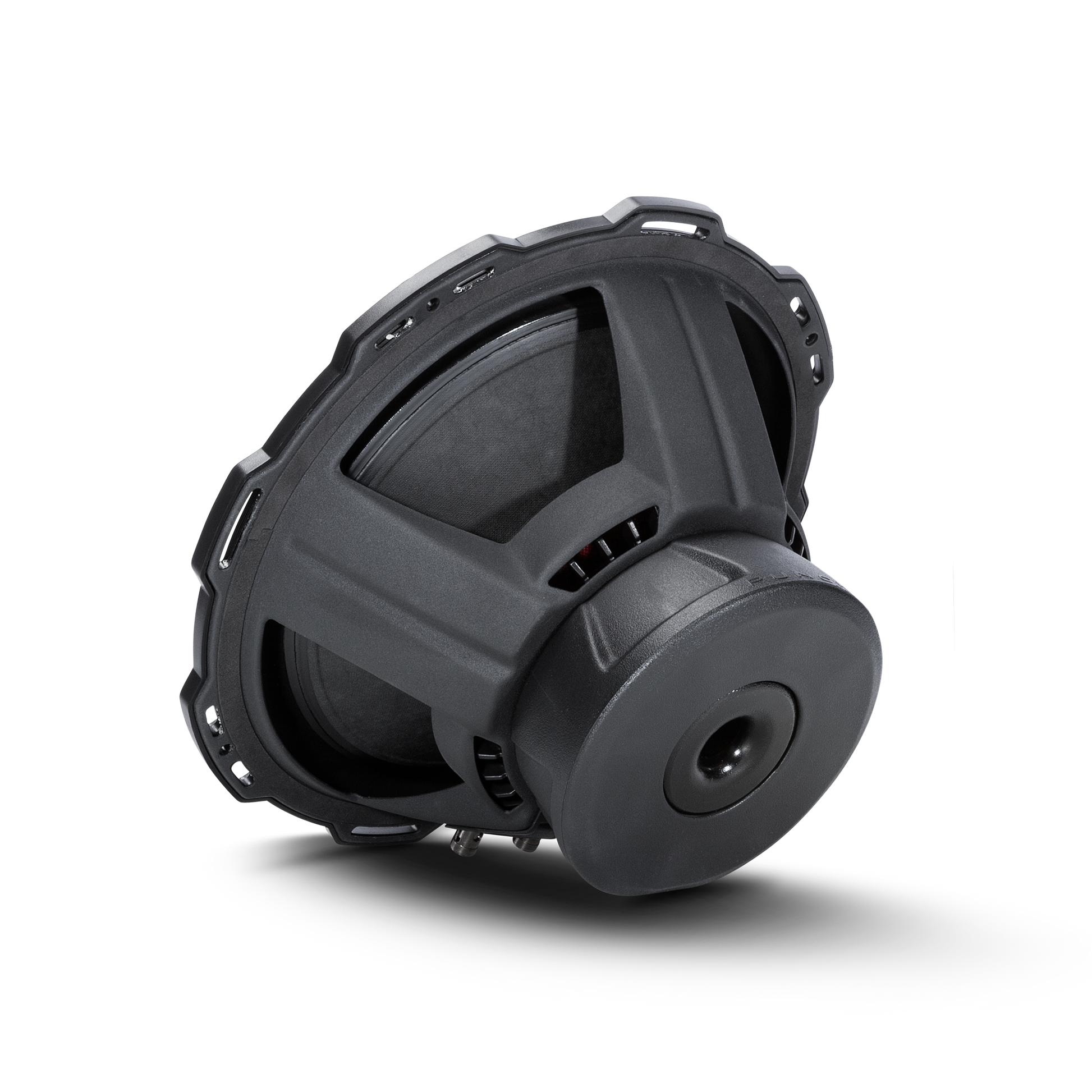

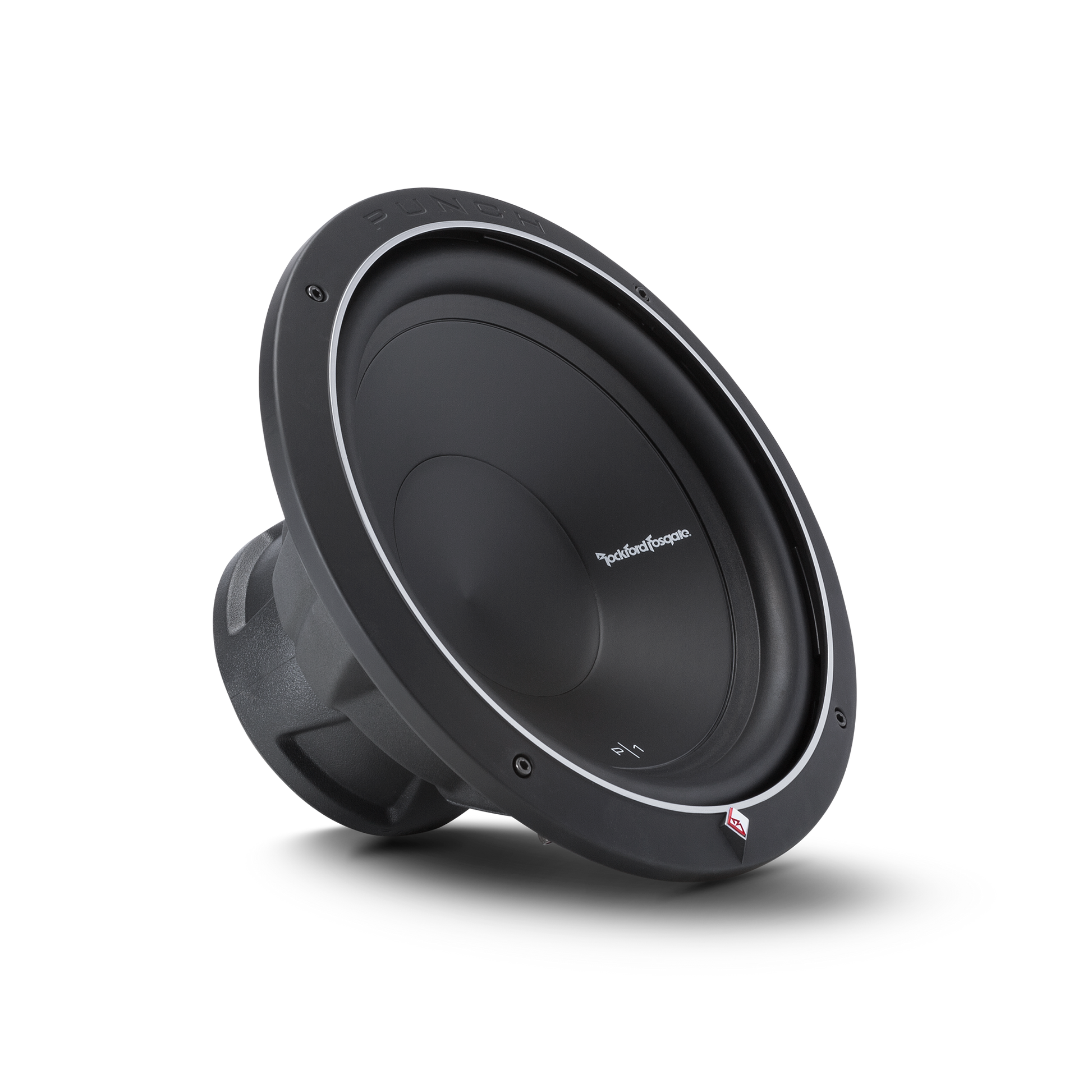

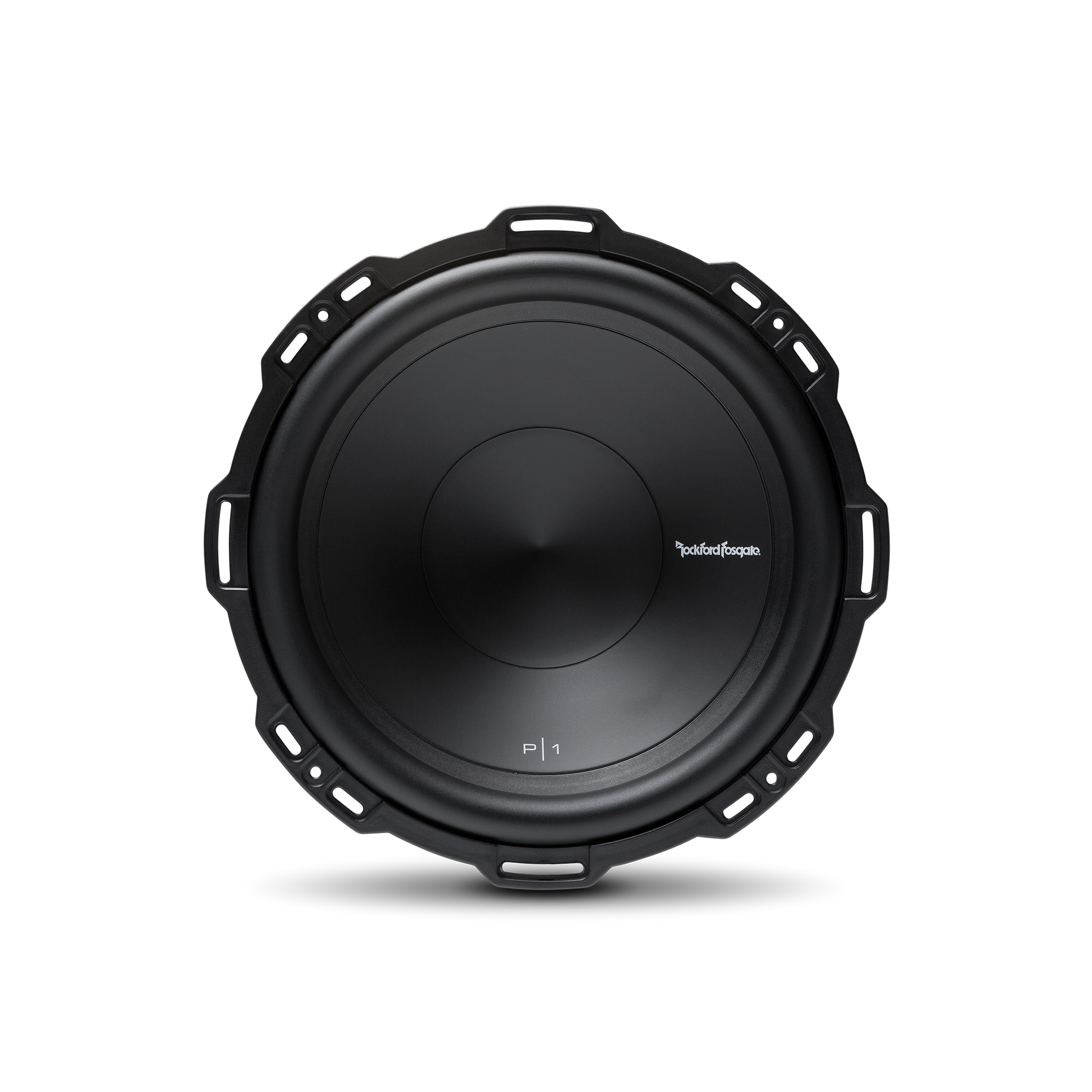

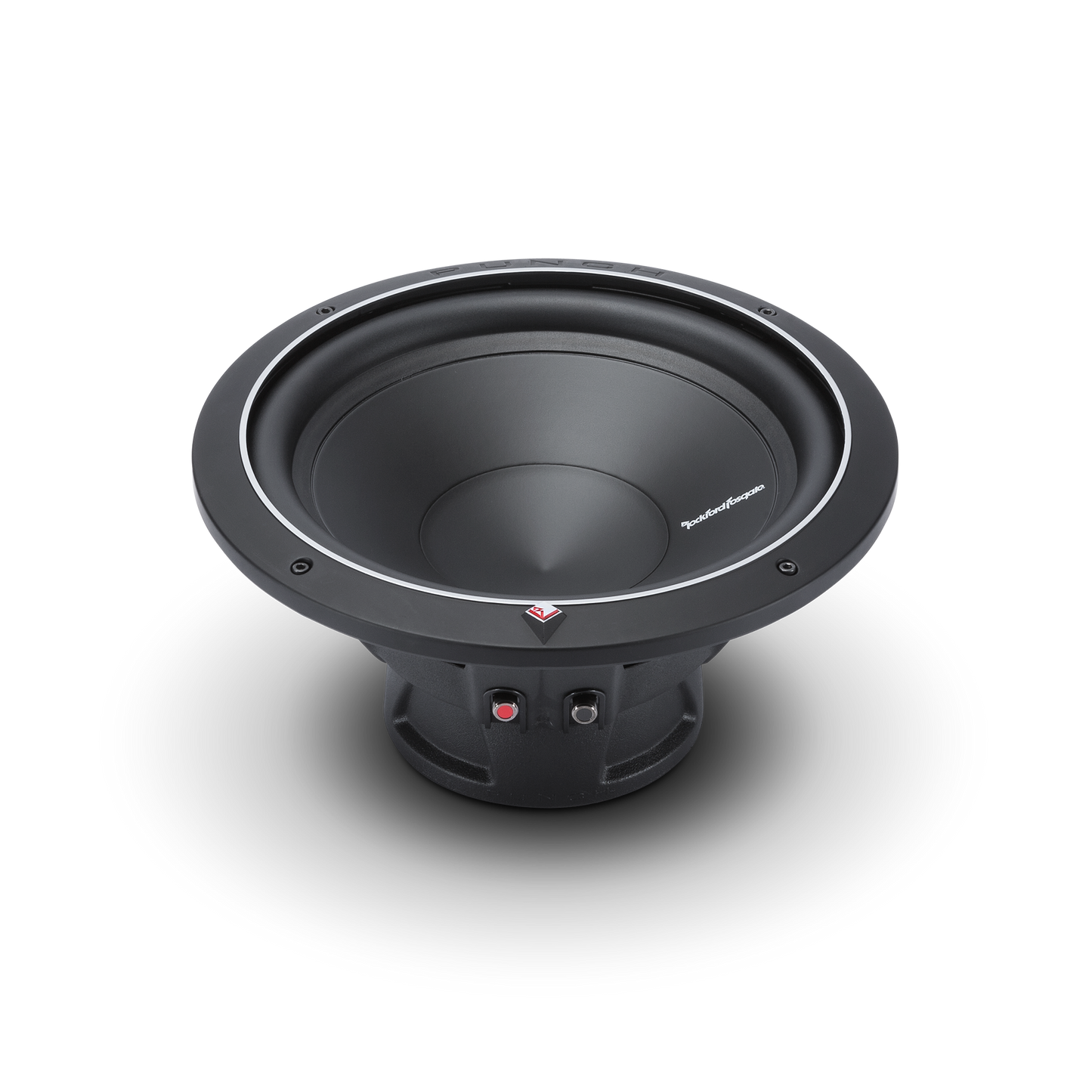

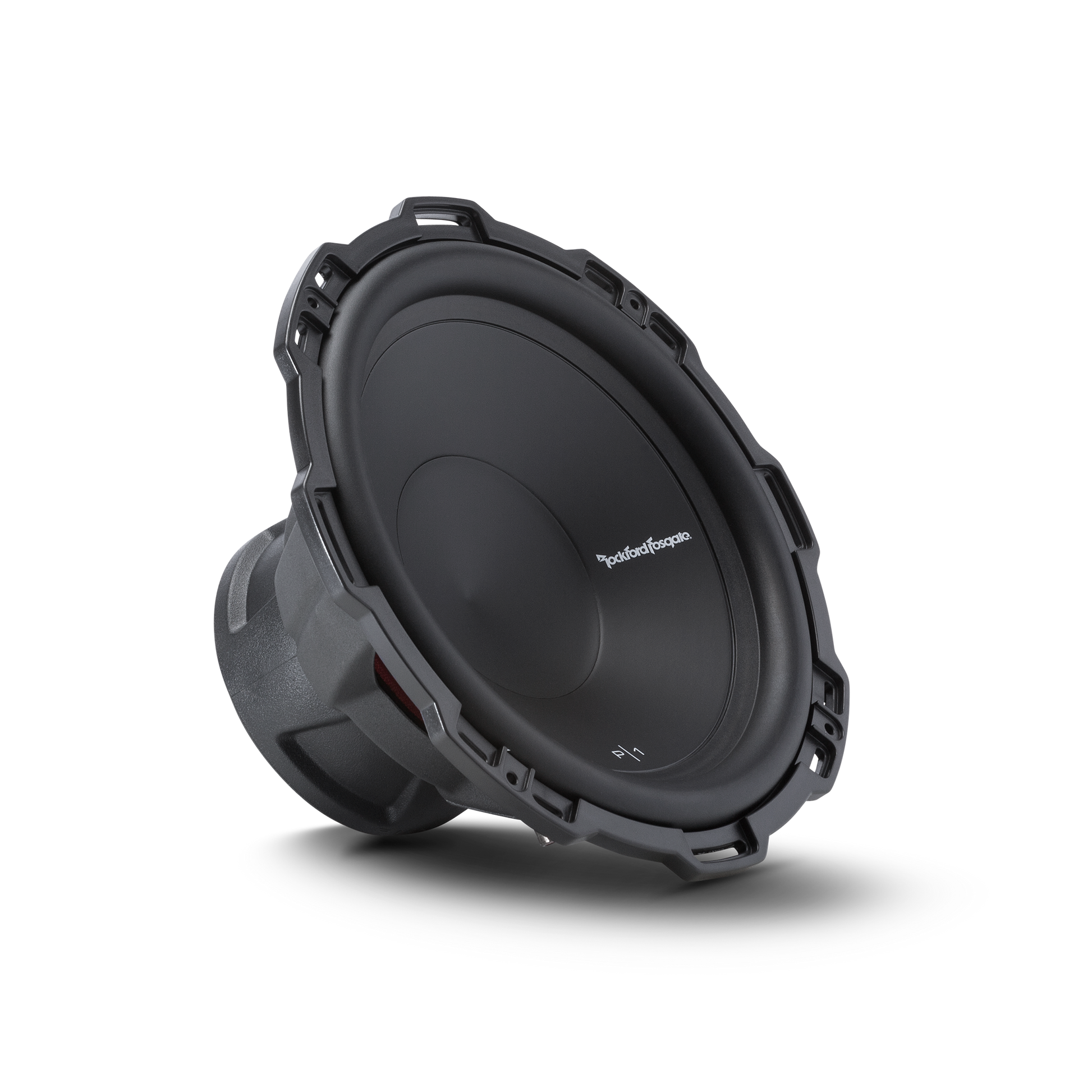

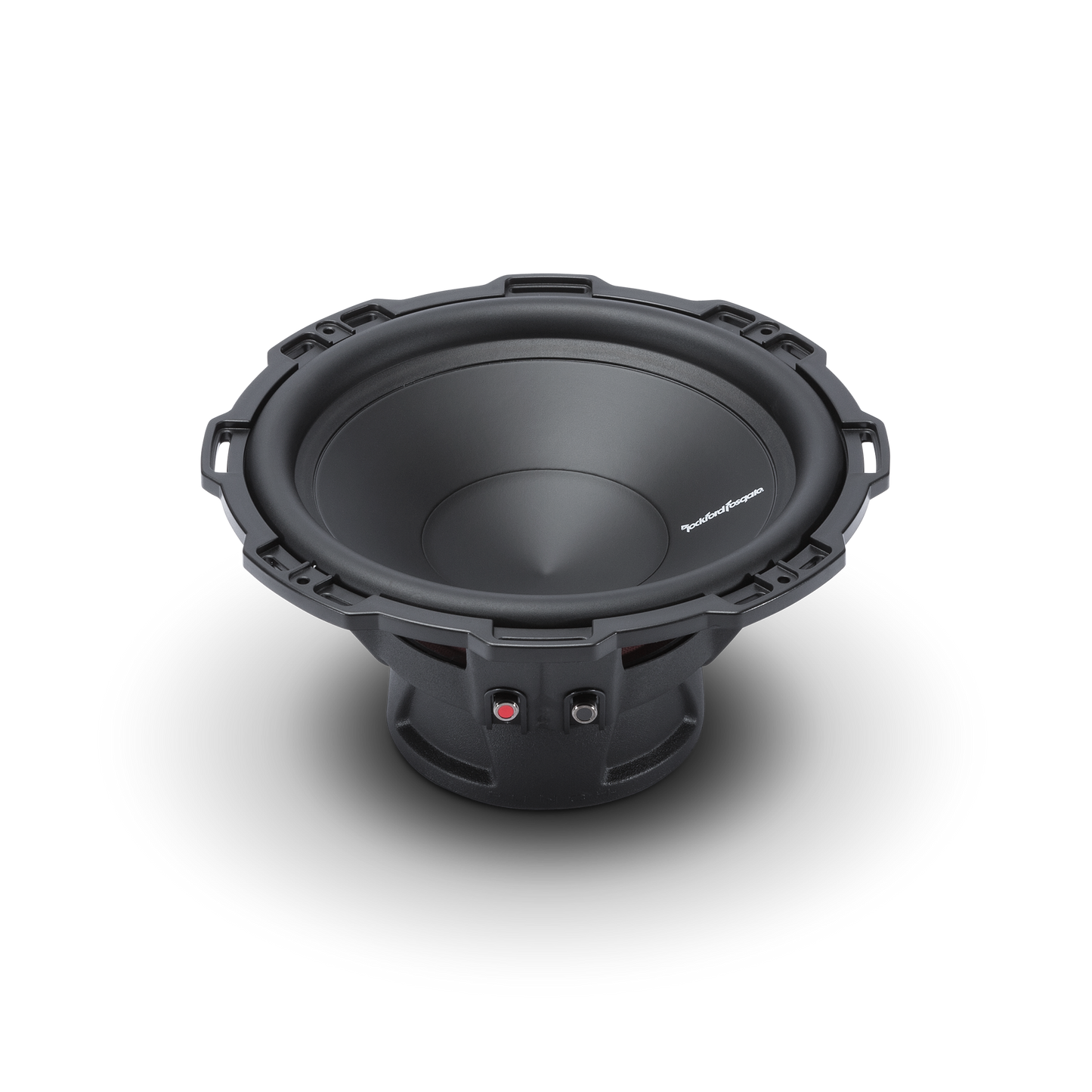

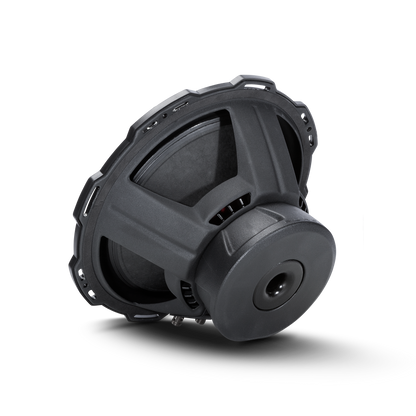

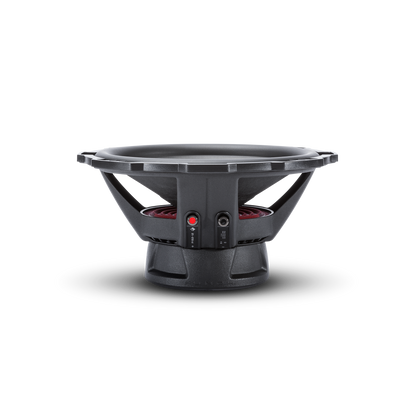

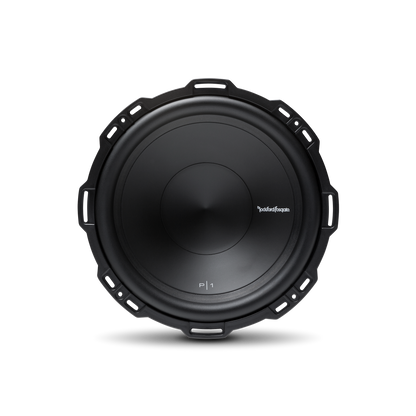

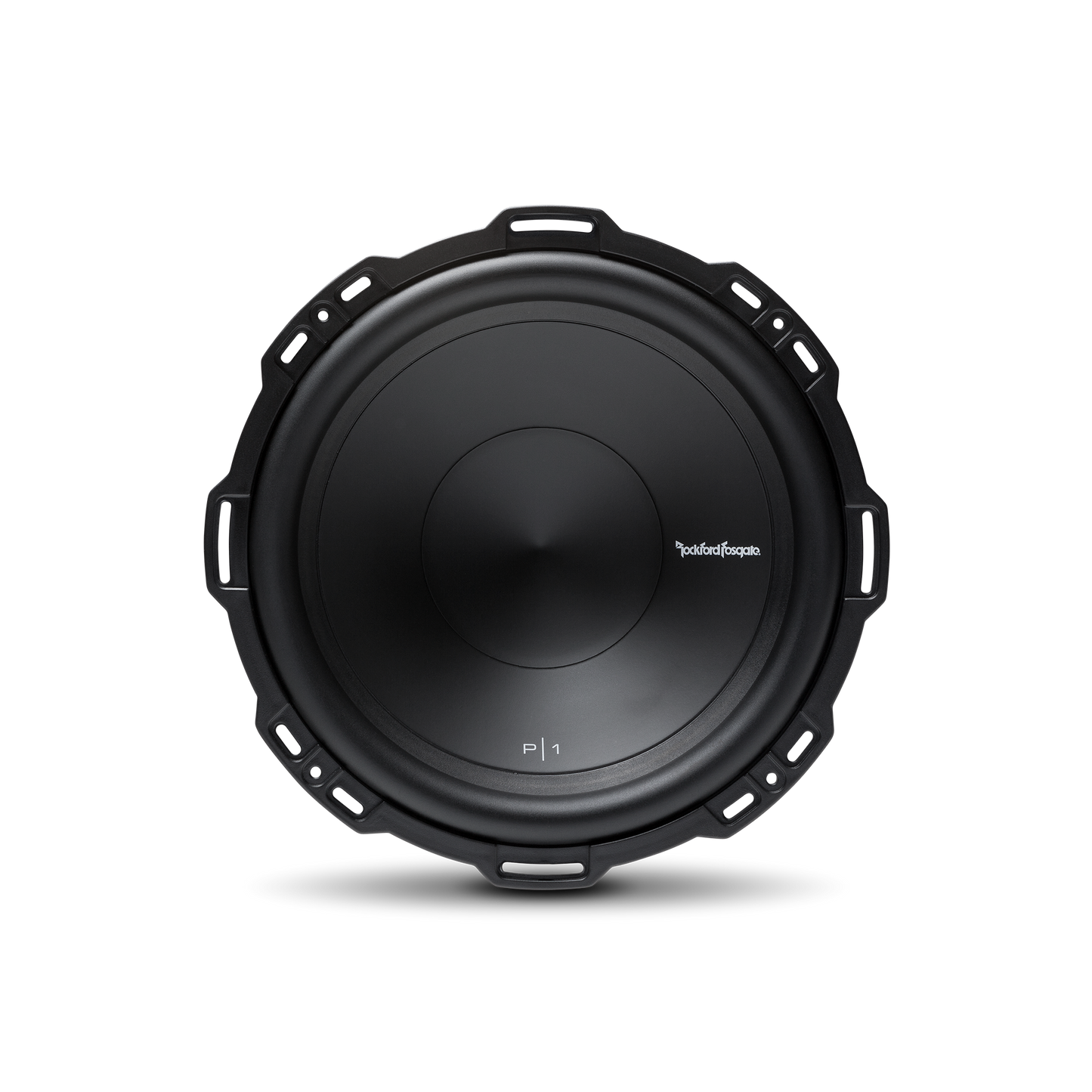

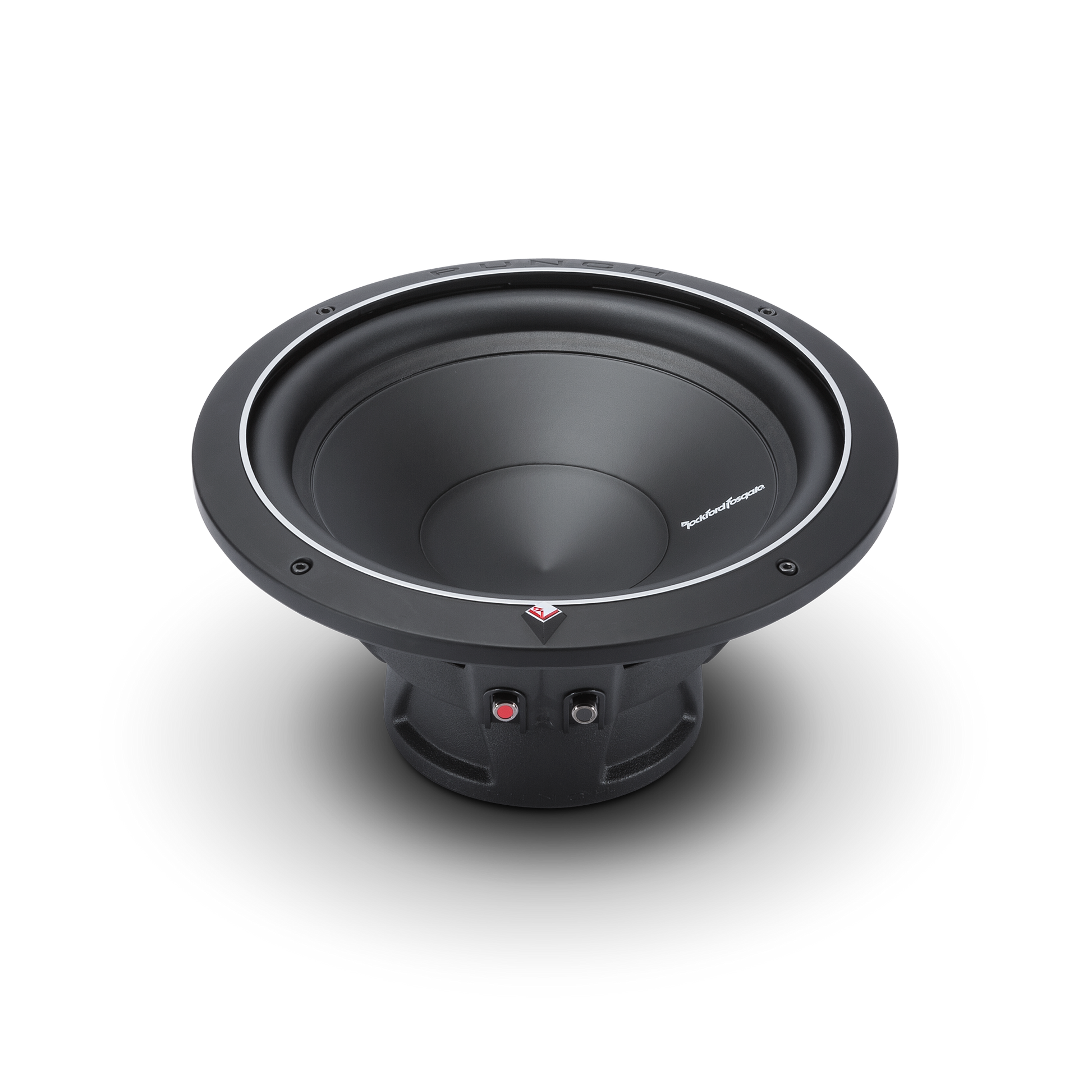

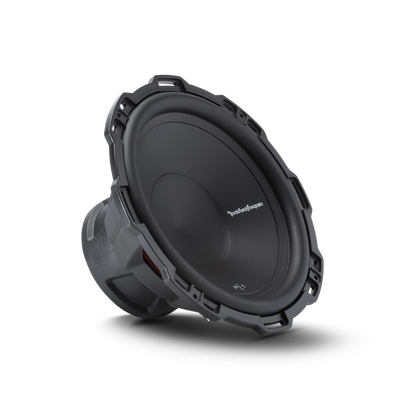

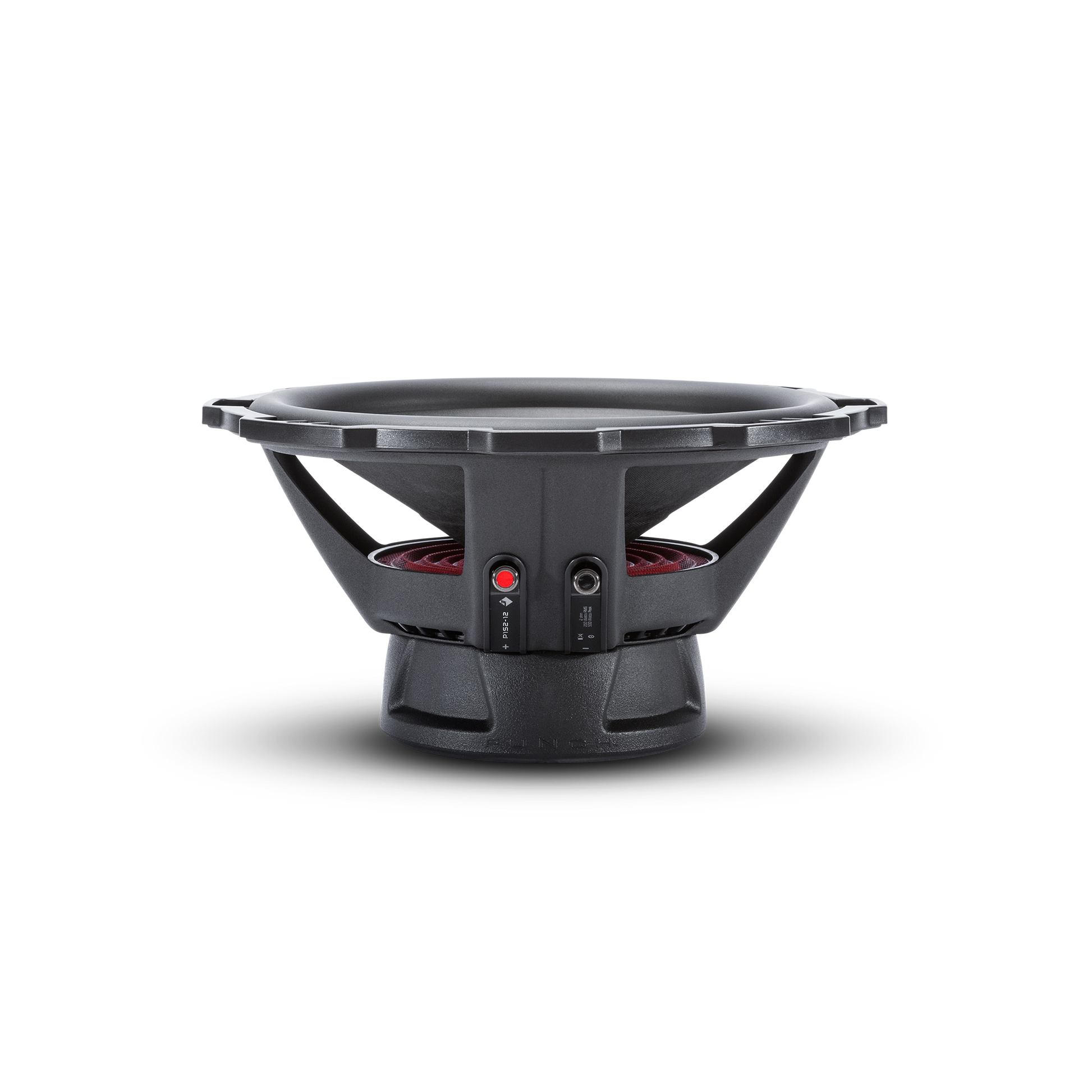

Rockford Fosgate P1 12” is the first in a family of famous “Punch” subwoofers. The P1S2-12 features a 2-Ohm voice coil, 250 Watts RMS power handling, and can accommodate a grille insert using the included soft touch ABS trim ring.

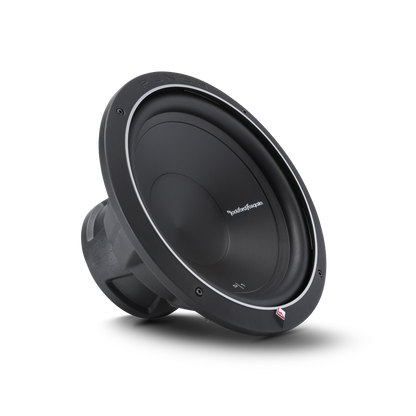

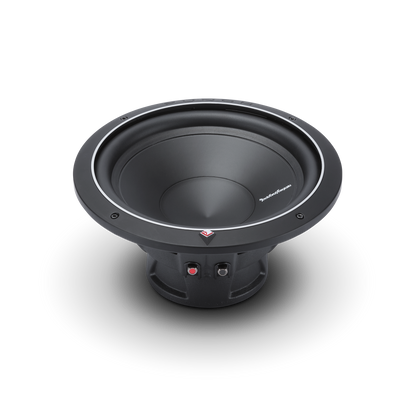

Rockford Fosgate P1 12" are the first in a family of world famous subwoofers called "The Punch". During their inception in the 1980's, they quickly became "The Woofer of Choice" for fanatic car audio systems, with a continued tradition today. Kevlar fiber reinforced paper cones deliver bass impact you can feel, and our VAST technology increases surface cone area up to 25%. Best in standard sealed and vented enclosures. Includes soft touch ABS trim ring.
Features:
| Power Handling (Watts RMS) | 250 Watts RMS / 500 Watts Max |
| Subwoofer Type | Standard |
| Voice Coil Type | Single Voice Coil |
| Nominal Impedance | 2-Ohm |
| CEA-2031 Compliant | Yes |
| Voice Coil Diameter | 2.0" (51.6 mm) |
| Magnet Weight | 45 oz. (1.28 kg.) |
| Size | 12" |
| Speaker Connector | Dual 10 AWG compression |
| Sd (cm²) | 548 |
| Qts | 0.55 |
| Vas (Liters) | 88.3 |
| Qms | 3.39 |
| Qes | 0.84 |
| Le (mH) | 1.17 |
| Fs (Hz) | 25 |
| Xmax (mm) | 9.0 |
| SPL (dB @ 1w/1m) | 86 dB |
| SPL (dB @ 2.8v/1m) | 89 dB |
| Cutout Diameter | 11.22 in. (285 mm) |
| Mounting Depth | 6.0 in. (152.4 mm) |
| Vented Box Volume (Vb) | 1.79 cu. ft. (50.6 Liters) |
| Sealed Box Volume (Vb) | 1.02 cu. ft. (28.8 Liters) |
| Woofer Displacement | 0.081 cu. ft. (2.3 Liters) |
| Shipping Weight | 12.5 Lbs. (5.66 kg) |
