Rockford Fosgate

Rockford Fosgate P2D4-12

Rockford Fosgate P2D4-12

In stock

Punch 12" P2 4-Ohm DVC Subwoofer

  • New Launch
Regular price $154.99
Regular price Sale price $154.99
Save: $-154.99 (% Off)*
Sale Sold out
Shipping calculated at checkout.
  • Free shipping Over $99
Sold in last hours
  • Fast, FREE Delivery

    Free, Fast, Doorstep Delight!

  • Delivery & Returns

    Effortless Delivery, Easy Returns

View full details
  • Overview
  • Details
  • Accessories

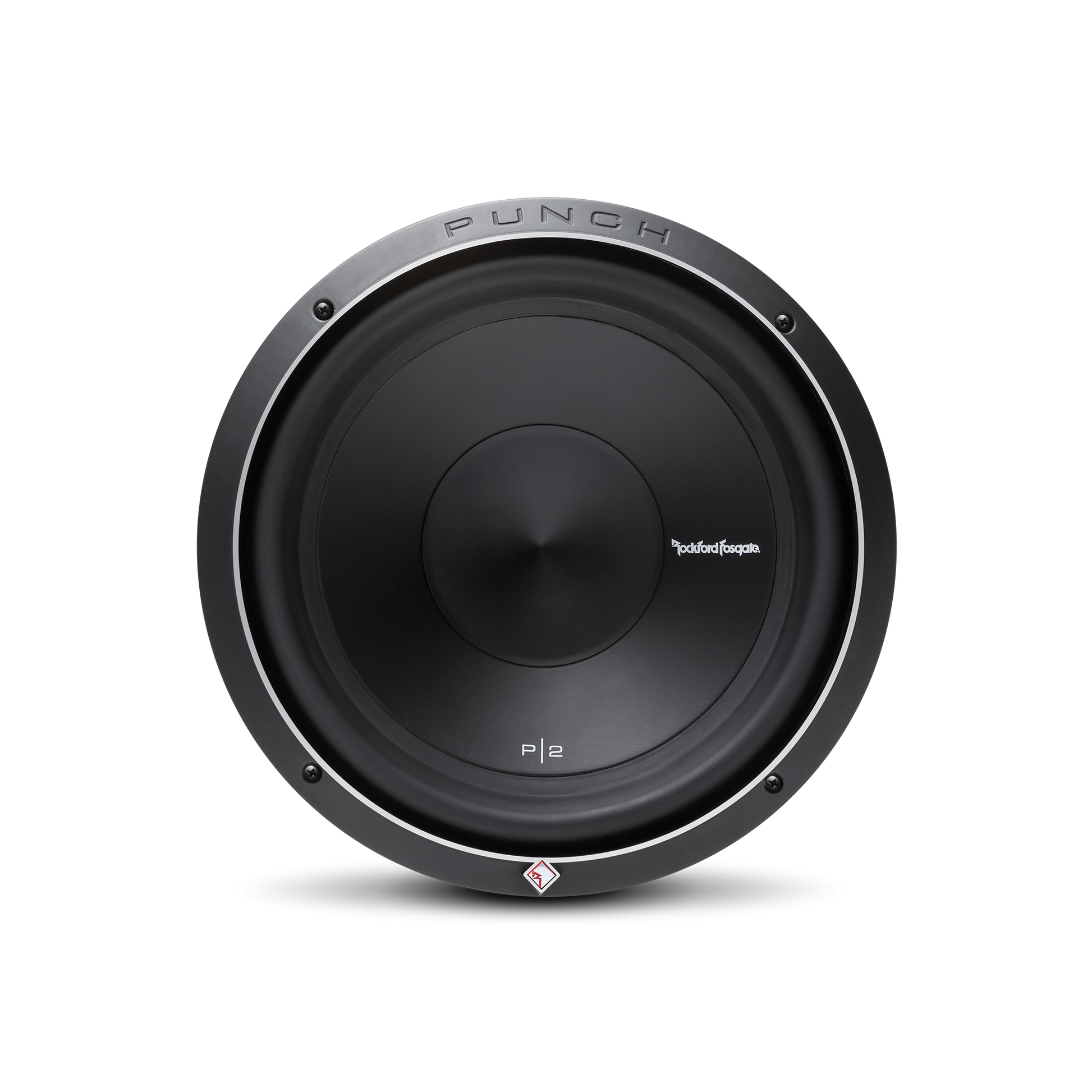

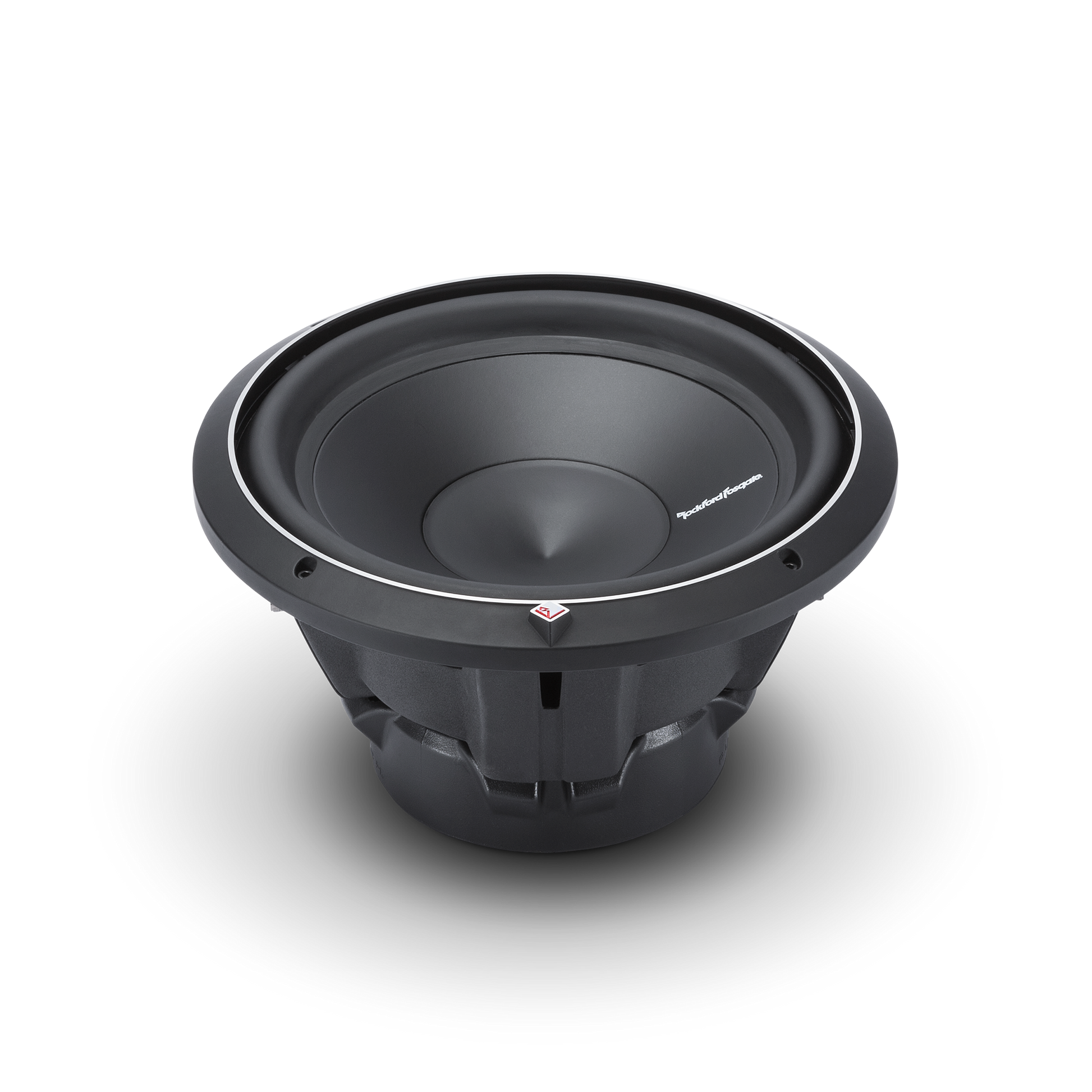

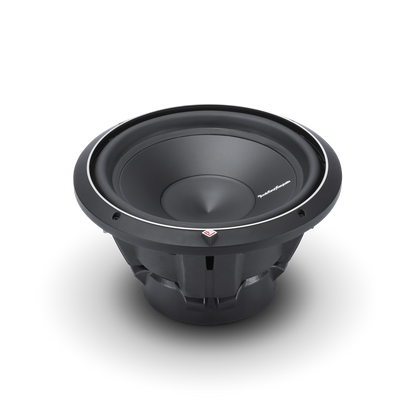

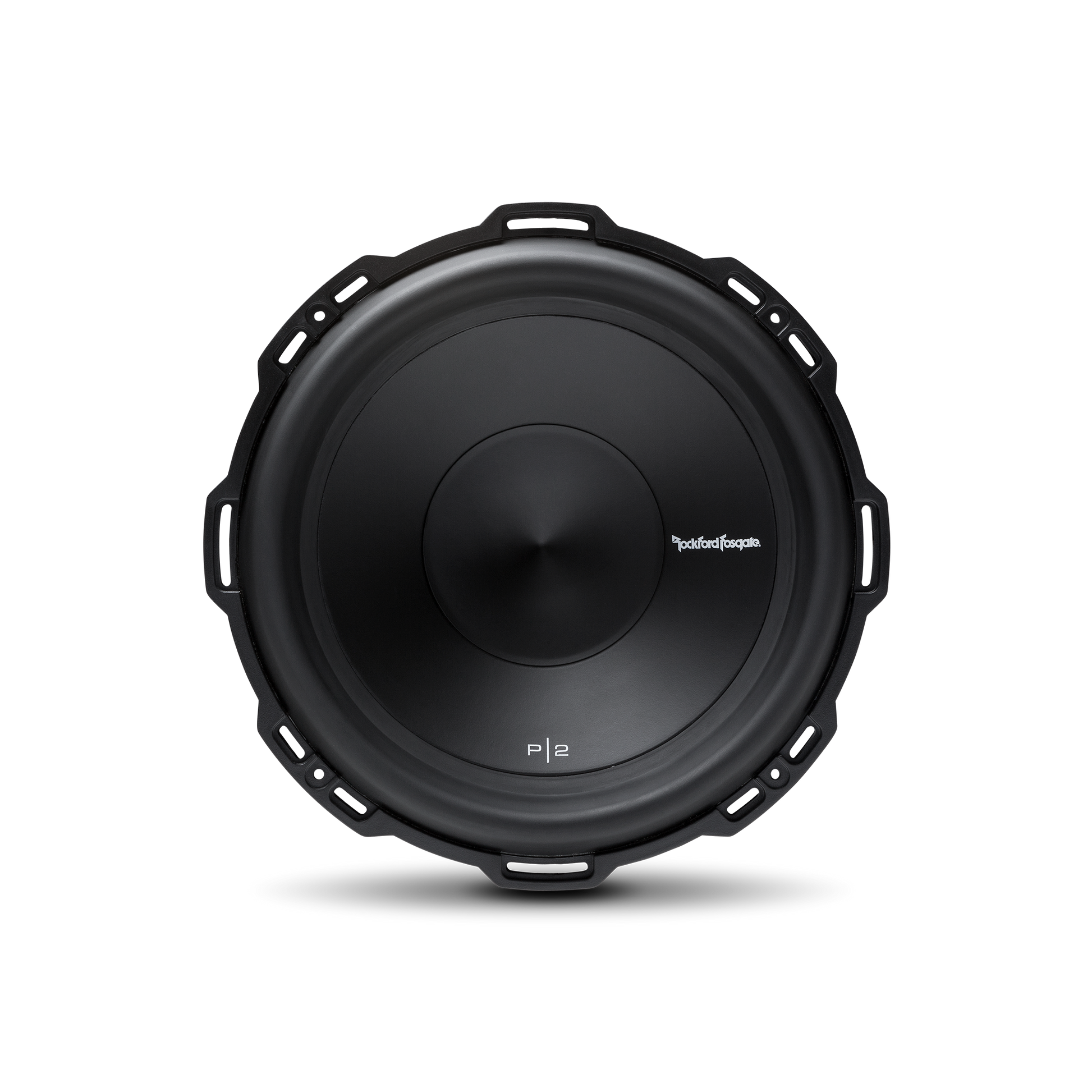

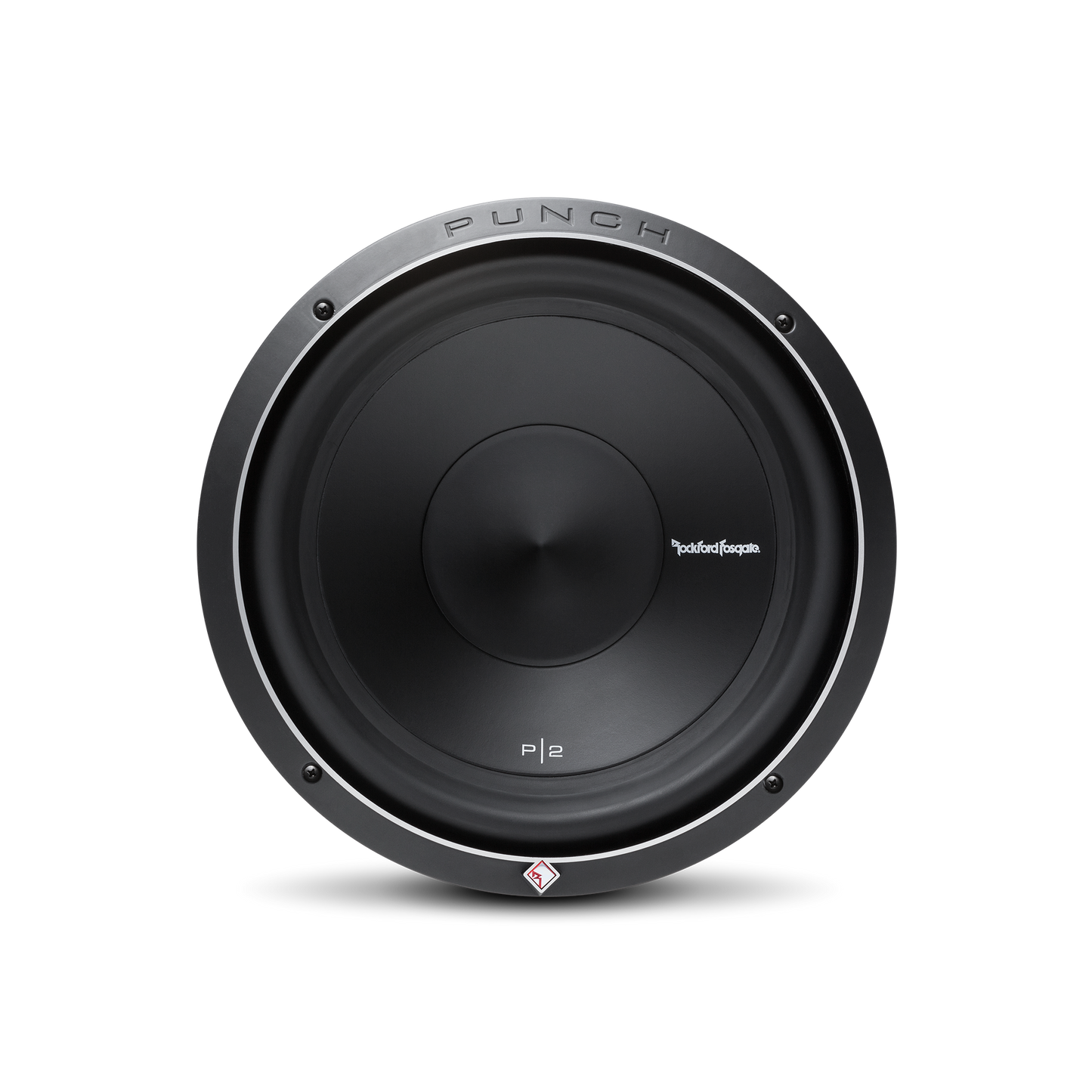

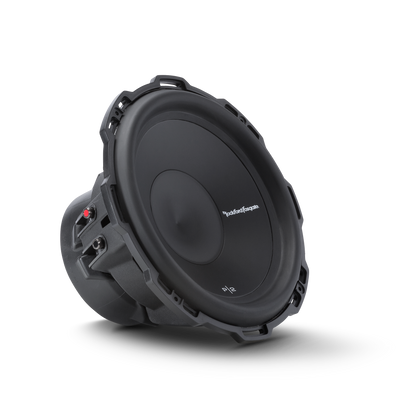

The Rockford Fosgate P2 12” subwoofer continues “The PUNCH” tradition. The P2D4-12 features a Dual 4-Ohm voice coil, 400 Watts RMS power handling, and can accommodate a grille insert using the included cast aluminum trim ring.

Rockford Fosgate has always been known as "The PUNCH" and the P2 12" subwoofer certainly continues with the tradition. Kevlar fiber reinforced paper cones deliver bass impact you can feel along with VAST technology to increase surface cone area up to 25%. The P2 subwoofers perform best in standard sealed and vented enclosures. Includes diamond cut cast aluminum trim ring. Optional grille insert available.

Features:

  • High-temp voice coil with spun-laced Nomex® re-inforcement collar
  • Extended pole piece and bumped vented backplate
  • Dual linear spider with embedded 16 AWG tinsel leads

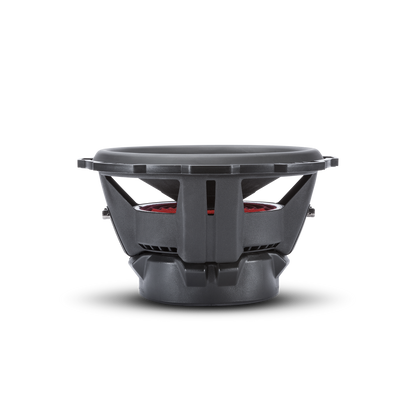

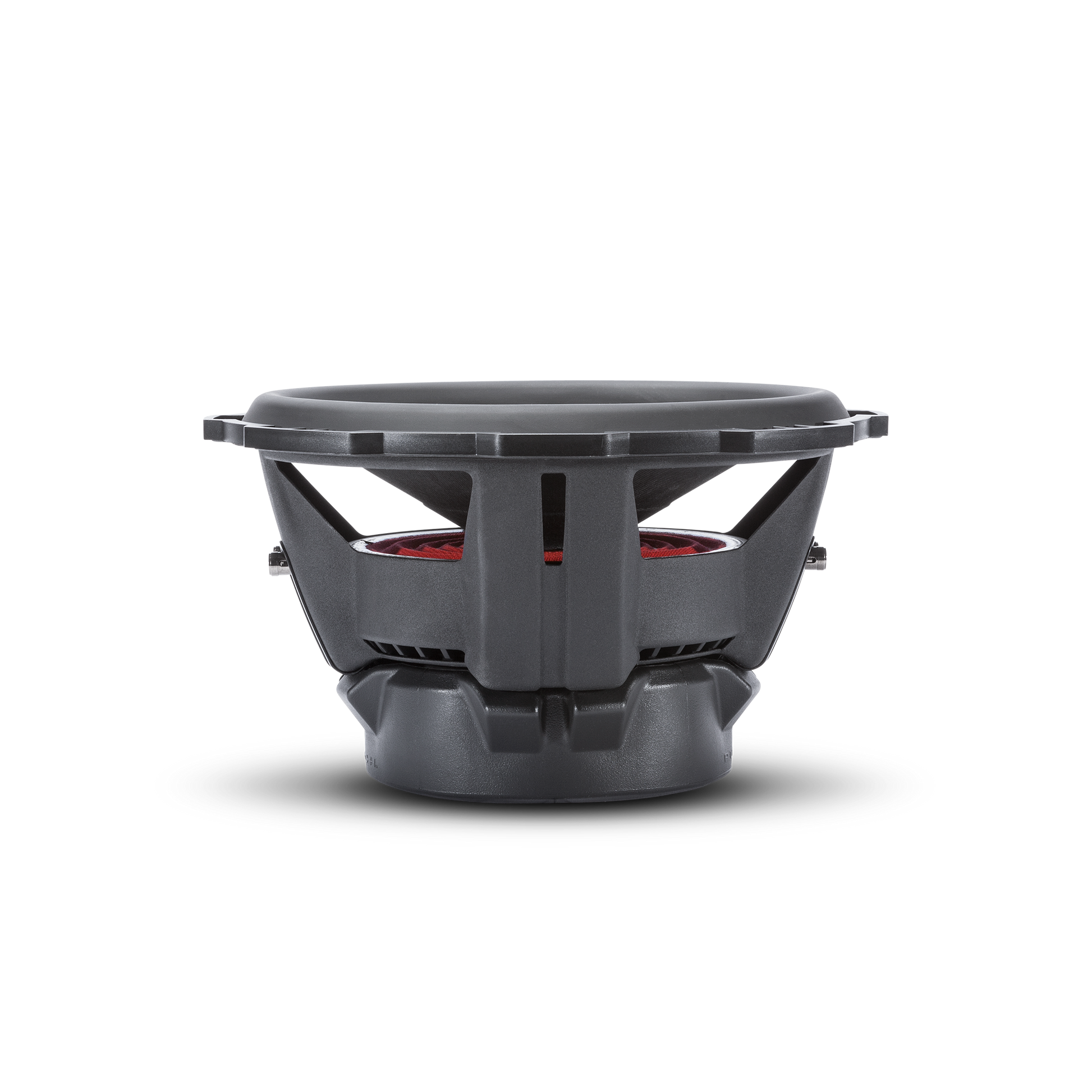

  • StampCast basket with integrated spider venting
  • Custom 10-AWG nickel plated push terminals

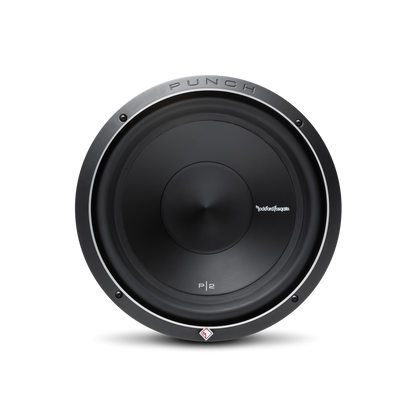

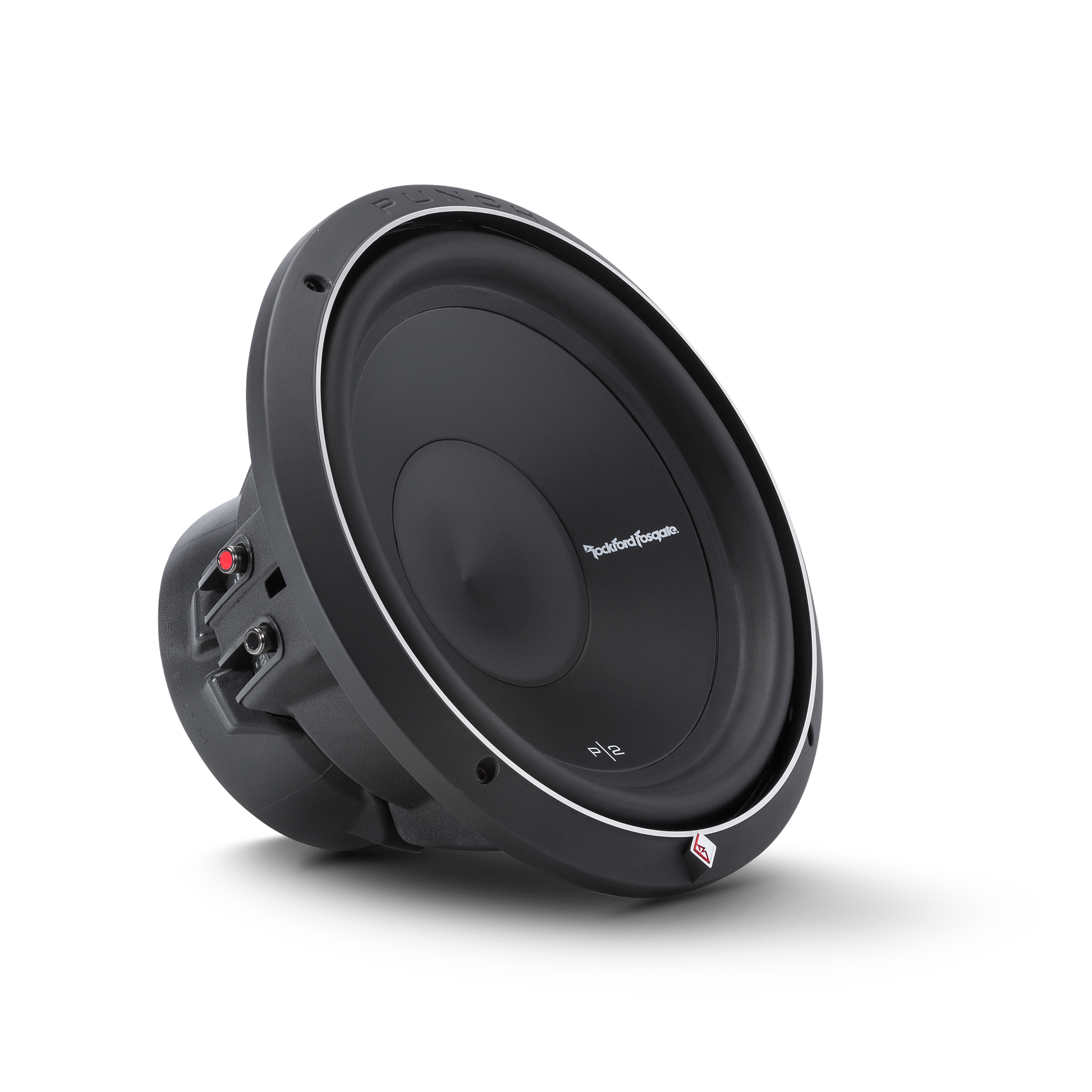

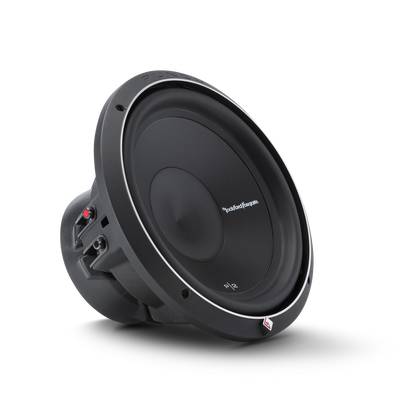

  • Diamond cut cast aluminum trim ring with optional grille
  • Protective PVC textured magnet cover
  • Kevlar fiber reinforced paper cone
  • 1 Year Warranty

Specifications:

Power Handling (Watts RMS) 400 Watts RMS / 800 Watts Max
Subwoofer Type Standard
Voice Coil Type Dual Voice Coil
Nominal Impedance Dual 4-Ohm
CEA-2031 Compliant Yes
Voice Coil Diameter 2.25" (57.15 mm)
Magnet Weight 72.8 oz. (2.06 kg.)
Size 12"
Speaker Connector Dual 10 AWG compression
Qts 0.54
Qes 0.59
Fs (Hz) 27.2
Re (Ohms) 6.40
Le (mH) 5.5
Sd (cm²) 570
Vas (Liters) 81.5
SPL (dB @ 1w/1m) 86 dB
Xmax (mm) 13.3
Woofer Displacement 0.085 cu. ft. (2.4 Liters)
Mounting Depth 6.40 in. (162 mm)
Cutout Diameter 11.22 in. (285 mm)
Sealed Box Volume (Vb) 1.02 cu. ft. (28.8 Liters)
Vented Box Volume (Vb) 1.79 cu. ft. (50.6 Liters)
Shipping Weight 15.6 Lbs. (7.07 kg)
