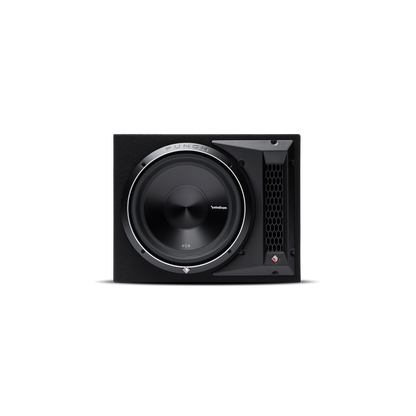

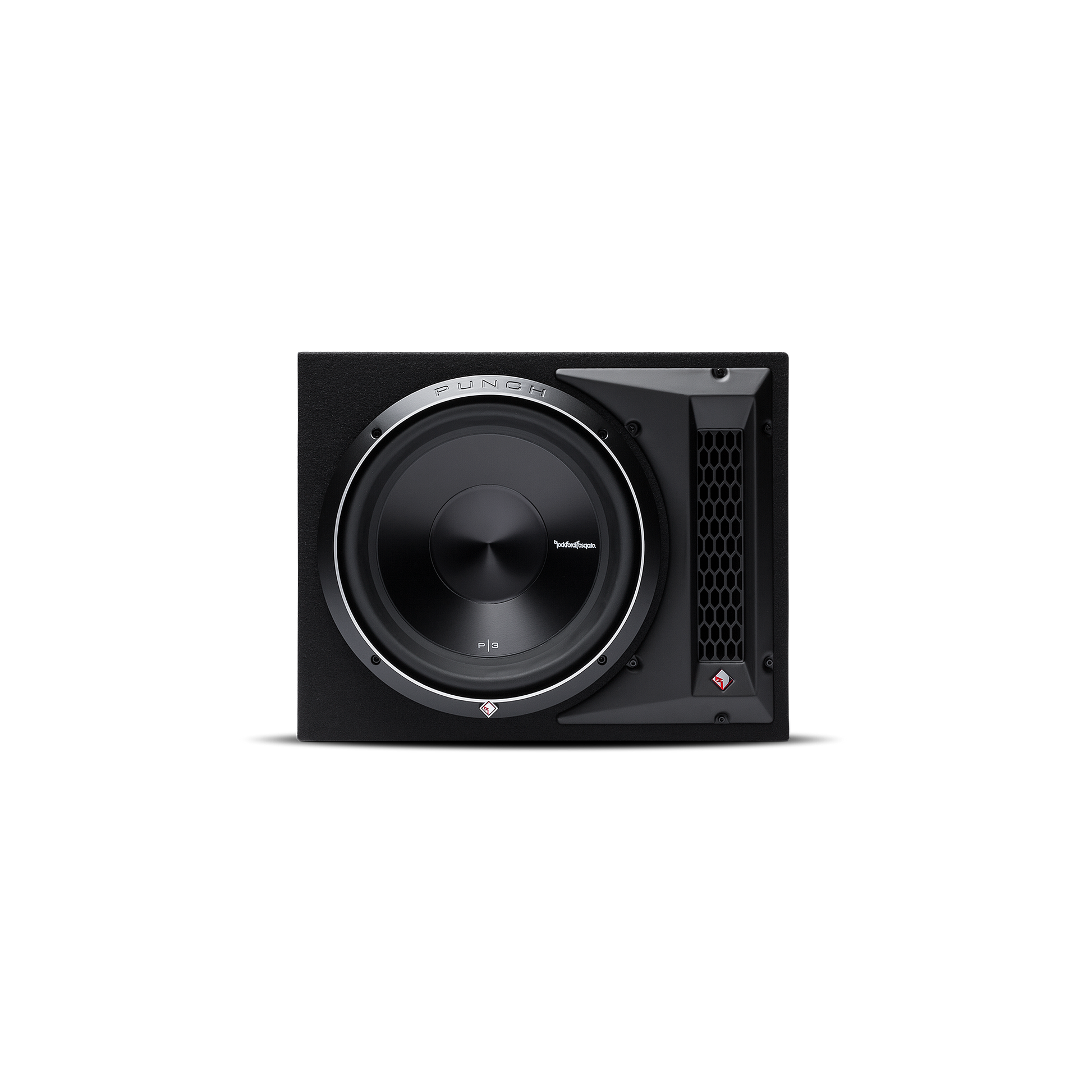

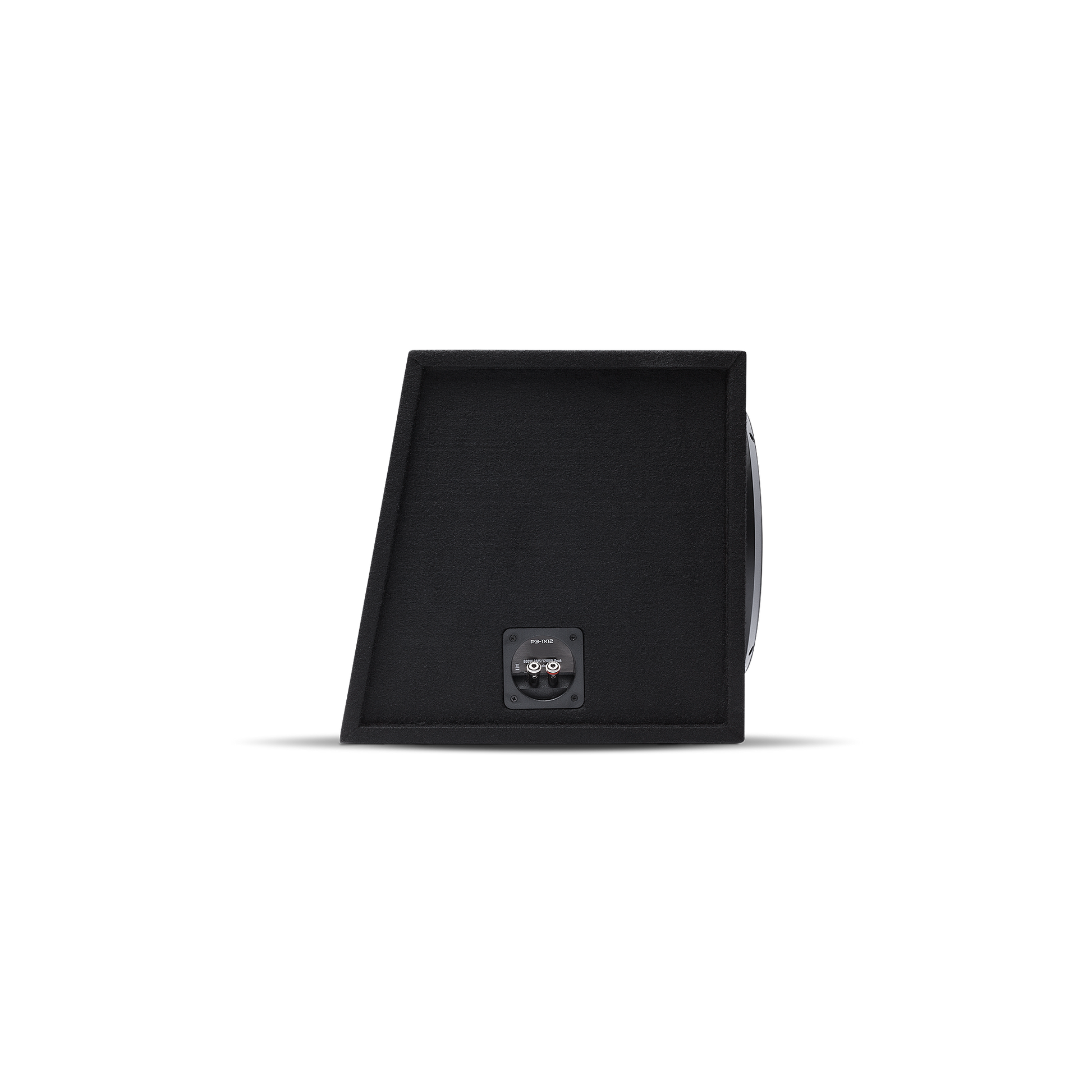

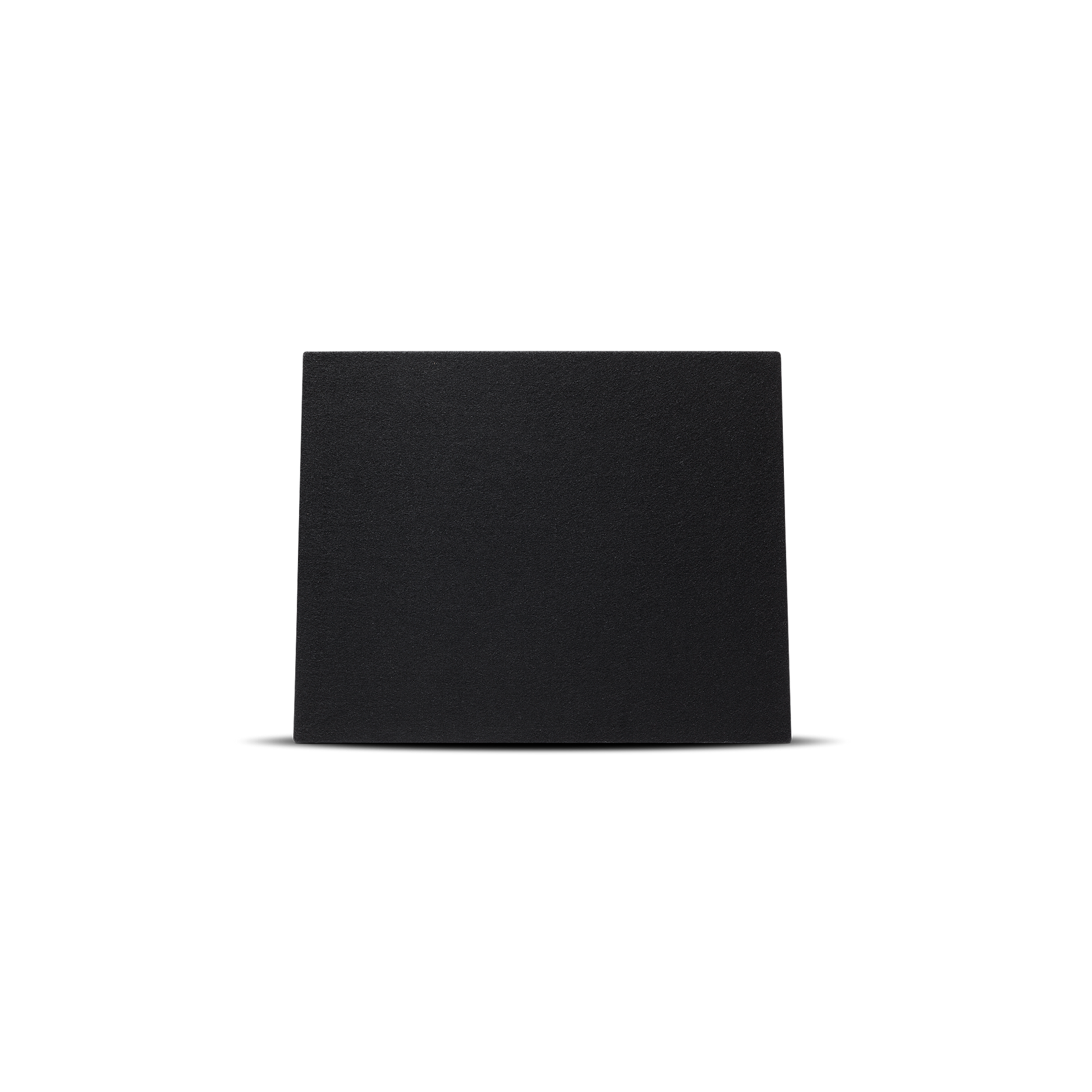

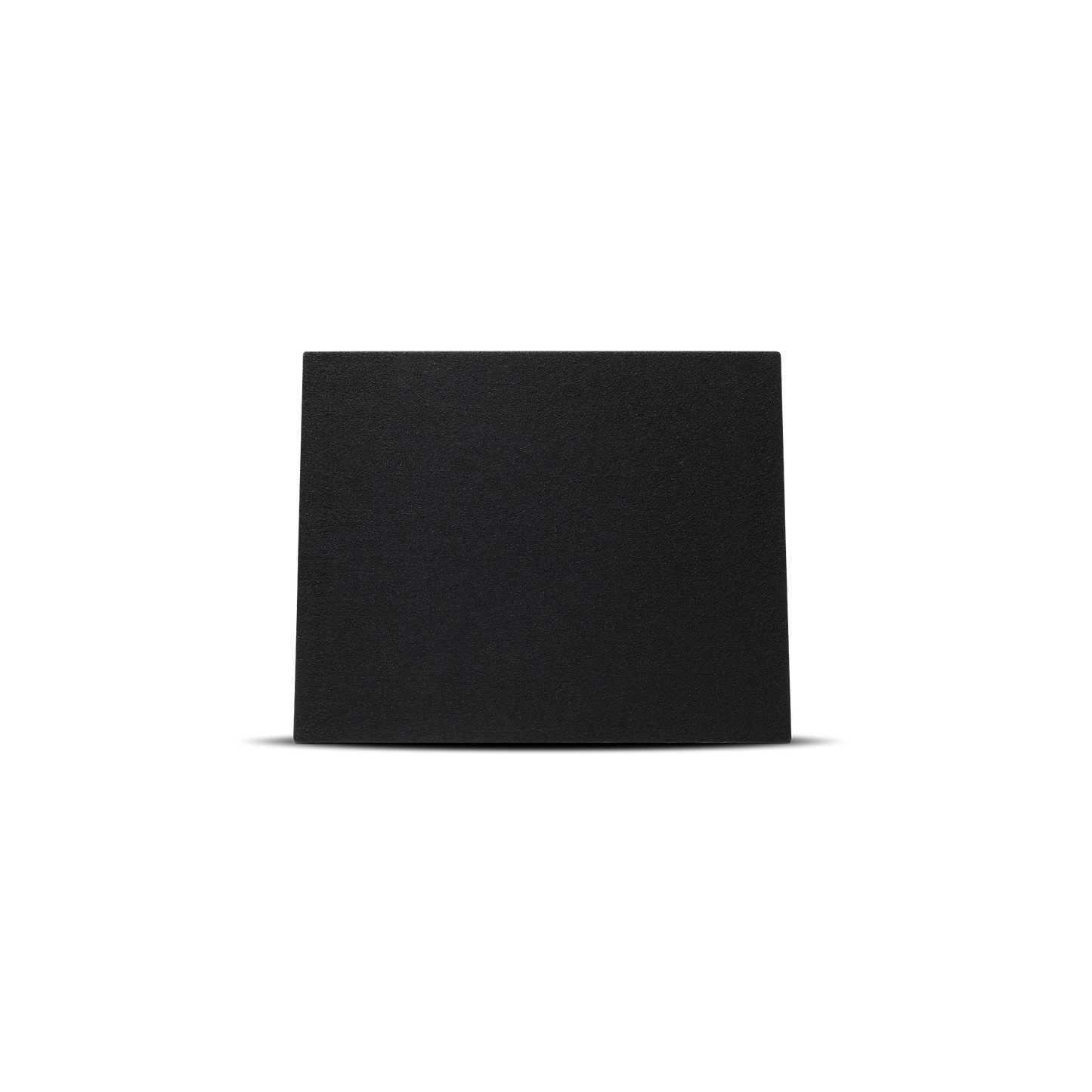

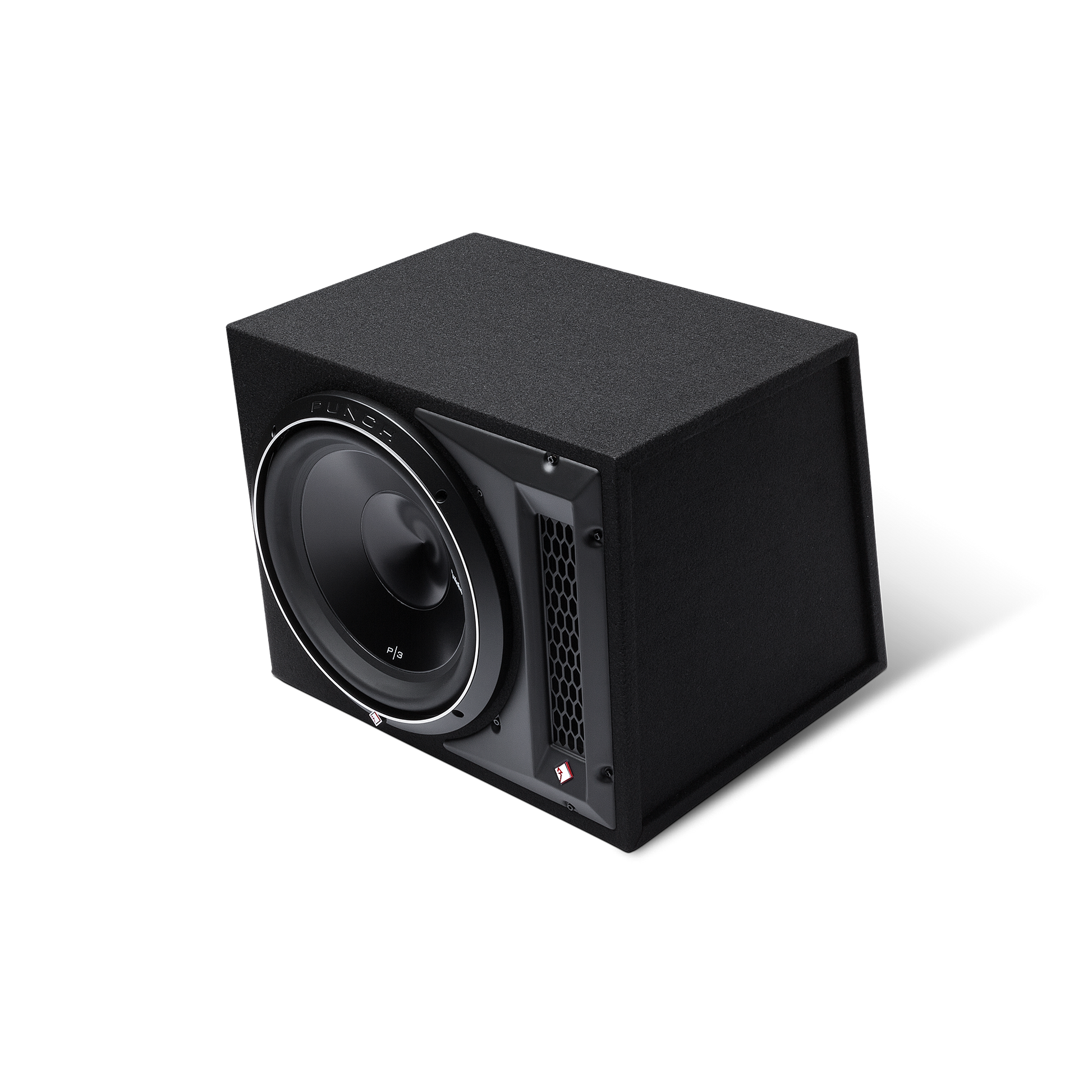

The P3-1X12 is a single P3 12” vented enclosure with 600 Watts RMS power handling wired to a 1-Ohm load. The enclosure is constructed with 5/8” MDF, covered in high density carpet, and features quick release compression terminals.

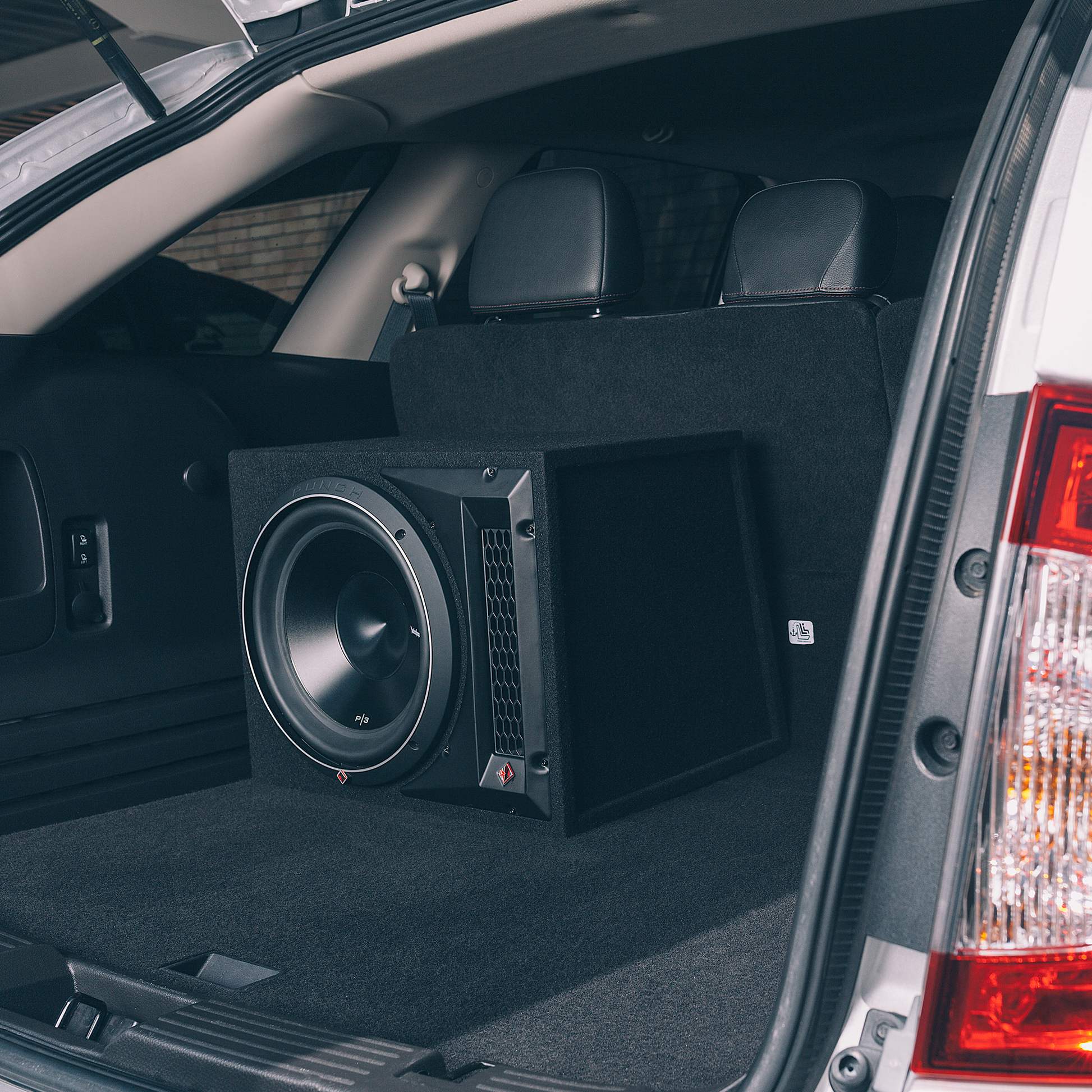

The most convenient way to get low frequency bass in your system is to drop-in a Punch Loaded enclosure. We're not talking junk in the trunk, we're talking the same genuine Punch woofers available separately. Punch Loaded enclosures are constructed with durable 5/8" MDF and tuned by our computer aided design software. P3 Loaded Enclosures feature similar tonal performance as P2 & P1 models, but with higher power handling capacity.
Woofer Quantity | 1 |
Woofer Size | 12" |
Woofer Series | Punch P3 (P3D2-12) |
Nominal Impedance (ea) | 1-Ohm (Internally wired for 1-Ohm amplifier load) |
Power Handling (Watts RMS) | 600 Watts RMS 1200 Watts Max |
Enclosure Type | Vented |
Enclosure Material | 5/8" MDF (Medium Density Fiberboard) |

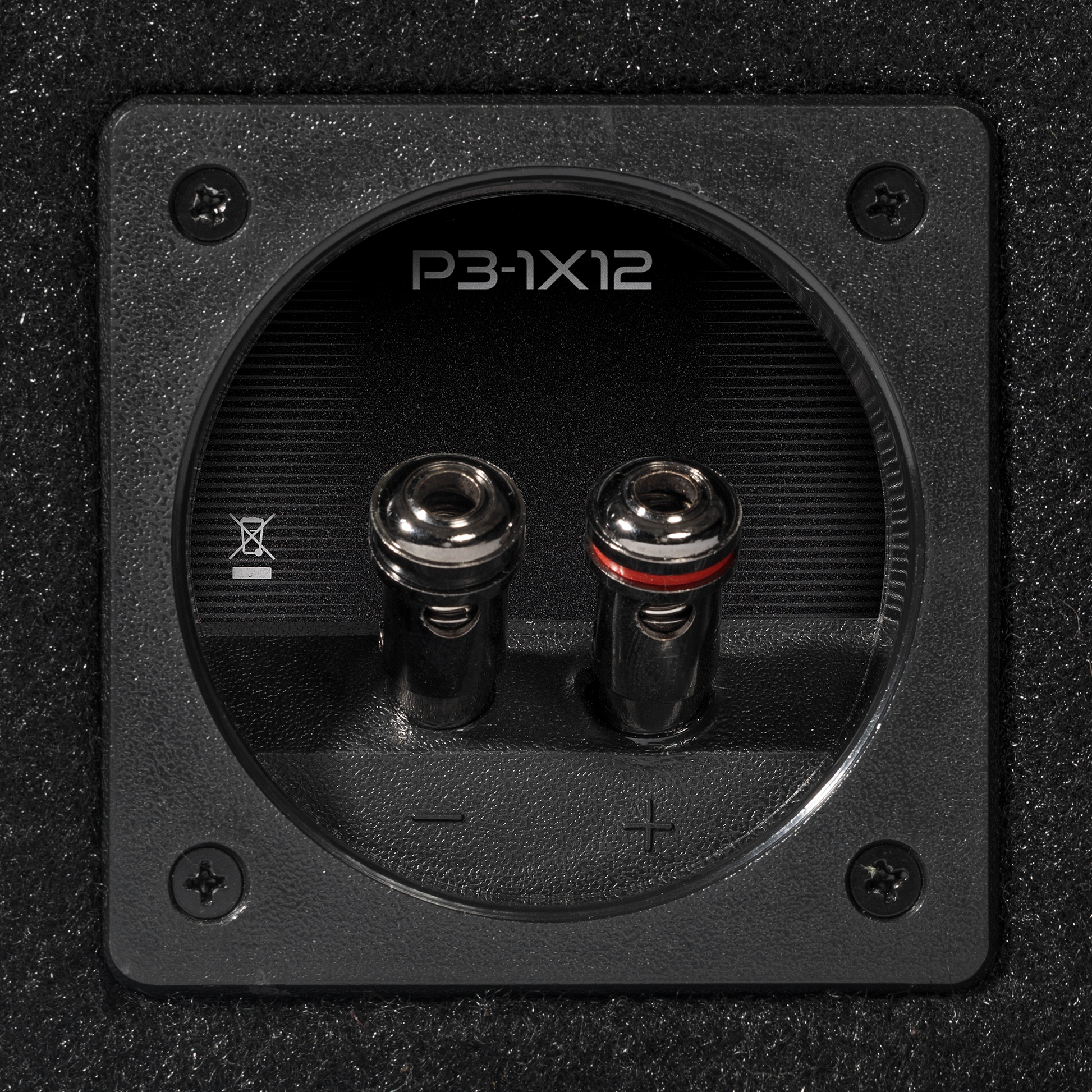

Speaker Connector | Up to 10 AWG compression terminals |
CEA-2031 Compliant | Yes |
Shipping Weight | 56.9 lbs. (25.8 kg) |
Dimensions (H x W x D) | 15.125" x 19.125" x 15.75" (38.4 cm x 48.6 cm x 40 cm) |
