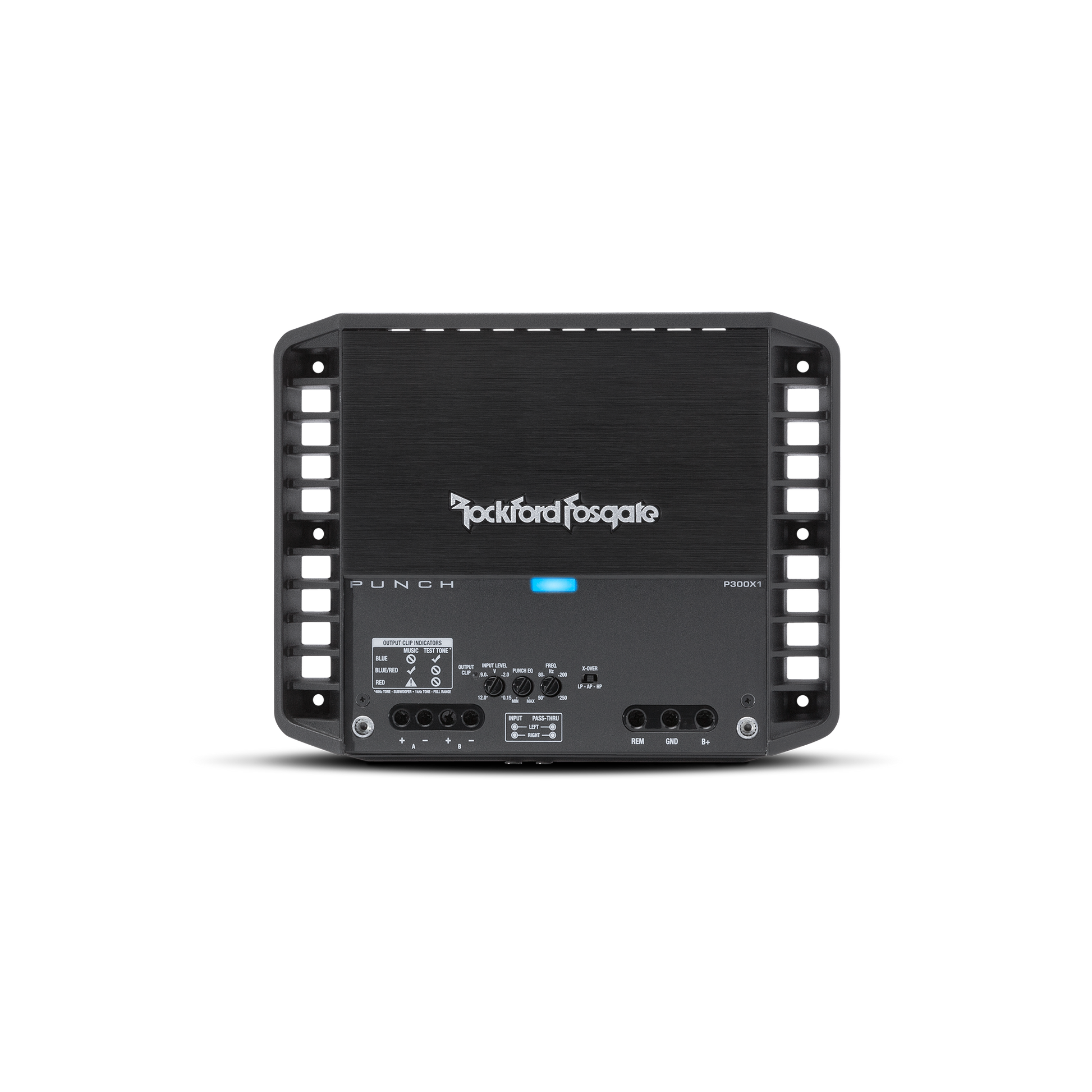

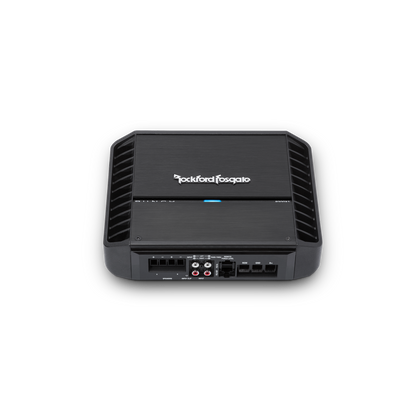

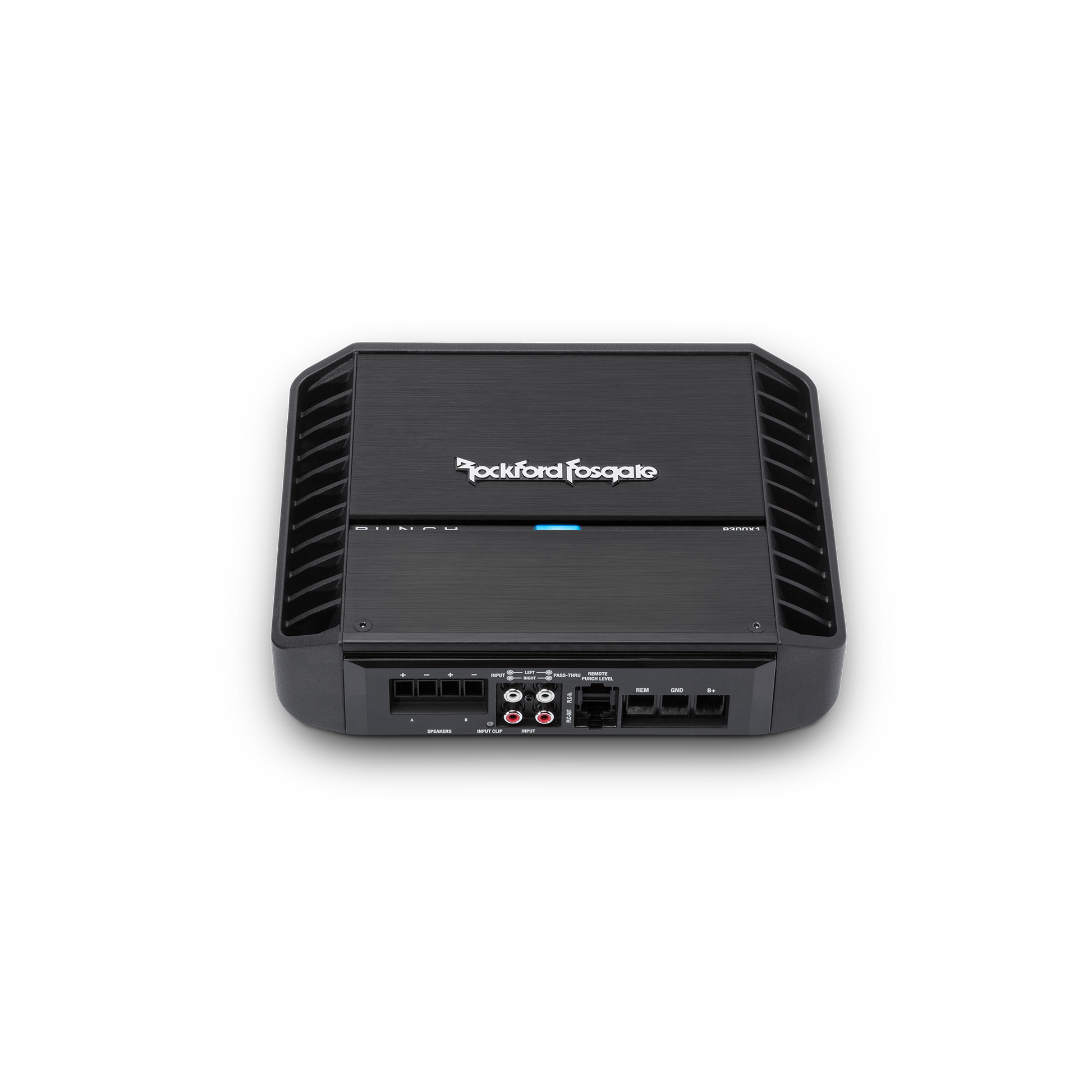

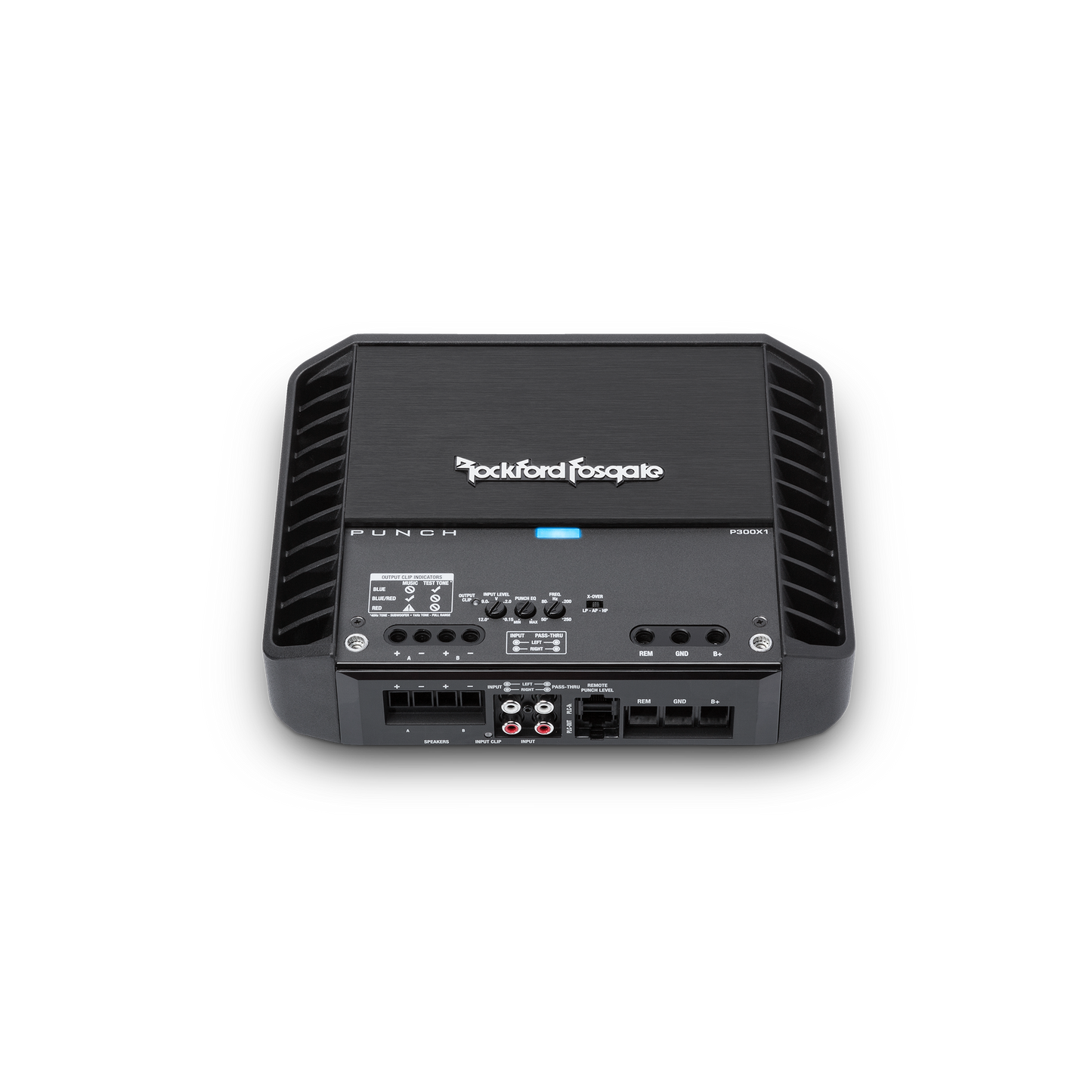

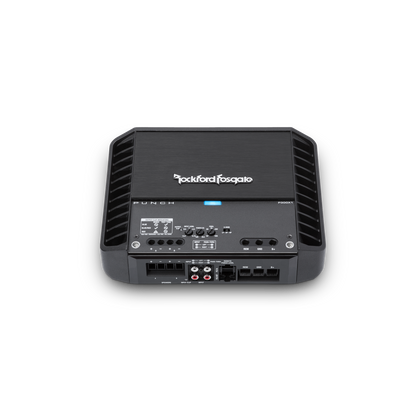

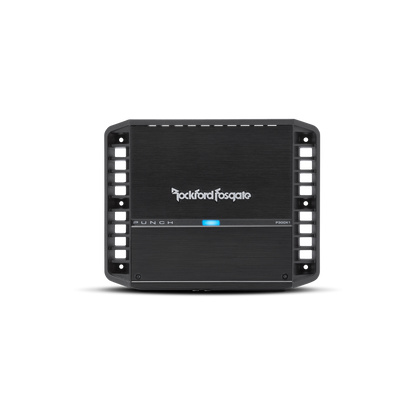

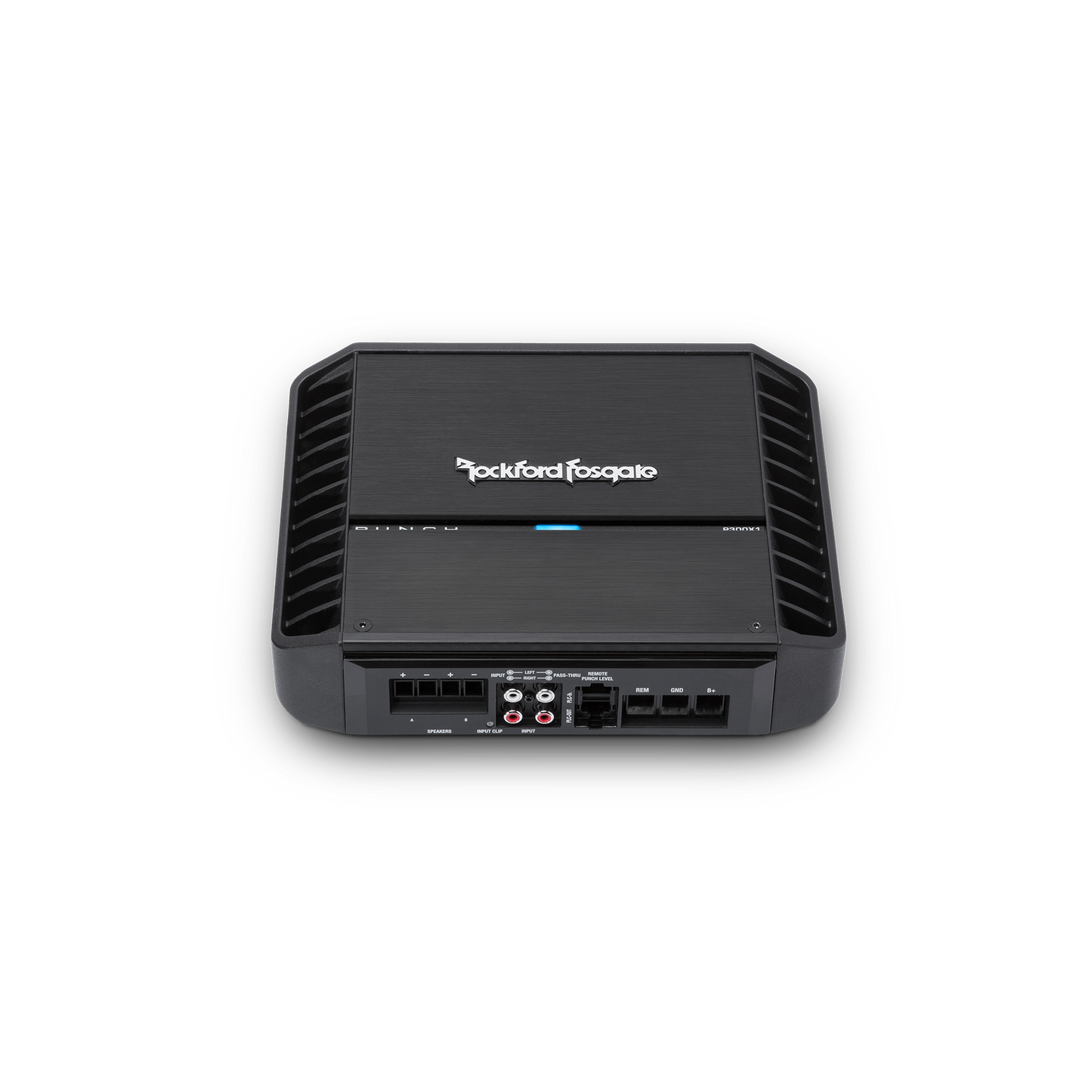

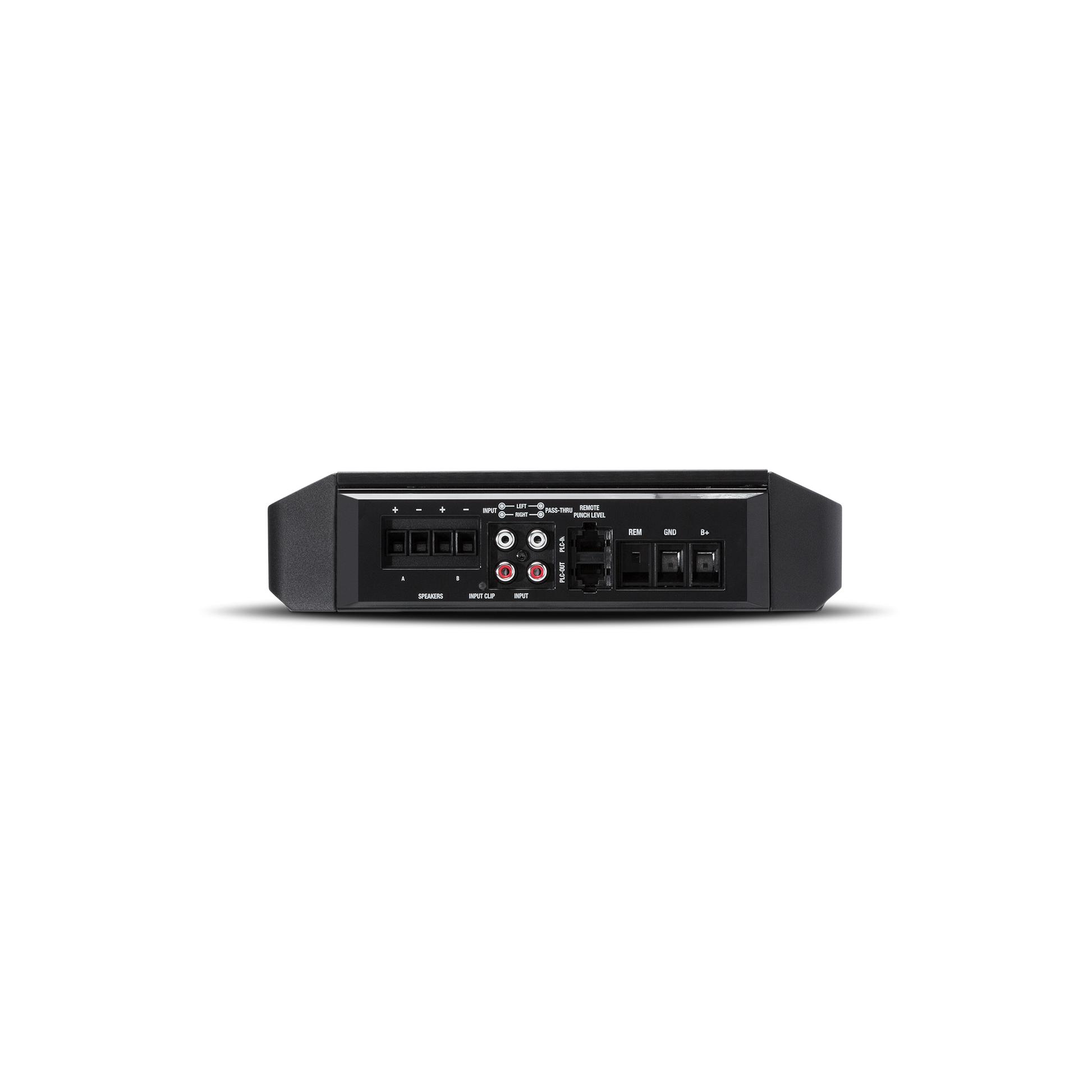

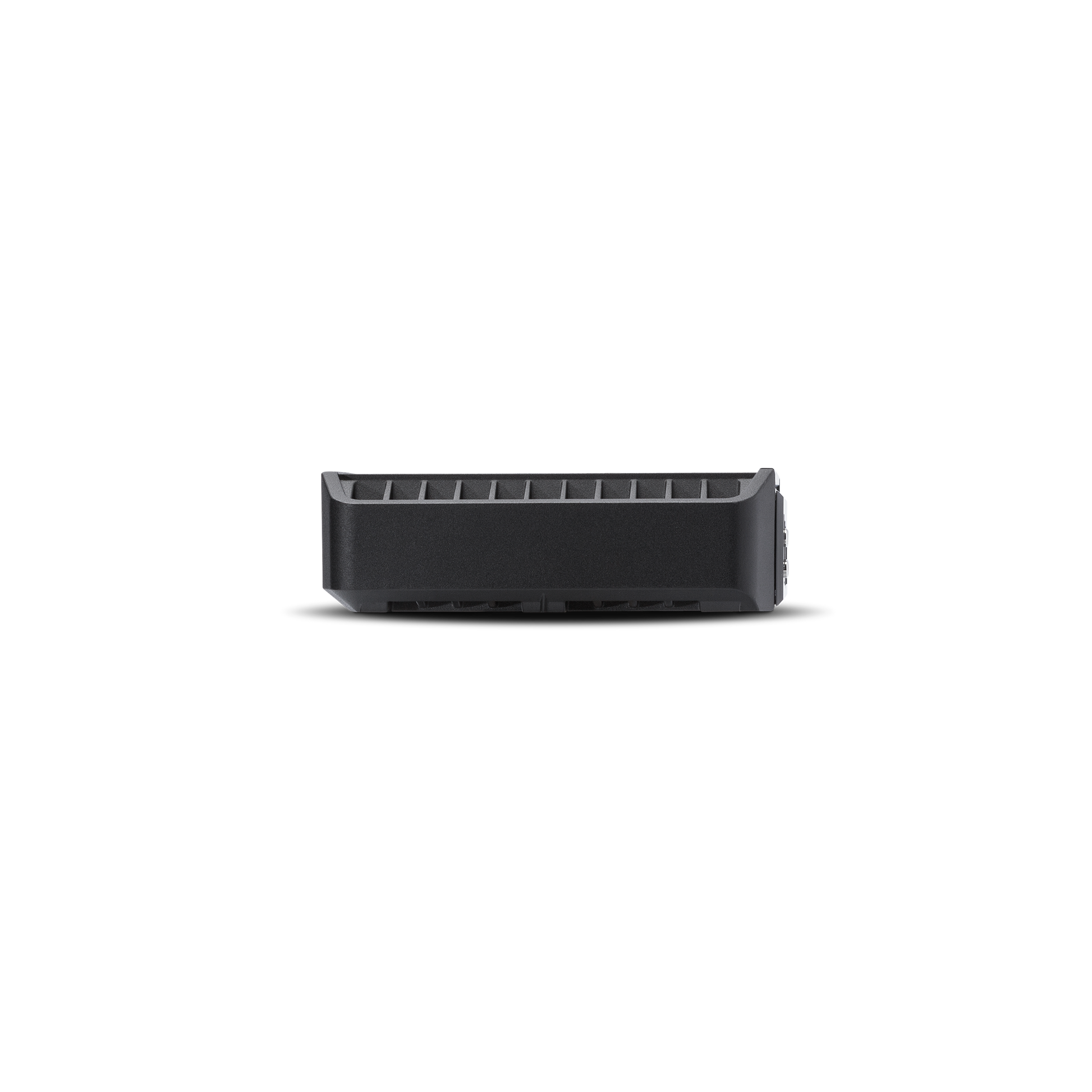

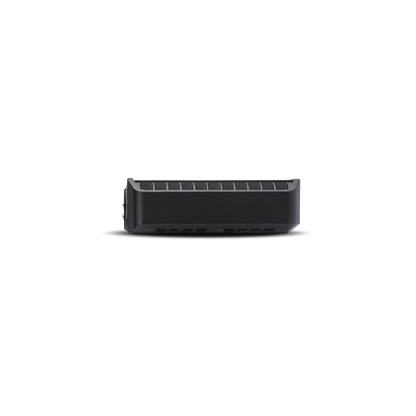

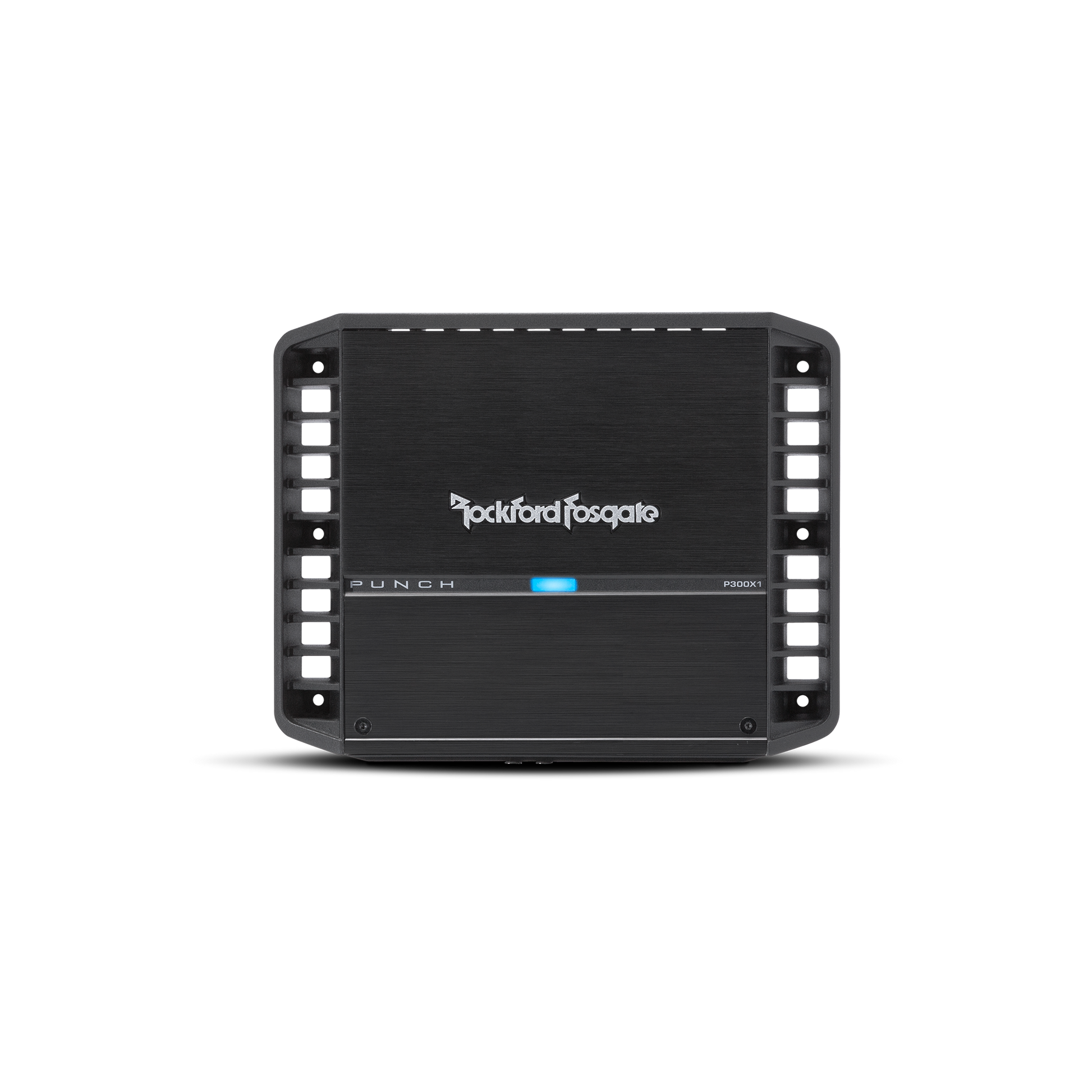

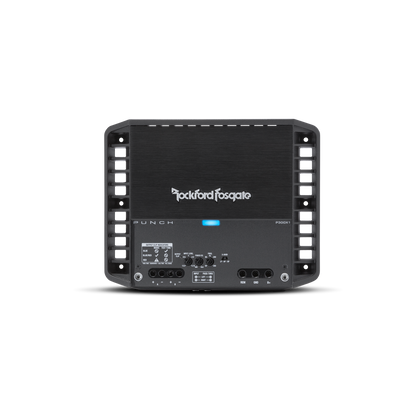

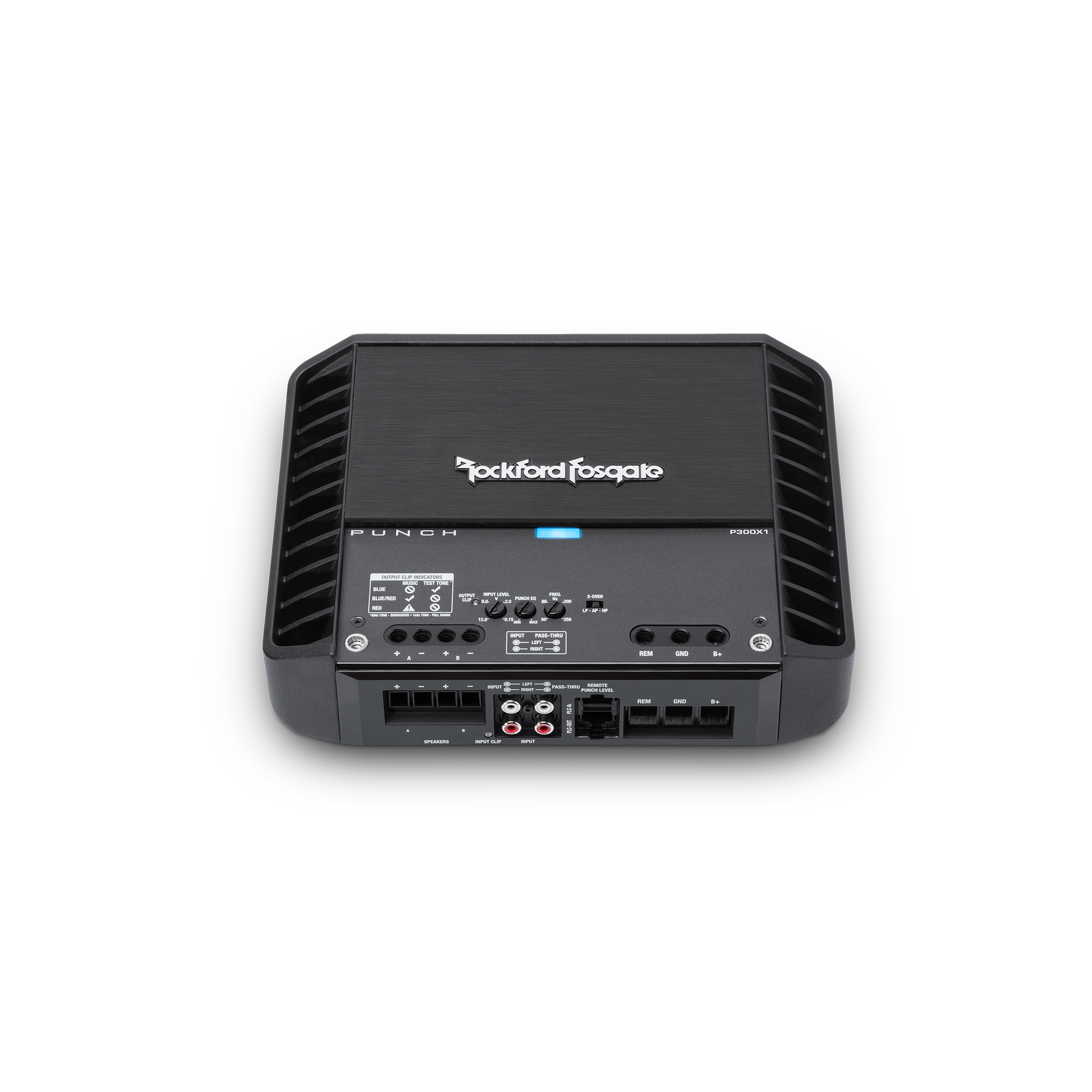

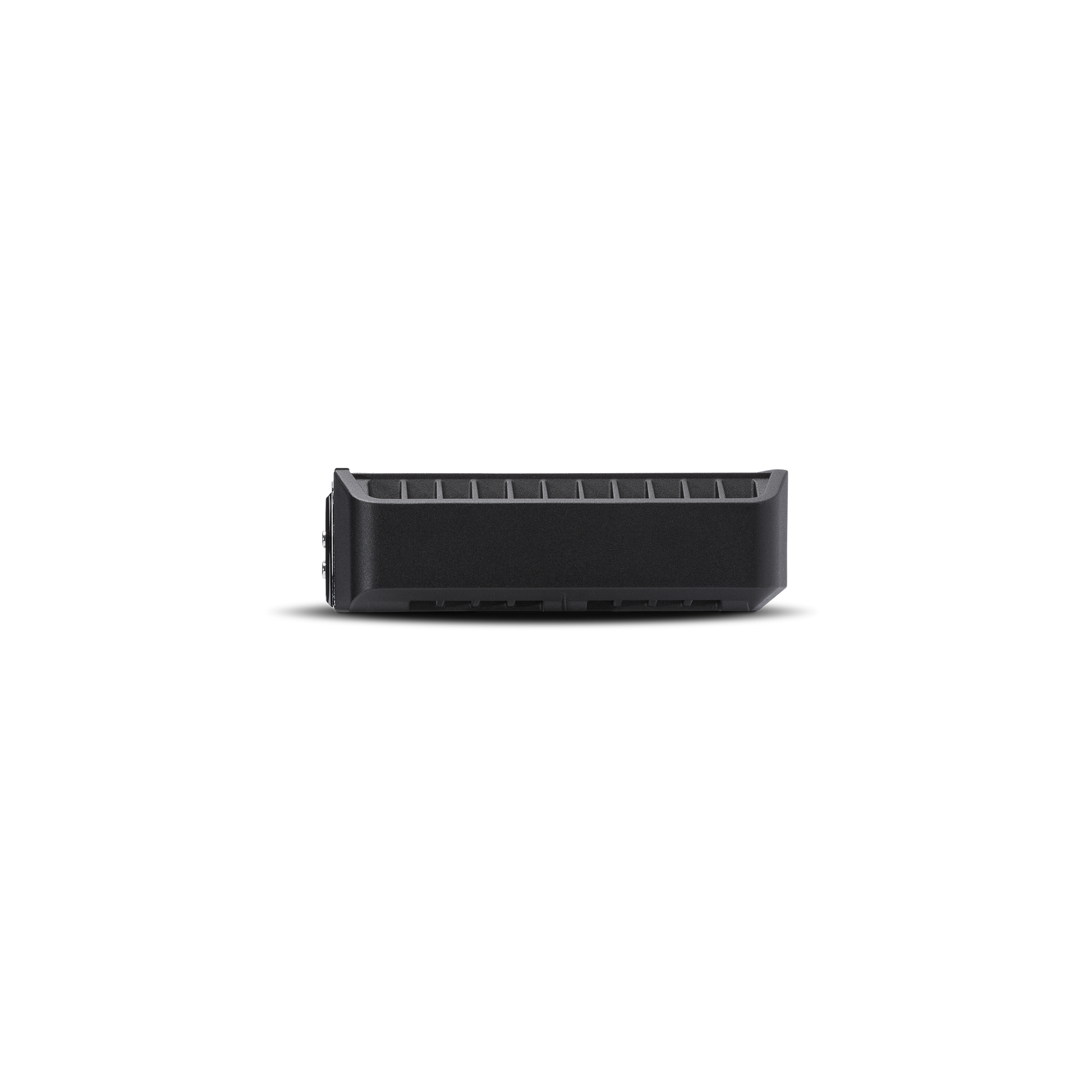

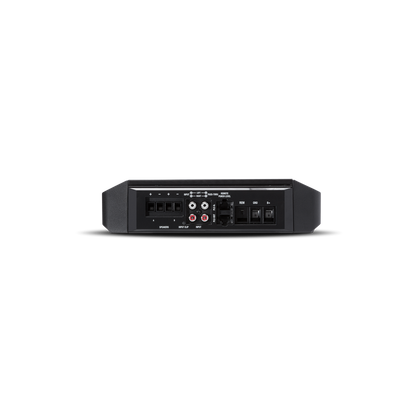

The Punch P300X1 is a mono amplifier capable of producing 300 Watts into a 2-Ohm load. The P300X1 full-range frequency response makes it perfect for a subwoofer system or for powering a dedicated center channel speaker.
The P300X1 is perfect for use as a dedicated subwoofer or center channel amplifier. Regardless if you're driving multiple speakers or just one, the hefty 2-ohm capability will deliver the right amount of PUNCH that you want! Now, thanks to its small chassis design, it will also fit where traditional amplifiers cannot.
| Feature | Details |
|---|---|
| CTA-2006 Compliant | Yes |
| Number of Channels | 1 |
| Total Power (Sum of Rated Power) | 300 Watts |
| Rated Power (RMS Continuous Power) | 200 Watts x 1 @ 4-Ohm 300 Watts x 1 @ 2-Ohm |
| Dynamic Power (PVC/PowerCube®) | 260 Watts x 1 @ 4-Ohms 0° Res 444 Watts x 1 @ 2-Ohms 0° Res |
| Bridgeable | No |
| Frequency Response | 20Hz to 20kHz +/- 1.0dB |
| Input Sensitivity | 150 mV - 12 V |
| Circuit Topology Class | Class A/B |
| Efficiency (average) | 74% @ 4-Ohm |
| Total Harmonic Distortion (THD+Noise) | 4-Ohm: <1.0% 2-Ohm: <1.0% |

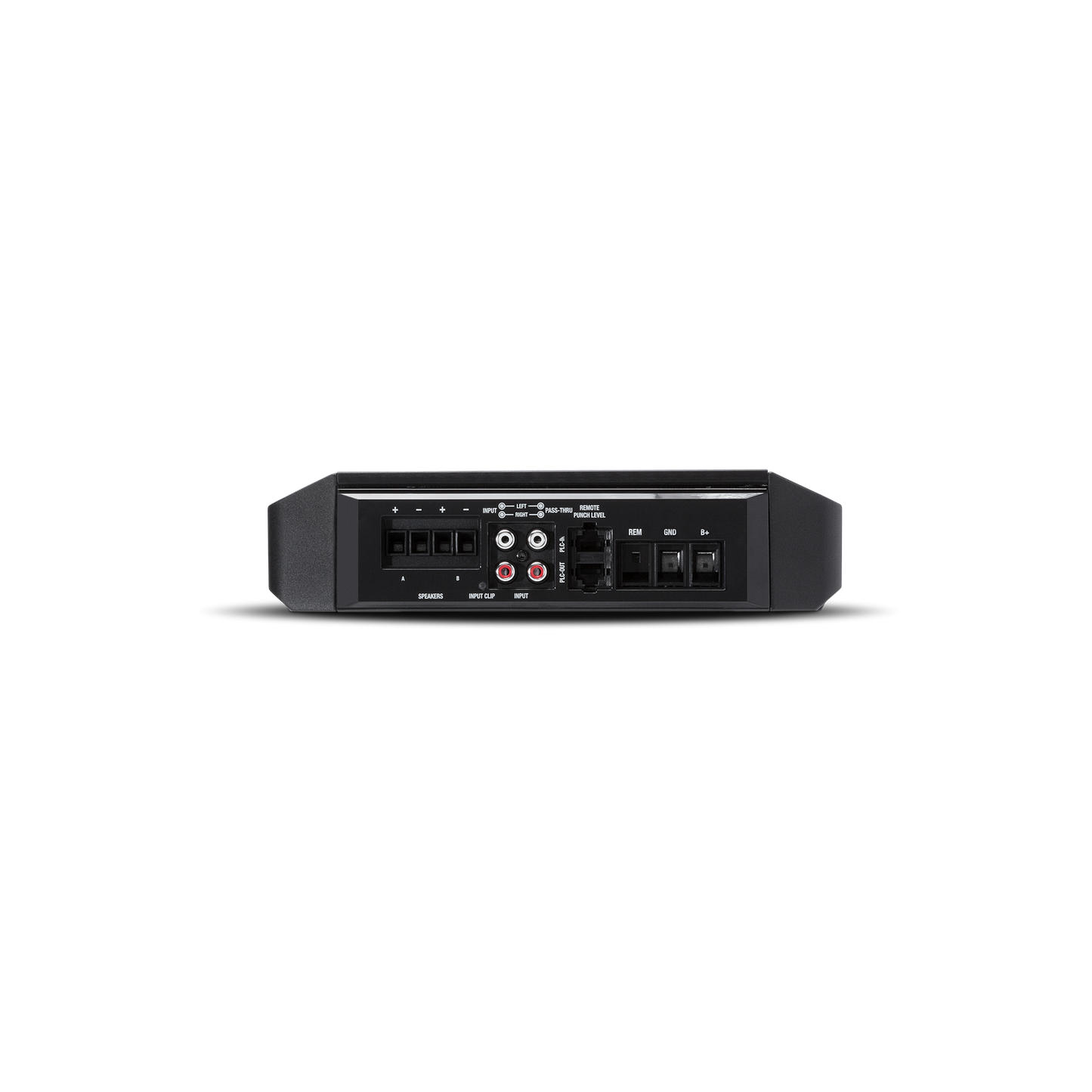

| Signal Input | Hi/Low level: 1 RCA pair |
| Signal Output | Low Level: 1 RCA Pair |
| Tone Controls | Punch EQ2 Bass: 0dB to +18dB @ 45Hz Punch EQ2 Treble: 0dB to +12.5dB @ 12kHz Function depends upon LP/AP/HP switch position |
| Crossover Controls | High-Pass: 50Hz-250Hz @ 12dB/octave Butterworth Low-Pass: 50Hz-250Hz @ 12dB/octave Butterworth All-Pass: Yes |
| Remote Controls | Optional Punch Level Control (PLC2) Ready |
| Visual Indicators | Power/Protect/Thermal LED Input Clip LED3 Output Clip LED1,2,3 |
| LED Color Legend | 1BLUE: <0.5% THD 2VIOLET: 1% THD 3RED: 10%+ THD |
| Power Wire Gauge | 8 AWG to 4 AWG |
| Power Input Connector | Captive C-Clamp |
| Speaker Wire Gauge | 8 AWG to 18 AWG |
| Speaker Output Connector | Captive C-Clamp |
| Cooling | Convection |
| Heatsink | Yes |
| Operating Voltage | 9 - 16 VDC |
| Recommended Fuse (not included) | 50 A |
| Average Current Draw (13.8V Music) | 23 A |
| Max. Current Draw (13.8V Sinewave) | 45 A |
| Suggested Alternator | 75 A |
| Included In The Box | Yes |
| Dimensions (H x W x D) | 2.38 x 7.76 x 9.86 (in) 6.05 x 19.71 x 25.04 (cm) |
| Shipping Weight | 9.5 Lbs. (4.30 Kg.) |
