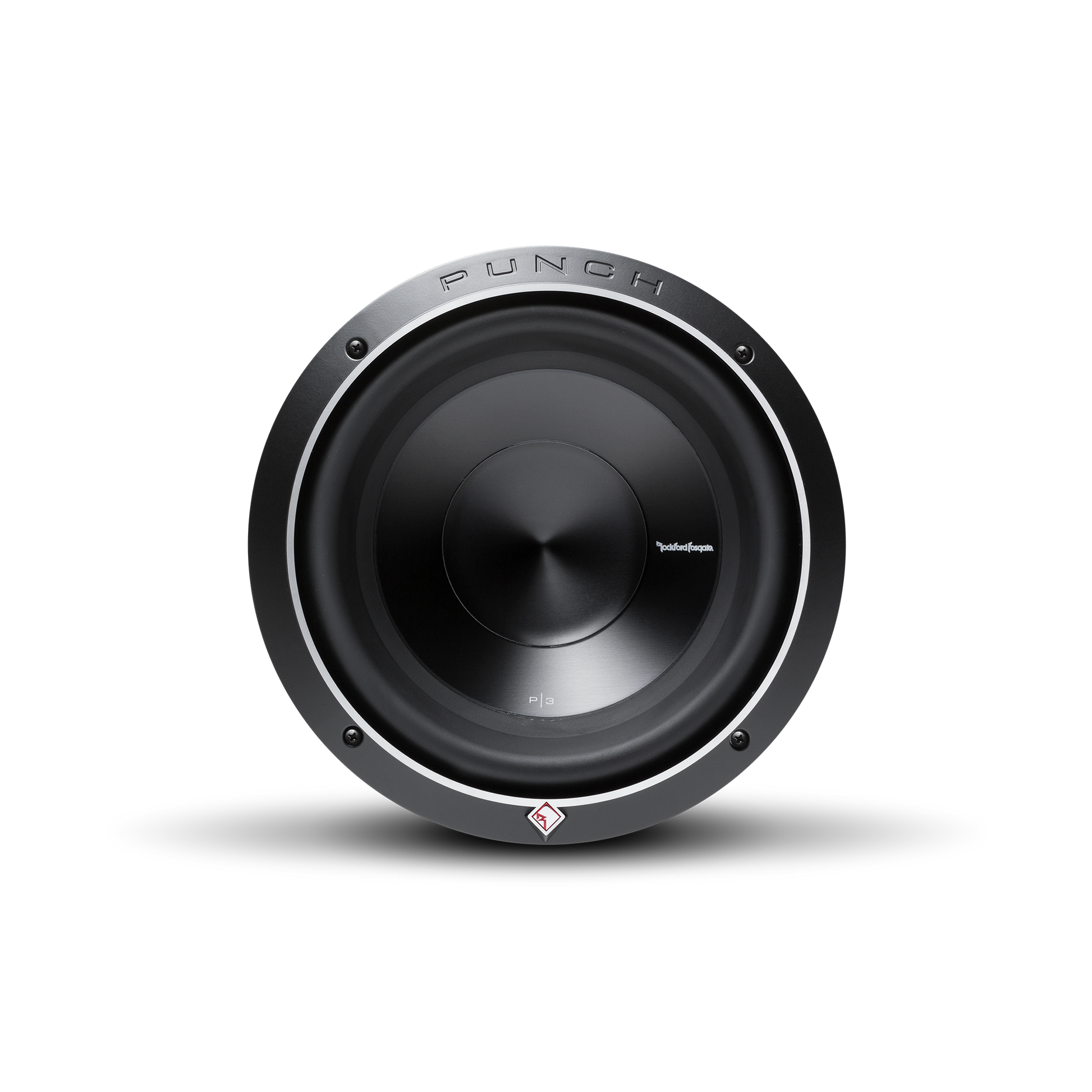

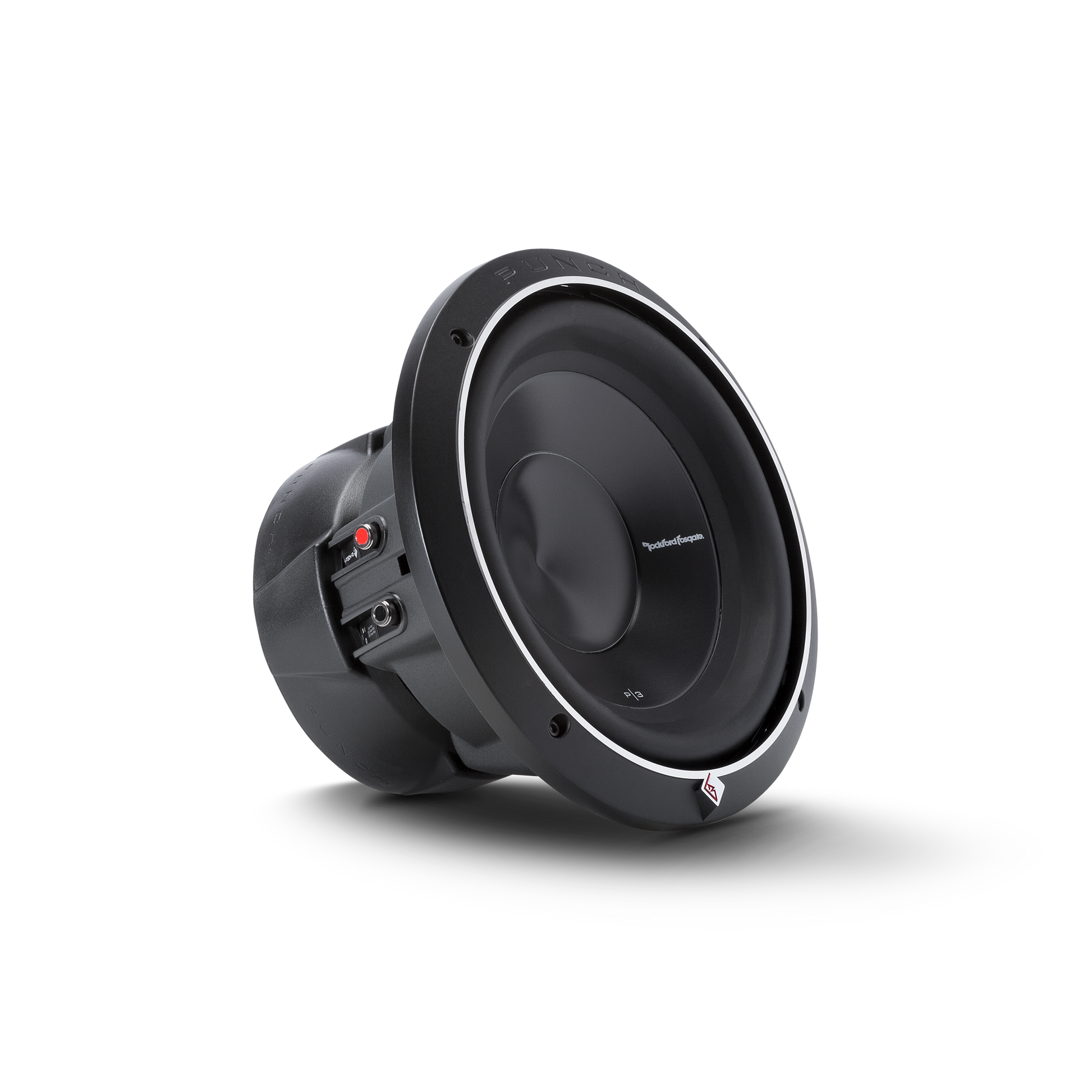

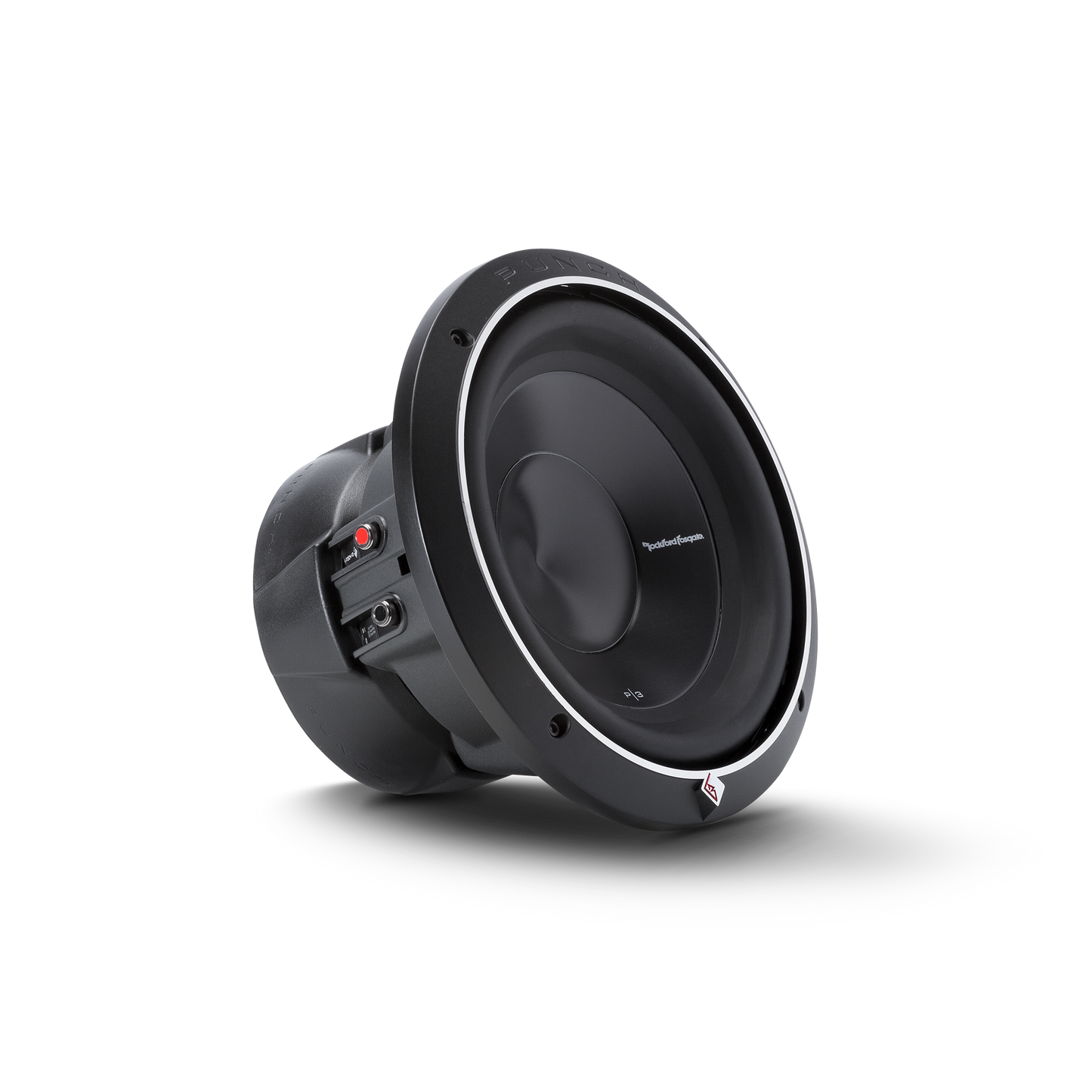

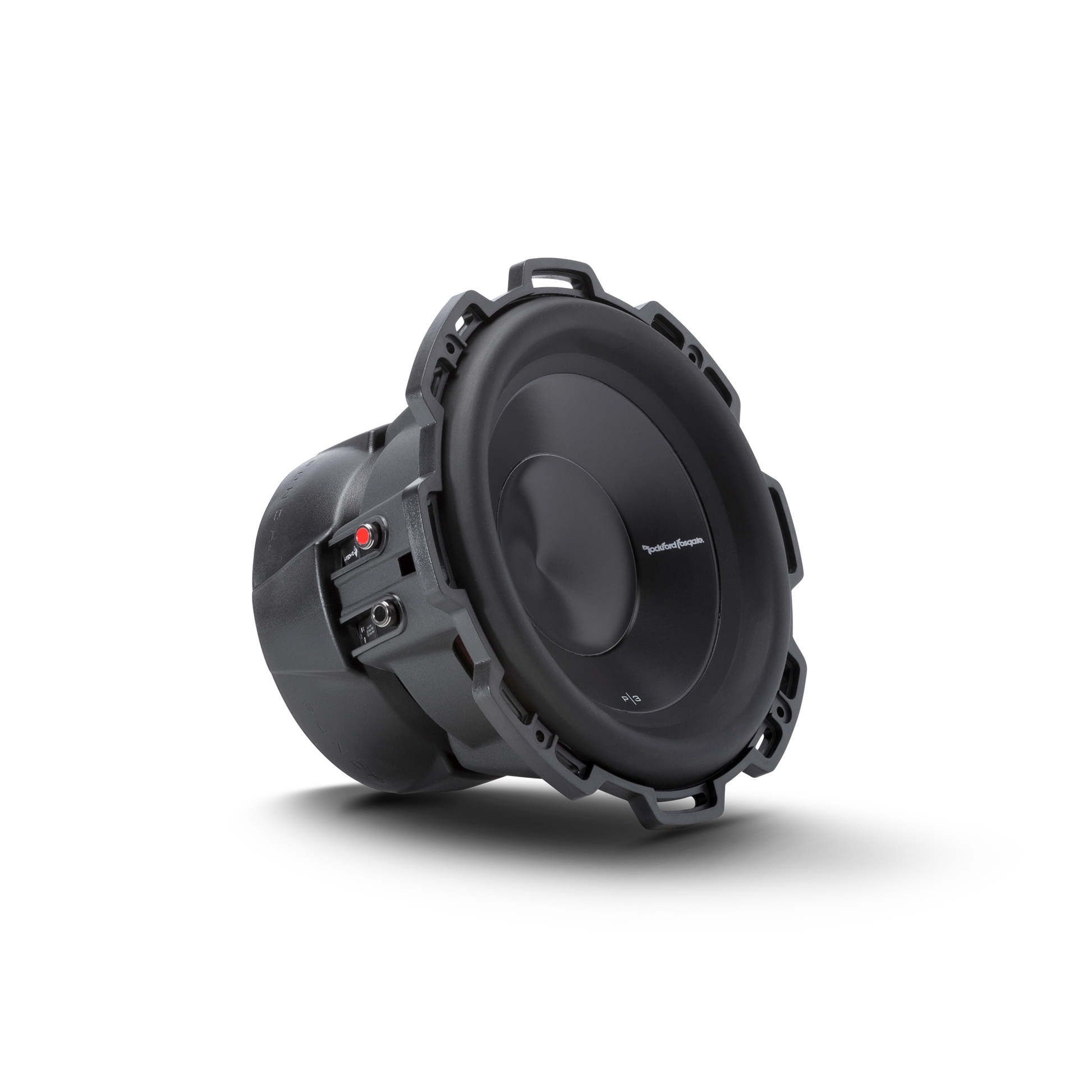

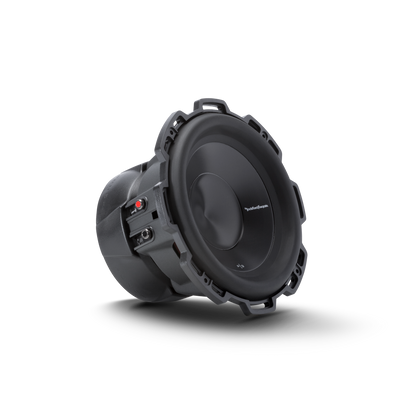

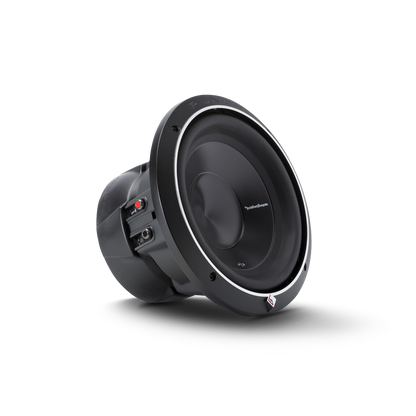

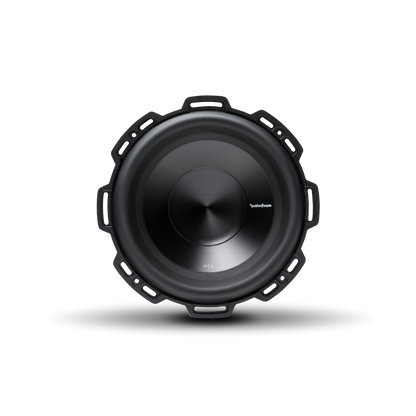

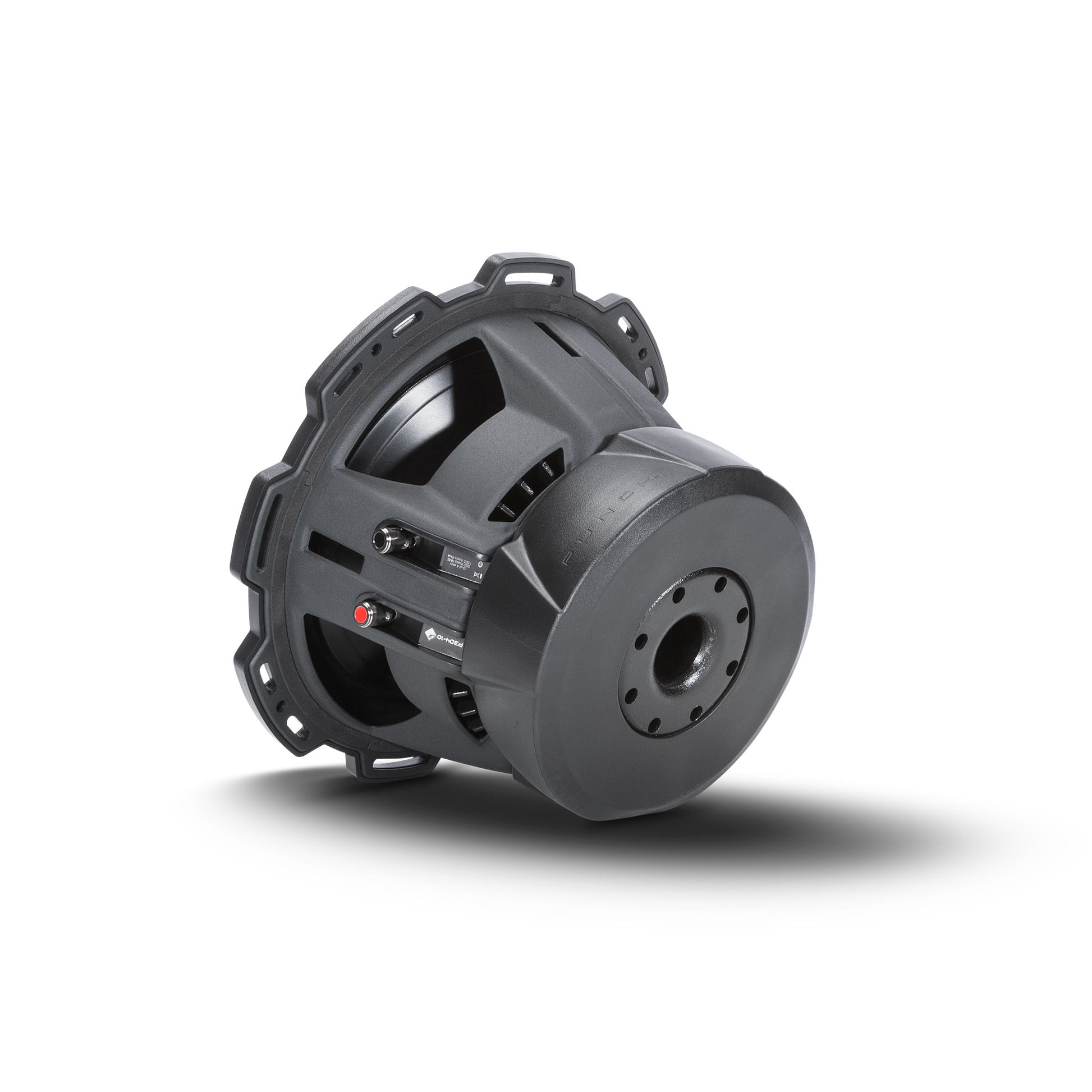

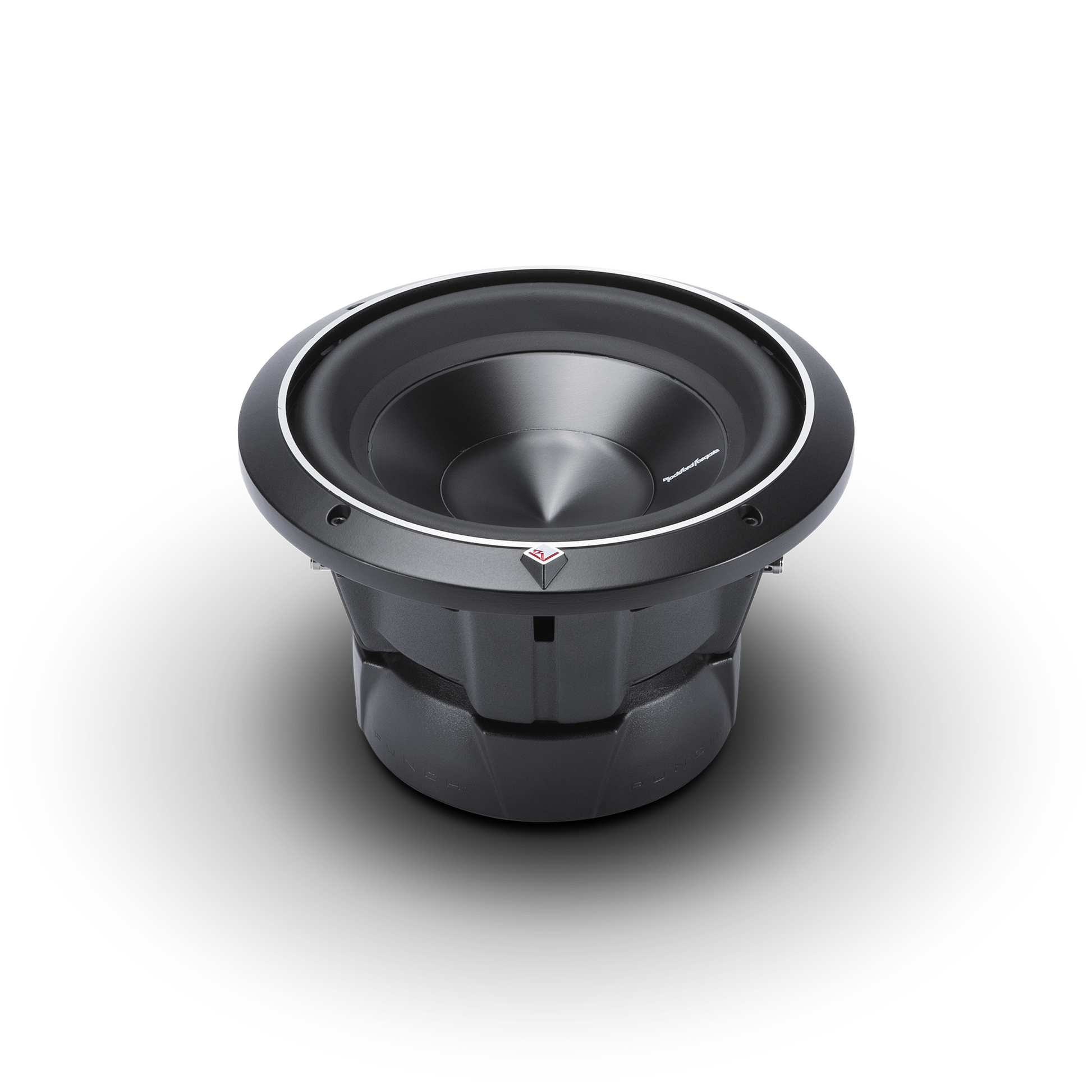

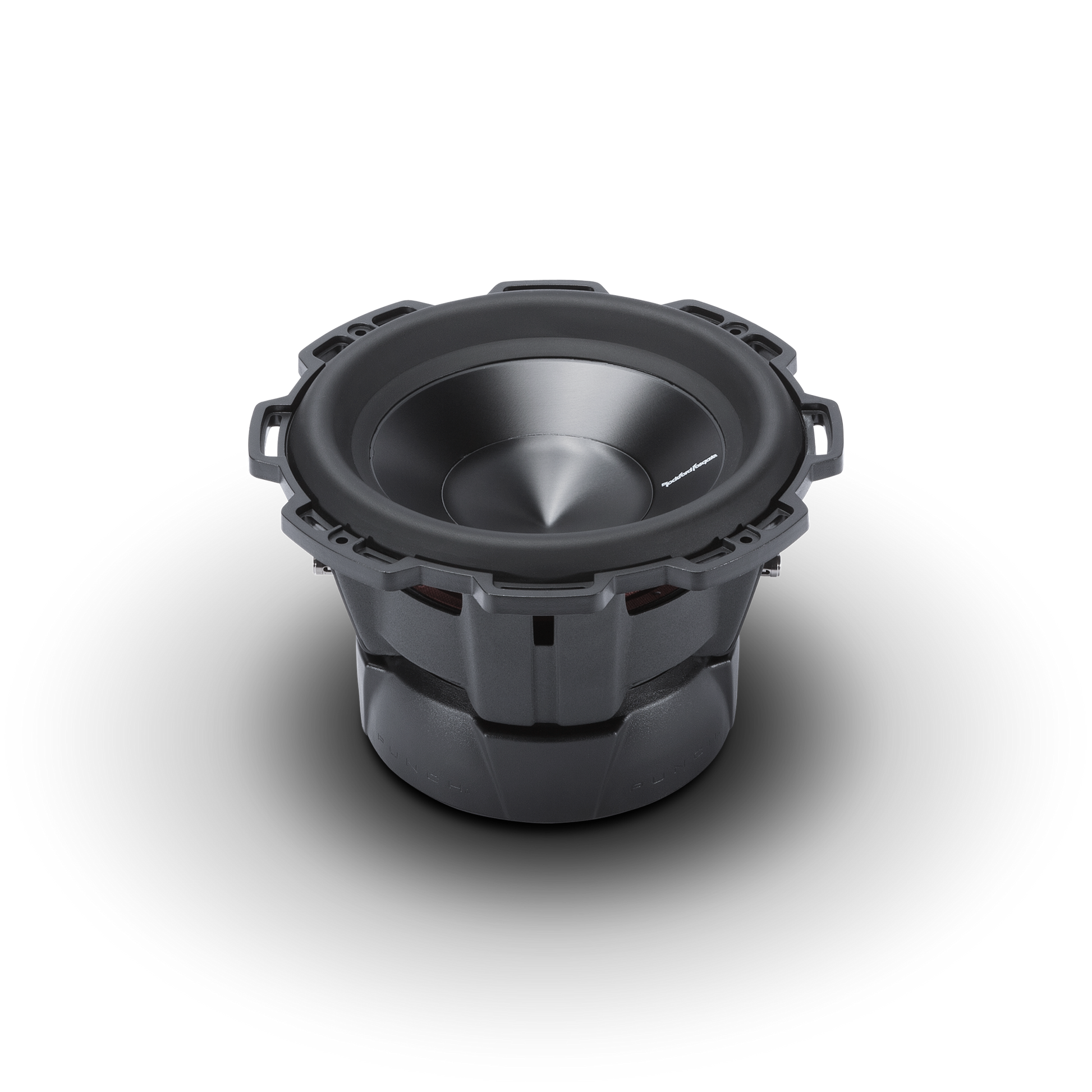

The P3D4-10 is the best performing Rockford Fosgate Punch series subwoofer. The P3 10” features Dual 4-Ohm voice coils, 500 Watts RMS of power handling, and accommodates a grille insert using the included cast aluminum trim ring.

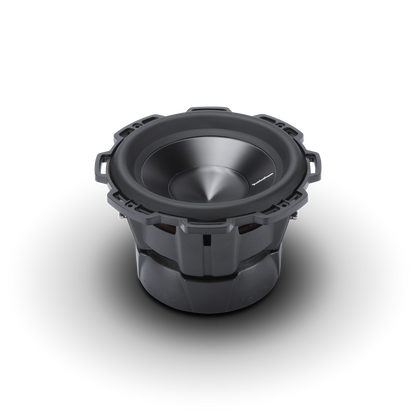

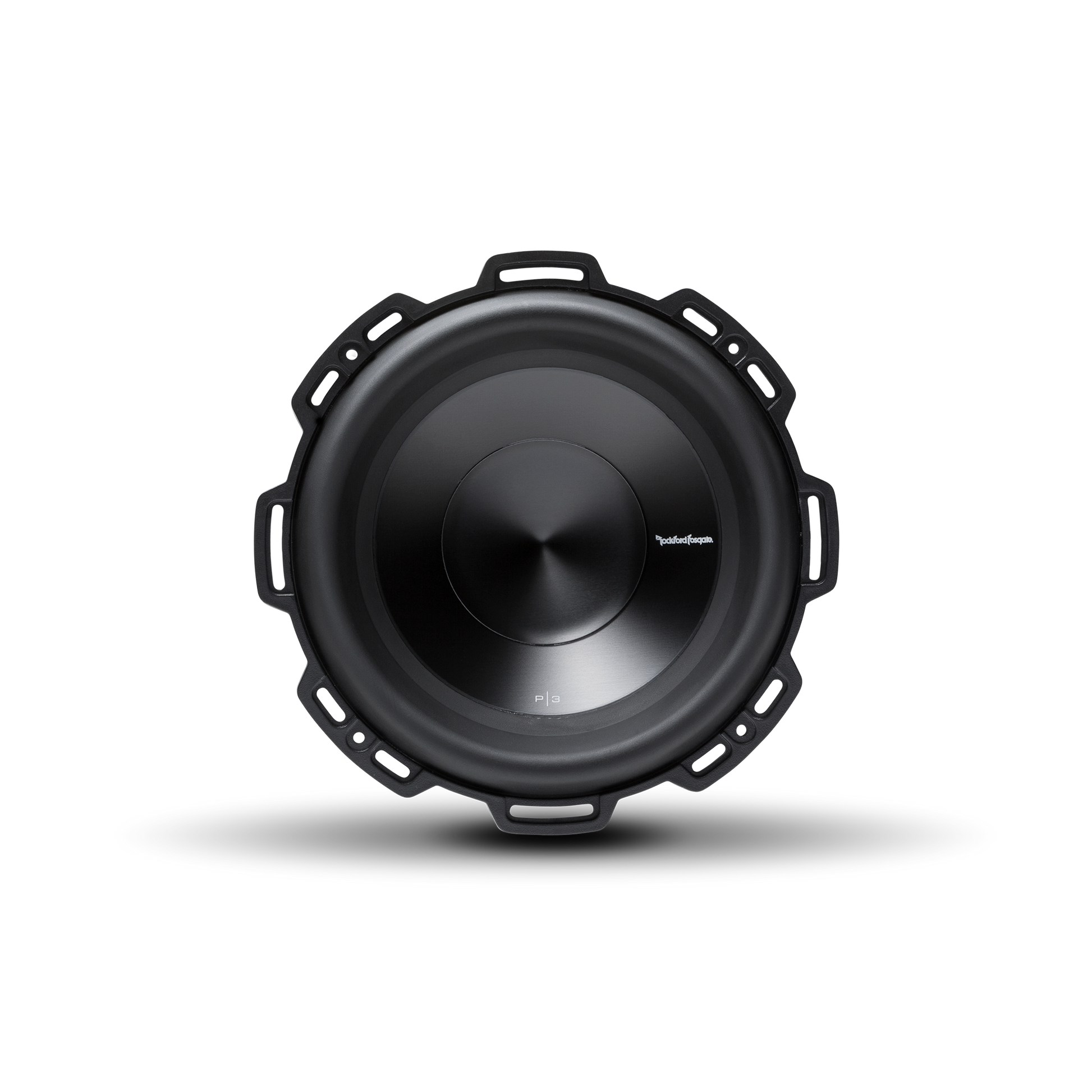

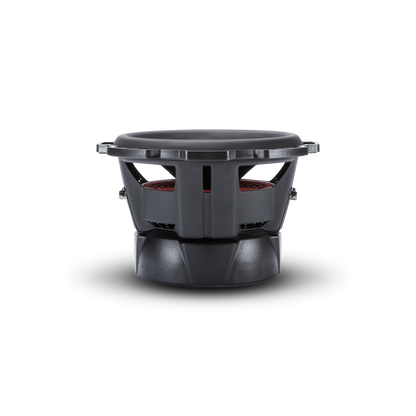

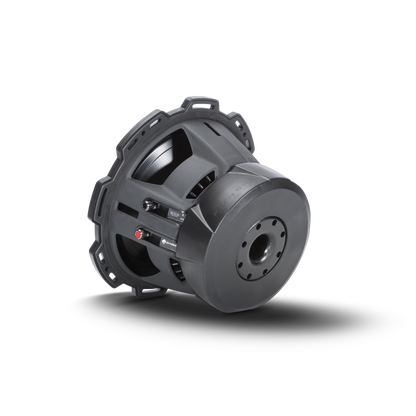

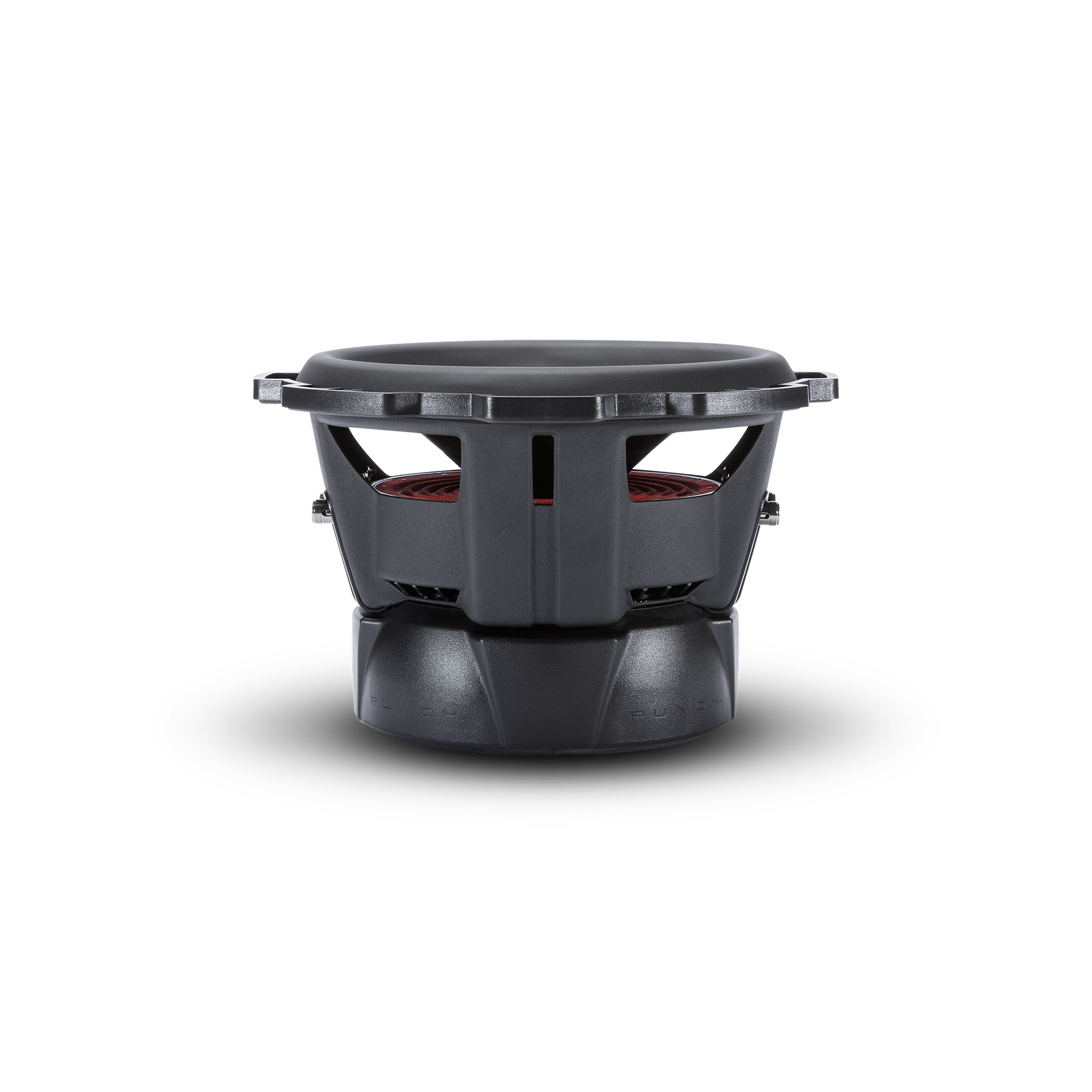

The P3D4-10 is Rockford Fosgate's best performing Punch series subwoofer. The P3 subwoofers now feature anodized aluminum cones and dustcaps along with unique spider venting to keep the motor cooler than previous versions. These feature VAST technology to increase surface cone area up to 25% and a FlexFit basket for extreme installations. Best of all, a new hybrid stamp-cast basket offers the best of both worlds by providing super strength while minimizing weight and resonance.
Features:
| Power Handling (Watts RMS) | 500 Watts RMS / 1000 Watts Max |
| Mounting Depth | 6.18 in. (156.8 mm) |
| Voice Coil Diameter | 2.5" (65.5 mm) |
| Magnet Weight | 81 oz. (2.30 kg) |
| Nominal Impedance | Dual 4-Ohm |
| Size | 10" |
| Speaker Connector | Dual 10 AWG Compression |
| Shipping Weight | 17.3 Lbs. (7.8 kg) |
| SPL (dB @ 1w/1m) | 82 |
| Cutout Diameter | 9.13 in. (232 mm) |
| Le (mH) | 7.0 |
| Qts | 0.56 |
| Xmax (mm) | 15.9 |
| Fs (Hz) | 28 |
| Qes | 0.63 |
| Qms | 5.00 |
| Vas (Liters) | 27.0 |
| Re (Ohms) | 6.40 |
| Woofer Displacement | 0.070 cu. ft. (2.0 Liters) |
| CEA-2031 Compliant | CEA-2031 Guidelines |
| Sd (cm²) | 360 |
| Subwoofer Type | Standard |
| Voice Coil Type | Dual Voice Coil |
| Sealed Box Volume (Vb) | 0.59 cu. ft. (16.7 Liters) |
| Vented Box Volume (Vb) | 1.4 cu. ft. (39.6 Liters) |
