Rockford Fosgate P3D4-12

Rockford Fosgate P3D4-12

In stock

Punch 12" P3 4-Ohm DVC Subwoofer

  • New Launch
$199.99
$199.99
Save: $-199.99 (% Off)*
Sale Sold out
Shipping calculated at checkout.
  • Free shipping Over $99
Sold in last hours
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
  • Fast, FREE Delivery

    Free, Fast, Doorstep Delight!

  • Delivery & Returns

    Effortless Delivery, Easy Returns

View full details
  • Overview
  • Details
  • Accessories
The P3D4-12 is the best performing Rockford Fosgate Punch series subwoofer for cars and trucks. The P3 12” features Dual 4-Ohm voice coils, 600 Watts RMS of power handling, and accommodates a grille insert using the included cast aluminum trim ring.

The P3D4-12 12-inch subwoofer is Rockford Fosgate's best performing Punch series subwoofer. The P3 subwoofers now feature anodized aluminum cones and dustcaps along with unique spider venting to keep the motor cooler than previous versions. These feature VAST technology to increase surface cone area up to 25% and a FlexFit basket for extreme installations. Best of all, a new hybrid stamp-cast basket offers the best of both worlds by providing super strength while minimizing weight and resonance.

Looking for enclosures? Check out our speaker boxes.

Features:

  • High-temp voice coil with spun-laced Nomex® re-inforcement collar
  • Custom 10-AWG nickel plated push terminals
  • Dual linear spider with embedded 16 AWG tinsel leads

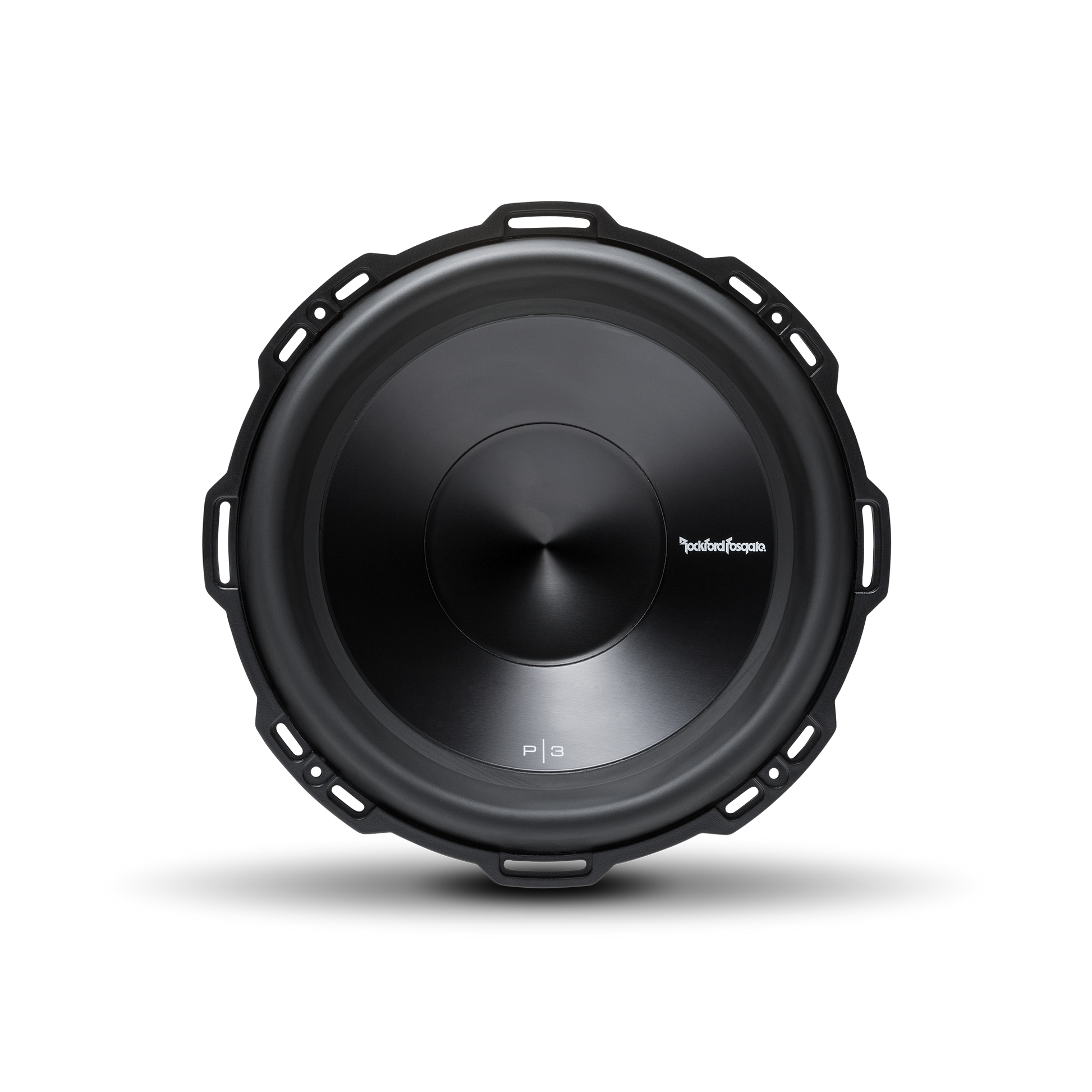

  • Anodized aluminum cone and dustcap
  • Extended pole piece and bumped vented backplate
  • StampCast basket with integrated spider venting

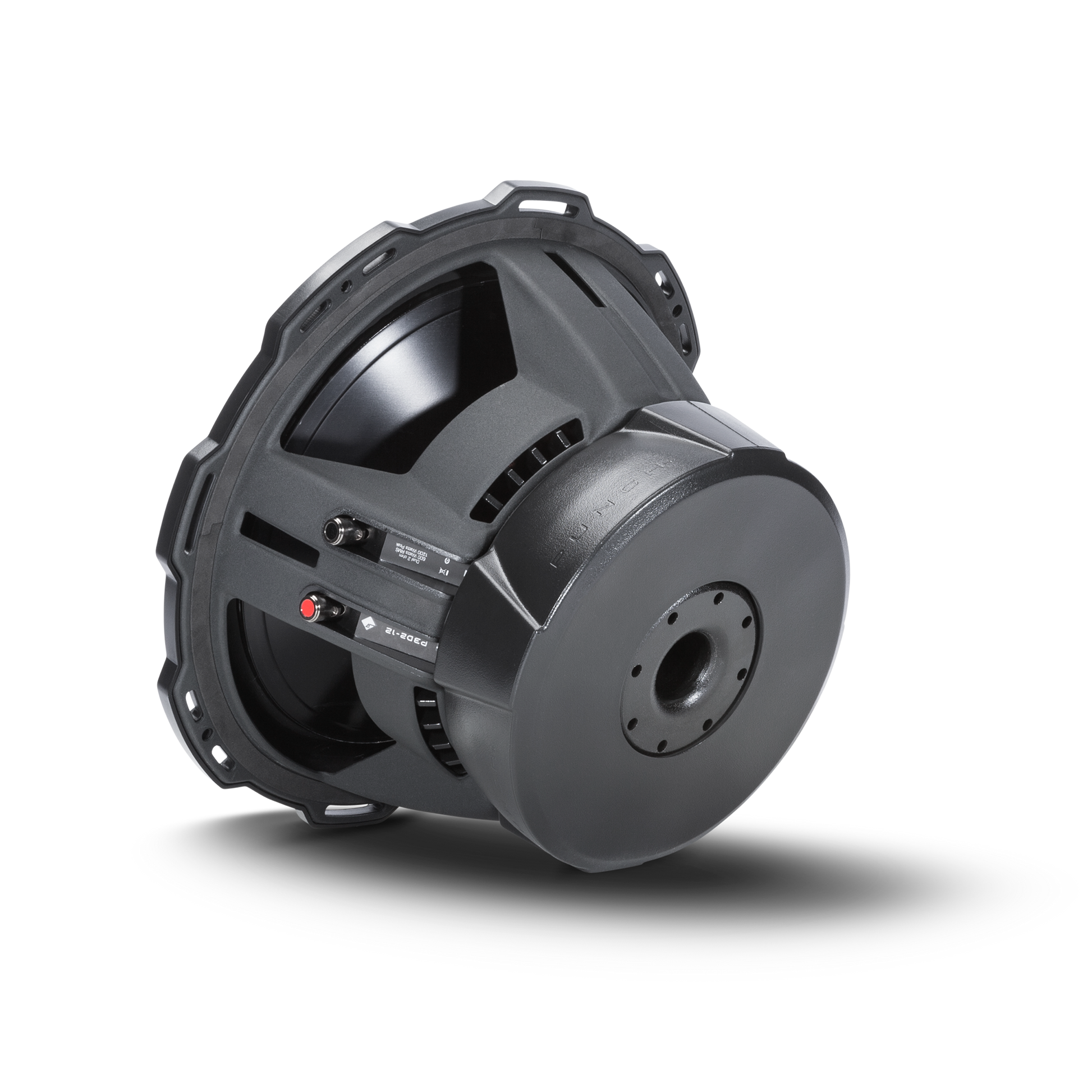

  • Protective PVC textured magnet cover

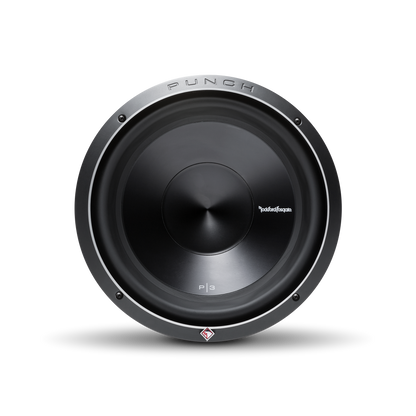

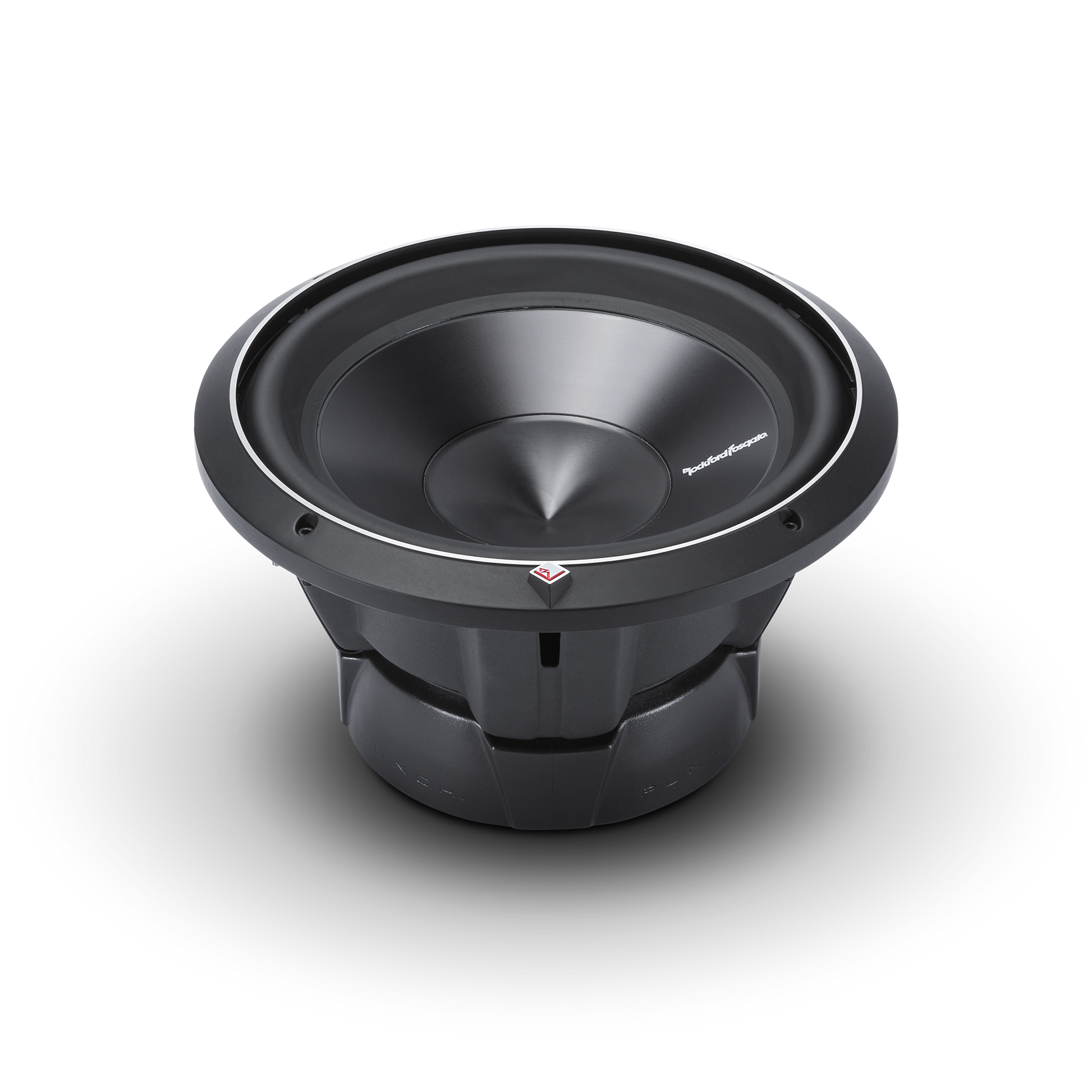

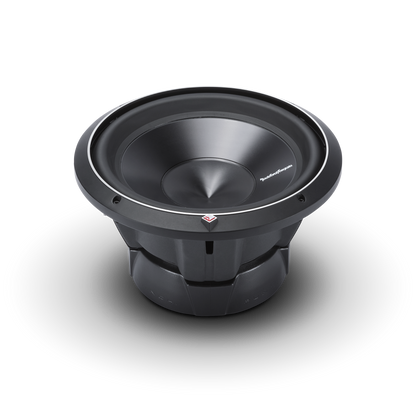

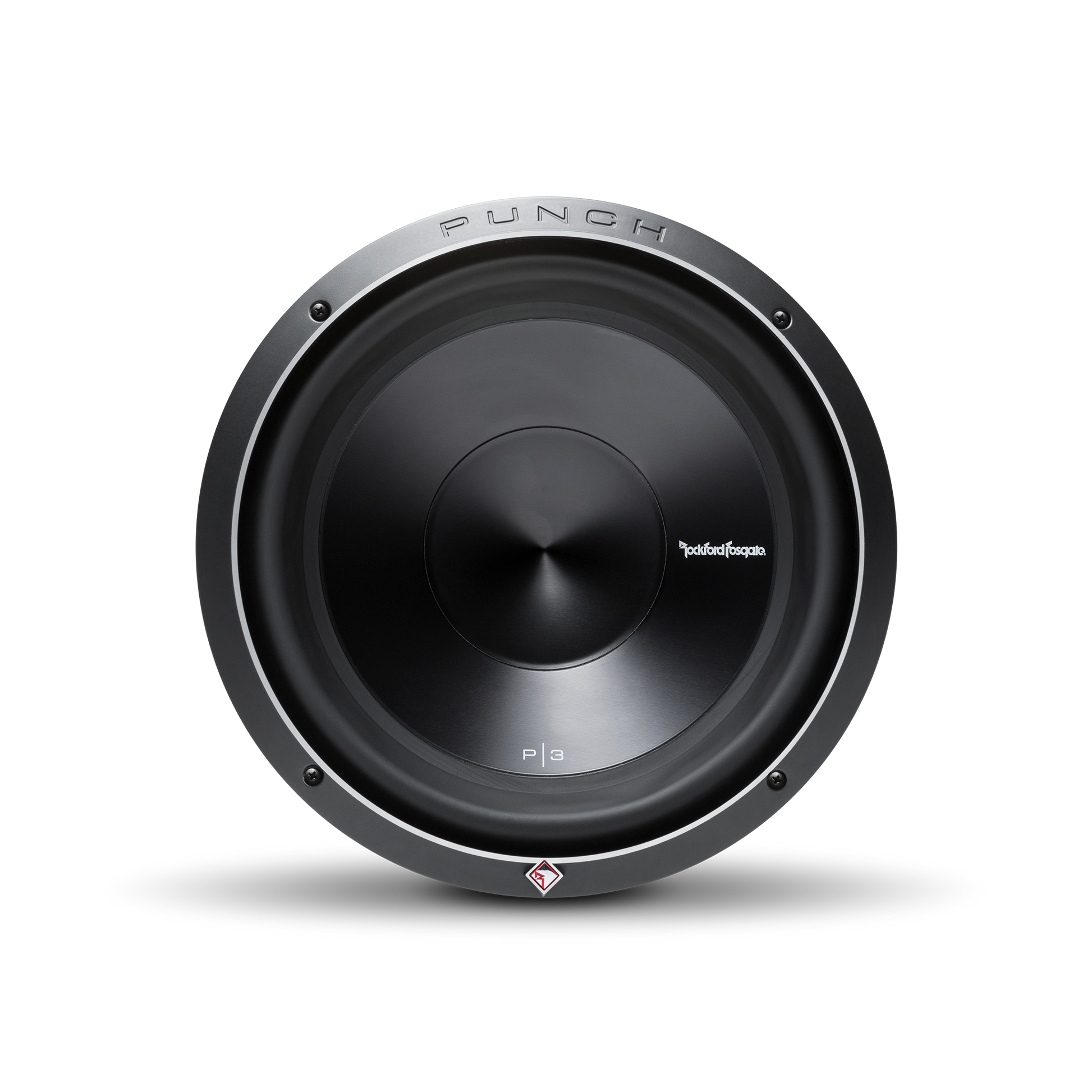

  • Diamond cut cast aluminum trim ring with optional grille
  • 1 Year Warranty

Specifications:

Power Handling (Watts RMS) 600 Watts RMS / 1200 Watts Max
Shipping Weight 20.9 Lbs. (9.48 kg)
Sd (cm²) 570
Speaker Connector Dual 10 AWG Compression
Size 12"
Nominal Impedance Dual 4-Ohm
Mounting Depth 6.66 in. (169.3 mm)
Voice Coil Diameter 2.5" (65.5 mm)
Fs (Hz) 27.7
Woofer Displacement 0.106 cu. ft. (3.0 Liters)
Qes 0.57
Qms 5.60
Vas (Liters) 57.7
SPL (dB @ 1w/1m) 85
Qts 0.52
Cutout Diameter 11.25 in. (285 mm)
Le (mH) 6.94
Re (Ohms) 6.40
Magnet Weight 96 oz. (2.73 kg)
CEA-2031 Compliant CEA-2031 Guidelines
Xmax (mm) 15.9
Subwoofer Type Standard
Voice Coil Type Dual Voice Coil
Sealed Box Volume (Vb) 1.02 cu. ft. (28.8 Liters)
Vented Box Volume (Vb) 1.79 cu. ft. (50.6 Liters)
