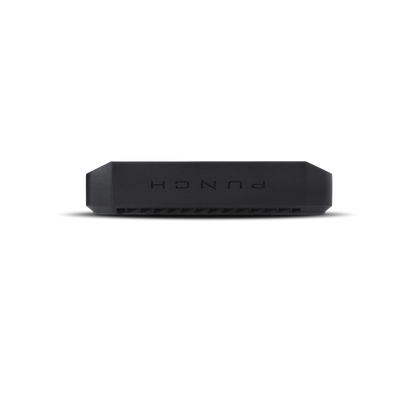

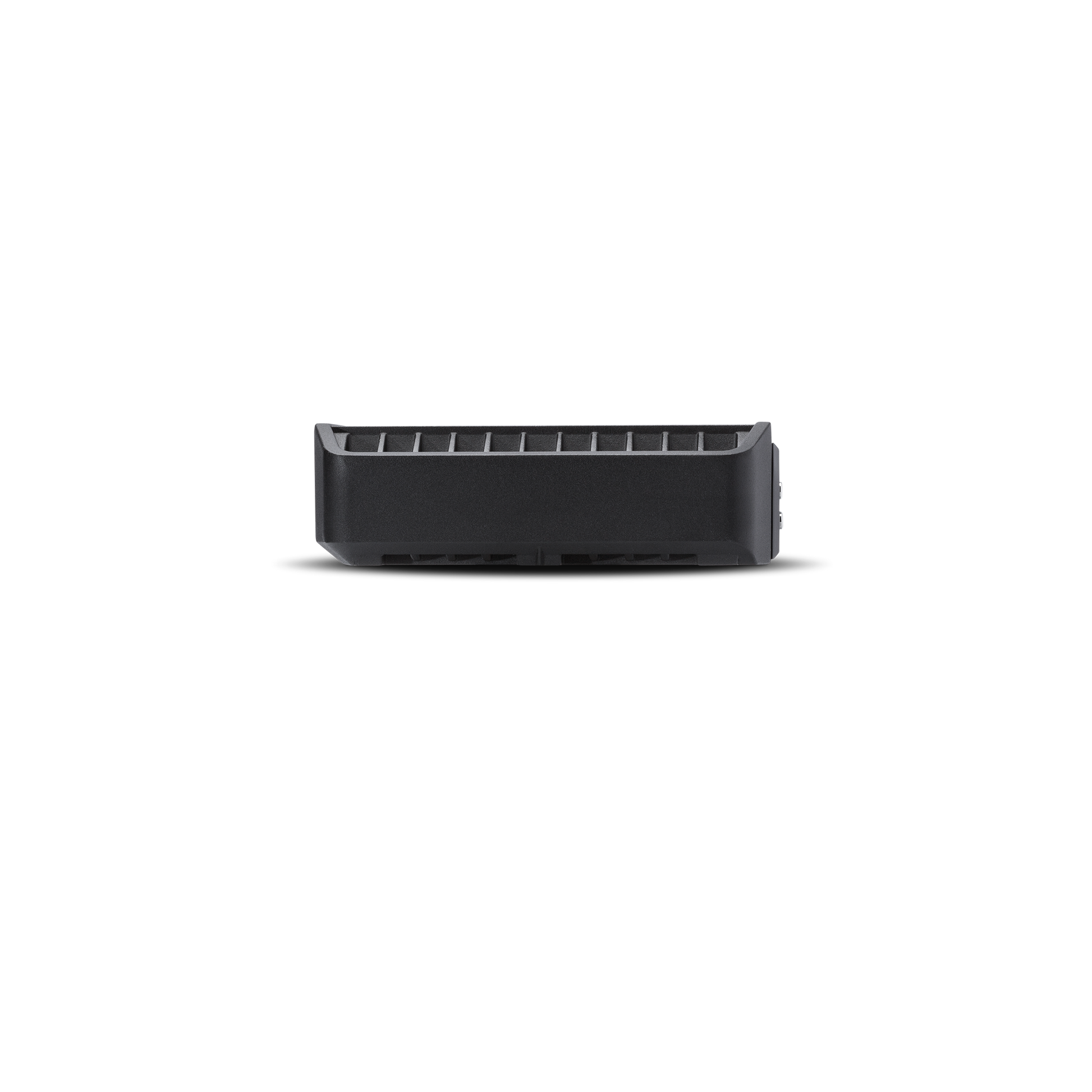

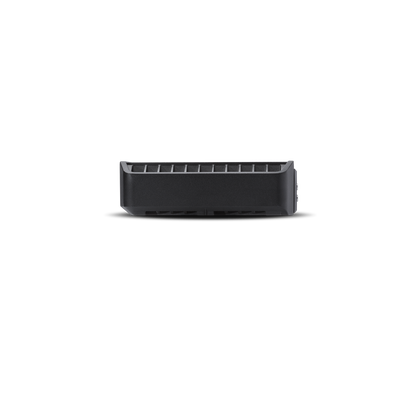

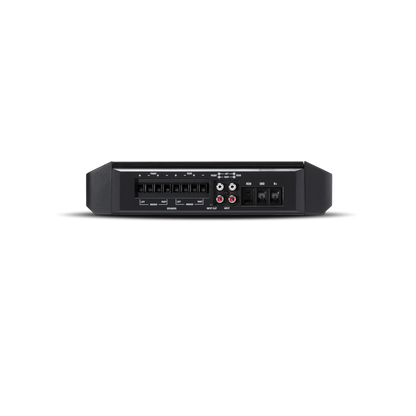

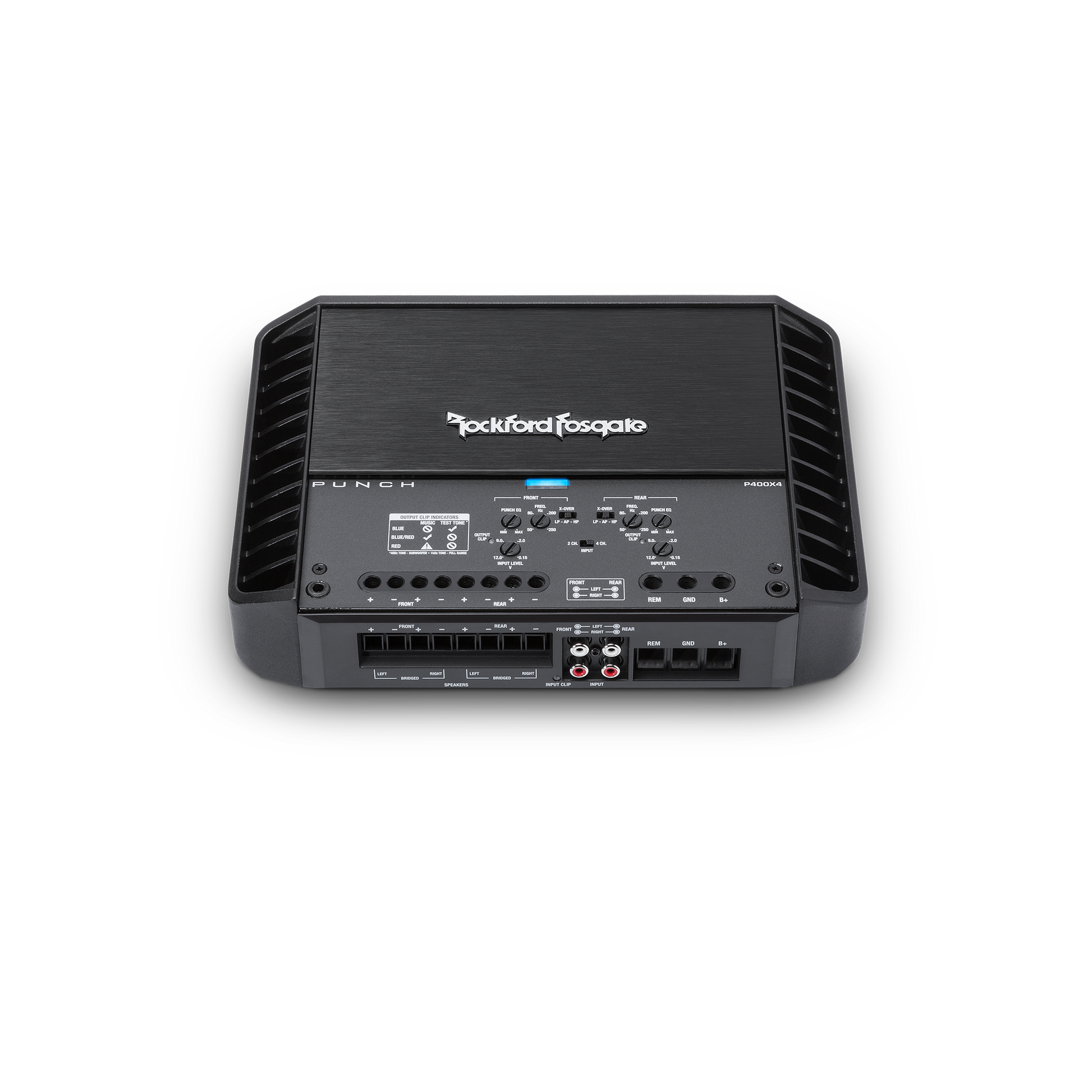

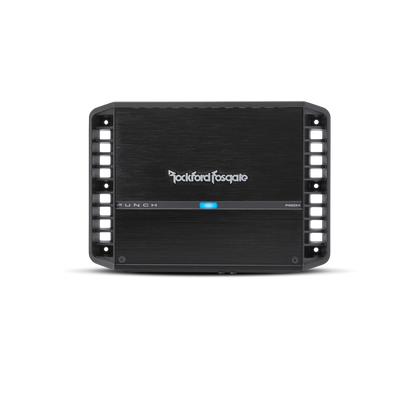

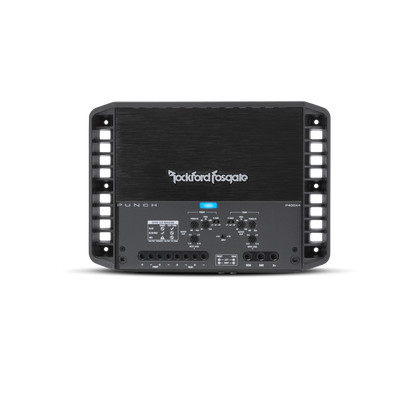

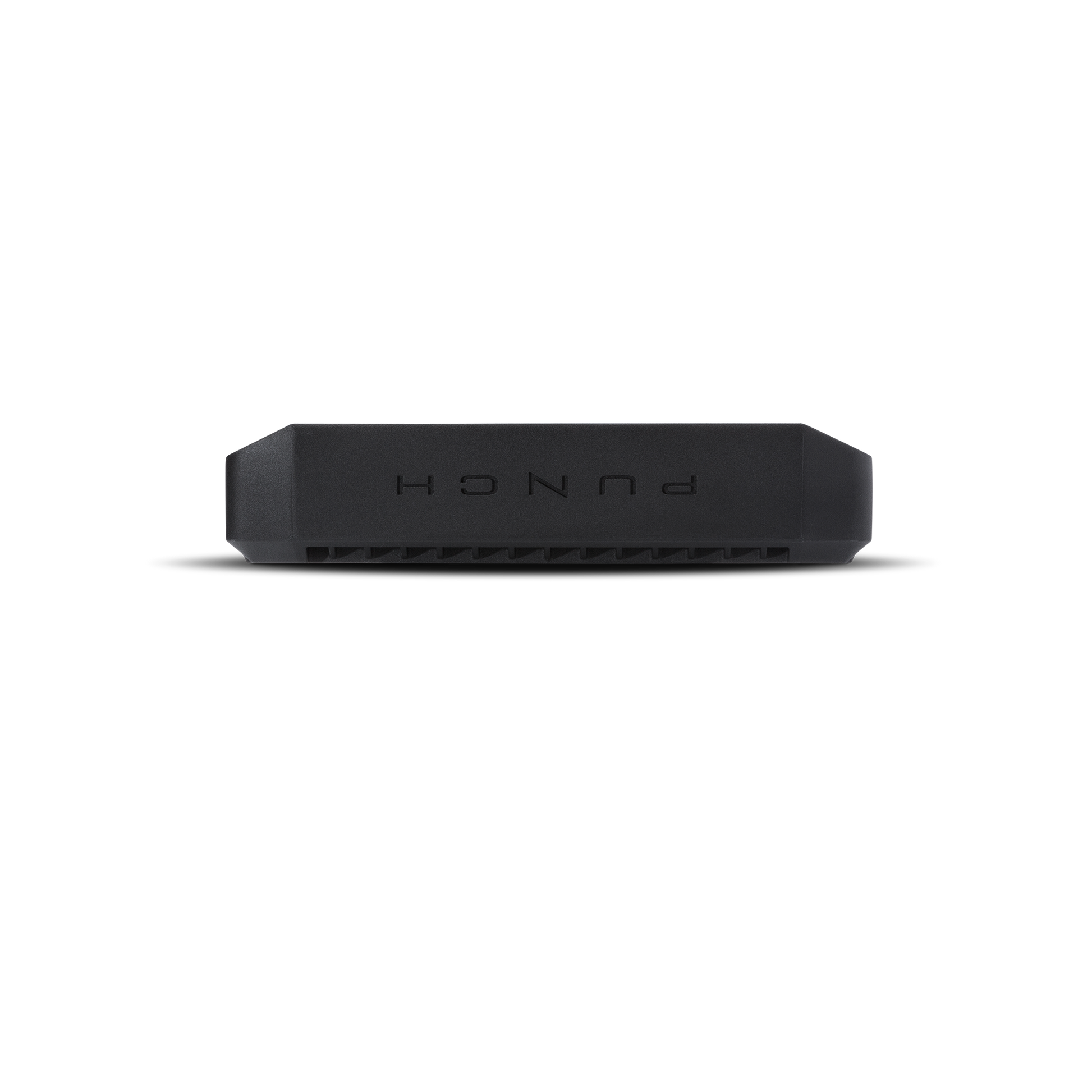

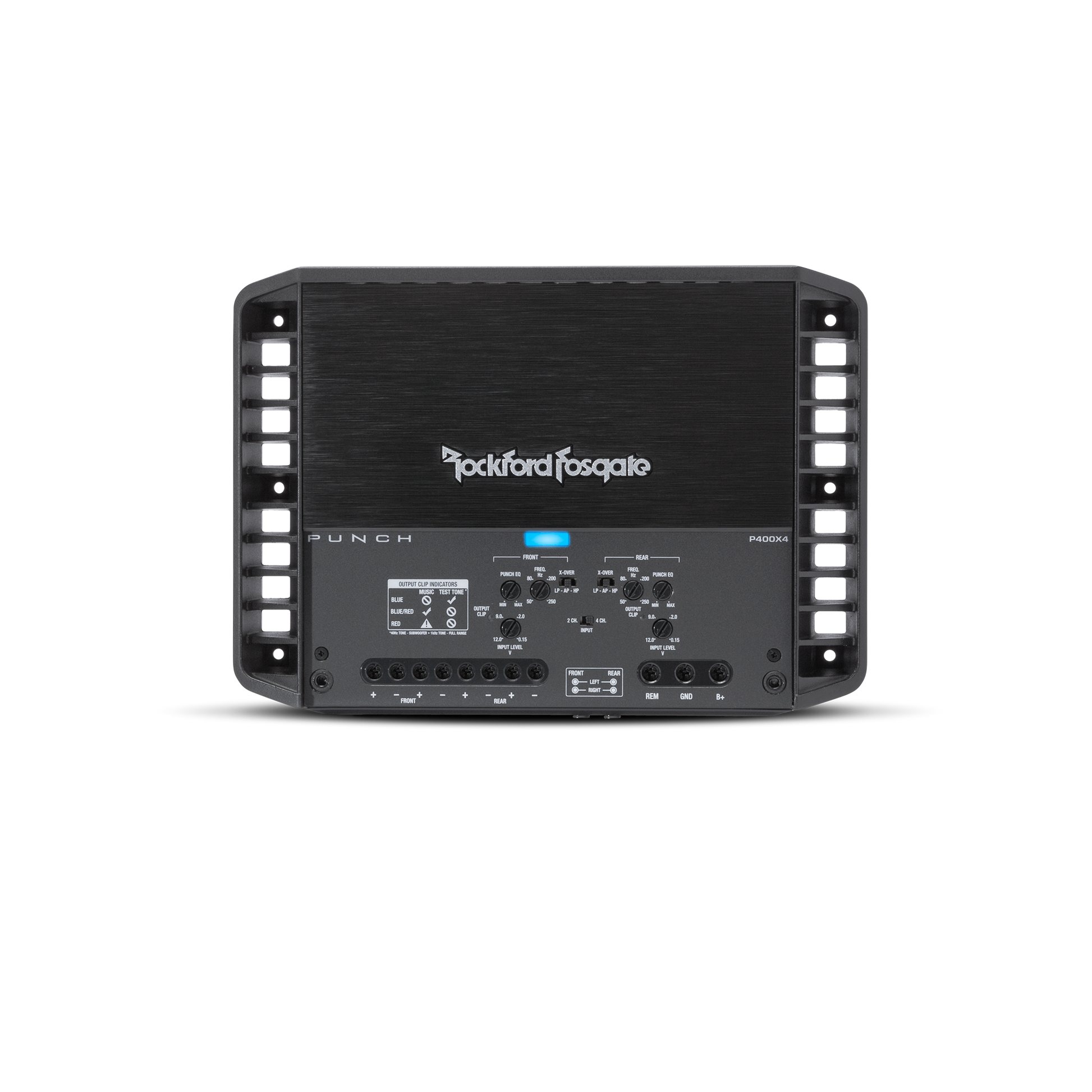

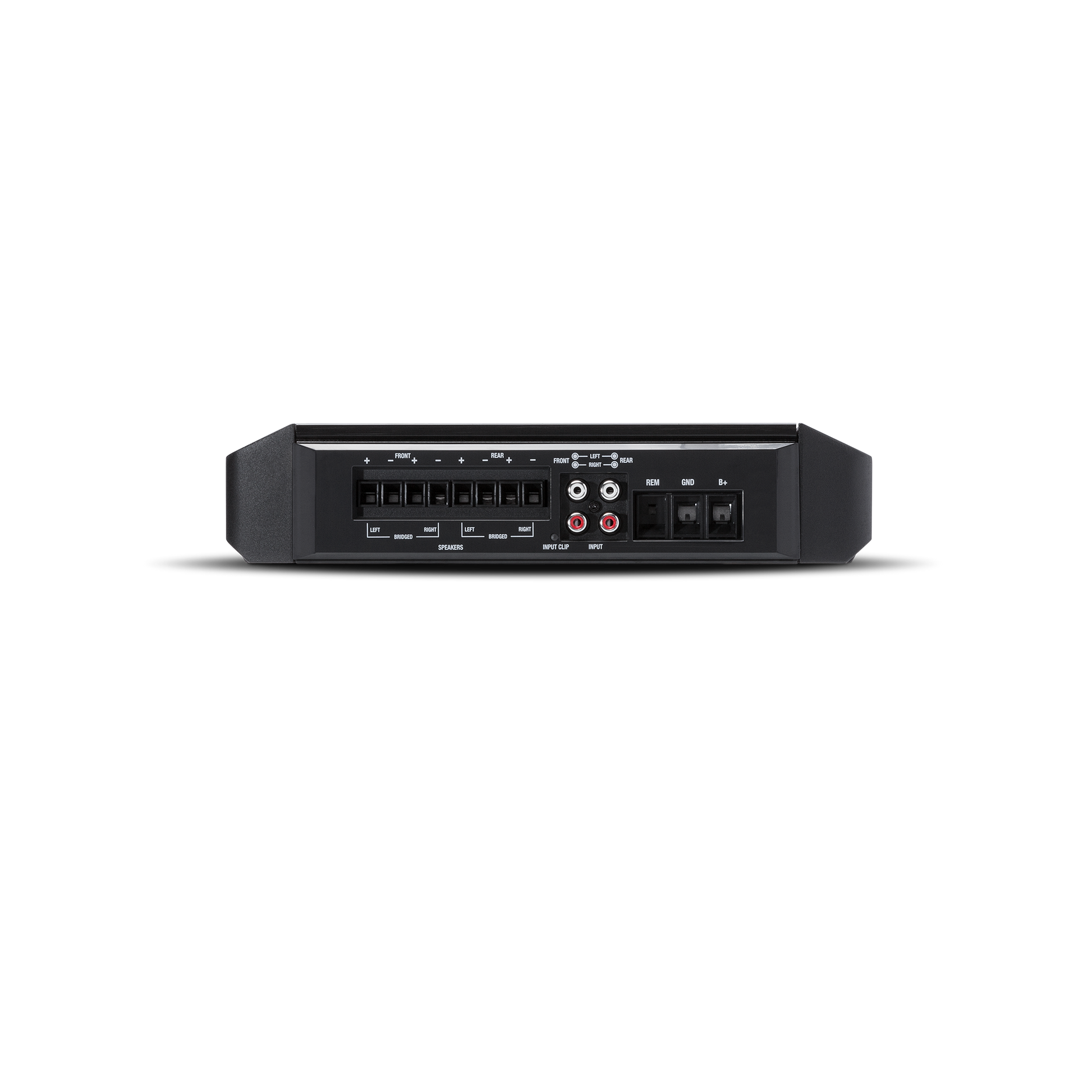

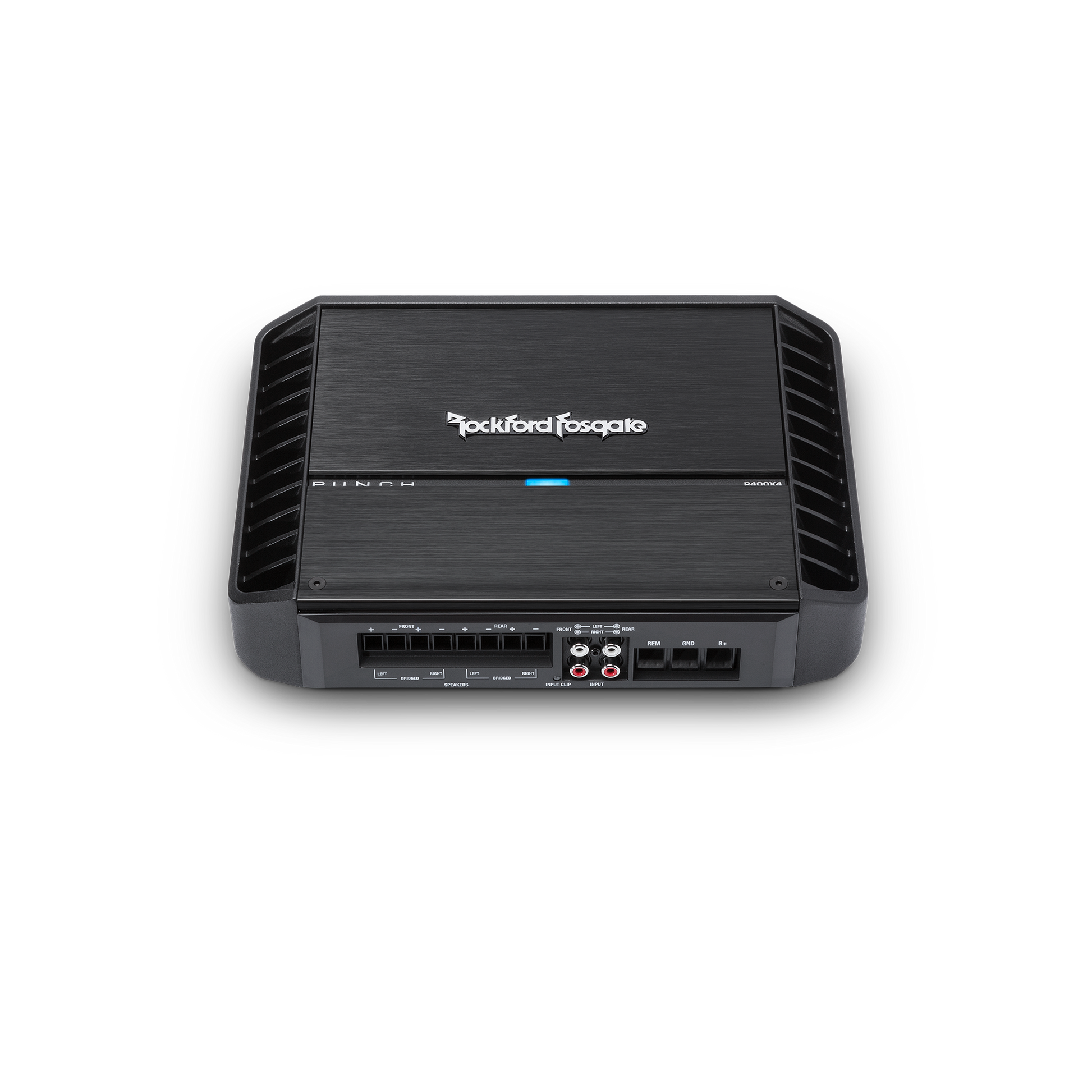

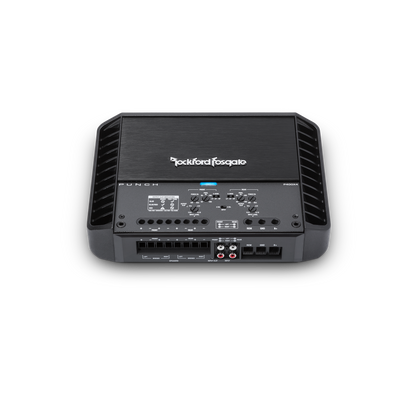

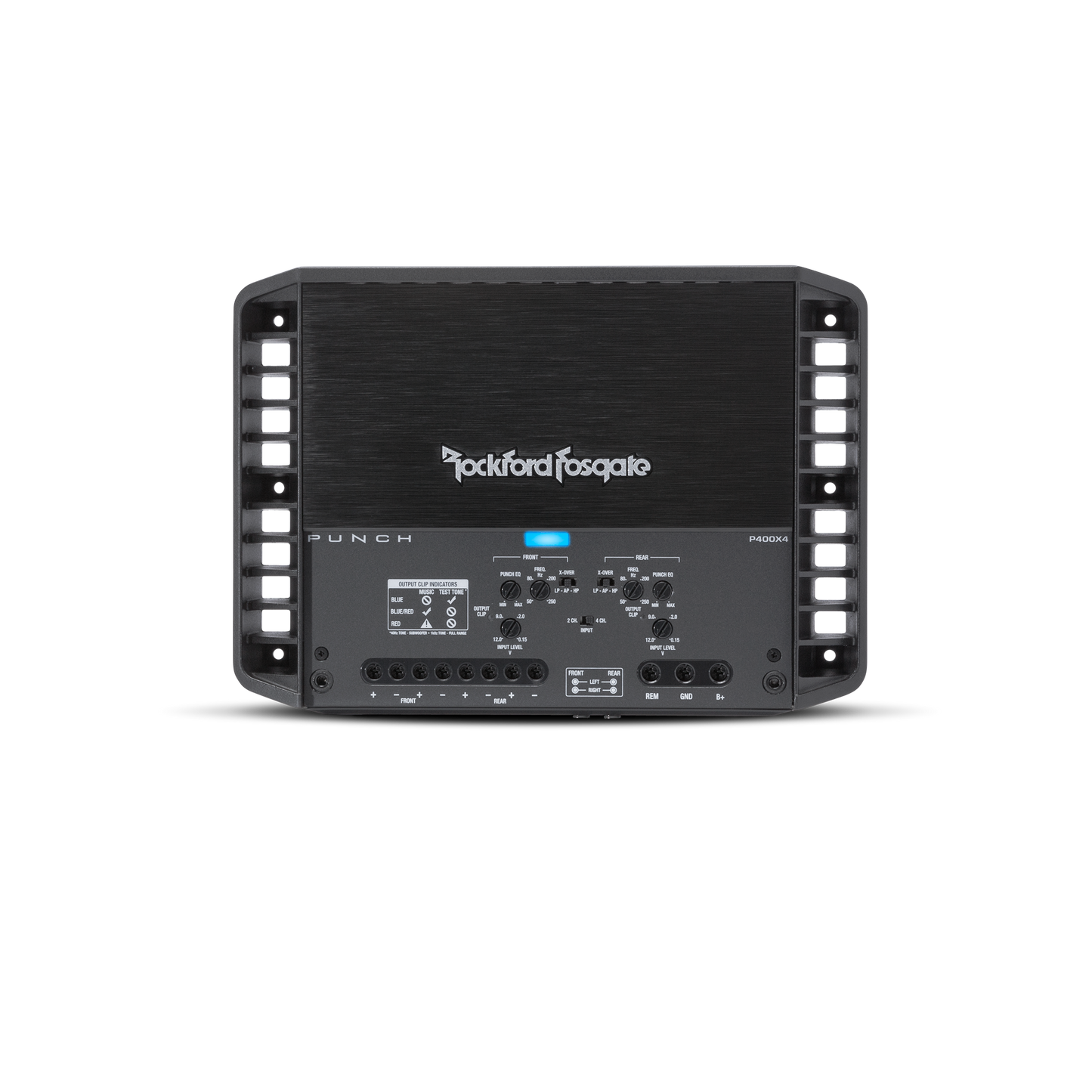

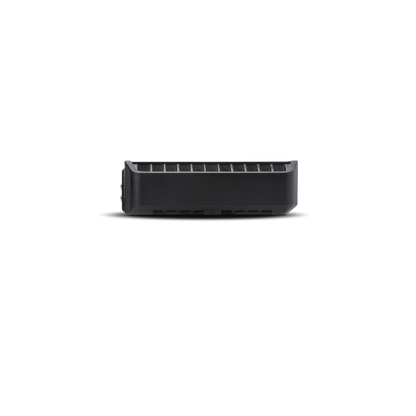

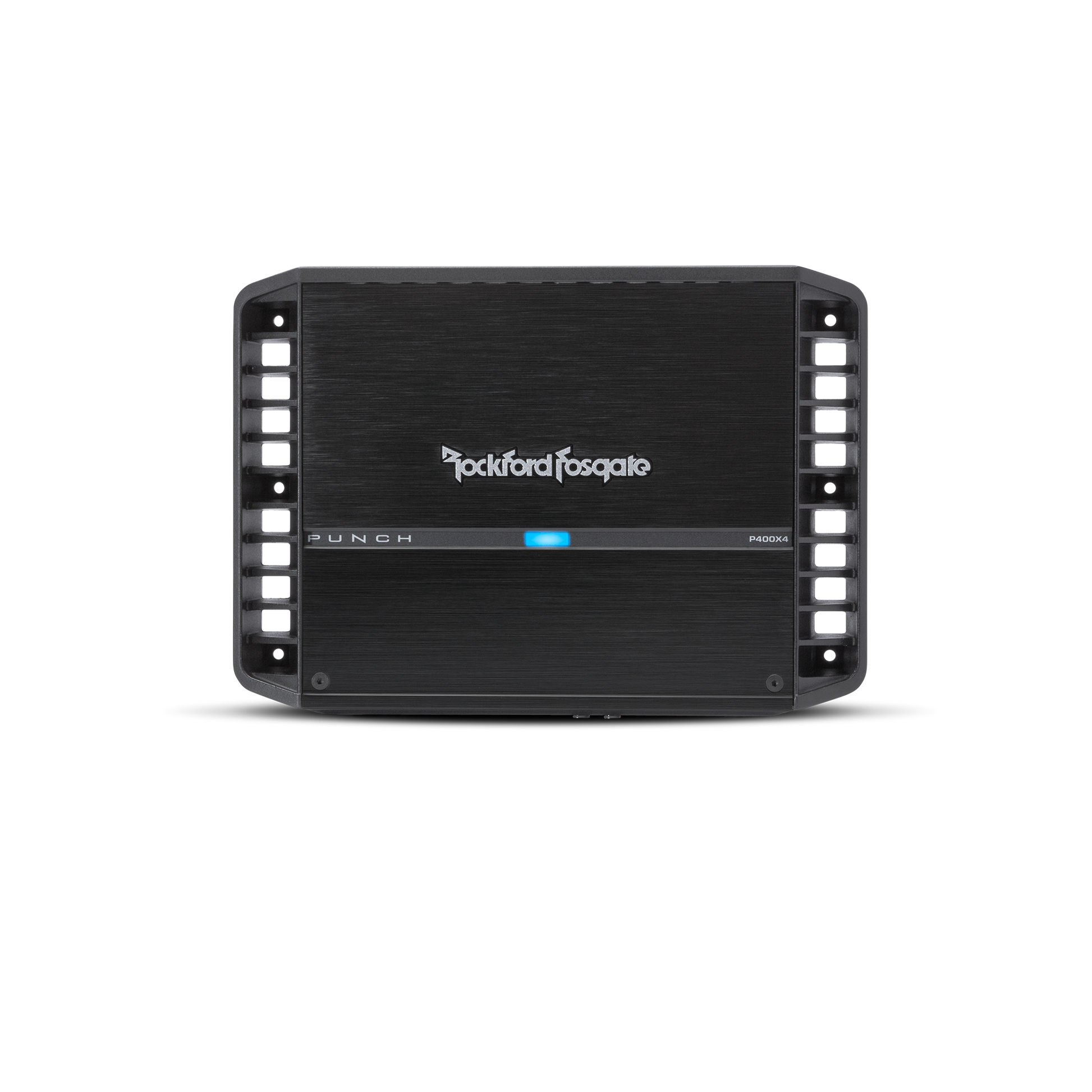

The Punch P400X4 is a 4-channel amplifier producing 100 Watts into all four channels at 2-Ohm. The P400X4 is perfect for a 4-way full-range system or a 3-way system having a front stage with subwoofers on the rear channels.
The P400X4 is perfect for 4-way front-stage/rear-fill or 3-way front-stage/subwoofer systems. Simply drop a pair of component speakers on the front channels and subs on the rear and BOOM - you got "The PUNCH." With its flexible design, the P400X4 is an excellent amplifier choice for virtually any vehicle.
| Feature | Details |
|---|---|
| CTA-2006 Compliant | Yes |
| Number of Channels | 4 |
| Total Power (Sum of Rated Power) | 400 Watts |
| Rated Power (RMS Continuous Power) | 50 Watts x 4 @ 4-Ohm 100 Watts x 4 @ 2-Ohm 200 Watts x 2 @ 4-Ohm Bridged |
| Dynamic Power (PVC/PowerCube®) | 82 Watts x 4 @ 4-Ohm 137 Watts x 4 @ 2-Ohm 266 Watts x 2 @ 4-Ohm Bridged |
| Bridgeable | Yes |
| Frequency Response | 20Hz to 20kHz +/- 1.0dB |
| Input Sensitivity | 150 mV - 12 V |
| Circuit Topology Class | Class A/B |
| Efficiency (average) | 67% @ 4-Ohm |
| Total Harmonic Distortion (THD+Noise) | 4-Ohm: <1.0% 2-Ohm: <1.0% |
| Signal Input | Hi/Low level: 2 RCA pair |
| Signal Output | - |
| Tone Controls | Front Punch EQ2 Bass: 0dB to +18dB @ 45Hz Front Punch EQ2 Treble: 0dB to +12dB @ 12.5kHz Rear Punch EQ2 Bass: 0dB to +18dB @ 45Hz Rear Punch EQ2 Treble: 0dB to +12dB @ 12.5kHz Function depends upon LP/AP/HP switch position |
| Crossover Controls | Front High-Pass/Low-Pass (HP/LP): 50Hz-250Hz @ 12dB/octave Butterworth Rear High-Pass/Low-Pass (HP/LP): 50Hz-250Hz @ 12dB/octave Butterworth All-Pass: Yes |
| Remote Controls | - |
| Visual Indicators | Power/Protect/Thermal LED Input Clip LED3 Output Clip LED1,2,3 |
| LED Color Legend | 1BLUE: <0.5% THD 2VIOLET: 1% THD 3RED: 10%+ THD |
| Power Wire Gauge | 8 AWG to 4 AWG |
| Power Input Connector | Captive C-Clamp |
| Speaker Wire Gauge | 8 AWG to 18 AWG |
| Speaker Output Connector | Captive C-Clamp |
| Cooling | Convection |
| Heatsink | Yes |
| Operating Voltage | 9 - 16 VDC |
| Recommended Fuse (not included) | 60 A |
| Average Current Draw (13.8V Music) | 30 A |
| Max. Current Draw (13.8V Sinewave) | 60 A |
| Suggested Alternator | 75 A |
| Included In The Box | Yes |
| Dimensions (H x W x D) | 2.38 x 7.76 x 11.03 (in) 6.05 x 19.71 x 28.02 (cm) |
| Shipping Weight | 10.8 Lbs. (4.89 Kg.) |
