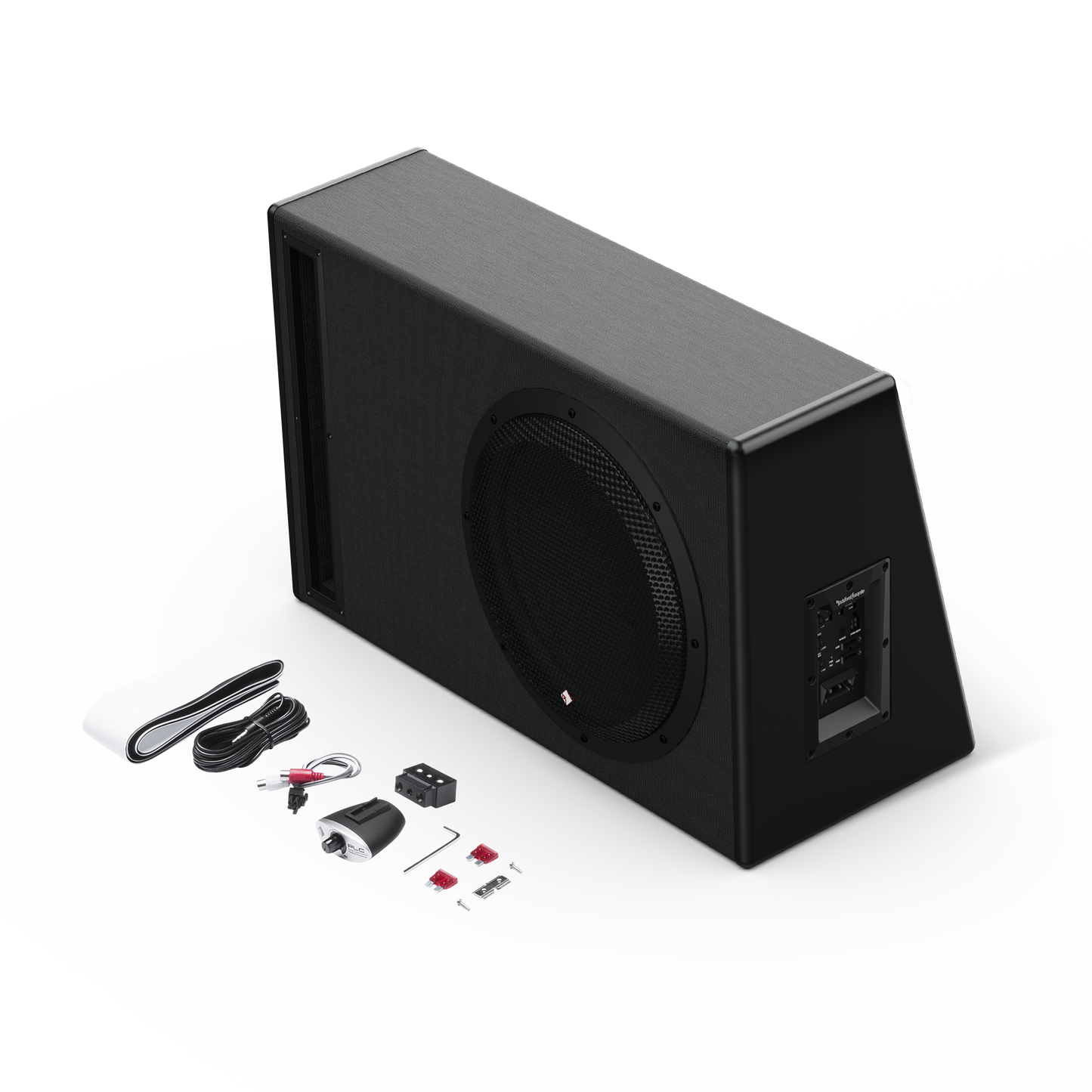

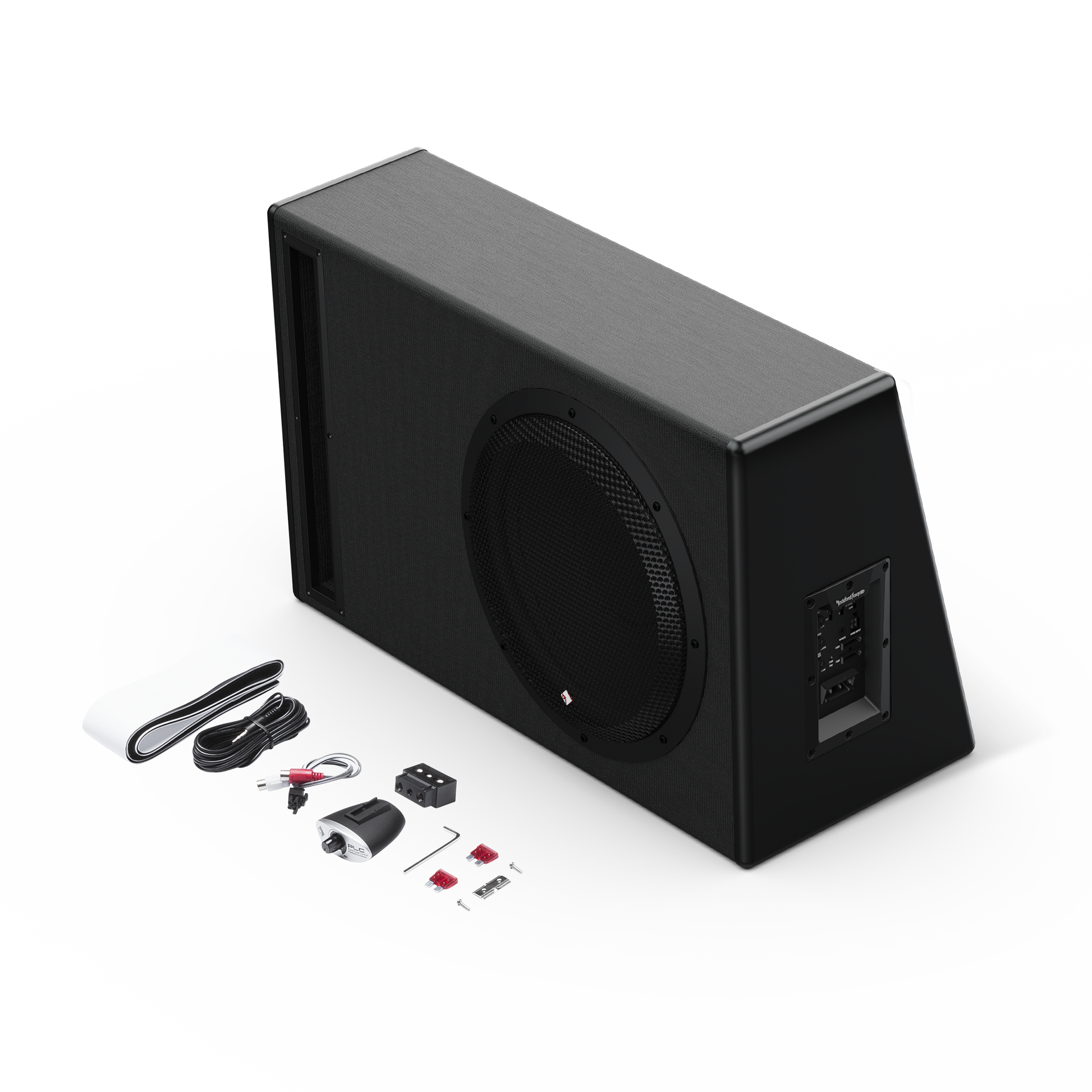

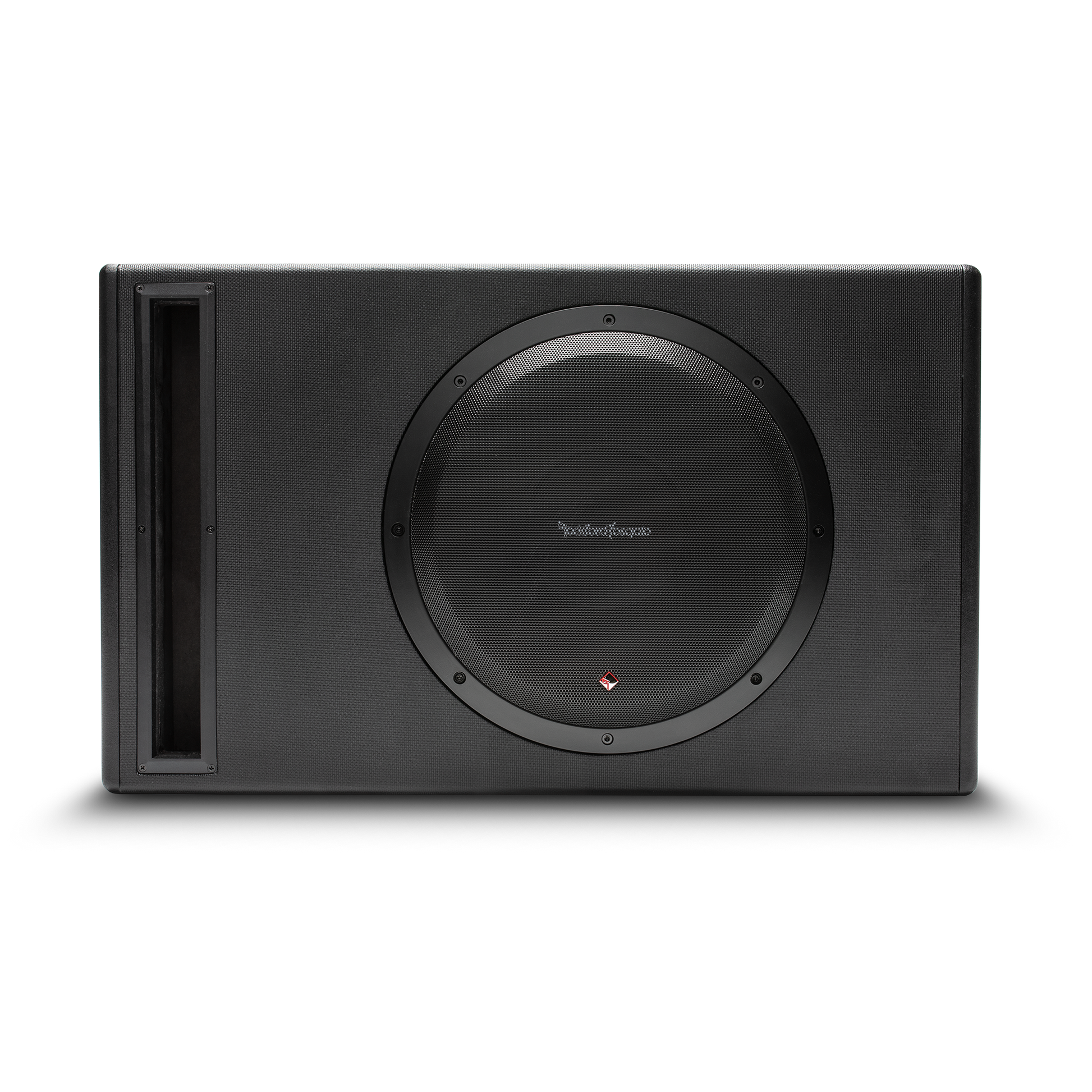

The Punch P500-12P is an "all in one" solution for adding serious bass to Hatchbacks, Sedans, and SUVs. This model features a 12" high output woofer with a 500-watt internal amplifier and a high output vented enclosure that's great for sedan and hatchback applications. The enclosure features quick release input and power connectors for easy removal when extra space is required.

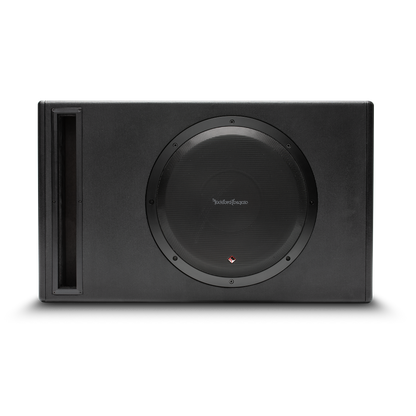

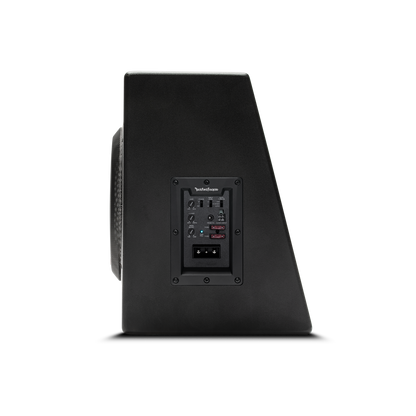

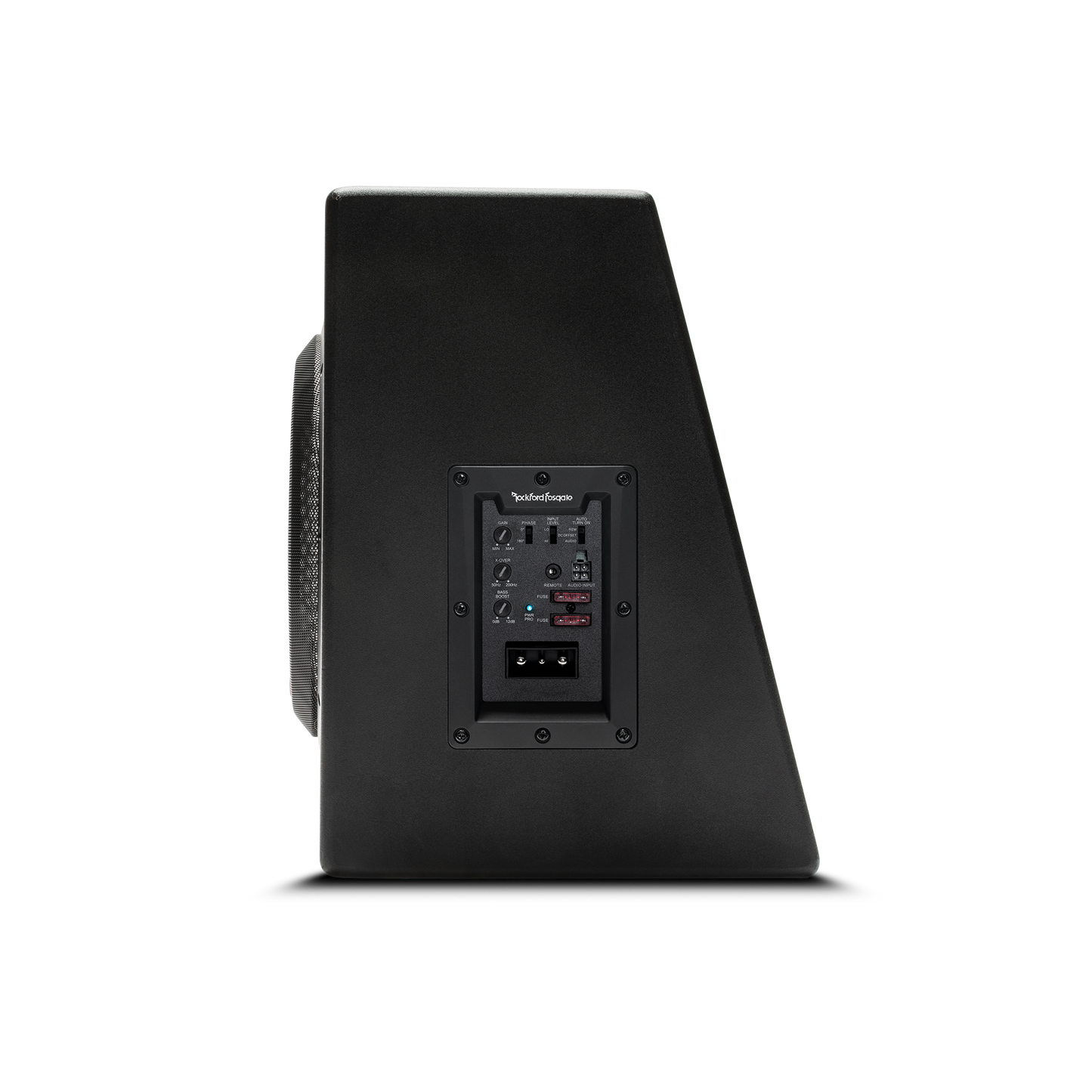

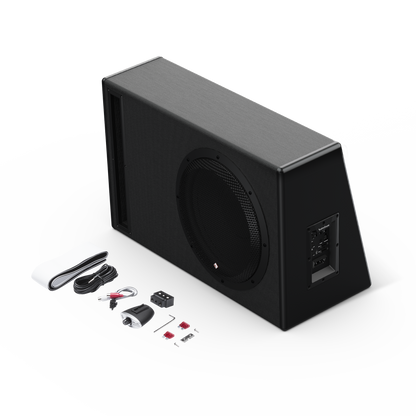

The Punch 500-12P is a self-contained subwoofer enclosure with built-in amplifier. This "all in one" solution is great for systems that need extra Punch on the low-end of the frequency spectrum. The 12" high output subwoofer is impedance optimized for the built in 500-watt class-D amplifier that features a low-pass crossover, bass EQ and phase switch. You can change the amount of bass on the fly with the included remote level control. The slot port provides powerful output at lower frequencies for enhanced bass reproduction. The enclosure can be connected via speaker level inputs for connection to factory systems, or traditional line level inputs for aftermarket systems. It also features an intelligent auto turn-of/off circuit that eliminates the need for a separate turn-on wire. The enclosure itself is precision designed and constructed using MDF (Medium Density Fiberboard) for the best acoustical properties and covered with heat activated vinyl finish to resist marks. The enclosure also features a quick-release connectors for easy removal when you need extra cargo space.
| Power Handling (Watts RMS) | 500 Watts RMS |
| Enclosure Material | 5/8" MDF (Medium Density Fiberboard) |
| Speaker Connector | — |
| Enclosure Type | Ported |
| Crossover Controls | Variable 50 Hz to 200 Hz 12dB/Octave Butterworth |
| CEA-2031 Compliant | Yes |
| Integrated Amplifier | 500 Watts RMS |
| CEA-2006 Compliant | CEA-2006 Guidelines |
| Nominal Impedance | — |
| Woofer Series | Proprietary |
| Woofer Size | 12" |
| Frequency Response | 20 Hz to 200 Hz |
| Tone Controls | Bass Boost 0 dB to +12 dB @ 45 Hz |
| Woofer Quantity | 1 |
| Phase Control | 0° to 180° |
| Input Switch | High-Level (Speaker Line) Low-Level (RCA) |
| Remote Control | Punch Level Control (Included) |
| Auto Turn-On Selector | Remote Trigger DC Offset Sense Audio Sense |
| Signal Input | Low/High-Level: 1 RCA Pair (L/R Summed) |
| Input Impedance | 20k Ohms |
| Power Input Connector | Quick Disconnect |
| Power Wire Gauge | B+/GND: 8 AWG REM: 18 AWG |
| Heatsink Type | Extruded Aluminum |
| Input Sensitivity | Low-Level: 150 mV to 6 V High-Level: 300 mV to 12 V |
| Circuit Topology Class | Class-D |
| Cooling | Convection |
| Visual Indicators | Power/Protect LED |
| Fuses | 30 Amp (2 x 15 Amp ATO Fuse) |
| Dimensions (Box H x W x D) | 15.00” x 24.76” x 10.91” x 7.71” (38.1 cm x 62.9 cm x 27.7 cm x 18.9 cm) |
| Shipping Weight | 48.2 lbs. (21.9 kg) |
| Replacement Part | 1130-59232-01 |
