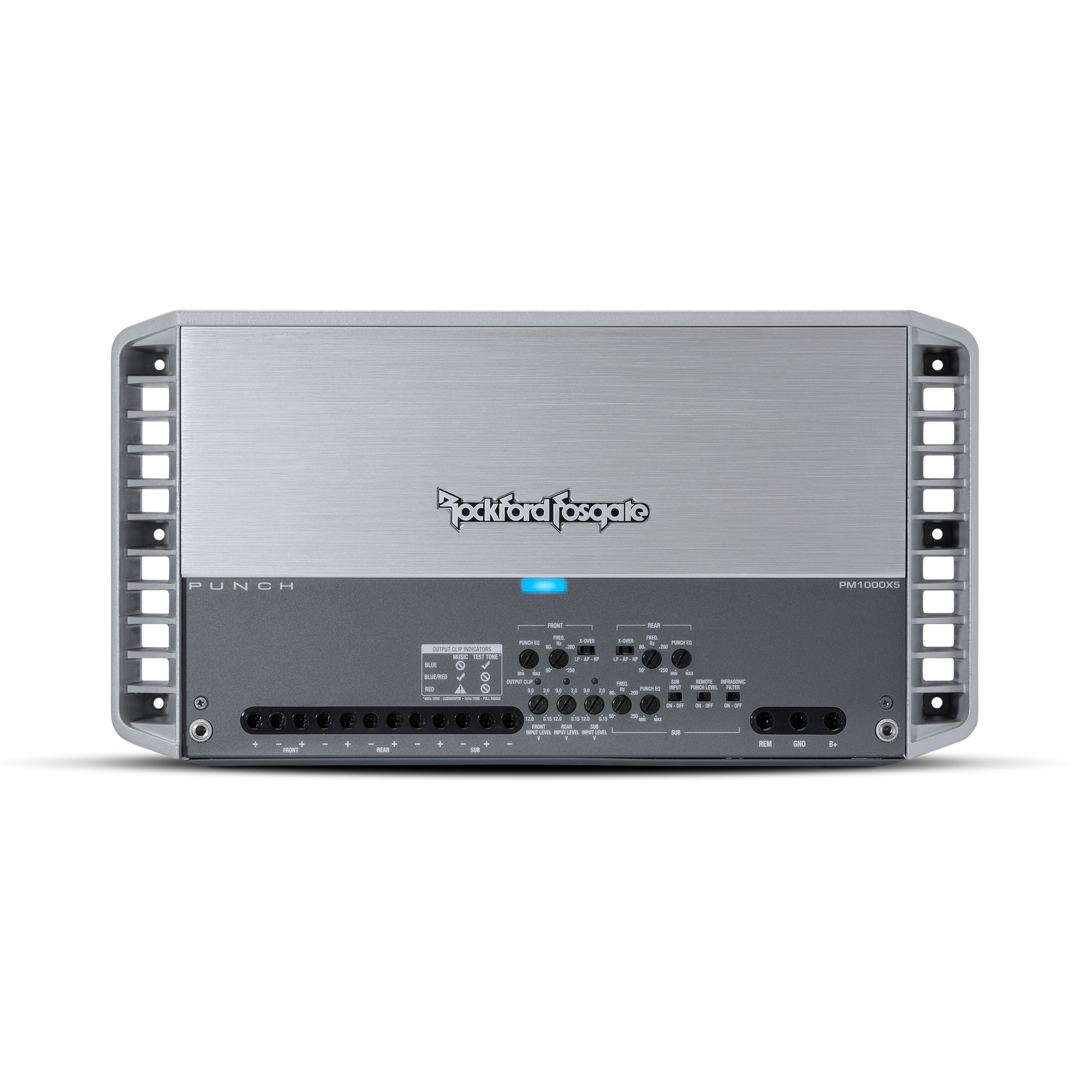

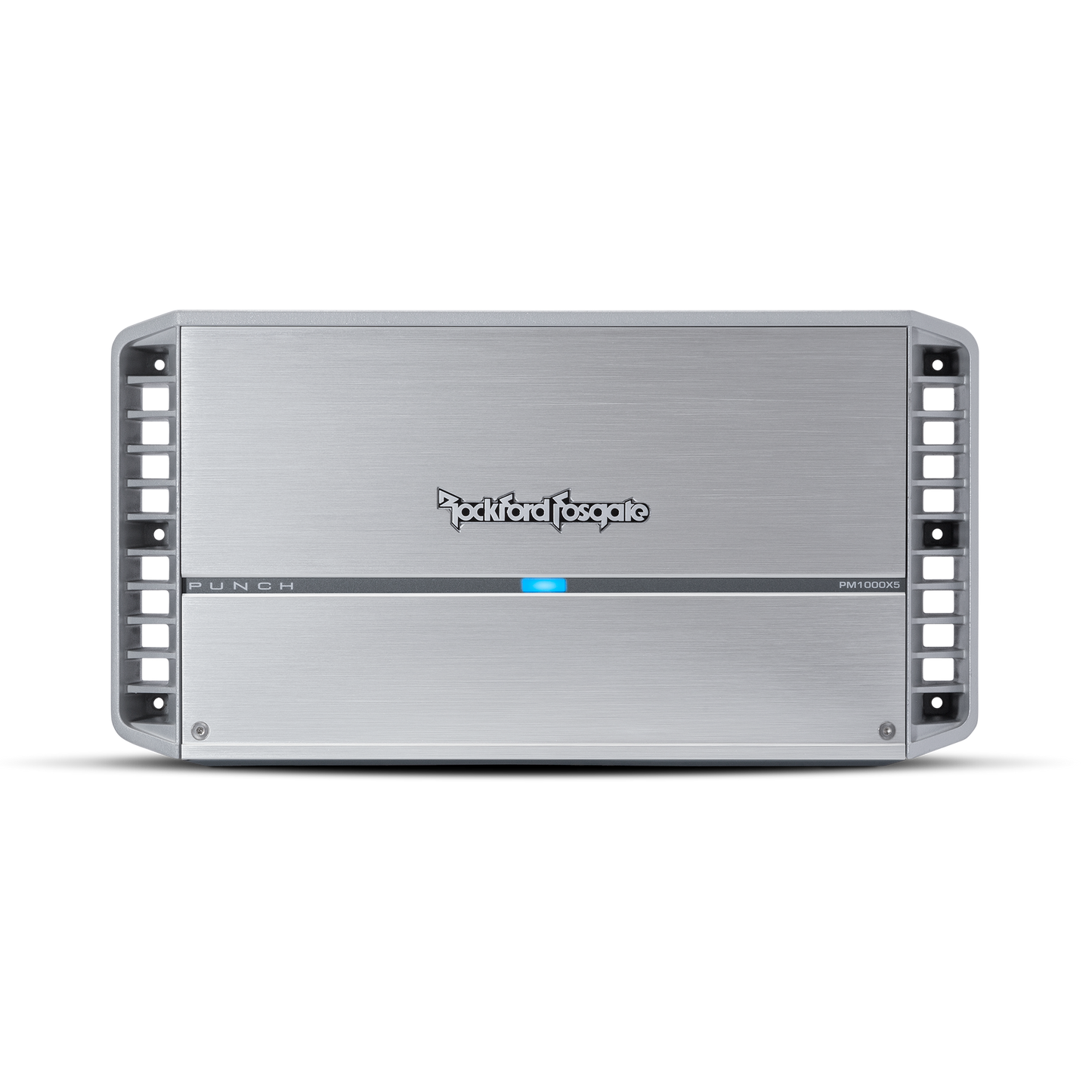

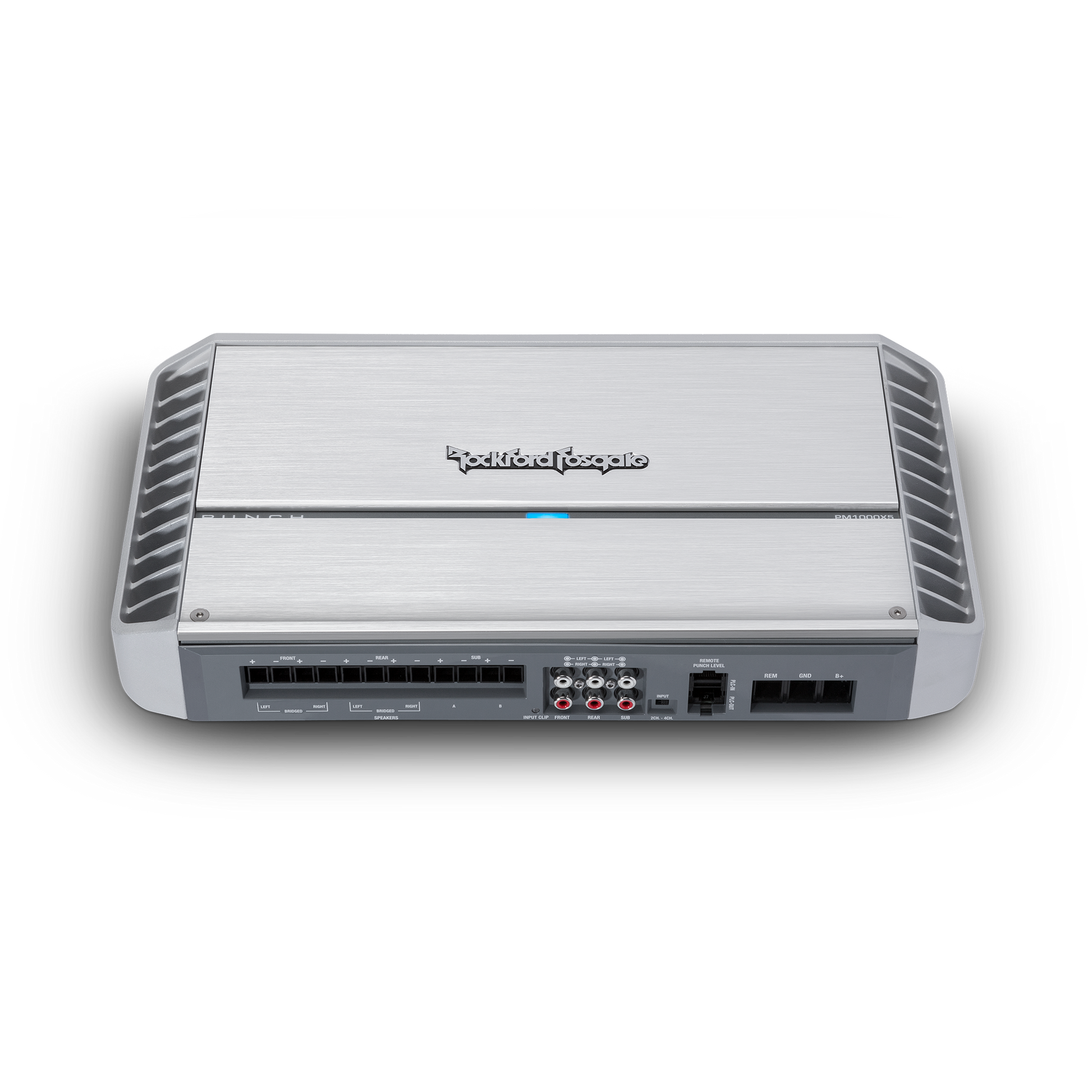

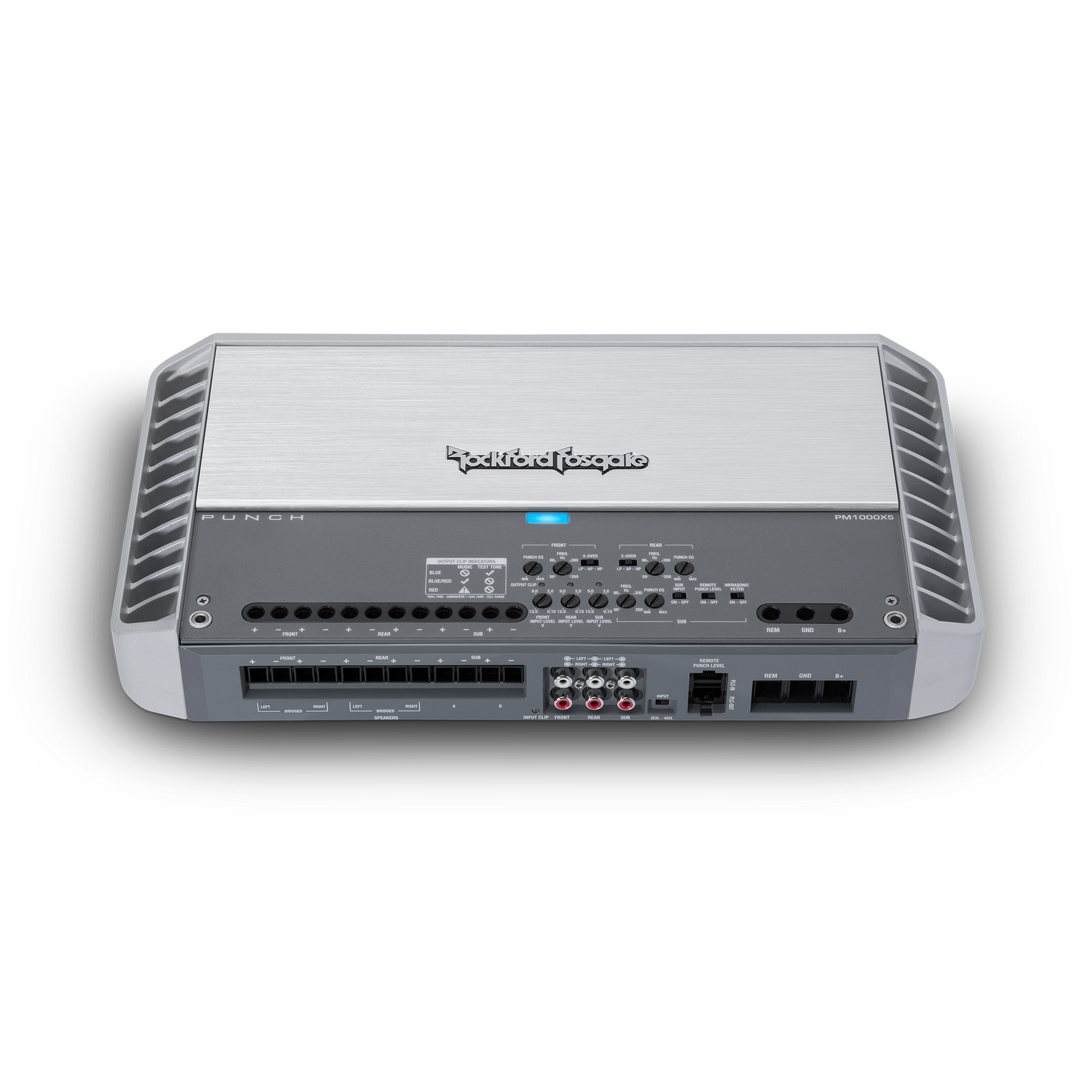

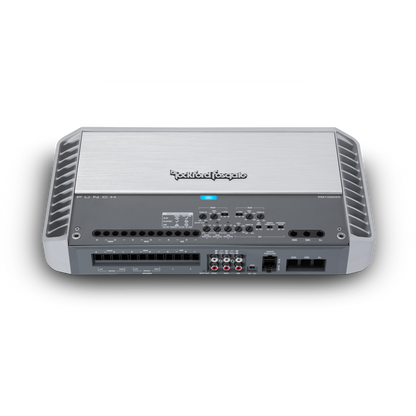

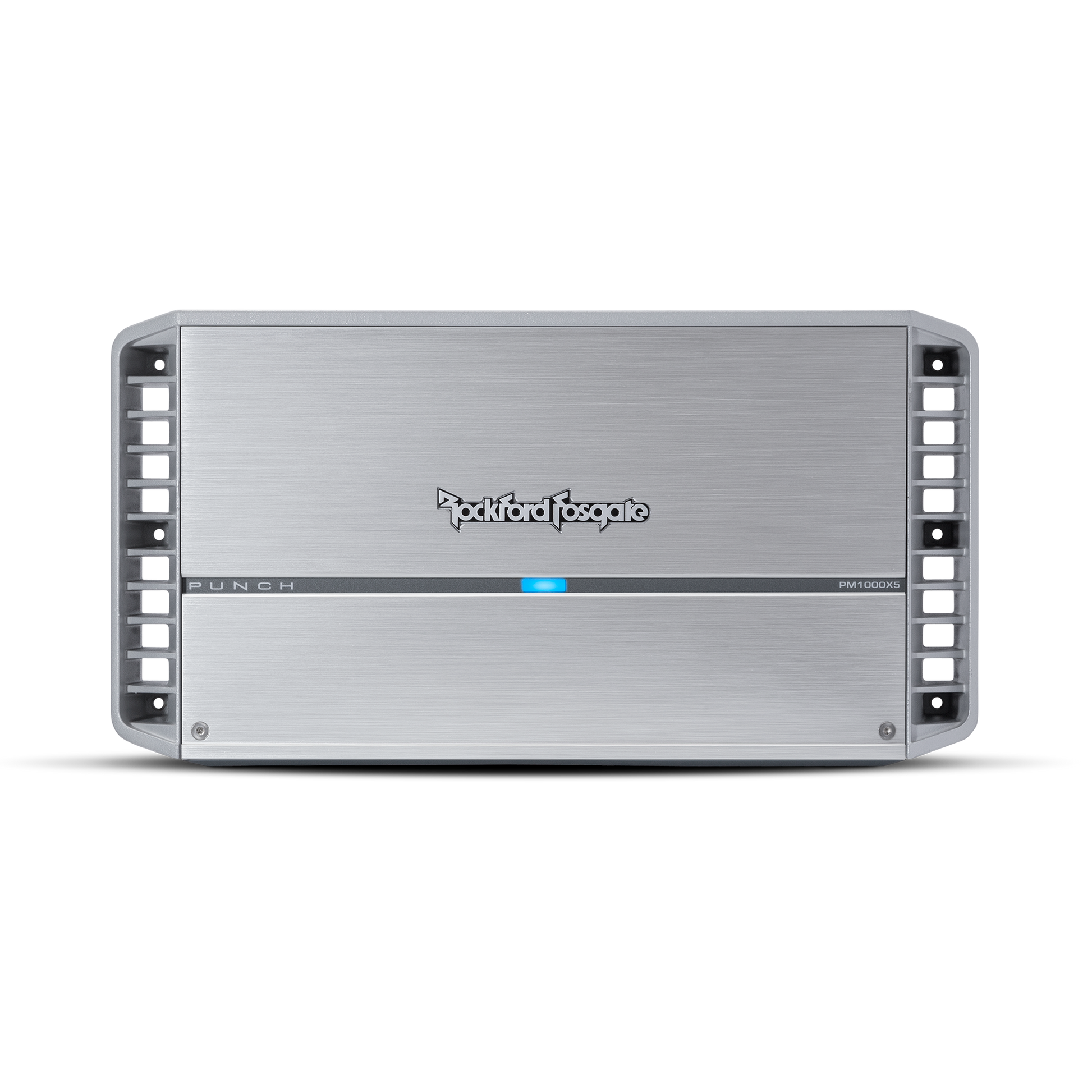

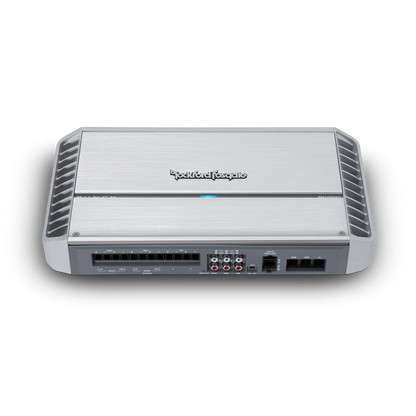

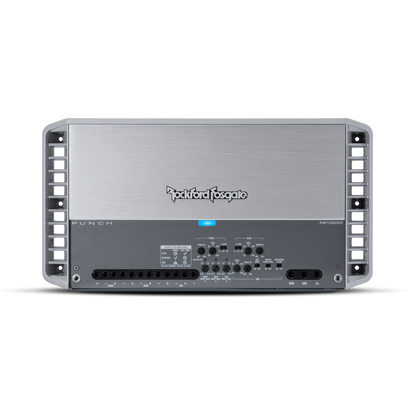

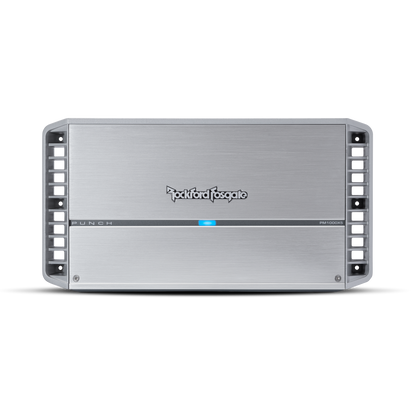

The PM1000X5 is a 1000 Watt 5-channel amplifier with high dynamic power using Class-a/b technology on the front/rear channels, Class-bd for the subwoofer channel, and a conformal coated pc board designed for motorsport and marine applications.
The PM1000X5 1,000 Watt full-range 5-channel is the one-and-only amplifier you will need to run your entire system. Run dash speakers off the front channels, run back speakers off the rear channels and run subwoofer(s) off the 5th channel! Known world-wide for brute power, this amplifier offers a higher level of efficiency along with a tri-stage protection that covers thermal, over-current and short circuits.
| GENERAL | CTA-2006 Compliant | Yes |
| Number of Channels | 5 | |
| Total Power (Sum of Rated Power) | 1000 Watts | |
| RATED POWER (RMS Continuous Power) | 4Ω (Front/Rear) | 75 Watts x 4 + 150 Watts x 1 @ 4-Ohm |
| 2Ω (Front/Rear) | 125 Watts x 4 + 300 Watts x 1 @ 2-Ohm | |
| 1Ω (Sub) | N/A + 500 Watts @ 1-Ohm | |
| DYNAMIC POWER (PVC/PowerCube®) | 4Ω (Front/Rear) | 115 Watts x 4 + 299 Watts x 1 @ 4-Ohm (0° Res) |
| 2Ω (Front/Rear) | 190 Watts x 4 + 540 Watts x 1 @ 2-Ohm (0° Res) | |
| 1Ω (Sub) | N/A + 863 Watts x 1 @ 1-Ohm (0° Res) | |
| BRIDGING | Bridgeable | Yes (front/rear channels) |
| AUDIO PERFORMANCE | Frequency Response (Front/Rear) | 20Hz - 20kHz +/-3dB |
| Frequency Response (Sub) | 20Hz - 500Hz +/-3dB | |
| Input Sensitivity | 150 mV - 12 V | |
| Circuit Topology Class | Class A/B + Class BD (Sub) | |
| EFFICIENCY | Efficiency (average) | Front/Rear: 66% @ 4-Ohm Sub Channel: 80% @ 4-Ohm |
| DISTORTION & NOISE | Total Harmonic Distortion (THD+N) | <1.0% |

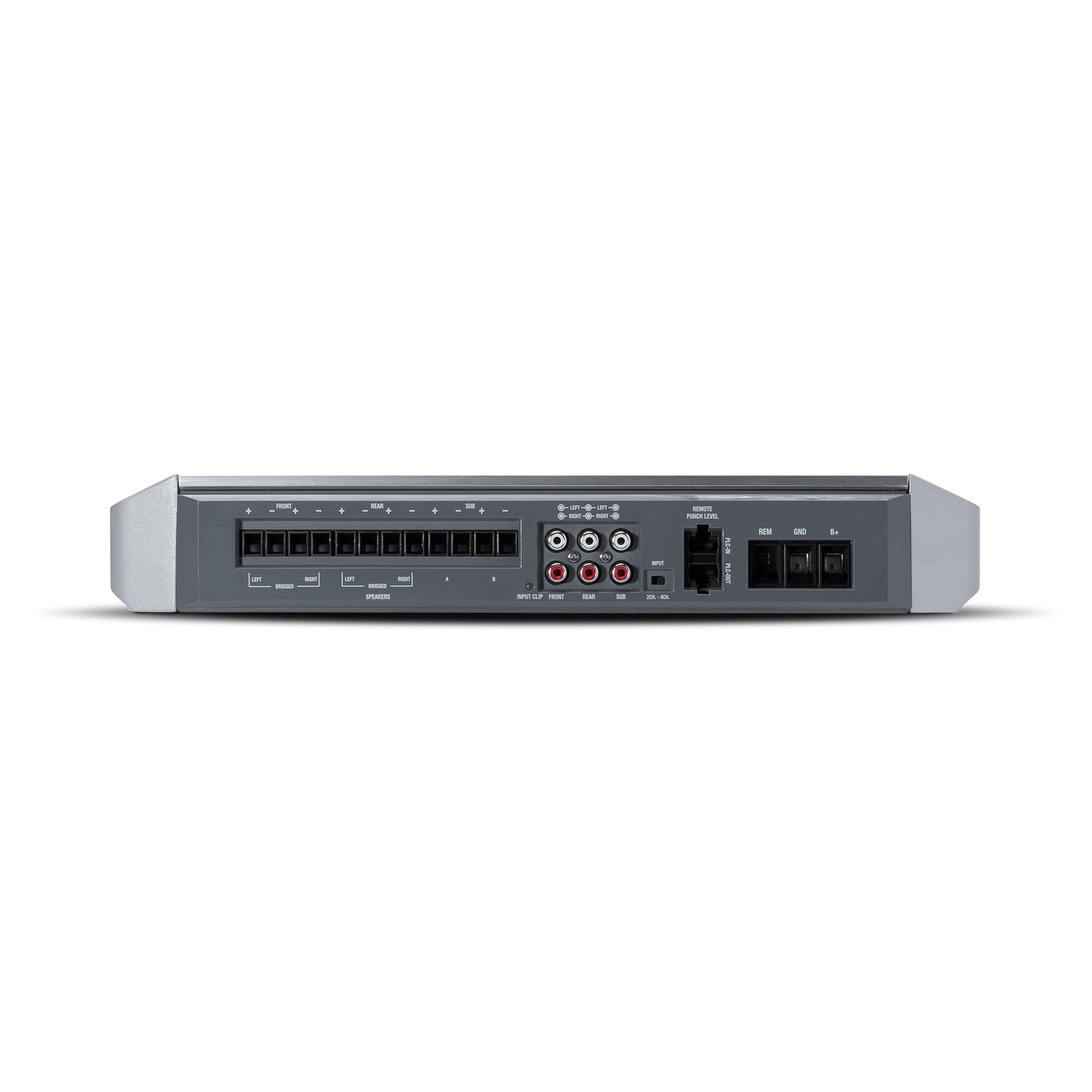

| SIGNAL INPUT | Input Switch | Hi/Low level input 2/4 channel input |
| Hi/Low Level Input | 3 RCA Pair | |
| Sub Channel Input Switch | Front/Sub input switch | |
| SIGNAL OUTPUT | - | - |
| TONE CONTROLS | Sub Tone Control Range | 0dB to +18dB @ 45Hz |
| CROSSOVER CONTROLS | Front High-Pass | 50Hz - 250Hz High-Pass @ 12dB/octave |
| Rear High-Pass | 50Hz - 250Hz High-Pass @ 12dB/octave | |
| Sub Low-Pass | 50Hz - 250Hz Low-Pass | |
| Sub Infrasonic Filter | 28Hz infrasonic filter @ 12dB/octave | |
| REMOTE CONTROL | Remote Controls | Optional Punch Level Control (PLC2) Ready |
| VISUAL INDICATORS | Power/Protect/Thermal LED | Yes |
| Input Clip LED | 3 LEDs | |
| Output Clip LED | 1, 2, 3 LEDs | |
| LED Color Legend | 1 (Blue: <0.5% THD) 2 (Violet: 1% THD) 3 (Red: 10%+ THD) | |
| POWER & WIRING | Power Wire Gauge | 4 AWG |
| Power Input Connector | Block | |
| Speaker Wire Gauge | 12 AWG | |
| Speaker Output Connector | Block | |
| COOLING | Cooling Method | Convection & Heatsink |
| POWER REQUIREMENTS | Operating Voltage | 9 - 16 VDC |
| Recommended Fuse (Not Included) | 150 A | |
| Average Current Draw (13.8V Music) | 75 A | |
| Max. Current Draw (13.8V Sinewave) | 150 A | |
| Suggested Alternator | 100 A | |
| DIMENSIONS & WEIGHT | Dimensions (H x W x D) | 2.38 x 7.76 x 15.03 (in) 6.05 x 19.71 x 38.18 (cm) |
| Shipping Weight | 15.3 Lbs. (6.93 Kg) | |
| INCLUDED IN THE BOX | Accessories | N/A |
