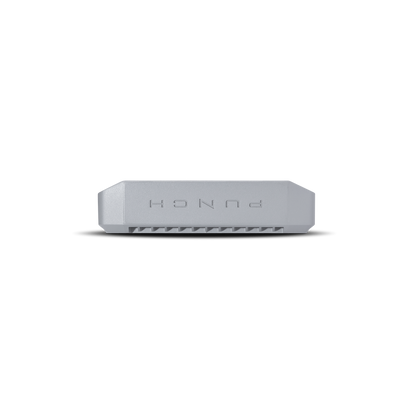

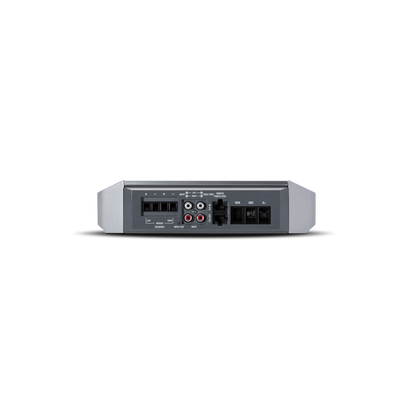

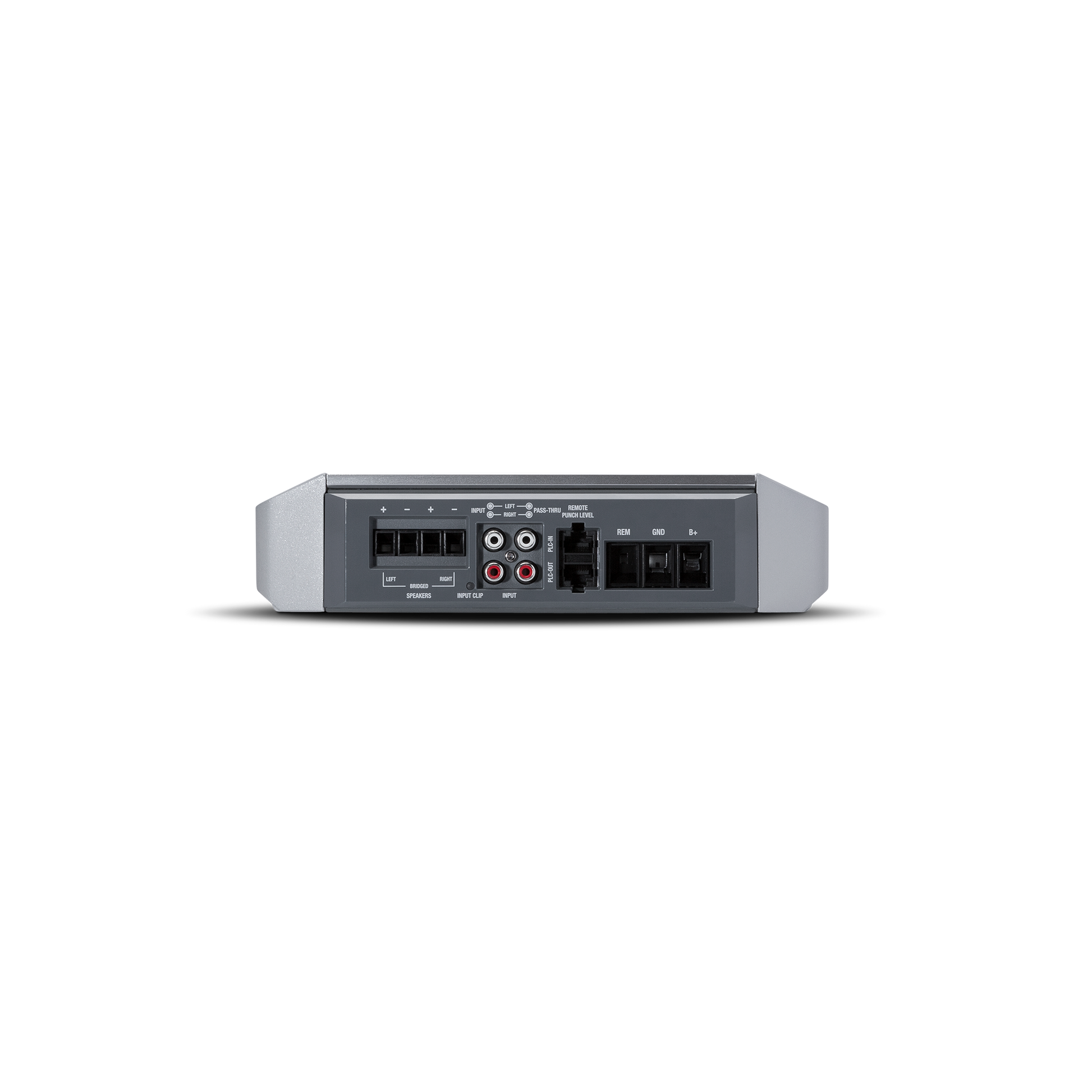

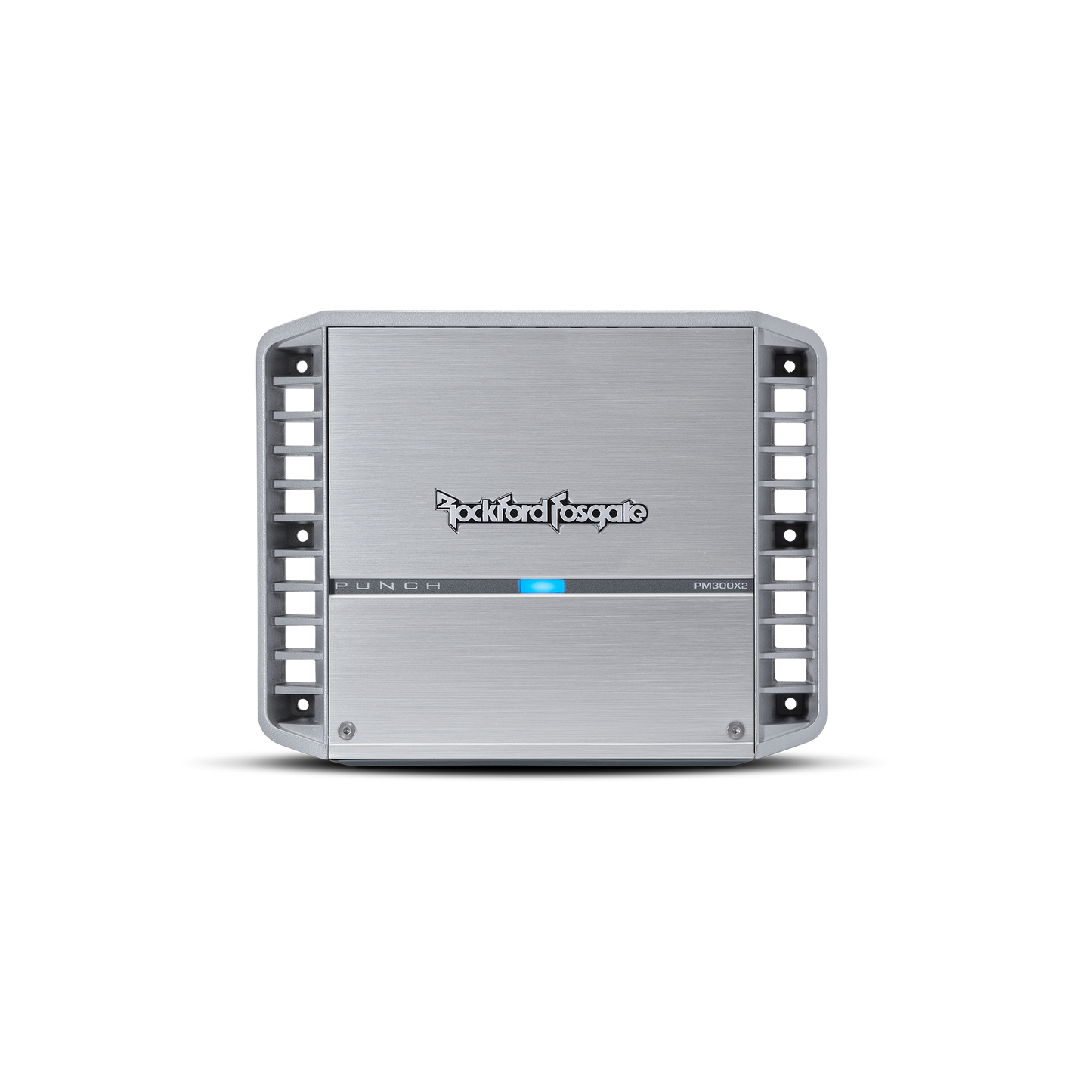

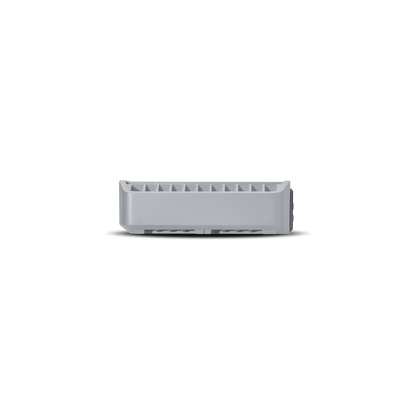

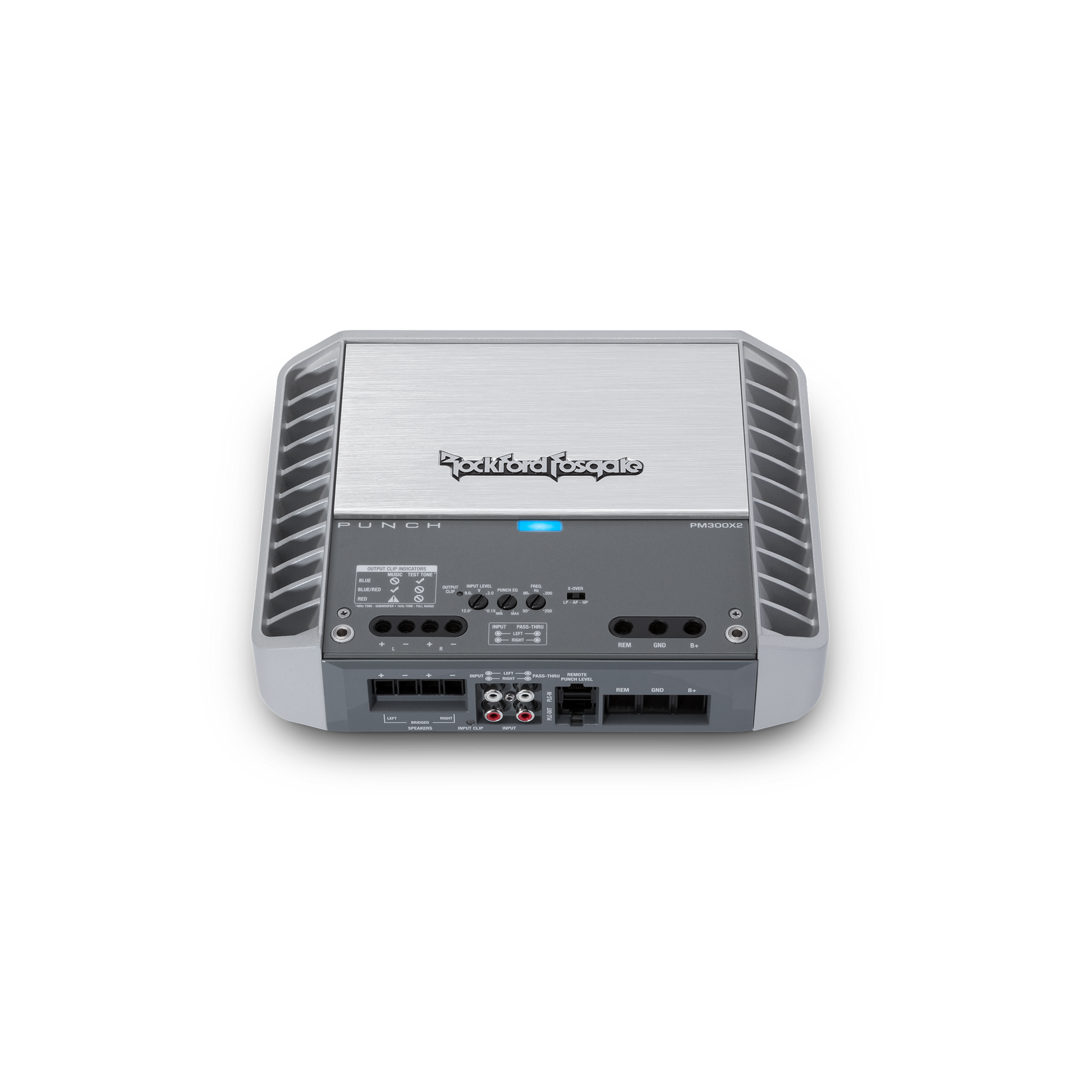

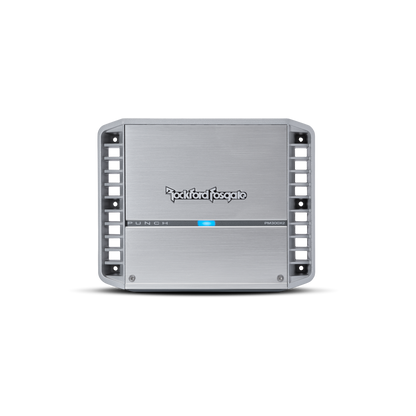

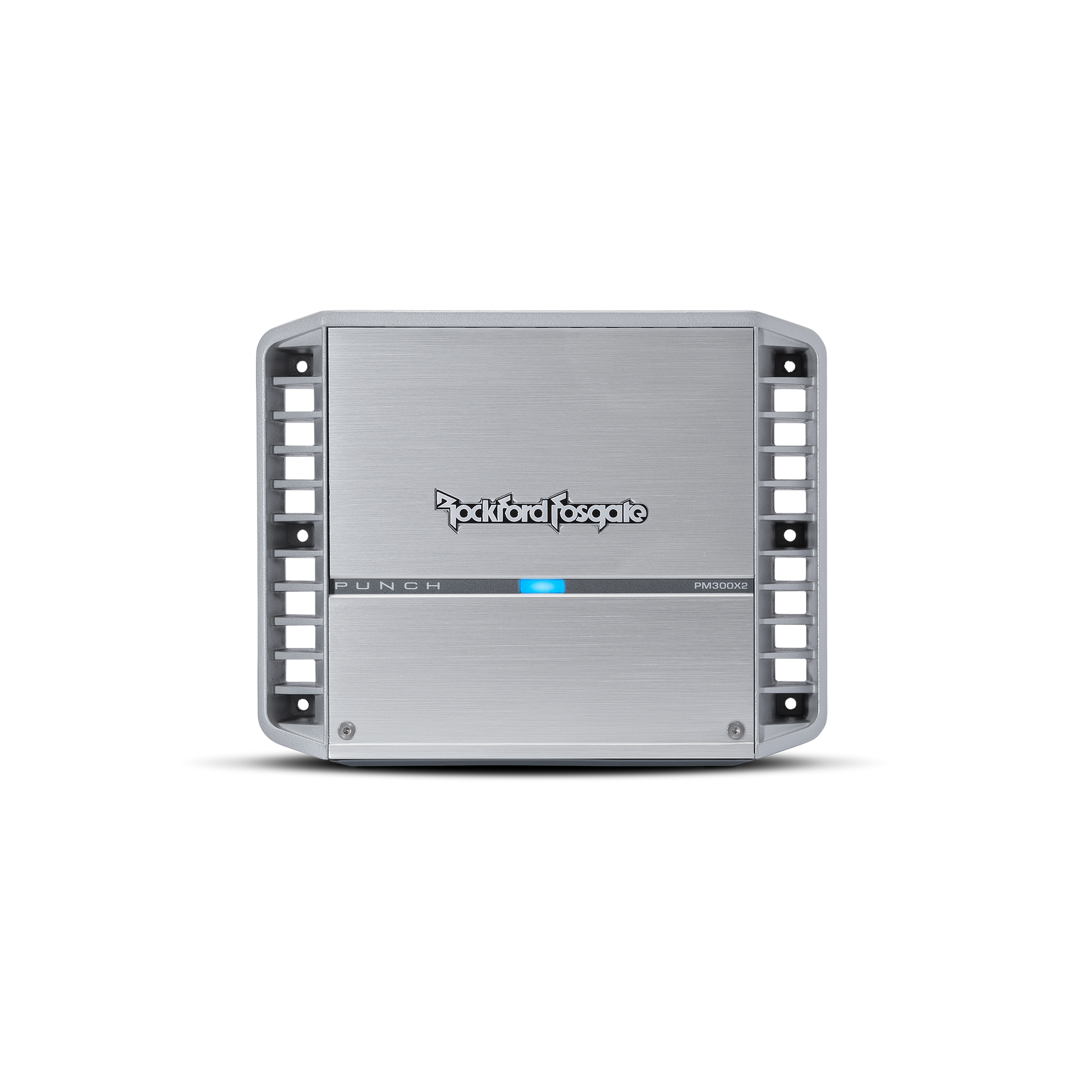

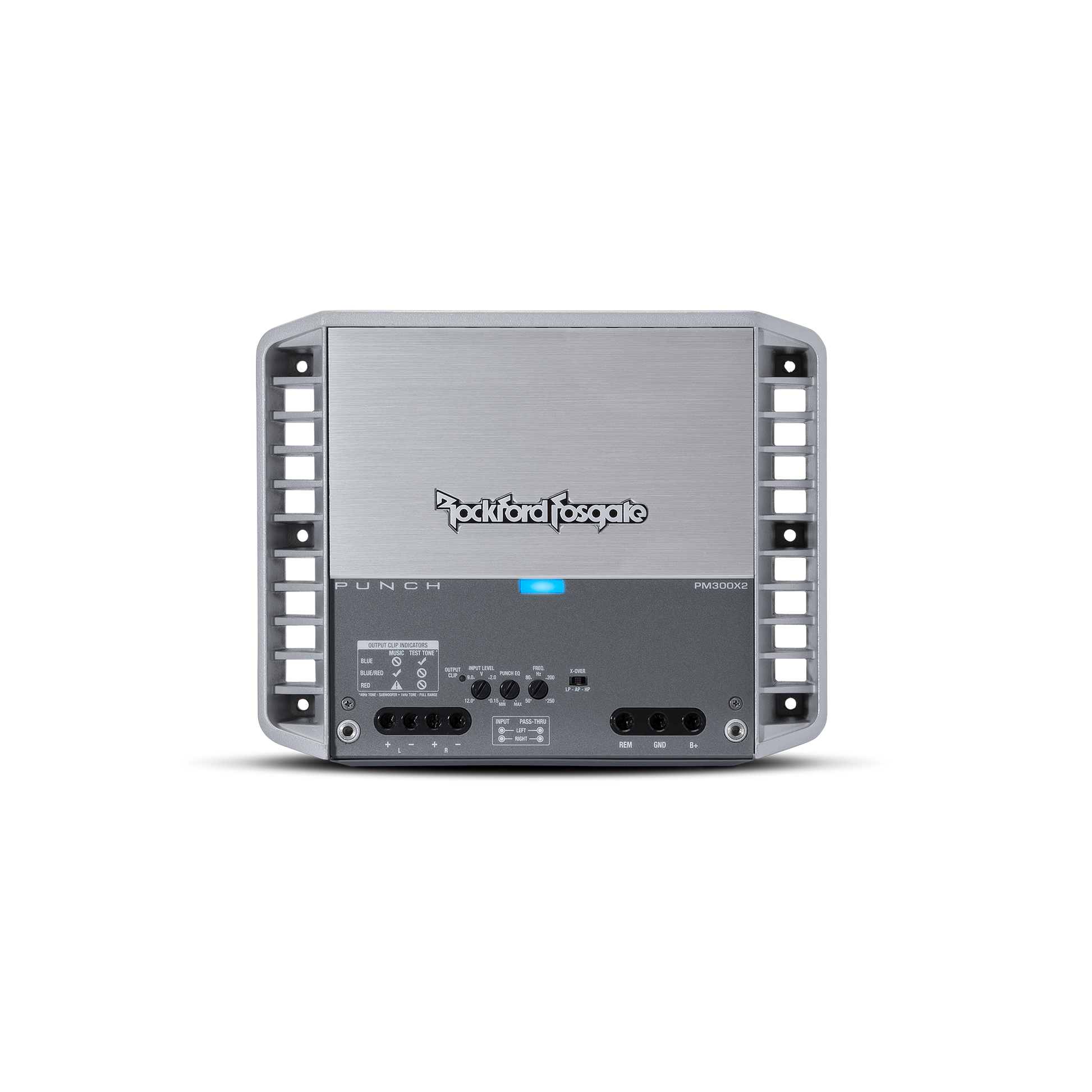

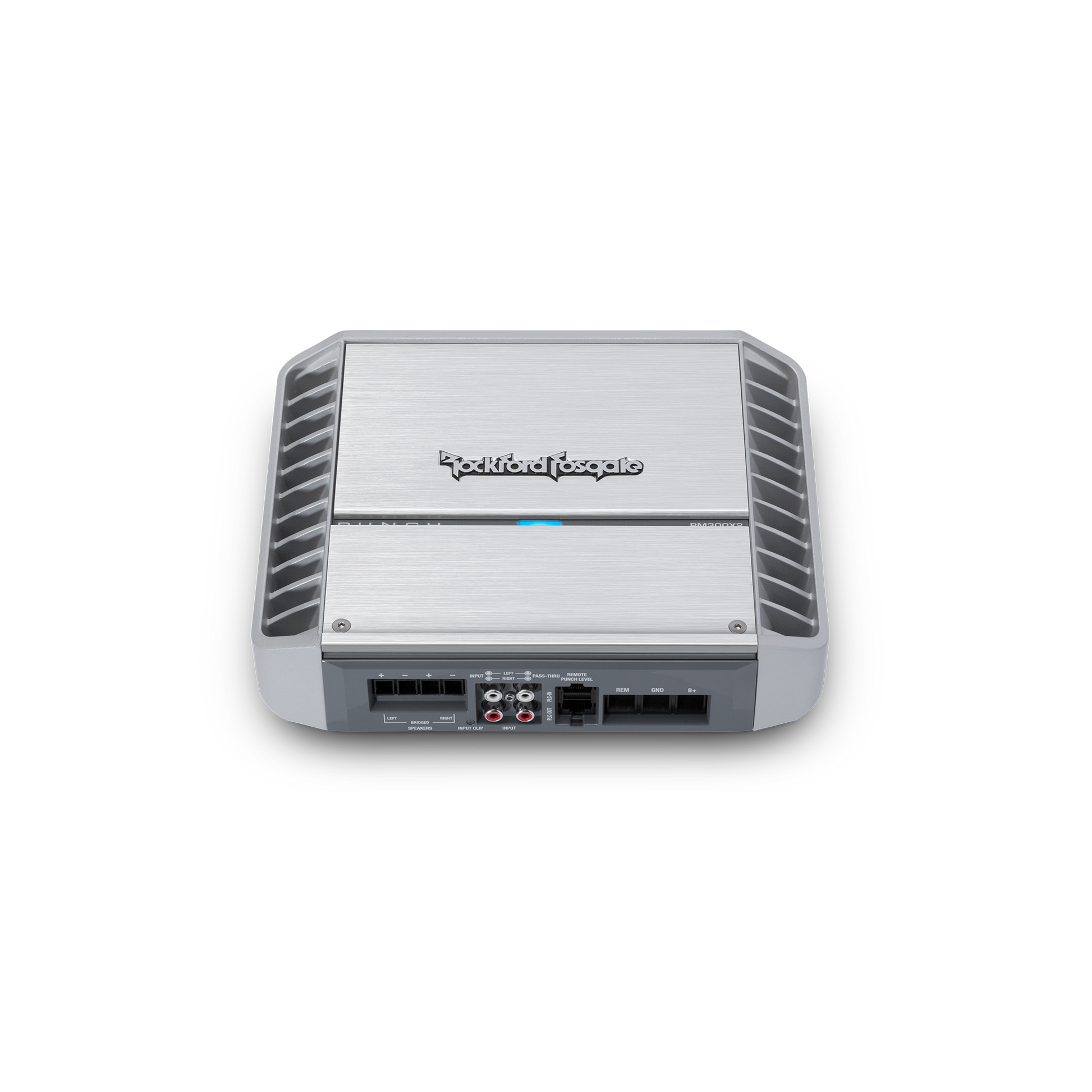

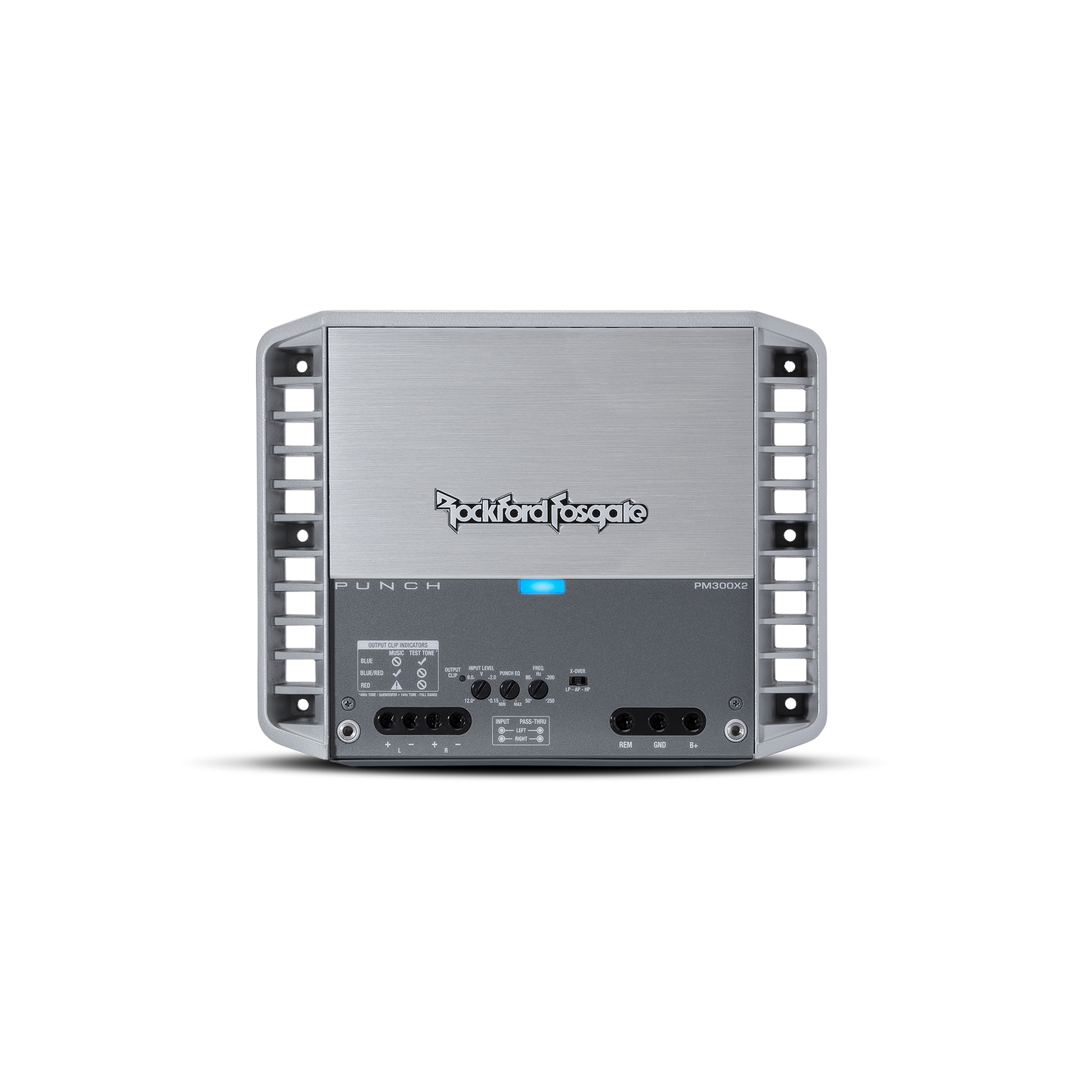

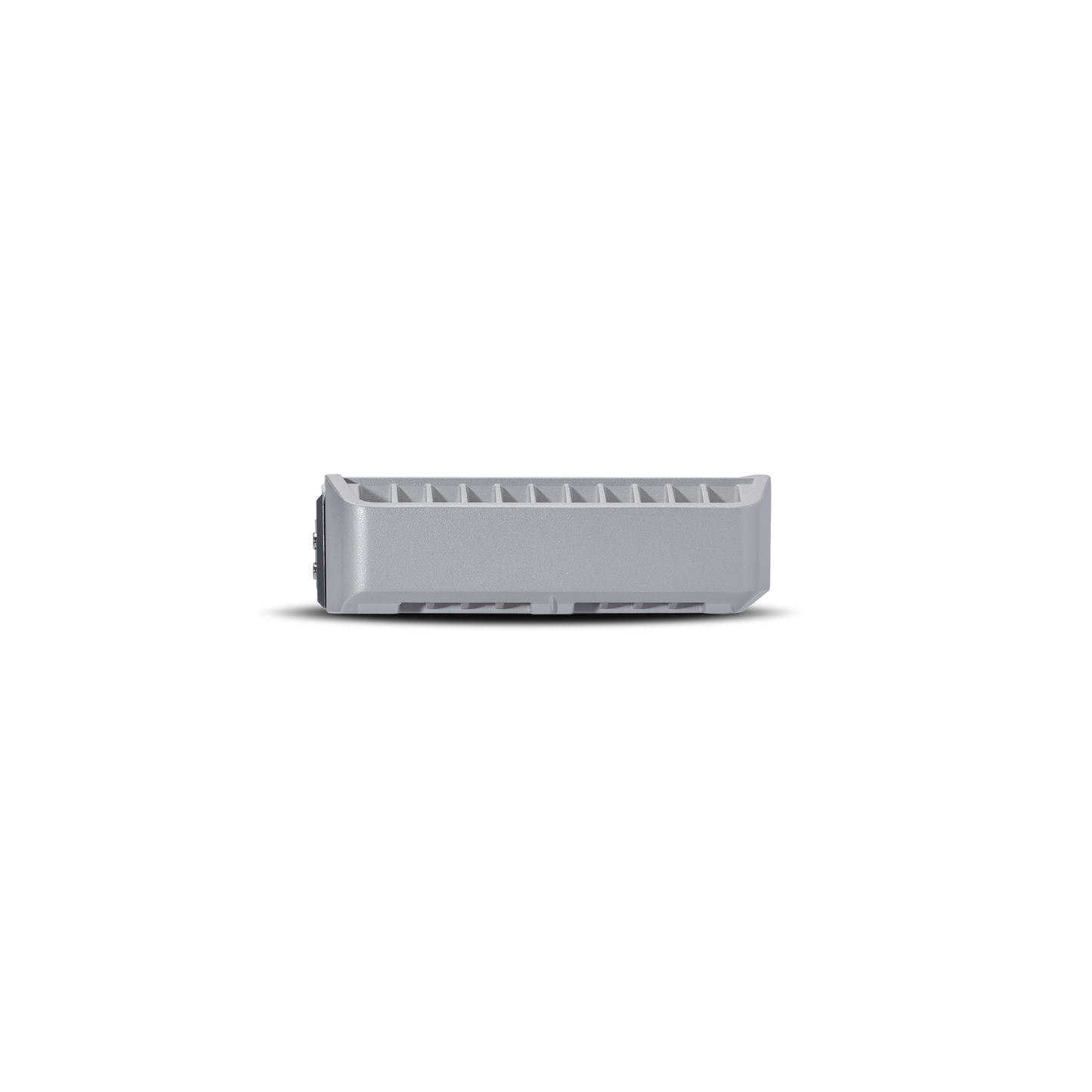

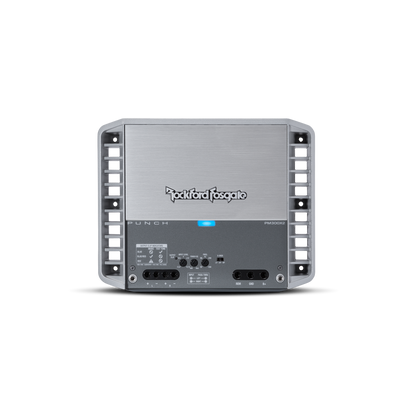

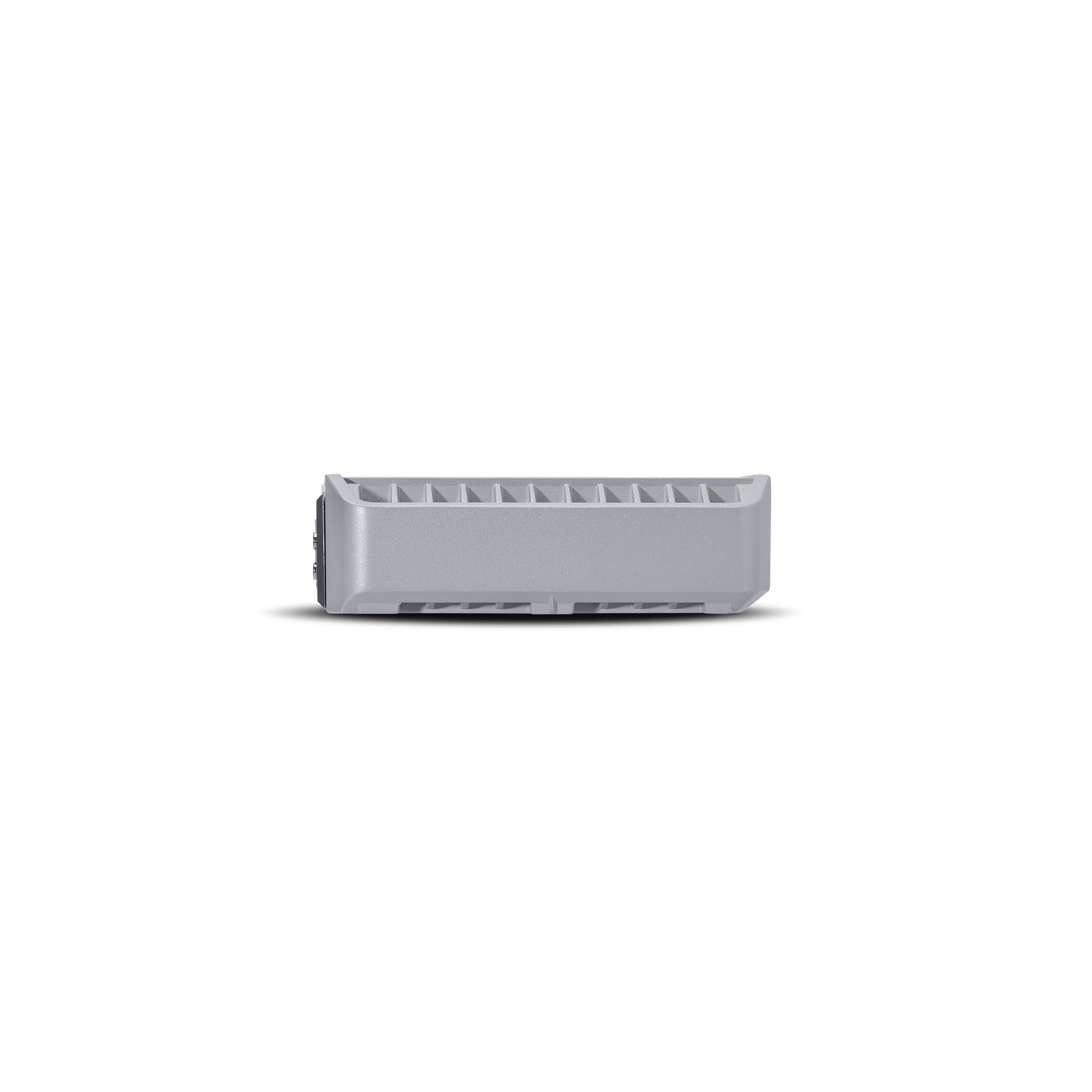

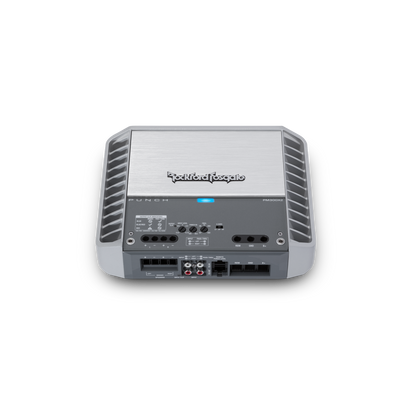

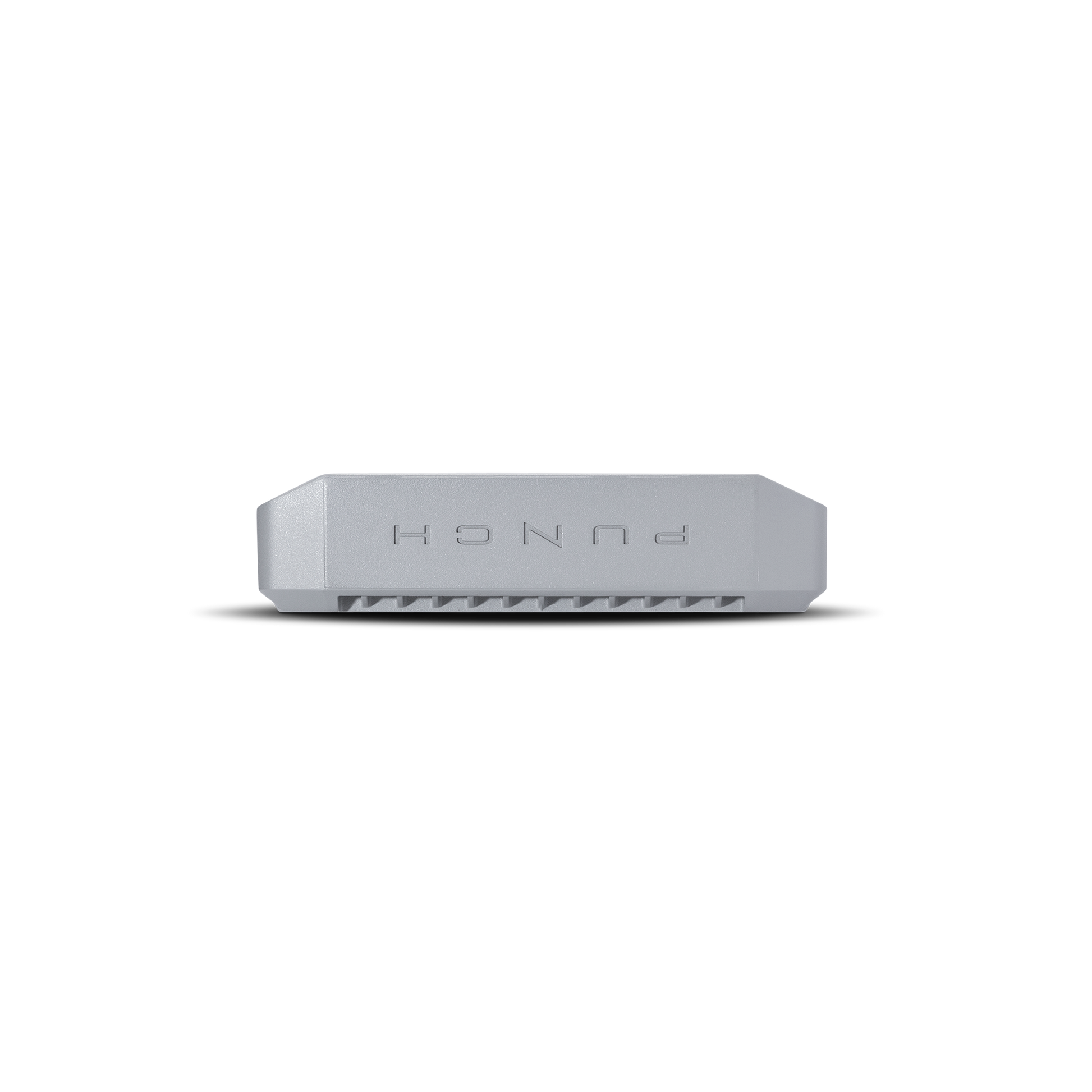

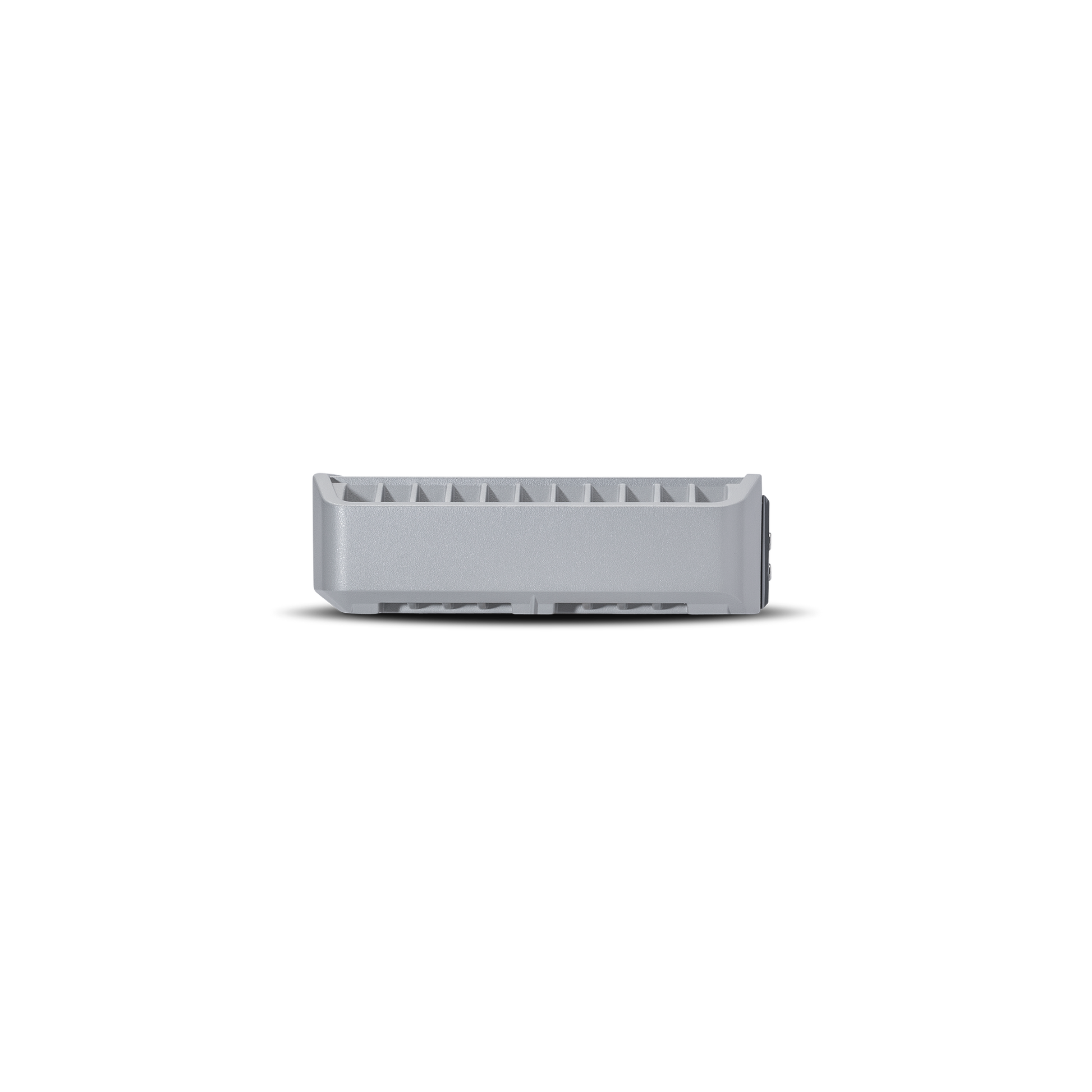

The PM300X2 is a 300 Watt 2-channel amplifier with high dynamic power using Class-a/b technology and a conformal coated pc board designed for motorsport and marine applications.
The PM300X2 is a solid choice if you're looking to drive a pair of coaxial speakers, component speakers, or a single subwoofer. The amplifier can also be run in stereo/mono mode simultaneously when using passive crossovers (not supplied) on all speakers. With proven PUNCH technology, the PM300X2 delivers real Rockford Fosgate power from a small design and is flexible to accommodate any moderately sized system.
| GENERAL | CTA-2006 Compliant | Yes |
| Number of Channels | 2 | |
| Total Power (Sum of Rated Power) | 300 Watts | |
| RATED POWER (RMS Continuous Power) | 4Ω | 100 Watts x 2 @ 4-Ohm |
| 2Ω | 150 Watts x 2 @ 2-Ohm | |
| 4Ω Bridged | 300 Watts x 1 @ 4-Ohm | |
| DYNAMIC POWER (PVC/PowerCube®) | 4Ω | 120 Watts x 2 @ 4-Ohm (0° Res) |
| 2Ω | 203 Watts x 2 @ 2-Ohm (0° Res) | |
| BRIDGING | Bridgeable | Yes |
| AUDIO PERFORMANCE | Frequency Response | 20 Hz - 20 kHz |
| Input Sensitivity | 150 mV - 12 V | |
| Circuit Topology Class | Class A/B | |
| EFFICIENCY | Efficiency (average) | 69% @ 4-Ohm |
| DISTORTION & NOISE | Total Harmonic Distortion (THD+N) | 4Ω: <1.0% 2Ω: <1.0% |
| SIGNAL INPUT | Hi/Low level Input | 1 RCA pair |
| SIGNAL OUTPUT | Low-Level Output | 1 RCA pair |
| TONE CONTROLS | Tone Control Range | 0dB to +14dB @ 12.5kHz 0dB to +18dB @ 45Hz |
| CROSSOVER CONTROLS | High-Pass/Low-Pass (HP/LP) | 50Hz - 250Hz @ 12dB/octave Butterworth |
| All-Pass | Yes | |
| REMOTE CONTROL | Remote Controls | Optional Punch Level Control (PLC2) Ready |
| VISUAL INDICATORS | Power/Protect/Thermal LED | Yes |
| Input Clip LED | 3 LEDs | |
| Output Clip LED | 1, 2, 3 LEDs | |
| LED Color Legend | 1 (Blue: <0.5% THD) 2 (Violet: 1% THD) 3 (Red: 10%+ THD) | |
| POWER & WIRING | Power Wire Gauge | 8 AWG to 4 AWG |
| Power Input Connector | Captive C-Clamp | |
| Speaker Wire Gauge | 8 AWG to 18 AWG | |
| Speaker Output Connector | Captive C-Clamp | |
| COOLING | Cooling Method | Convection & Heatsink |
| POWER REQUIREMENTS | Operating Voltage | 9 - 16 VDC |
| Recommended Fuse (Not Included) | 50 A | |
| Average Current Draw (13.8V Music) | 23 A | |
| Max. Current Draw (13.8V Sinewave) | 45 A | |
| Suggested Alternator | 75 A | |
| DIMENSIONS & WEIGHT | Dimensions (H x W x D) | 2.38 x 7.76 x 9.86 (in) 6.05 x 19.71 x 25.04 (cm) |
| Shipping Weight | 9.5 Lbs. (4.3 Kg) | |
| INCLUDED IN THE BOX | Accessories | N/A |
