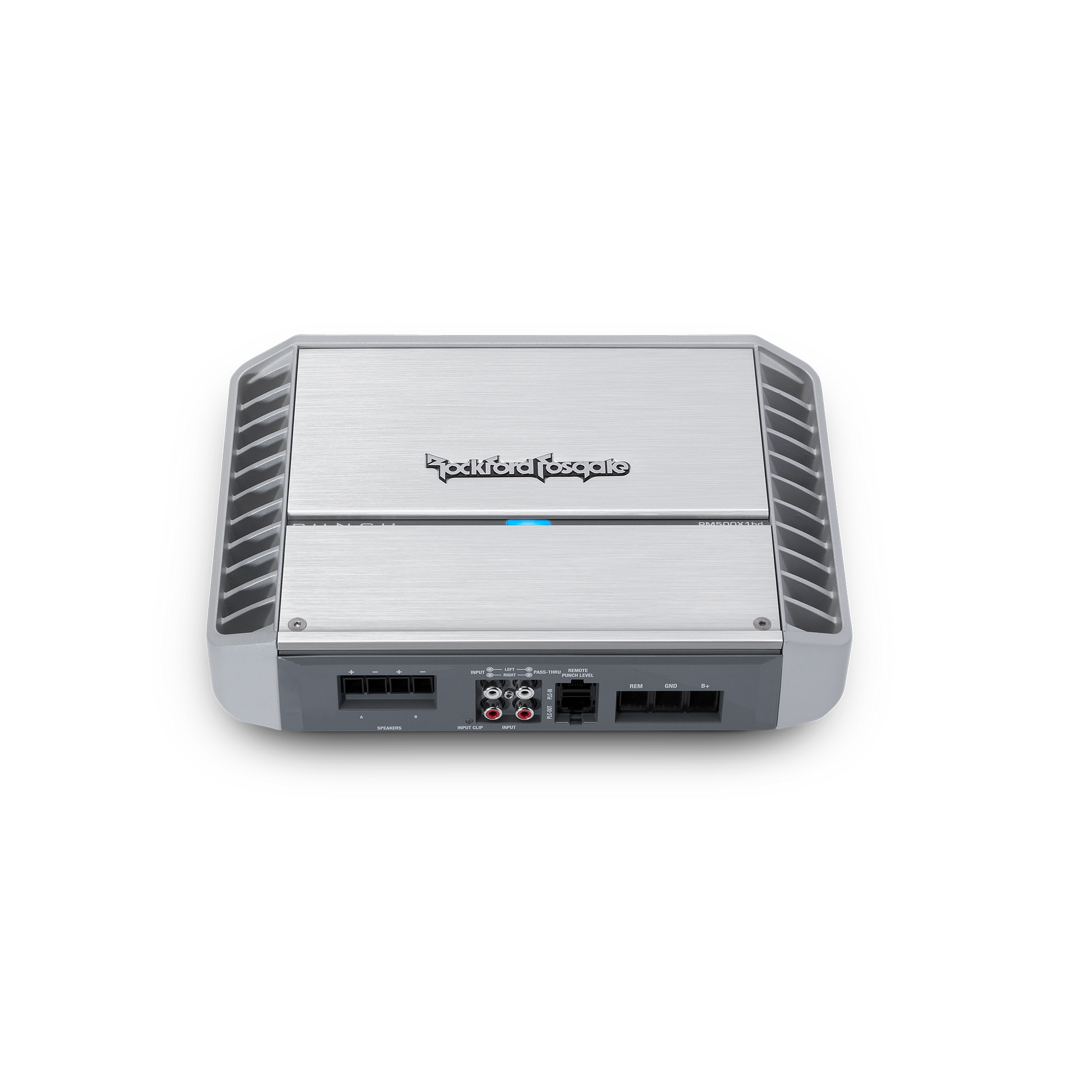

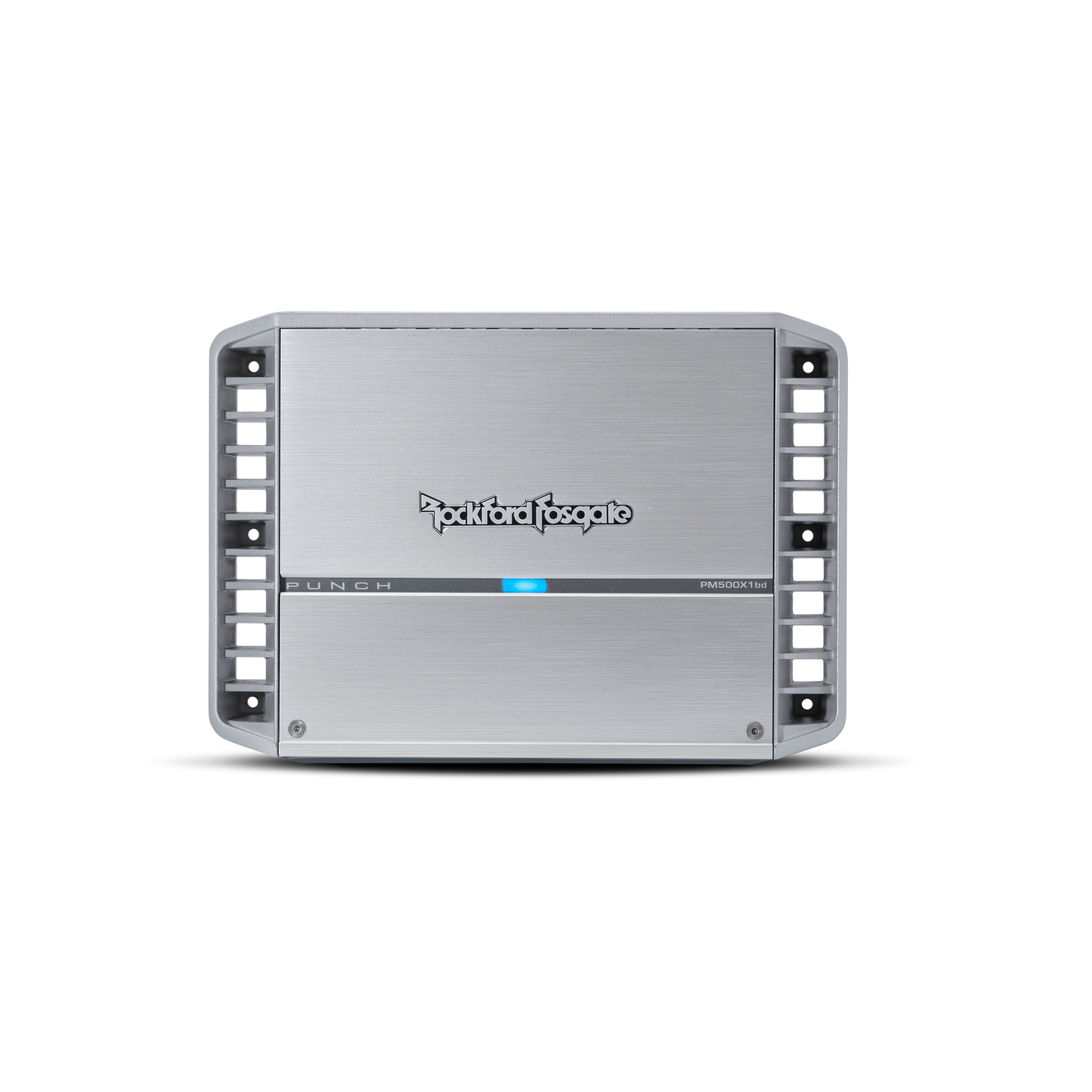

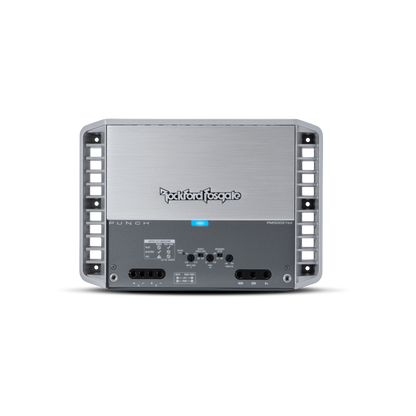

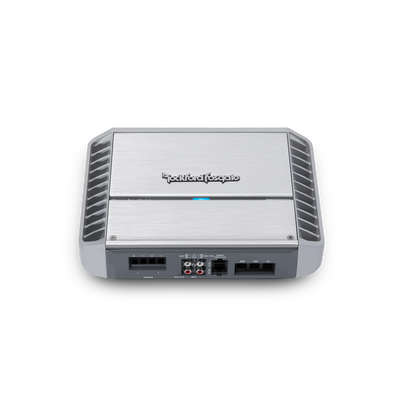

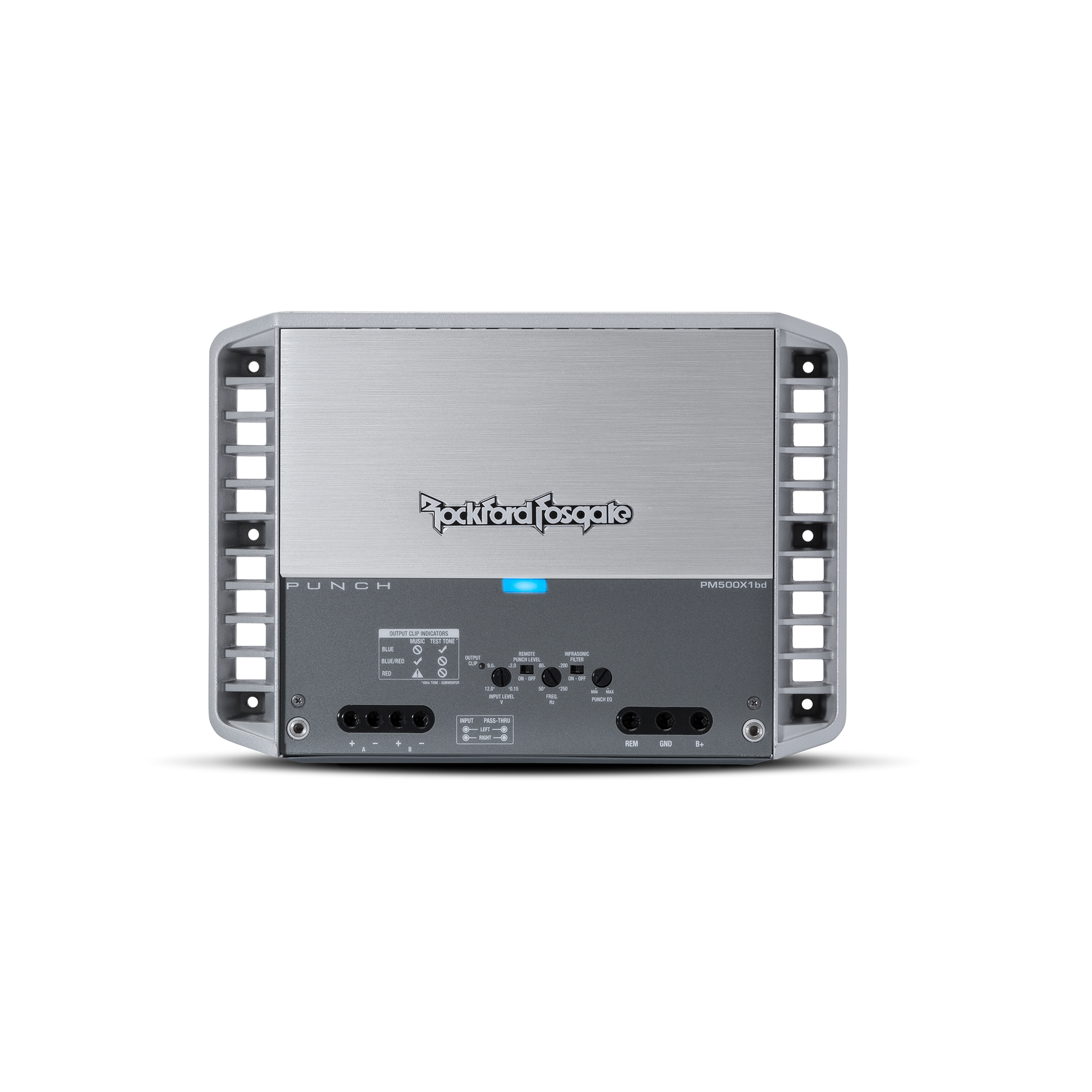

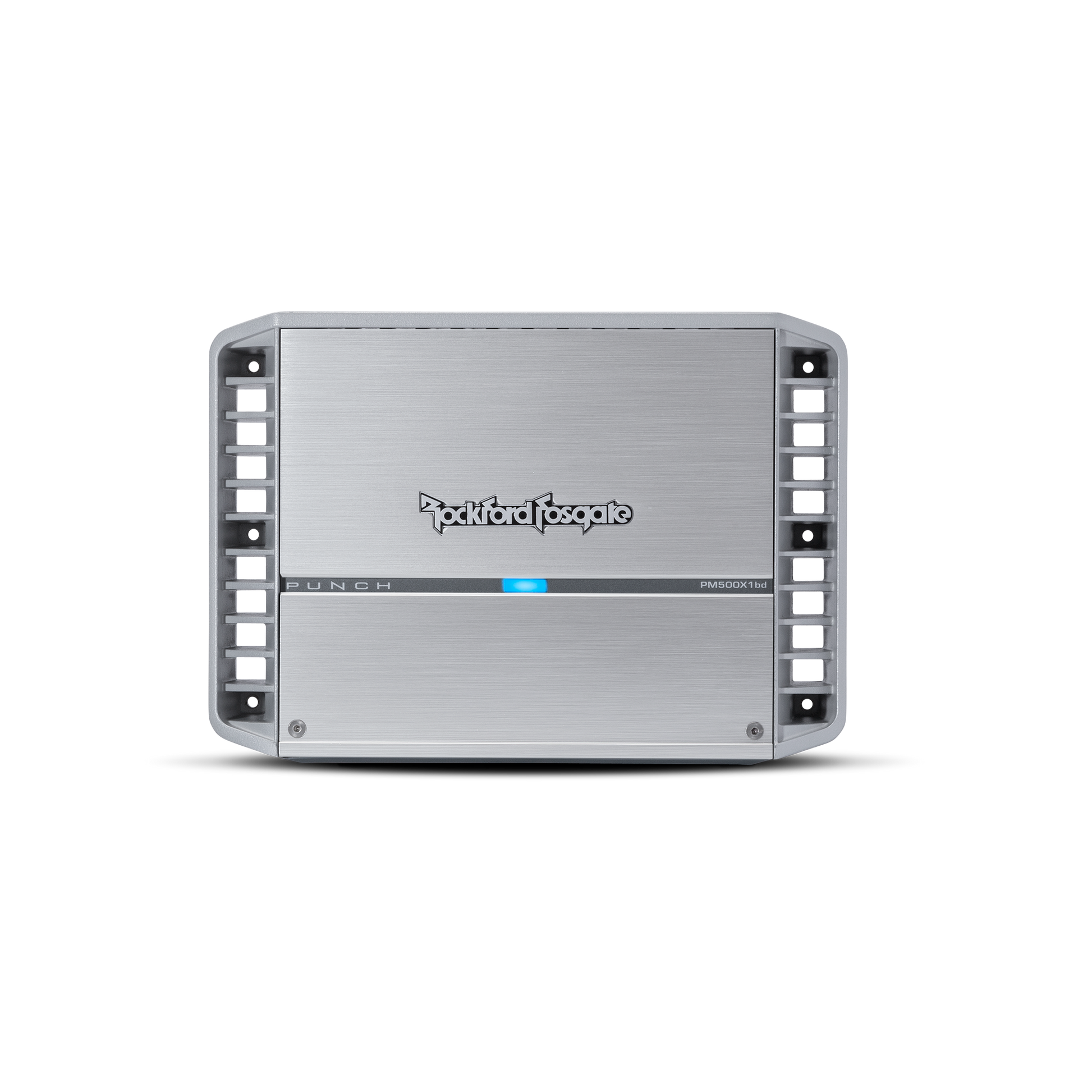

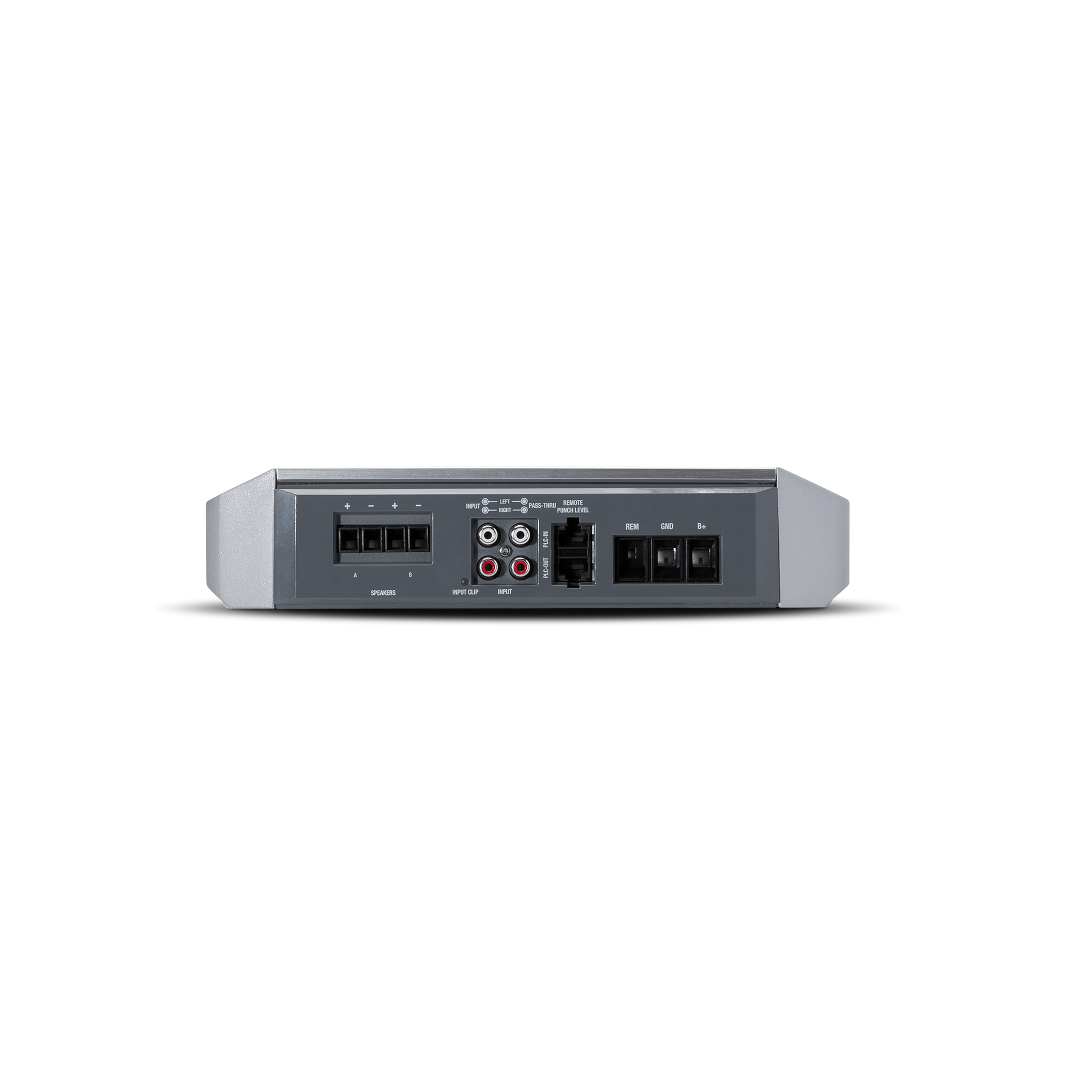

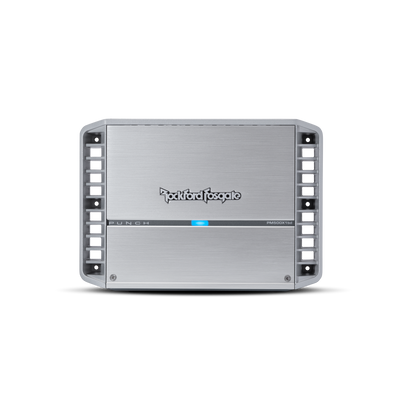

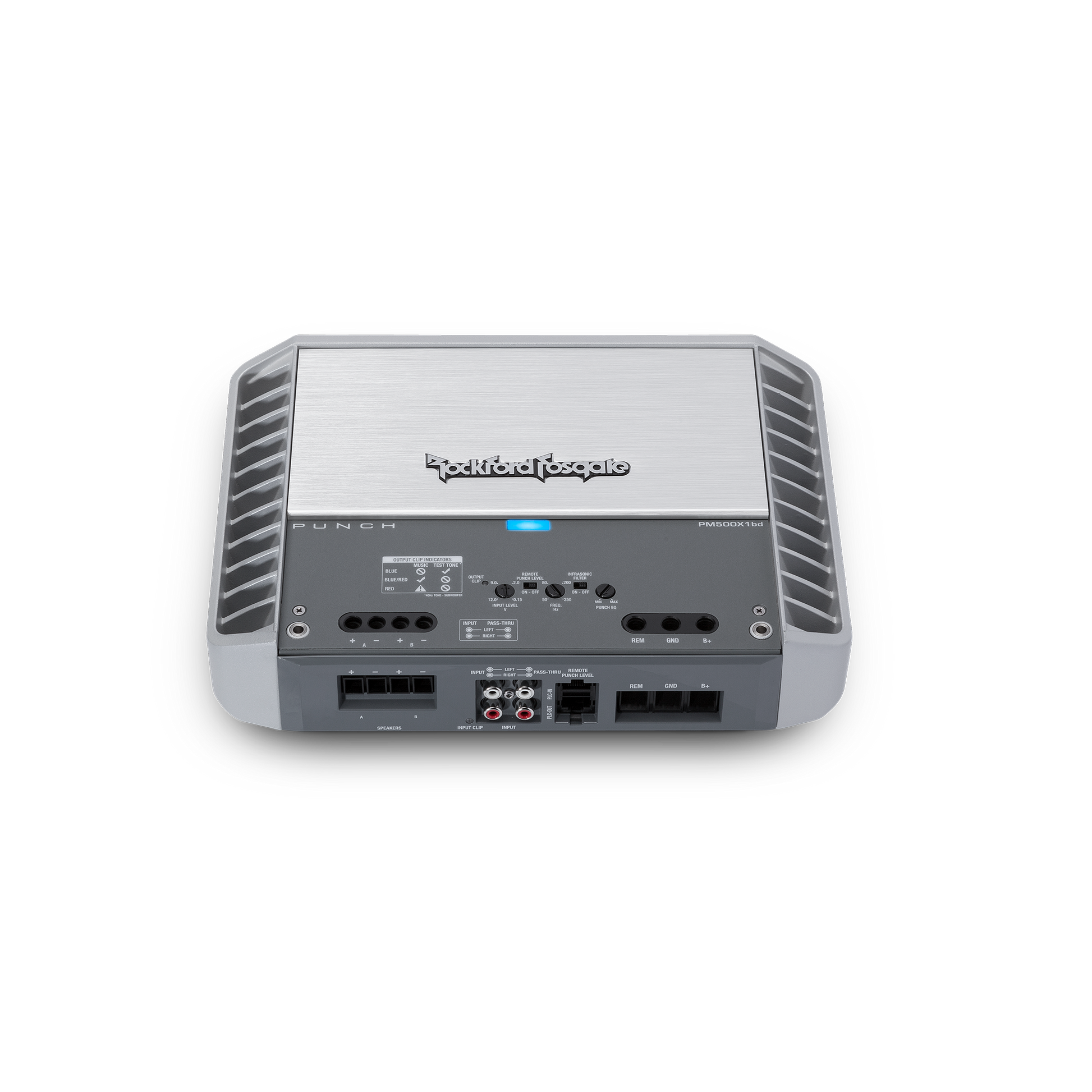

The PM500X1bd is a 500 Watt mono amplifier with high dynamic power using Class-bd technology and a conformal coated pc board designed for motorsport and marine applications.
With its super efficient Class-bd circuit topology, the PM500X1bd will drop some serious BASS! Due to its dedicated low frequency response, this amplifier is optimized for mid-bass speakers or subwoofers only. No need to worry because its 1-ohm capability will drive a pair of 4-ohm DVC subwoofers or quad-configuration of 2-ohm DVC subwoofers with ease.
| GENERAL | CTA-2006 Compliant | Yes |
| Number of Channels | 1 | |
| Total Power (Sum of Rated Power) | 500 Watts | |
| RATED POWER (RMS Continuous Power) | 4Ω | 150 Watts x 1 @ 4-Ohm |
| 2Ω | 300 Watts x 1 @ 2-Ohm | |
| 1Ω | 500 Watts x 1 @ 1-Ohm | |
| DYNAMIC POWER (PVC/PowerCube®) | 4Ω | 224 Watts x 1 @ 4-Ohm |
| 2Ω | 410 Watts x 1 @ 2-Ohm | |
| 1Ω | 787 Watts x 1 @ 1-Ohm | |
| BRIDGING | Bridgeable | No |
| AUDIO PERFORMANCE | Frequency Response | 20Hz to 250Hz +/- 1.0dB |
| Input Sensitivity | 150 mV - 12 V | |
| Circuit Topology Class | Class BD | |
| EFFICIENCY | Efficiency (average) | 86% @ 4-Ohm |
| DISTORTION & NOISE | Total Harmonic Distortion (THD+N) | 4-Ohm: <1.0% 2-Ohm: <1.0% 1-Ohm: <1.0% |

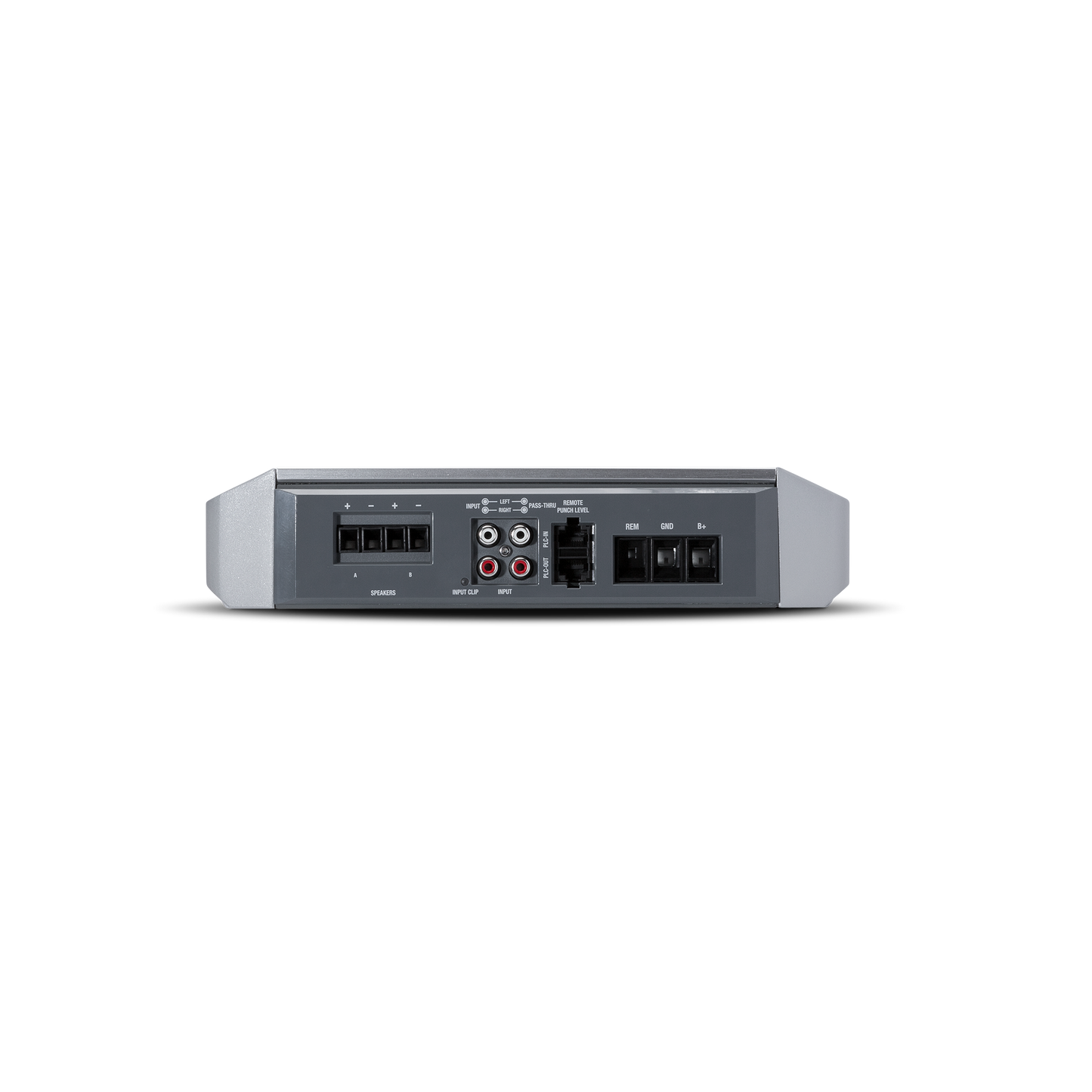

| SIGNAL INPUT | Input Switch | Hi/Low level input |
| Hi/Low Level Input | 1 RCA pair | |
| SIGNAL OUTPUT | Output Switch | Low level: 1 RCA pair |
| TONE CONTROLS | Punch EQ2 Bass Tone Control | 0dB to +18dB @ 45Hz |
| CROSSOVER CONTROLS | Low-Pass | 50Hz-250Hz @ 12dB/octave Butterworth |
| Infrasonic Filter | 28Hz @ 12dB/Octave | |
| All-Pass | No | |
| REMOTE CONTROL | Remote Controls | Optional Punch Level Control (PLC2) Ready |
| VISUAL INDICATORS | Power/Protect/Thermal LED | Yes |
| Input Clip LED | 3 LEDs | |
| Output Clip LED | 1, 2, 3 LEDs | |
| LED Color Legend | 1 (Blue: <0.5% THD) 2 (Violet: 1% THD) 3 (Red: 10%+ THD) | |
| POWER & WIRING | Power Wire Gauge | 4 AWG |
| Power Input Connector | Captive C-Clamp | |
| Speaker Wire Gauge | 8 AWG to 18 AWG | |
| Speaker Output Connector | Captive C-Clamp | |
| COOLING | Cooling Method | Convection & Heatsink |
| POWER REQUIREMENTS | Operating Voltage | 9 - 16 VDC |
| Recommended Fuse (Not Included) | 80 A | |
| Average Current Draw (13.8V Music) | 35 A | |
| Max. Current Draw (13.8V Sinewave) | 70 A | |
| Suggested Alternator | 75 A | |
| DIMENSIONS & WEIGHT | Dimensions (H x W x D) | 2.38 x 7.76 x 11.03 (in) 6.05 x 19.71 x 28.02 (cm) |
| Shipping Weight | 10.8 Lbs. (4.89 Kg) | |
| INCLUDED IN THE BOX | Accessories | N/A |
