Rockford Fosgate

Rockford Fosgate PMX-1

Rockford Fosgate PMX-1

In stock

Punch Marine Grade Media Receiver with 2.3" Dot Matrix Display

  • New Launch
$249.99
$249.99
Save: $-249.99 (% Off)*
Sale Sold out
Shipping calculated at checkout.
  • Free shipping Over $99
Sold in last hours
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
  • Fast, FREE Delivery

    Free, Fast, Doorstep Delight!

  • Delivery & Returns

    Effortless Delivery, Easy Returns

View full details
  • Overview
  • Details
  • Accessories

The PMX-1 features a scratch resistant wet bonded display, superior Bluetooth® audio, AUX and USB inputs.  The Element Ready™ design also provides protection against water, dust, and UV rays.

The PMX-1 features a 9H tempered glass screen optically bonded which allows for optimized viewing of the dot matrix display under all lighting and viewing conditions. The superior Bluetooth® audio features A2DP and AVRCP for better range, easier device pairing and glitch free wireless audio streaming. The flexible AUX and USB inputs enable convenient access to various audio playback formats and charging of your mobile devices.

Features:

  • A2DP and AVRCP Bluetooth® Wireless Streaming
  • Multi-region radio frequencies
  • AM/FM/WB Tuner
  • Independent Subwoofer Level Control
  • 7-Band Graphic EQ + PEQ
  • Wet bonded 2.3" Full Dot Matrix LCD Display
  • Selectable HP / LP / AP Crossovers with Selectable Slope 12 / 24 dB/Oct
  • IP6 Marine Grade Front Panel
  • 9H Tempered Glass Screen
  • Compatible with PMX-BTUR Steering Wheel Remote

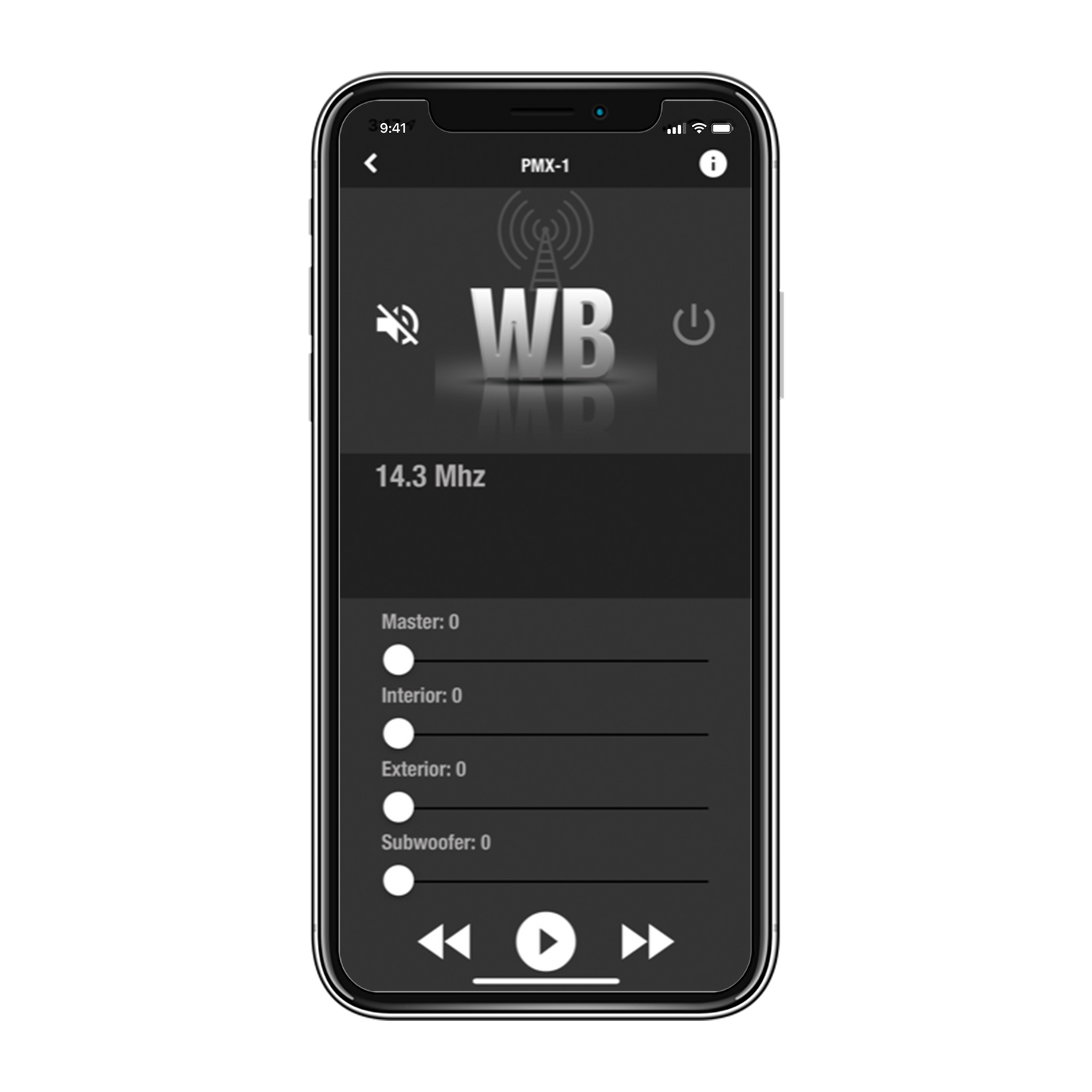

  • RF Connect iOS / Android App with native control of PMX-1
  • AUX and USB Inputs with USB Charging
  • Voltage gauge with Low voltage Warning
  • FCC, CE and EN60945 Certified
  • 2-Year Warranty

Specifications:

Digital Media Receiver Specifications

Device Type Digital-Media Receiver
Multi-Zone/Multi-Source No
Speaker Outputs Yes
Pandora® Internet Radio No
Steering Wheel Control Ready No
AUX Input Yes (1 RCA pair)
SiriusXM-Ready® No
Clock No
Bluetooth® Yes (3.0+EDR, A2DP 1.3)
USB Charging Yes
USB Output Current 1 A
USB Version 2.0
Media Formats Supported MP3, WMA


Tuner Specifications

FM Tuner Range 87.9 - 107.9 MHz
FM Sensitivity 8 dB
FM Frequency Response 20 - 15 kHz
AM Tuner Range 530 - 1710 kHz
AM Sensitivity 40 dB
AM Frequency Response 45 - 2.4 kHz
Number of Presets 18 FM / 12 AM / 6 WB


Audio Specifications

Power Output (Max) 25W x 4 @ 4Ω RMS, 50W x 4 @ 2Ω MAX
CEA-2006 Power Rating ≤1.0% THD+N
Minimum Speaker Impedance 2Ω
Output Impedance <500Ω
Max Output Voltage RCA Front: 2V, RCA Rear/Sub: 2V
Signal-to-Noise Ratio RCA 2V: >85 dB, High-Level CEA-2006: >75 dB
Channel Separation RCA: >70 dB, High-Level: >50 dB
Max THD+N High-Level: <1.0% @ 4Ω


Power & Electrical

Operating Voltage 9 - 16 VDC
Idle Current <2 A
Fuse Rating 20 A


Dimensions & Weight

Width 4.5" (11.5 cm)
Face Depth 1.5" (3.8 cm)
Mount Depth 2.9" (7.4 cm)
Height 4.2" (10.6 cm)
Back Panel Cutout 3" (77 mm)
Shipping Weight 1.22 Lbs. (0.55 Kg)
