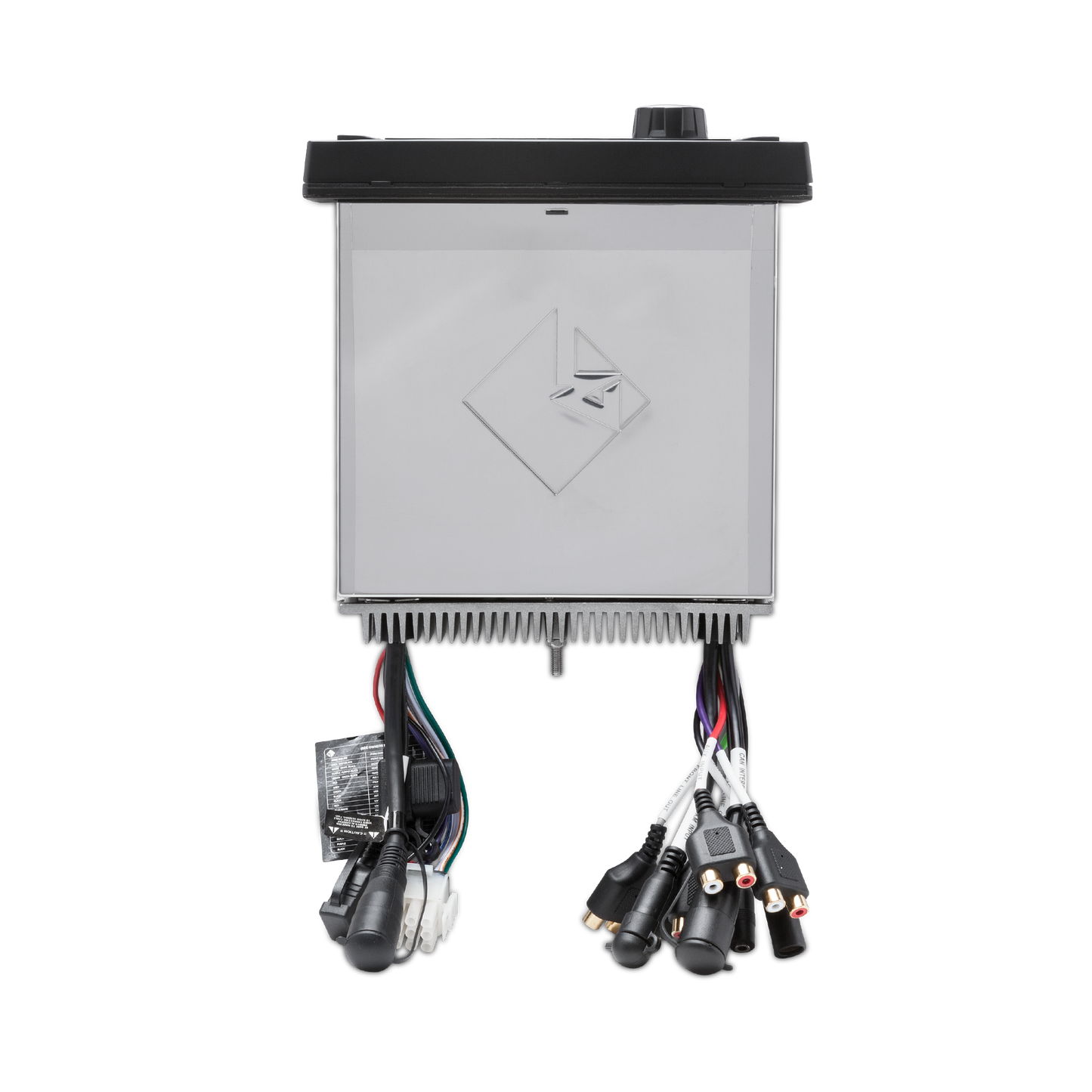

The PMX-5CAN is an AM/FM/WB tuner and digital media receiver with 2.7" full color display. Features CAN-bus functionality for connection to NMEA 2000 systems using PMX-CAN.
The PMX-5CAN digital media receiver is designed for marine and motorsports systems.
The PMX-5CAN features a 2.7"full color TFT display for optimum viewing - even in full sun - that is optically wet bonded to prevent any dust or moisture penetration. It is IPX6 rated and uses a water resistant rotary encoder knob with white LED button illumination and front mounted sub level controls. Additionally, with features such as SiriusXM and Pandora capabilities, Bluetooth audio steaming with album art support for Apple and Android products and true 2 zone/2 source control, this unit becomes a true command center of any system.
Output flexibility comes a 4x50W @ 2ohm internal amplifier or dual zone output RCA's allowing the addition of after-market amplifiers for more power and output. Add in the EEPROM memory system, custom GUI interface and wired remote expansion capabilities and you have the only media receiver you'll ever need. The PMX-5CAN also features CAN-bus functionality for connection to NMEA 2000 systems using PMX-CAN adaptor (see Accessories tab.)
| Operating Voltage | 10.5 V - 16 V |
| Compatible Remotes | PMX-1R, PMX-0R (3 Remote Limit, 100 ft Total Wired Distance) |
| Frequency Response | 20 Hz - 20 kHz |
| Pandora® Internet Radio | Yes |
| SiriusXM-Ready® | Yes (Requires SXV300) |
| Device Type | Digital-Media Receiver |
| Dimensions | Width: 8" (20.3 cm) Face Depth: 1.5" (3.8 cm) Mount Depth: 7.1" (18.2 cm) Height: 3.5" (8.9 cm) Chassis to Face Top: 0.9" (2.3 cm) Chassis to Face Bottom: 0.59" (1.5 cm) |
| Power Output | CEA-2006 Power Rating: 25W x 4 @ 4Ω RMS 50W x 4 @ 2Ω Peak ≤1.0% THD+N |
| Display Size | 2.7” Color TFT |
| Speaker Impedance | 2-Ohms |
| Fuse Rating | 15 A |
| Speaker Outputs | Yes |
| Multi-Zone/Multi-Source | Yes |
| Apple®/Android™ Compatible | Yes |
| AUX Input | Yes |
| USB Charging | Yes |
| Clock | No |
| FM Tuner Frequency Range | 87.9-107.9 MHz |
| Steering Wheel Control Ready | Yes |
| Number of Presets | 18 FM / 12 AM / 6 WB |
| FM Tuner Sensitivity | 8 dB |
| AM Tuner Usable Sensitivity | 40 dB |
| AM Tuner Frequency Range | 530 kHz - 1710 kHz |
| WB Tuner Frequency Range | 162.40 - 162.55 MHz (US & Canada) |
| RCA Output Voltage | 4V |
| RCA Frequency Response | 87.5 MHz - 107.9 MHz |
| RCA Output Impedance | 500Ω |
| Audio Format Compatibility | MP3, WMA, FLAC |
| Made for iPod Models | iPod Touch (5th & 4th gen), iPod Nano (7th & 6th gen) |
| Made for iPhone Models | iPhone XS (pending), XS Max, XR (pending), X, 8, 8 Plus, 7, 7 Plus, 6s, 6s Plus, 6, 6 Plus, 5S, 5C, 5, 4, 4S, 3GS |
| USB Capacity | 32GB max, 999 Folders max, 999 Songs max |
| Android Compatibility | Bluetooth® Only |
| USB Output Current | 1A |
| USB Version | 2.0 |
