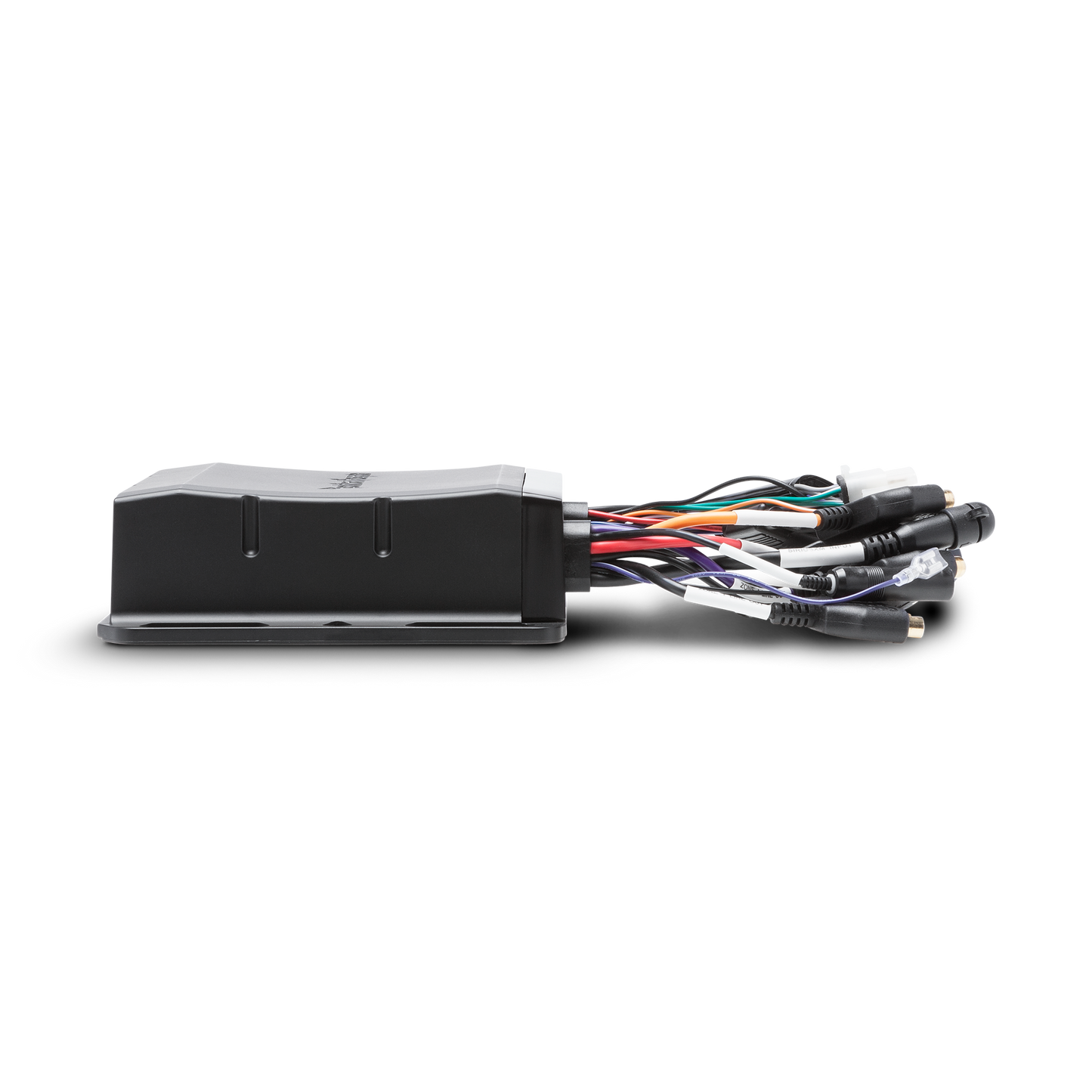

Rockford Fosgate PMX-8BB

The PMX-8BB is a hide-away digital media receiver black box designed for use with the PMX-8DH controller.  Features CANbus functionality for connection to NMEA2K systems using PMX-CAN.

Global AM/FM/WB Tuner, SiriusXM Ready, Full iOS/Android, Made for iPod, Dual USB Input w/ Video Playback, Bluetooth AVRCP 1.5, 2-Source Zone Control, 4-Zone Volume Control, 6 Channel F/R/S 4V Zone 1&2 Pre-outs, 2 Channel Zone 3&4 4V Pre-outs, 7-Band Graphic Equalizer, Punch EQ, A/V Input, Video Output, CAN Ready, EEPROM Non-Volatile Memory,Wired Illumination Control, Steering Wheel Control Ready.  Features CANbus functionality for connection to NMEA2K systems using the PMX-CAN adaptor (see Accessories tab.)

Features:

• Made for iPhone apple certified
• Simple secure pairing bluetooth profile for android & iOS
• Automotive grade AM/FM Radio, Weatherband Radio digital tuner. Supports Radio Data System (RDS) to receive and display broadcast information
• 4 sets (Zones) RCA out; 4 active with 4 channels per zone (2 full range + 2 sub) 4V signal output
• Bluetooth, A2DP only, AVRCP 1.4
• Internal power amplifier 4x50w 2 ohm stable
• Folder browsing via BT connected iPhones
• Selectable high pass and low pass crossover points for each independent zone
• Selectable crossover slopes of 12dB or 24 dB for each independant zone
• Dedicated DSP audio processors for each zone with independent 7 Band EQ+Punch EQ
• Adjustable input gain for each source
• Licensed Pandora control (apple direct USB or BT/ android via bluetooth)
• Display album art from connected iPhones on the radios display
• Electrically Erasable Programmable Read-Only Memory (EEPROM) is a type of non-volatile memory used in electronic devices to store data that must be saved when power is removed
• Integrated voltage gauge w/ low voltage alert
• External steering wheel remote control interface compatible
• Wired remote ready (up to 3 remotes)
• Upgradeable Firmware and Bluetooth Software via USB
• Epoxy coated circuit board
• Wired illumination control
• External trigger input to activate reverse camera mode
• Rear aux-in (L/R)
• IPX5 Water Intrusion Rating: Water projected from nozzles from any direction shall have no harmful effects.
• Optional CAN-BUS transceiver ready (PMX-CAN)
• CAN-bus (Controller Area Network) compatible. Requires PMX-CAN accessory
• Rear USB with 1a charging (supports album art on USB connected iPhones)
• Compatible with a MFD (Multi-Function Display) via NMEA 2000 standard. See MFD Compatibility
• *Antenna not included
• 2-Year Warranty


Specifications:
