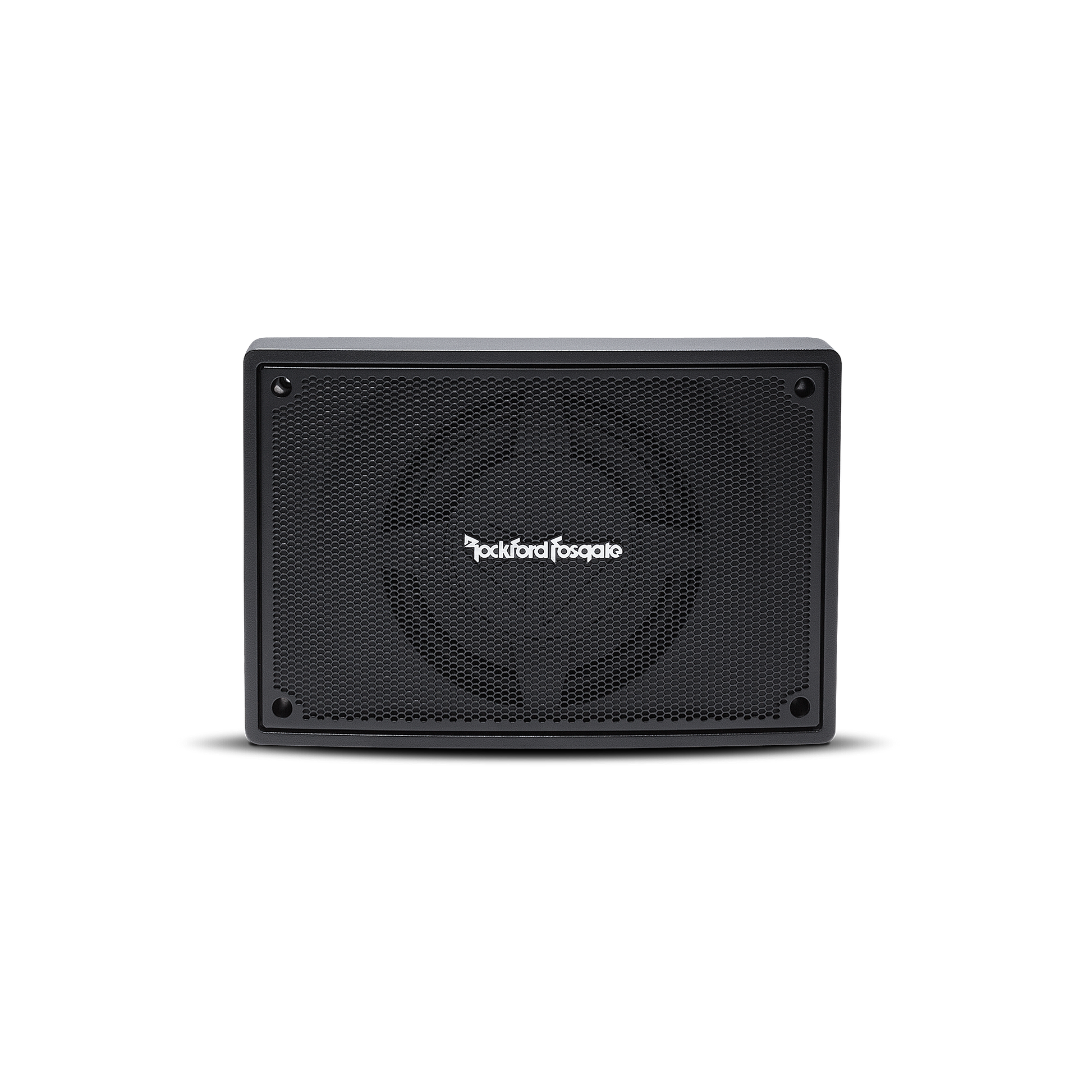

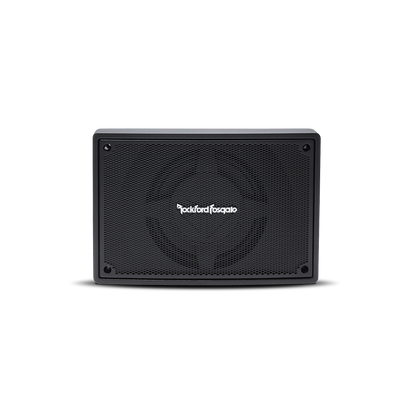

The Punch PS-8 is an self-contained amplified subwoofer system featuring a single Punch 8" driver in a sealed enclosure and a built-in 150 watt amplifier.

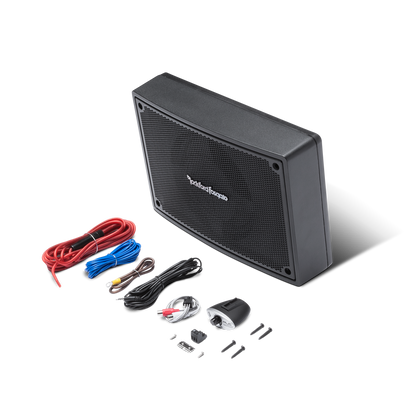

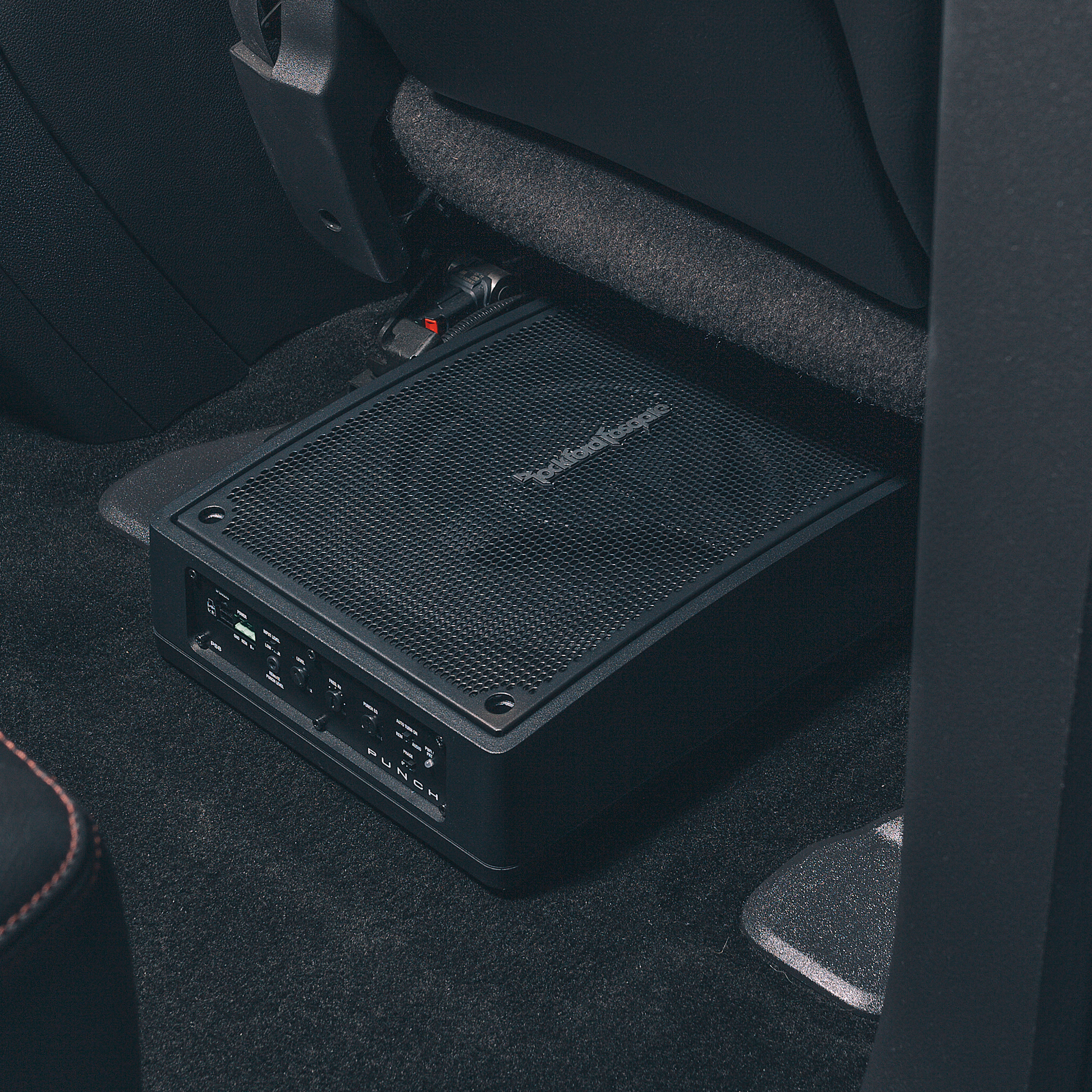

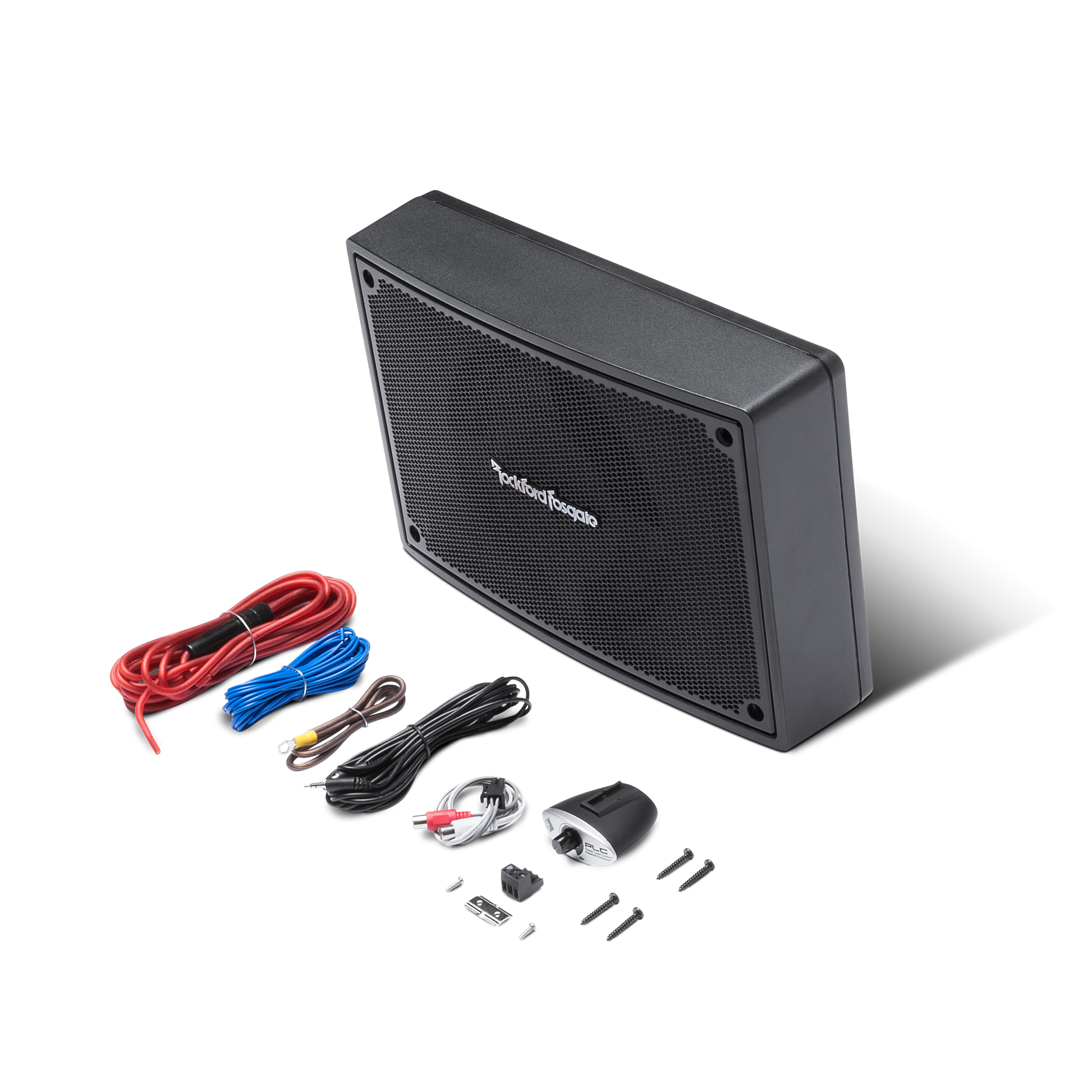

If you need to quickly add bass to a system but don't have much space or height to make it happen? Then the PS-8 is a perfect candidate! The PS-8 features a Punch 8” subwoofer in a custom sealed enclosure and is powered by a mighty 150 Watt amplifier. The system is all-inclusive, so you only need to run power, ground and a signal from the source to get this baby moving. Features a durable exterior that resists scrapes and bumps while in the trunk or cargo area.
Nominal Impedance (ea) | — |
CEA-2031 Compliant | CEA-2031 Guidelines |
CEA-2006 Compliant | CEA-2006 Guidelines |

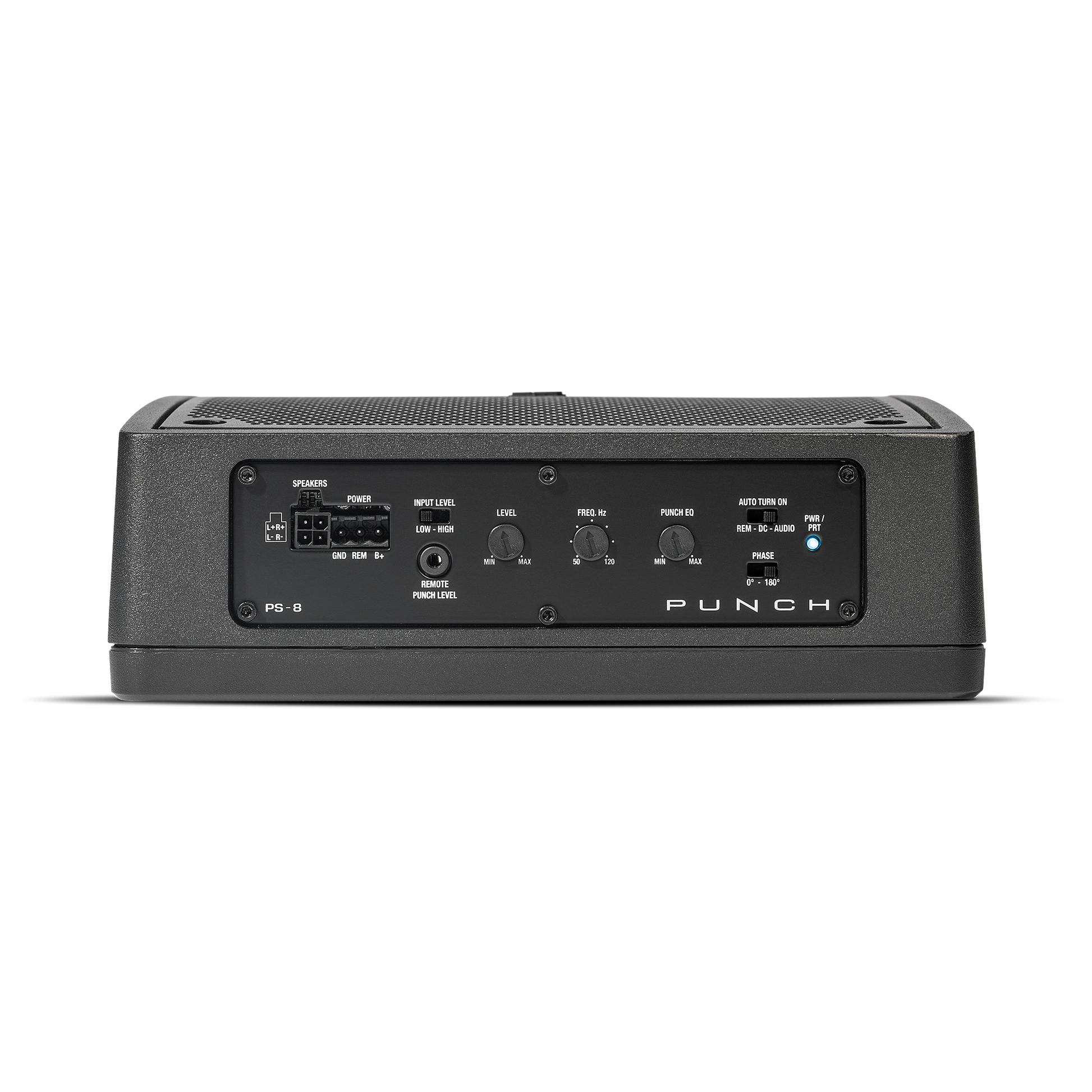

Crossover Controls | Variable 50 Hz to 120 Hz 12dB/Octave Butterworth |
Integrated Amplifier | 150 Watts RMS |
Frequency Response | 25 Hz to 150 Hz |
Woofer Size | 8" |
Speaker Connector | N/A |
Power Handling (Watts RMS) | 150 Watts RMS |
Enclosure Type | Amplified |

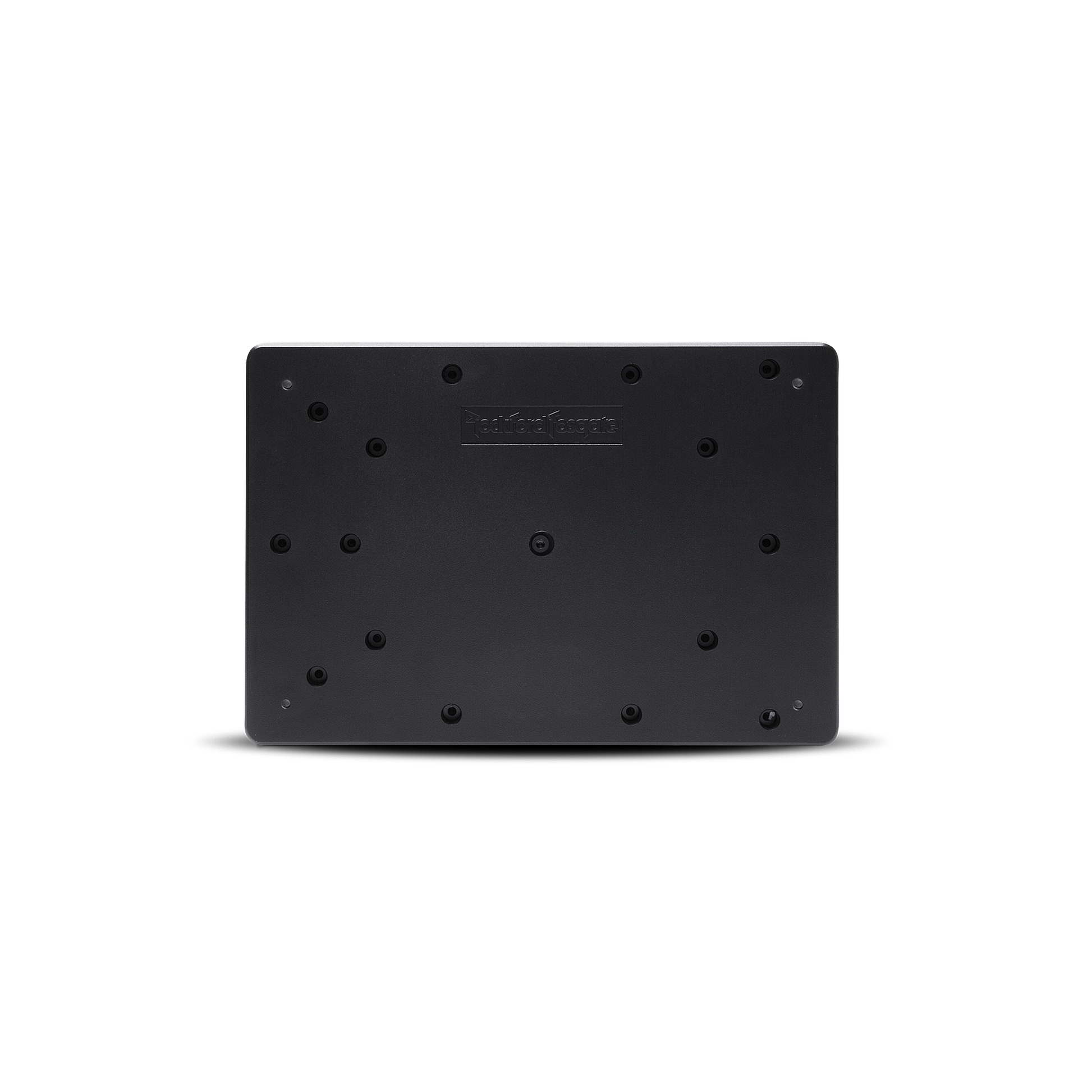

Enclosure Material | Cast aluminum w/ ABS backplate |
Woofer Quantity | 1 |

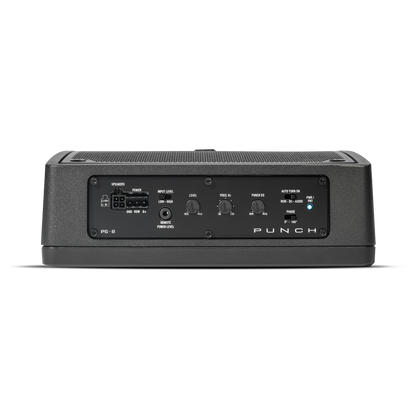

Tone Controls | Gain & Bass Boost |
Woofer Series | Proprietary |
Signal Input | Low-Level: 1 RCA Pair High-Level: Left/Right Summed Inputs |
Power Wire Gauge | Included |
Visual Indicators | Power Protect |
Remote Control | Included |
Power Input Connector | Removable Connector Power/Ground/Remote |
Replacement Part | 1130-59232-01 |
Heat Sink Type | Cast Aluminum |
Cooling | Convection |
Circuit Topology Class | Class-D |
Shipping Weight | — |
Dimensions |
Box (H x W x D): 14.4" x 9.4" x 3.3" (Metric): 36.5 cm x 23.8 cm x 8.3 cm |
