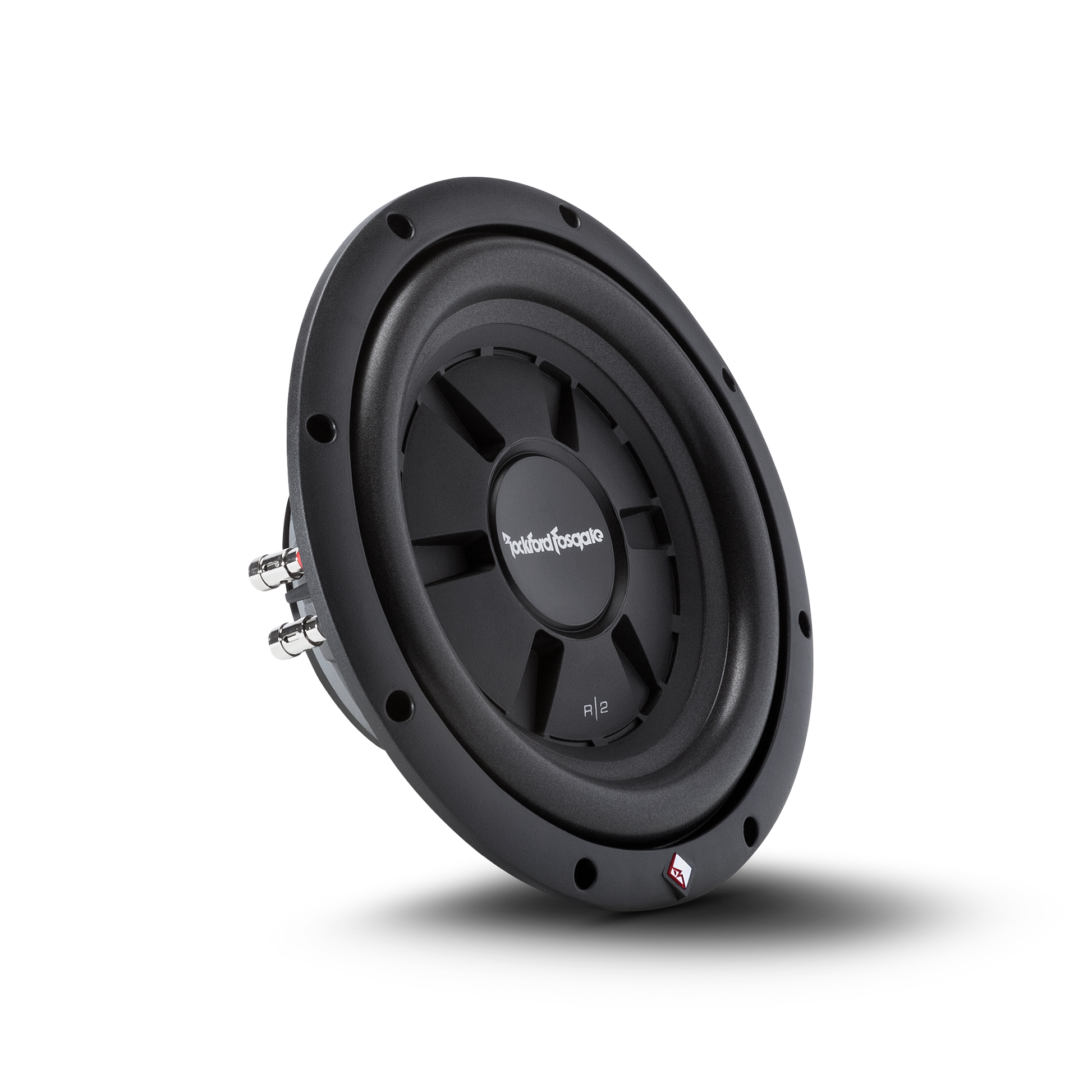

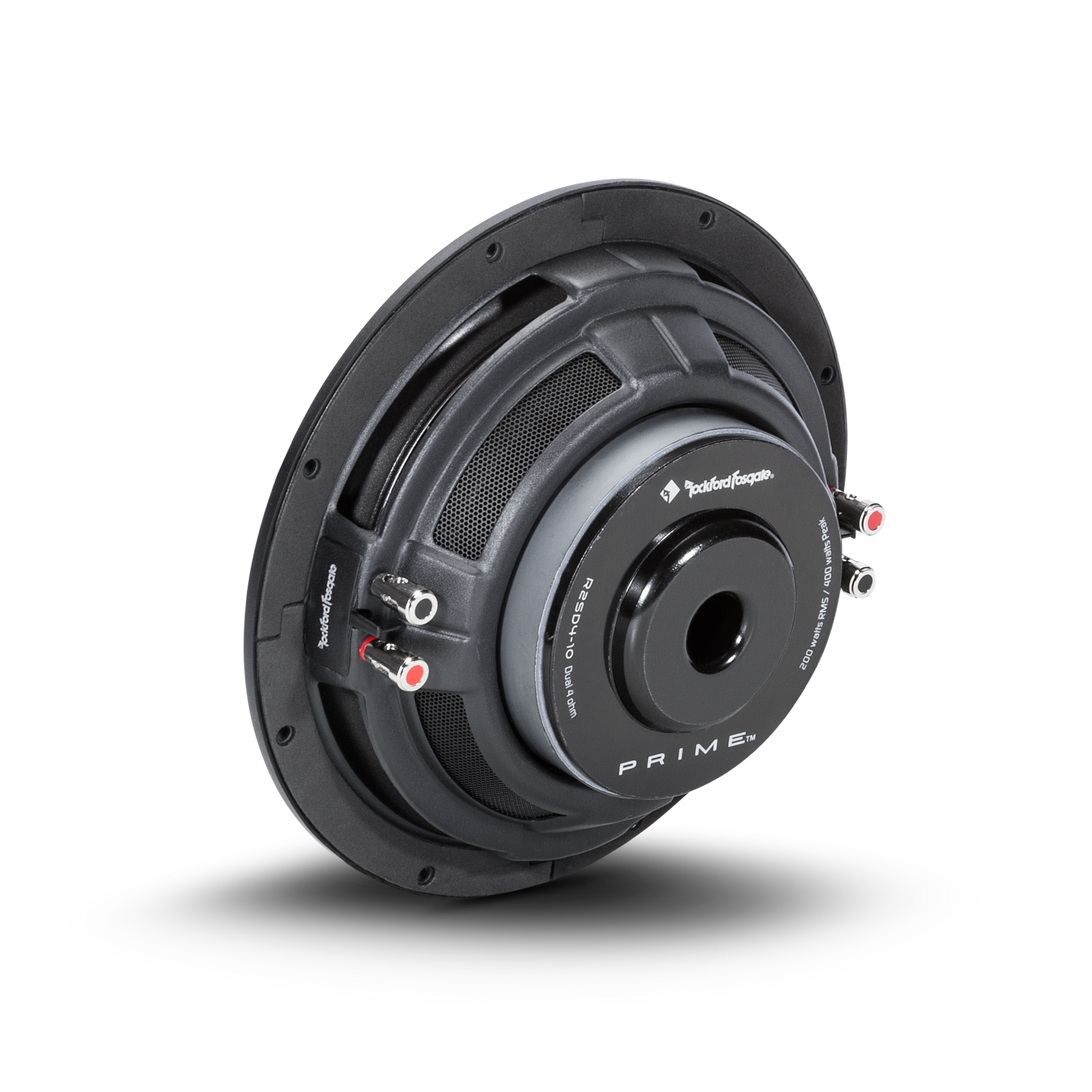

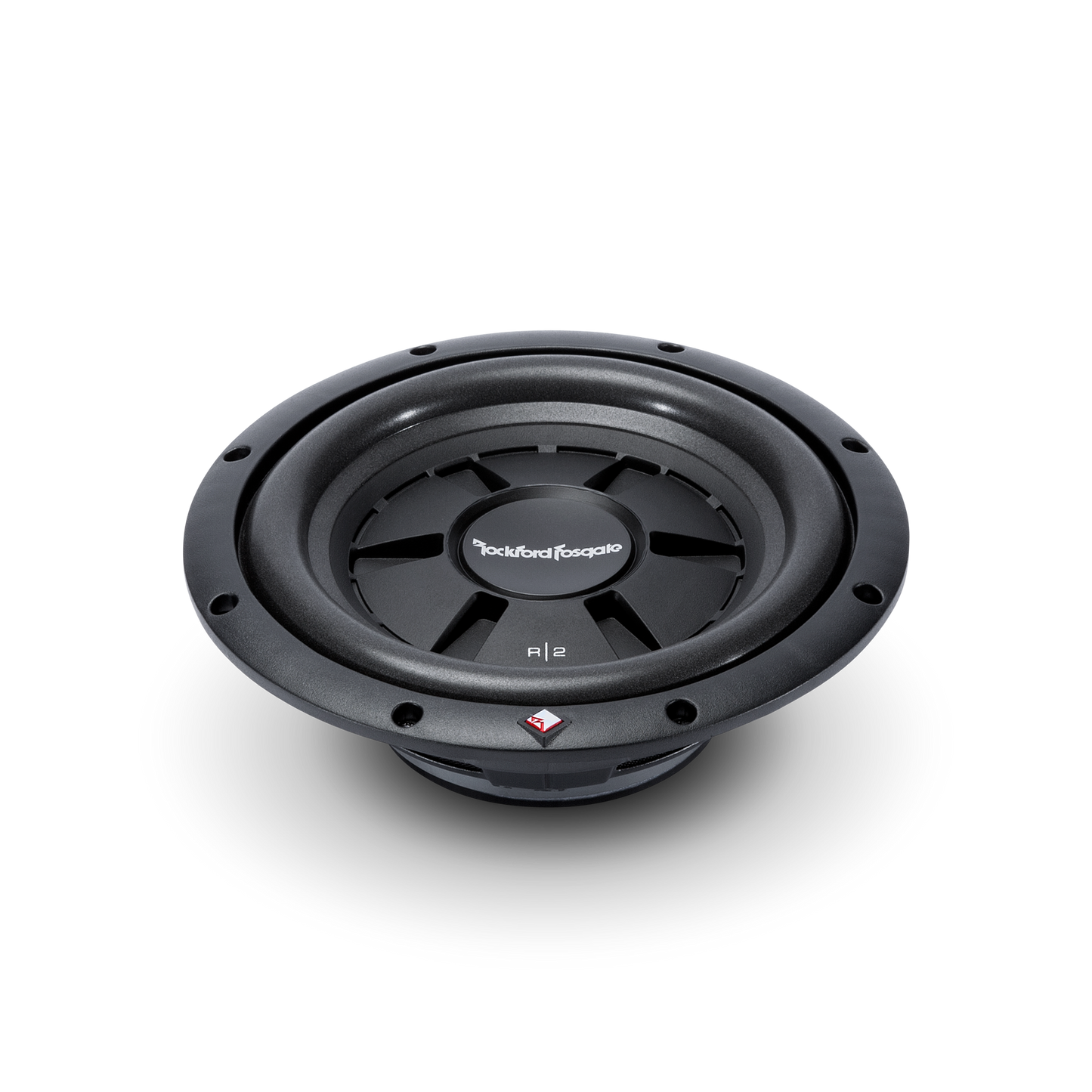

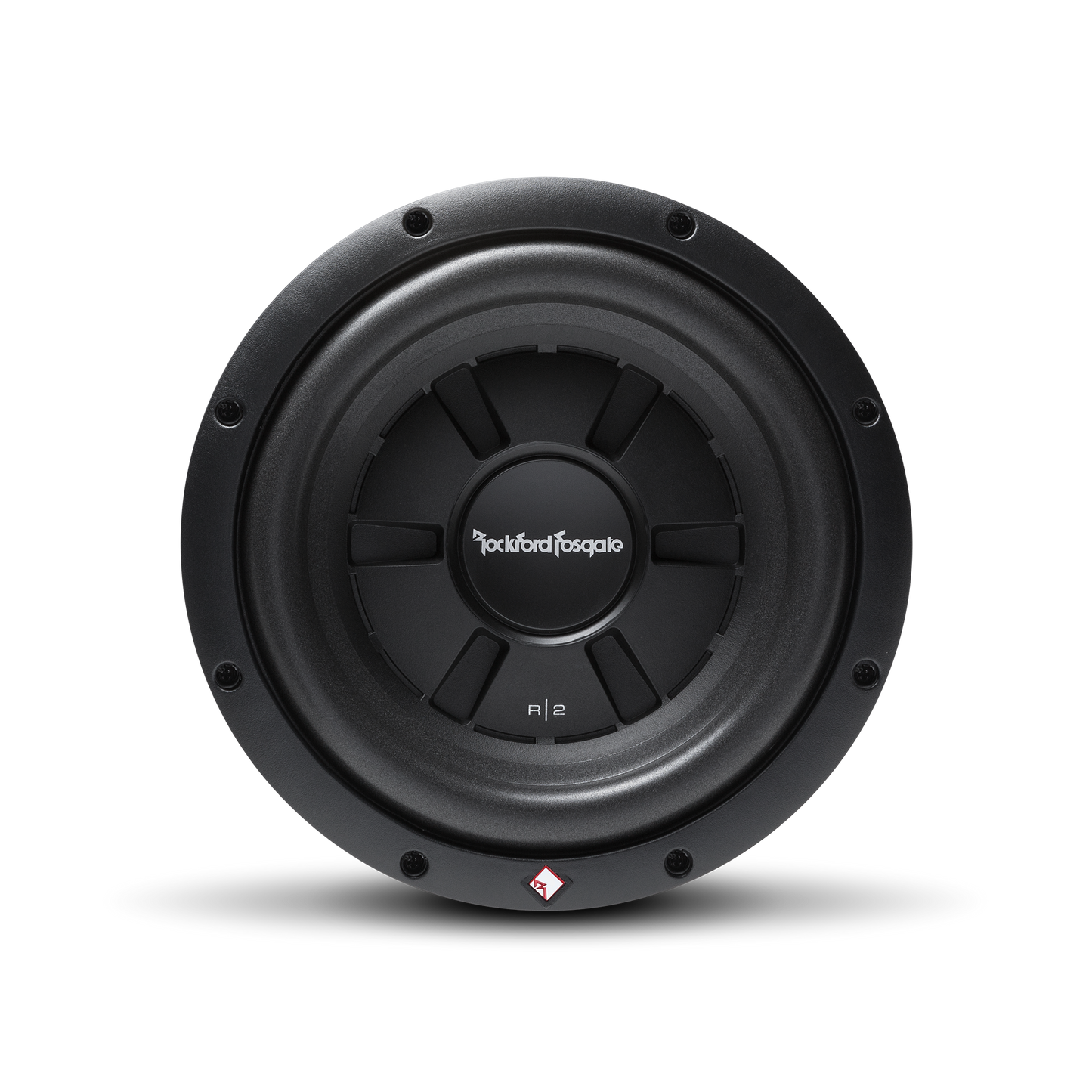

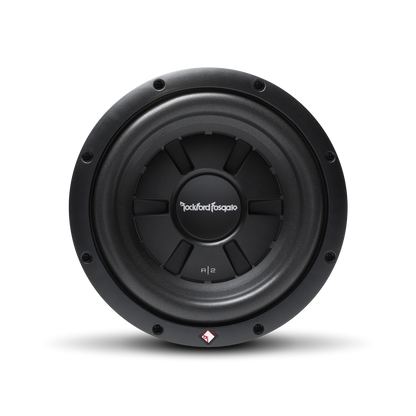

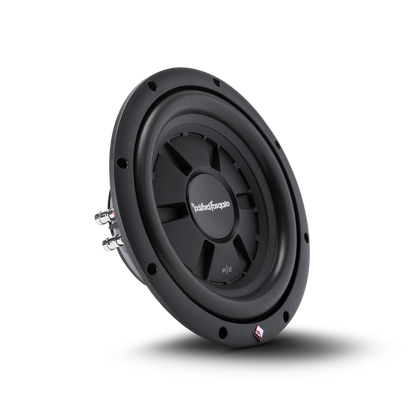

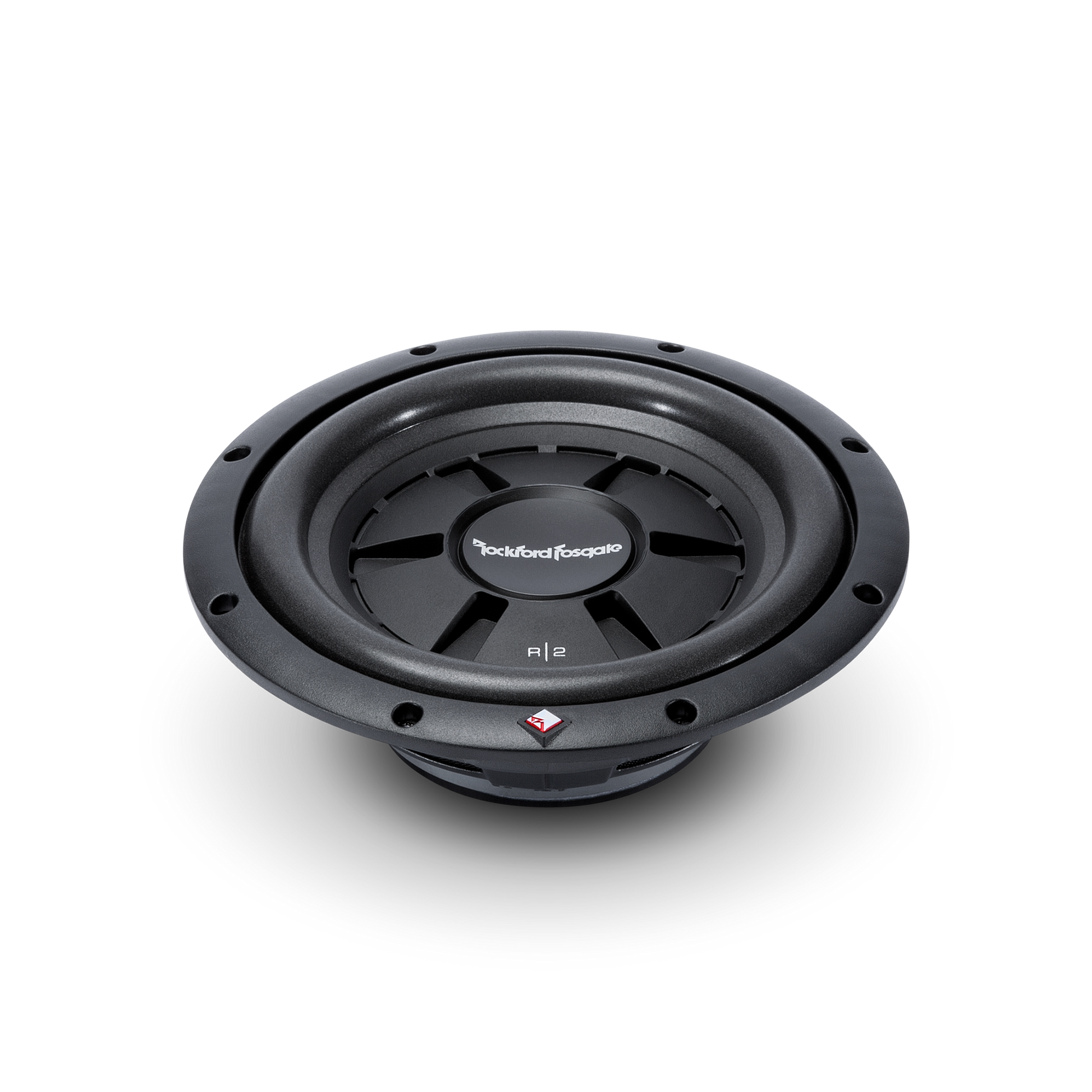

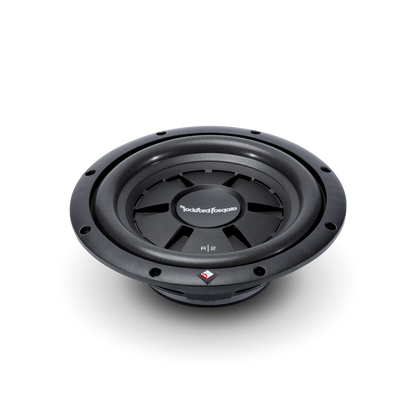

When you have no space for bass, our Prime R2SD4-10 shallow subwoofer will satisfy your need. This 10” subwoofer handles 200 Watts RMS and the 4-Ohm Dual Voice Coil design lets you to wire them in various configurations.

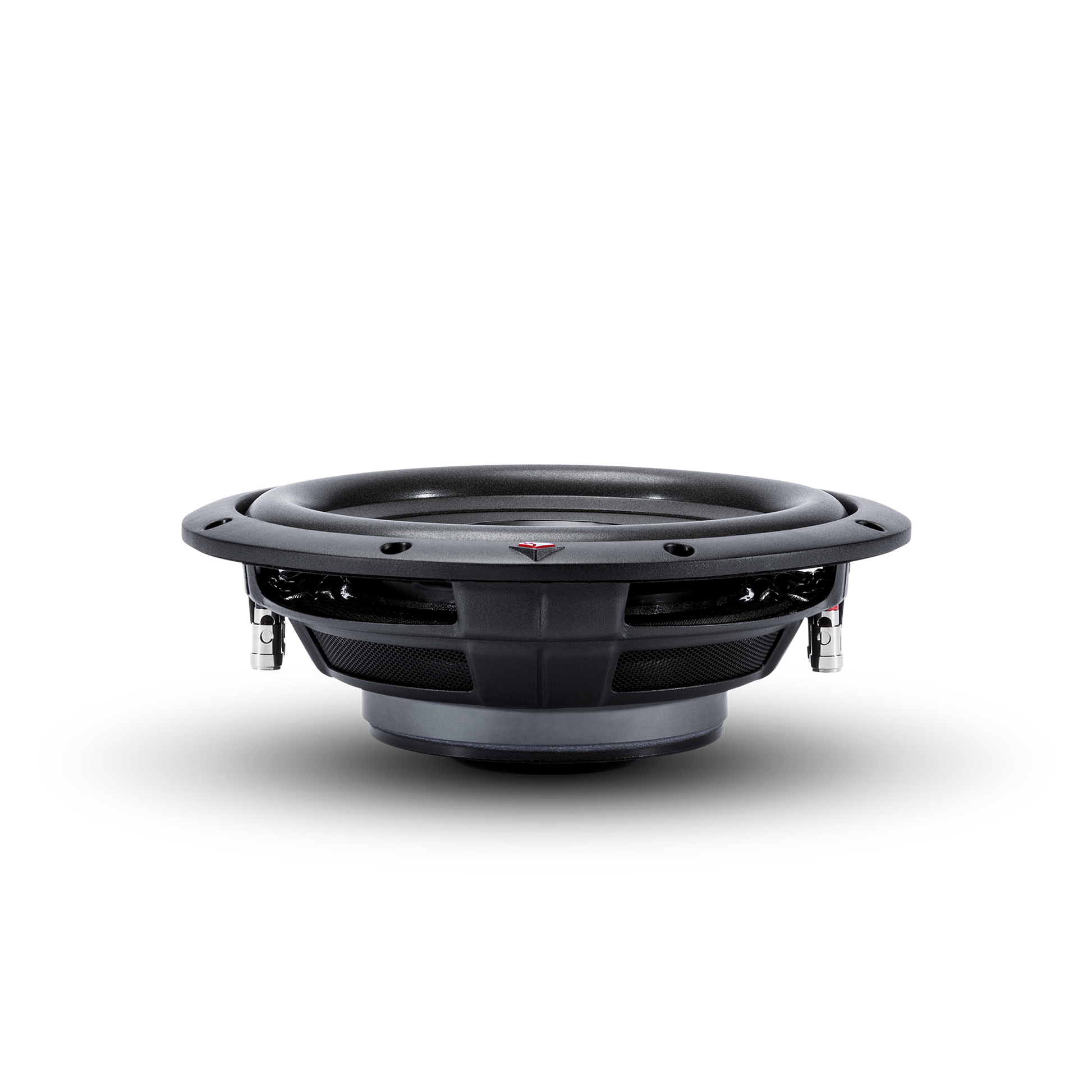

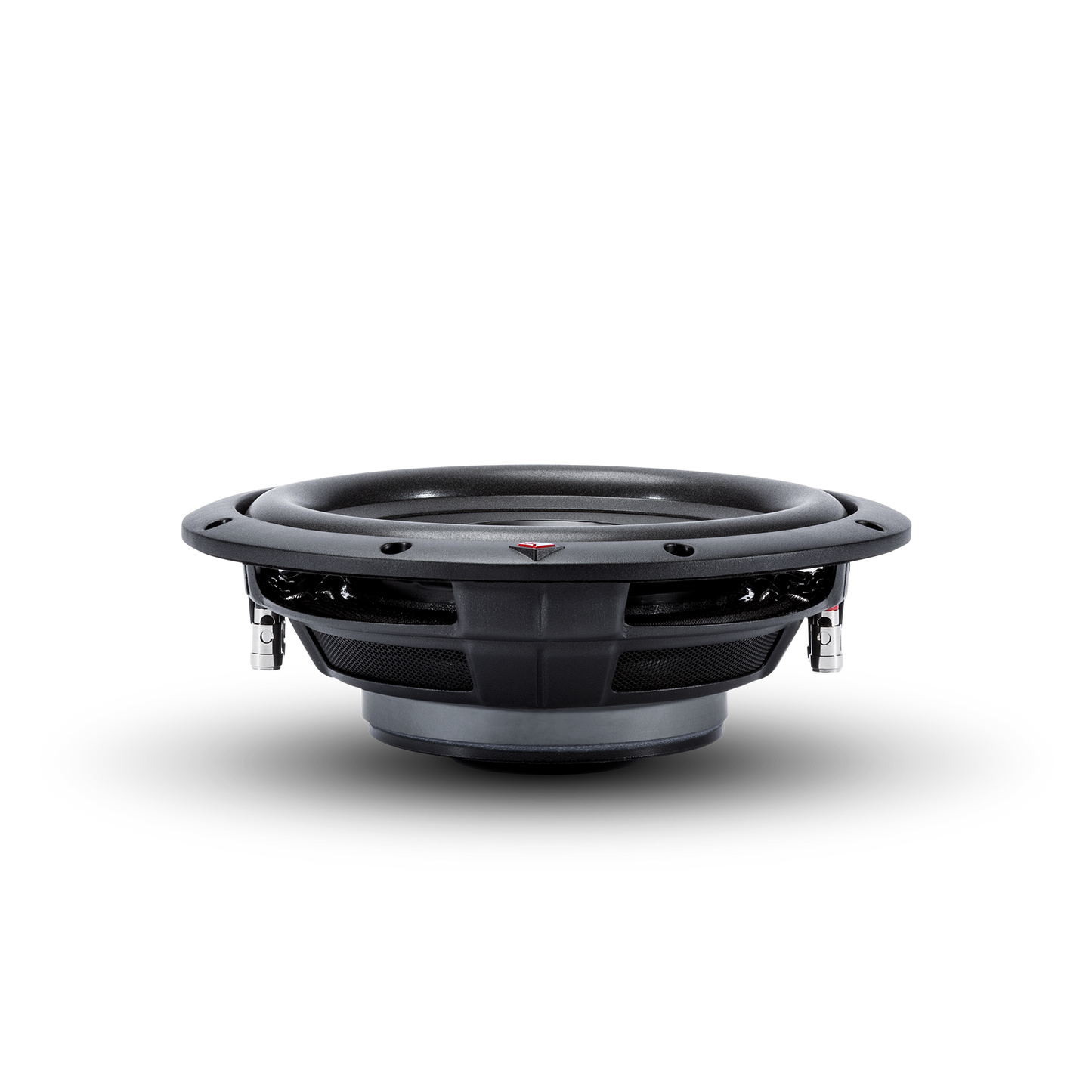

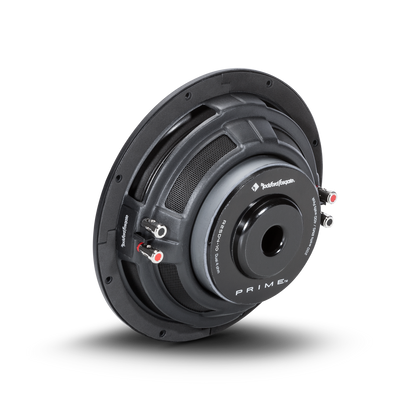

When you have no space for bass, our R2 10" shallow subwoofer can help satisfy your need for low frequency music. These drivers can fit in tight spaces due to an elevated motor structure that reduces speaker depth. Mica injected polypropylene cones make sure bass notes are clean and accurate. Stamp-cast baskets feature spider venting typically reserved for traditional depth mounted models to keep the motor cool! These shallow subwoofers are optimized for sealed enclosures.
Features:
| Magnet Weight | 45 oz. (1.28 kg) |
| Power Handling (Watts RMS) | 200 Watts RMS, 400 Watts Max |
| Size | 10" |
| Nominal Impedance | Dual 4-Ohm |
| Mounting Depth | 3.417 in. (86 mm) |
| SPL (dB @ 1w/1m) | 82.5 dB |
| Fs (Hz) | 39.3 Hz |
| Cutout Diameter | 9.125 in. (232 mm) |
| Re (Ohms) | 6.60 Ohms |
| Le (mH) | 4.2 mH |
| Vas (Liters) | 21.7 Liters |
| Xmax (mm) | 8.0 mm |
| Voice Coil Diameter | 2" (50 mm) |
| Speaker Connector | Dual 12 AWG compression |
| Shipping Weight | 10.588 Lbs. (4.80 kg) |
| Qts | 0.73 |
| Woofer Displacement | 0.037 cu. ft. (1.05 Liters) |
| Qms | 7.00 |
| Qes | 0.81 |
| CEA-2031 Compliant | Yes, CEA-2031 Guidelines |
| Subwoofer Type | Shallow |
| Voice Coil Type | Dual Voice Coil |
| Sealed Box Volume (Vb) | 0.7 cu. ft. (19.8 Liters) |
| Vented Box Volume (Vb) | 1.4 cu. ft. (39.6 Liters) |
