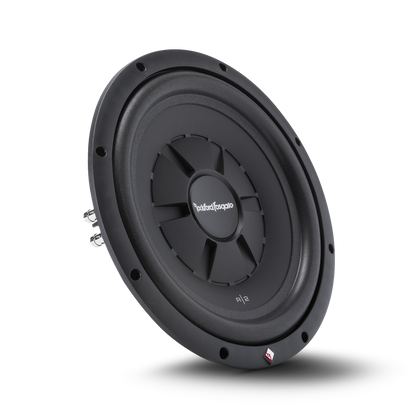

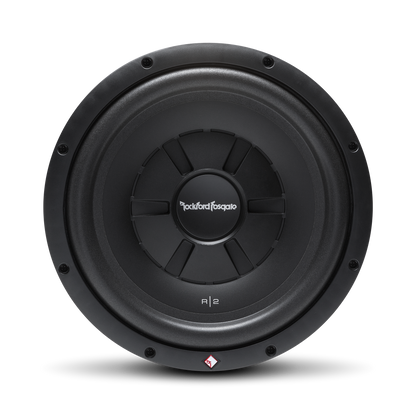

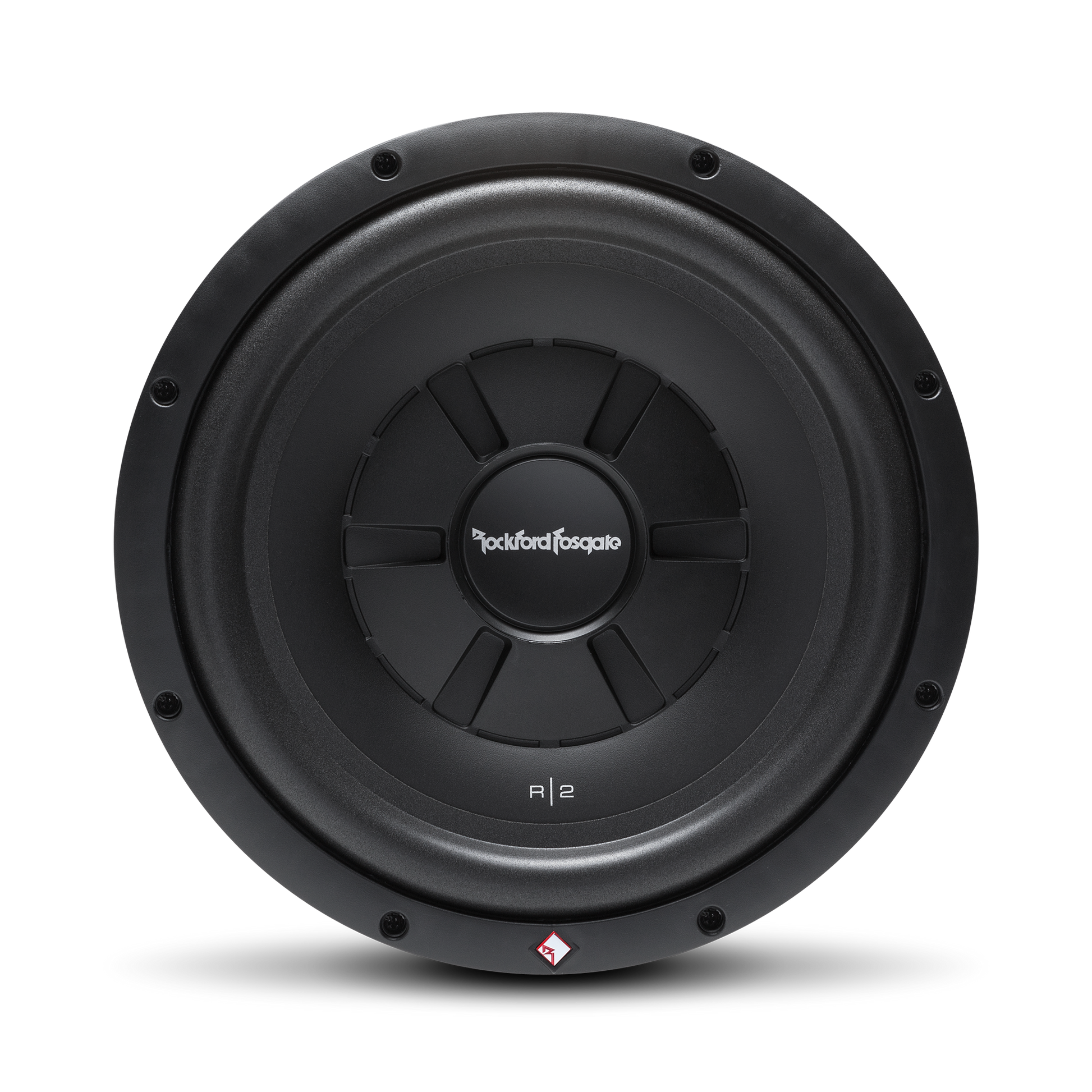

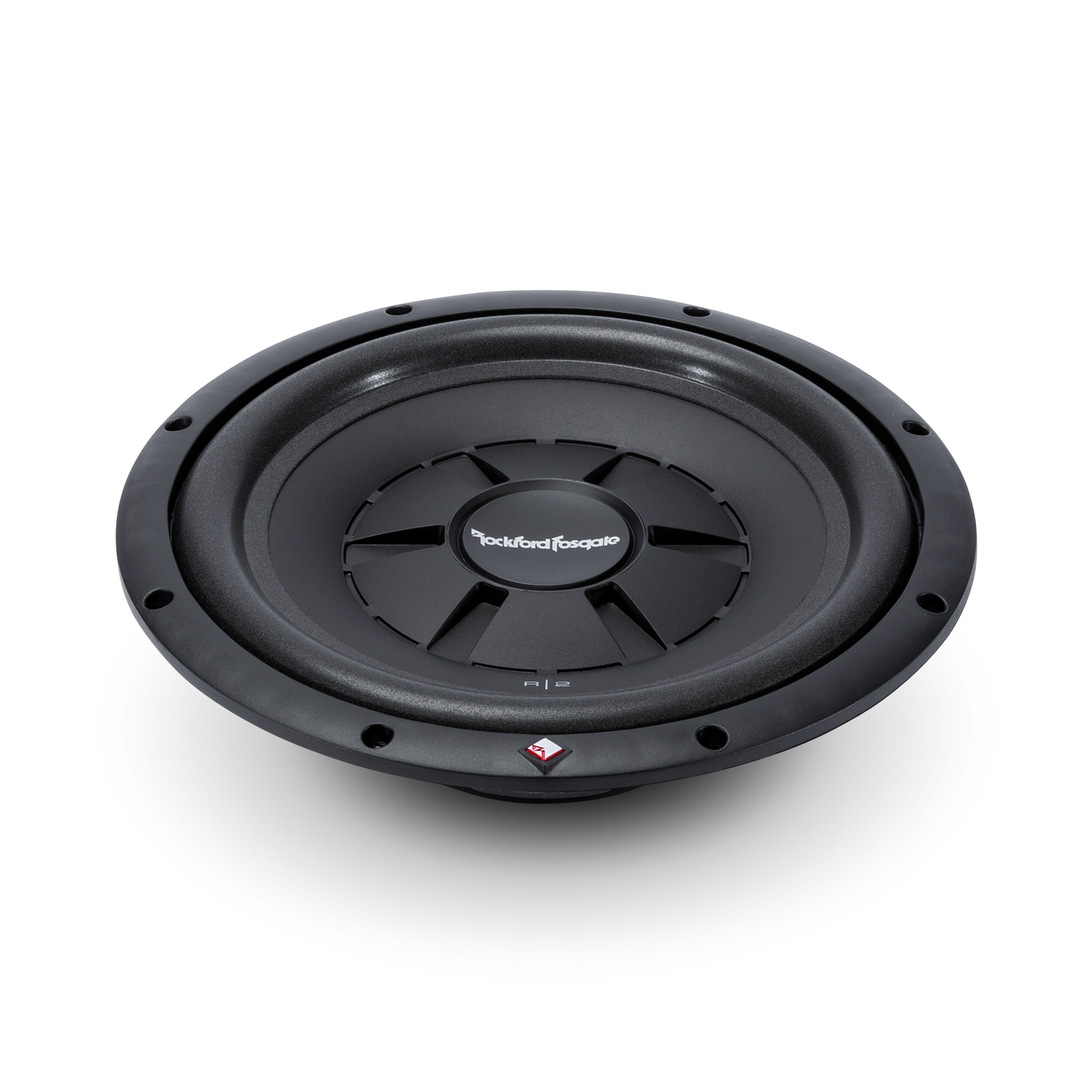

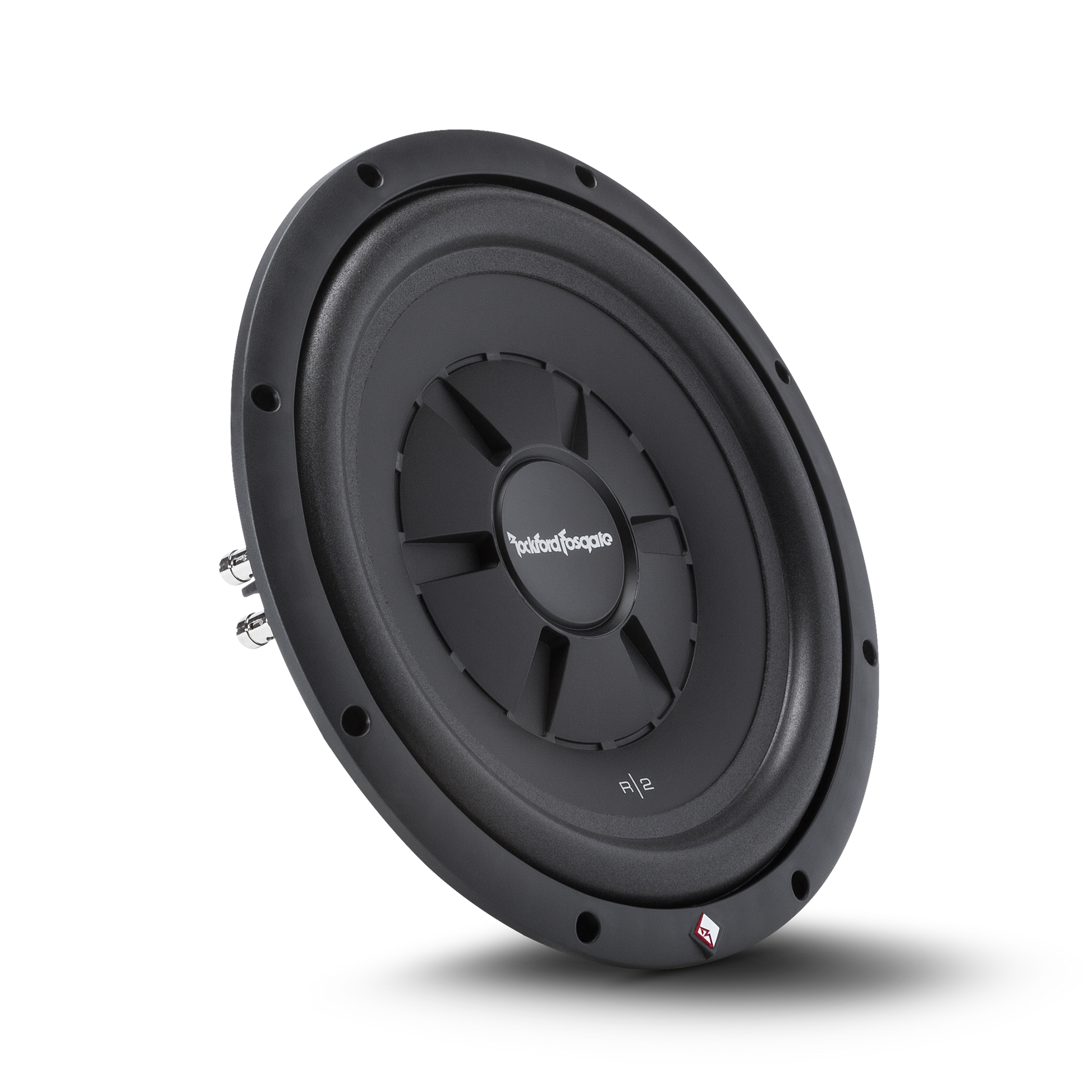

When you have no space for bass, our Prime R2SD4-12 shallow subwoofer will satisfy your need. This 12” subwoofer handles 250 Watts RMS and the 4-Ohm Dual Voice Coil design lets you to wire them in various configurations.

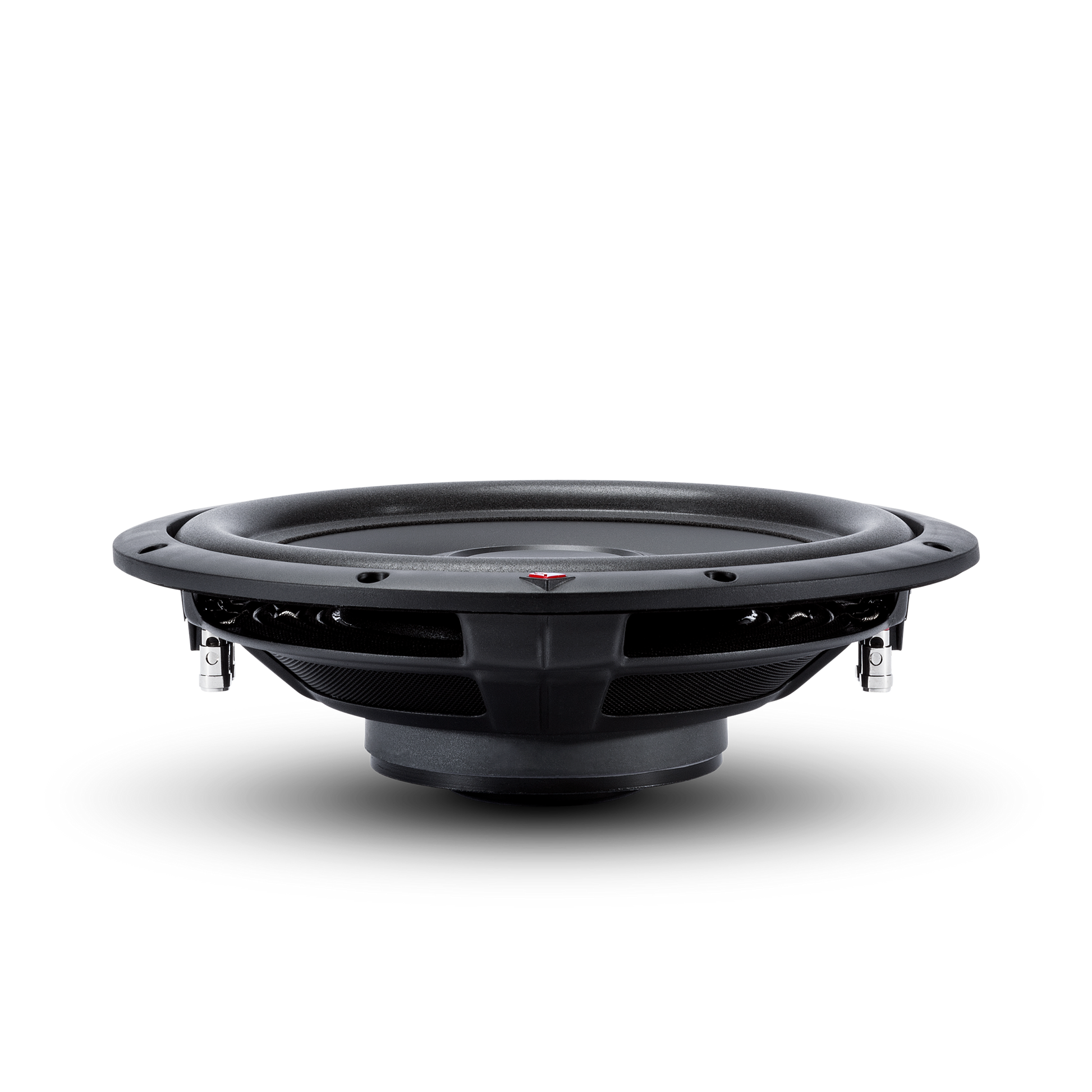

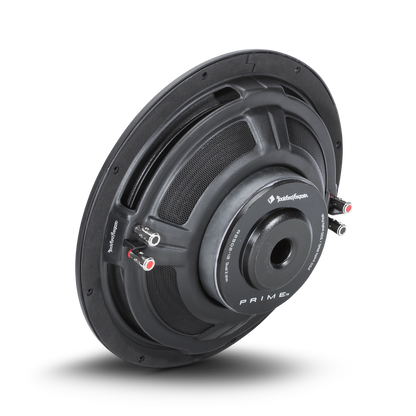

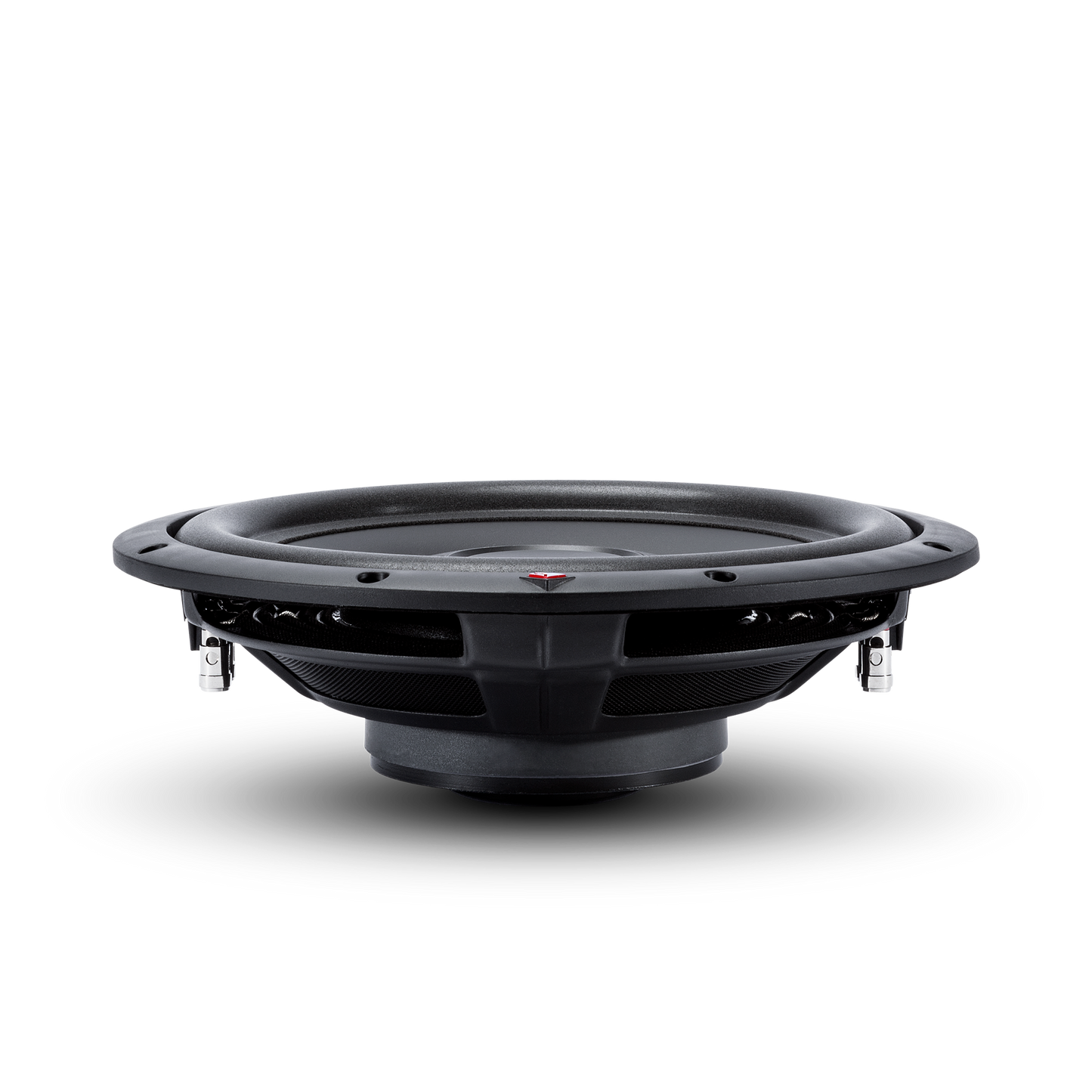

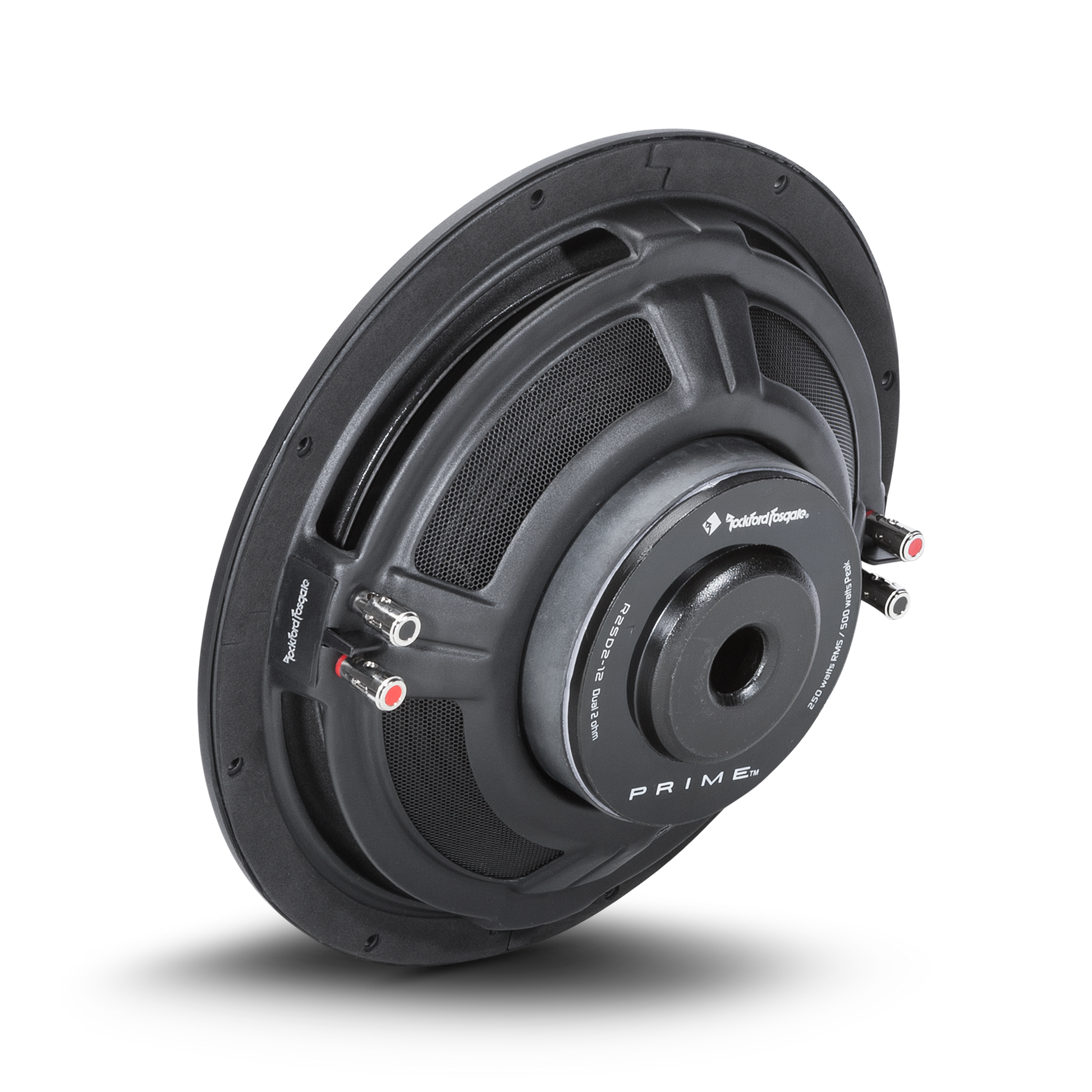

When you have no space for bass, our R2 12" shallow subwoofer can help satisfy your need for low frequency music. These drivers can fit in tight spaces due to an elevated motor structure that reduces speaker depth. Mica injected polypropylene cones make sure bass notes are clean and accurate. Stamp-cast baskets feature spider venting typically reserved for traditional depth mounted models to keep the motor cool! These shallow subwoofers are optimized for sealed enclosures.
Features:
| Nominal Impedance | Dual 4-Ohm |
| Shipping Weight | 12.013 Lbs. (5.44 kg) |
| Speaker Connector | Dual 12 AWG compression |
| Voice Coil Diameter | 2" (50 mm) |
| Power Handling (Watts RMS) | 250 Watts RMS, 500 Watts Max |
| Size | 12" |
| Mounting Depth | 3.602 in. (91 mm) |
| SPL (dB @ 1w/1m) | 85 dB |
| CEA-2031 Compliant | Yes, CEA-2031 Guidelines |
| Fs (Hz) | 30.3 Hz |
| Cutout Diameter | 11.25 in. (285 mm) |
| Xmax (mm) | 10 mm |
| Qts | 0.65 |
| Qes | 0.72 |
| Qms | 7.00 |
| Magnet Weight | 51 oz. (1.45 kg) |
| Le (mH) | 4.2 mH |
| Re (Ohms) | 6.80 Ohms |
| Woofer Displacement | 0.039 cu. ft. (1.1 Liters) |
| Vas (Liters) | 65.4 Liters |
| Subwoofer Type | Shallow |
| Voice Coil Type | Dual Voice Coil |
| Sealed Box Volume (Vb) | 0.9 cu. ft. (25.4 Liters) |
| Vented Box Volume (Vb) | 1.79 cu. ft. (50.6 Liters) |
