The Ranger audio roof systems were developed to provide performance never heard before in a side by side. It’s our loudest all-in-one system, featuring simple plug and play installation and built to stand up to the elements.
All-in-One Audio Performance: Equipped with 4, 8-inch speakers, a 1500-watt amplifier and a 2.7-inch source unit all in a one-piece design; making the perfect blend of epic performance and simple installation.
Element Ready™: Purpose Built for the outdoor environment, Rockford’s Element Ready™ products are built to stand up to Water, Salt, and UV, making sure your products stand the test of time.

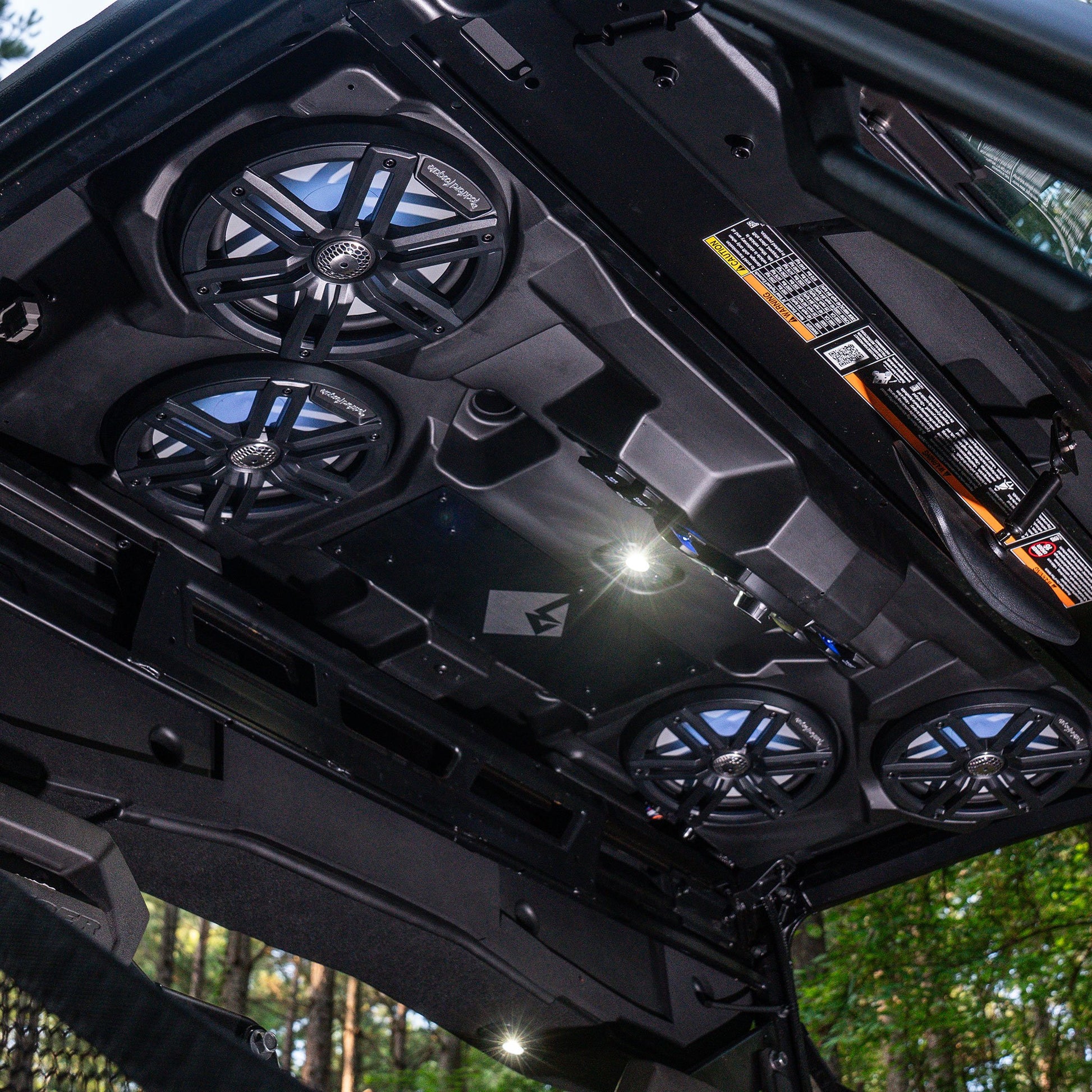

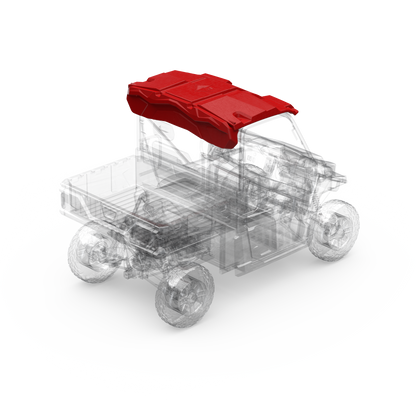

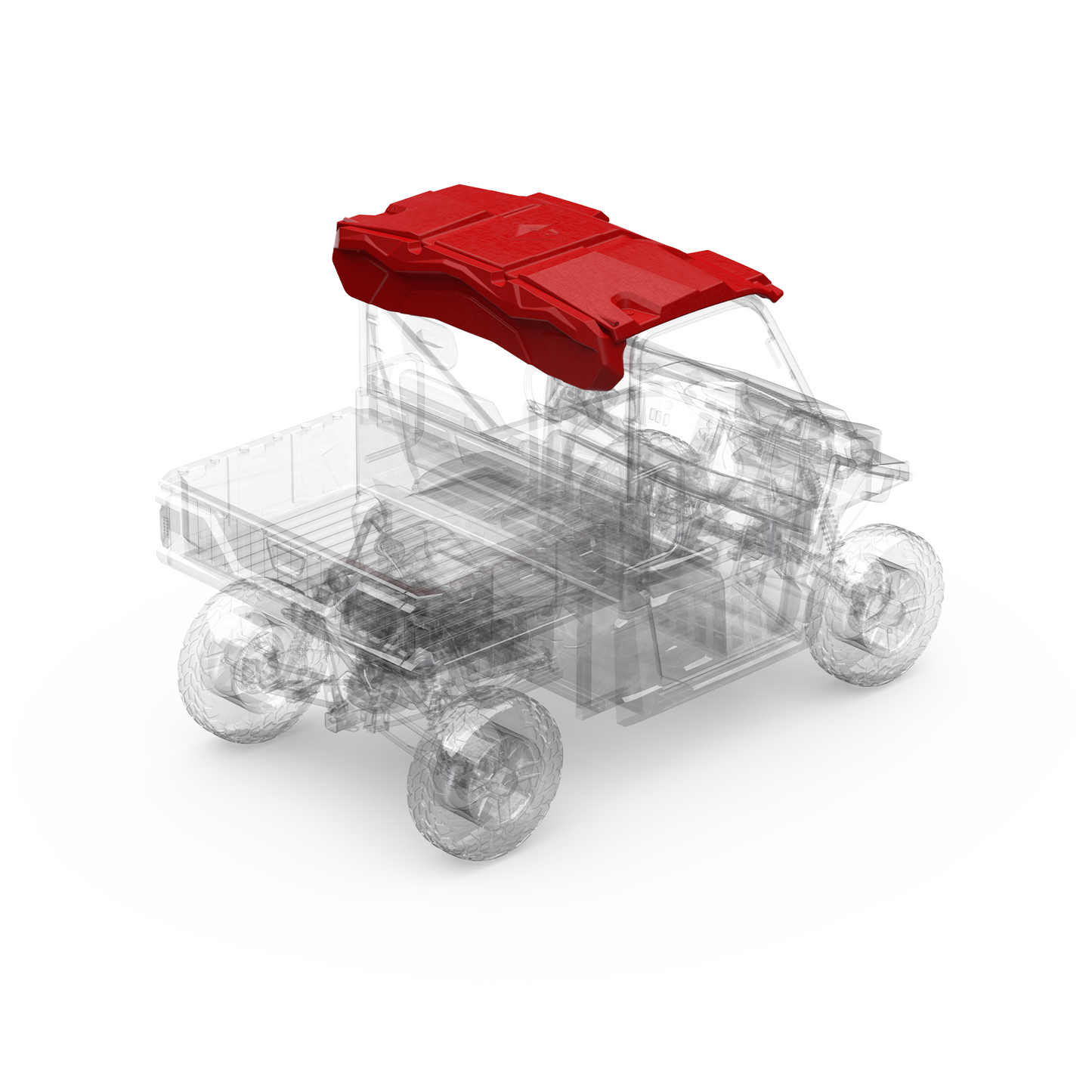

Adventure Tested: No matter where the adventure leads surround yourself with sound, all while the entire audio system is elevated out of the elements. With the system being overhead, all the audio stays above the water line, so fording water or deep mud won’t be a problem.
Color Optix™ Lighting: Adjust your own bright, wide, and limitless lighting experience with the built-in Rockford Fosgate Color Optix™ plug-and-play controller and App.

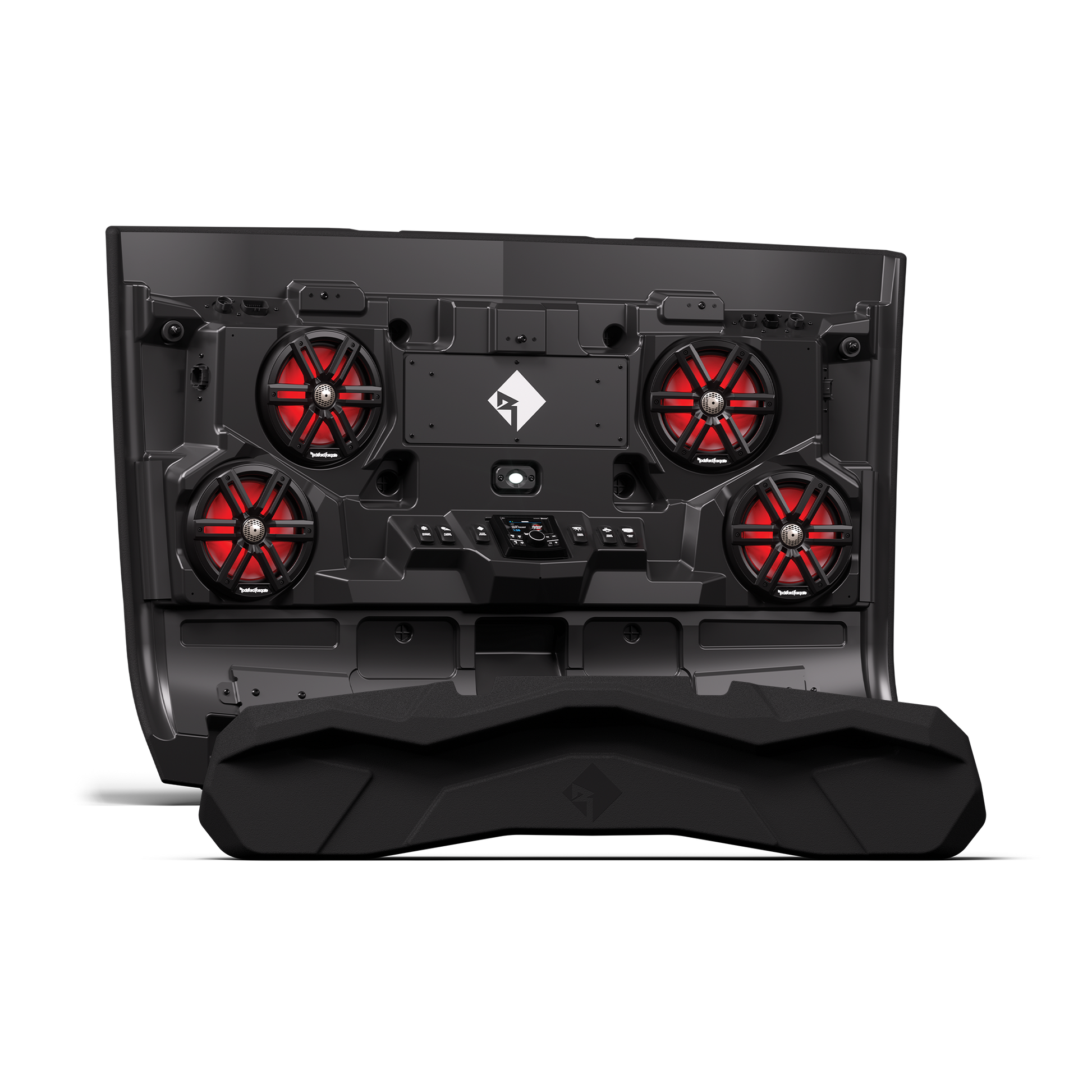

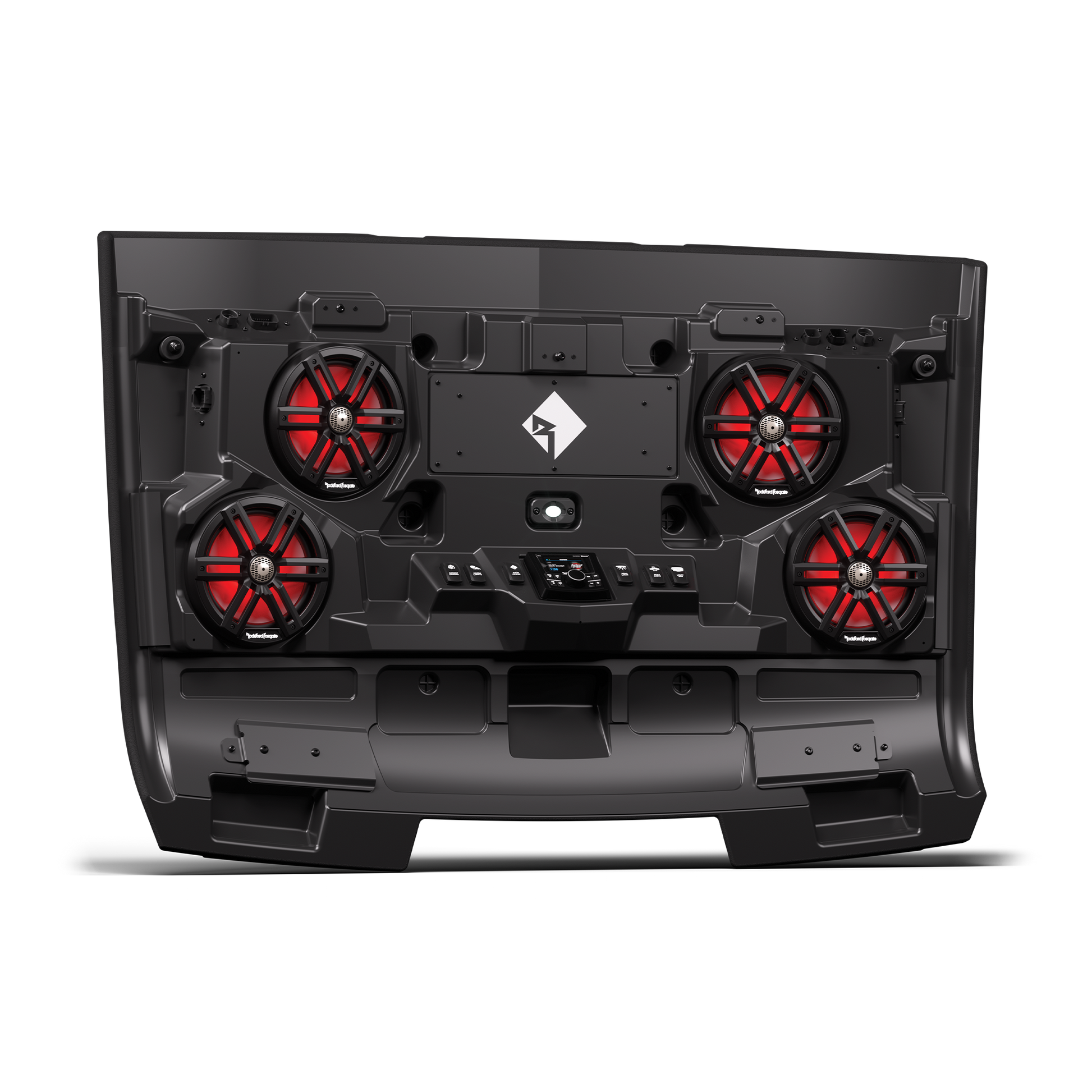

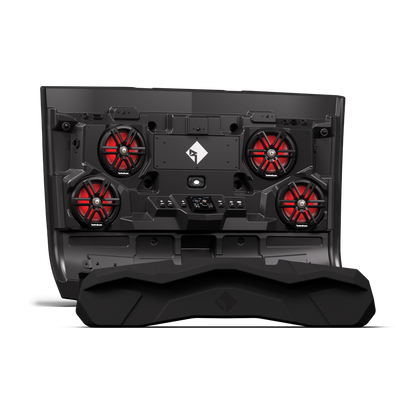

The RNGR18-ROOF2M2 is a high-output, 4-speaker, 1,500-watt amplified front audio roof.
Components:

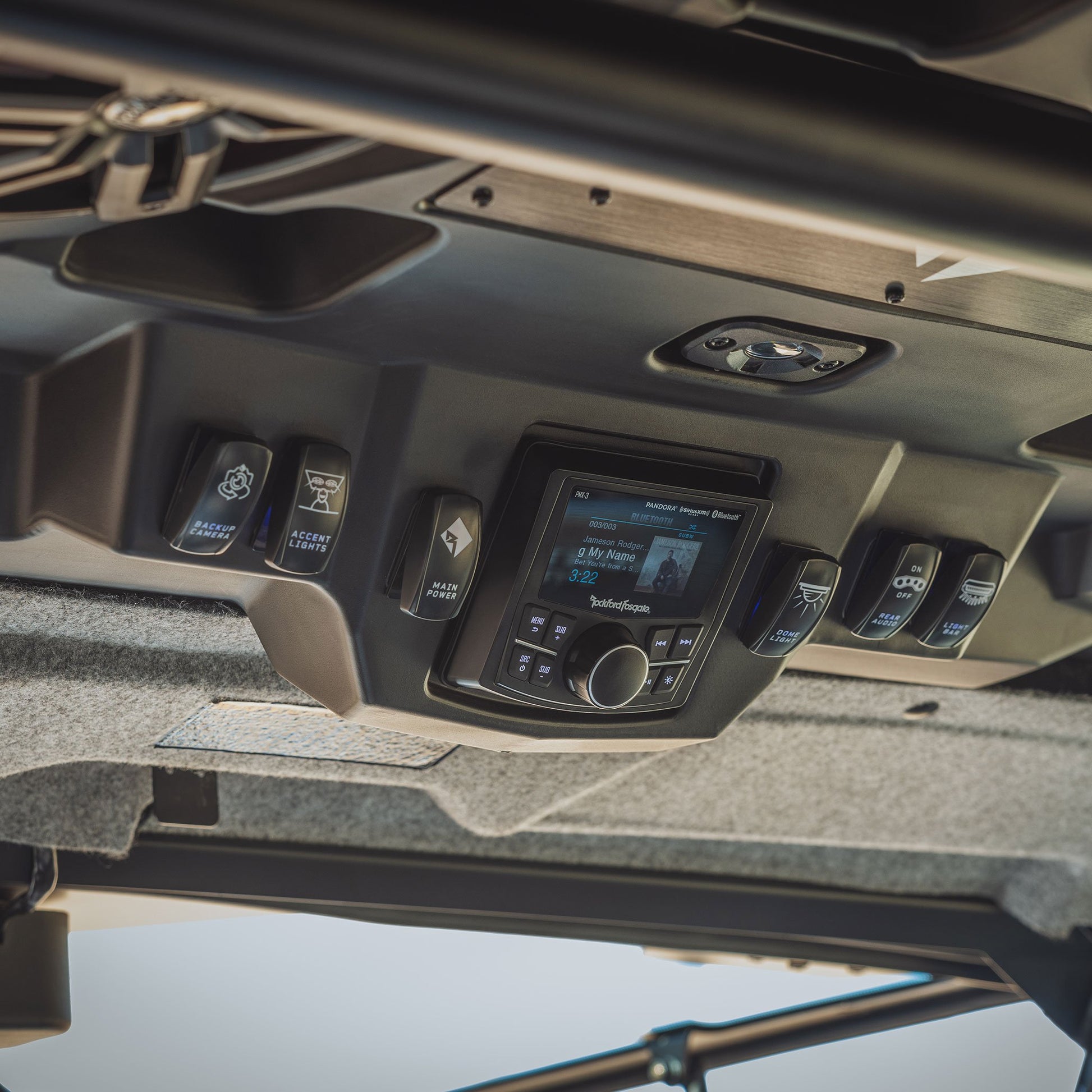

• (1) Element Ready™ Source Unit
• (4) 8" M2 Color Optix™ Speakers
• (1) 1,500 Watt Amplifier
• (1) Built-In Dome Light
• (6) Rocker Switches

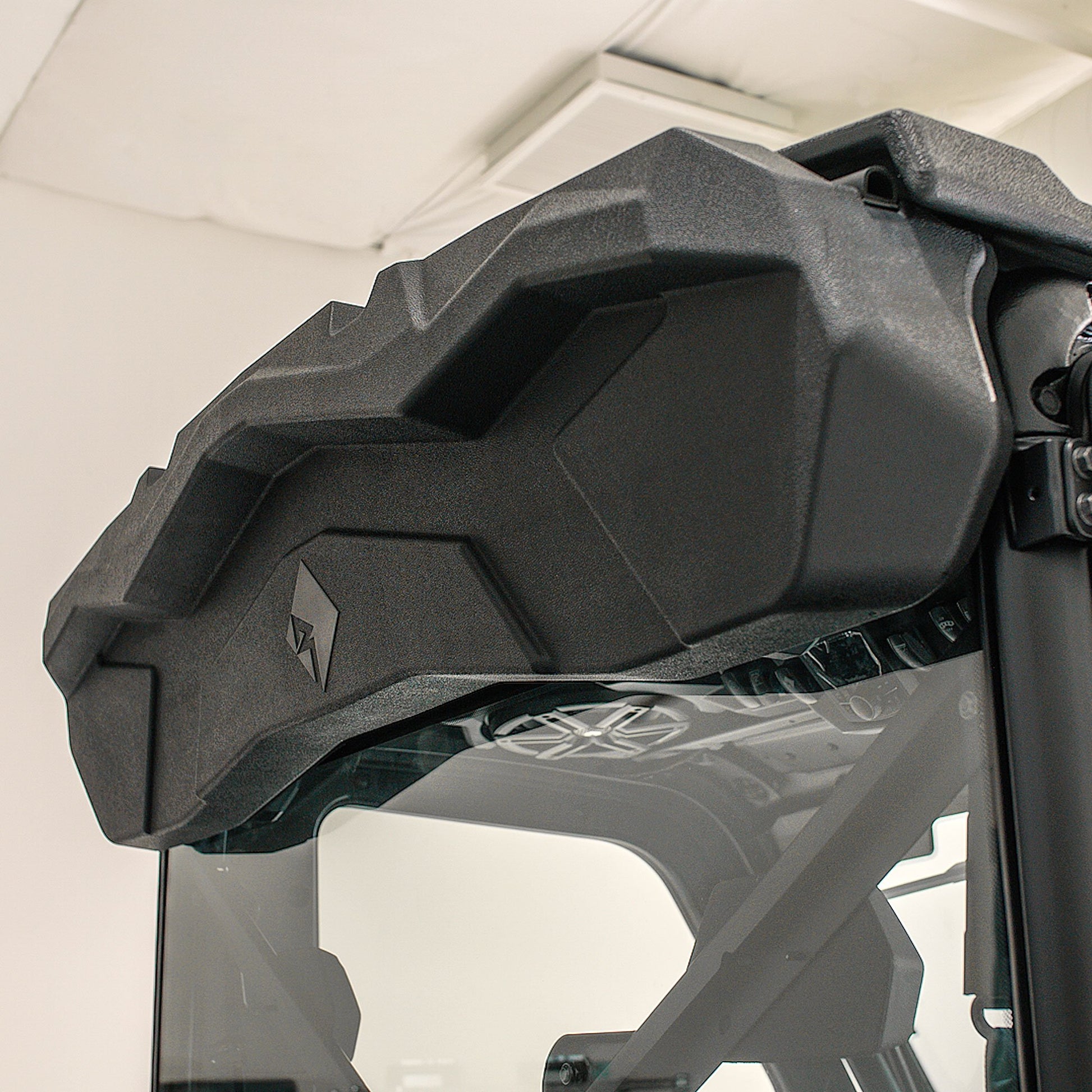

• (1) Blank Rear Cap
Installation:
• (2) Hours Typical
Upgrade This Kit:
• (1) RNGR18-CAPM2 rear audio cap
• (1) RNGR18-FWE 10" subwoofer
Features:
Speaker Model | M2-8B |
Amplifier Model | M5-1500X5 |
Source Unit | PMX-3 |
Speaker Quantity | 4 |
Amplifier Type | Internal |
Total Power | 1,500 Watts |
Mounting Hardware | Yes |
Grille/Trim Ring | Included |

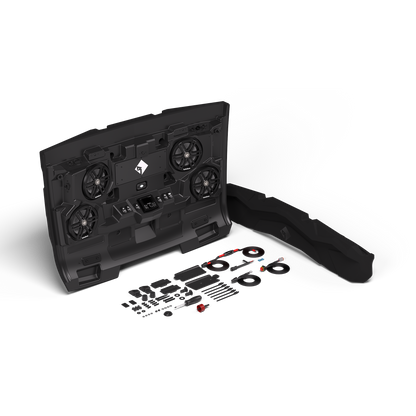

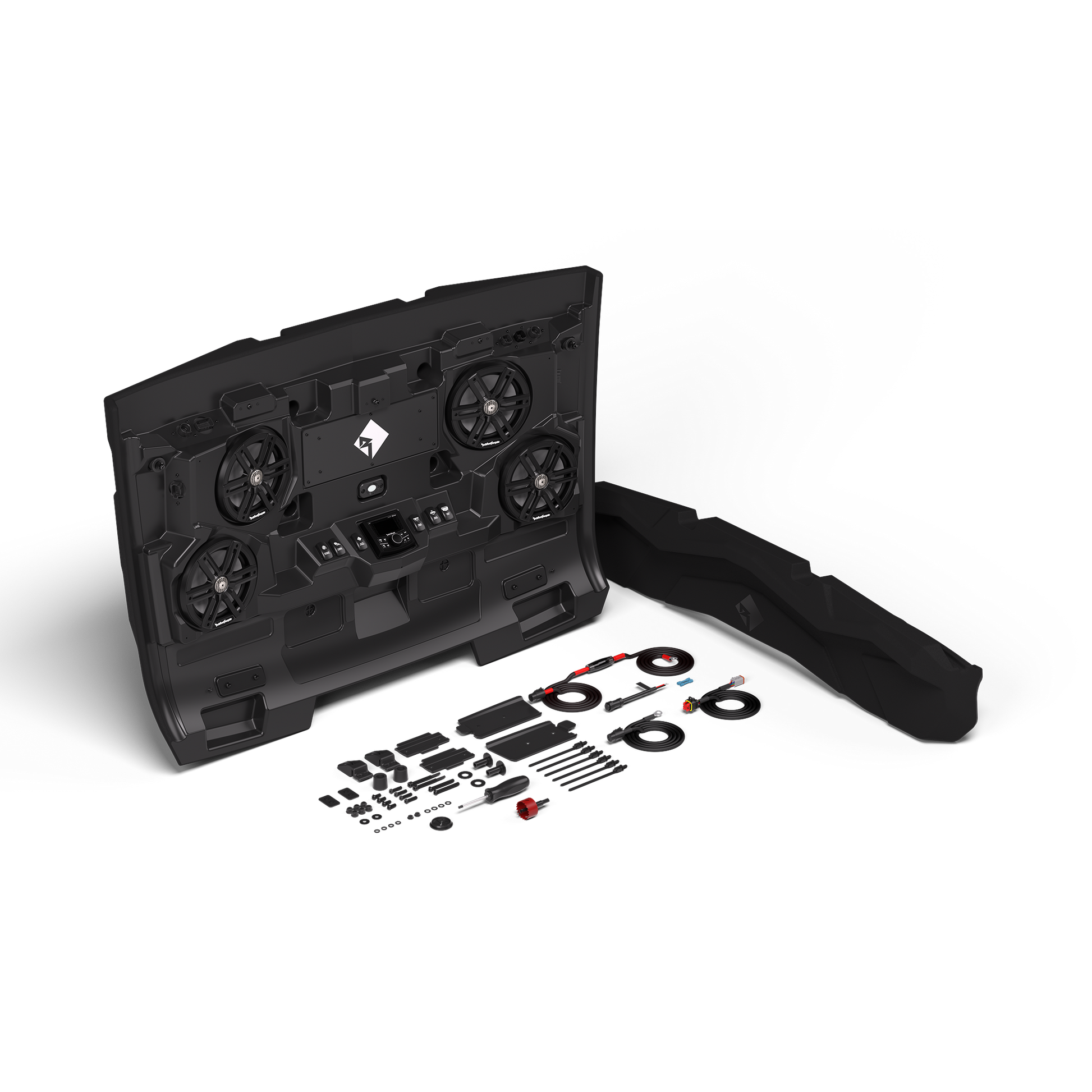

Included In The Box | (1) Front roof assembly, (1) Blank rear cap, (1) 1130-77294-01 AP pack: |
- (1) Harn. 4AWG GND | |
- (1) Harn. 4AWG B+ | |
- (1) Harn. sub | |
- (1) Harn. LED bar | |
- (2) Bracket roof to ROPS | |
- (1) Padded bracket RH | |
- (1) Padded bracket LH | |
- (2) Padded bracket rear cap | |
- (2) Padded clamp | |
- (1) Ball-end Allen | |
- (1) Holesaw 45mm OD x 85mm | |
- (1) Grommet 44.5 OD x 40 ID | |
- (2) Gasket 35mm OD, 16.6mm ID | |
- (2) Nut lock M6x1, 14.2 OD | |
- (6) Ziptie tree 7.3 x 162 | |
- (4) Split washer M8 2.1mm | |
- (4) T40 Torx screw, M8x1.25, 18mm | |
- (6) Hex nut lock M8x1.25 | |
- (2) Standoff | |
- (4) Washer 14.75mm OD, 8.5mm ID | |
- (4) Hex screw M8x1.25,28mm | |
- (2) Spacer top hat 40.8mm | |
- (2) T40 Torx screw M8x1.25, 68mm | |
- (2) Bolt M8x1.25, 83mm | |
- (2) Washer 23mm OD, 8.60 ID | |
Light Bar Fuse | 15A |

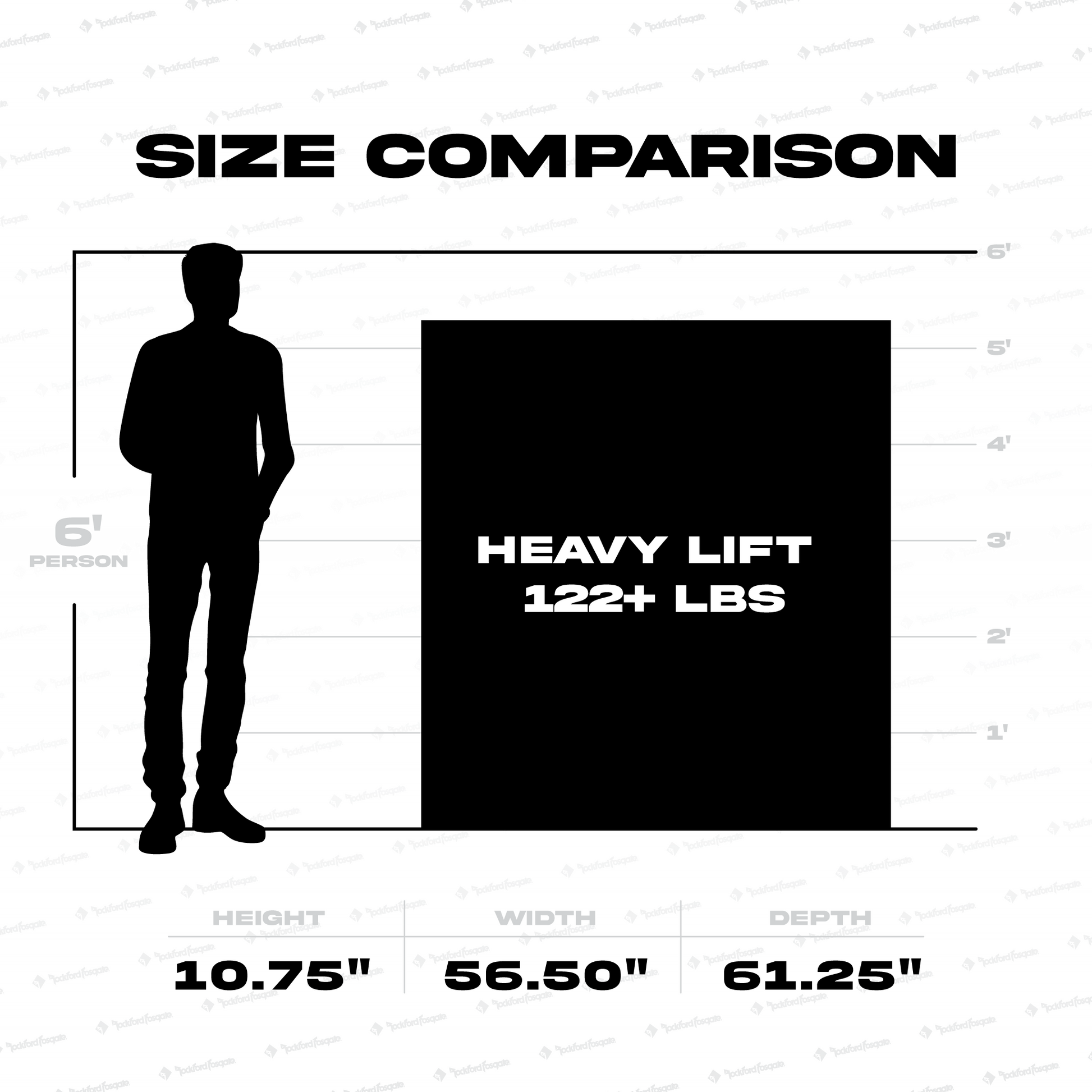

Shipping Dimensions | 10.75" x 56.50" x 61.25" (27.3 cm x 143.5 cm x 155.6 cm) |
Shipping Weight | 122 Lbs. (55.3 Kg) |
