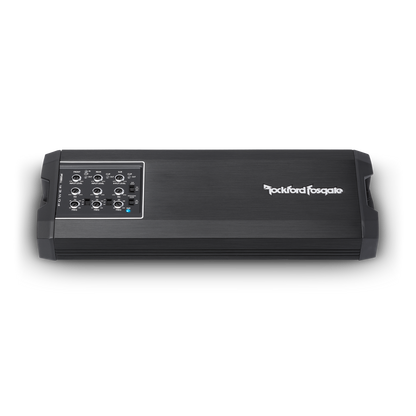

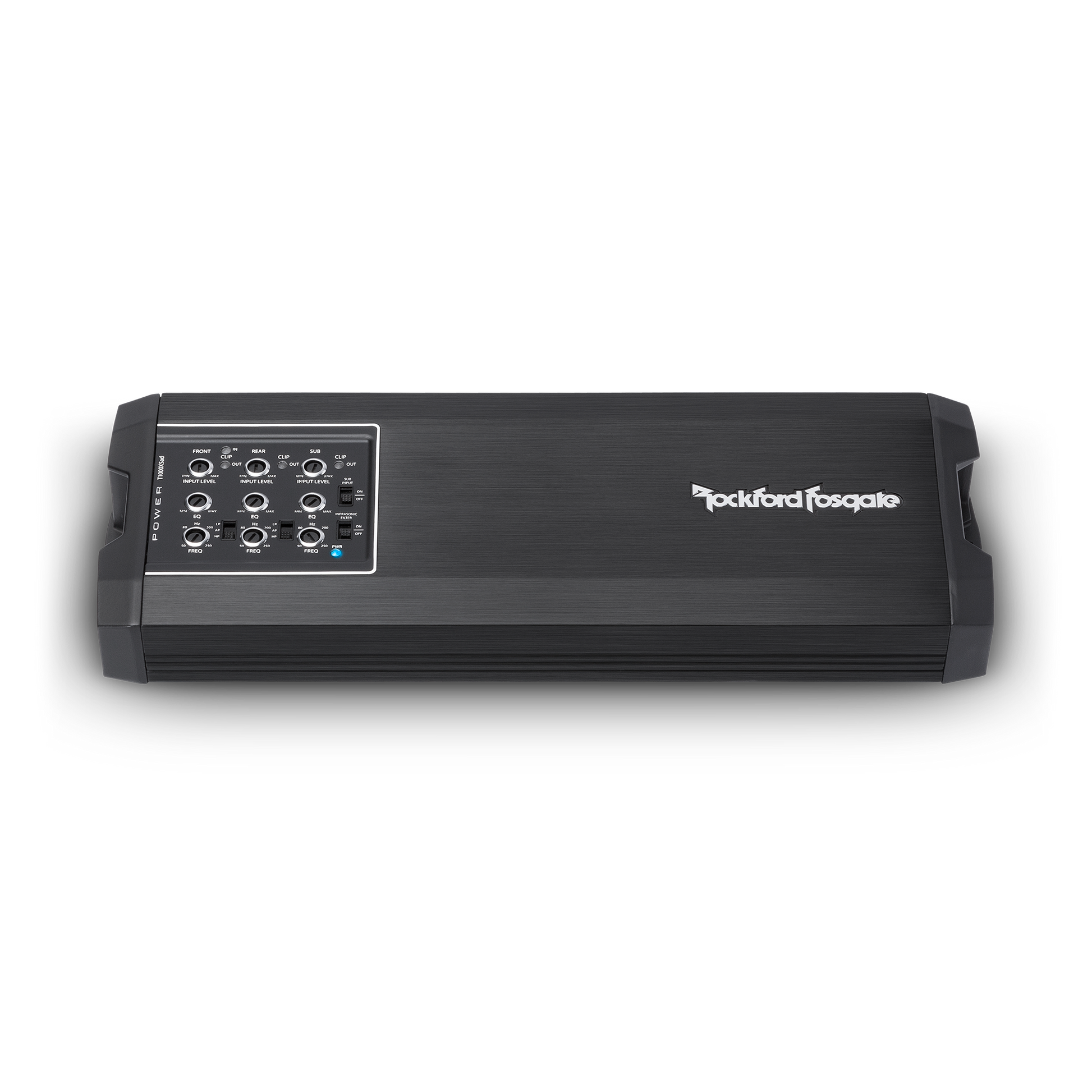

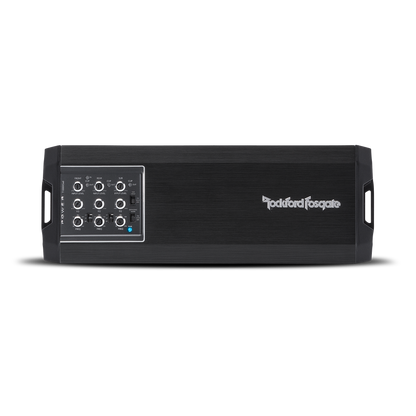

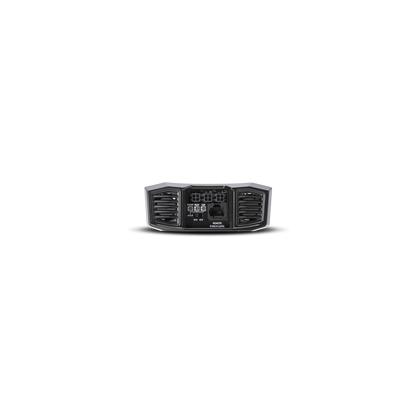

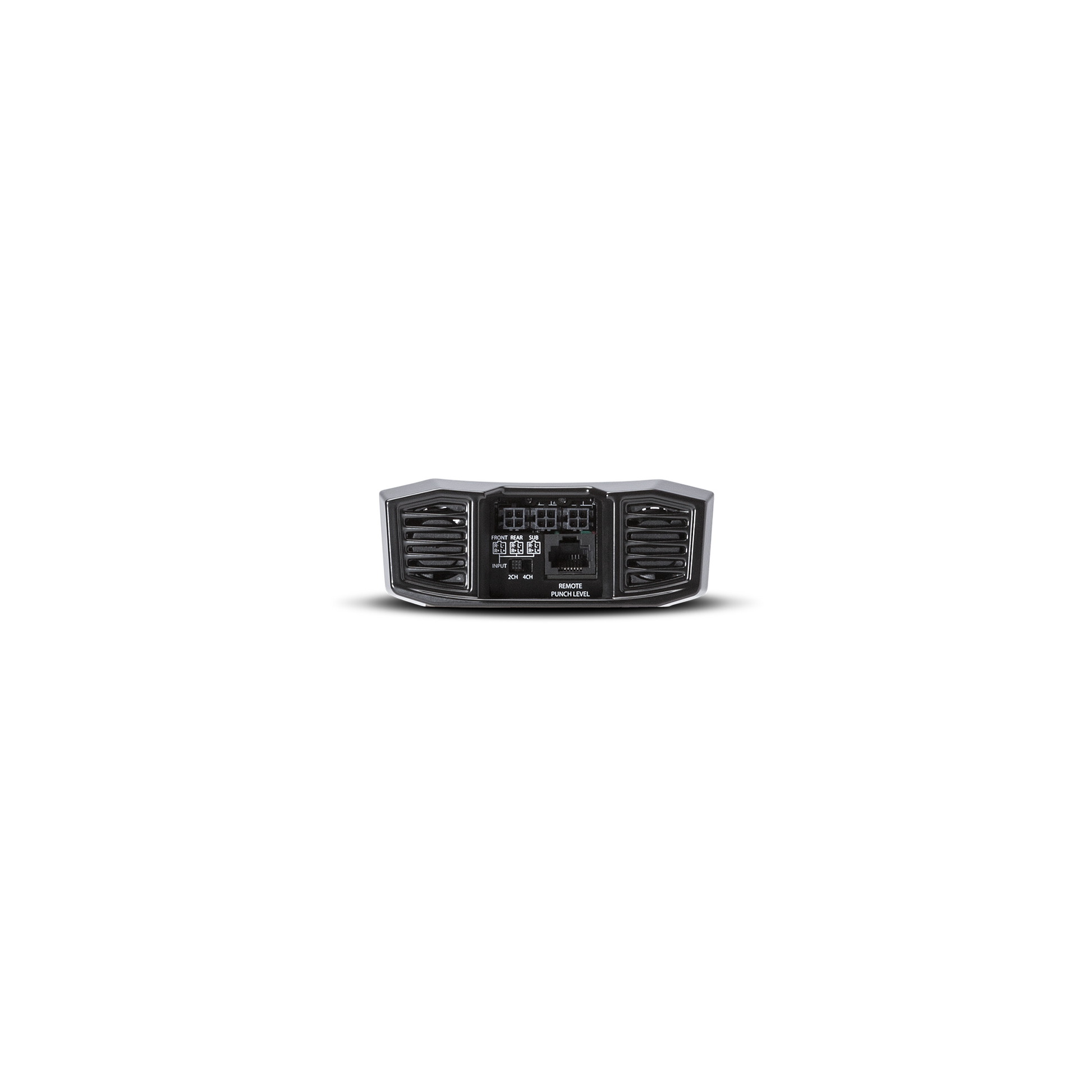

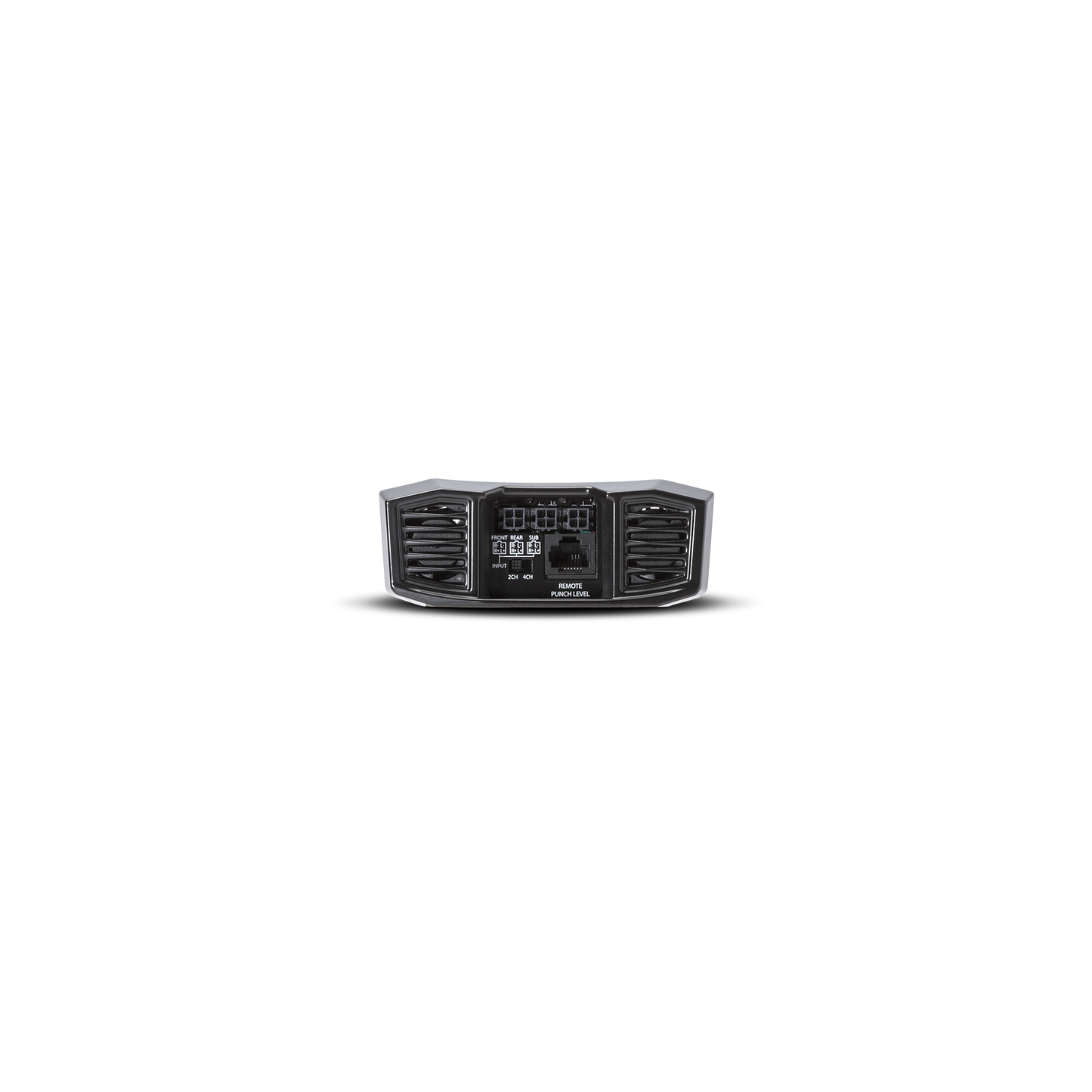

The Power T1000x5ad is an compact, Class ad 1000 Watt multi-channel amplifier. It features differential inputs with high-level auto turn-on, CLEAN circuit with input/output clip detection, top mounted controls and dual fan forced induction cooling. Additionally, it has our patented Punch EQ circuit built in and Differential inputs with auto turn-on capabilities making it perfect for hybrid, electric, small cars, trucks, motorcycles, and side-by-side UTVs.
The T1000X5ad Element Ready multi-channel amplifier is a 1000 watt RMS unit built on our proprietary Class ad platform designed to deliver unprecidented sound quality with superior power efficiency. Combined with our Constant Power technology, this amplifier can easily exceed its rated power by up to 25% additional output per channel.

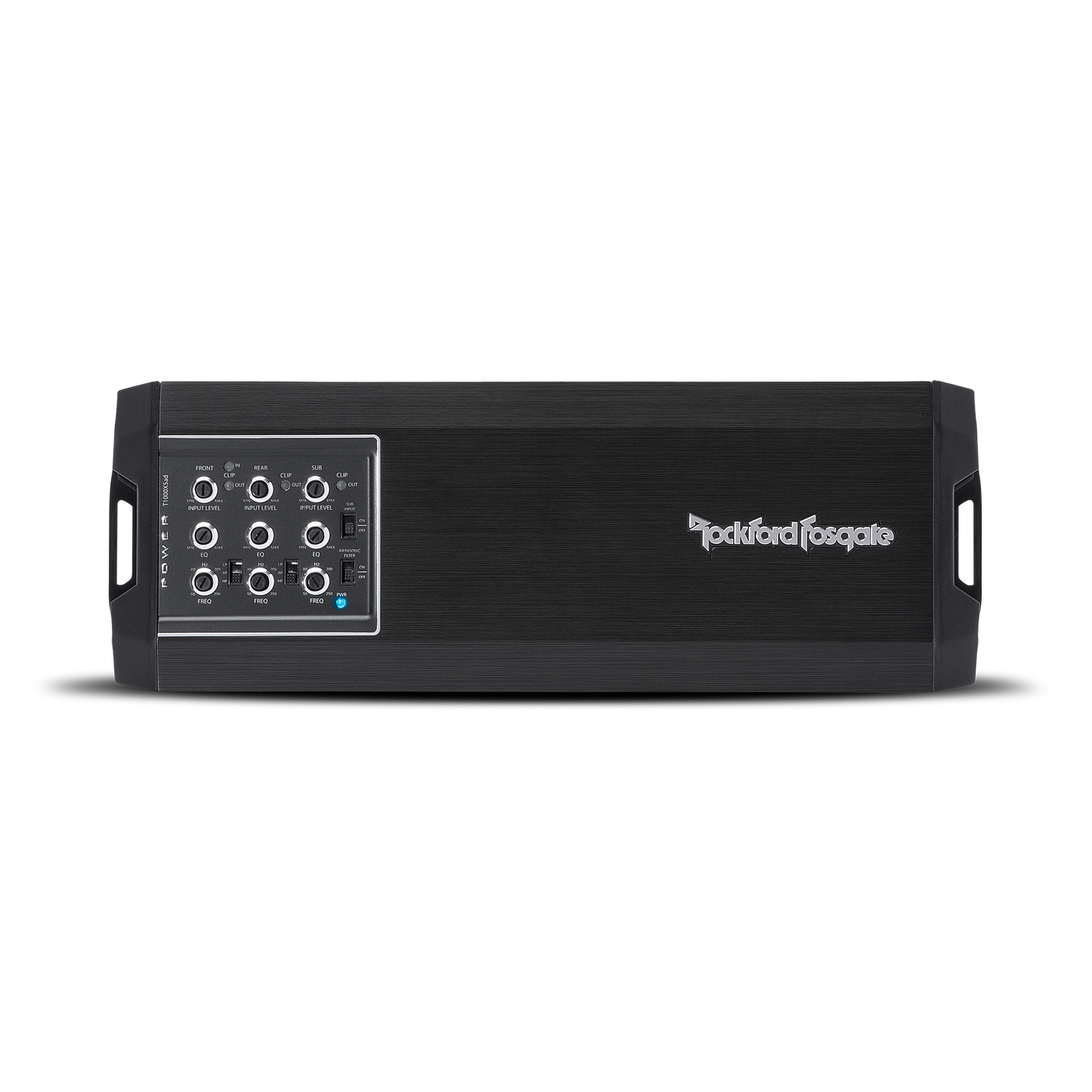

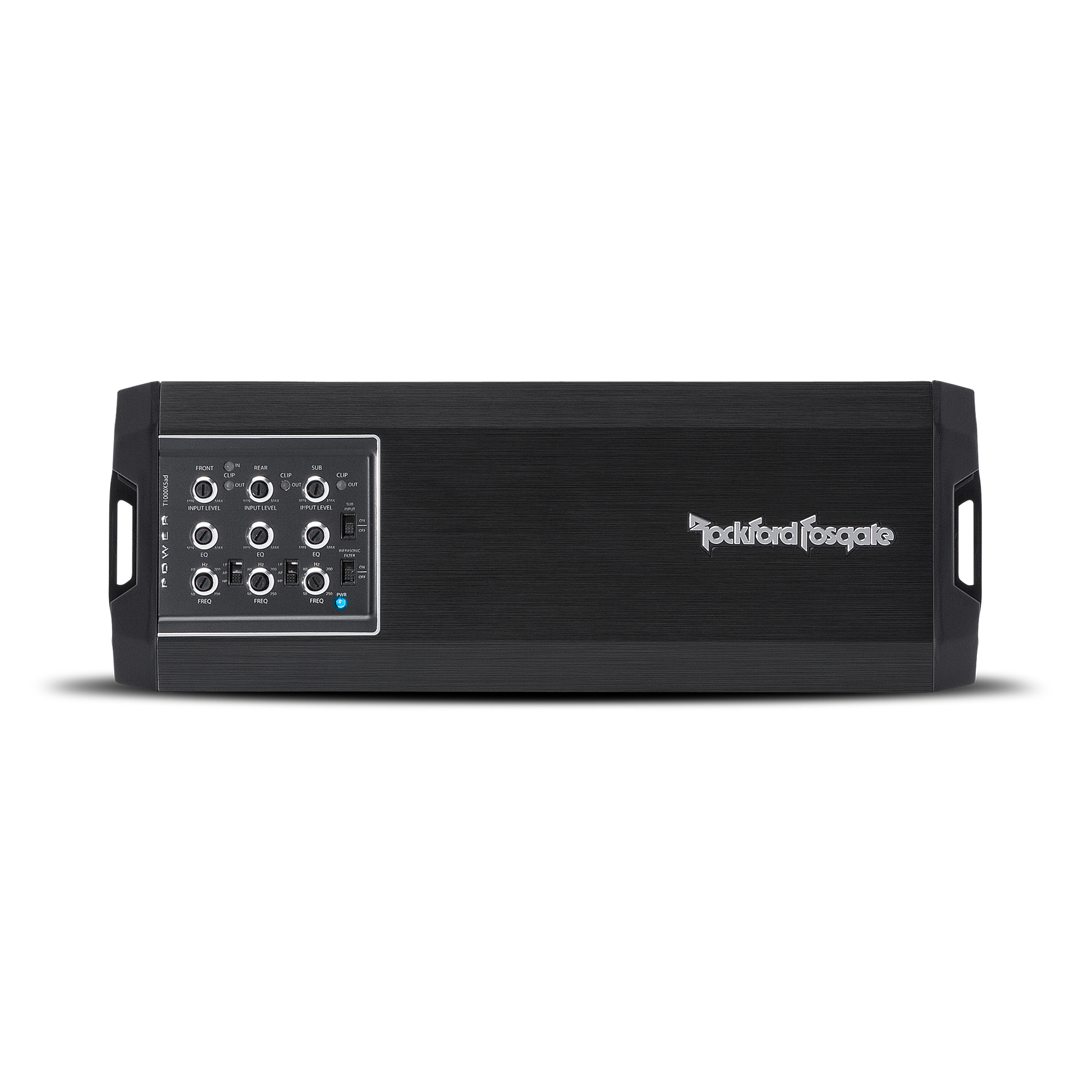

Amplifier top mounted controls include our C.L.E.A.N. level setting system, integrated high/ low pass crossovers, Input channel configuration switches and our Punch EQ boost circuit. Upgraded input RCA connectors allow for high or low level input signals to be used through our differential input circuit which eliminates incoming noise and can provide a remote out signal when using high level inputs.

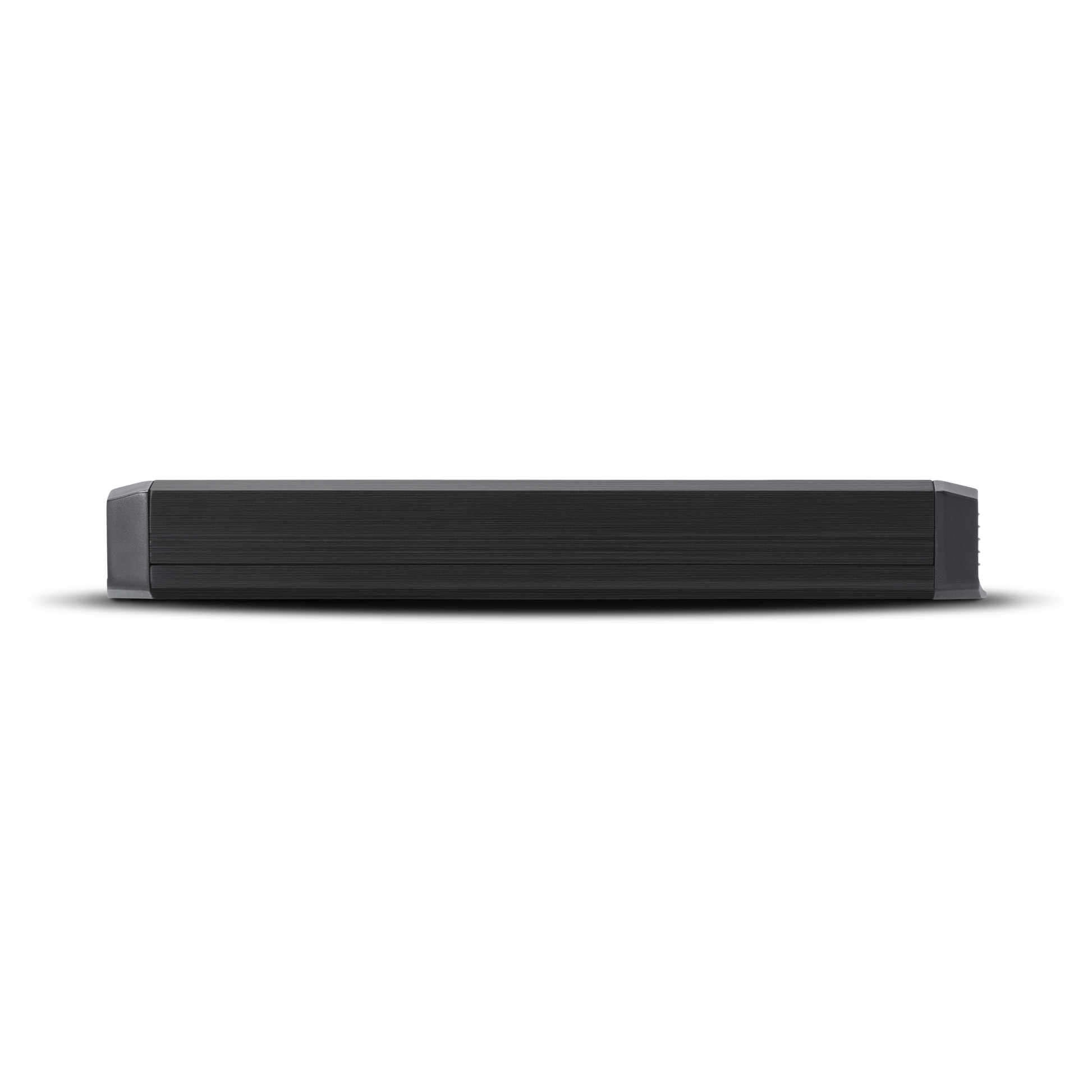

Dual fan cooling, real time thermal monitoring and dual extruded heat sinks maintain heat dissipation even at high outputs keeping the amp cool. The Amplifier is also compatible with our PLC2 level remote control allowing remote output level control of the sub channel.
| Specification | Details |
|---|---|
| CTA-2006 Compliant | Yes |
| Number of Channels | 5 |
| Total Power (Sum of Rated Power) | 1000 Watts |
| Rated Power (RMS Continuous Power) | 100 Watts x 4 + 400 Watts x 1 @ 4Ω 100 Watts x 4 + 600 Watts x 1 @ 2Ω N/A Watts x 4 + 600 Watts x 1 @ 1Ω 200 Watts x 2 + N/A Watts x 1 @ 4Ω Bridged |
| Dynamic Power (PVC/PowerCube®) | 138 Watts x 4 + 487 Watts x 1 @ 4Ω 118 Watts x 4 + 748 Watts x 1 @ 2Ω N/A Watts x 4 + 663 Watts x 1 @ 1Ω 225 Watts x 2 + N/A Watts x 1 @ 4Ω Bridged |
| Bridgeable | Yes Front Terminals: Left (+) Right (-) Rear Terminals: Left (+) Right (-) |
| Frequency Response | 20Hz - 20kHz |
| Input Sensitivity | 150 mV to 12 V |
| Circuit Topology Class | Class AD + Class BD (Sub) |
| Efficiency (average) | >85% |
| Total Harmonic Distortion (THD+Noise) | 4 Ch 4-Ohm: <1.0% 4 Ch 2-Ohm: <1.0% Sub 4-Ohm: <1.0% Sub 2-Ohm: <1.0% Sub 1-Ohm: <1.0% |
| Signal Input | Front High/Low Input: 4-Pin harness Rear High/Low Input: 4-Pin harness Sub High/Low Input: 4-Pin harness Input Switch: 2CH/4CH (2CH: sub signal derived from Front Left input) |
| Signal Output | — |
| Tone Controls | Front/Rear Treble: 0 to +14dB @ 12.5kHz (HP mode) Front/Rear: 0 to +18 dB @ 45Hz (LP mode) Sub: 0 to +18 dB @ 45 Hz |
| Crossover Controls | High-Pass: 50Hz - 250Hz @ 12dB/Octave Low-Pass: 50Hz - 250Hz @ 12dB/Octave Subwoofer: 50Hz - 250Hz @ 12dB/Octave Infrasonic: 28Hz @ 12dB/Octave Butterworth Alignment on all filters |
| Remote Controls | Optional PLC2 provides Punch Level Control |
| Visual Indicators | Power: Blue LED Protect: Red LED Input Clip: Red LED3 Output Clip: Blue/Violet/Red LED1,2,3 LED Color Legend: 1. BLUE: <0.5% THD 2. VIOLET: 1% THD 3. RED: 10%+ THD |
| Power Wire Gauge | 4 AWG |
| Power Input Connector | Detachable Compression Terminal |
| Speaker Wire Gauge | Front/Rear: 16 AWG Sub: 10 AWG |
| Speaker Output Connector | Front: 4-Pin Harness Rear: 4-Pin Harness Sub: Detachable Compression Terminal |
| Cooling | Dual Fan Cooled |
| Heatsink | Extruded Aluminum |
| Operating Voltage | Not Provided |
| Recommended Fuse (not included) | 100 A |
| Average Current Draw (13.8V Music) | Not Provided |
| Max. Current Draw (13.8V Sinewave) | 108 A |
| Suggested Alternator | Not Provided |
| Included In The Box | Not Provided |
| Dimensions (H x W x D) | 1.6 x 4.3 x 12 (in) 4.1 x 10.8 x 30.5 (cm) |
| Shipping Weight | Not Provided |
