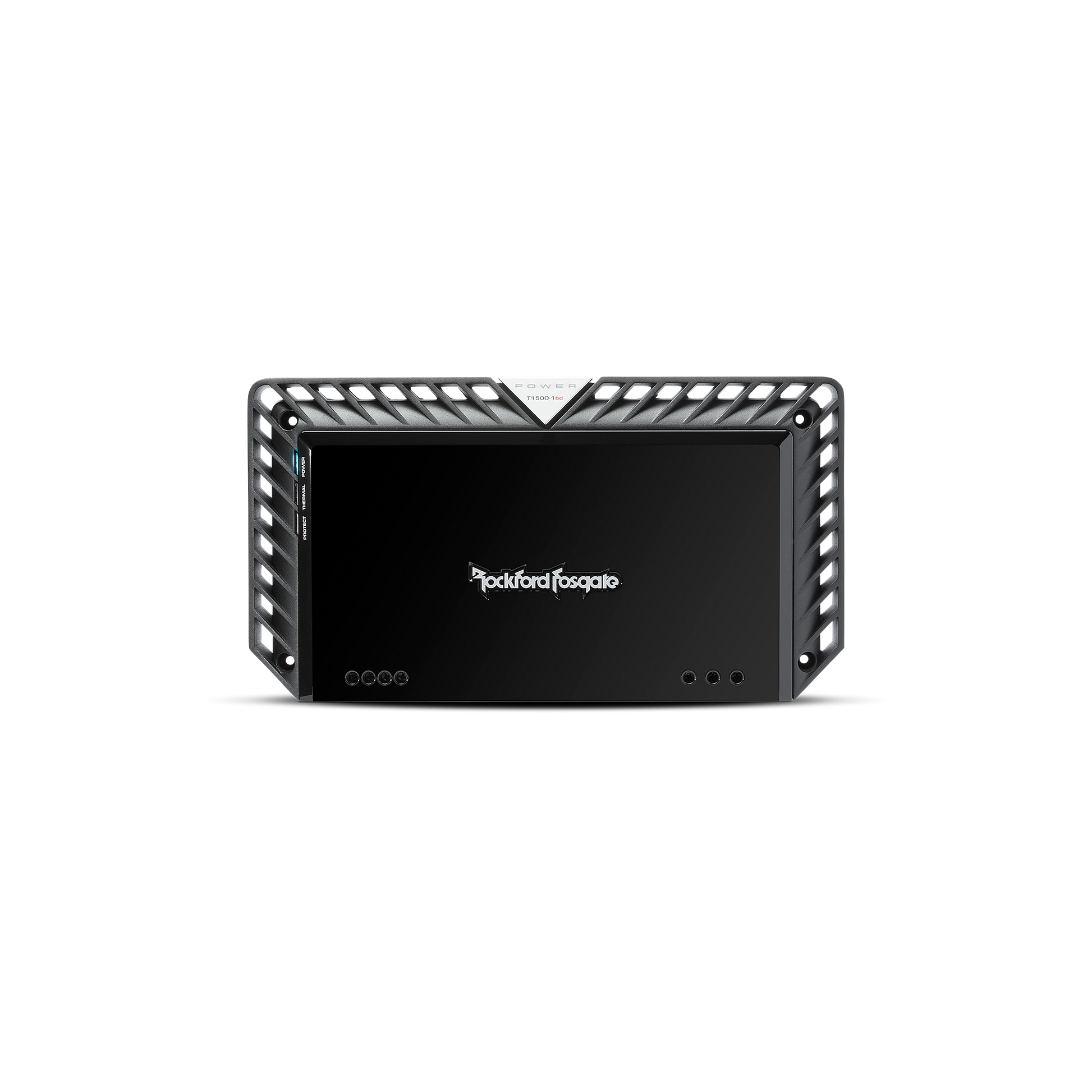

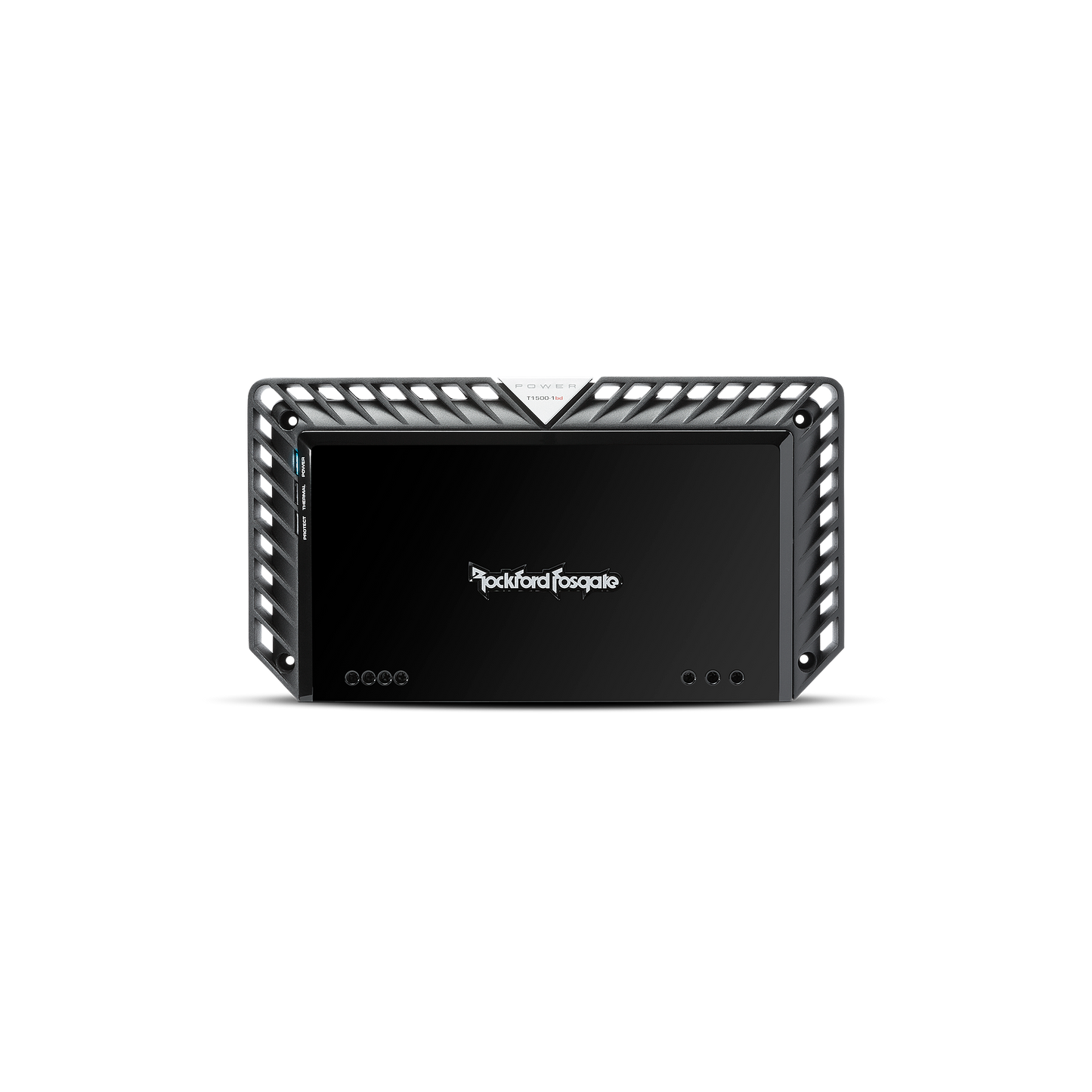

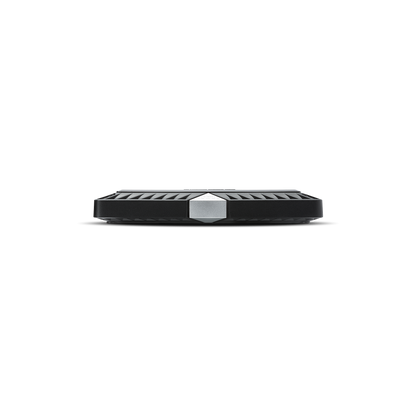

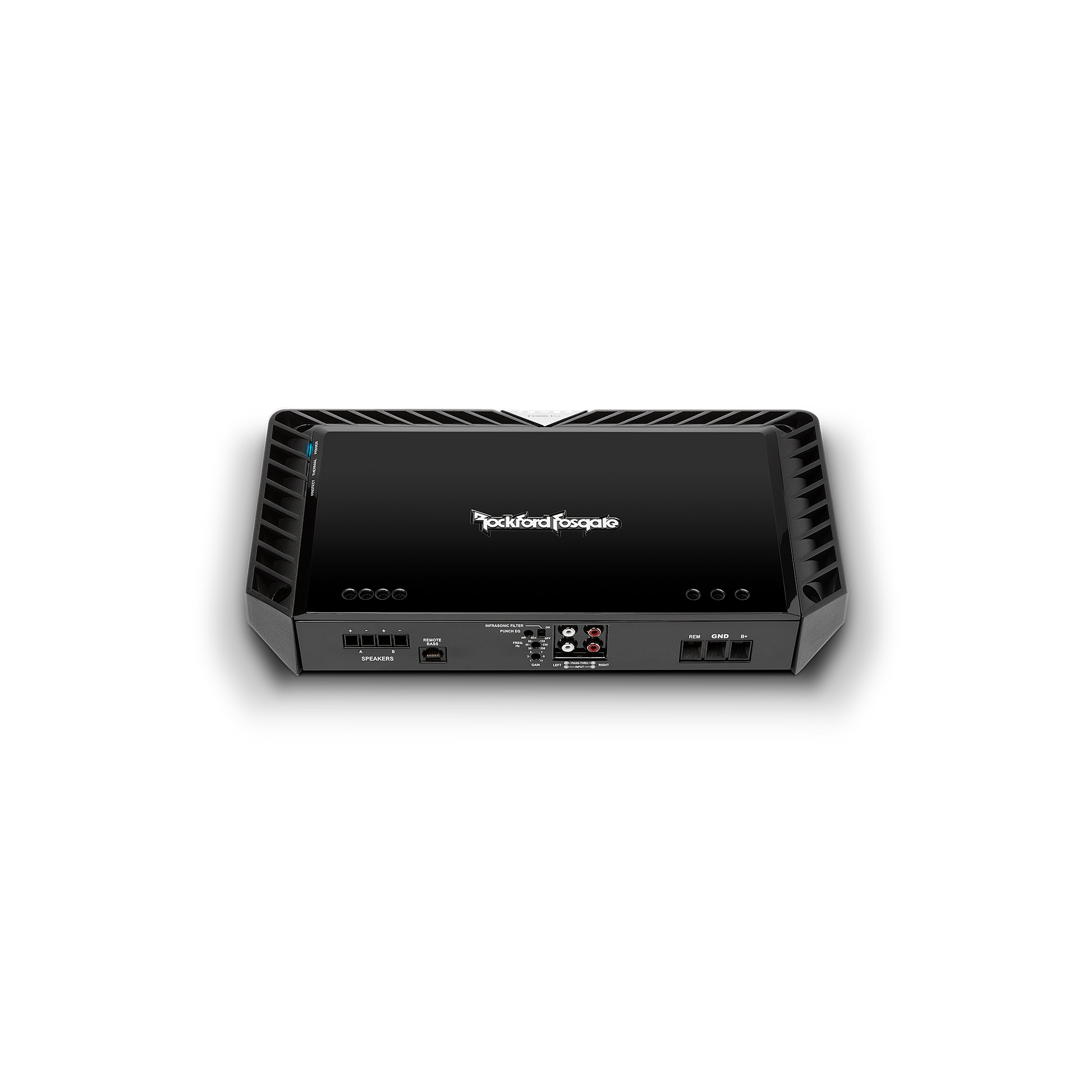

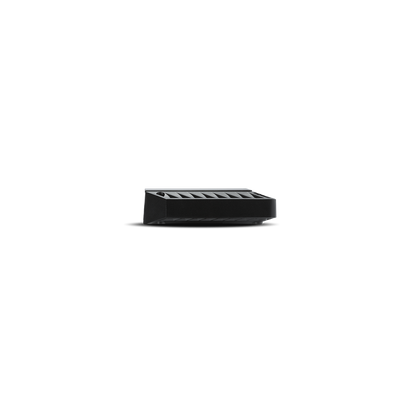

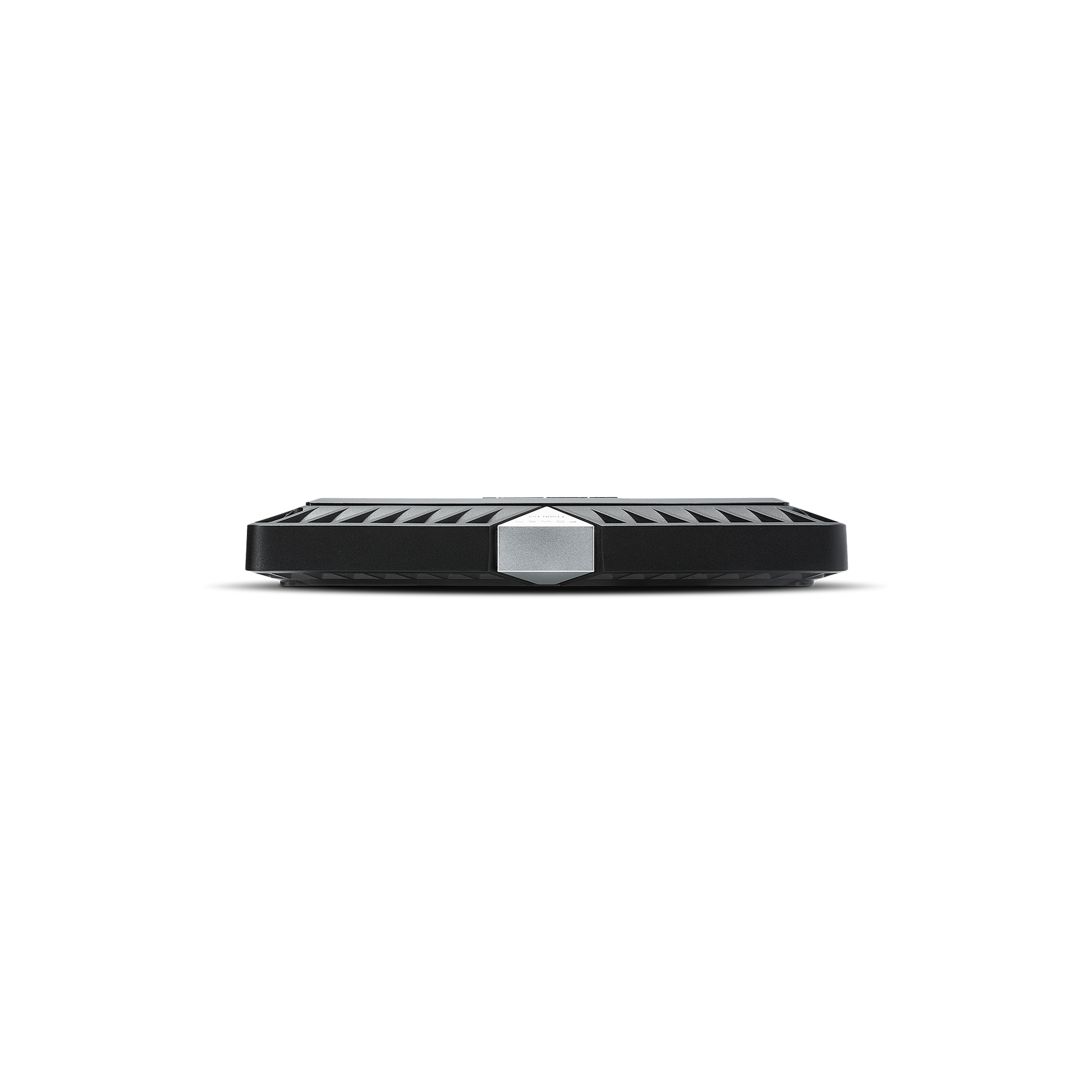

The Power T1500-1bdCP is a 1,500 Watt mono amplifier featuring Constant Power delivering up to 25% more power across all impedance loads. The frequency response of the T1500-1bdCP is optimized exclusively for use with subwoofers in cars and trucks.
The new Constant Power amplifiers are the most powerful amplifiers on the market PERIOD! The T1500-1bdCP is an amplifier for subwoofers based on the legendary T1500-1bd amplifier design with a proprietary "Constant Power" configuration delivering up to 25% more power (Watts) across all impedance loads. The listening experience is cleaner, louder and more impressive than ever before. At 1,500 watts, this monster will run any demo vehicle competing in Sound Pressure Level.
| Specification | Details |
|---|---|
| CTA-2006 Compliant | Yes |
| Number of Channels | 1 |
| Total Power (Sum of Rated Power) | 1500 Watts RMS |
| Rated Power (RMS Continuous Power) | 1000 Watts x 1 @ 4-Ohm 1500 Watts x 1 @ 2-Ohm 1500 Watts x 1 @ 1-Ohm |
| Dynamic Power (PVC/PowerCube®) | 1045 Watts x 1 @ 4-Ohms 1549 Watts x 1 @ 2-Ohms 1715 Watts x 1 @ 1-Ohm |
| Bridgeable | No |
| Frequency Response | 20Hz to 250Hz +/- 0.5dB |
| Input Sensitivity | 150 mV to 4 V |
| Circuit Topology Class | Class BD |
| Efficiency (average) | 86.2% @ 4-Ohm 74.6% @ 2-Ohm 63.0% @ 1-Ohm |
| Total Harmonic Distortion (THD+Noise) | 4-Ohm: <1.0% 2-Ohm: <1.0% 1-Ohm: <1.0% |

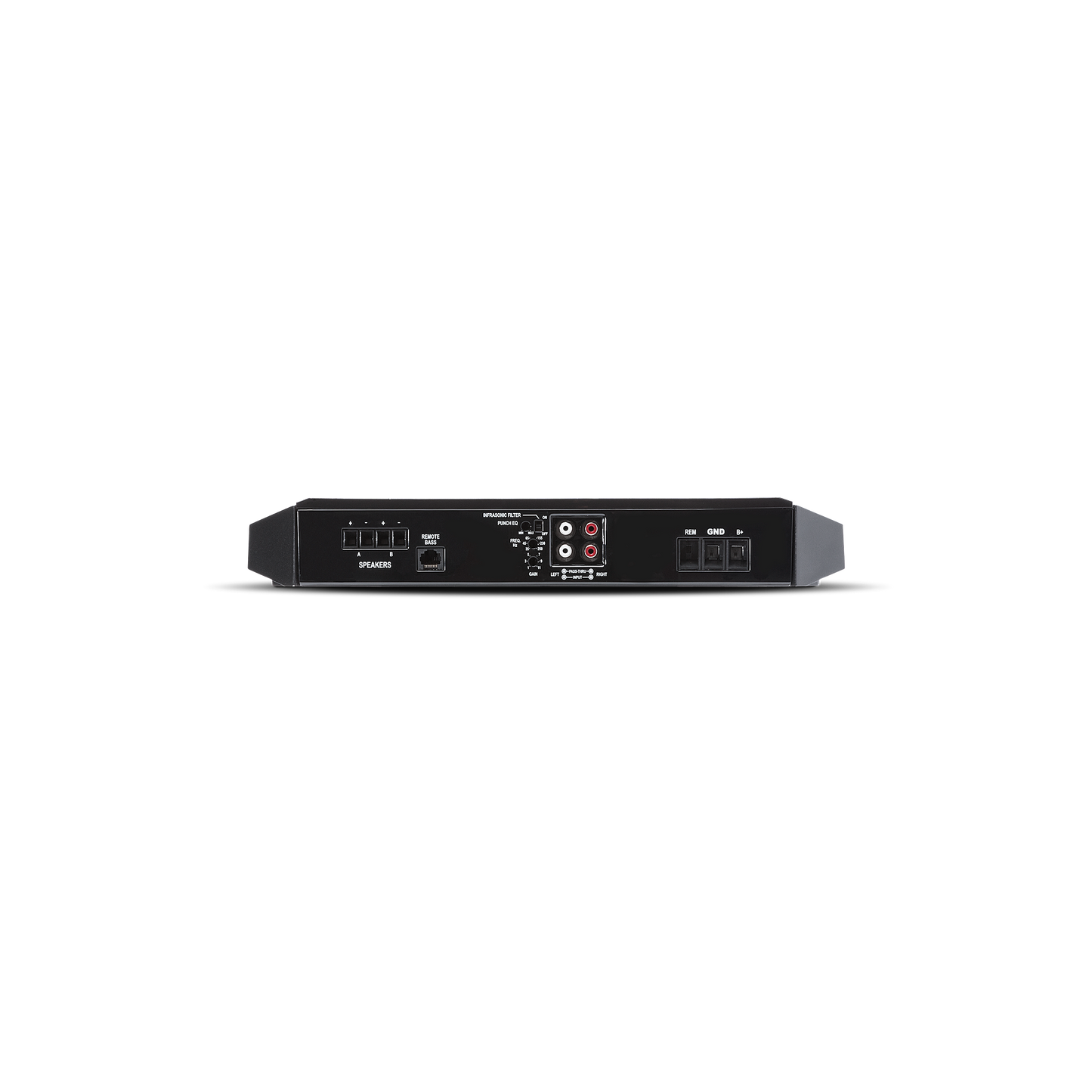

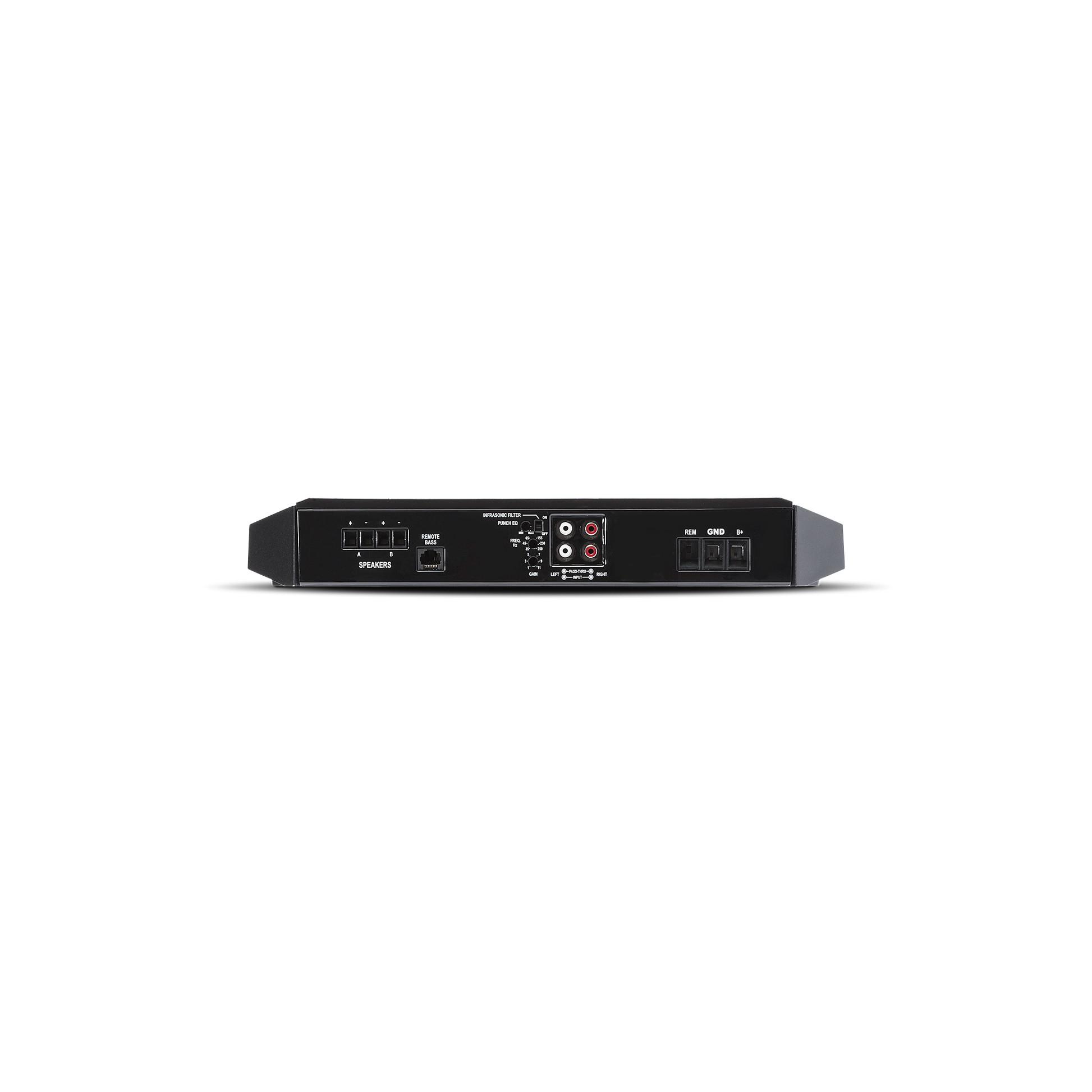

| Signal Input | Low level: 1 RCA pair |
| Signal Output | Low Level: 1 RCA pair |
| Tone Controls | Bass: 0dB to +18dB @ 45Hz Infrasonic Filter: -3dB @ 28Hz, 12dB/Octave |
| Crossover Controls | Low-Pass (LP): 35-250Hz, 24dB/octave Butterworth |
| Remote Controls | Optional Remote Punch Bass EQ (overrides built-in Punch Bass EQ) |
| Visual Indicators | Power Thermal Protect |
| Power Wire Gauge | 4 AWG |
| Power Input Connector | Block |
| Speaker Wire Gauge | 8 AWG to 18 AWG |
| Speaker Output Connector | Screw terminal barrier strip |
| Cooling | Convection, Heatsink |
| Operating Voltage | 9 - 16 VDC |
| Recommended Fuse (not included) | 200 A |
| Average Current Draw (13.8V Music) | 100 A |
| Max. Current Draw (13.8V Sinewave) | 200 A |
| Suggested Alternator | 100 A |
| Included In The Box | Yes |
| Dimensions (H x W x D) | 2.14 x 8.14 x 14.91 (in) 5.42 x 20.68 x 37.86 (cm) |
| Shipping Weight | 14.35 Lbs. (6.50 Kg.) |
