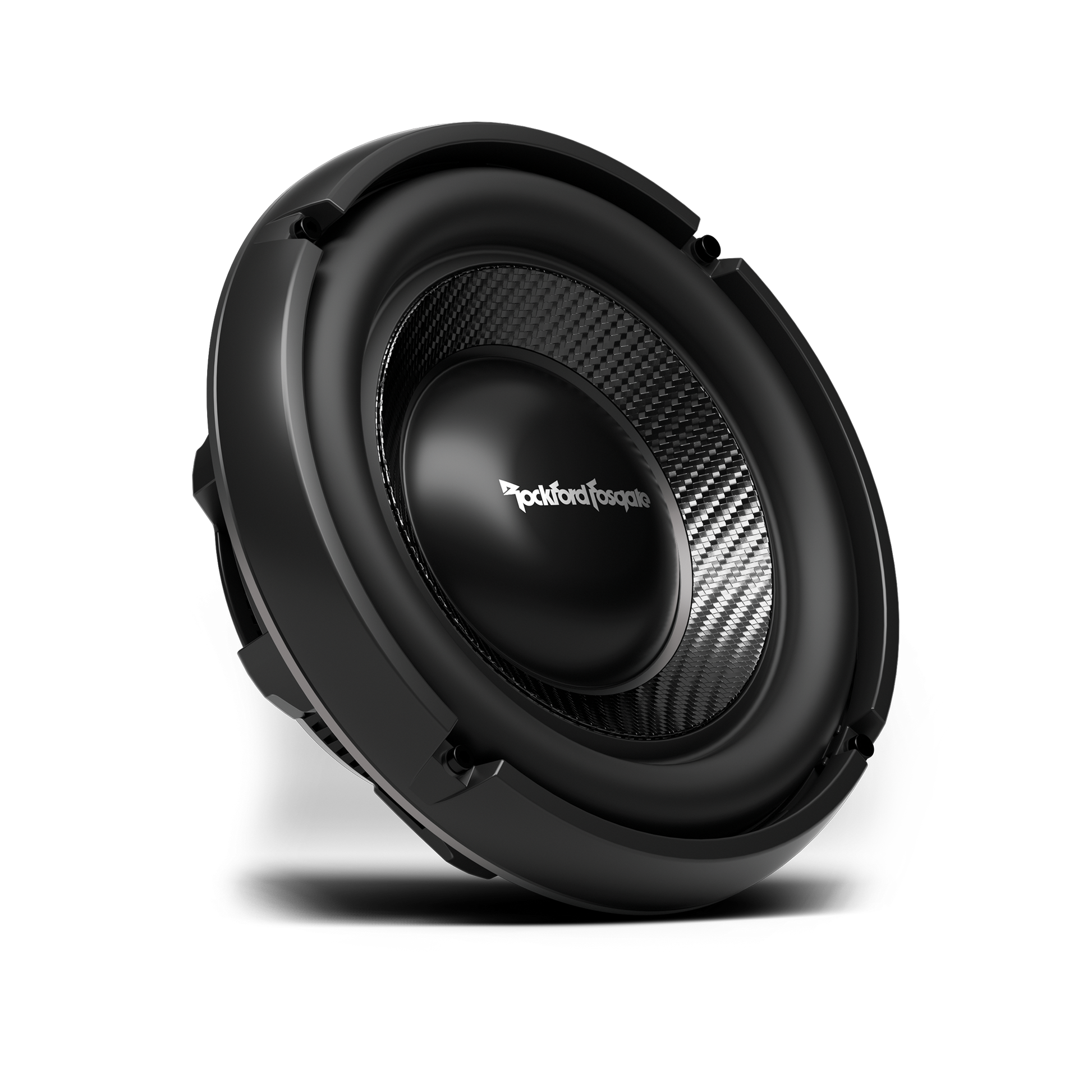

The re-engineered T1 Slim subwoofer series delivers next-level reliability and tactile bass performance, offering improved responsiveness and exceptional thermal management. Available in both sealed and ported options, these subwoofers are designed for the tightest installations, while still providing all the bass you demand.
Sound of Surround – Utilizing Nano Cell Direct injection and a bonded co-molded surround, the T1 series subwoofers ensures maximum reliability and high efficiency low end bass extension.
VCCF (Voice Coil Composite Former) – The voice coil is the heart of any speaker, and ours is crafted from a specialized composite material rigorously tested to withstand extreme heat and low thermal conditions, ensuring no-quit power and minimal motor distortion.
Dual Spiders – The voice coil carrier features a asymmetric aligned 2-spider design to deliver enhanced bass response. Each spider works together to handle a range of low-end notes, ensuring you never miss any bass hits in your music.
Perfect Fit – Available in multiple options, including sealed and ported options, these subwoofers make it easy to find the perfect fit for any installation, no matter the space.

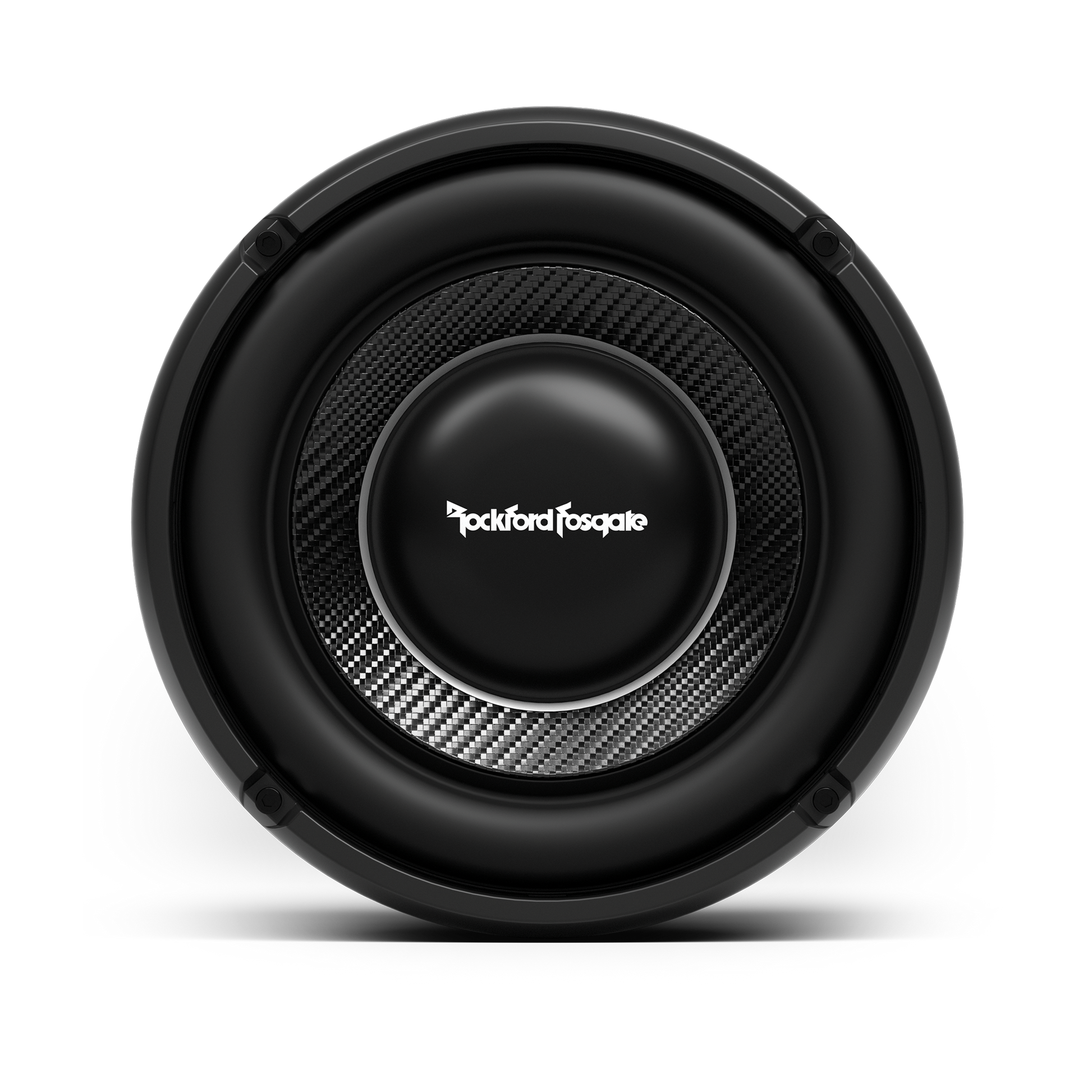

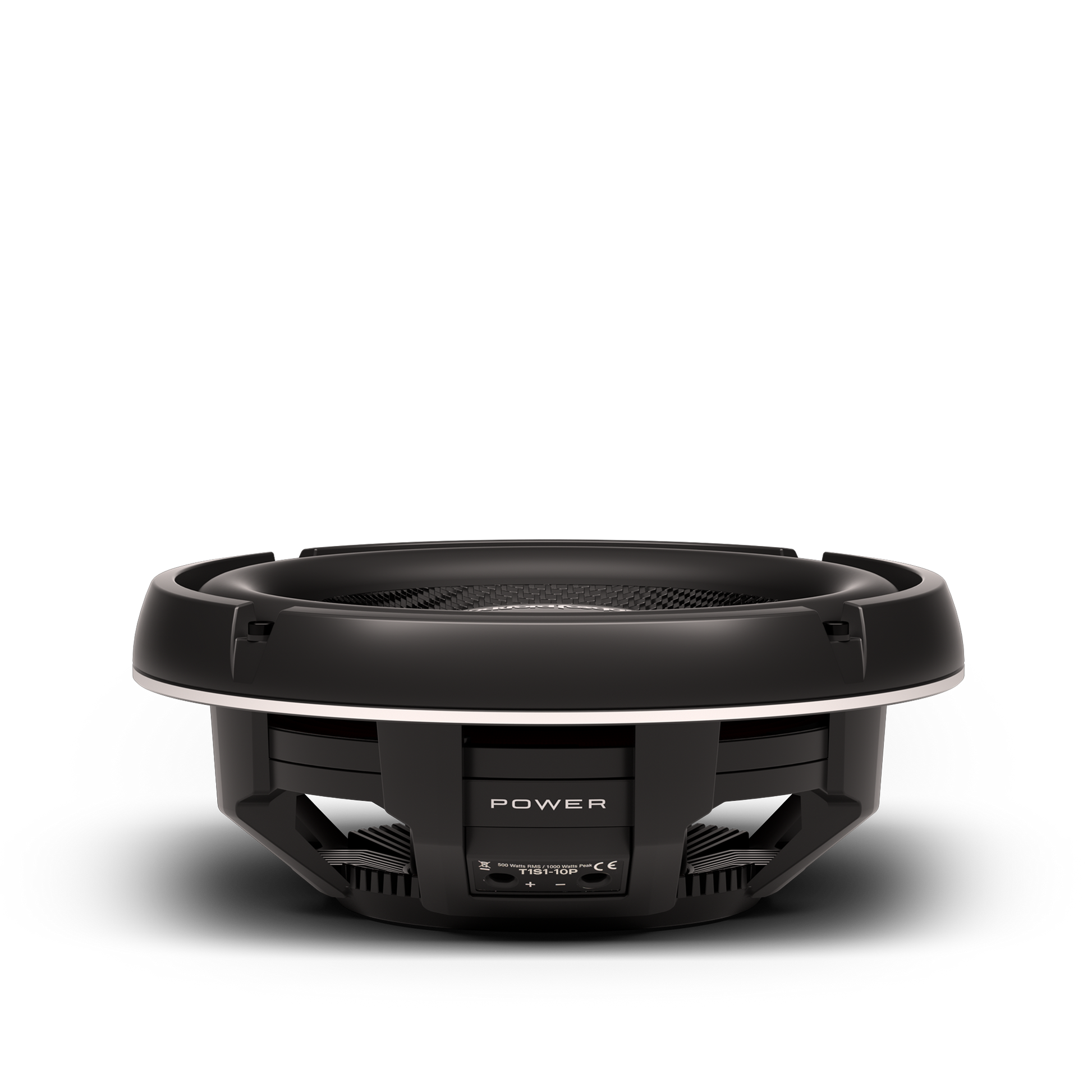

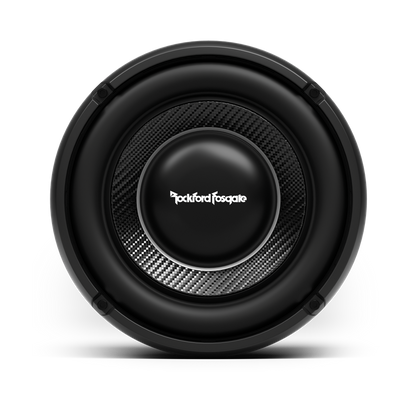

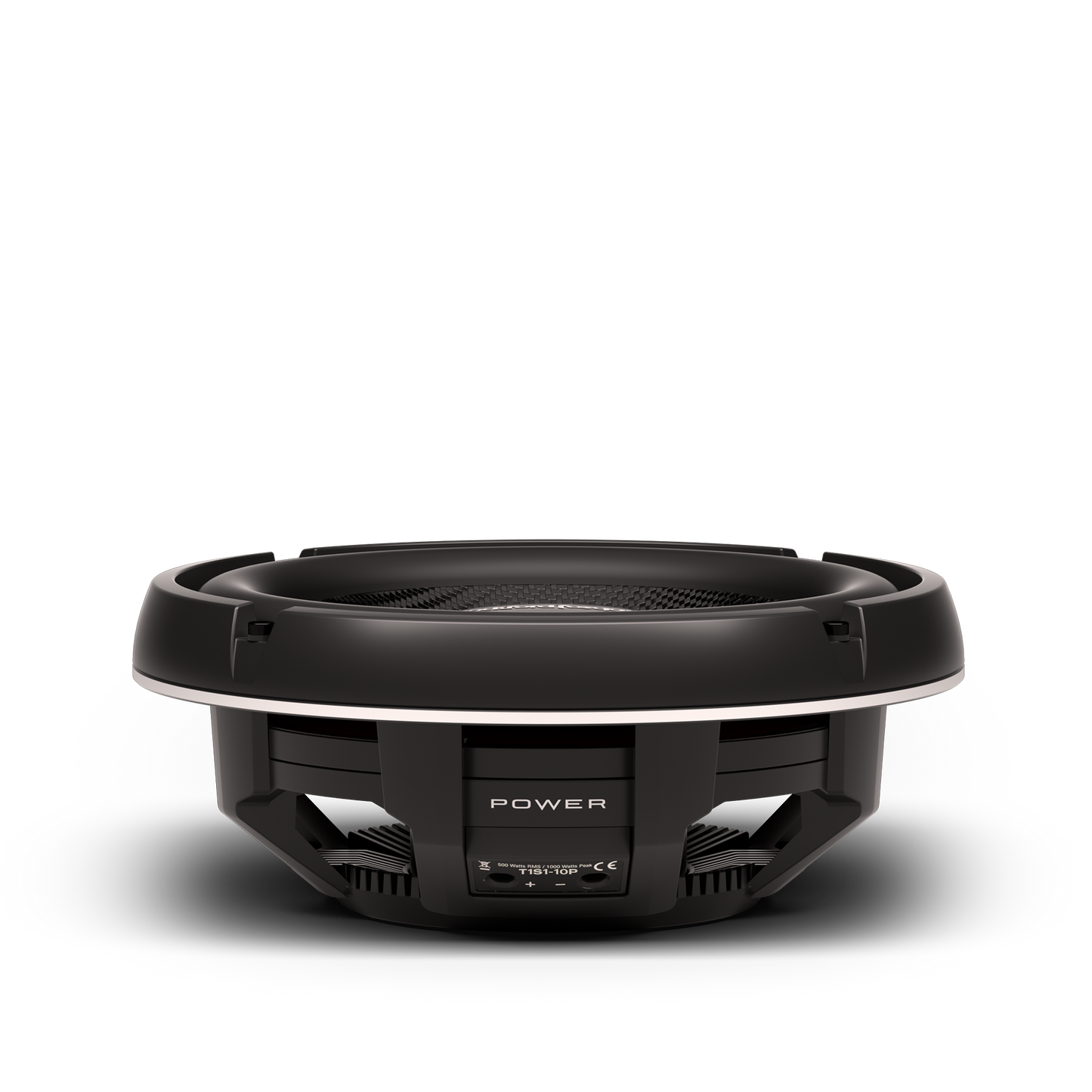

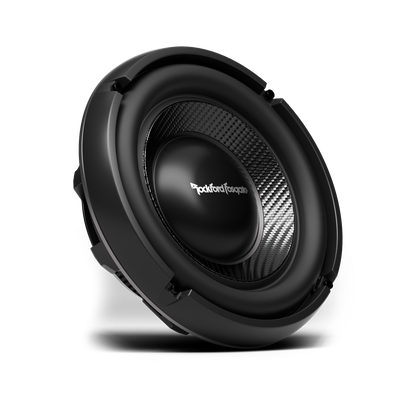

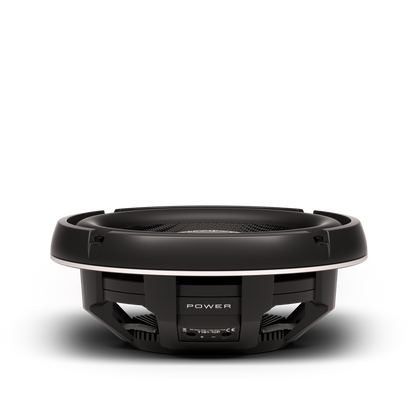

This Gen-2 version of Rockford Fosgate’s "T1 Slim" subwoofer is designed to deliver big bass in a compact, shallow design. It’s been re-engineered with more mass to fit in smaller enclosures and includes upgrades like a new surround and better heat management. The “P” (ported) version is designed for ported enclosures and work best in open-air environments (convertible).

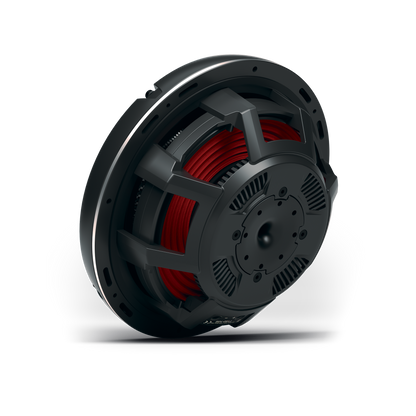

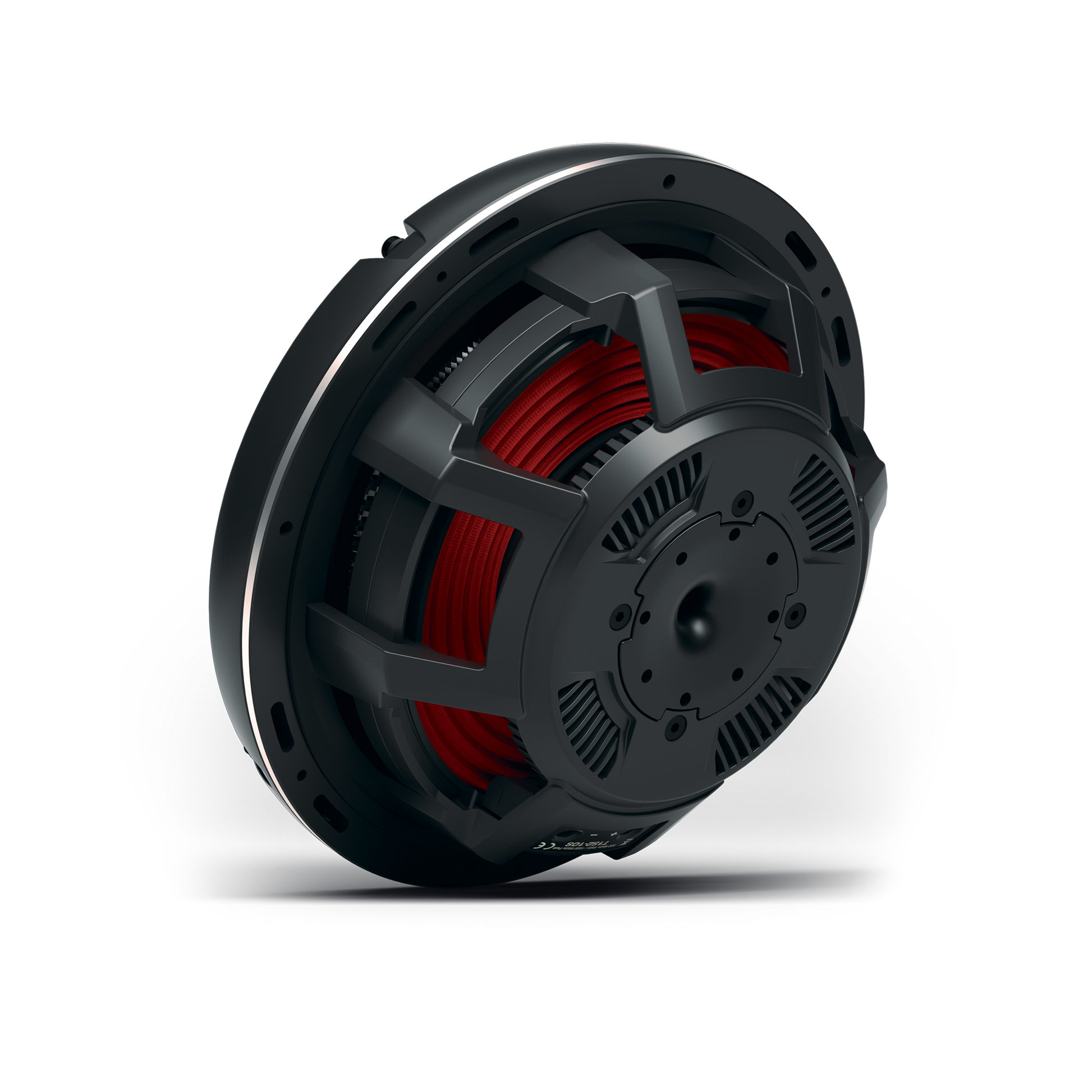

The voice coil now uses pure copper wire for better conductivity, paired with a new composite former to dissipate heat and reduce distortion. The suspension utilizes a new polymer surround, made using an advanced NCDI (Nano Cell Direct Injection) process to enhance efficiency and durability without risking dry-rot.
Features:
Size | 10" |
Subwoofer Type | Shallow |
Frequency Response | 32 - 250 Hz |
Nominal Impedance | 1-Ohm |
Re (Ohms) | 0.9 Ohms |
Fs (Hz) | 42 Hz |
Qms | 9.43 |
Qes | 1.05 |
Qts | 0.95 |
Sd (cm²) | 356 cm² |
Vas (Liters) | 13.1 Liters |
Le (mH) | 0.45 mH |
Xmax (mm) | 15 mm |
SPL (dB @ 1w/1m) | 82 dB |
Power Handling (Watts RMS) | 500 Watts RMS, 1000 Watts Max |
Voice Coil Type | Single Voice Coil |
Voice Coil Diameter | 2.5" (63.5 mm) |
Magnet Weight | 15.1 oz. (0.43 kg) |
Speaker Connector | 10 AWG slot loaded |
Cutout Diameter | 9.13 in. (232 mm) |

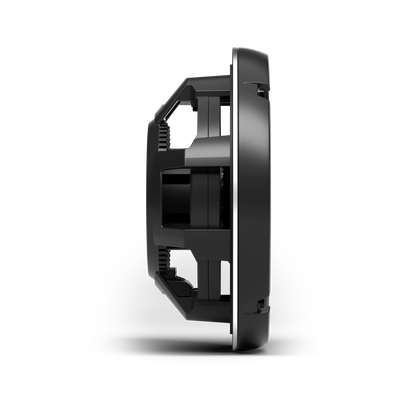

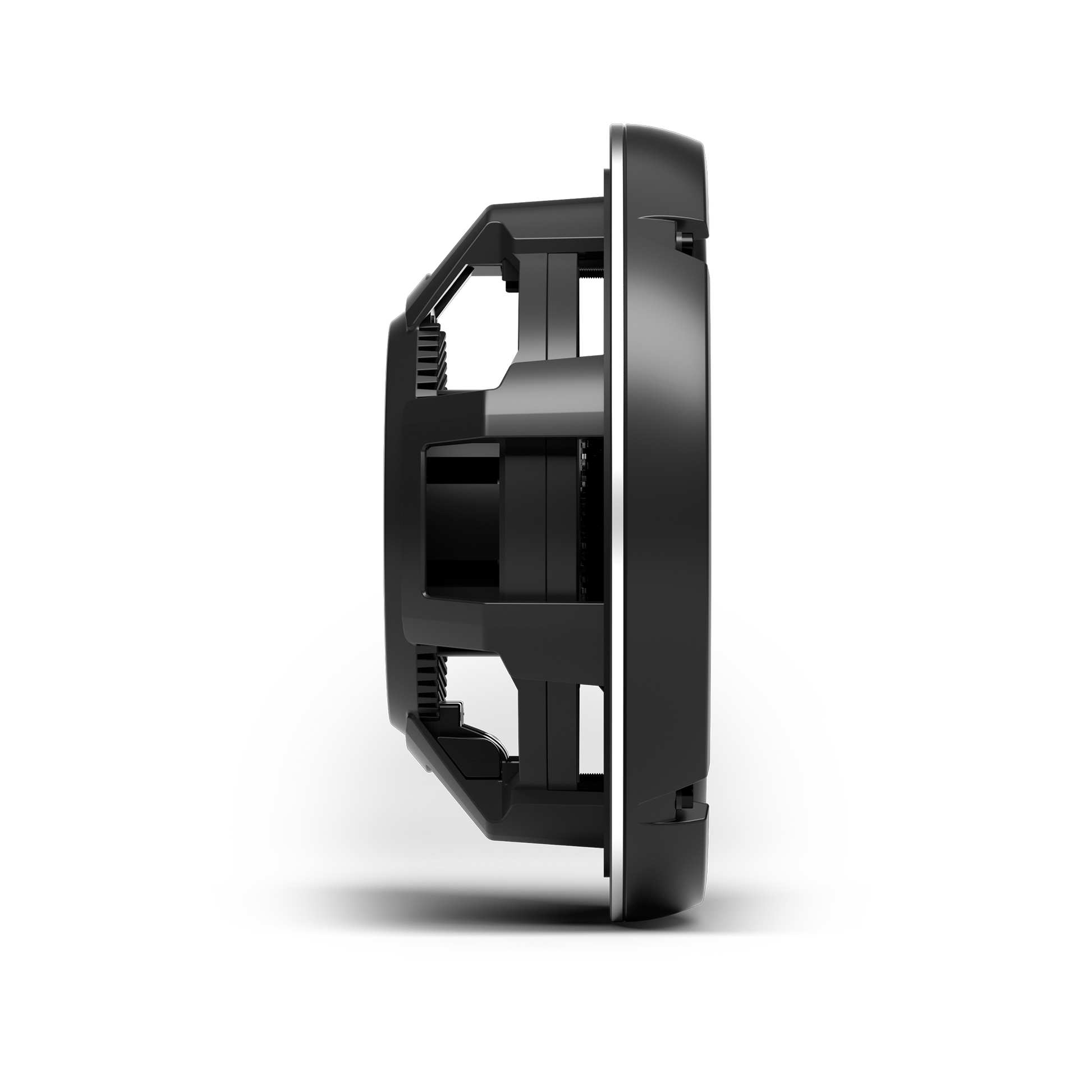

Mounting Depth | 3.01 in. (76.5 mm) |
Woofer Displacement | 0.028 cu. ft. (0.82 Liters) |
Sealed Box Volume (Vb) | Not Provided |
Vented Box Volume (Vb) | 1.0 - 1.50 cu.ft. (28.3 - 42.5 Liters) |
In The Box | (1) 1125-73494-01 Bit Driver, 40mm 5.0mm |
(4) 1125-80626-01 4mm Hex, M5x43mm | |
(8) 1125-80626-01 4mm Hex, M5x43mm Self Tap | |
Shipping Weight | 11 Lbs. (4.99 kg) |
