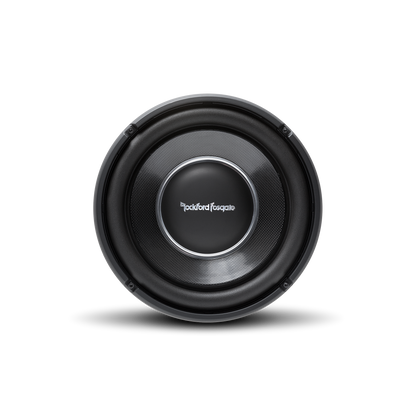

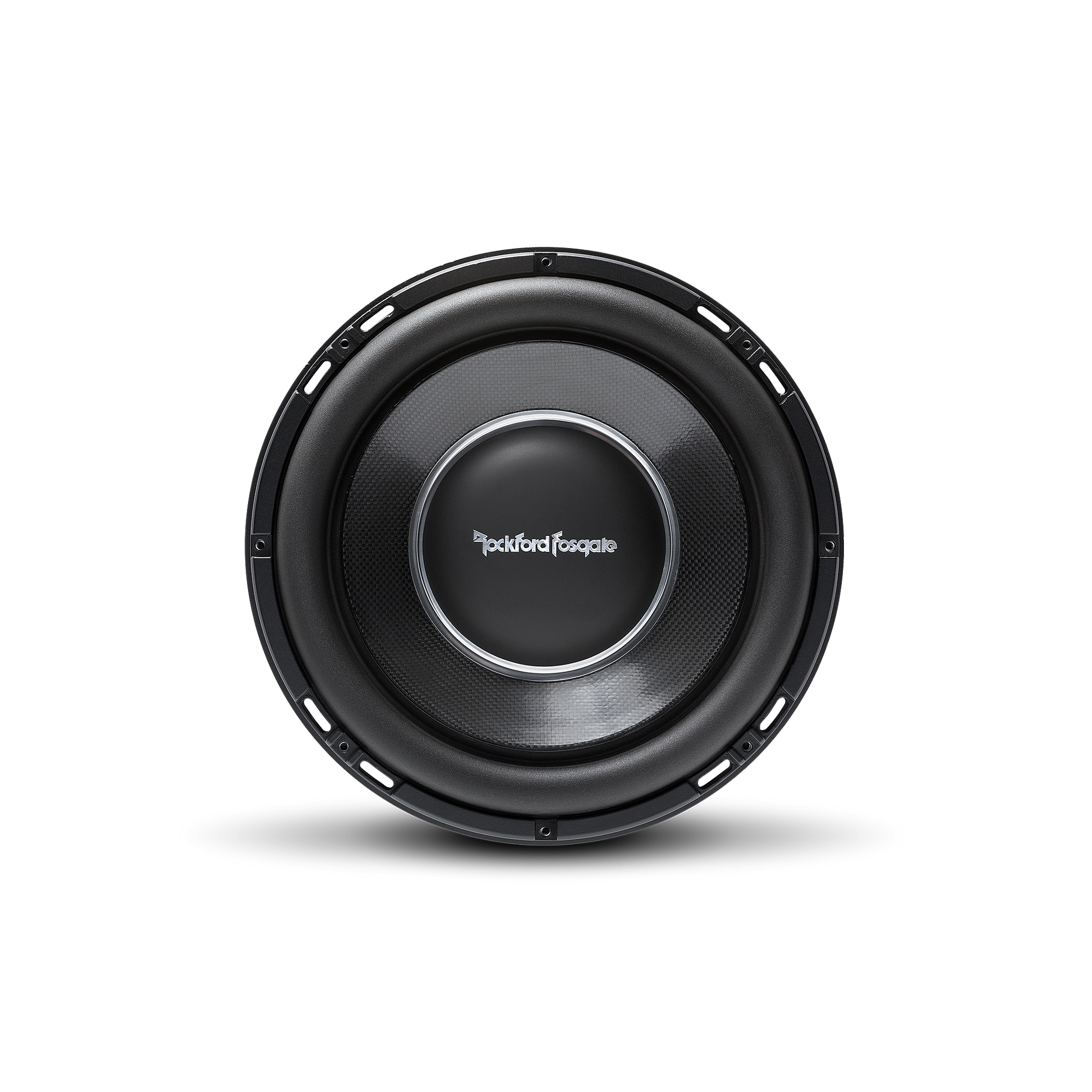

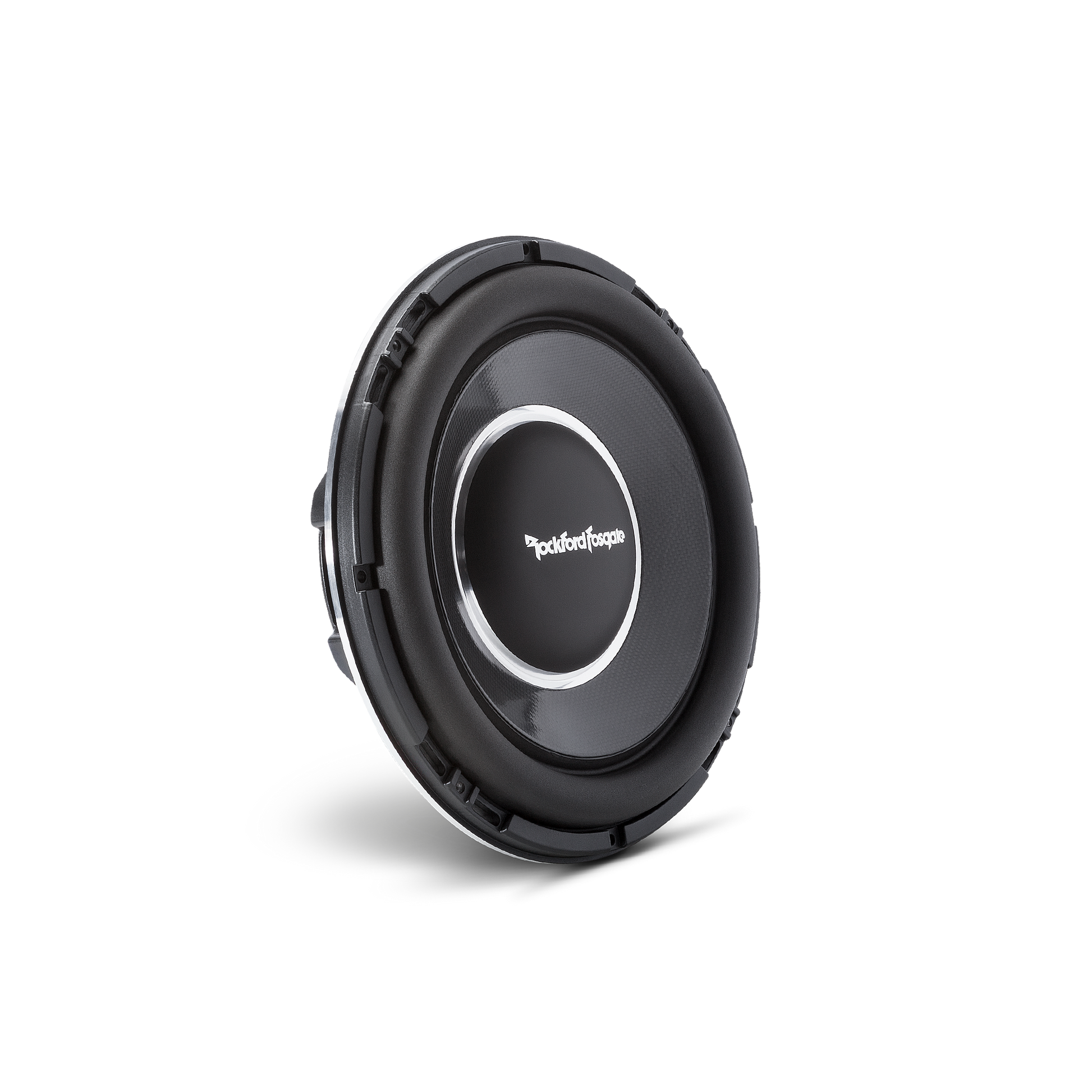

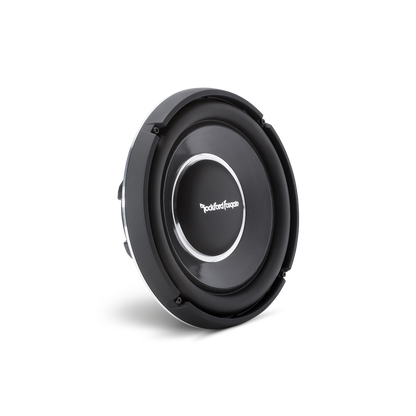

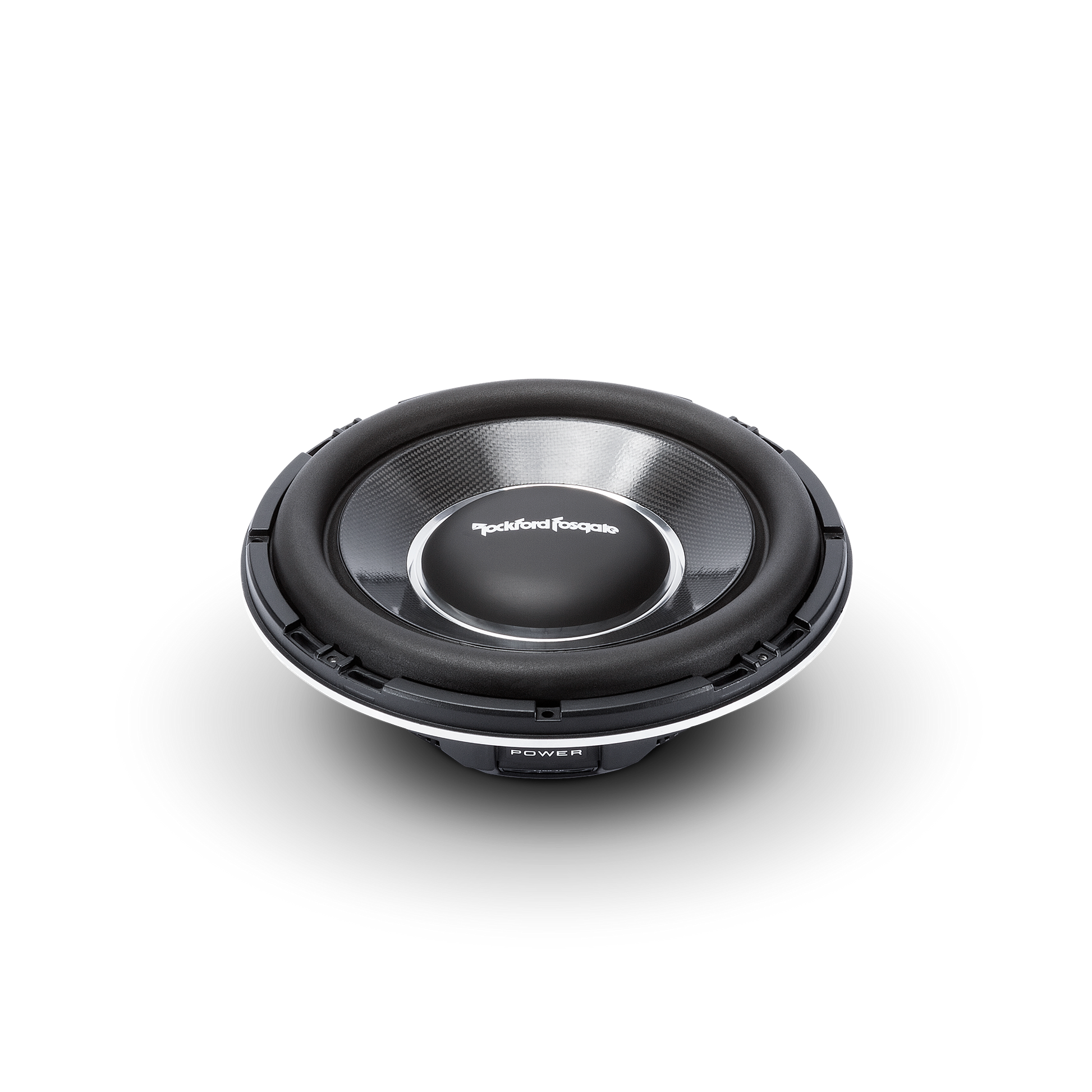

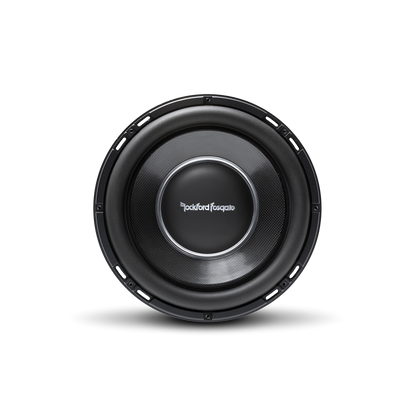

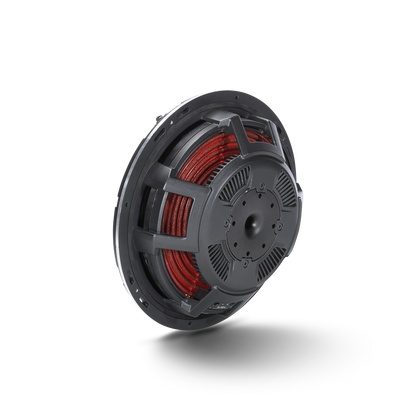

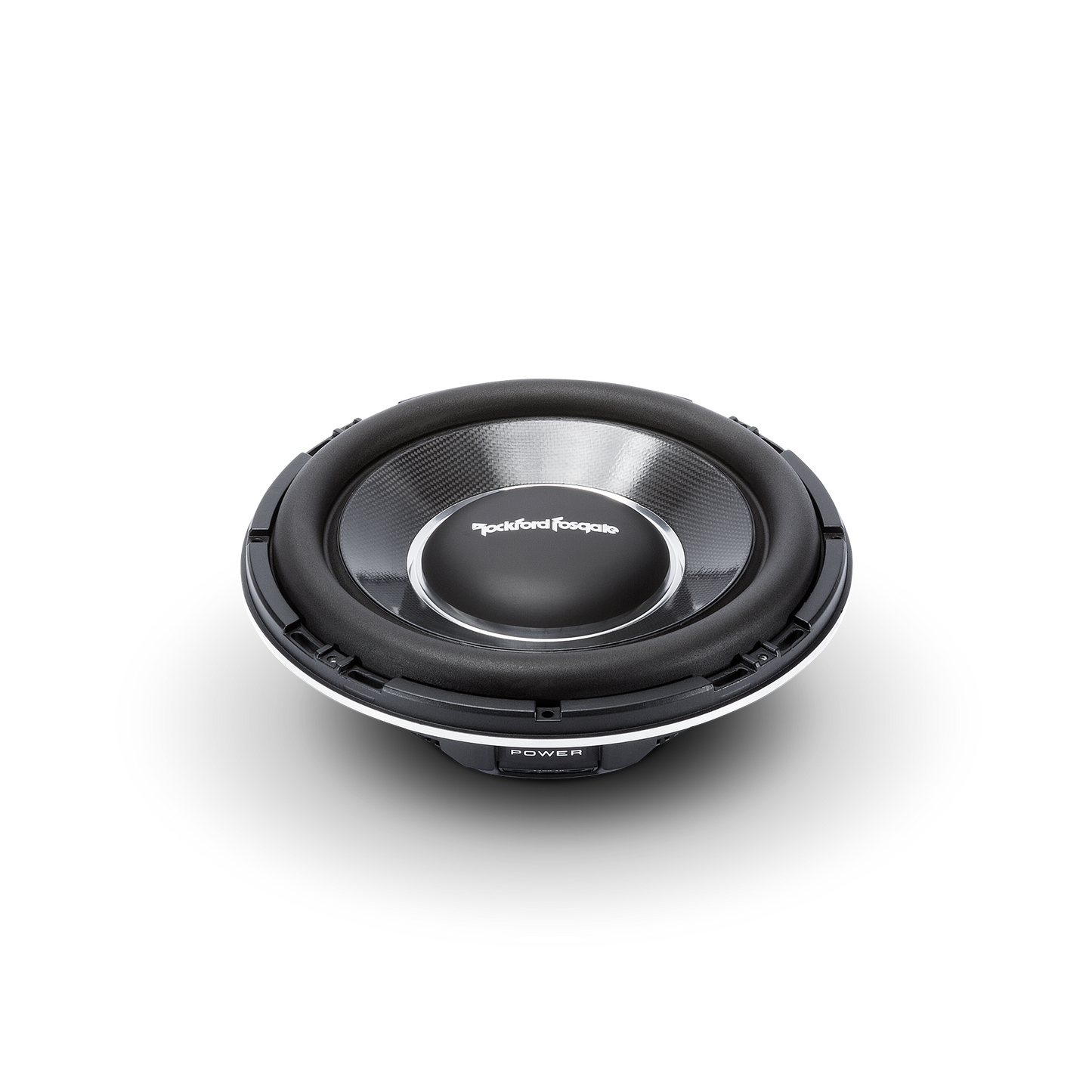

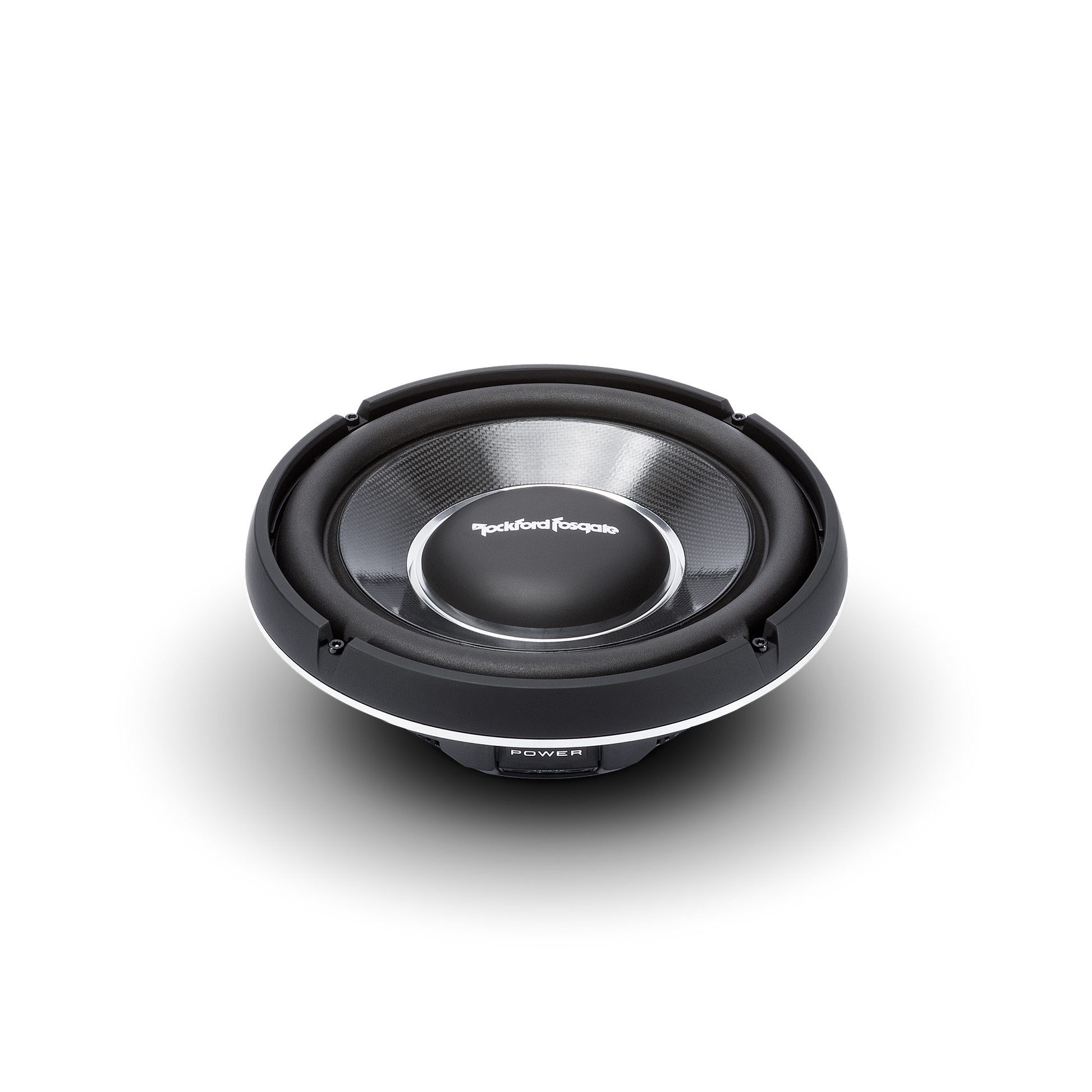

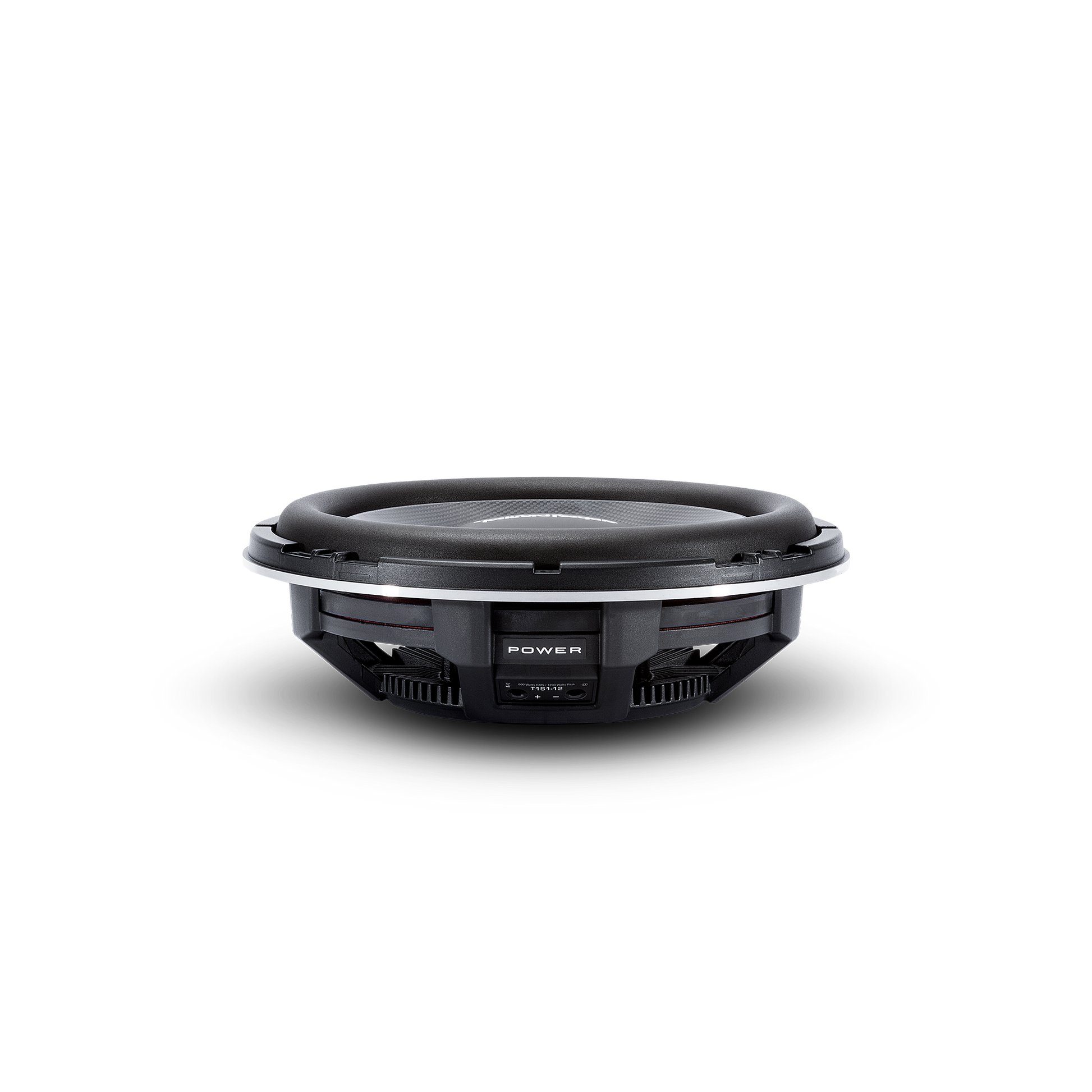

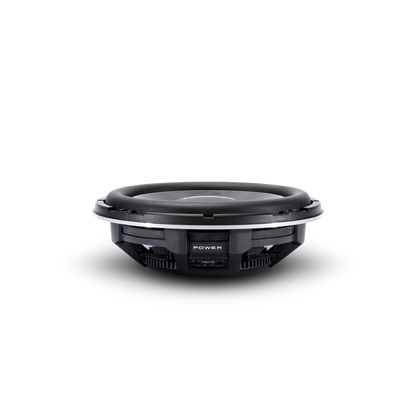

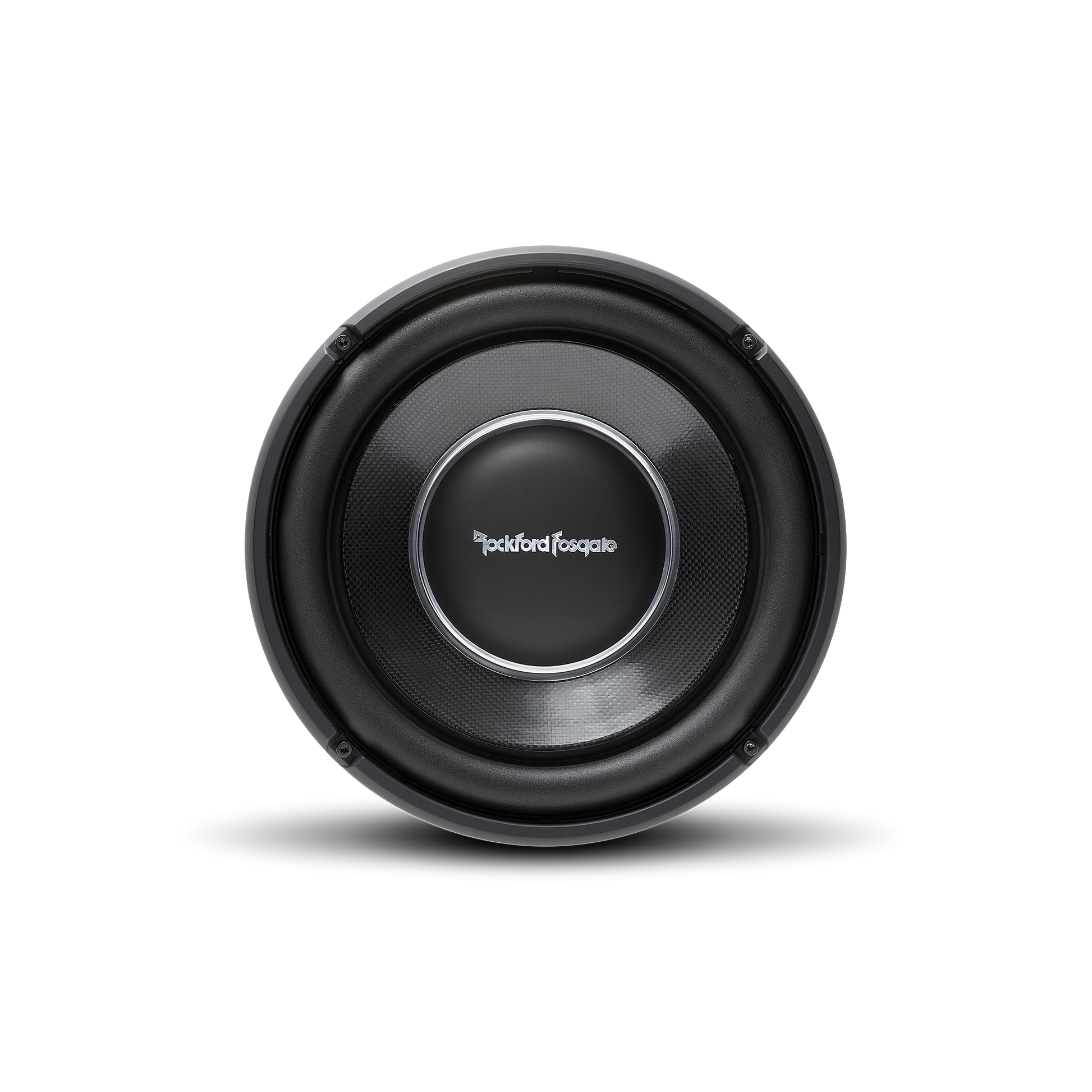

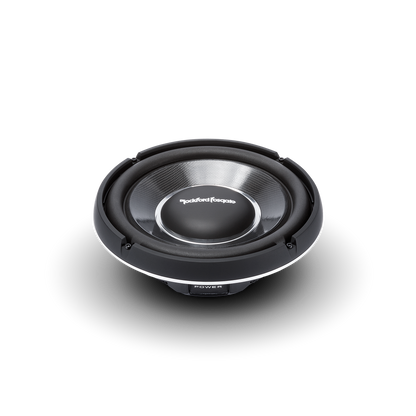

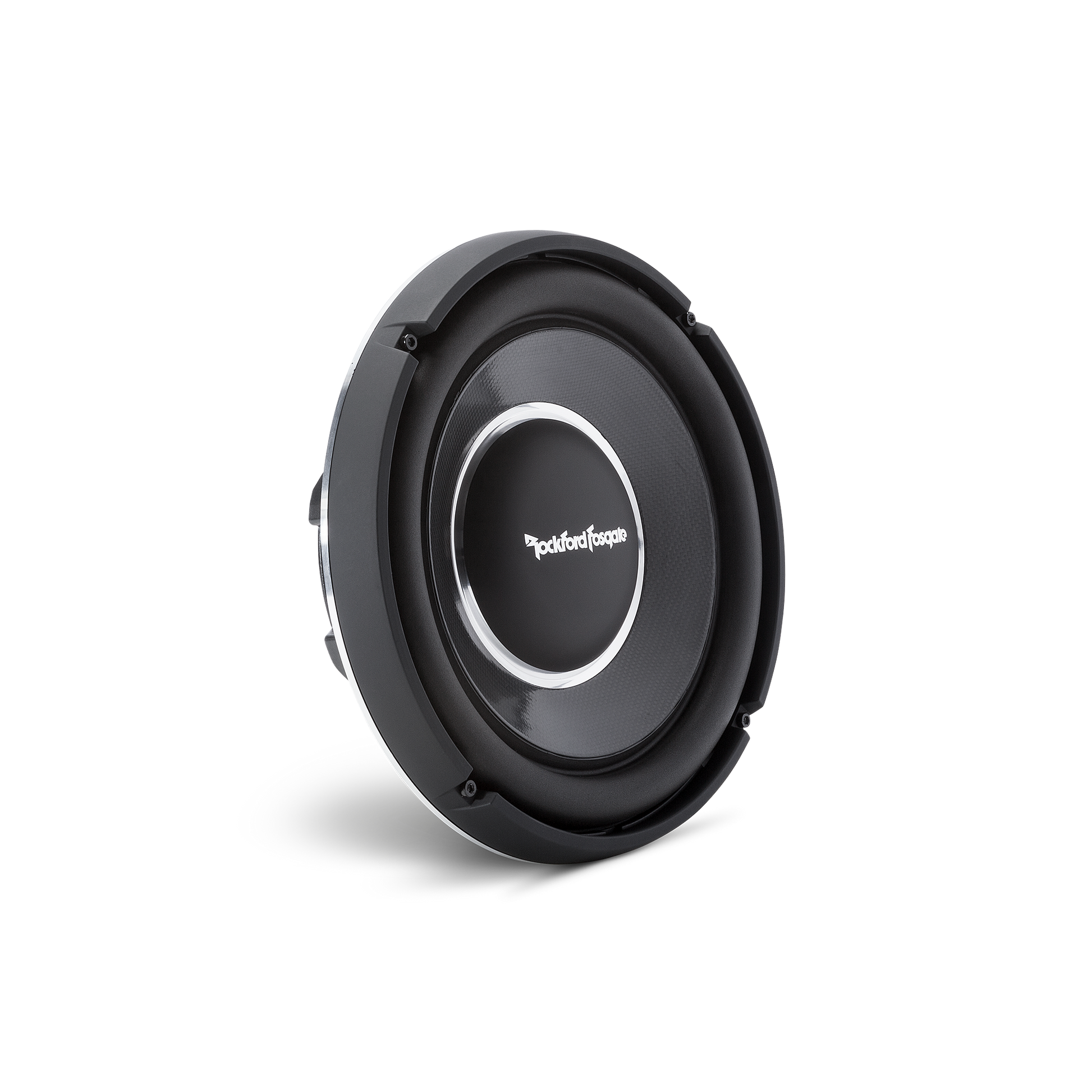

The Power T1S1-12 is a slimline 12" subwoofer designed for spaces where traditional sized woofers will not fit. Features a single 1-ohm voice coil for simplified wiring configurations.
Need bass but don't have a lot of space? How about more power handling than your average shallow subwoofer? Well, the T1 "Slimline" subwoofers are not your average shallow, in fact, they have been painstakingly designed to near exact performance characteristics of traditional sized Power T1 subwoofers you're already familiar with.

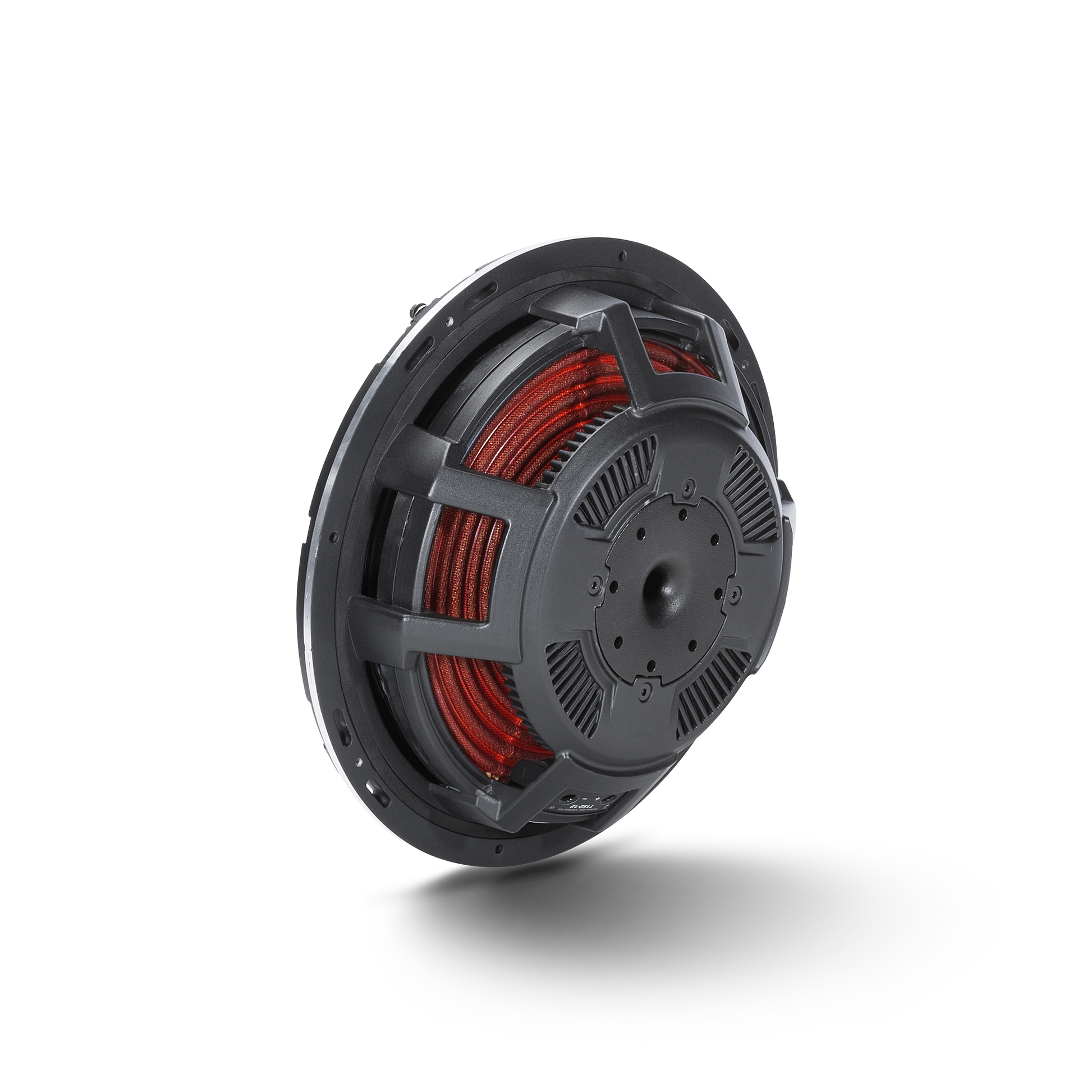

We're calling these "slim" subwoofers because they don't take a lot of depth and offer bass response similar to a traditional sized model. How can this be true? Well, let's just say the Wizards-of-Fos engineered an ingenious slotted voice coil assembly that exhibits long excursion travel. Don't worry, you don't need to understand how it works, you just have to listen to how awesome they sound!
Features:
| CEA-2031 Compliant | CEA-2031 Guidelines |
| Size | 12" |
| Nominal Impedance | 1-Ohm |
| Subwoofer Type | Shallow |
| Speaker Connector | 10 AWG slot loaded |
| Fs (Hz) | 36 |
| Qes | 1.17 |
| Qms | 11.22 |
| Qts | 1.06 |
| Vas (Liters) | 32.4 |
| Re (Ohms) | 0.9 |
| Sd (cm²) | 560 |
| Le (mH) | 0.31 |
| SPL (dB @ 1w/1m) | 85 |
| Voice Coil Diameter | 2.98" (75 mm) |
| Voice Coil Type | Single Voice Coil |
| SPL (dB @ 2.8v/1m) | 88 |
| Xmax (mm) | 15 |
| Magnet Weight | 14.42 oz. (0.41 Kg) |
| Power Handling (Watts RMS) | 600 Watts RMS / 1200 Watts Max |
| Mounting Depth | 3.01 in. (76.5 mm) |
| Cutout Diameter | 11.22 in. (285 mm) |
| Woofer Displacement | 0.042 cu. ft. (1.2 Liters) |
| Sealed Box Volume (Vb) | 1.1 cu. ft. (31.1 Liters) |
| Vented Box Volume (Vb) | 2.0 cu. ft. (56.6 Liters) |
| Shipping Weight | 16.15 Lbs. (7.3 Kg) |
