Rockford Fosgate

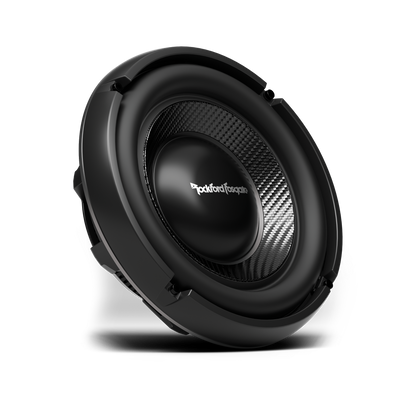

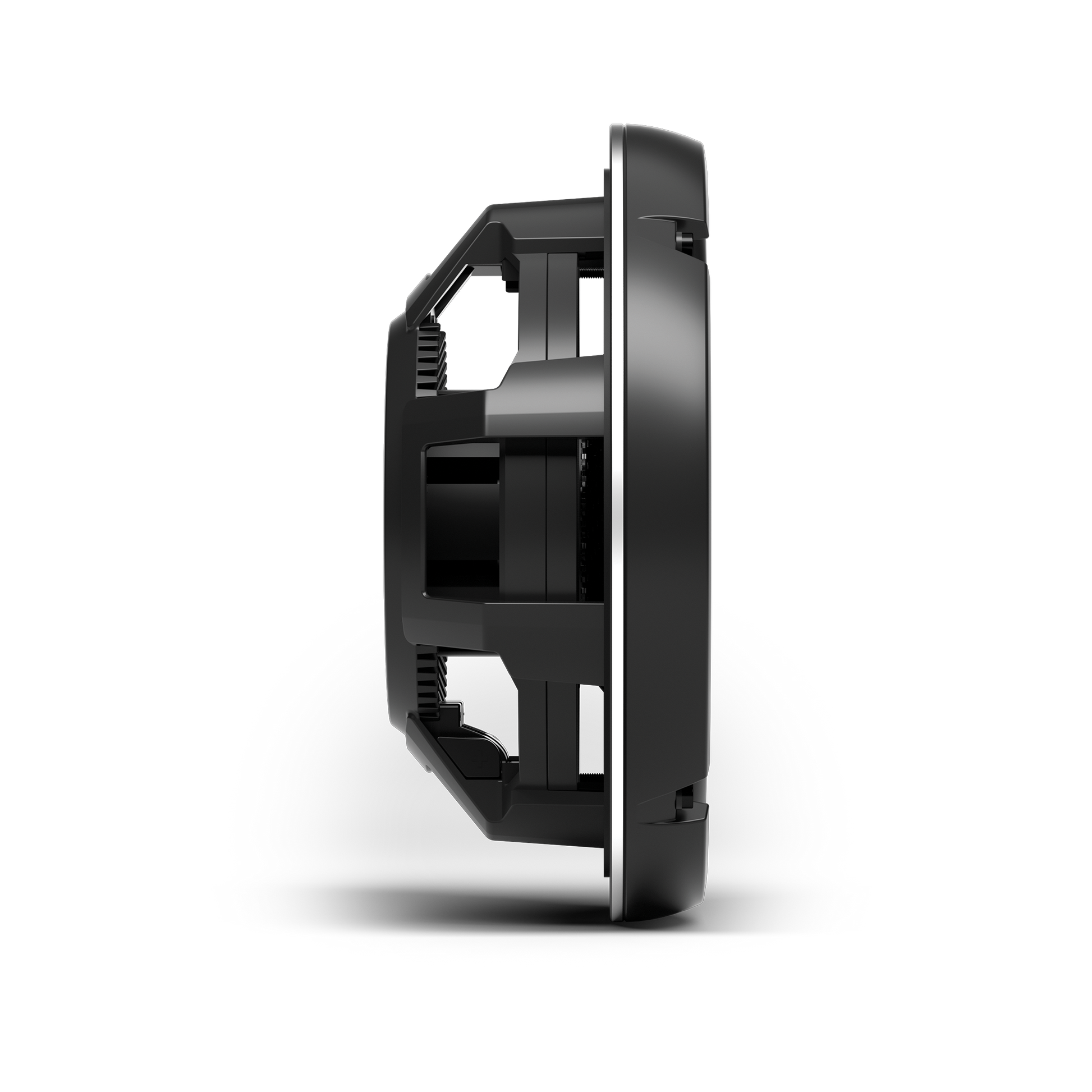

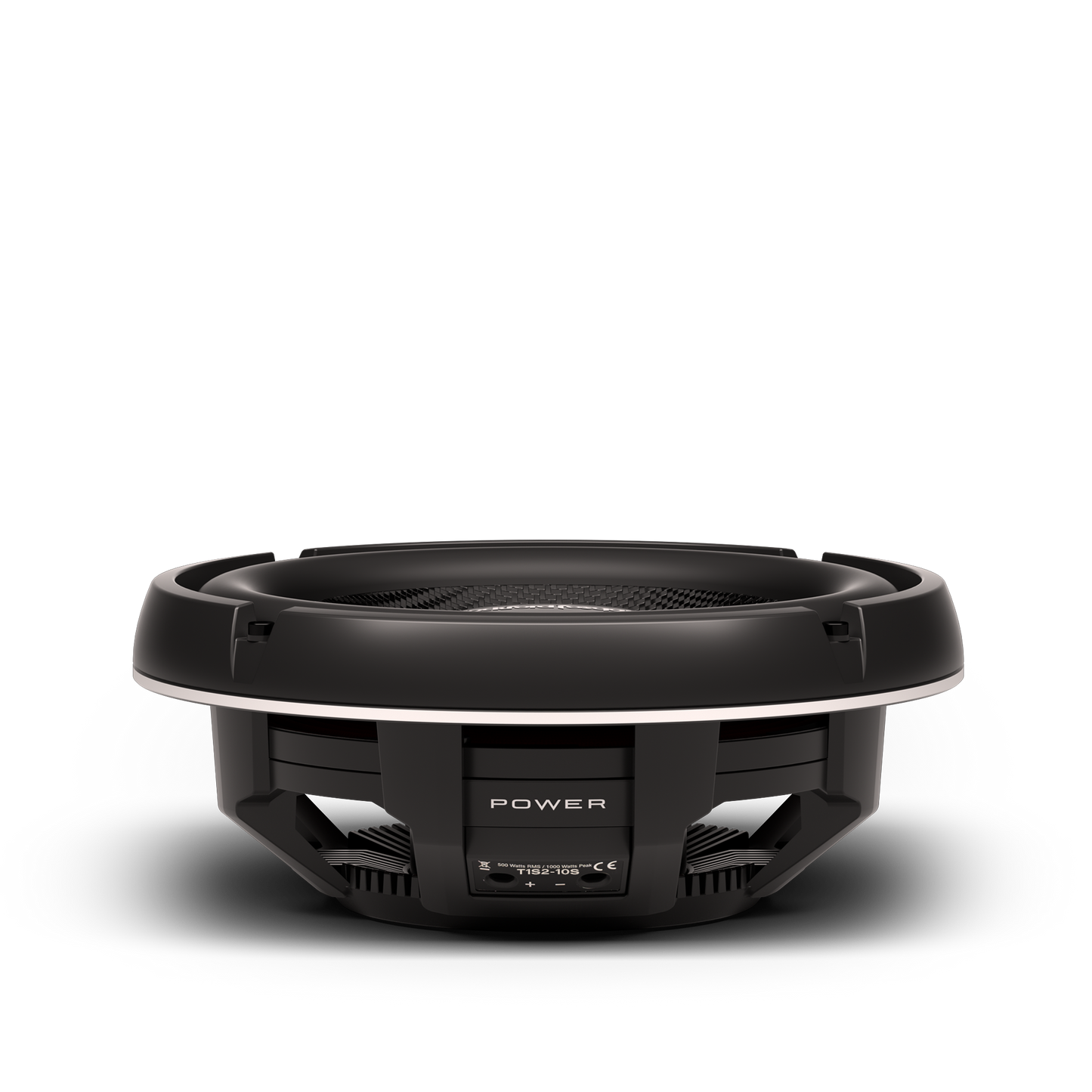

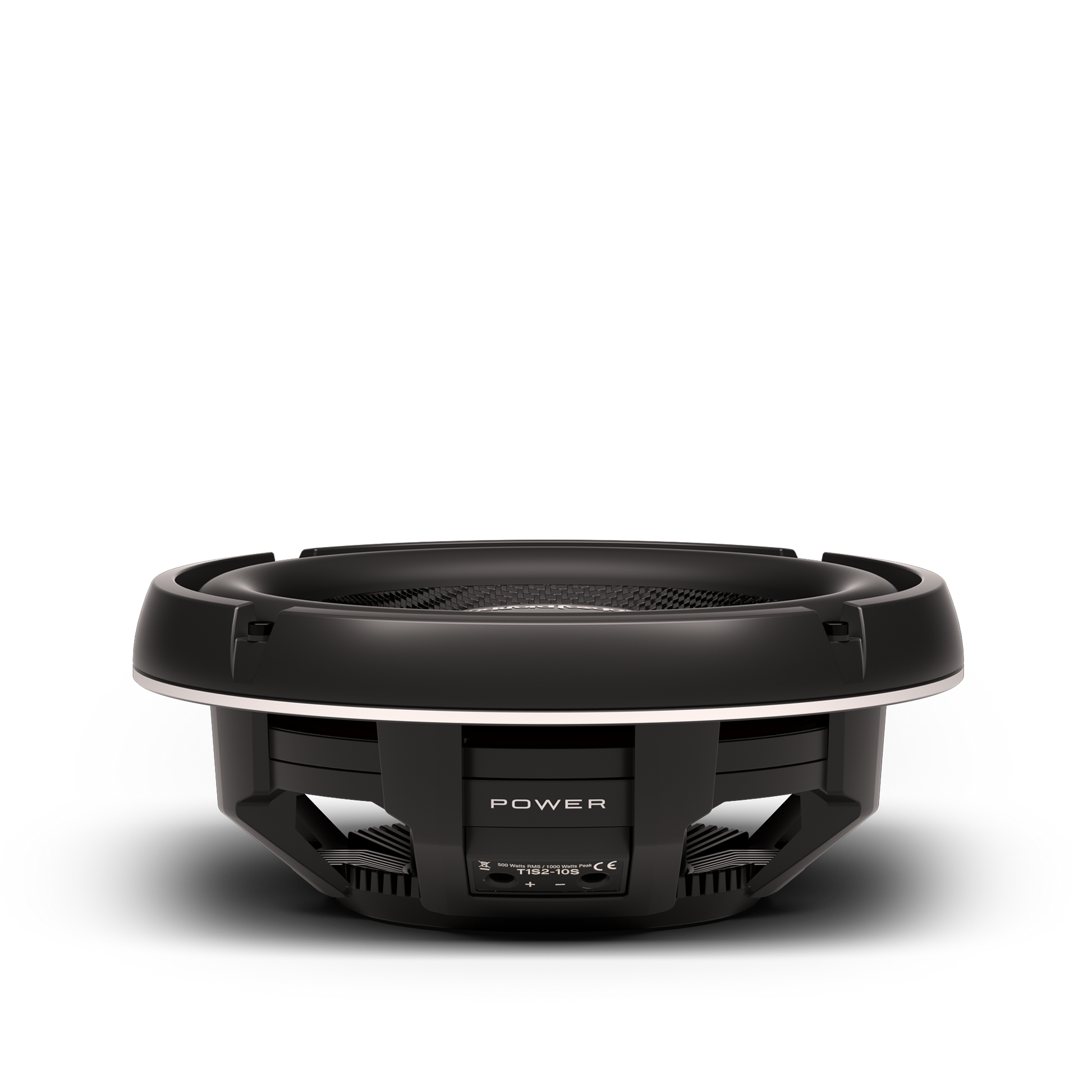

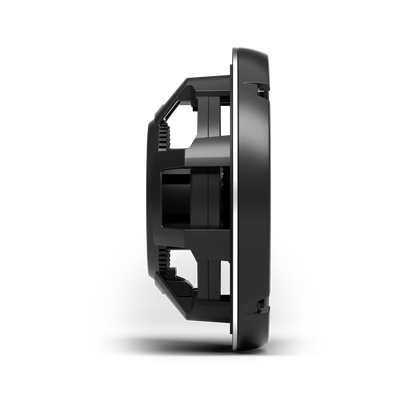

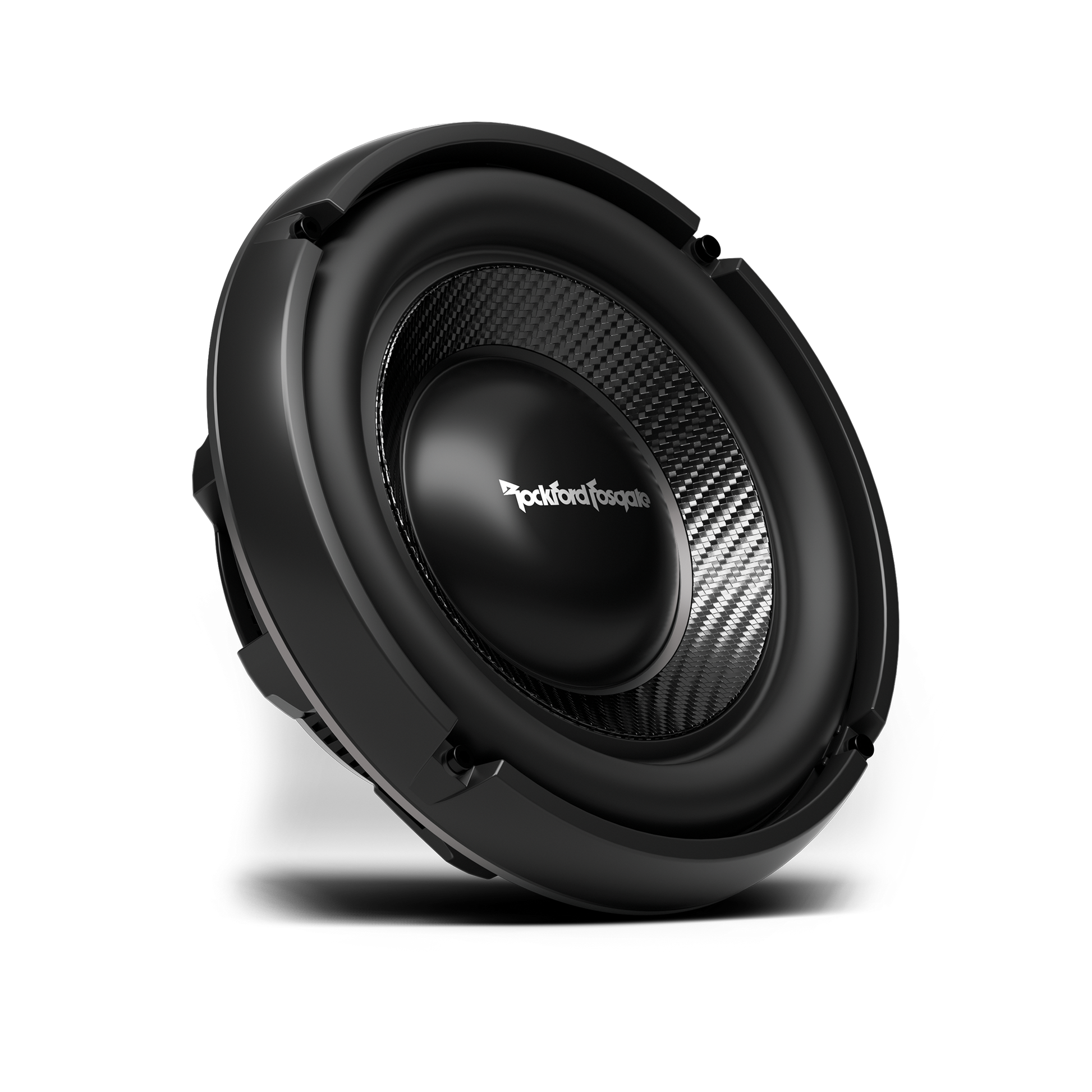

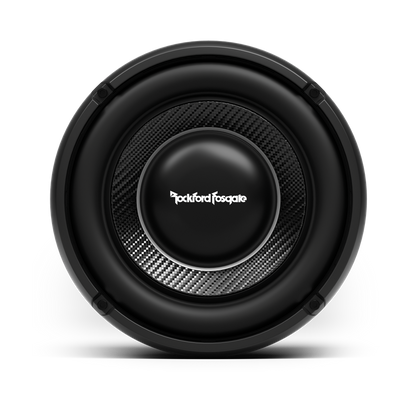

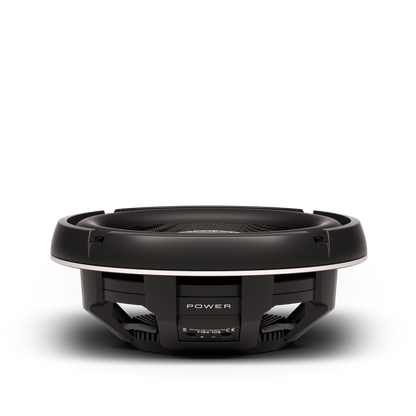

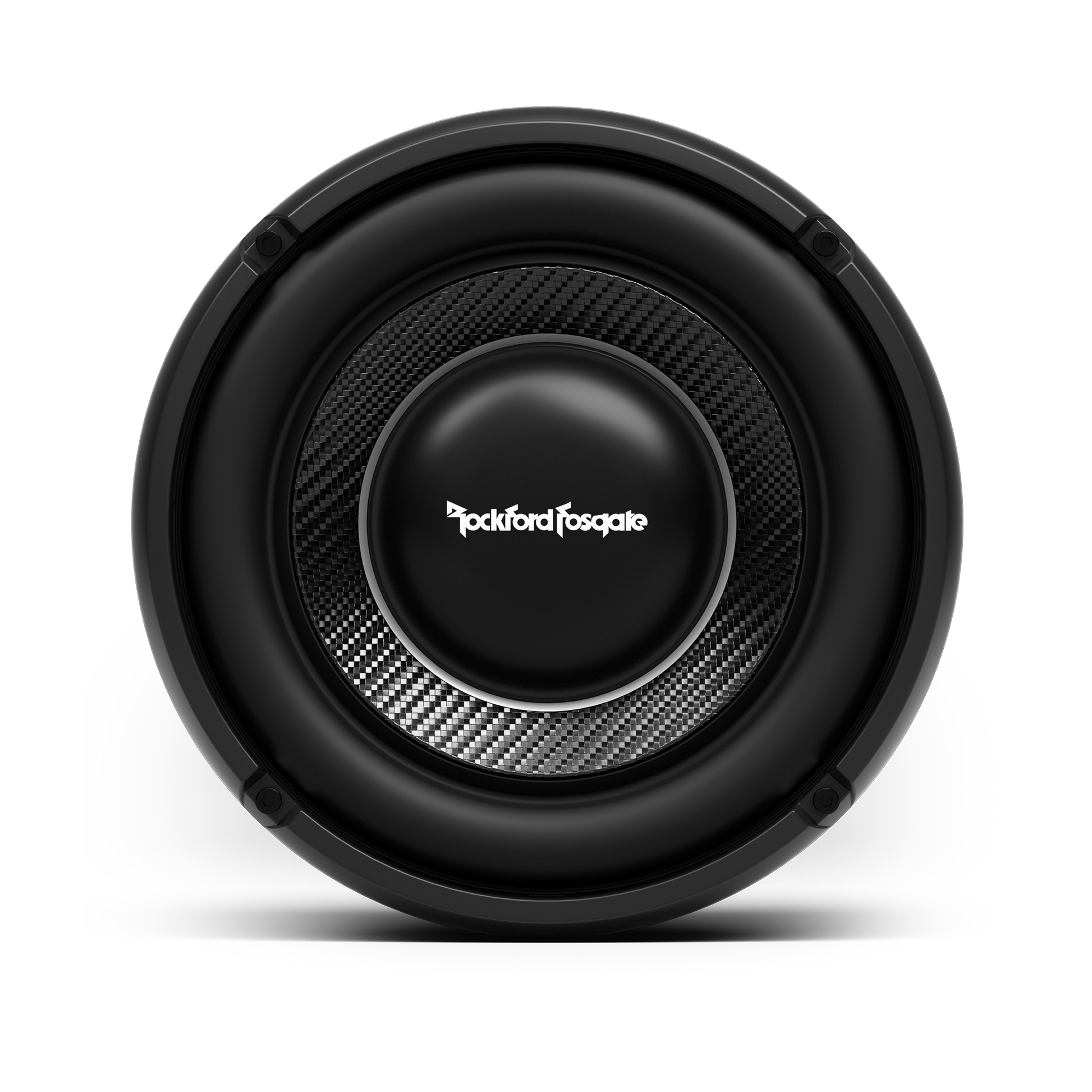

Rockford Fosgate T1S2-10S

Rockford Fosgate T1S2-10S

In stock

Power 10" T2 Slim 2Ω SVC Subwoofer for Sealed Enclosures

  • New Launch
Regular price $449.99
Regular price Sale price $449.99
Save: $-449.99 (% Off)*
Sale Sold out
Shipping calculated at checkout.
  • Free shipping Over $99
Sold in last hours
  • Fast, FREE Delivery

    Free, Fast, Doorstep Delight!

  • Delivery & Returns

    Effortless Delivery, Easy Returns

View full details
  • Overview
  • Details
  • Accessories

The re-engineered T1 Slim subwoofer series delivers next-level reliability and tactile bass performance, offering improved responsiveness and exceptional thermal management. Available in both sealed and ported options, these subwoofers are designed for the tightest installations, while still providing all the bass you demand.

Sound of Surround – Utilizing Nano Cell Direct injection and a bonded co-molded surround, the T1 series subwoofers ensures maximum reliability and high efficiency low end bass extension.

VCCF (Voice Coil Composite Former) – The voice coil is the heart of any speaker, and ours is crafted from a specialized composite material rigorously tested to withstand extreme heat and low thermal conditions, ensuring no-quit power and minimal motor distortion.

Dual Spiders – The voice coil carrier features a asymmetric aligned 2-spider design to deliver enhanced bass response. Each spider works together to handle a range of low-end notes, ensuring you never miss any bass hits in your music.

Perfect Fit – Available in multiple options, including sealed and ported options, these subwoofers make it easy to find the perfect fit for any installation, no matter the space.

Max Bass, Slim Space

This Gen-2 version of Rockford Fosgate’s "T1 Slim" subwoofer is designed to deliver big bass in a compact, shallow design. It’s been re-engineered with more mass to fit in smaller enclosures and includes upgrades like a new surround and better heat management.  The “S” sealed version is designed for smaller sealed enclosures and work best in closed environments (truck cab).

The voice coil now uses pure copper wire for better conductivity, paired with a new composite former to dissipate heat and reduce distortion. Additionally, an aluminum spider spacer improves cooling.  The suspension utilizes a new polymer surround, made using an advanced NCDI (Nano Cell Direct Injection) process to enhance efficiency and durability without risking dry-rot.

Features:

  • Supercritical synthetic organic polymer surround
  • Linear Carbon Fiber/PMI/Glass Fiber cone with aluminum dustcap
  • Chemically bonded co-molded surround for a stronger attachment
  • Symmetrical ultra-flexible braided flat tinsel leads resistant to fatigue
  • Dual Nomex progressive spiders with stitched tinsel leads
  • Dual wound single 2.5" pure copper voice coil with interior and exterior coils
  • High temp, high energy Neodymium motor structure

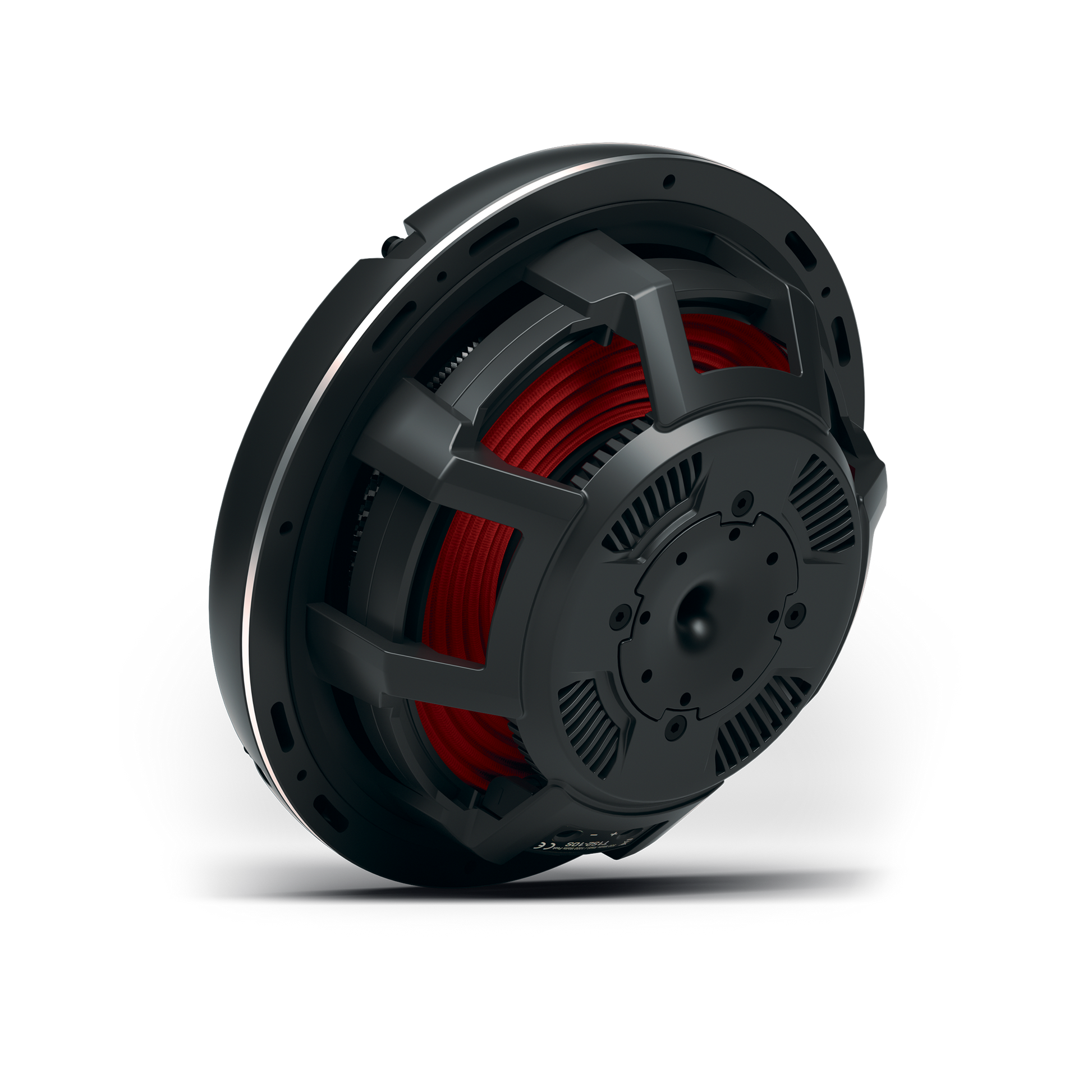

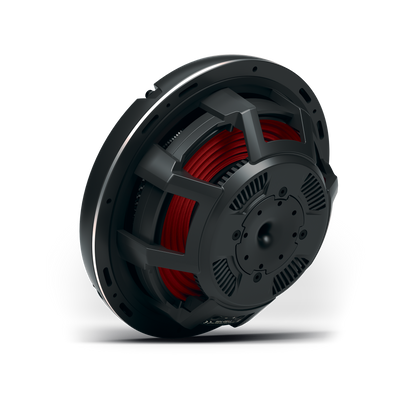

  • Diecast aluminum frame with integrated heat sink fins
  • Custom 10 AWG slot loaded brass push spring terminals with corrosion resistant tin plating
  • Detachable die cast aluminum trim ring
  • Optional protective grille insert available
  • Optimized for compact sealed enclosures
  • 1 Year Warranty

Specifications:

Size 10"
Subwoofer Type Shallow
Frequency Response 27 - 250 Hz
Nominal Impedance
Re (Ohms) 1.8 Ohms
Fs (Hz) 36 Hz
Qms 7.0
Qes 0.86
Qts 0.76
Sd (cm²) 356 cm²
Vas (Liters) 15.4 Liters
Le (mH) 0.71 mH
Xmax (mm) 15 mm
SPL (dB @ 1w/1m) 82 dB
Power Handling (Watts RMS) 500 Watts RMS, 1000 Watts Max
Voice Coil Type Single Voice Coil
Voice Coil Diameter 2.5" (63.5 mm)
Magnet Weight 15.1 oz. (0.43 kg)
Speaker Connector 10 AWG slot loaded
Cutout Diameter 9.13 in. (232 mm)
Mounting Depth 3.01 in. (76.5 mm)
Woofer Displacement 0.028 cu. ft. (0.82 Liters)
Sealed Box Volume (Vb) 0.5 – 0.75 cu. ft. (14.2 – 21.2 Liters)
Vented Box Volume (Vb) Not Provided
In The Box (1) 1125-73494-01 Bit Driver, 40mm 5.0mm
  (4) 1125-80626-01 4mm Hex, M5x43mm
  (8) 1125-80626-01 4mm Hex, M5x43mm Self Tap
Shipping Weight 11 Lbs. (4.99 kg)
