Rockford Fosgate T2S1-13

Rockford Fosgate T2S1-13

In stock

Power 13" T2 Single 1-Ohm Subwoofer

  • price-tag logoNew Launch
Regular price $1,099.99
Regular price Sale price $1,099.99
Save: $-1,099.99 (% Off)*
Sale Sold out
Shipping calculated at checkout.
  • cargo-truck logoFree shipping Over $99
Sold in last hours
  • free logo
    Fast, FREE Delivery

    Free, Fast, Doorstep Delight!

  • return logo
    Delivery & Returns

    Effortless Delivery, Easy Returns

View full details
  • Overview
  • Details
  • Accessories

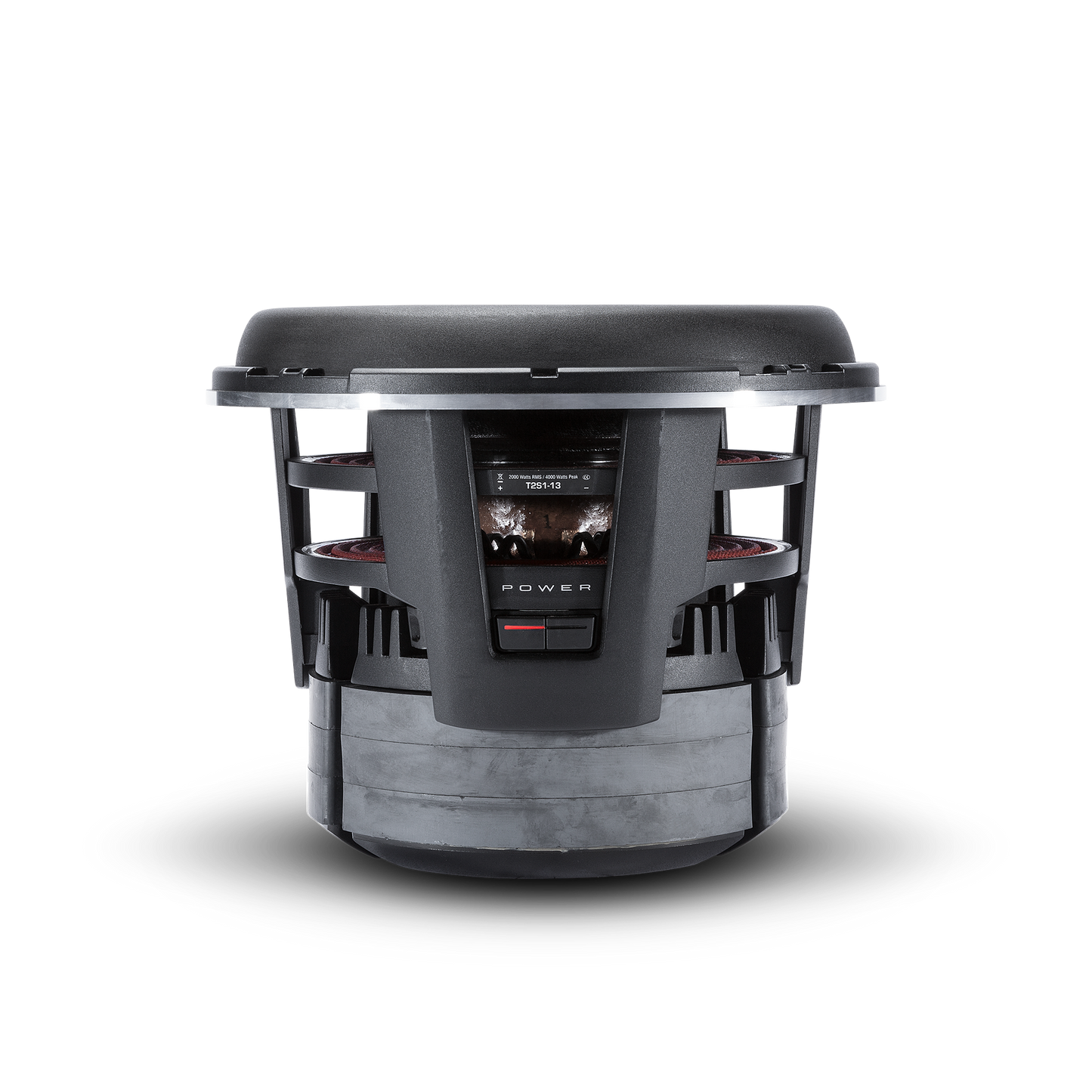

The Power T2S1-13 subwoofer features 13-inches of effective radiating cone area and a single 1-ohm voice coil for ease of wiring.

This subwoofer is not just another made with off-the-shelf parts, we wanted something better, and we knew our fanatics demand this as well. Since the original Power T2 subwoofer was designed by one of the leading loudspeaker engineers in the world, there were some lofty goals that had to be reached. Work was done from the ground-up to out-perform it's previous family members, while incorporating valuable feedback from our great network of Rockford Fosgate dealers. They wanted it bigger and badder with dual everything, and we feel that goal was crushed.

Why 13-inches?  Well, this is a combination of the cone and surround assembly described as the "total effective radiating area".  Since this model is so massive, we incorporated dual spiders for exceptional travel of the cone assembly. The motor structure operates very linear for exceptional sonic quality and the IDHS heat-sink gives the subwoofer impressive power handling capacity. Top it off with proprietary input terminals for large gauge cables to efficiently deliver the needed voltage, and this subwoofer is ready to drop the doom!

WARNING: Use caution when installing this subwoofer. It's heavier than Atlas holding a globe on his shoulders.

Features:

  • Three layer glass fiber/Aramid honeycomb/Glass fiber cone
  • Aluminum dustcap
  • Vented pole piece
  • Detachable die cast aluminum trim ring
  • Dual Nomex progressive spiders with stitched tinsel leads
  • Injection molded foam surround with VAST™
  • Integrated aluminum heat sinking shorting ring (IDHS)
  • Single layer edge wound aluminum 4" voice coil
  • Custom push spring insulated 8 AWG terminals
  • Diecast aluminum frame with integrated heat sink fins
  • Proprietary surround mechanical clamping ring
  • Triple stack segmented ferrite motor structure
  • 1 Year Warranty

Specifications:

CEA-2031 Compliant CEA-2031 Guidelines
Size 13"
Nominal Impedance 1-Ohm
Subwoofer Type Standard
Speaker Connector 8 AWG slot loaded
Fs (Hz) 25
Qes 0.39
Qms 2.93
Qts 0.34
Vas (Liters) 69.3
Sd (cm²) 707
Le (mH) 0.53
SPL (dB @ 1w/1m) 87
SPL (dB @ 2.8v/1m) 90
Xmax (mm) 34
Voice Coil Diameter 3.96" (100 mm)
Voice Coil Type Single Voice Coil
Magnet Weight 528 oz. (14.97 Kg)
Power Handling (Watts RMS) 2000 Watts RMS / 4000 Watts Max
Mounting Depth 9.70 in. (246 mm)
Cutout Diameter 12.28 in. (312 mm)
Woofer Displacement 0.250 cu. ft. (7.08 Liters)
Sealed Box Volume (Vb) 1.85 cu. ft. (52.3 Liters)
Vented Box Volume (Vb) 4.0 cu. ft. (113 Liters)
Shipping Weight 93.70 Lbs. (42.5 Kg)
