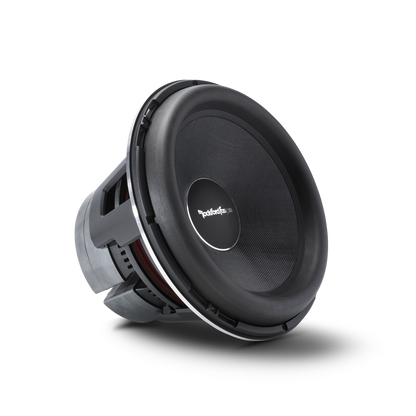

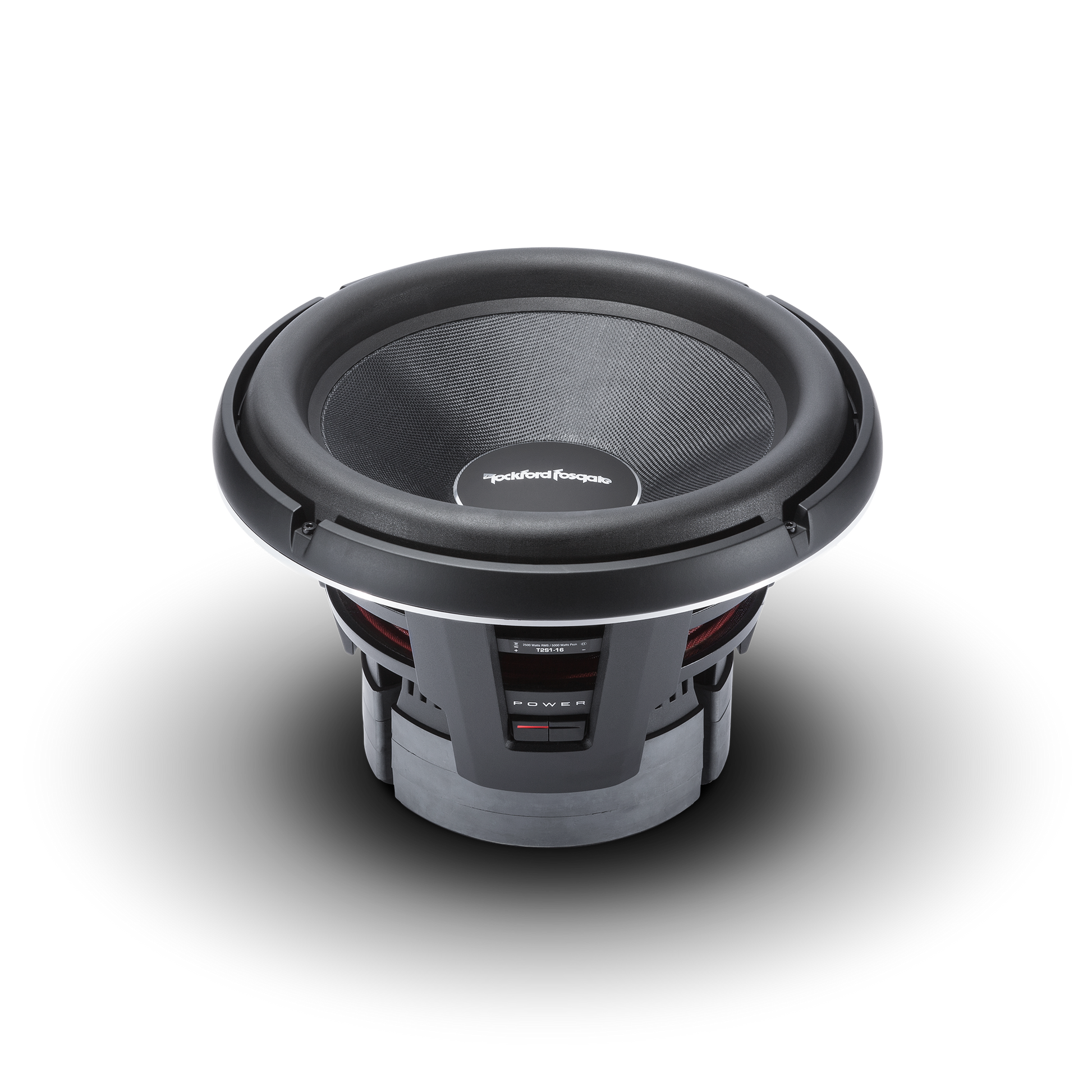

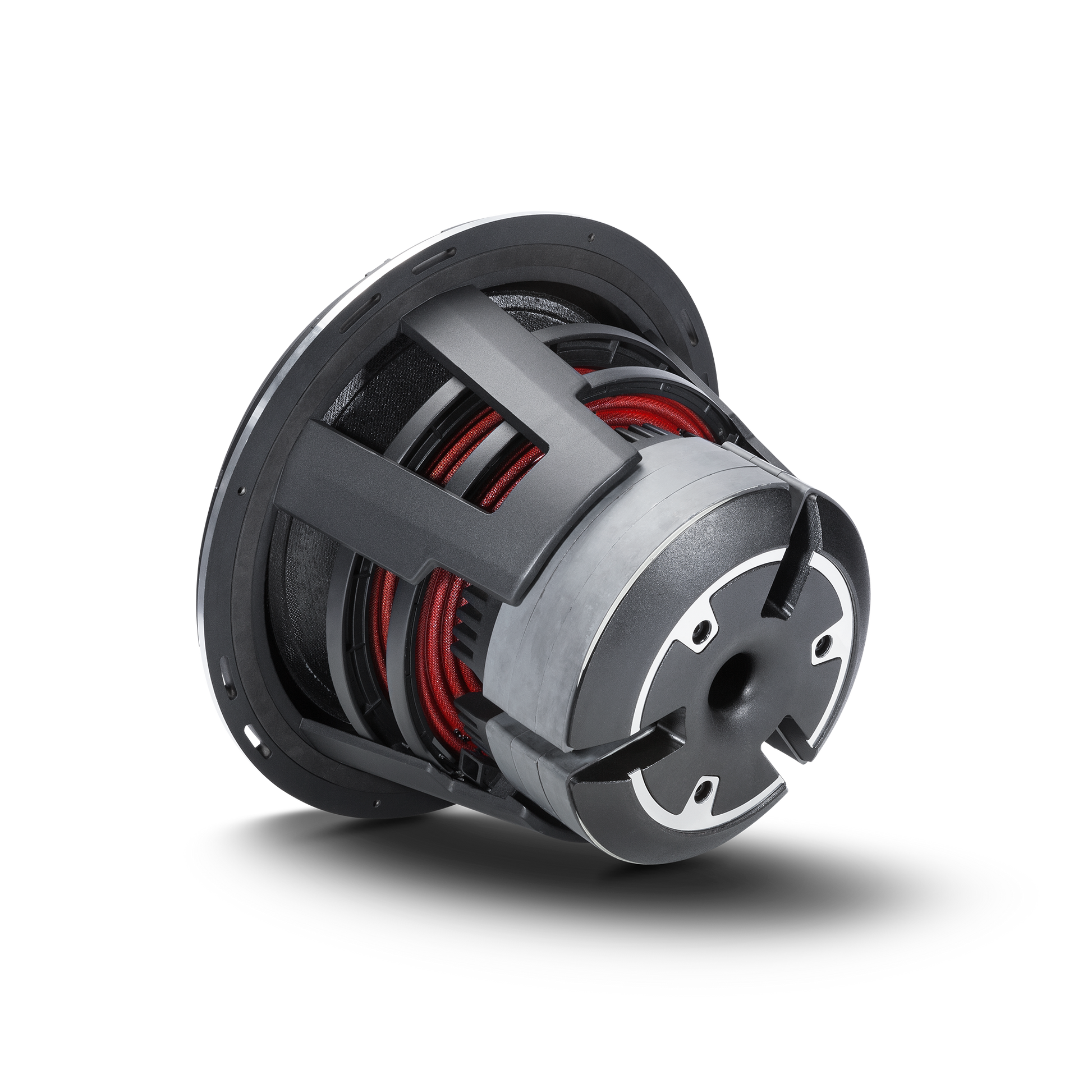

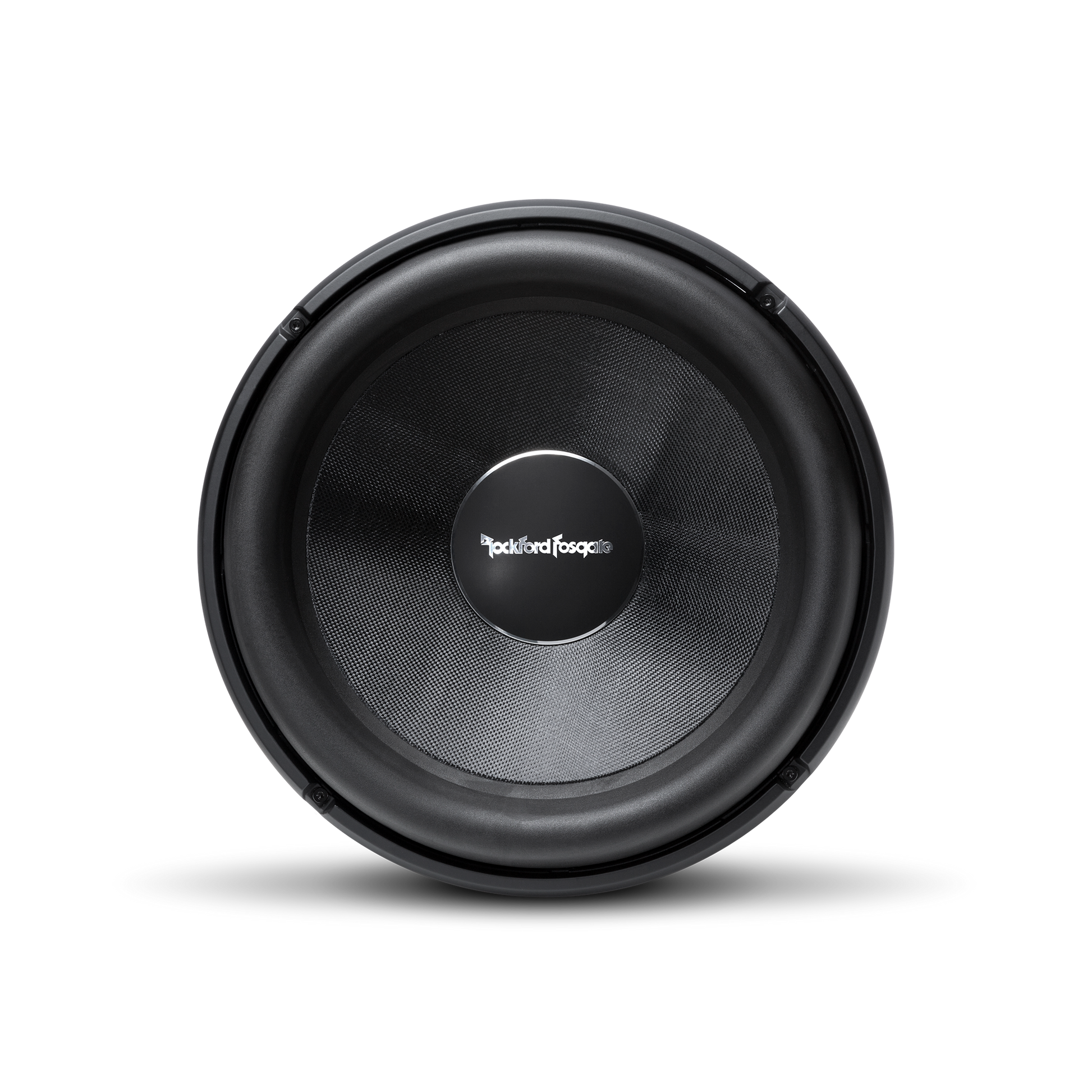

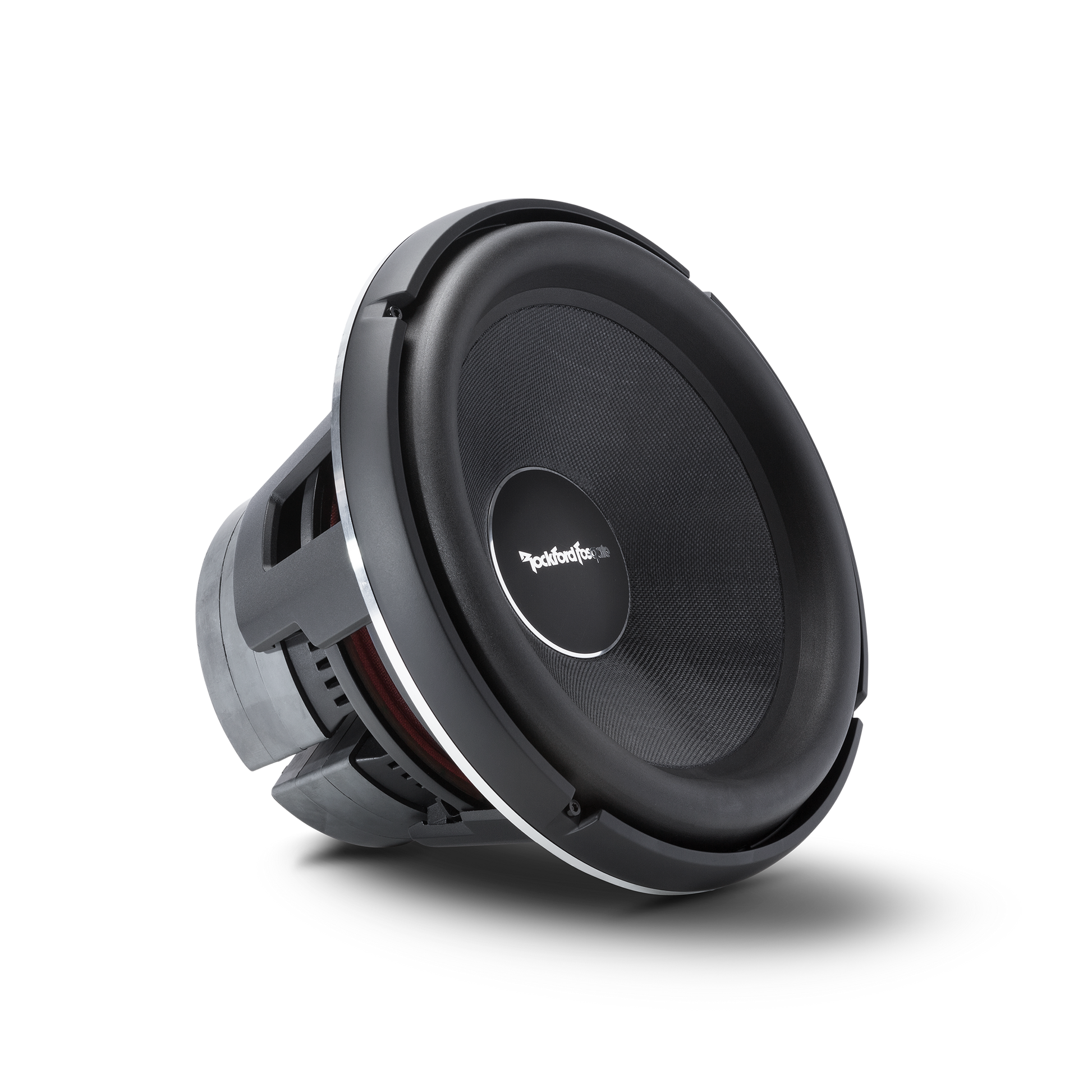

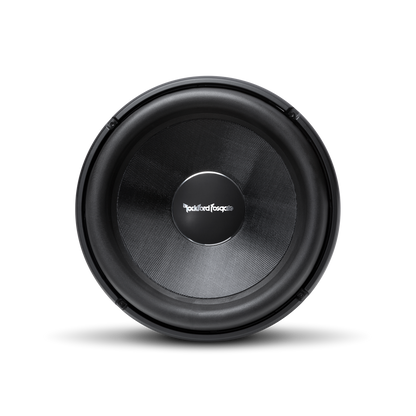

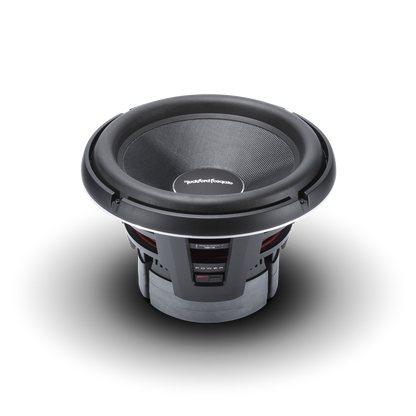

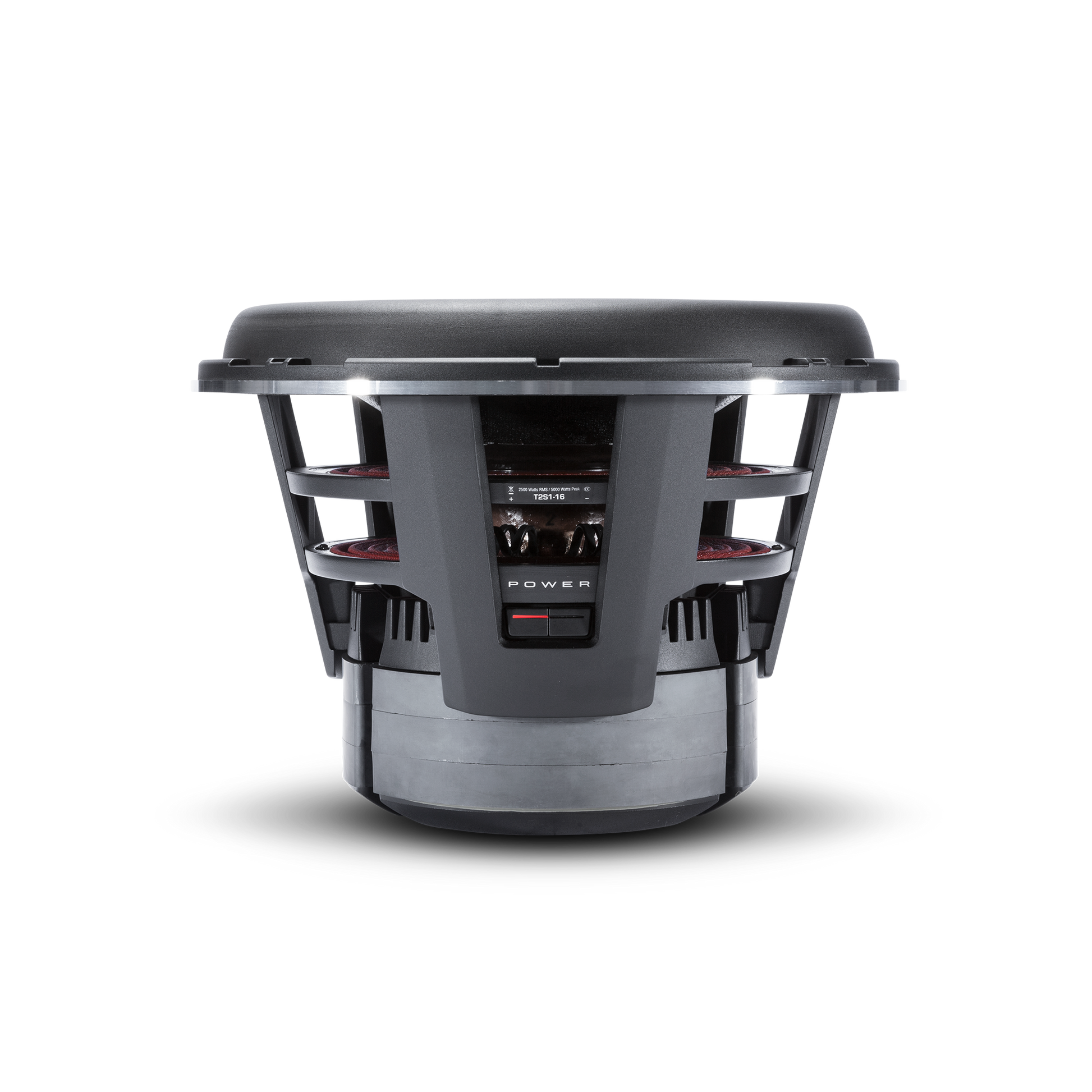

Rockford Fosgate T2S1-16

Rockford Fosgate T2S1-16

In stock

Power 16" T2 Single 1-Ohm Subwoofer

  • New Launch
Regular price $1,199.99
Regular price Sale price $1,199.99
Save: $-1,199.99 (% Off)*
Sale Sold out
Shipping calculated at checkout.
  • Free shipping Over $99
Sold in last hours
  • Fast, FREE Delivery

    Free, Fast, Doorstep Delight!

  • Delivery & Returns

    Effortless Delivery, Easy Returns

View full details
  • Overview
  • Details
  • Accessories

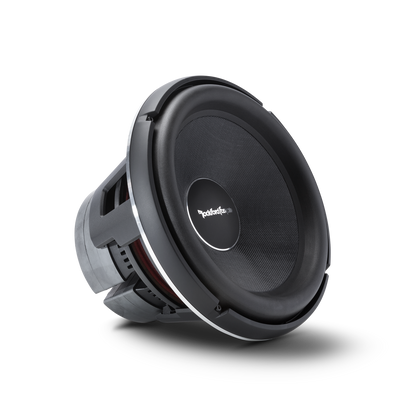

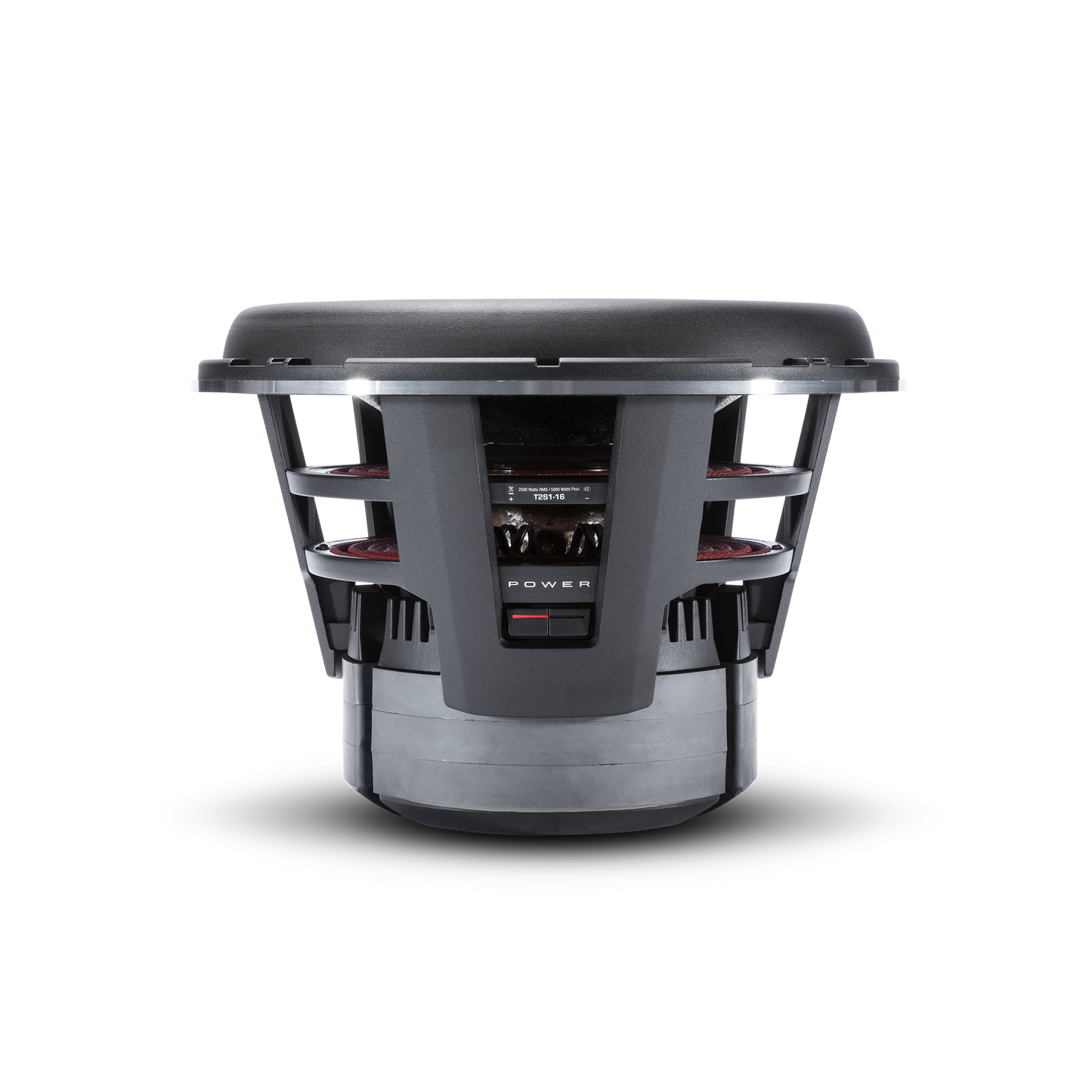

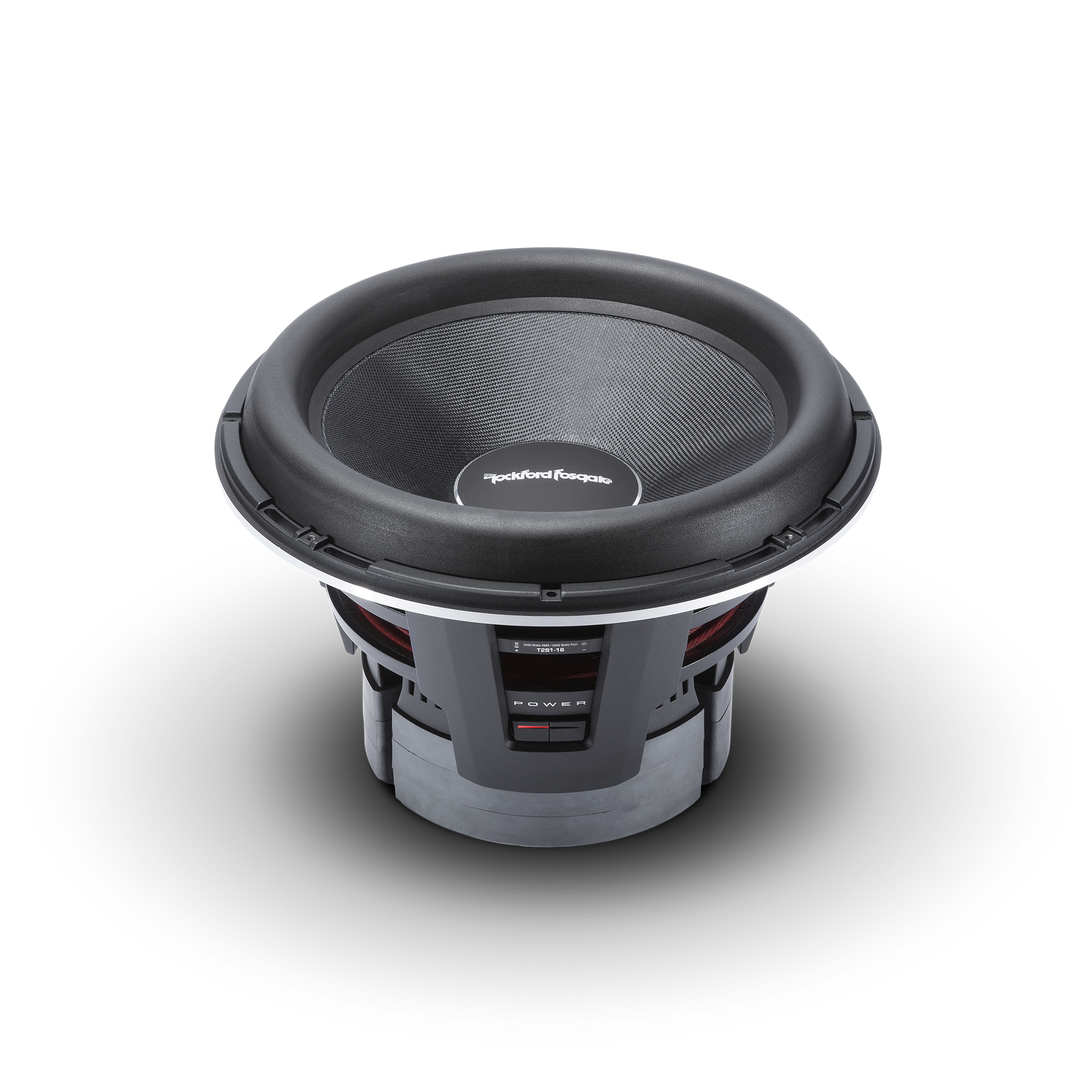

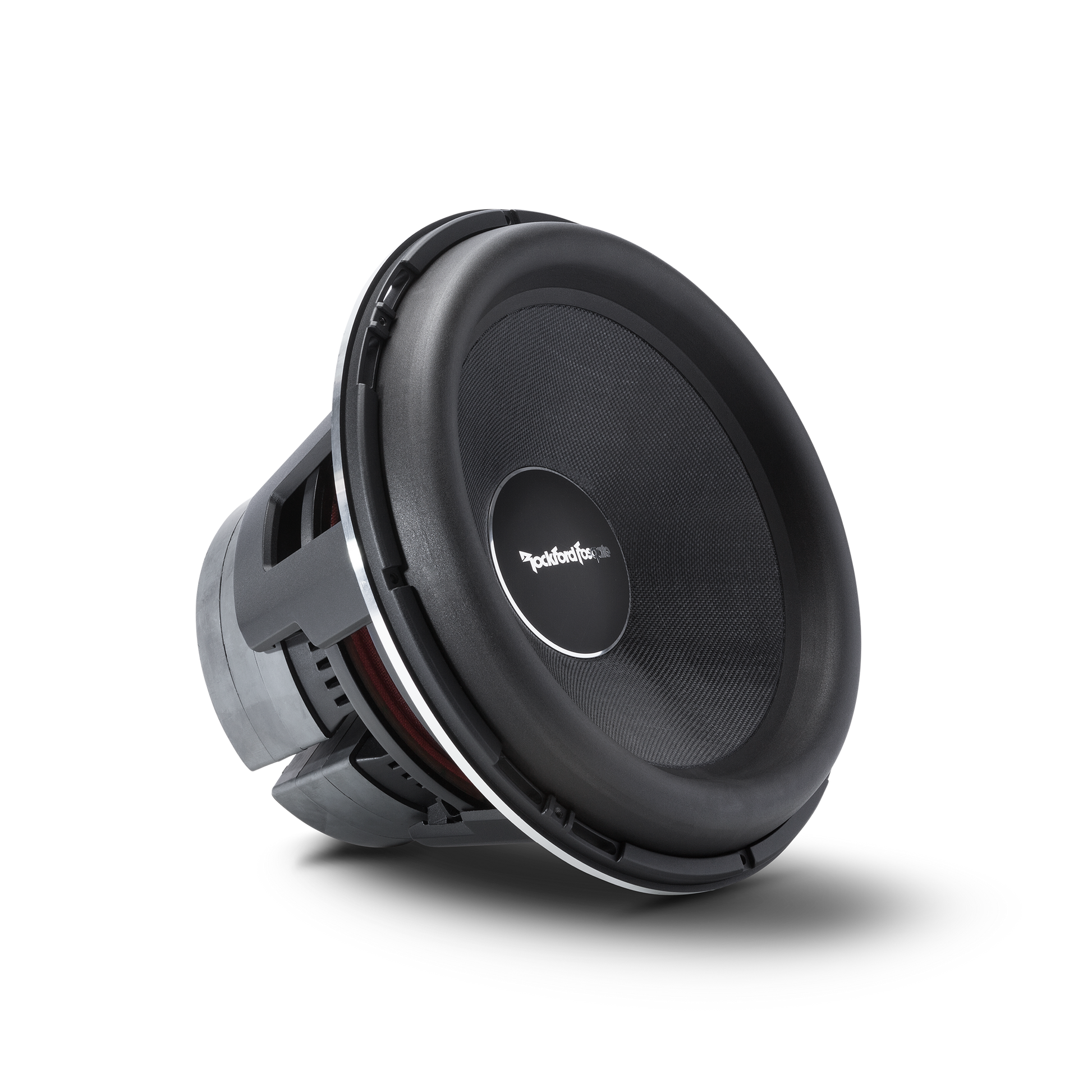

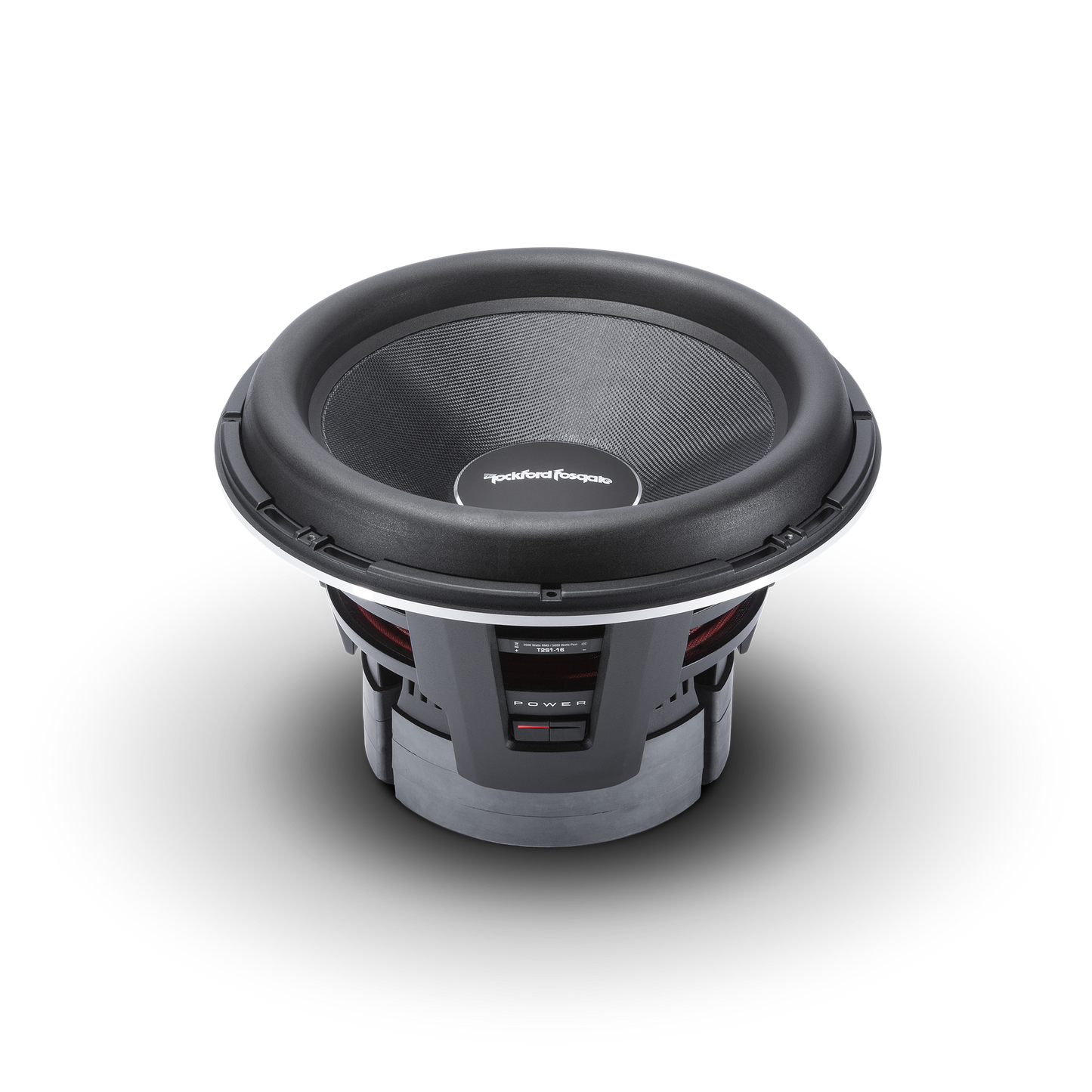

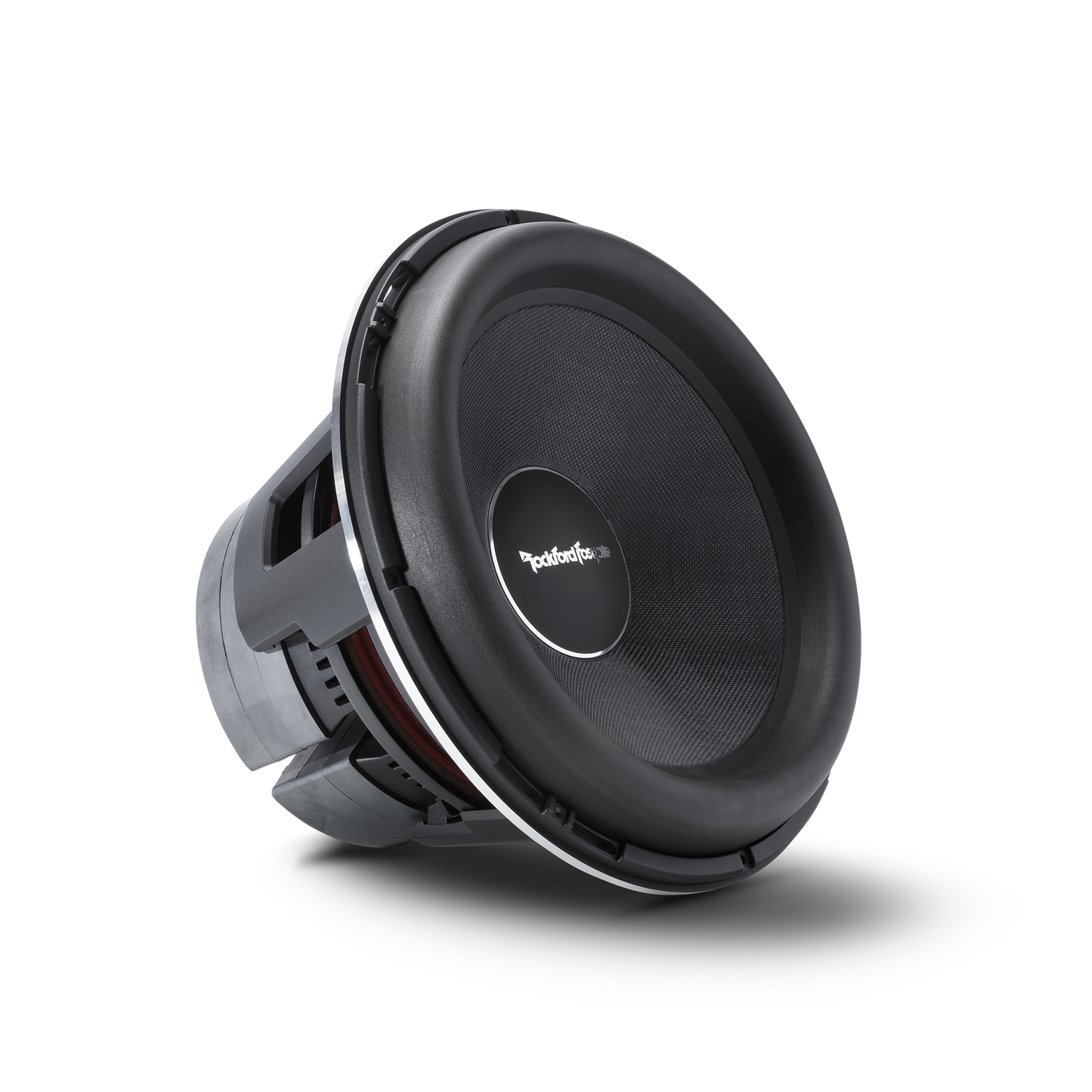

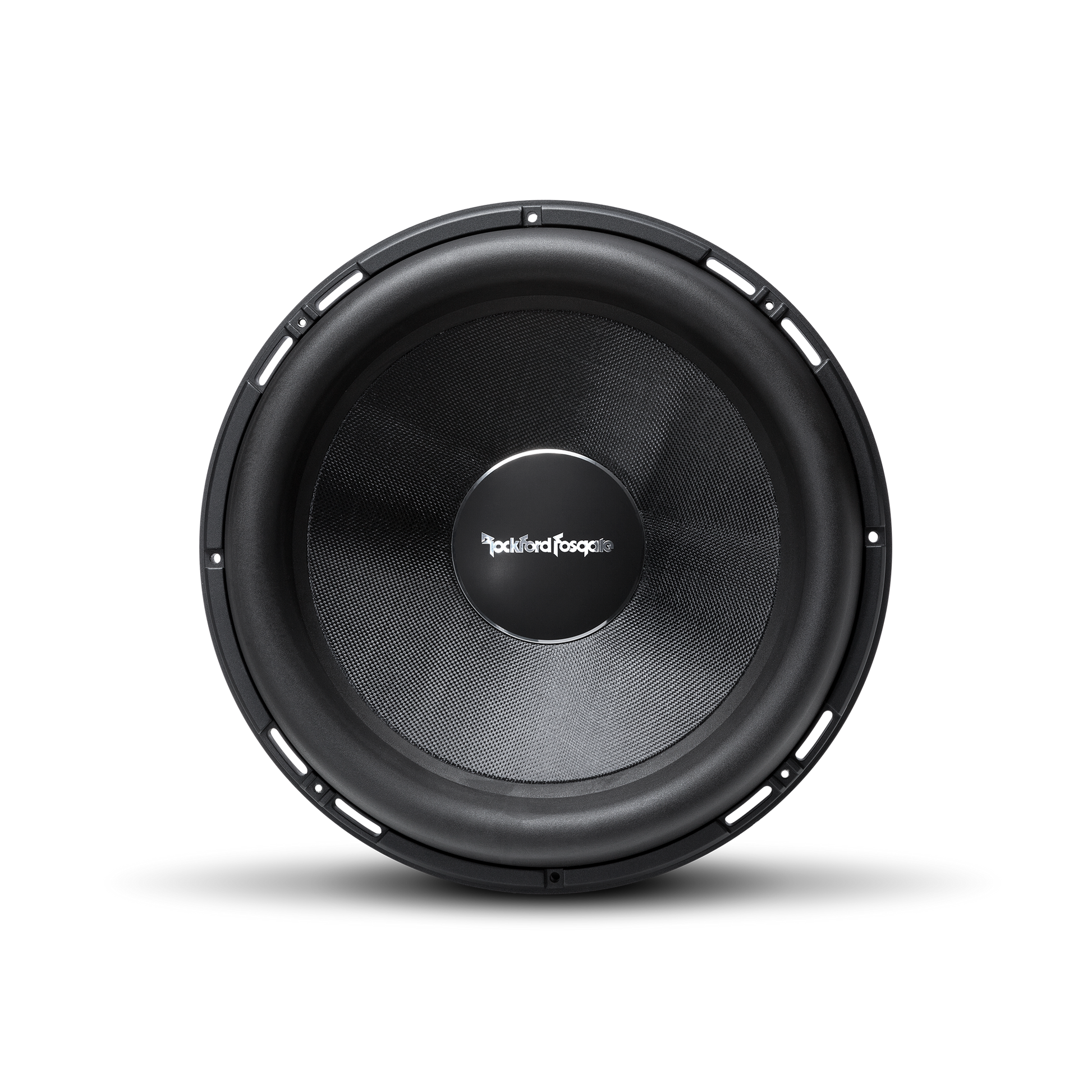

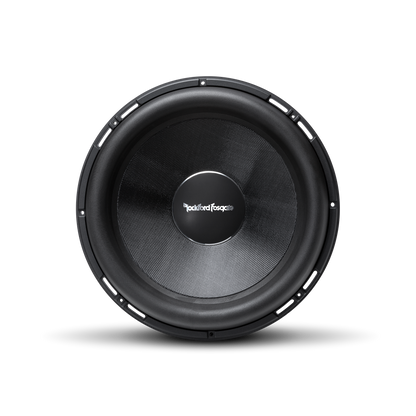

The Power T2S1-16 subwoofer features 16-inches of effective radiating cone area and a single 1-ohm voice coil for ease of wiring.

This subwoofer is not just another made with off-the-shelf parts, we wanted something better, and we knew our fanatics demand this as well. Since the original Power T2 subwoofer was designed by one of the leading loudspeaker engineers in the world, there were some lofty goals that had to be reached. Work was done from the ground-up to out-perform it's previous family members, while incorporating valuable feedback from our great network of Rockford Fosgate dealers. They wanted it bigger and badder with dual everything, and we feel that goal was crushed.

Why 16-inches?  Well, this is a combination of the cone and surround assembly described as the "total effective radiating area".  Since this model is so massive, we incorporated dual spiders for exceptional travel of the cone assembly. The motor structure operates very linear for exceptional sonic quality and the IDHS heat-sink gives the subwoofer impressive power handling capacity. Top it off with proprietary input terminals for large gauge cables to efficiently deliver the needed voltage, and this subwoofer is ready to drop the doom!

WARNING: Use caution when installing this subwoofer. It's heavier than Atlas holding a globe on his shoulders.

Features:

  • Three layer glass fiber/Aramid honeycomb/Glass fiber cone
  • Aluminum dustcap
  • Diecast aluminum frame with integrated heat sink fins
  • Injection molded foam surround with VAST™
  • Detachable die cast aluminum trim ring
  • 1 Year Warranty
  • Proprietary surround mechanical clamping ring
  • Custom push spring insulated 8 AWG terminals
  • Dual Nomex progressive spiders with stitched tinsel leads
  • Single layer edge wound aluminum 4" voice coil
  • Integrated aluminum heat sinking shorting ring (IDHS)
  • Vented pole piece

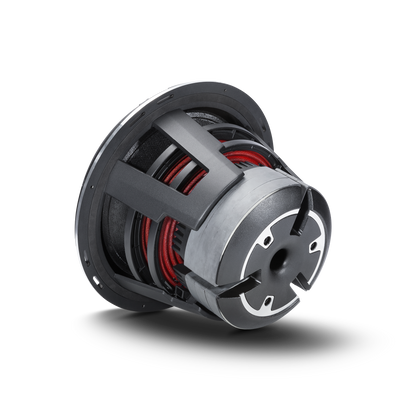

  • Triple stack segmented ferrite motor structure

Specifications:

CEA-2031 Compliant CEA-2031 Guidelines
Size 16"
Nominal Impedance 1-Ohm
Subwoofer Type Standard
Speaker Connector 8 AWG slot loaded
Fs (Hz) 28.5
Qes 0.57
Qms 3.73
Qts 0.49
Vas (Liters) 84.5
Re (Ohms) 0.9
Sd (cm²) 1034
Le (mH) 0.53
SPL (dB @ 1w/1m) 89
SPL (dB @ 2.8v/1m) 92
Xmax (mm) 34
Voice Coil Diameter 3.96" (100 mm)
Voice Coil Type Single Voice Coil
Magnet Weight 529 oz. (15 Kg)
Power Handling (Watts RMS) 2500 Watts RMS / 5000 Watts Max
Mounting Depth 10.47 in. (266 mm)
Cutout Diameter 15.04 in. (382 mm)
Woofer Displacement 0.289 cu. ft. (8.2 Liters)
Sealed Box Volume (Vb) 2.4 cu. ft. (67.9 Liters)
Vented Box Volume (Vb) 5.5 cu. ft. (155 Liters)
Shipping Weight 100.80 Lbs. (45.7 Kg)
