Rockford Fosgate

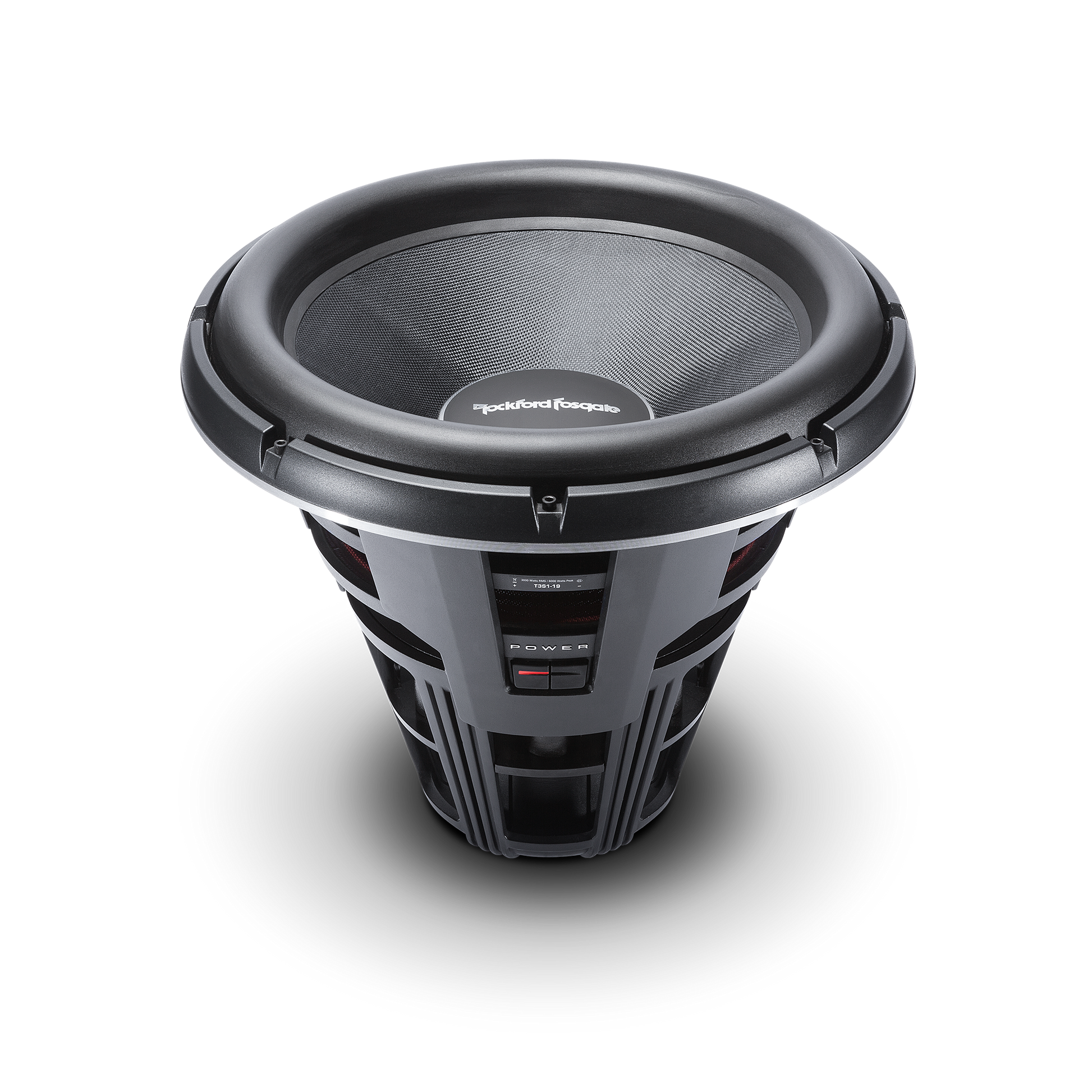

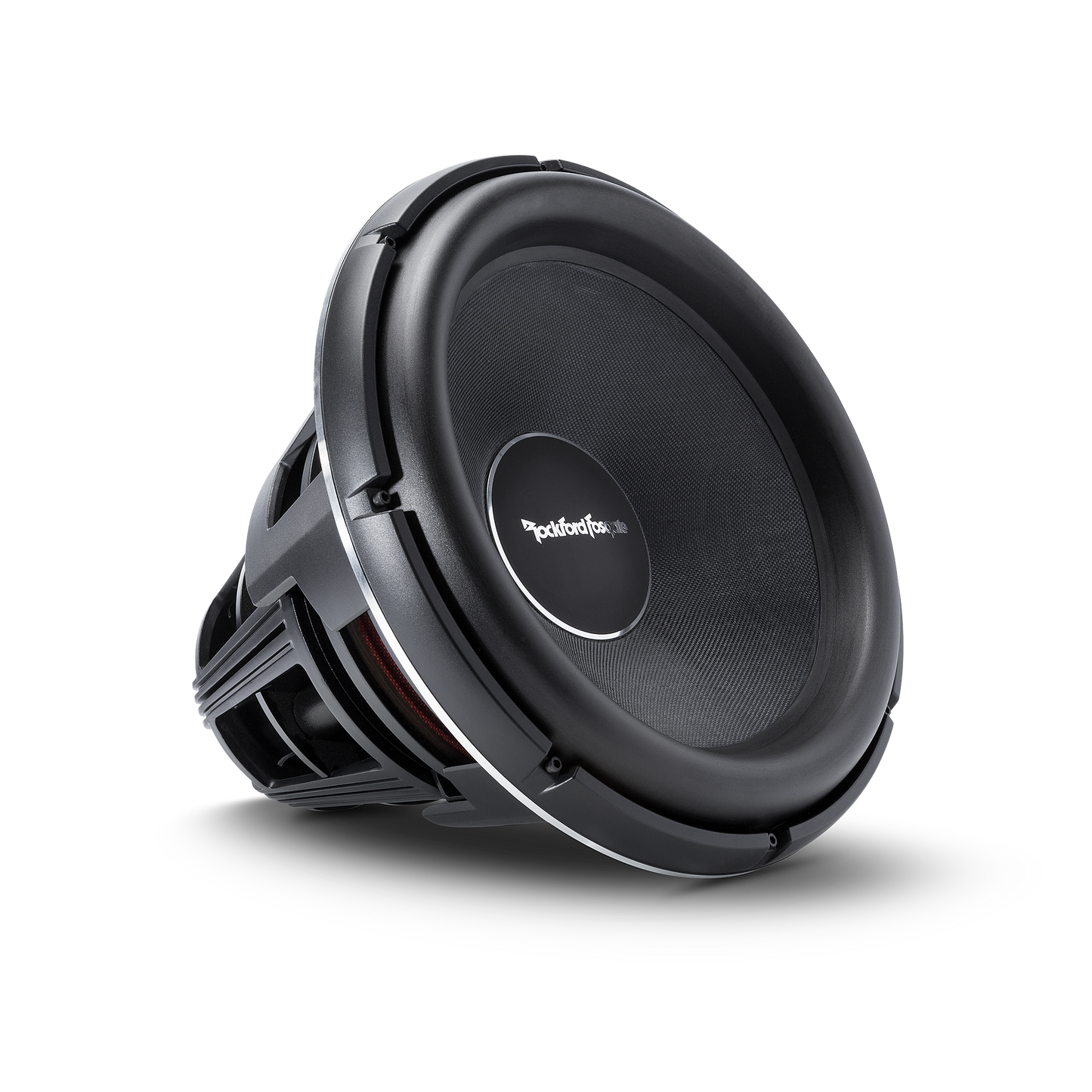

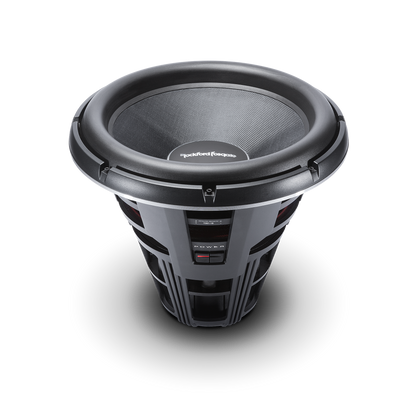

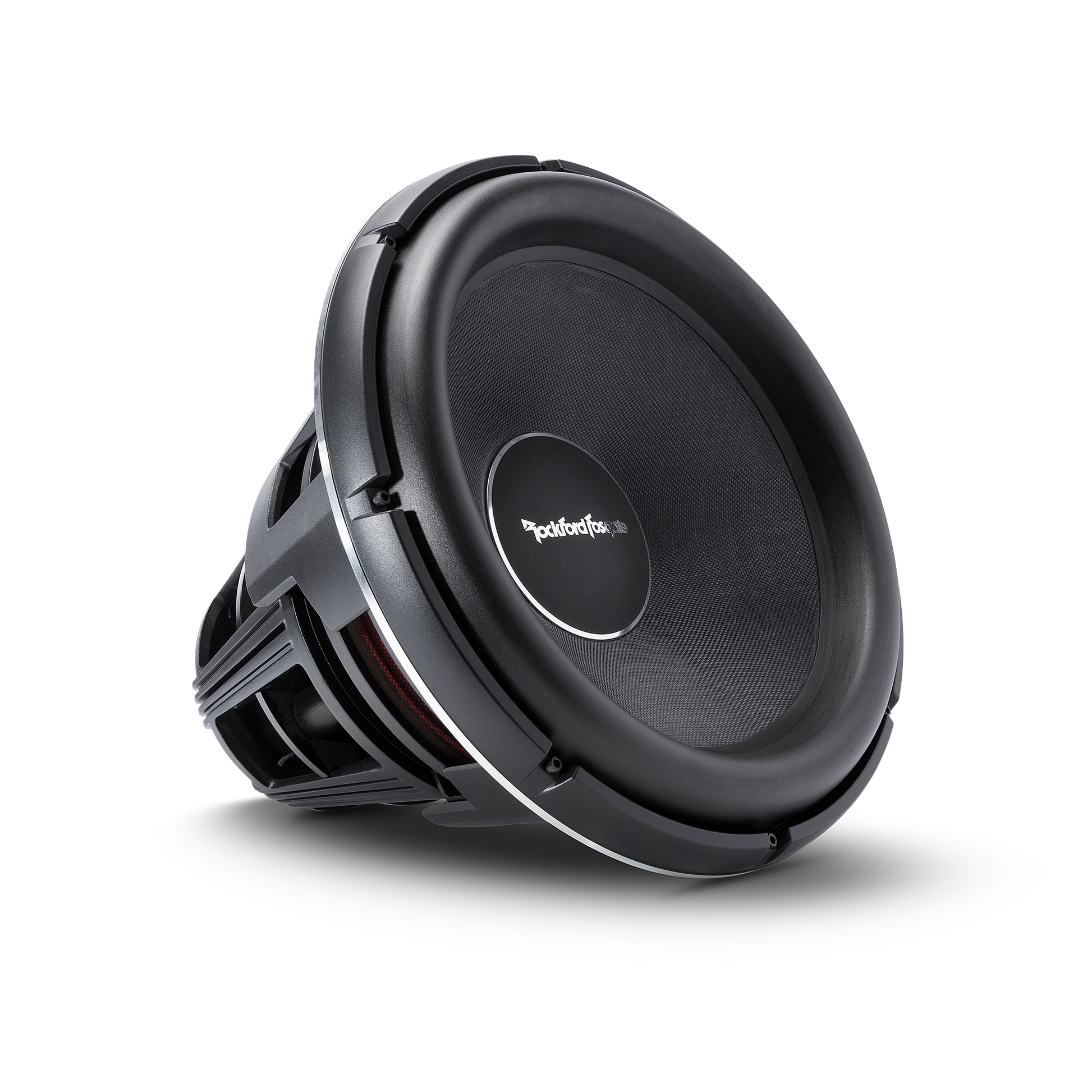

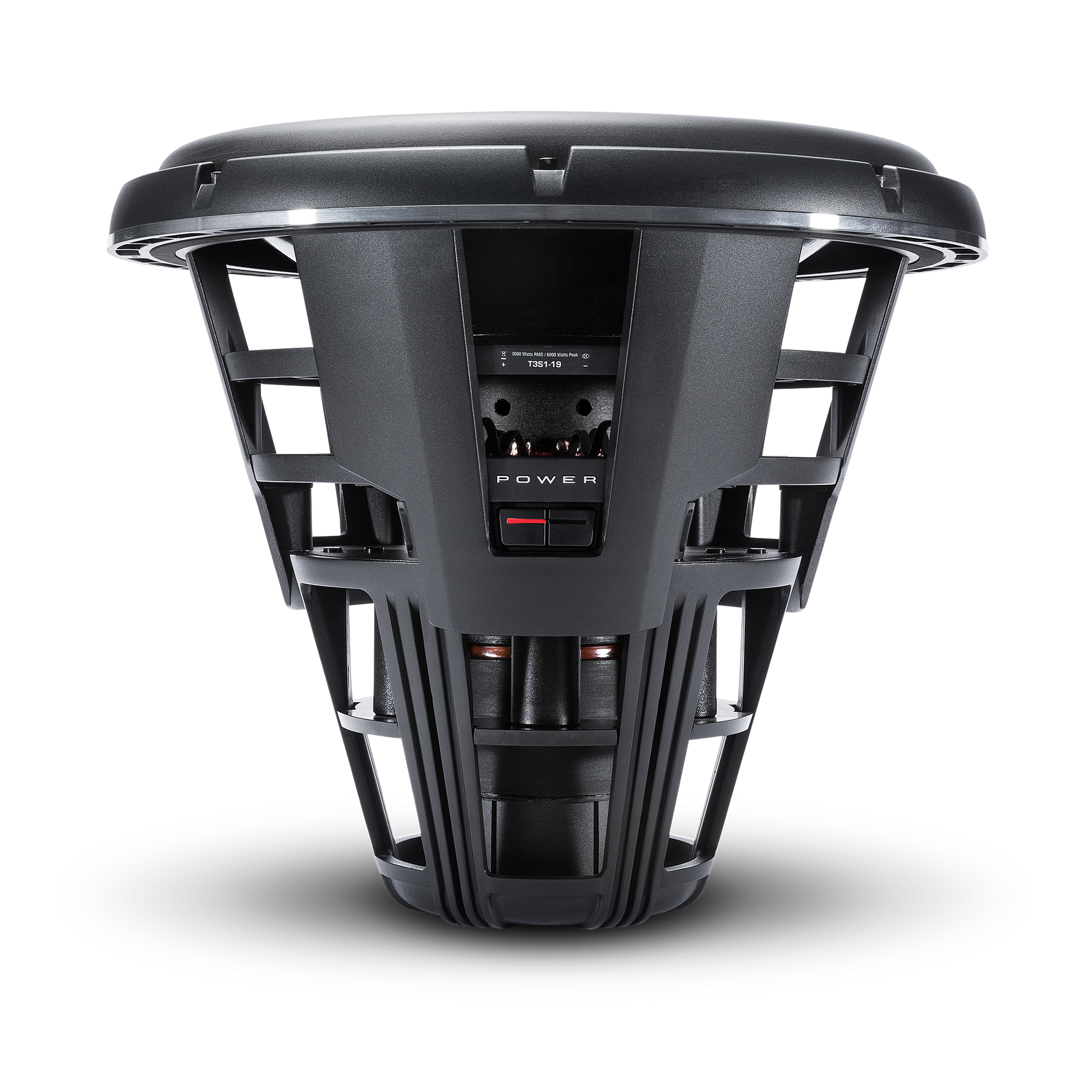

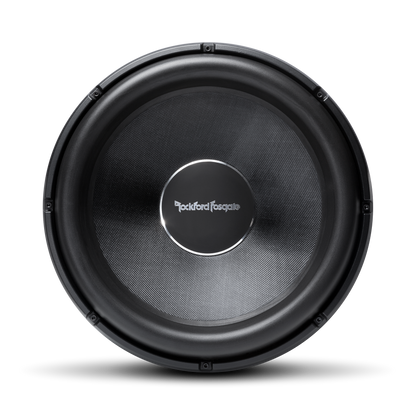

Rockford Fosgate T3S1-19

Rockford Fosgate T3S1-19

In stock

Power 19" T3 Single 1-Ohm Superwoofer

  • New Launch
Regular price $1,999.99
Regular price Sale price $1,999.99
Save: $-1,999.99 (% Off)*
Sale Sold out
Shipping calculated at checkout.
  • Free shipping Over $99
Sold in last hours
  • Fast, FREE Delivery

    Free, Fast, Doorstep Delight!

  • Delivery & Returns

    Effortless Delivery, Easy Returns

View full details
  • Overview
  • Details
  • Accessories

The Power T3S1-19 superwoofer has a whopping 19-inches of effective radiating cone area for deep bass and features a single 1-Ohm voice coil for easy wiring. This is the largest, most powerful loudspeaker Rockford Fosgate has ever built!

The Power T3S1-19 can rightfully be classified as a superwoofer due to its whopping 19-inches of effective radiating cone area! That's right... we don't need no stinkin' 18" subs ... this is for genuine Car Audio Fanatics that want to go BIG like Mannie Fresh. We're talkin' Real Big bass and Real Big power handling in a Real Big ride.

The Power T3 19" subwoofer incorporates technologies never before seen in car audio, like the Injection Molded Foam Surround, making the foam strong and durable like a rubberized material. The Edge Wound voice coil allows the windings to be very close with no air gaps so it stays cool for high power handling capacity. We also engineered a very efficient "Push/Pull" voice coil design with a huge Neodymium magnet for a very efficient motor assembly. Looking for more options? Check out all of our best subwoofers here.

Features:

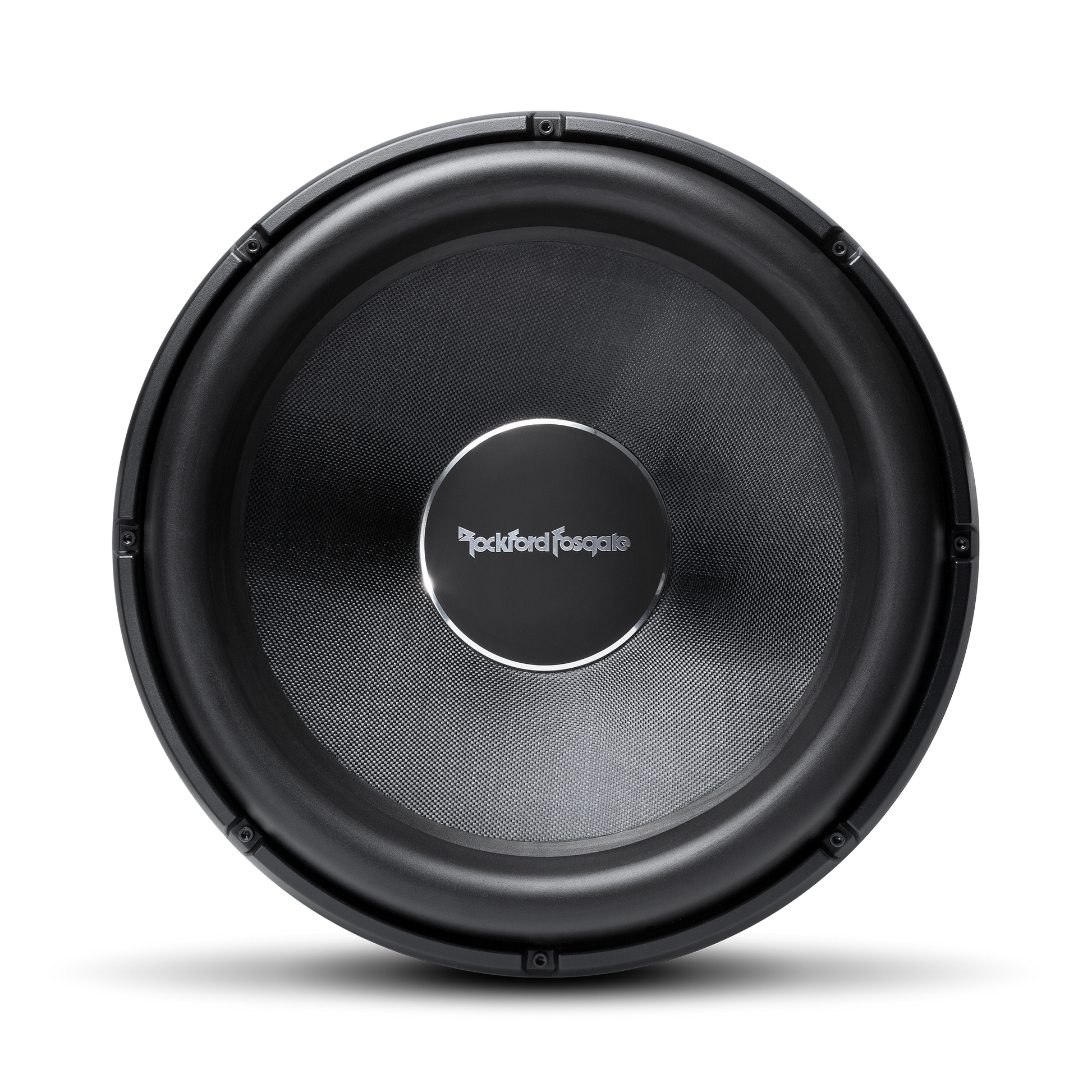

  • Aluminum dustcap
  • Injection molded foam surround with VAST™
  • Dual Nomex progressive spiders with stitched tinsel leads
  • Three layer glass fiber/Aramid honeycomb/Glass fiber cone
  • Proprietary surround mechanical clamping ring
  • Diecast aluminum frame with integrated heat sink fins and venting
  • Custom push spring insulated 4 AWG terminals
  • Single layer edge wound aluminum 5" voice coil
  • Integrated die cast aluminum trim ring

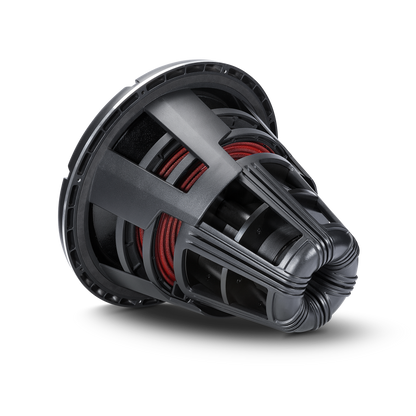

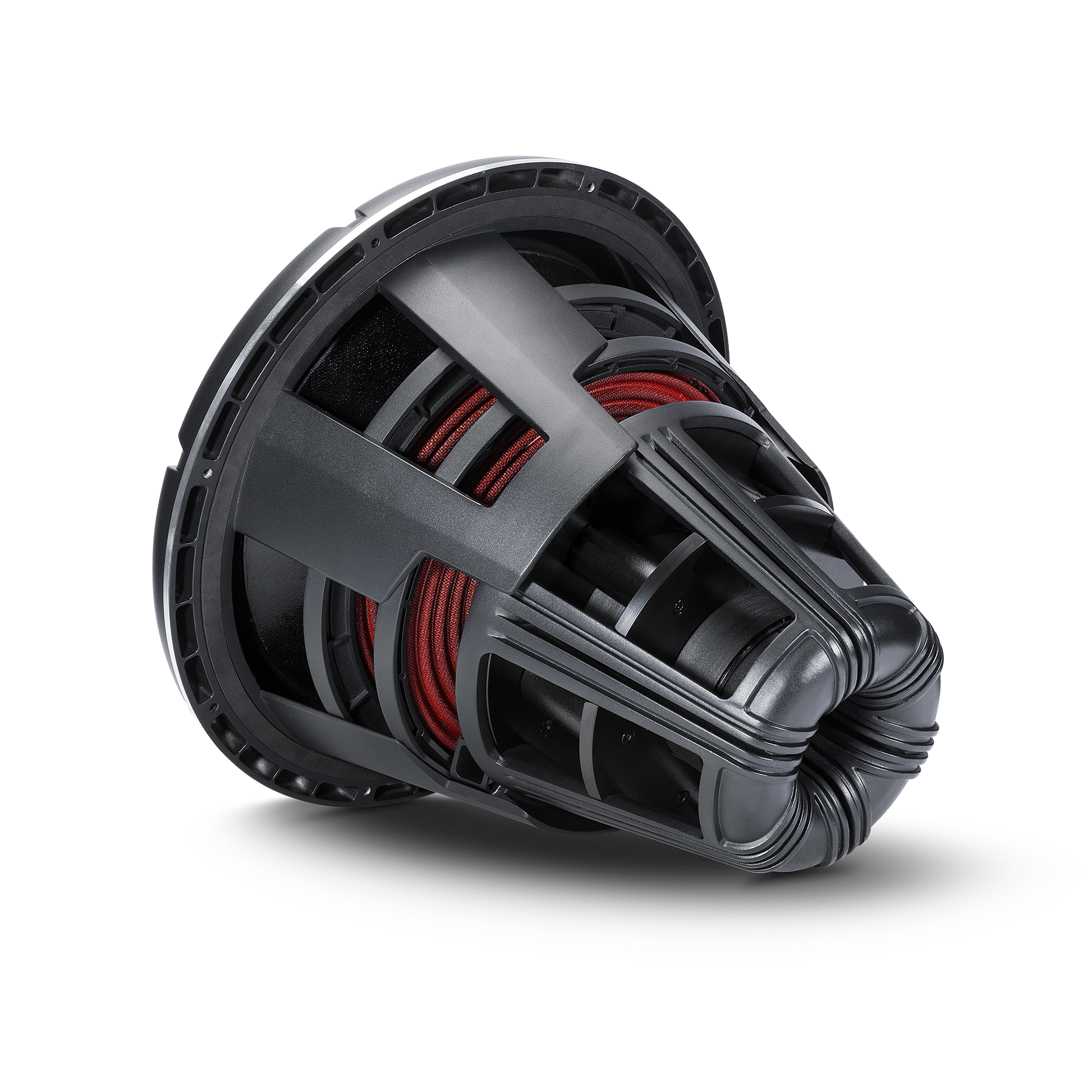

  • Dual gap multi-pole Neodymium push/pull motor structure
  • Since voice coil design with dual (push/pull) windings
  • 1 Year Warranty

Specifications:

CEA-2031 Compliant CEA-2031 Guidelines
Size 19"
Nominal Impedance 1-Ohm
Subwoofer Type Superwoofer
Speaker Connector 4 AWG Compression Terminal
Fs (Hz) 27
Qes 0.38
Qms 1.93
Qts 0.32
Vas (Liters) 104.9
Re (Ohms) 0.8
Sd (cm²) 1472
Le (mH) 0.45
SPL (dB @ 1w/1m) 91
Xmax (mm) 34
Voice Coil Diameter 5.0" (127 mm)
Voice Coil Type Single Voice Coil
Magnet Weight 115 oz. (3.26 Kg)
Power Handling (Watts RMS) 3000 Watts RMS / 6000 Watts Max
Mounting Depth 15.62 in. (396 mm)
Cutout Diameter 17.72 in. (440 mm)
Woofer Displacement 0.339 cu. ft. (9.6 Liters)
Sealed Box Volume (Vb)
Vented Box Volume (Vb) 8.0 cu. ft. (226.5 Liters)
Shipping Weight 106.30 Lbs. (48.2 Kg)
