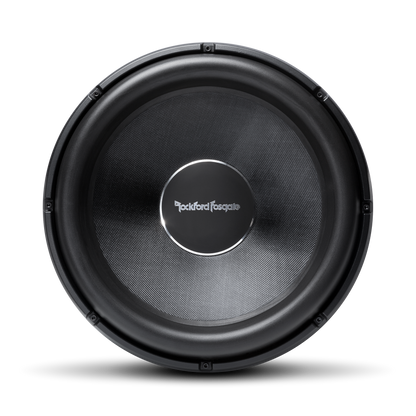

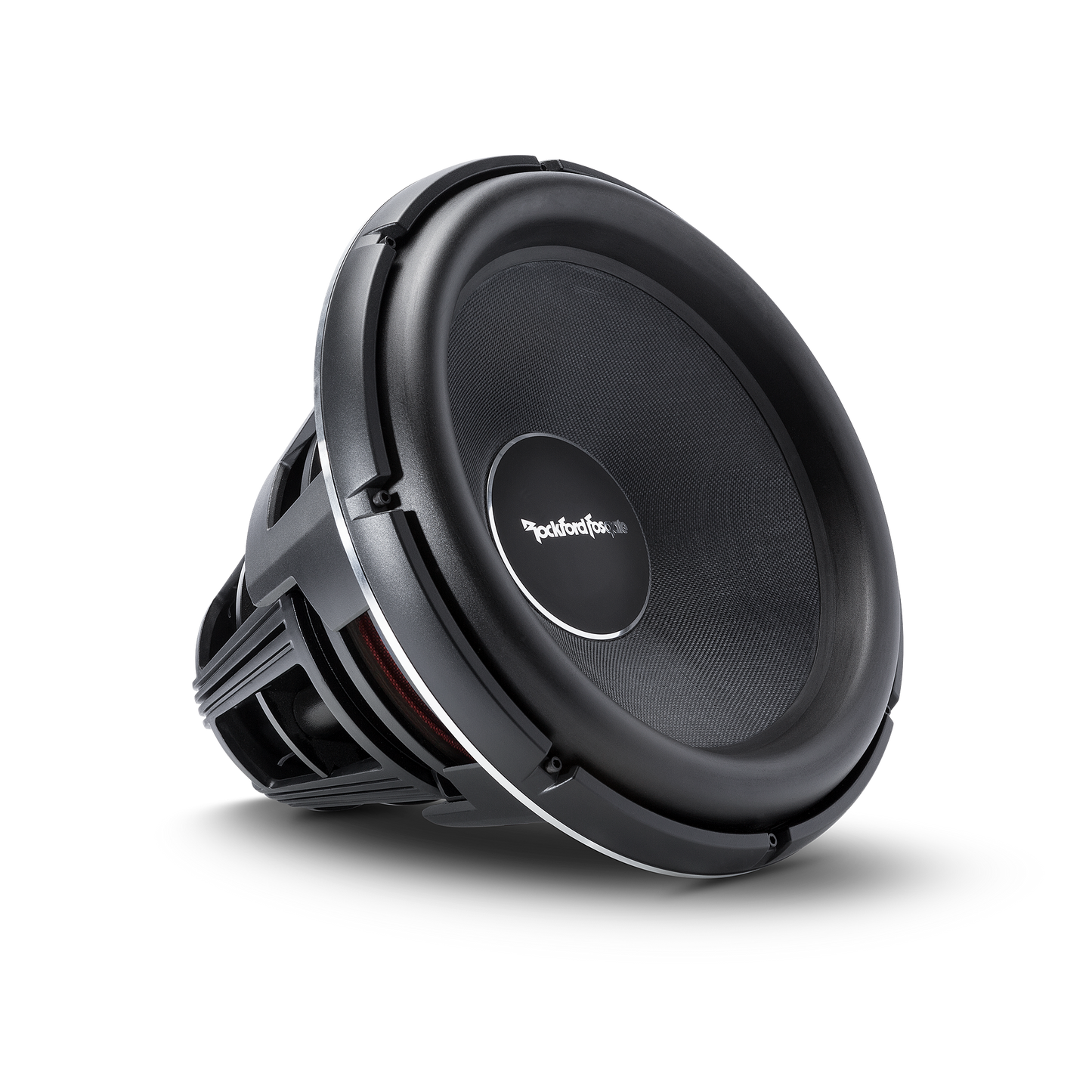

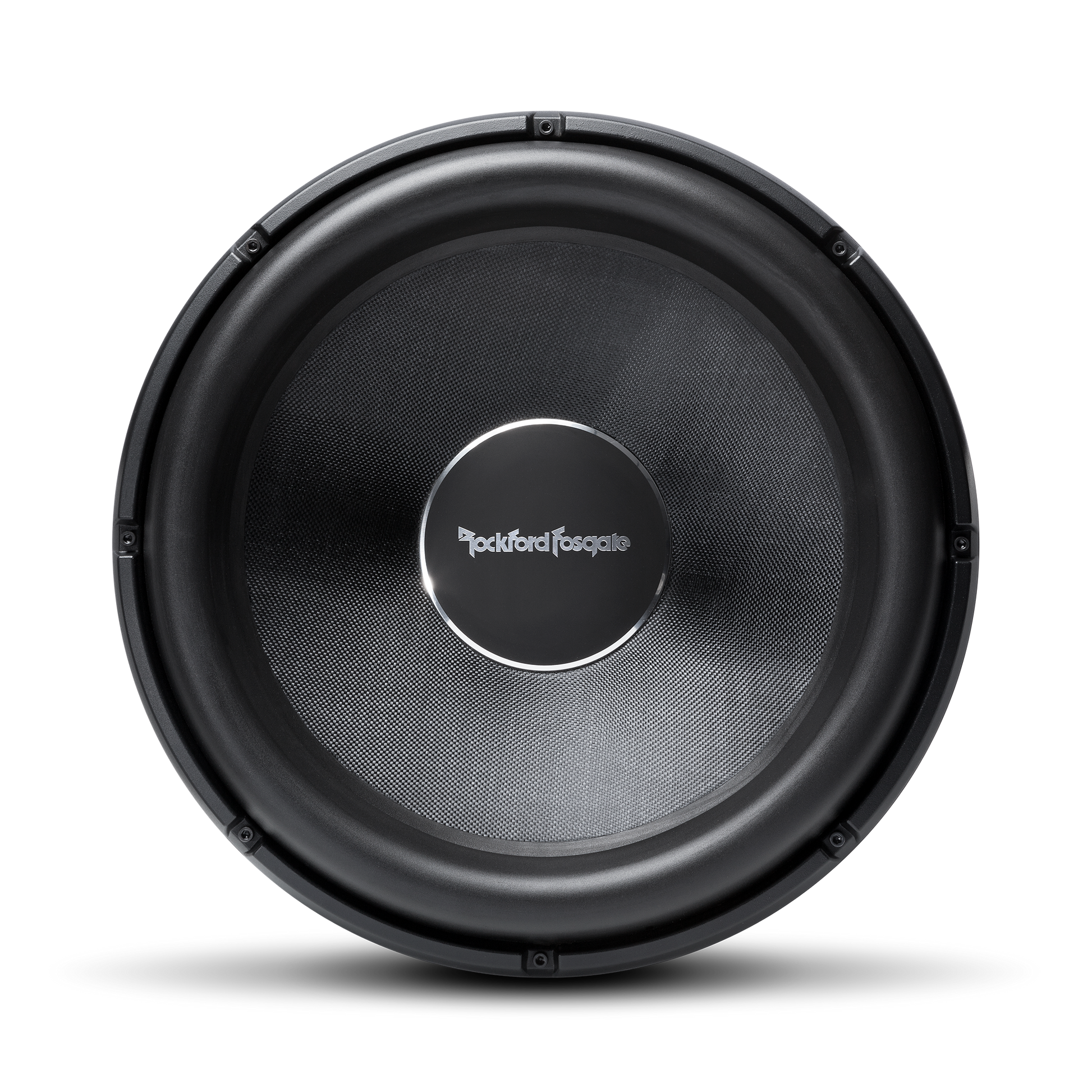

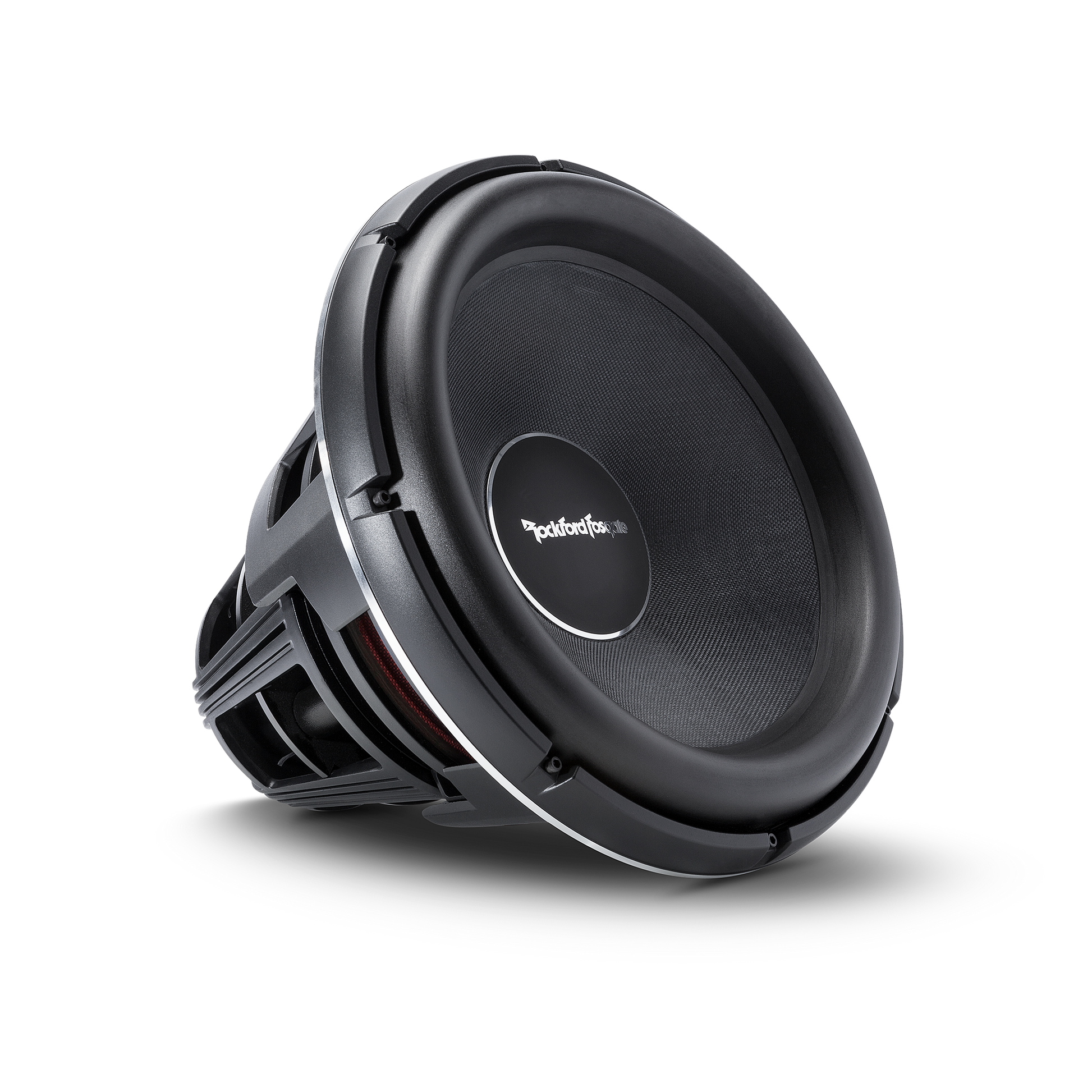

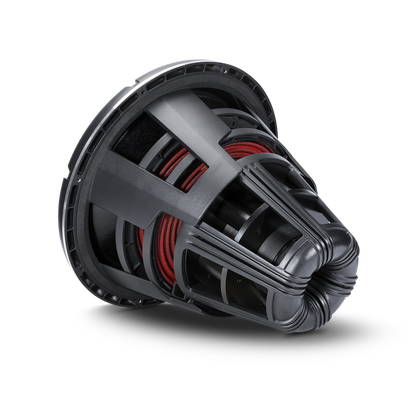

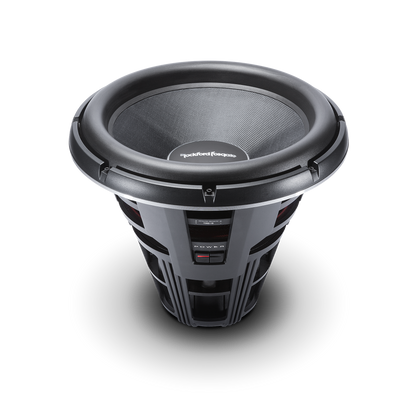

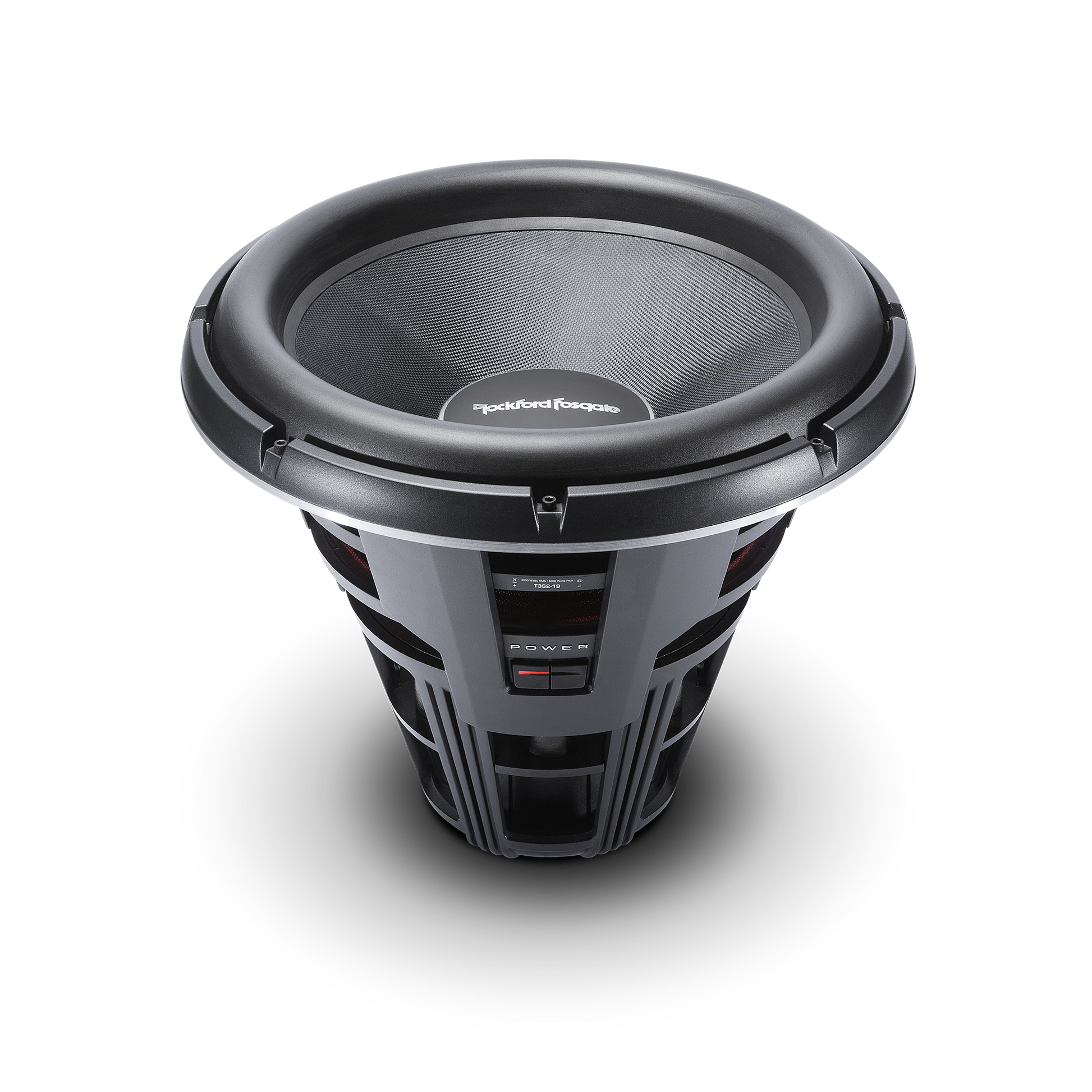

The Power T3S2-19 superwoofer has a whopping 19-inches of effective radiating cone area for deep bass and features a single 2-Ohm voice coil for easy wiring. This is the largest, most powerful loudspeaker Rockford Fosgate has ever built!
The Power T3S2-19 can rightfully be classified as a superwoofer due to its whopping 19-inches of effective radiating cone area! That's right... we don't need no stinkin' 18" subs ... this is for genuine Car Audio Fanatics that want to go BIG like Mannie Fresh. We're talkin' Real Big bass and Real Big power handling in a Real Big ride.

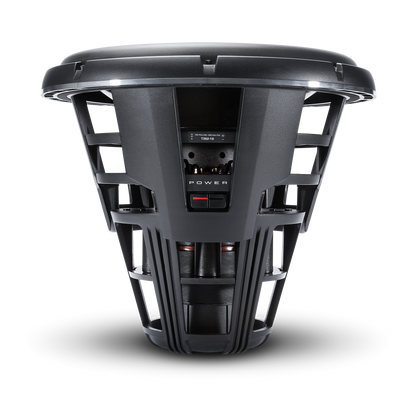

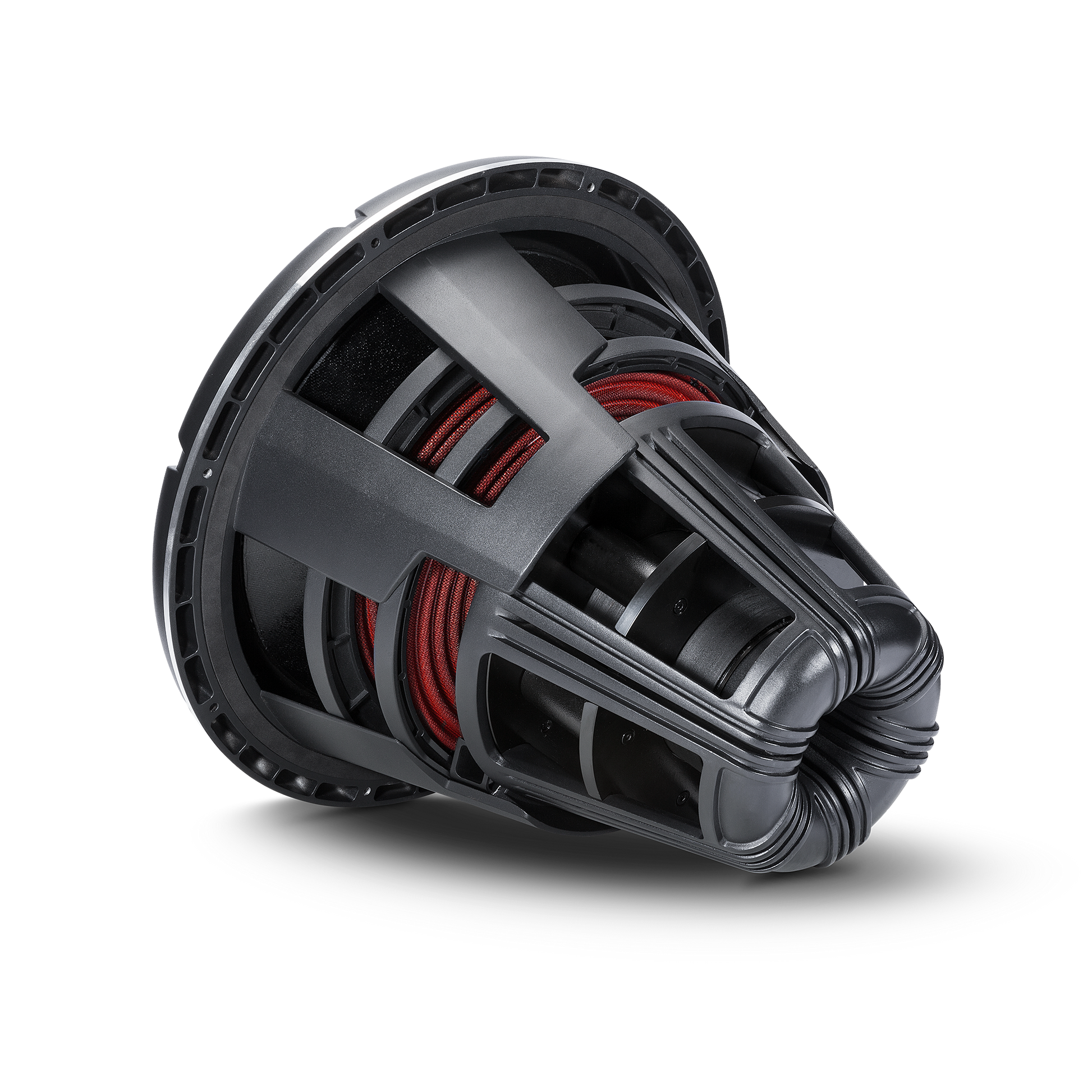

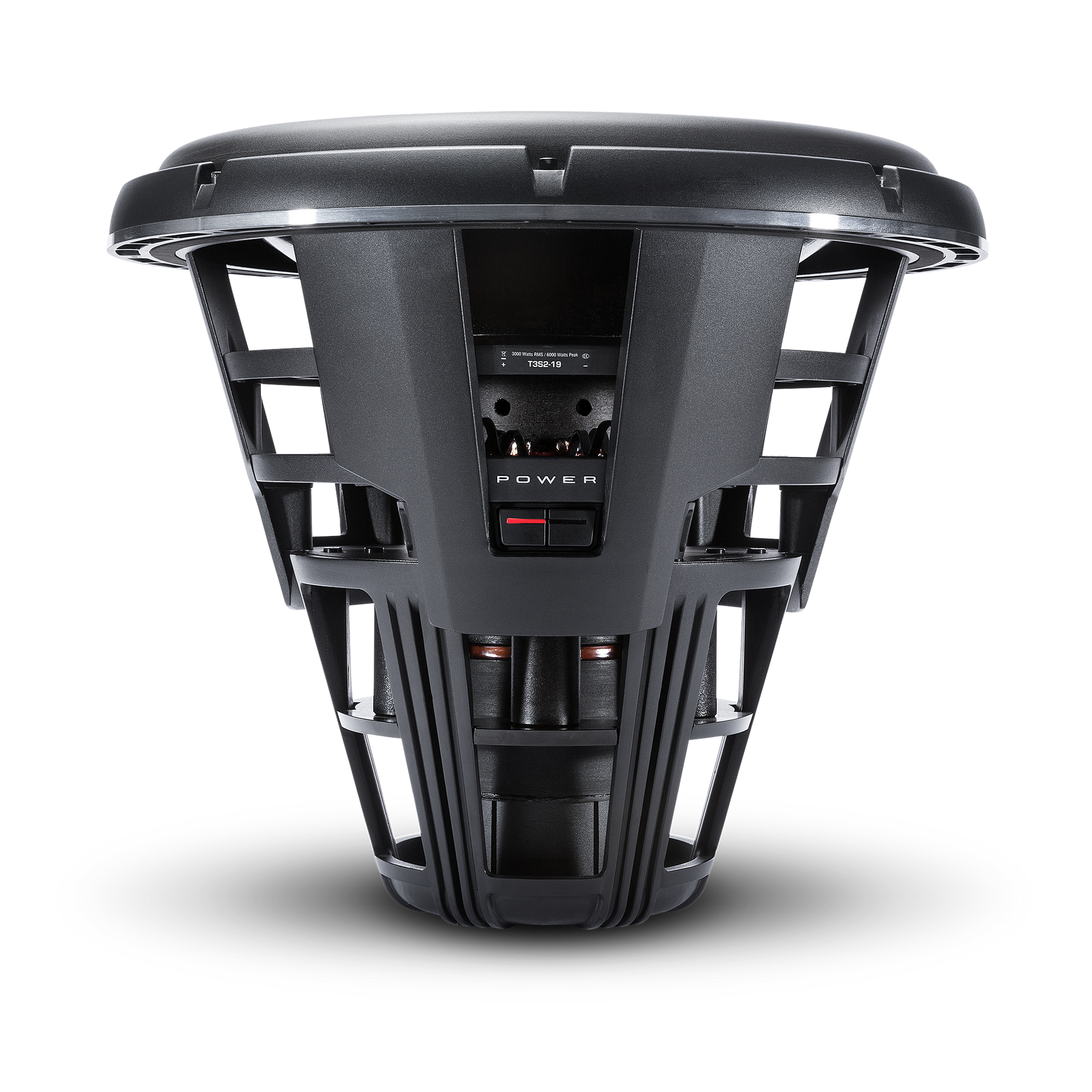

The Power 19" incorporates technologies never before seen in car audio, like the Injection Molded Foam Surround, making the foam strong and durable like a rubberized material. The Edge Wound voice coil allows the windings to be very close with no air gaps so it stays cool for high power handling capacity. We also engineered a very efficient "Push/Pull" voice coil design with a huge Neodymium magnet for a very efficient motor assembly. Looking for more options? Check out all of our best subwoofers here.
Features:
CEA-2031 Compliant | CEA-2031 Guidelines |
Size | 19" |
Nominal Impedance | 2-Ohm |
Subwoofer Type | Superwoofer |
Speaker Connector | 4 AWG Compression Terminal |
Fs (Hz) | 27 |
Qes | 0.37 |
Qms | 1.92 |
Qts | 0.31 |
Vas (Liters) | 103.4 |
Re (Ohms) | 1.7 |
Sd (cm²) | 1472 |
Le (mH) | 0.96 |
SPL (dB @ 1w/1m) | 90 |
Xmax (mm) | 34 |
Voice Coil Diameter | 5.0" (127 mm) |
Voice Coil Type | Single Voice Coil |
Magnet Weight | 115 oz. (3.26 Kg) |
Power Handling (Watts RMS) | 3000 Watts RMS / 6000 Watts Max |
Mounting Depth | 15.62 in. (396 mm) |
Cutout Diameter | 17.72 in. (440 mm) |
Woofer Displacement | 0.339 cu. ft. (9.6 Liters) |
Sealed Box Volume (Vb) | — |
Vented Box Volume (Vb) | 8.0 cu. ft. (226.5 Liters) |
Shipping Weight | 106.30 Lbs. (48.2 Kg) |
