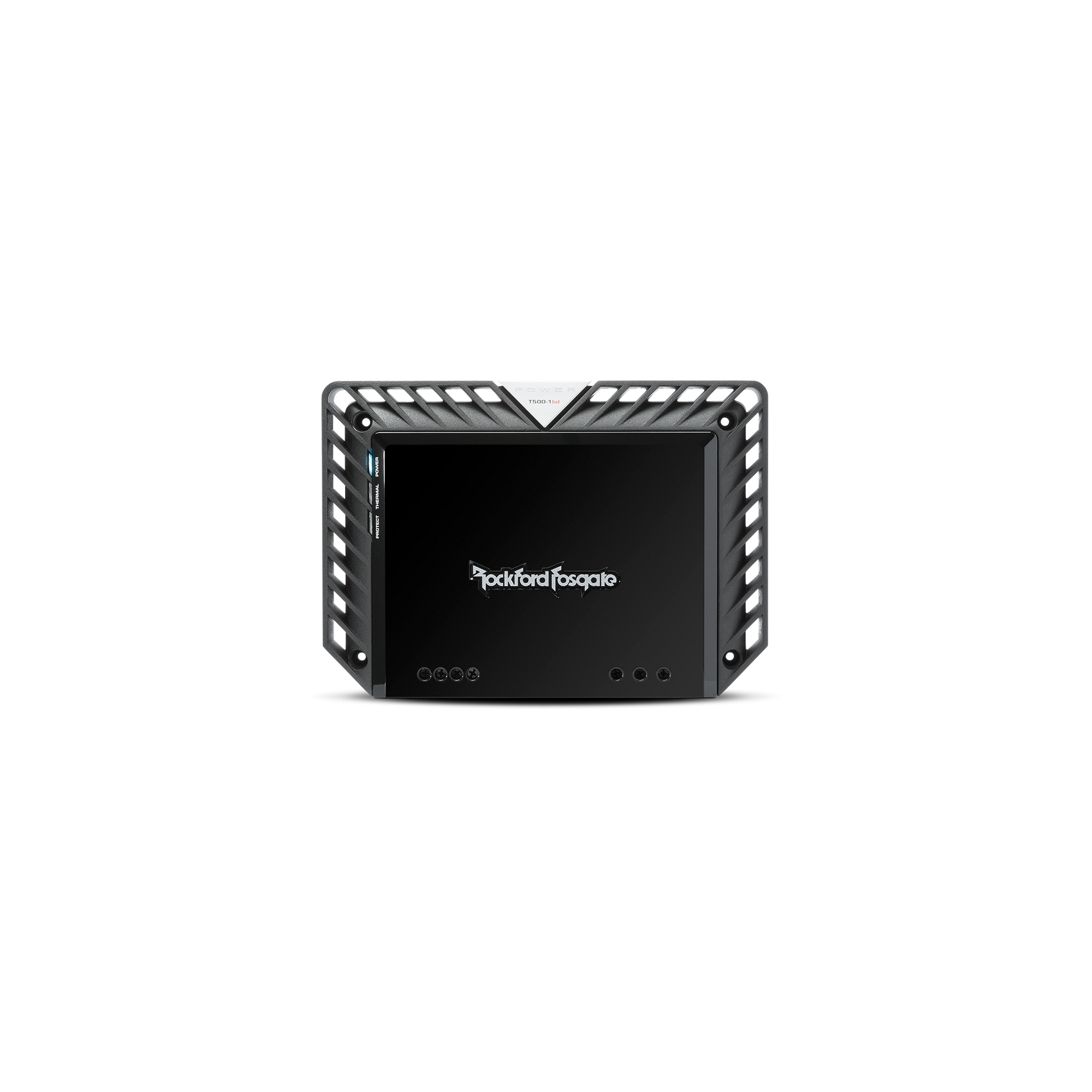

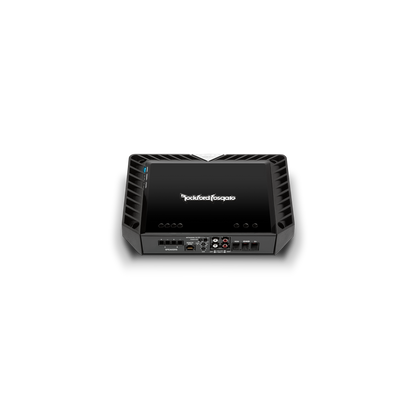

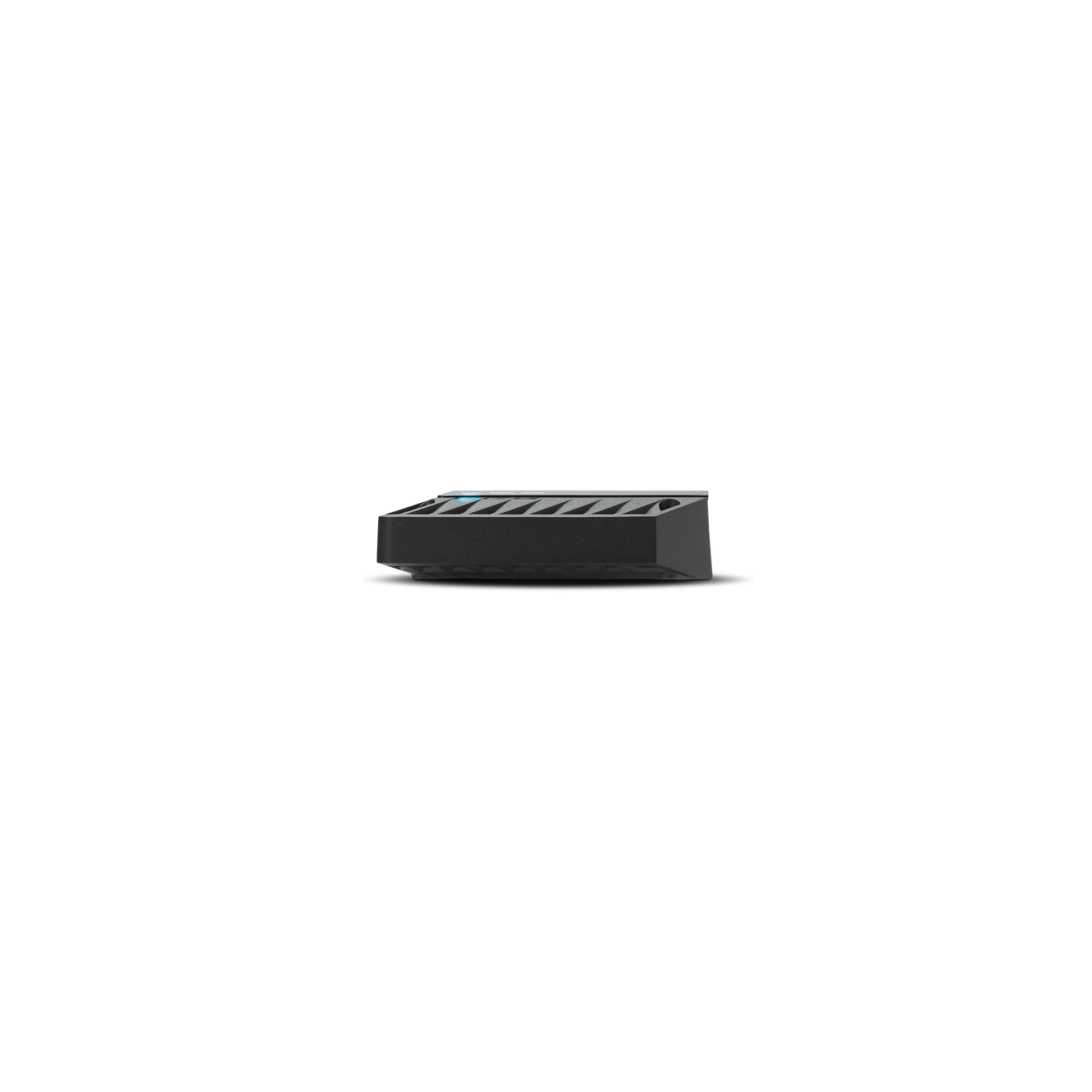

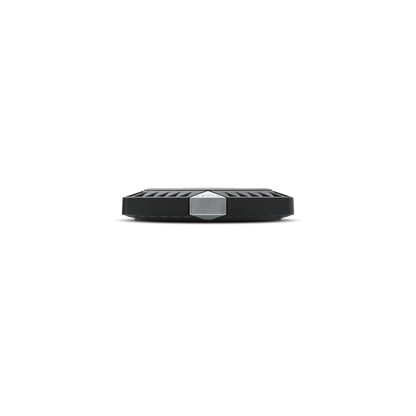

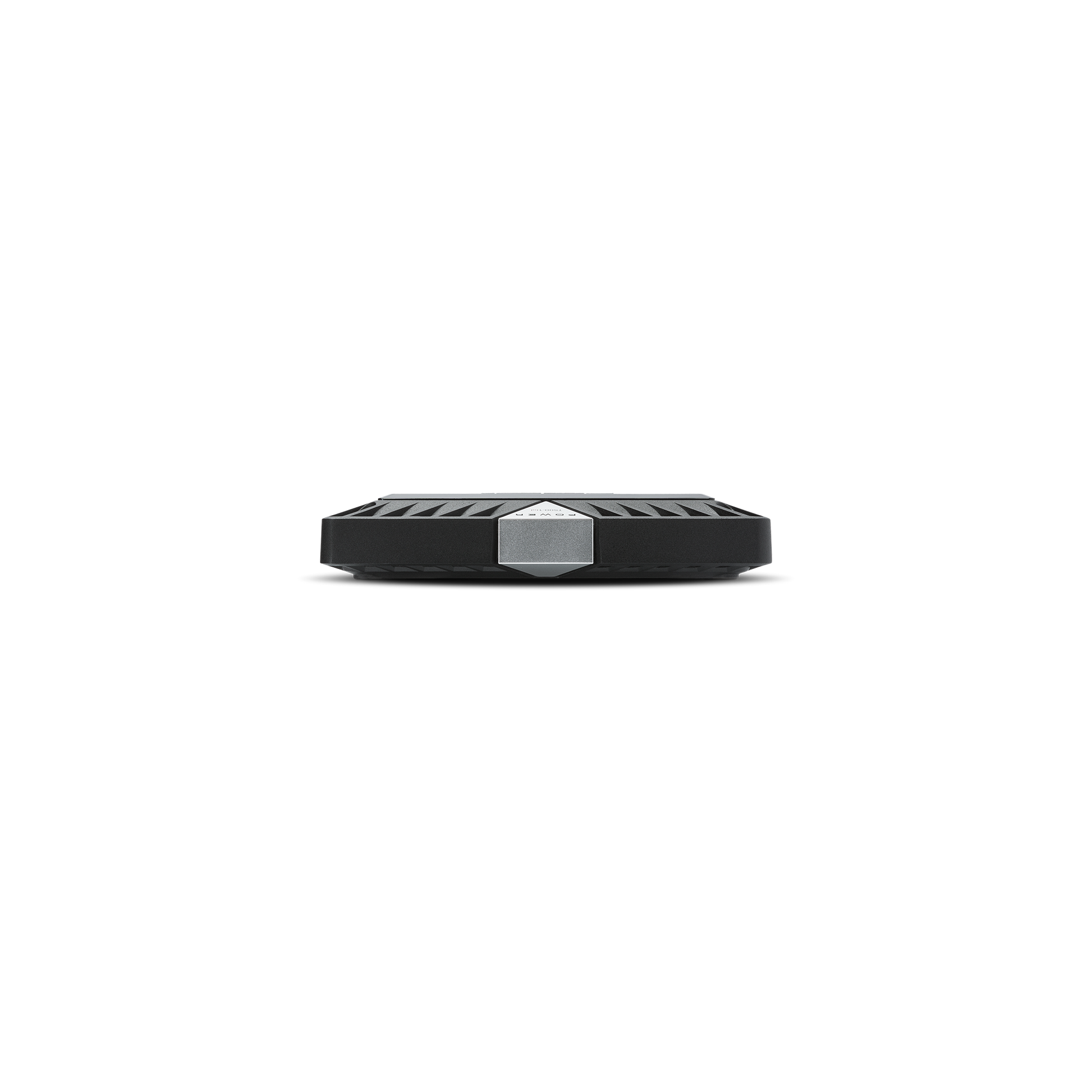

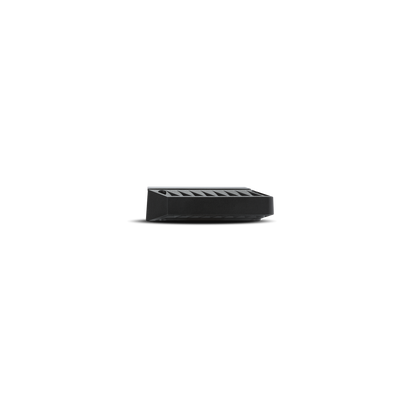

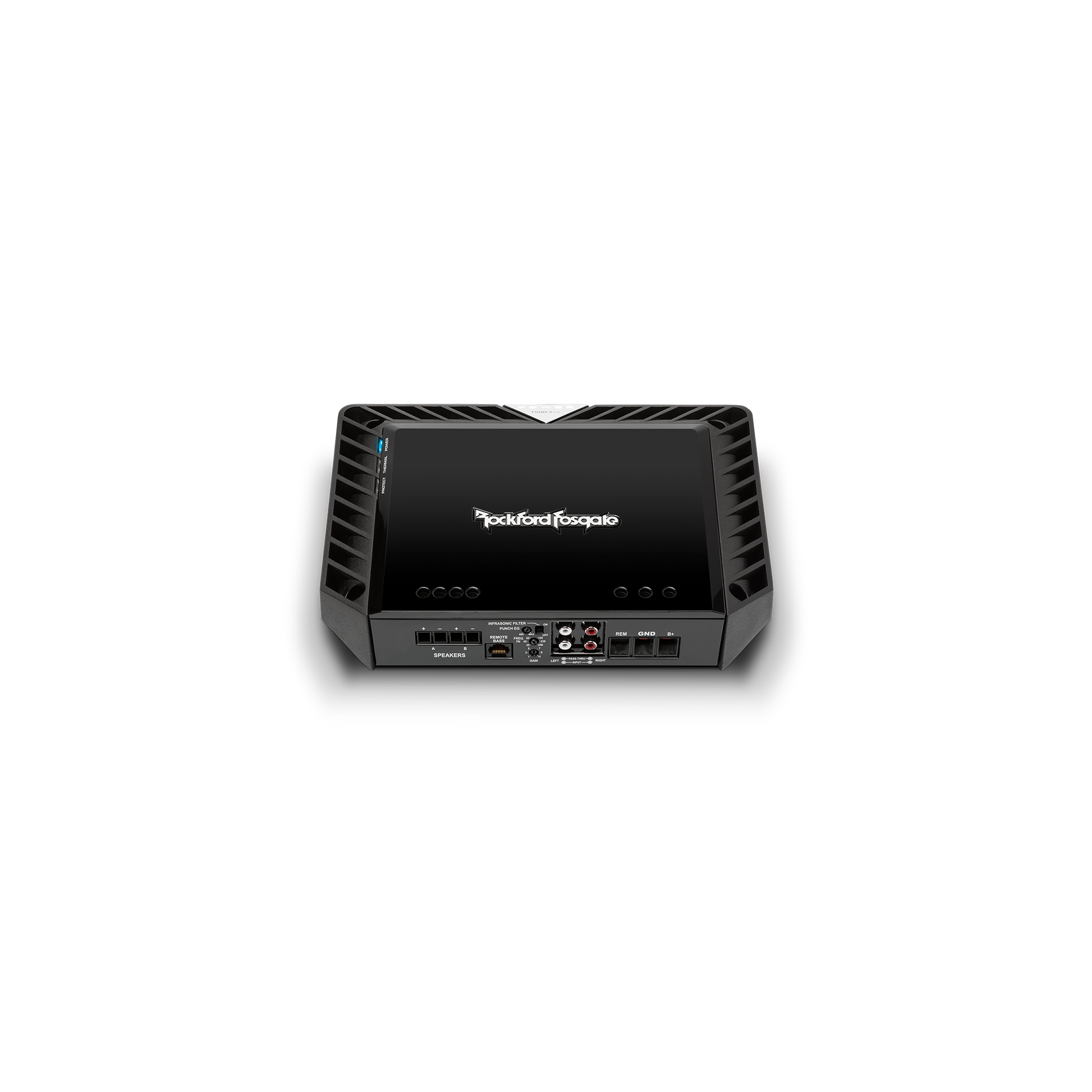

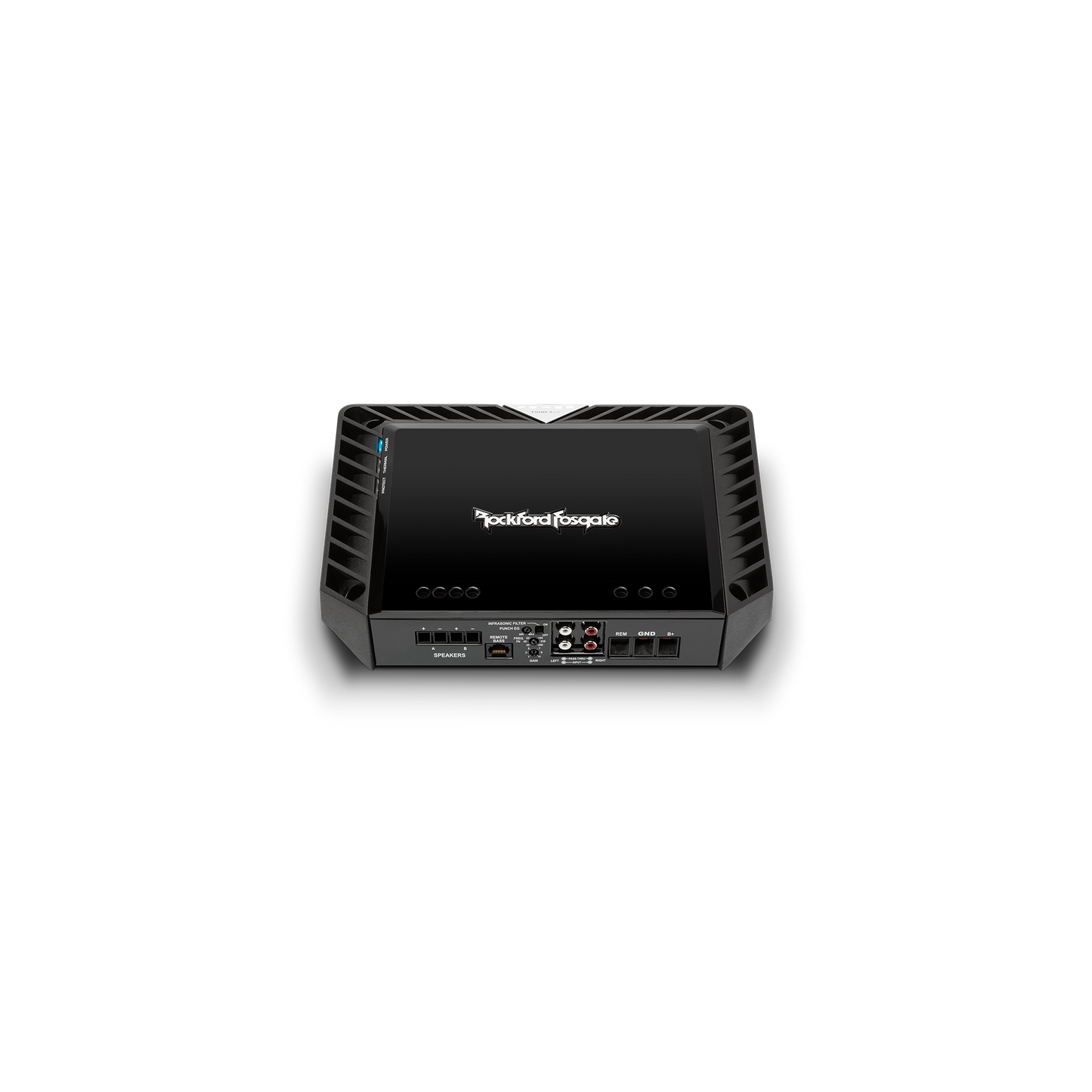

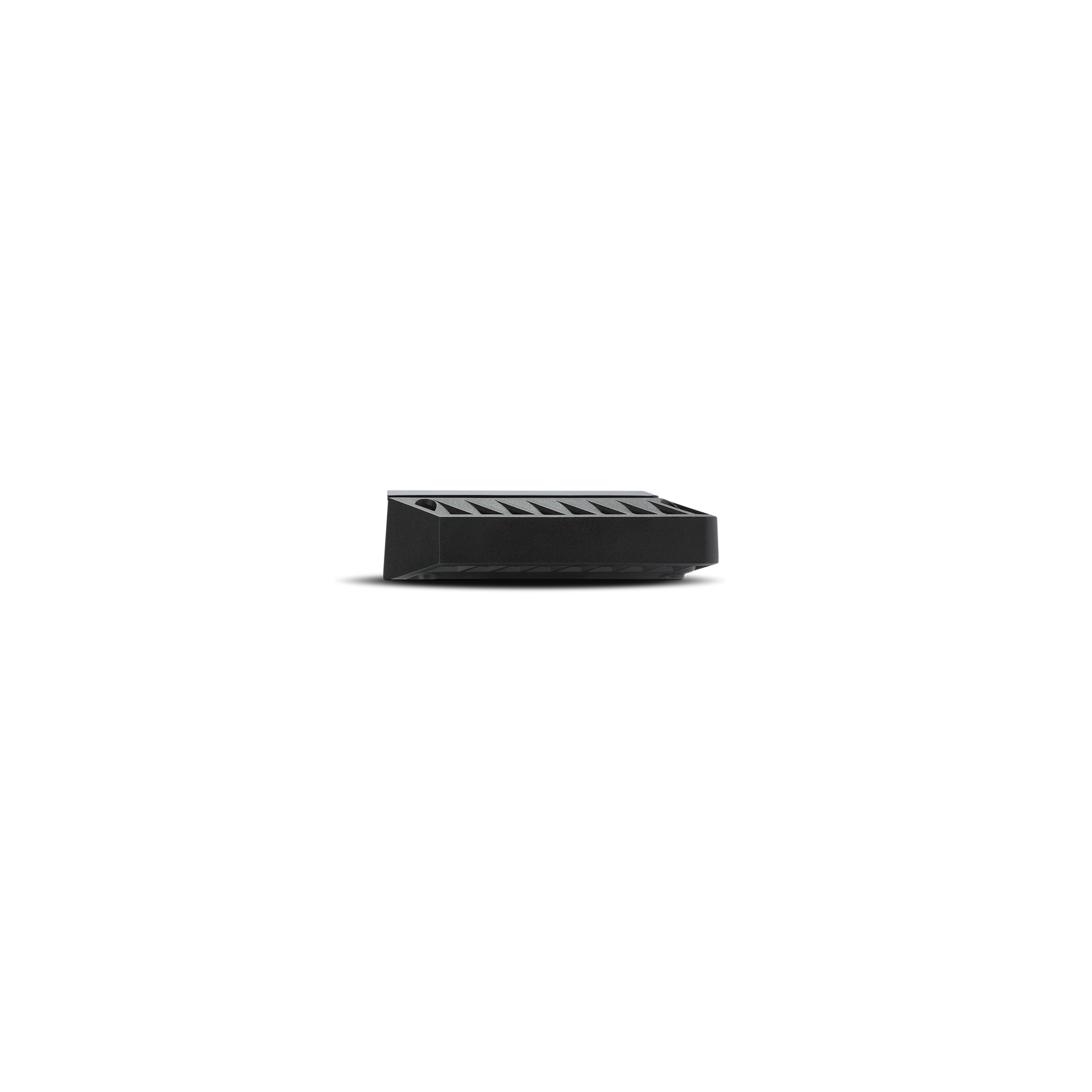

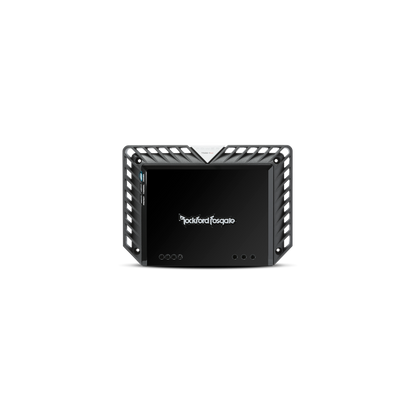

The Power T500-1bdCP is a 500 Watt mono amplifier featuring Constant Power delivering up to 25% more power across all impedance loads. The frequency response of the T500-1bdCP is optimized exclusively for use with subwoofers.
The T500-1bdCP is based on the legendary T500-1bd amplifier design with a proprietary "Constant Power" configuration delivering up to 25% more power (Watts) across all impedance loads. The listening experience is cleaner, louder and more impressive than ever before. With the T500-1bdCP, you can now use an "under-the-seat" dedicated subwoofer amplifier to drive two 4-Ohm DVC subwoofers. This amp will provide enough bass to separate you from those envious car audio geeks.
| Feature | Details |
|---|---|
| CTA-2006 Compliant | Yes |
| Number of Channels | 1 |
| Total Power (Sum of Rated Power) | 500 Watts RMS |
| Rated Power (RMS Continuous Power) | 300 Watts x 1 @ 4-Ohm 500 Watts x 1 @ 2-Ohm 500 Watts x 1 @ 1-Ohm |
| Dynamic Power (PVC/PowerCube®) | 328 Watts x 1 @ 4-Ohms 537 Watts x 1 @ 2-Ohms 707 Watts x 1 @ 1-Ohm |
| Bridgeable | No |
| Frequency Response | 20Hz to 250Hz +/- 0.5dB |
| Input Sensitivity | 150 mV to 4 V |
| Circuit Topology Class | Class BD |
| Efficiency (Average) | 86.2% @ 4-Ohm 82.3% @ 2-Ohm 73.4% @ 1-Ohm |
| Total Harmonic Distortion (THD+Noise) | 4-Ohm: <1.0% 2-Ohm: <1.0% 1-Ohm: <1.0% |

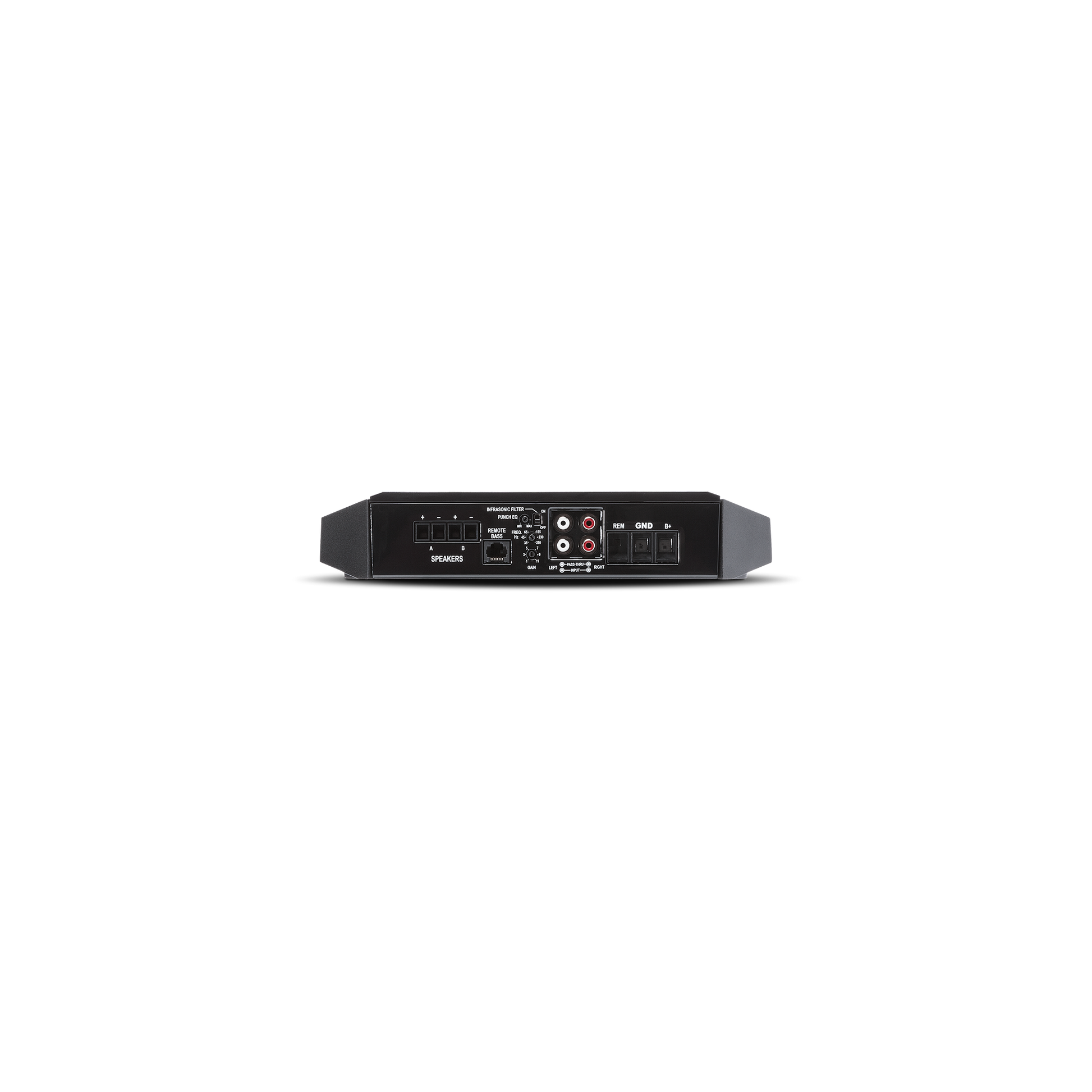

| Signal Input | Low level: 1 RCA pair |
| Signal Output | Low level: 1 RCA pair |
| Tone Controls | Bass: 0dB to +18dB @ 45Hz |
| Crossover Controls | Low-Pass (LP): 35-250Hz 24dB/Octave Butterworth Infrasonic Filter: -3dB @ 28Hz 12dB/Octave |
| Remote Controls | Optional Remote Punch Bass EQ (overrides built-in Punch Bass EQ) |
| Visual Indicators | Power, Thermal, Protect |
| Power Wire Gauge | 4 AWG |
| Power Input Connector | Block |
| Speaker Wire Gauge | 8 AWG to 18 AWG |
| Speaker Output Connector | Screw terminal barrier strip |
| Cooling | Convection |
| Heatsink | Yes |
| Operating Voltage | 9 - 16 VDC |
| Recommended Fuse (Not Included) | 80 A |
| Average Current Draw (13.8V Music) | 35 A |
| Max. Current Draw (13.8V Sinewave) | 70 A |
| Suggested Alternator | 75 A |
| Included in the Box | Yes |
| Dimensions (H x W x D) | 2.14 x 8.14 x 11.41 (in) 5.42 x 20.68 x 28.97 (cm) |
| Shipping Weight | 13.39 lbs. (6.07 kg) |
