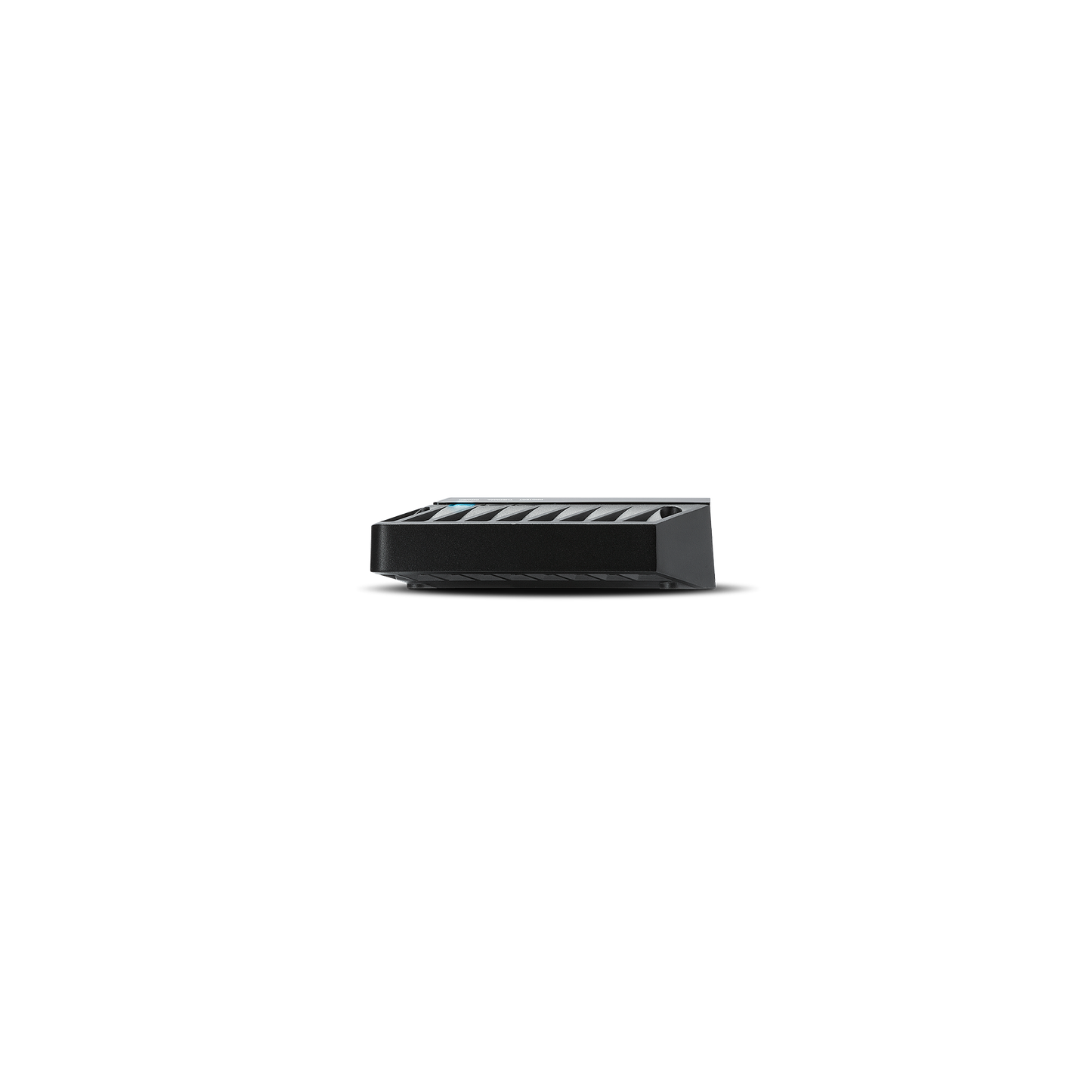

The Power T600-4 is a 4-channel amplifier capable of producing 150 Watts into each of its four channels at 2-Ohms. The T600-4 can run a 4-way full-range system or use component speakers on the front with subwoofers on the rear.
The T600-4 amplifier offers the perfect balance of power output and compact design required for high performance audio systems. The 4-channel configuration allows fine tuning adjustments between front stage component systems and rear surround speakers. The built-in crossover also allows the rear channels to be configured for running one or two subwoofers.
| CTA-2006 Compliant | Yes |
| Number of Channels | 4 |
| Total Power (Sum of Rated Power) | 600 Watts RMS |
| Rated Power (RMS Continuous Power) | - 100W x 4 @ 4Ω - 150W x 4 @ 2Ω - 300W x 2 @ 4Ω Bridged |
| Bridged Mode | 2Ω x 2 Stable |
| Dynamic Power (PVC/PowerCube®) | Front Channels: - 139W x 2 @ 4Ω (0° Res) - 236W x 2 @ 2Ω (0° Res) Rear Channels: - 140W x 2 @ 4Ω (0° Res) - 236W x 2 @ 2Ω (0° Res) |
| Bridgeable | Yes |
| Frequency Response | 20Hz - 20kHz ±1dB |
| Input Sensitivity | 150mV - 4V |
| Circuit Topology | Class A/B |
| Efficiency (Average) | - 70% @ 4Ω - 64% @ 2Ω |
| Total Harmonic Distortion (THD+Noise) | - <1.0% @ 4Ω - <1.0% @ 2Ω |
| Signal Input | - Front Low-Level: 1 RCA Pair - Rear Low-Level: 1 RCA Pair - Input Switch: 2CH / 4CH |
| Signal Output | Low-Level: 1 RCA Pair |
| Tone Controls | Front Channels - Punch EQ - Treble: 0dB to +12dB @ 12kHz - Bass: 0dB to +18dB @ 45Hz Rear Channels - Punch EQ - Treble: 0dB to +12dB @ 12kHz - Bass: 0dB to +18dB @ 45Hz |
| Crossover Controls | - Front High-Pass (HP): 50Hz - 500Hz @ 24dB/Octave Butterworth - Front Low-Pass (LP): 50Hz - 500Hz @ 24dB/Octave Butterworth - Rear High-Pass (HP): 50Hz - 500Hz @ 24dB/Octave Butterworth - Rear Low-Pass (LP): 50Hz - 500Hz @ 24dB/Octave Butterworth |
| Remote Controls | Optional Remote Punch EQ (Overrides Rear Channel Built-in Punch EQ) |
| Visual Indicators | Power, Thermal, Protect |
| Power Wire Gauge | 4 AWG |
| Power Input Connector | Block |
| Speaker Wire Gauge | 8 AWG - 18 AWG |
| Speaker Output Connector | Screw Terminal Barrier Strip |
| Cooling | Convection |
| Heatsink | — |
| Operating Voltage | 9 - 16 VDC |
| Recommended Fuse (Not Included) | 80A |
| Average Current Draw (13.8V Music) | 40A |
| Max. Current Draw (13.8V Sinewave) | 80A |
| Suggested Alternator | 75A |
| Included in the Box | — |
| Dimensions (H x W x D) | 2.14 x 8.14 x 14.91 in (5.42 x 20.68 x 37.86 cm) |
| Shipping Weight | 12.00 lbs. (5.44 kg) |
