Rockford Fosgate TMS57

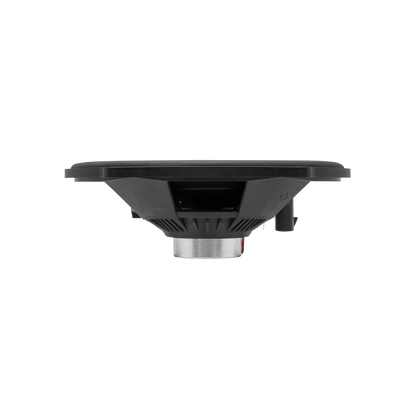

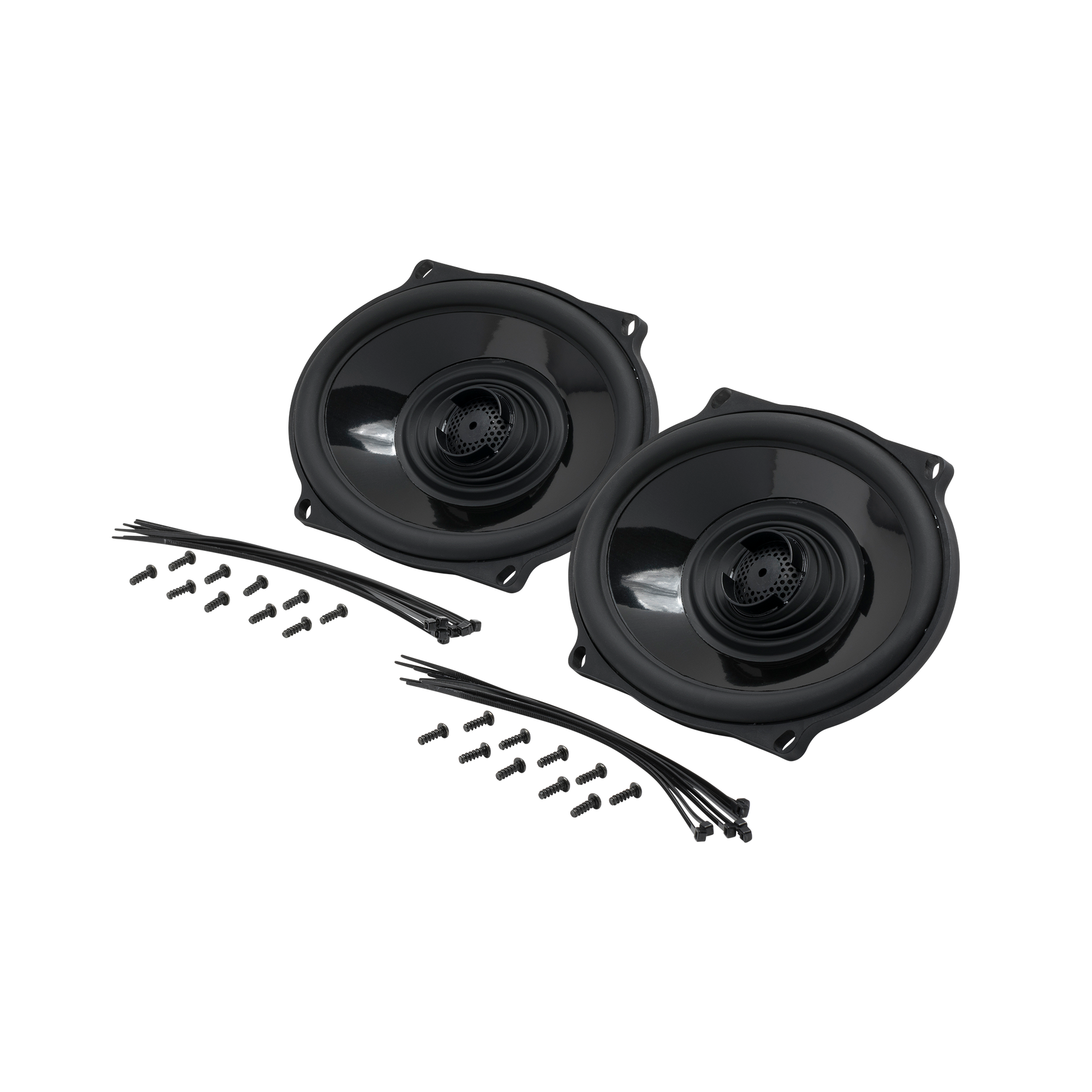

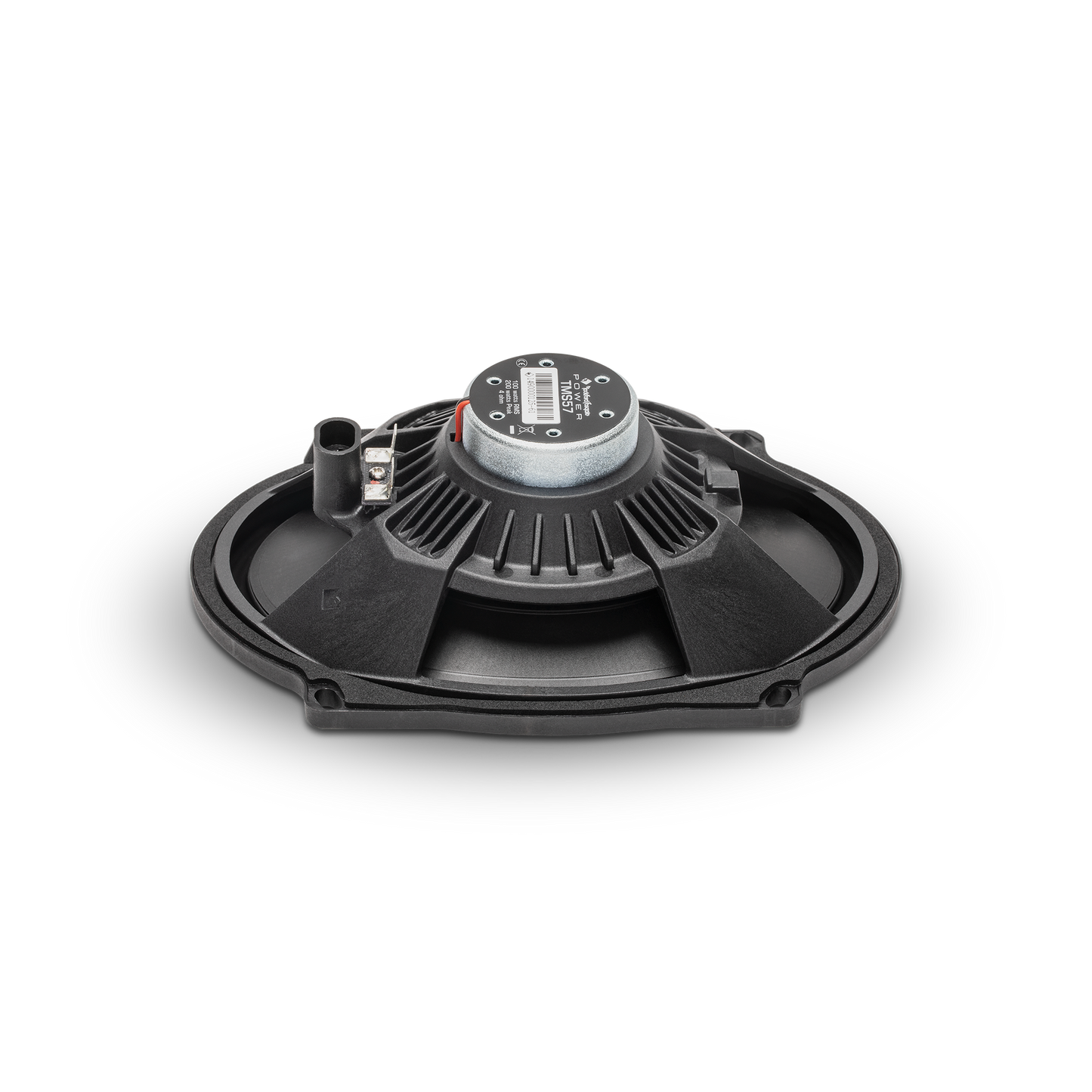

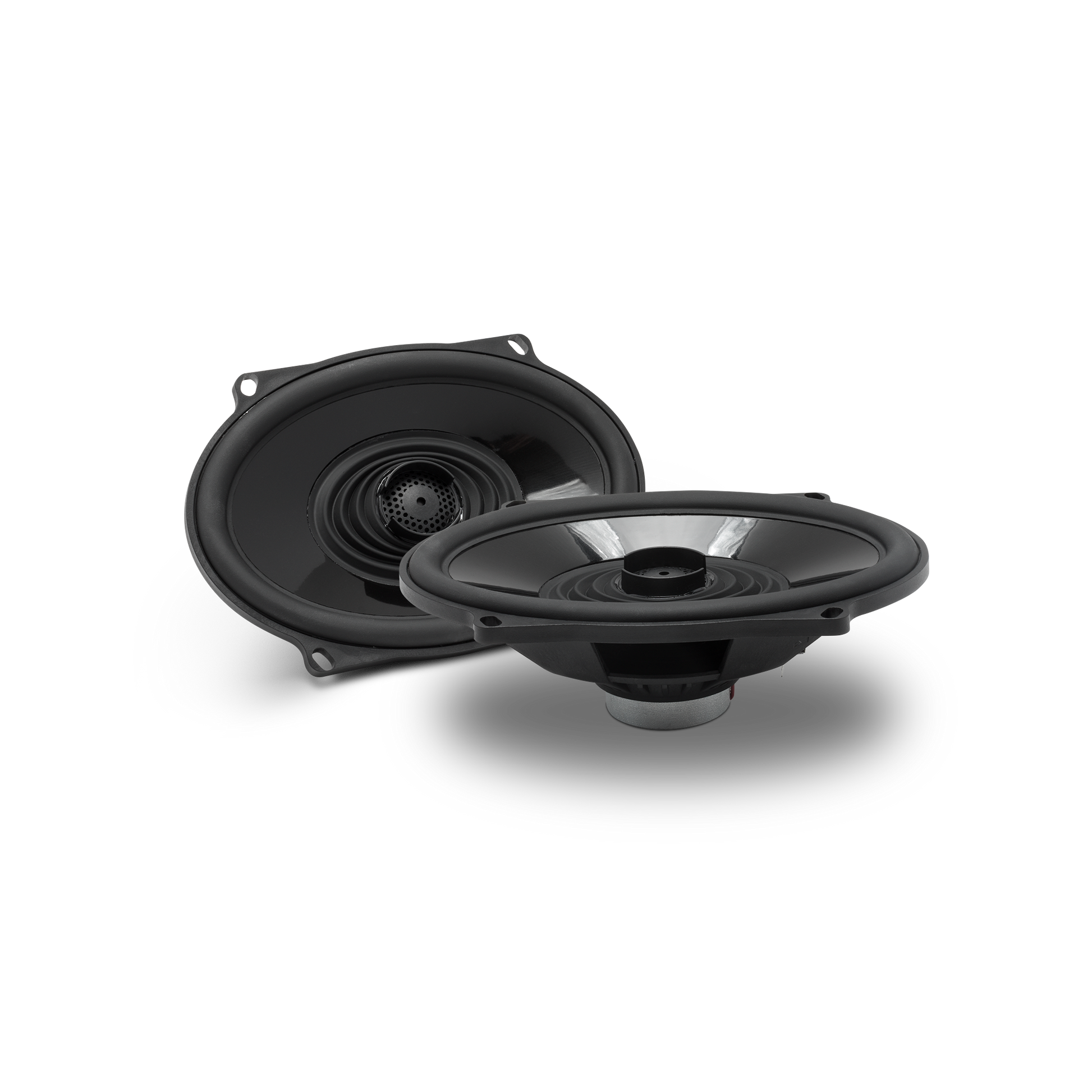

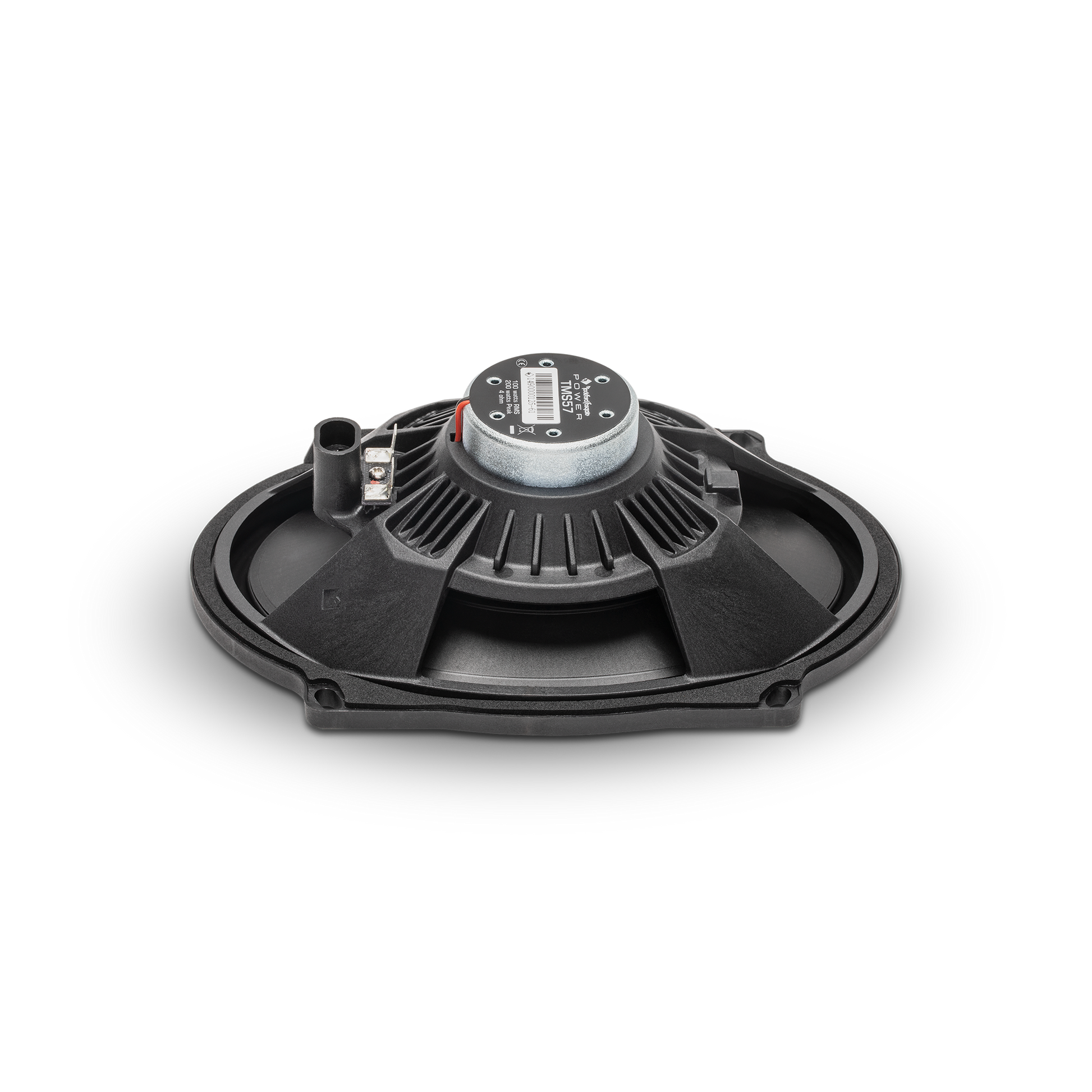

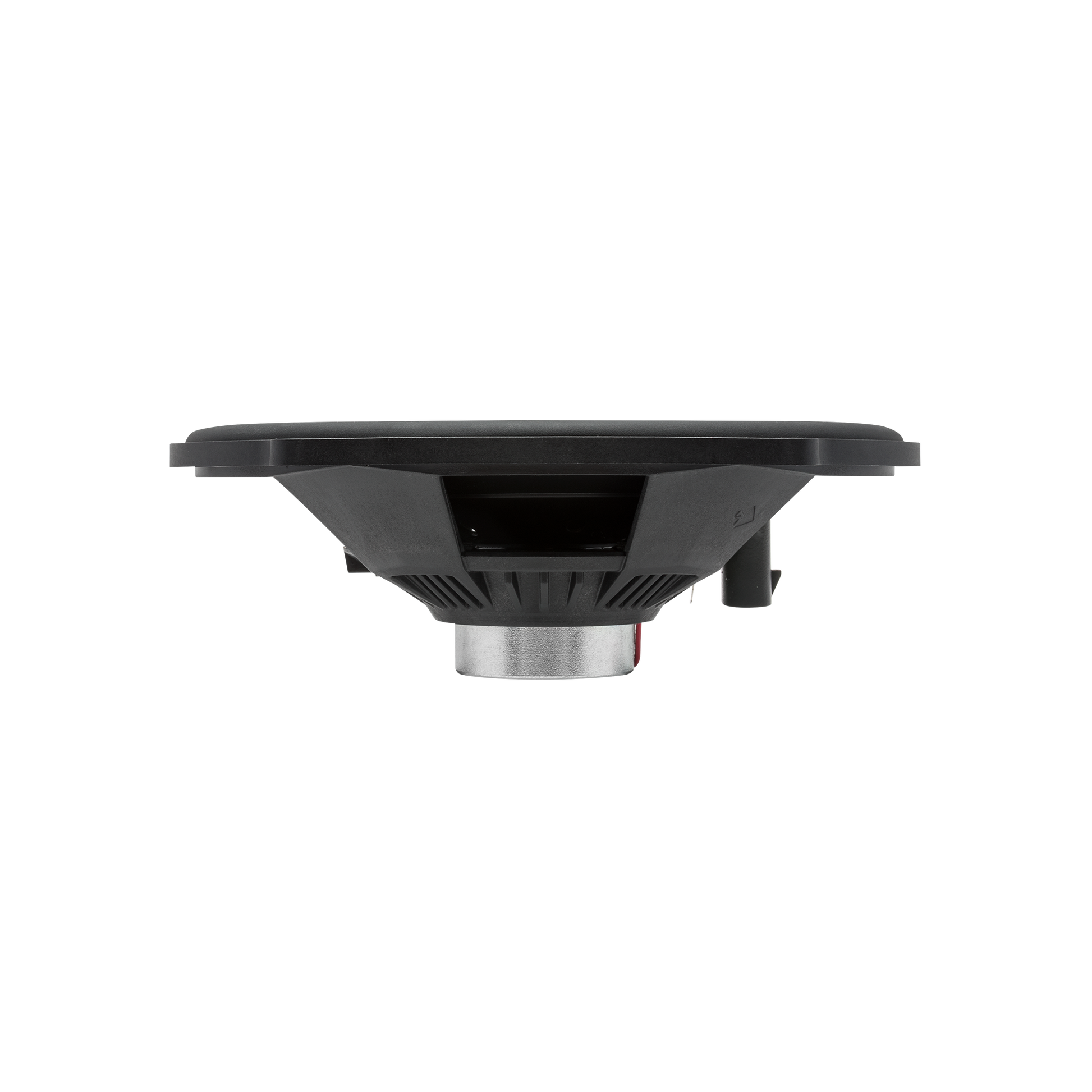

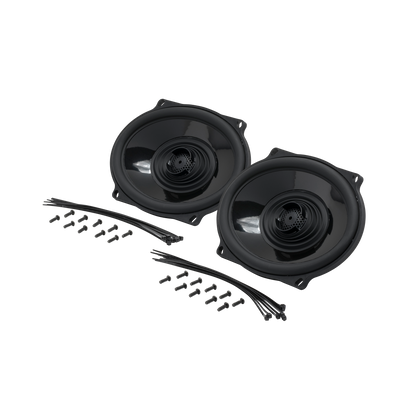

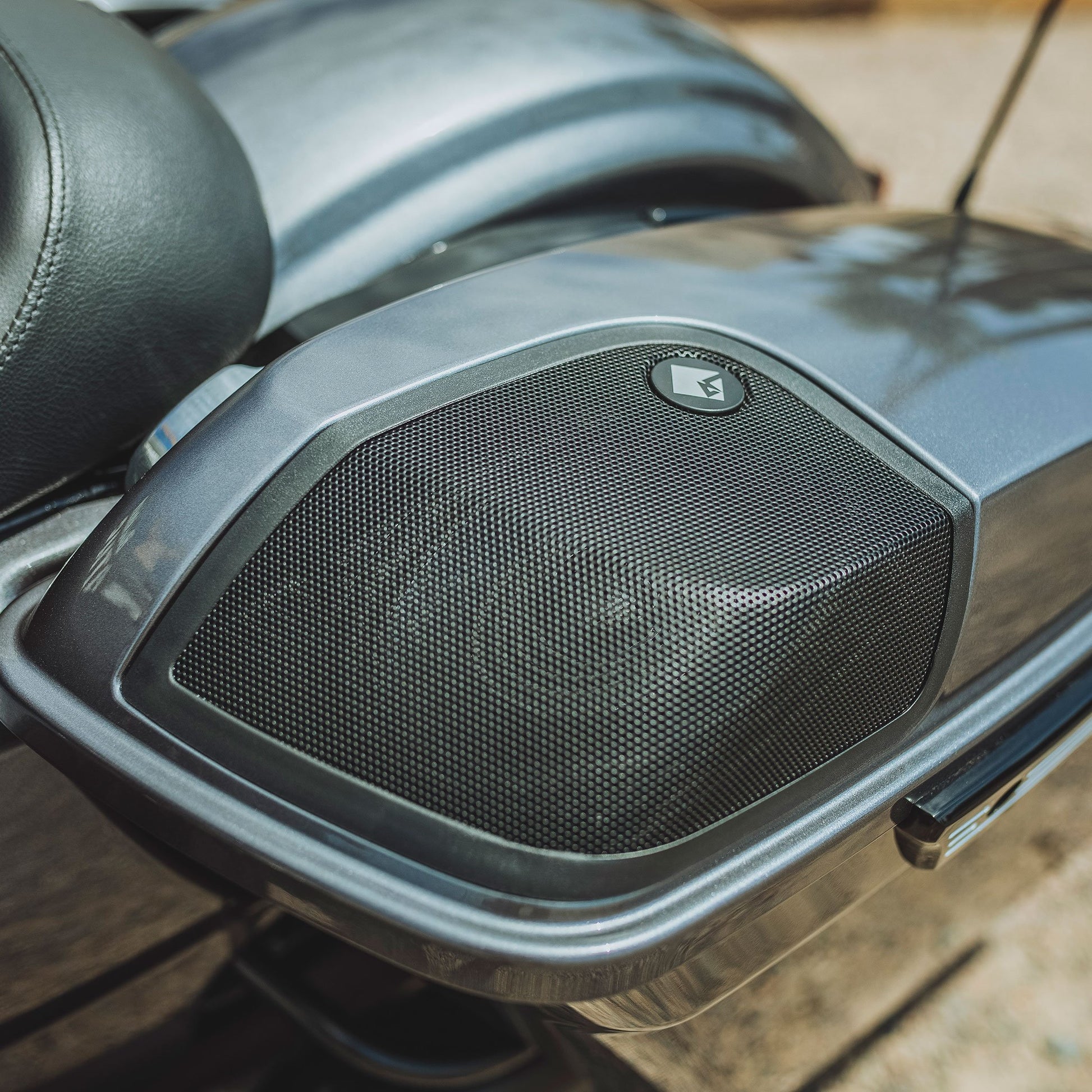

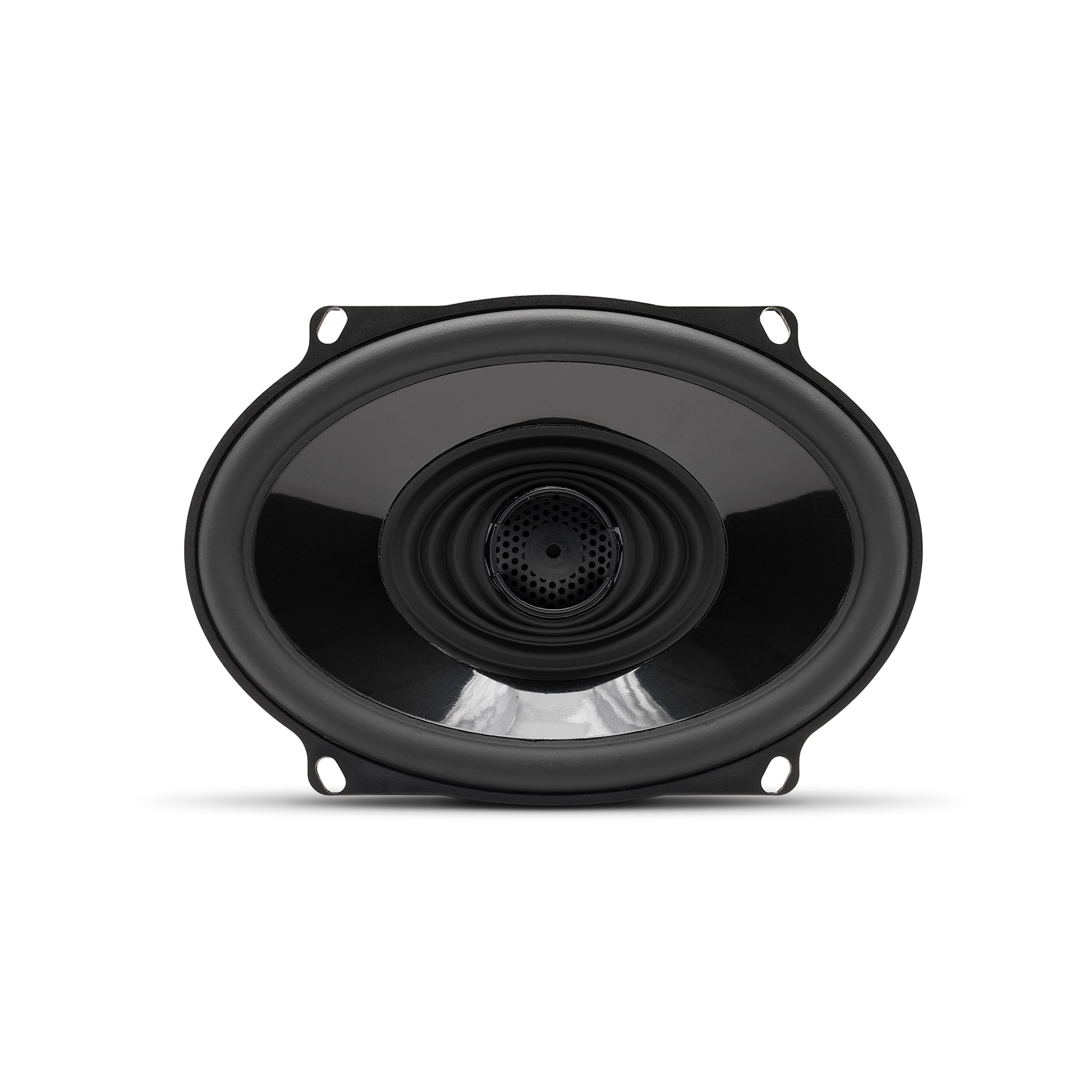

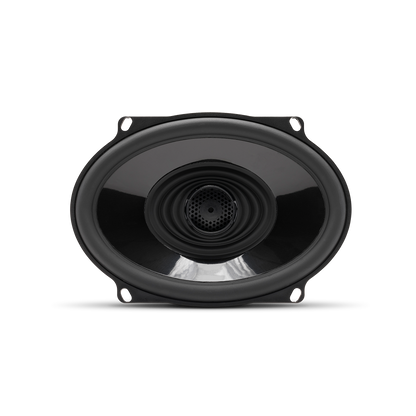

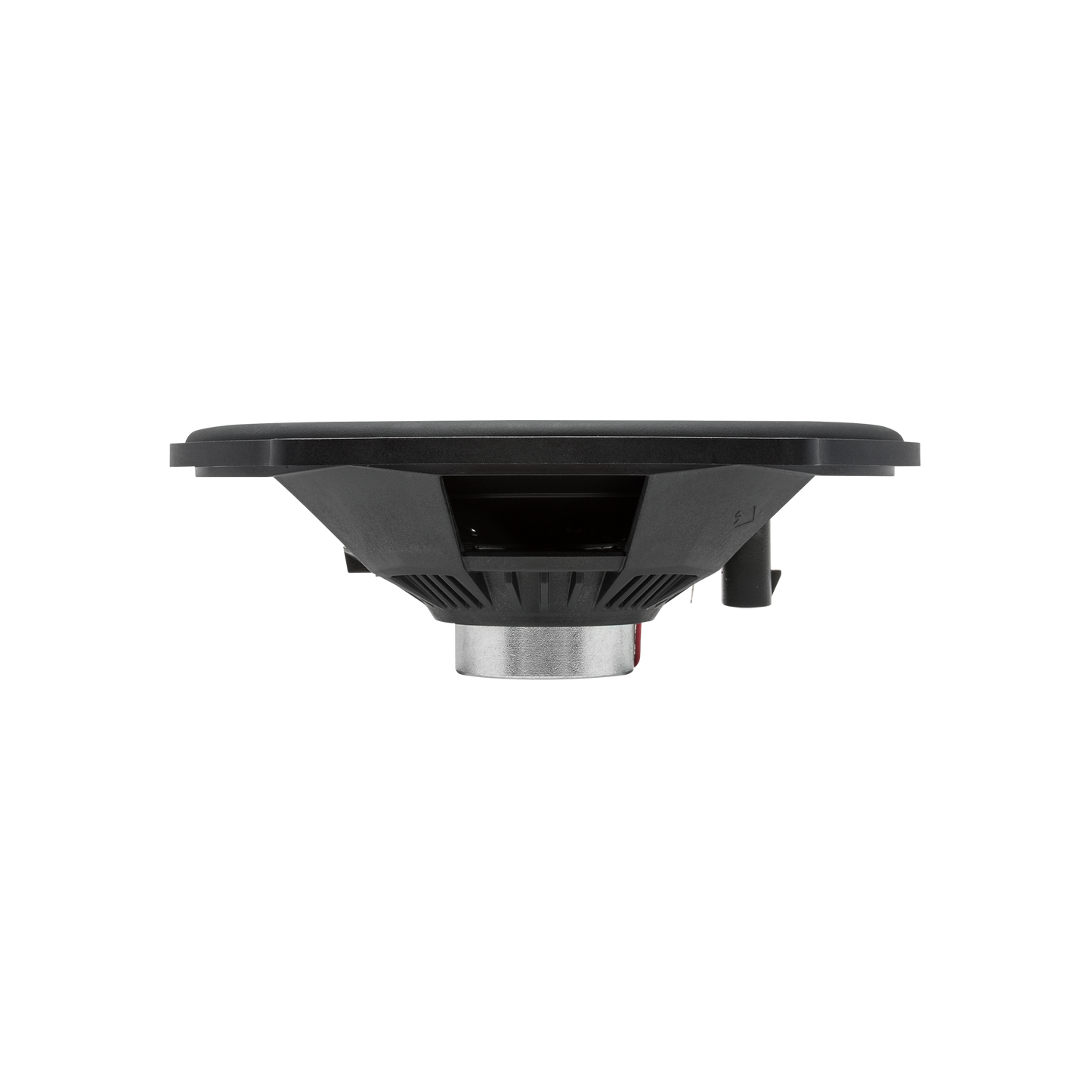

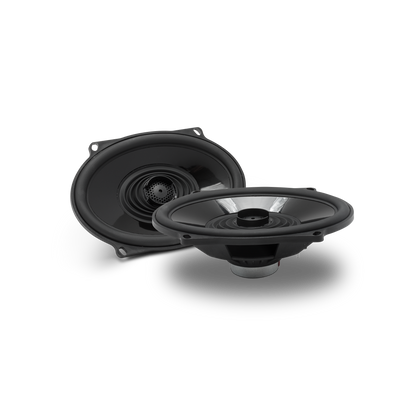

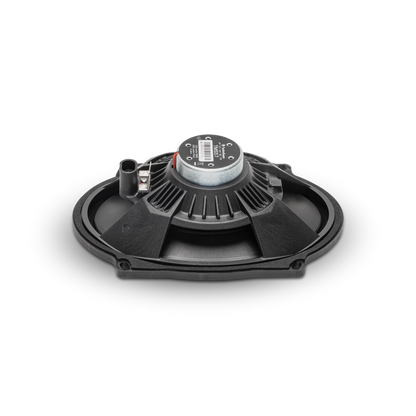

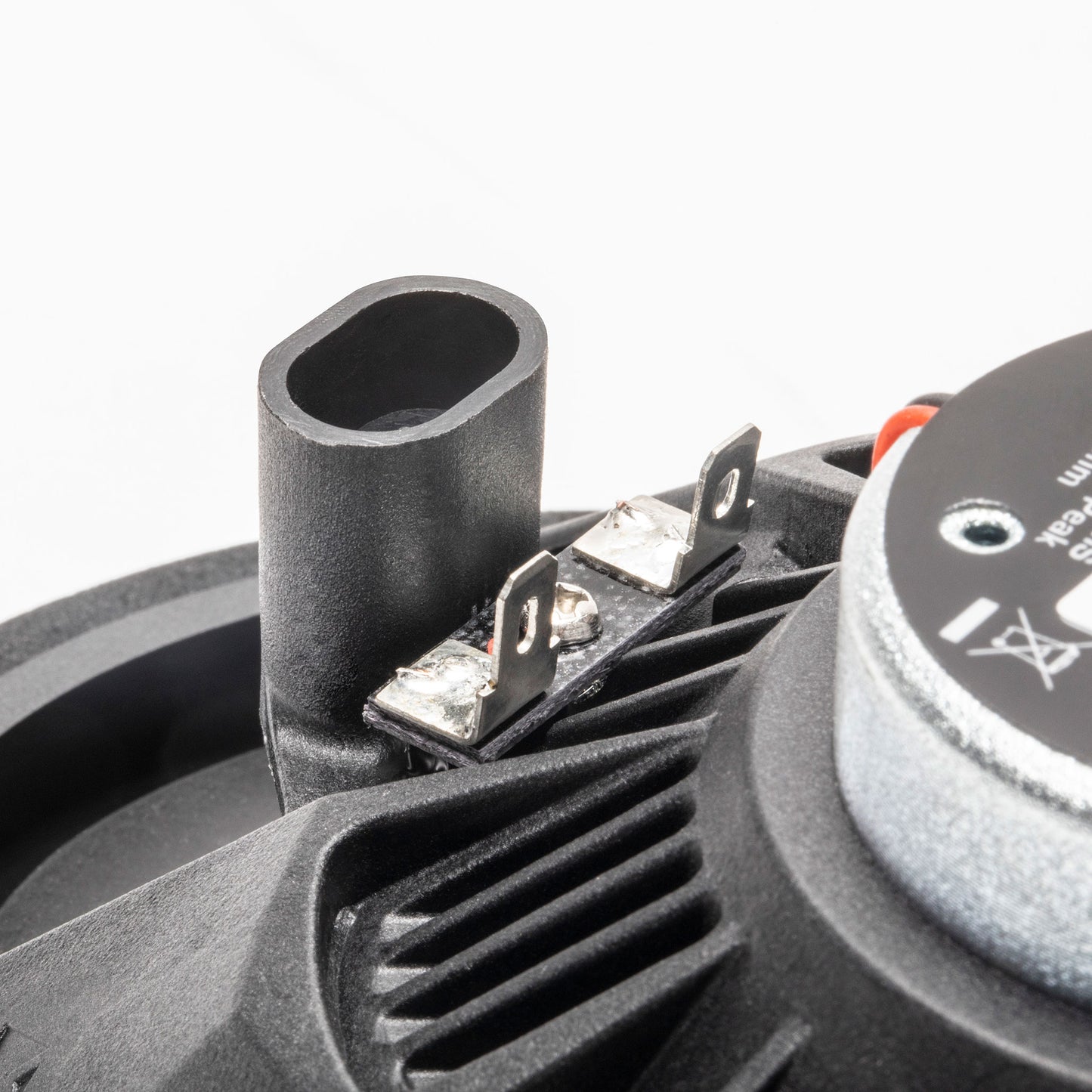

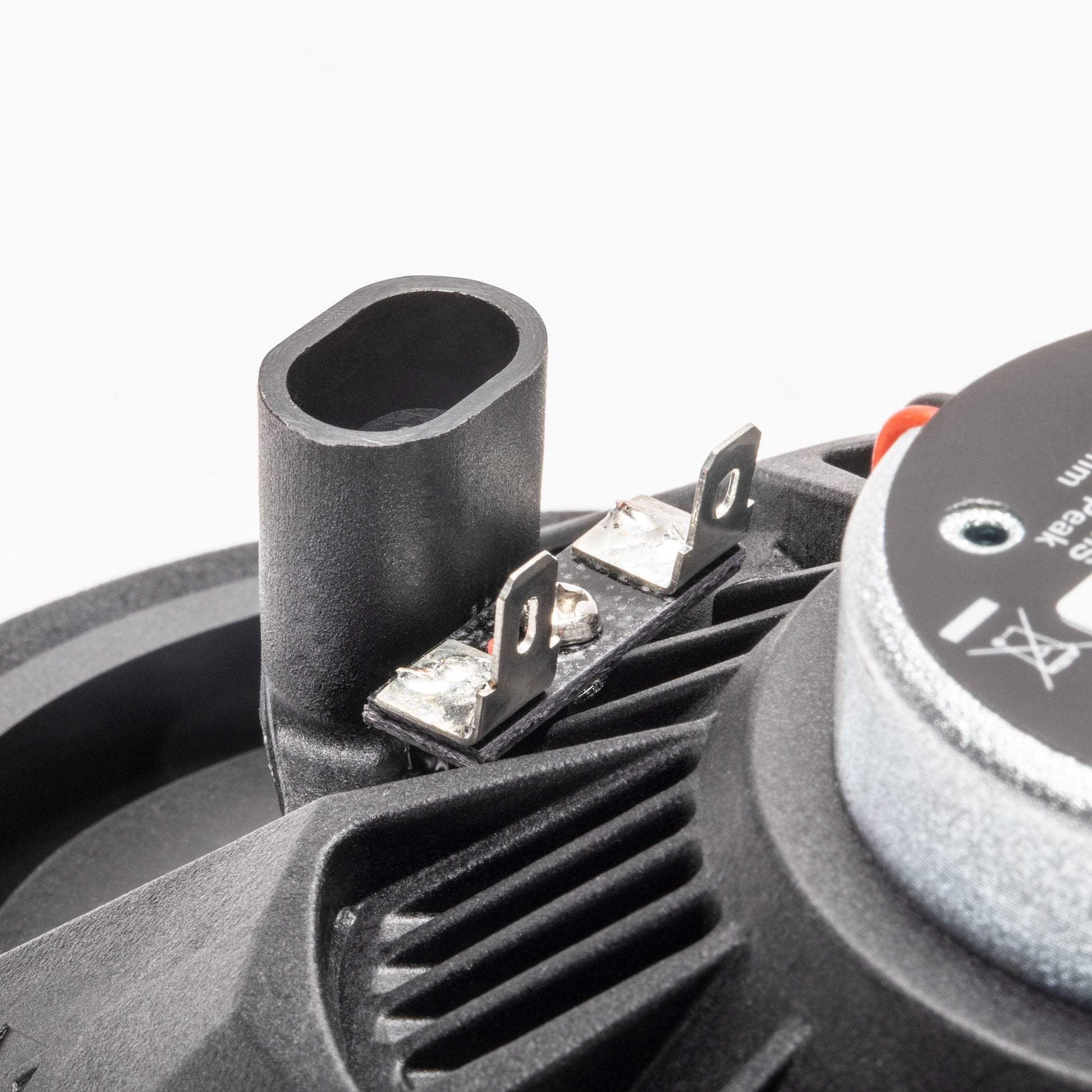

The TMS57 full range coaxial speaker is designed to replace existing 5"x7" 2-way coaxial speakers in factory equipped Harley-Davidson® "Boom!™ Audio" and "Boom!™ Audio Stage-I" bag lids.  The TMS57 features a Neodymium motor structure driving a reinforced polypropylene cone with Santoprene surround. Highs are produced by an ultra-efficient 25mm dome tweeter with integrated phase plug and is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker features two types of connectors, a standard set of terminals for 2013 and older generation motorcycles, and a new Deutsch style connector for 2014 and newer.

NOTE: Not compatible with "Boom!™ Audio Stage-II" systems. Please see Compatibility Tab for complete motorcycle fit guide.

Do you enjoy hitting the road on your motorcycle but are tired of not enjoying your music because you can't hear it when riding? The Rockford Fosgate TMS series of motorcycle speakers solve that problem. The TMS57 full range coaxial speaker is designed to replace existing 5"x7" speakers in factory equipped Harley-Davidson® "Boom!™ Audio" and "Boom!™ Audio Stage-I" bag lids. NOTE: This is NOT compatible with "Boom!™ Audio Stage-II" systems, nor do we recommend modifying the speaker to fit on Stage-II systems. See Compatibility Tab for complete motorcycle fit guide.

Boom!™ is a trademark and Harley-Davidson® are registered trademarks of H-D U.S.A., LLC.

Features:

• Santoprene Front Isolation Spider
• Poly‐Cotton Spider
• Element Ready design that is weather and water resistant
• Carbon Fiber Reinforced Polypropylene Cone
• Ultra‐Efficient Neodymium Dual Magnet Motor Structure
• Santoprene VAST Surround
• Co‐Molded Cone and Surround
• Includes Self-Adhesive Aluminum Diamond-R Badges
• Discreet (Hidden) Tweeter Wire
• High Power 35mm Voice Coil
• Ultra‐High Temperature Glass Reinforced Polymer Frame
• Integrated Spade Terminals
• Integrated 6dB Crossover with High Power Polyester Capacitor
• Ultra-Efficient 25mm Proprietary Film Dome Tweeter
• Neodymium Tweeter with Integrated Phase Plug and ASA Grill
• Low Profile Coaxial Tweeter Design
• 2-Year Warranty
• Factory H-D® connector for plug-n-play operation


Specifications:
