Rockford Fosgate

Rockford Fosgate TMS69BL14

Rockford Fosgate TMS69BL14

In stock

Saddlebag Kit for 2014+ Harley-Davidson® Models

  • price-tag logoNew Launch
Regular price $709.99
Regular price Sale price $709.99
Save: $-709.99 (% Off)*
Sale Sold out
Shipping calculated at checkout.
  • cargo-truck logoFree shipping Over $99
Sold in last hours
  • free logo
    Fast, FREE Delivery

    Free, Fast, Doorstep Delight!

  • return logo
    Delivery & Returns

    Effortless Delivery, Easy Returns

View full details
  • Overview
  • Details
  • Accessories

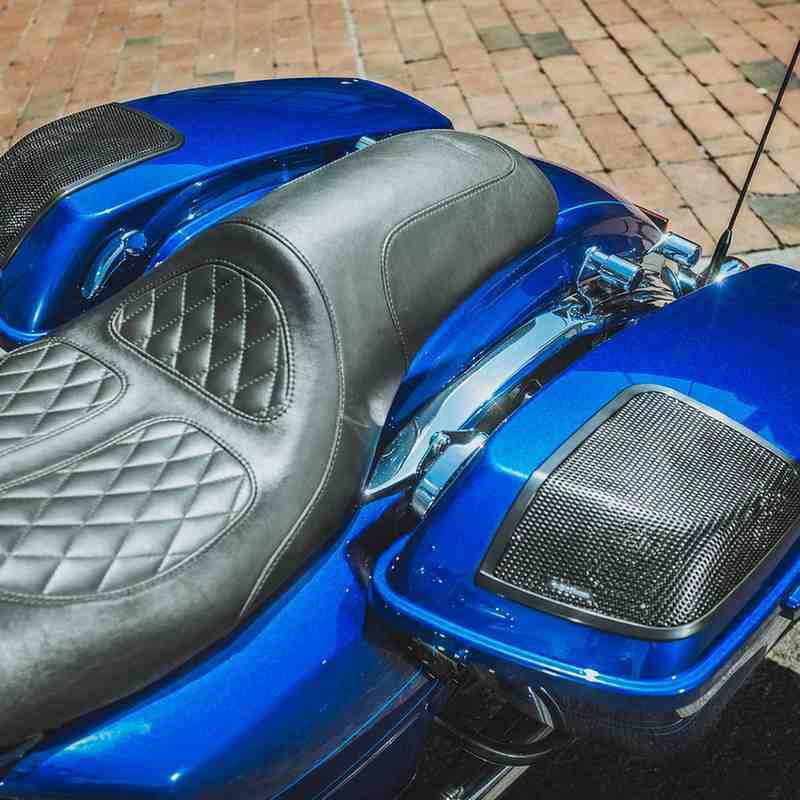

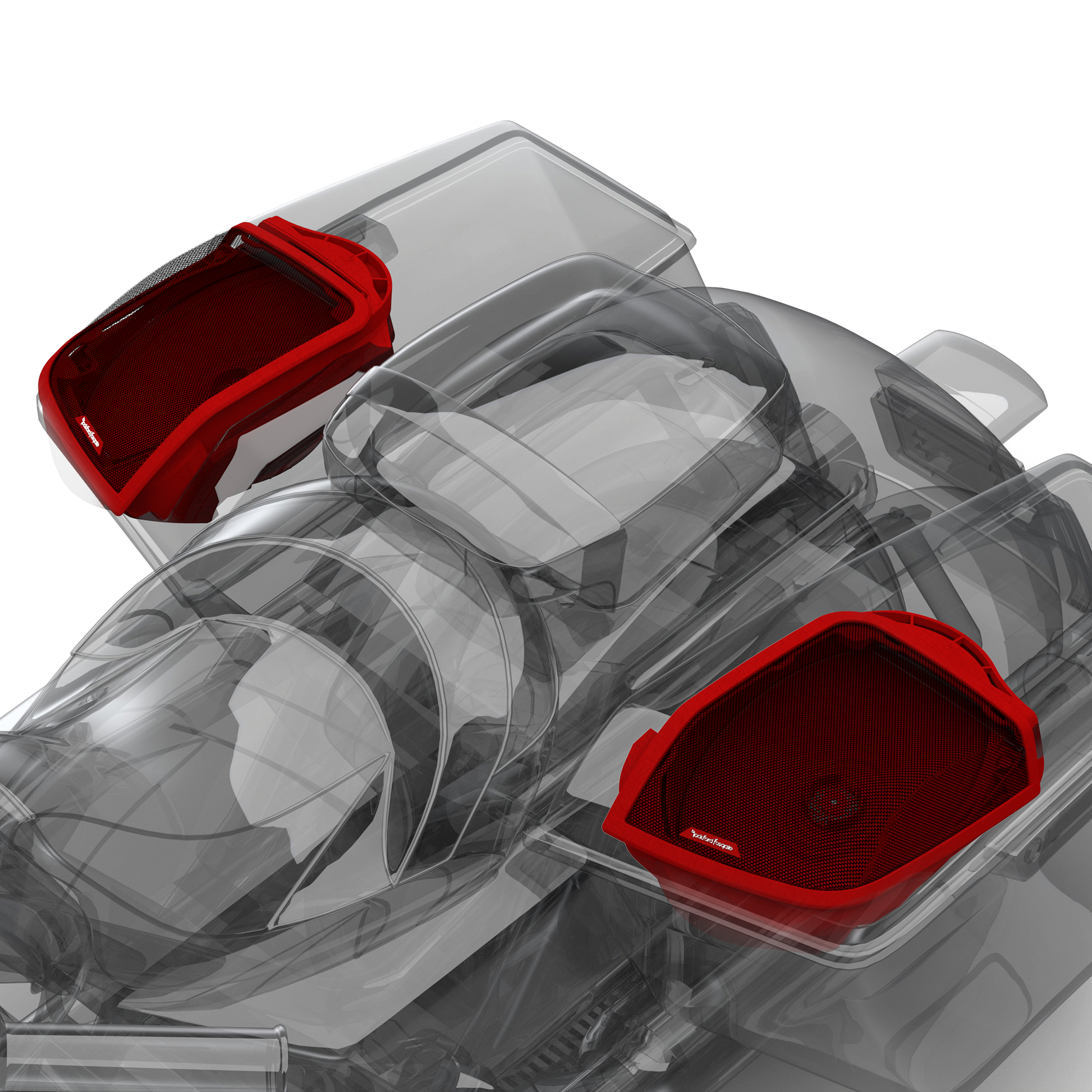

Retrofit kit allows addition of rear speakers on your existing factory bag lids and plug directly into a Rockford Fosgate front audio kit that utilizes the Power T400X4ad, TM400X4ad, or M5-800X4 4-channel amplifiers. Eliminates need to paint and color match. See Specifications tab for compatible motorcycles.

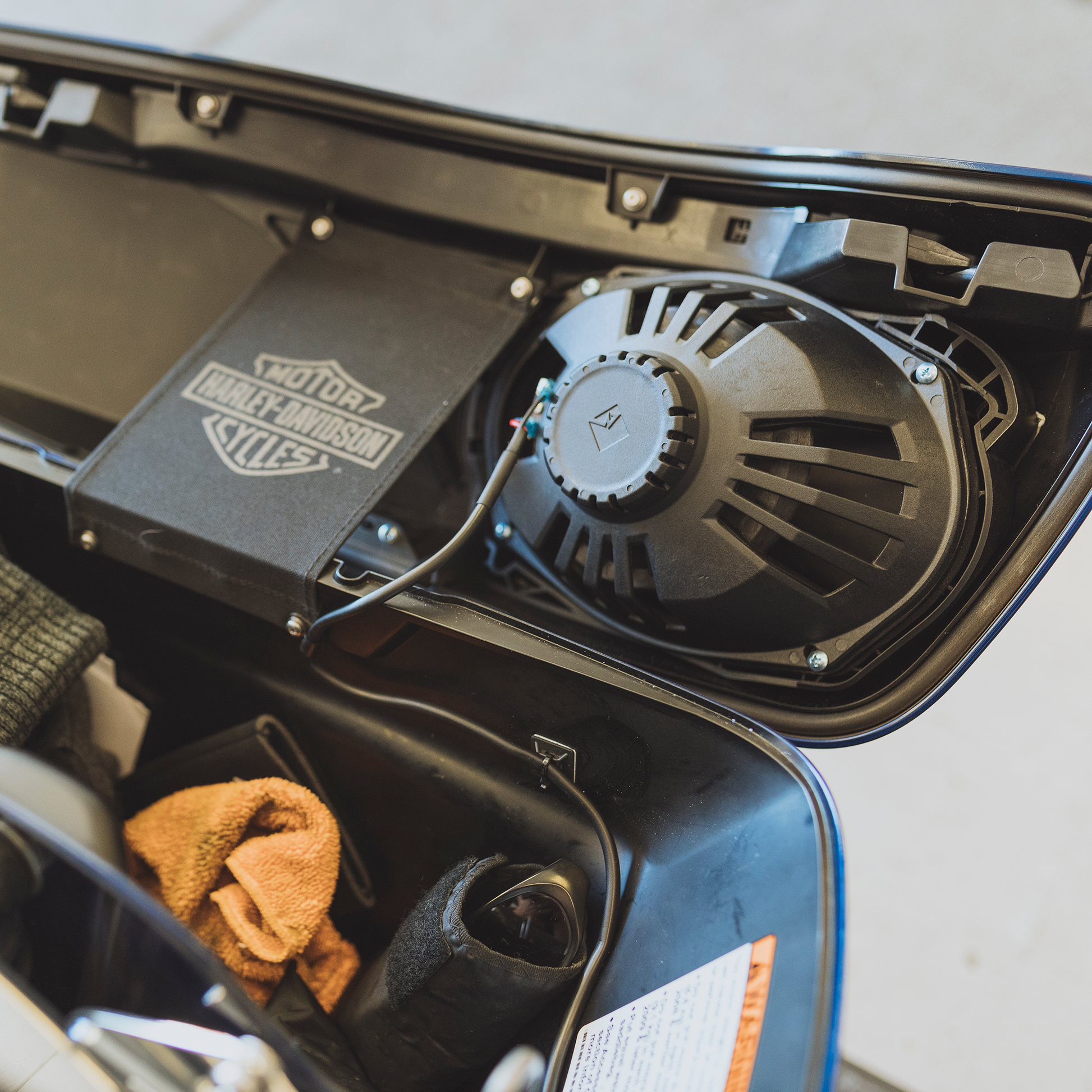

If you need more than just two speakers and want to really feel your music while riding then check out our add-on bag lid audio solution. Centered around our TMS69 6x9" speaker this kit is designed to work with your existing factory bag lids. This means no extra parts to purchase or custom paint schemes to match. Easy to install using our included cutting template and two-piece mounting system you can quickly add on to an existing or new fairing audio kit using with the included plug and play harness. This system is designed to plug directly into the Rockford Fosgate Power T400X4ad or TM400X4ad 4-channel amplifier.  Not designed for factory amplifiers.


Harley-Davidson®, Road Glide, and Street Glide® are registered trademarks of Harley-Davidson Motor Company

Features:

  • Designed for use with existing 2014+ Rockford Fosgate Stage kits
  • Designed for use with 2014+ Factory Harley-Davidson® Hardshell Bags
  • Includes all Installation Hardware and Accessories
  • Direct Connect Wiring Harness to Rockford Fosgate Amplifiers

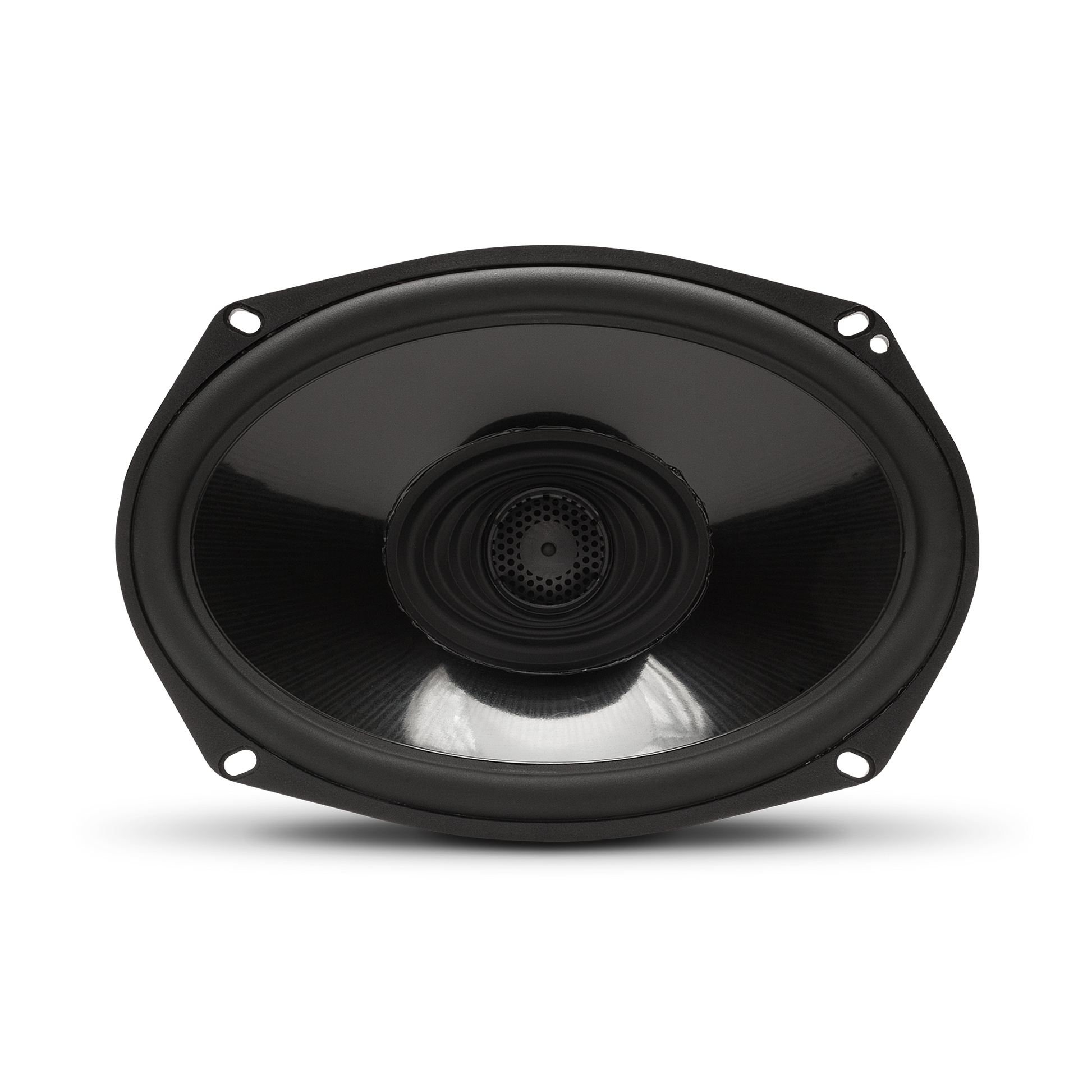

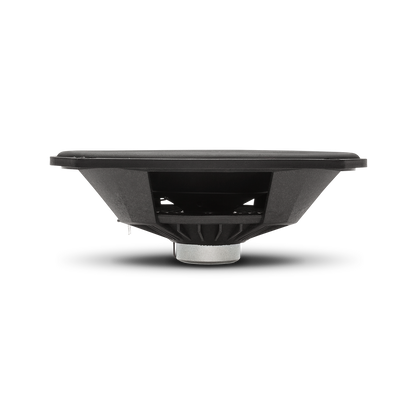

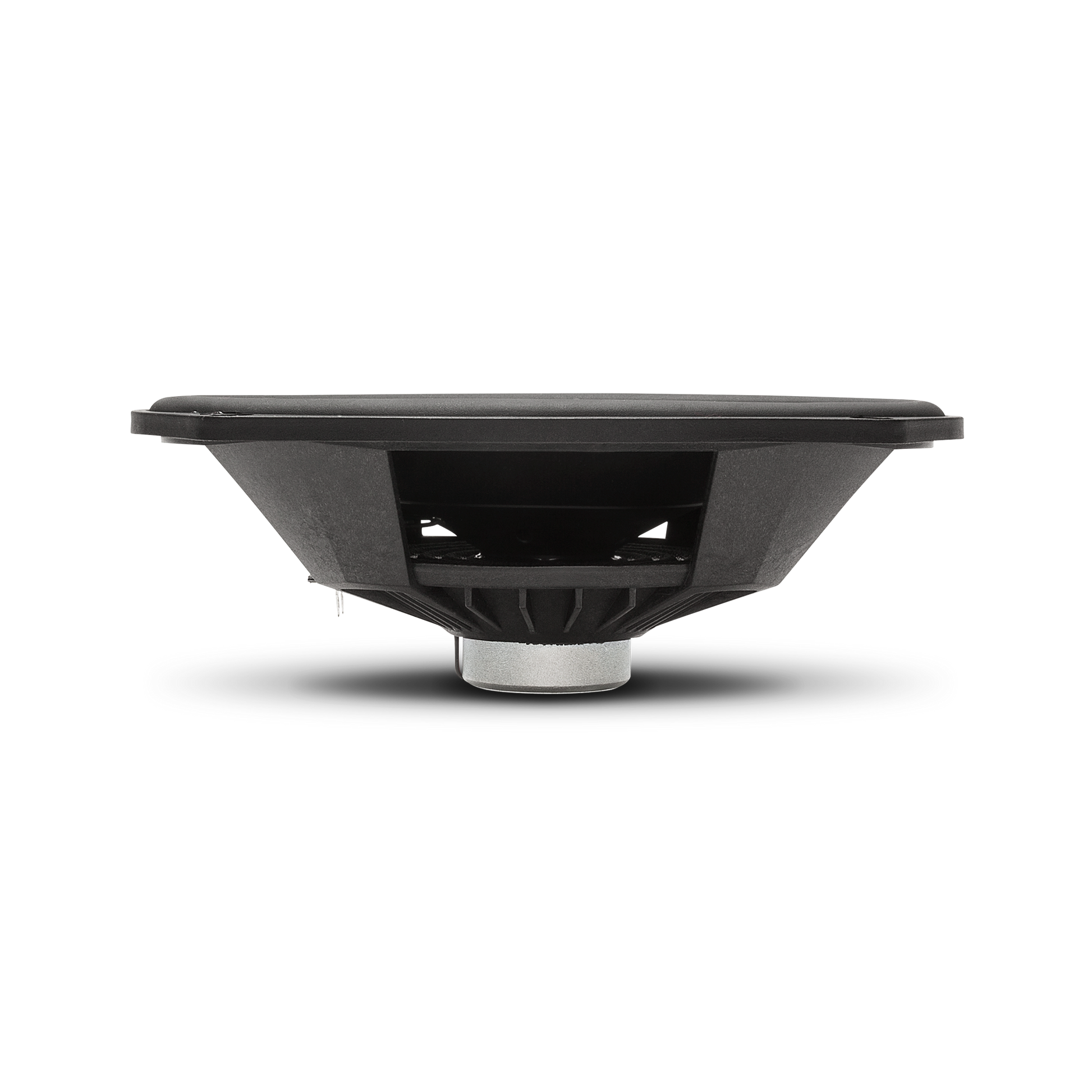

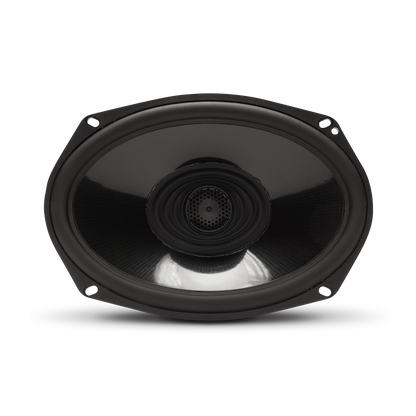

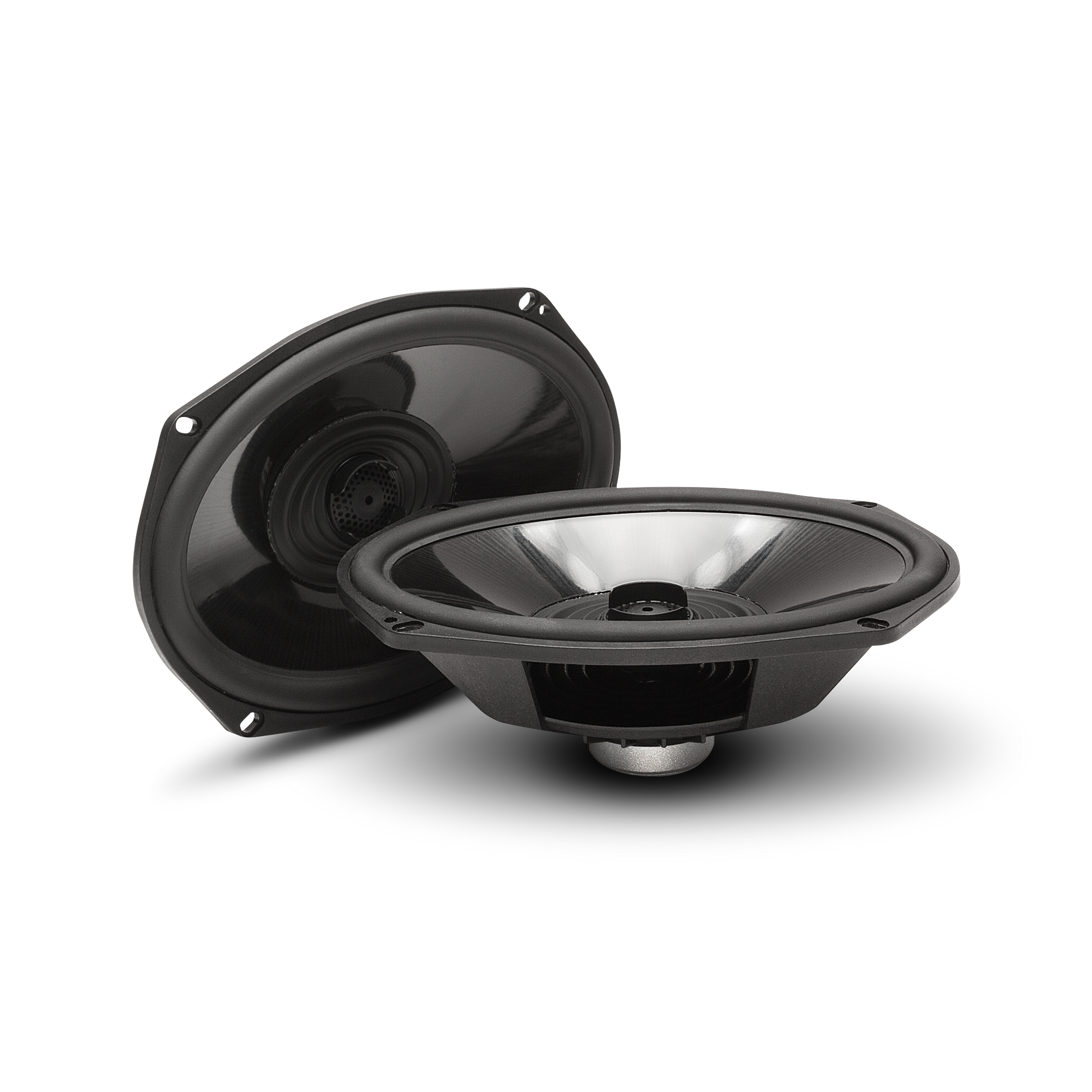

  • TMS69: 6x9” Element Ready™ 2-way speakers with integrated phase-aligned 25 mm tweeter
  • Painted Stamped Steel Grill with ASA Plastic Frame for UV Protection
  • Sandwich Clamping Gasket Design for Environmental Seal
  • Includes Custom Cut Out Guide
  • Factory Harley-Davidson® Boom!™ Box 4.3, 6.5GT, and GTS must be flashed to use this kit
  • Leave 2" minimum clearance under speaker magnet when packing bags
  • Ultra‐High Temperature Glass Reinforced Polymer Frame
  • Patent Pending

Specifications:

Mounting Hardware Yes
Grille/Trim Ring Included Yes
Shipping Weight 8.65 Lbs. (3.92 Kg)

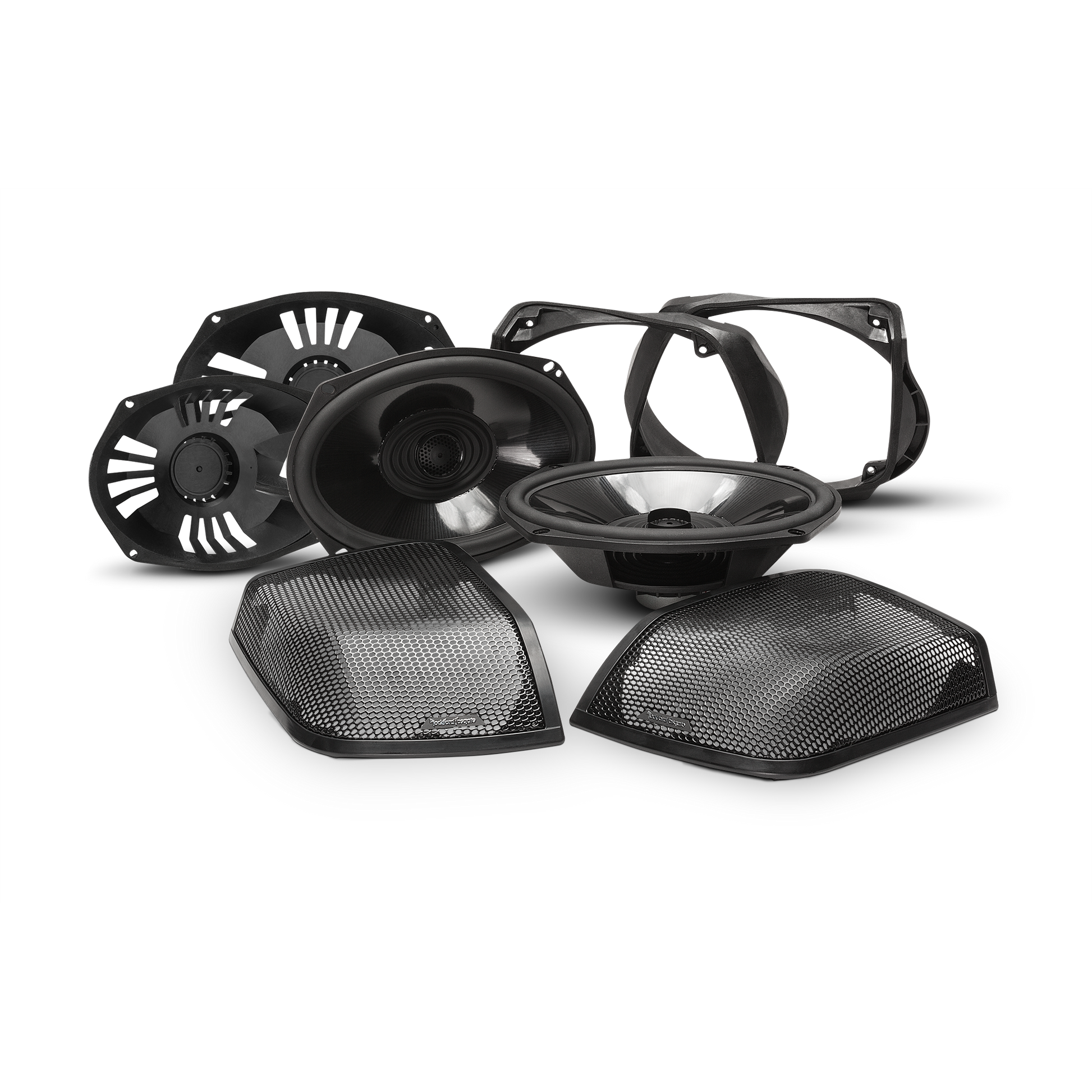

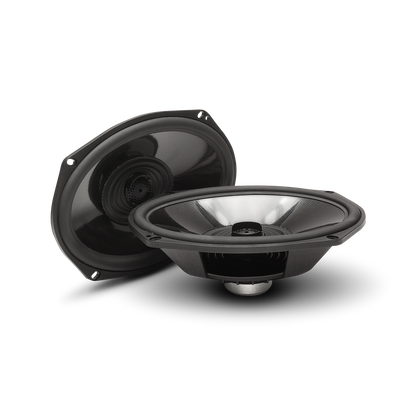

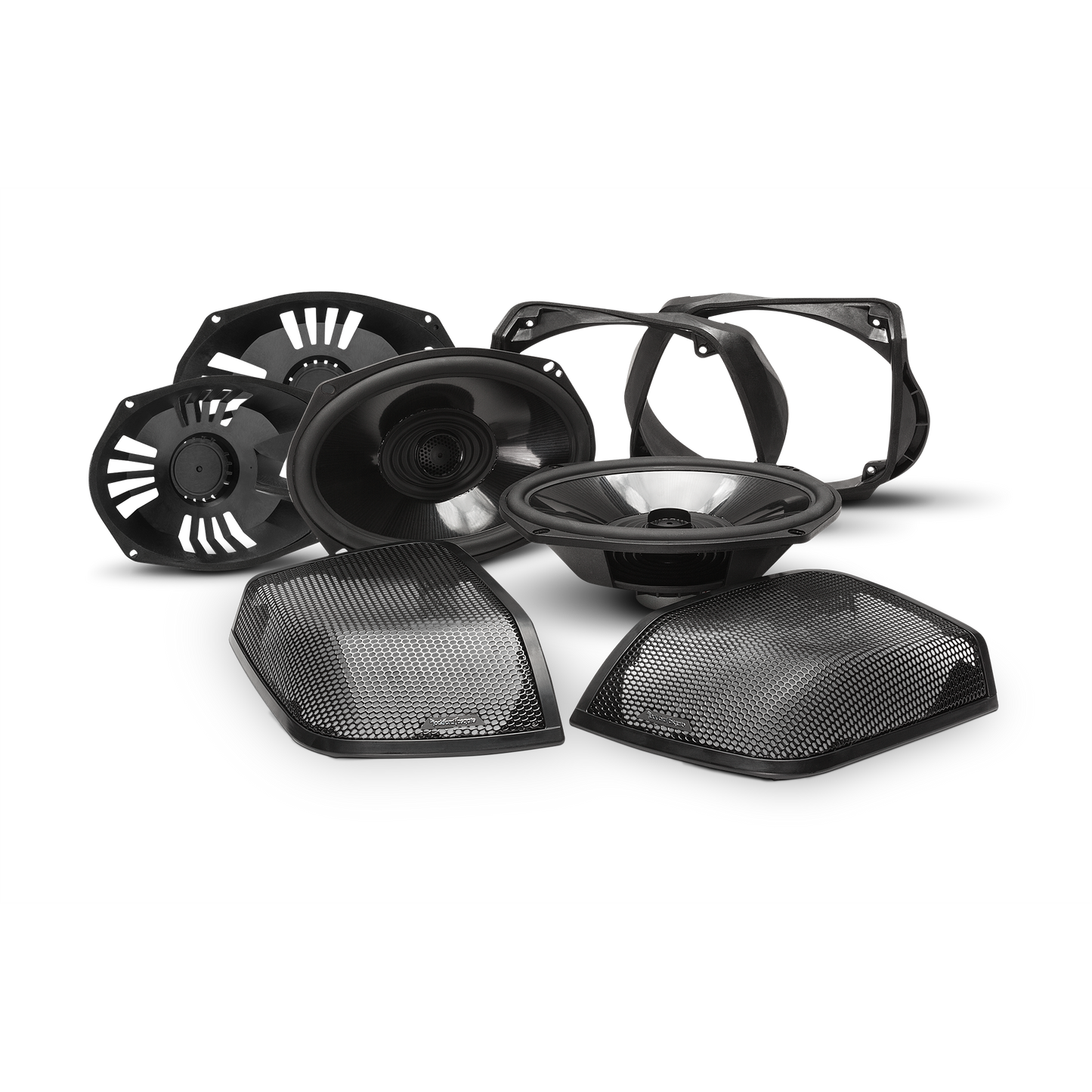

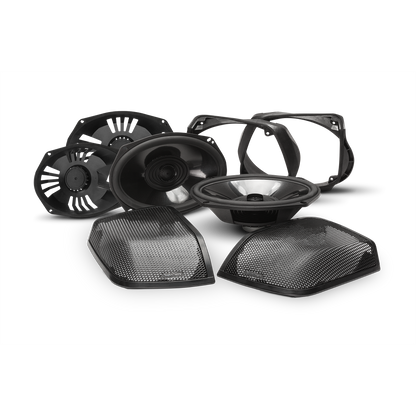

Included In The Box (2) TMS69 Speakers

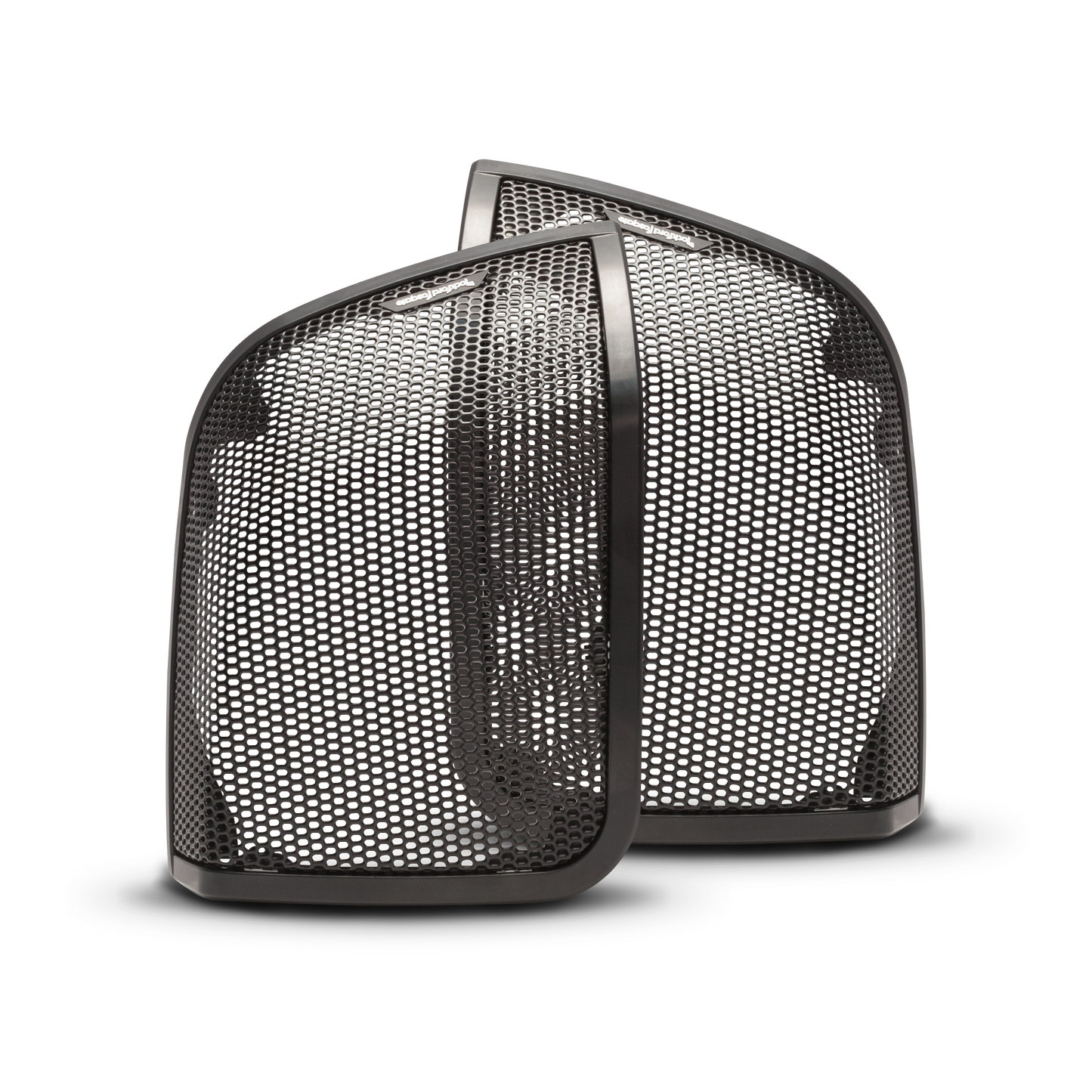

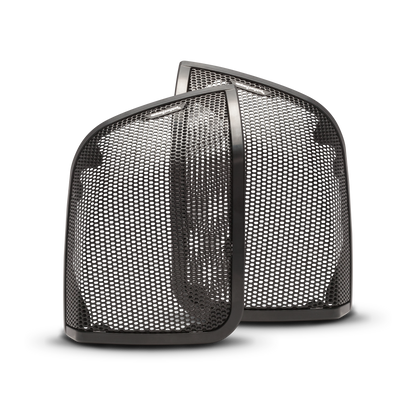

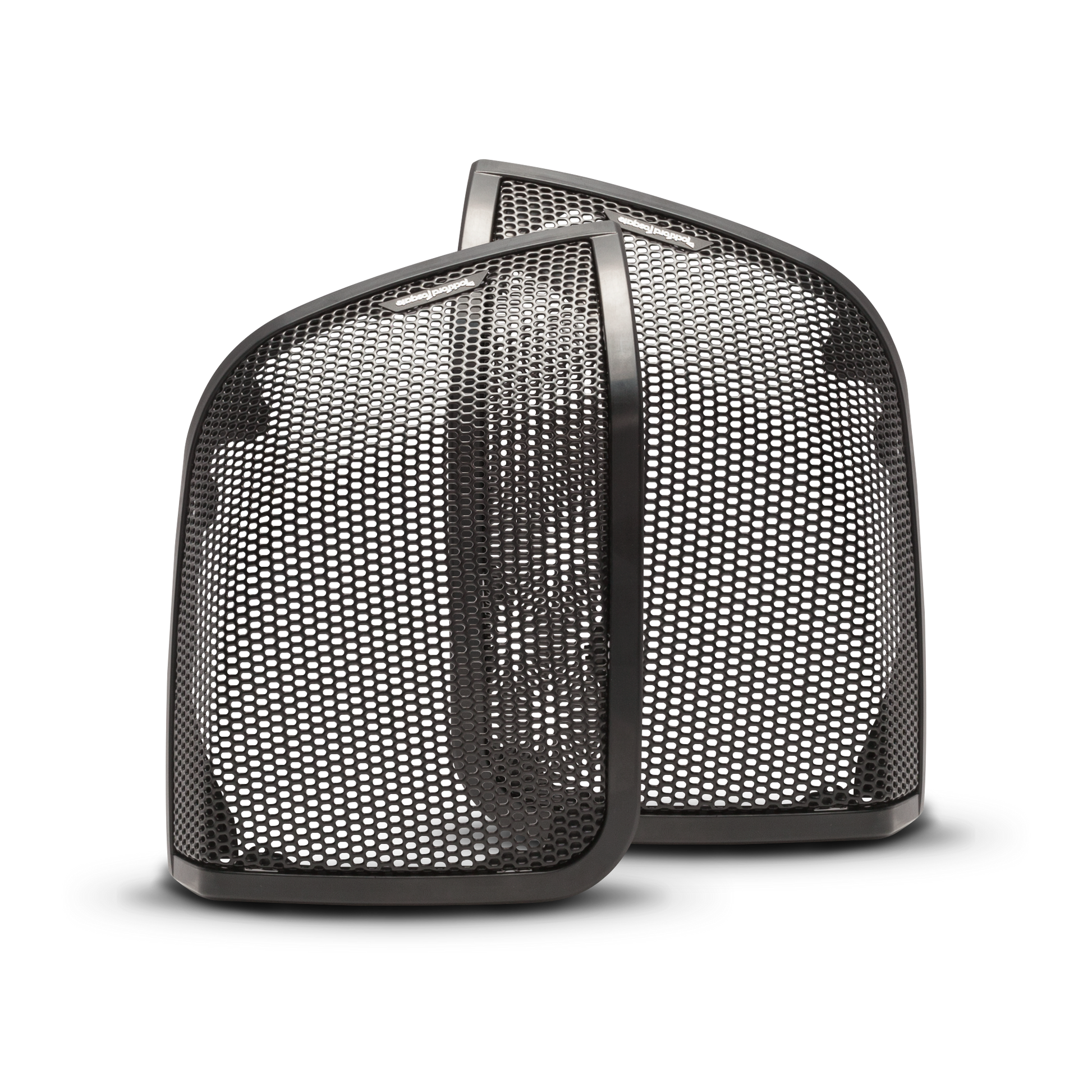

  (2) Speaker Grilles

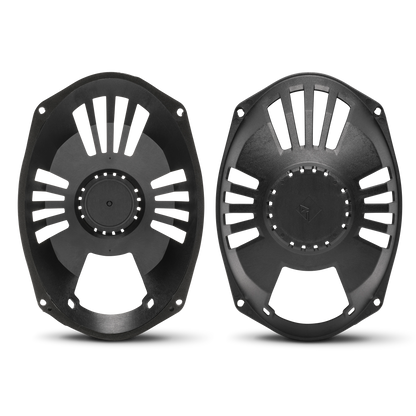

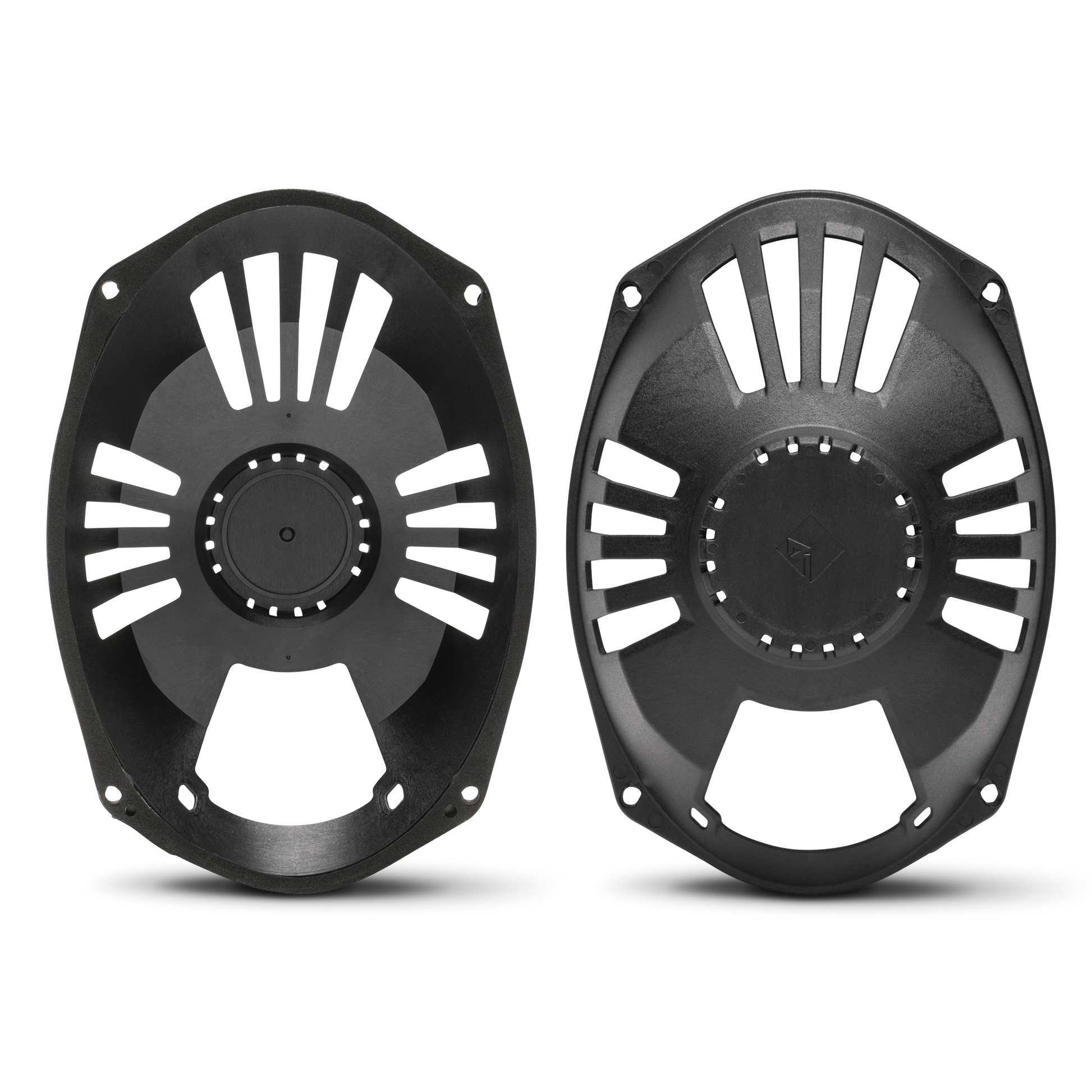

  (2) 6"x9" Basket Protectors

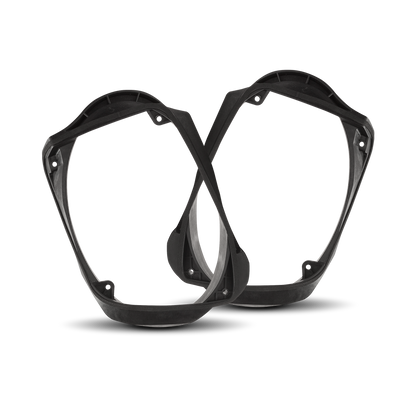

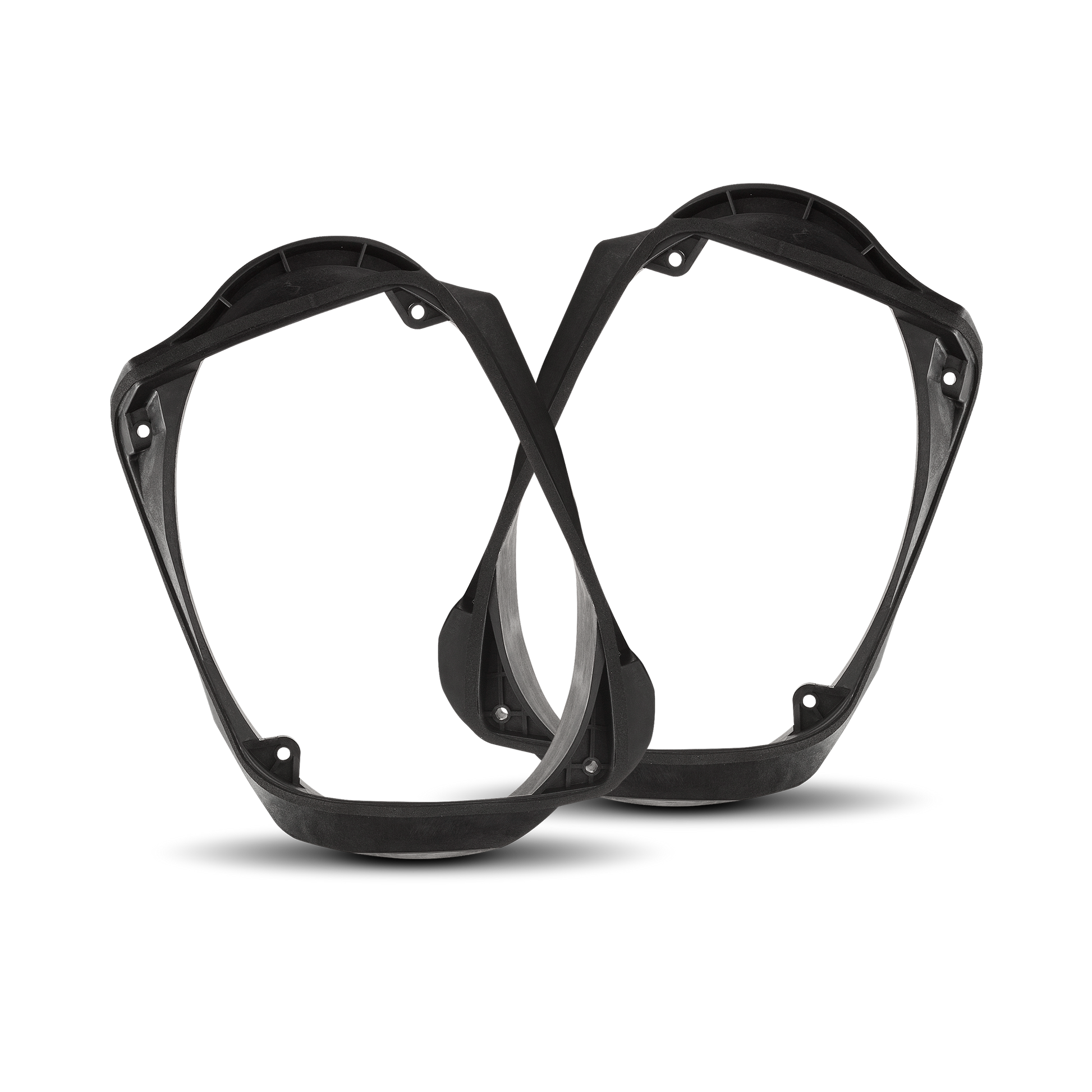

  (2) Mounting Rings
  (2) Cutting Templates
  (1) Main Harness
  (2) Saddlebag Harnesses
  Plastic Wire Tie Wraps
  Plastic Cable Tie Mounts
  (8) 1125-77147-01, Phillips Black Oxide Steel Screw with Washer, M4x1.4, 23mm L
  (12) 1125-62036-01, Pan Head Phillips Black Oxide Steel Screw, Plastic Cut, M4x1.4, 12mm L
