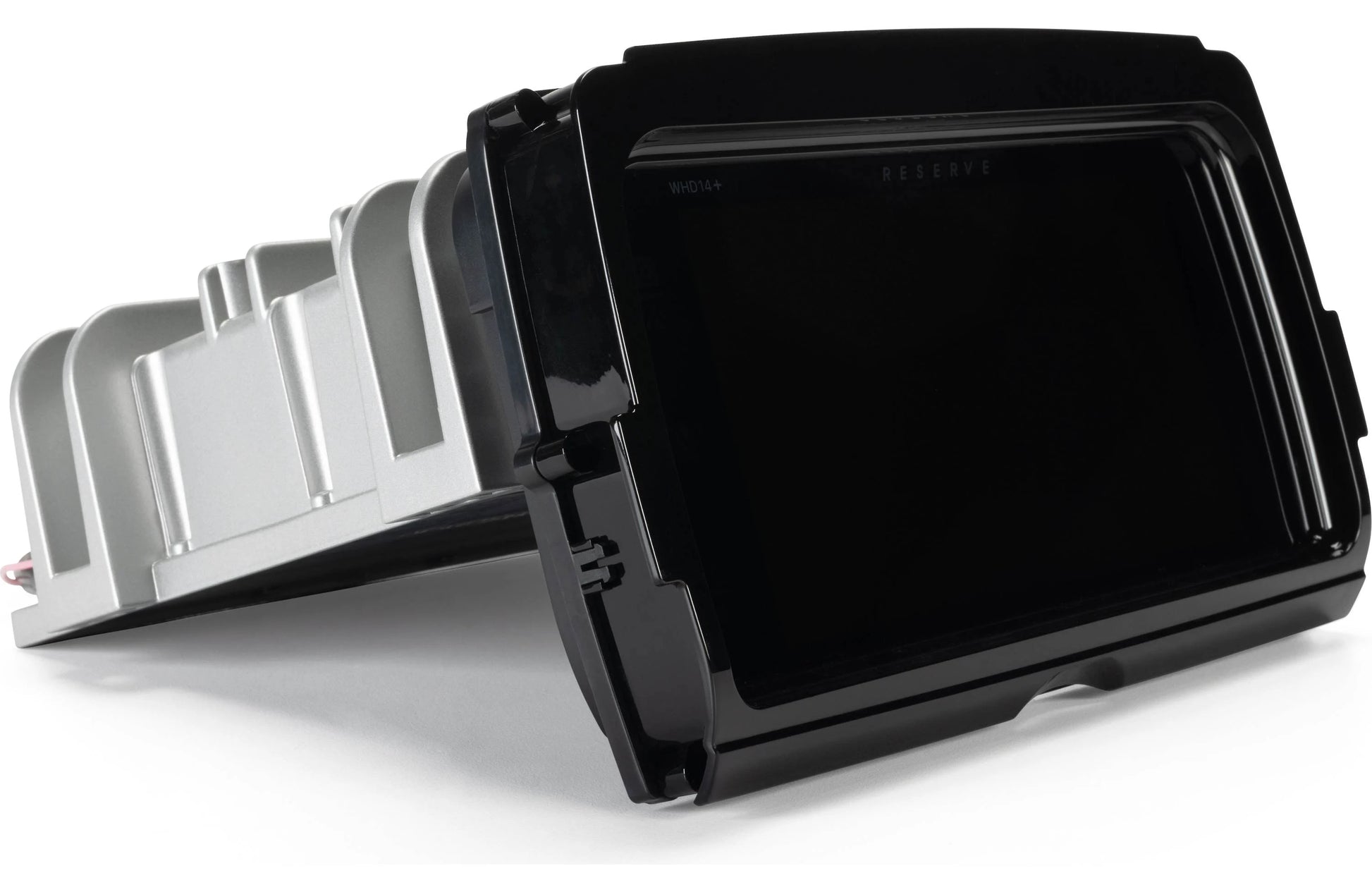

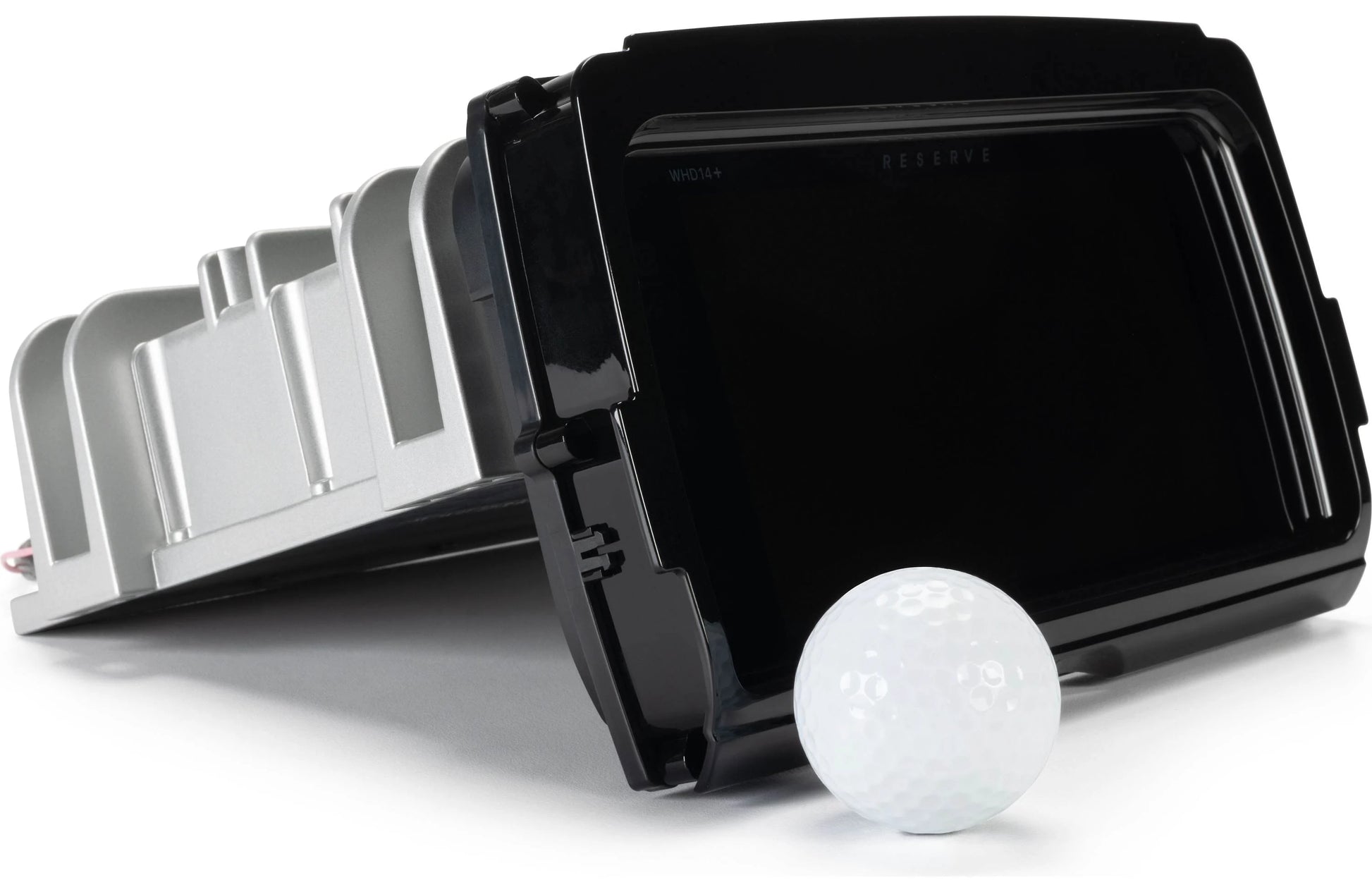

Soundstream Reserve WHD14+ Head Unit '14 to '24 Harley-Davidson Motorcycles

Product highlights:

• digital multimedia receiver for use in 2014-2024 Harley-Davidson Touring motorcycles without Boom! audio system

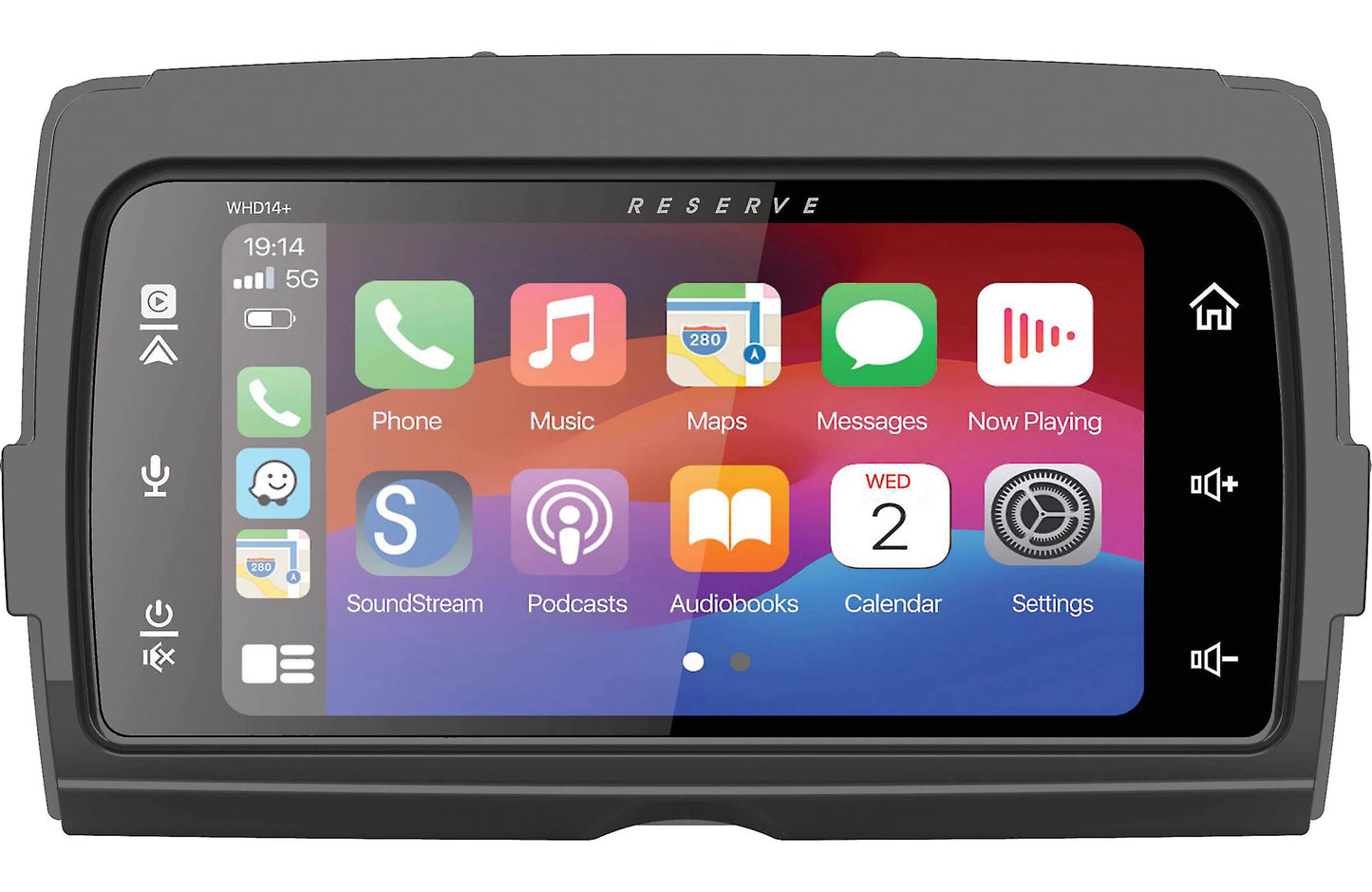

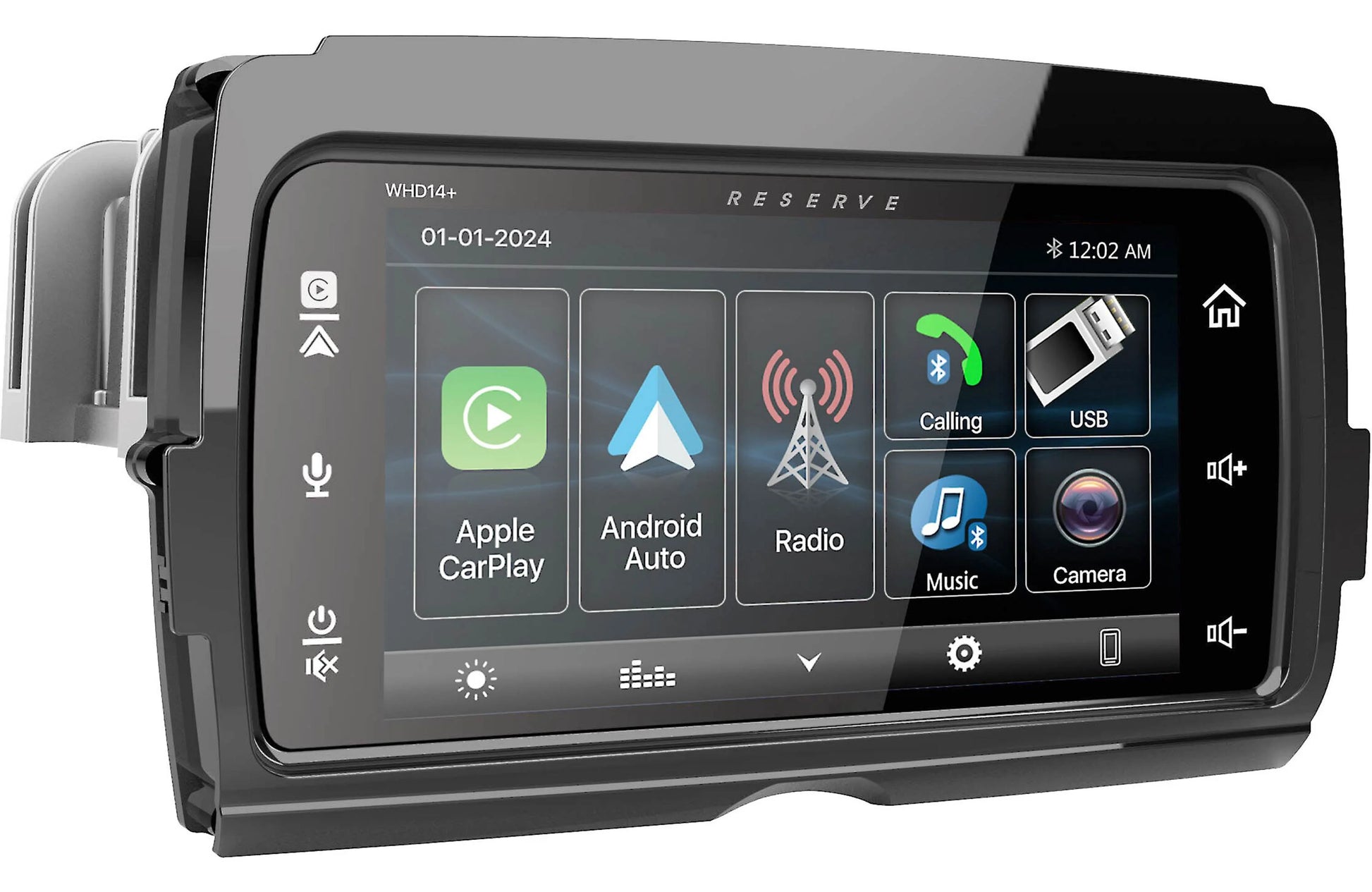

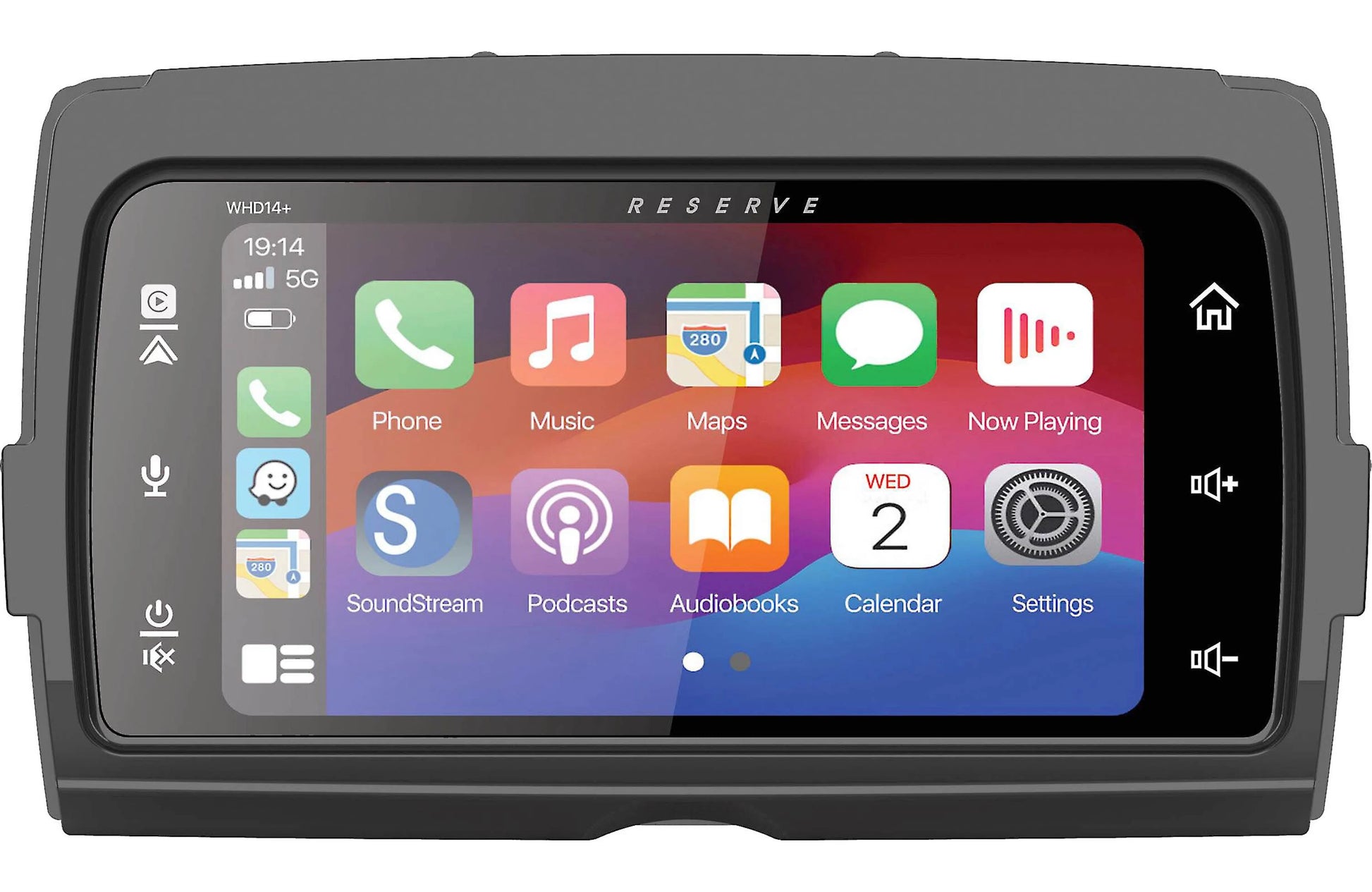

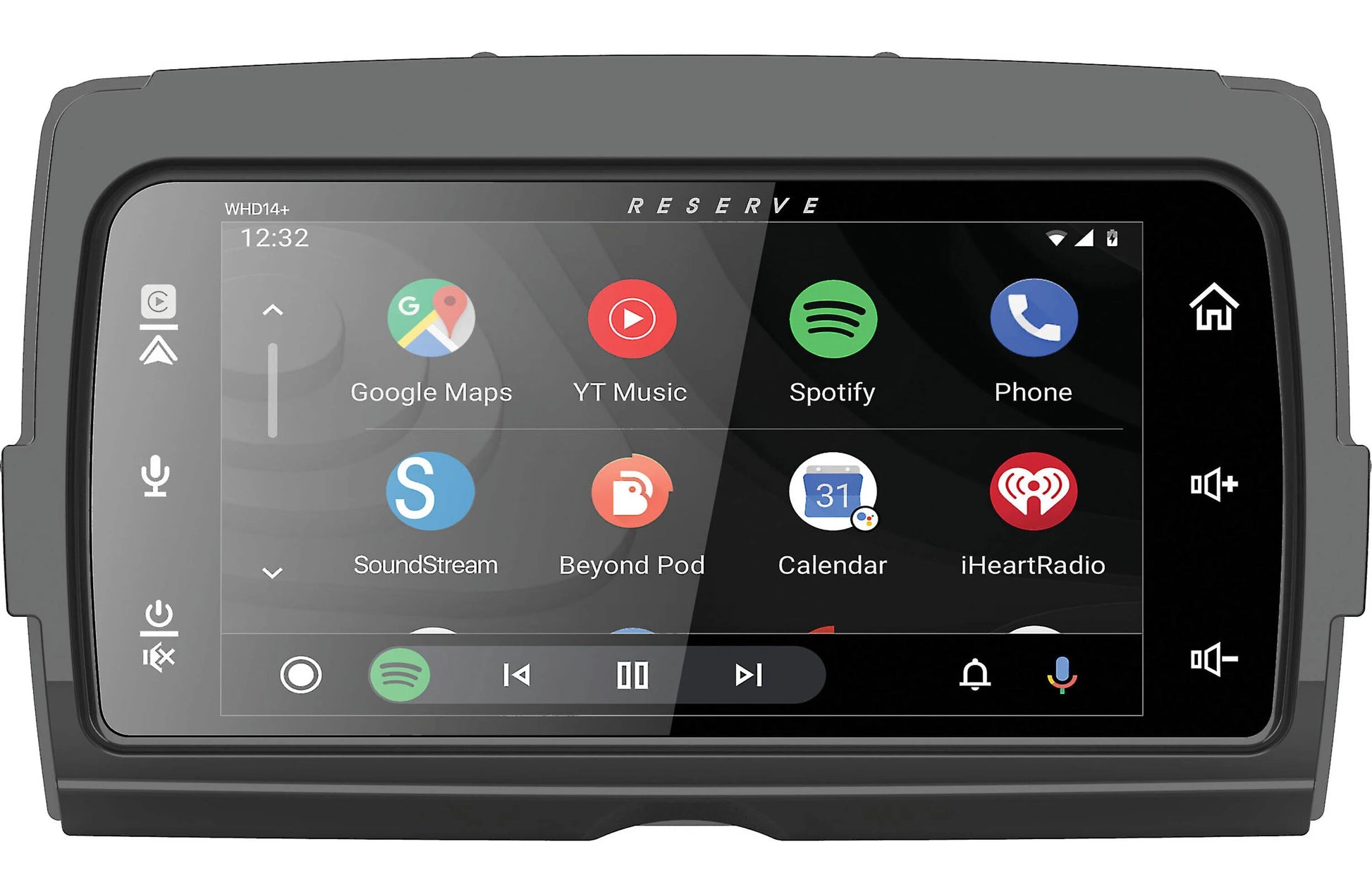

• works with wireless or wired Apple CarPlay w/ Siri Eyes Free and Android Auto w/ Google Assistant
• built-in Bluetooth 5.0 hands-free wireless connectivity

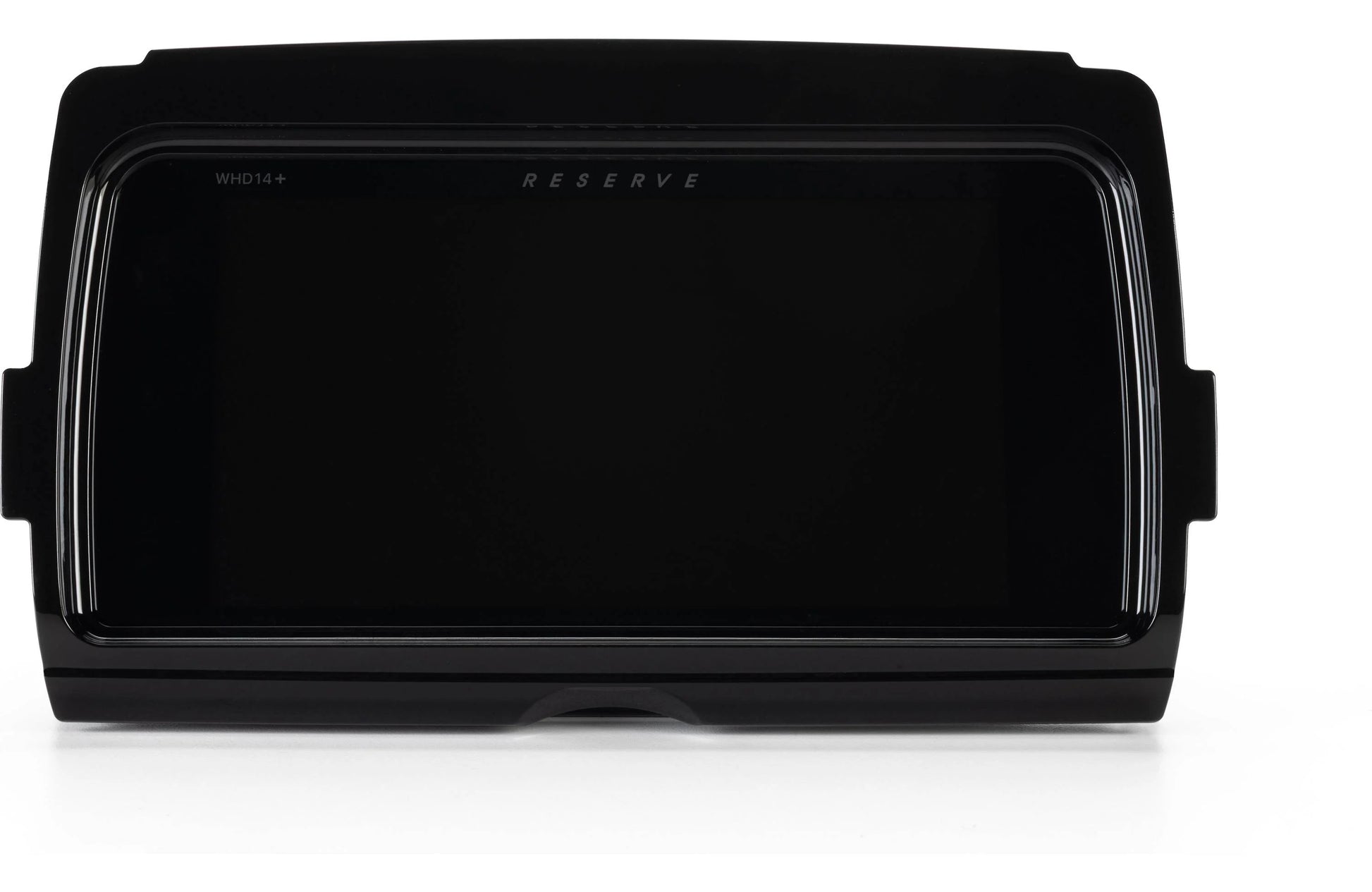

• 7" optically-bonded QLCD capacitive touchscreen display
• built-in 2-ohm stable Class D 4-channel amplifier (25 watts RMS x 4)

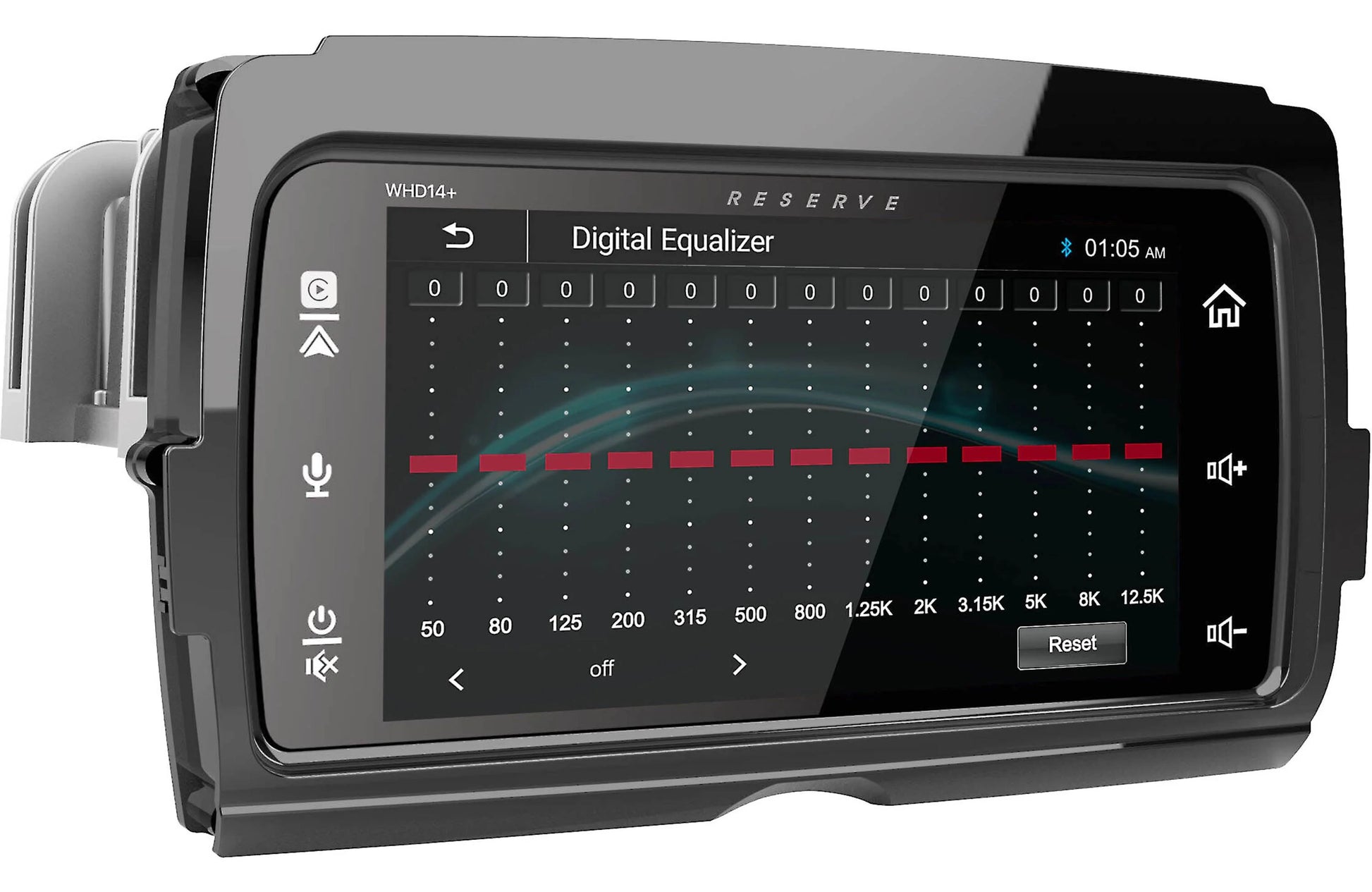

• 13-band graphic equalizer
• AM/FM radio
• IPX5-rated for water resistance

Installation:

• uses stock radio mounting location, no hardware required
• wiring harnesses plug into Harley-Davidson harnesses
• uses factory AM/FM antenna and factory GPS antenna (no adapters required)

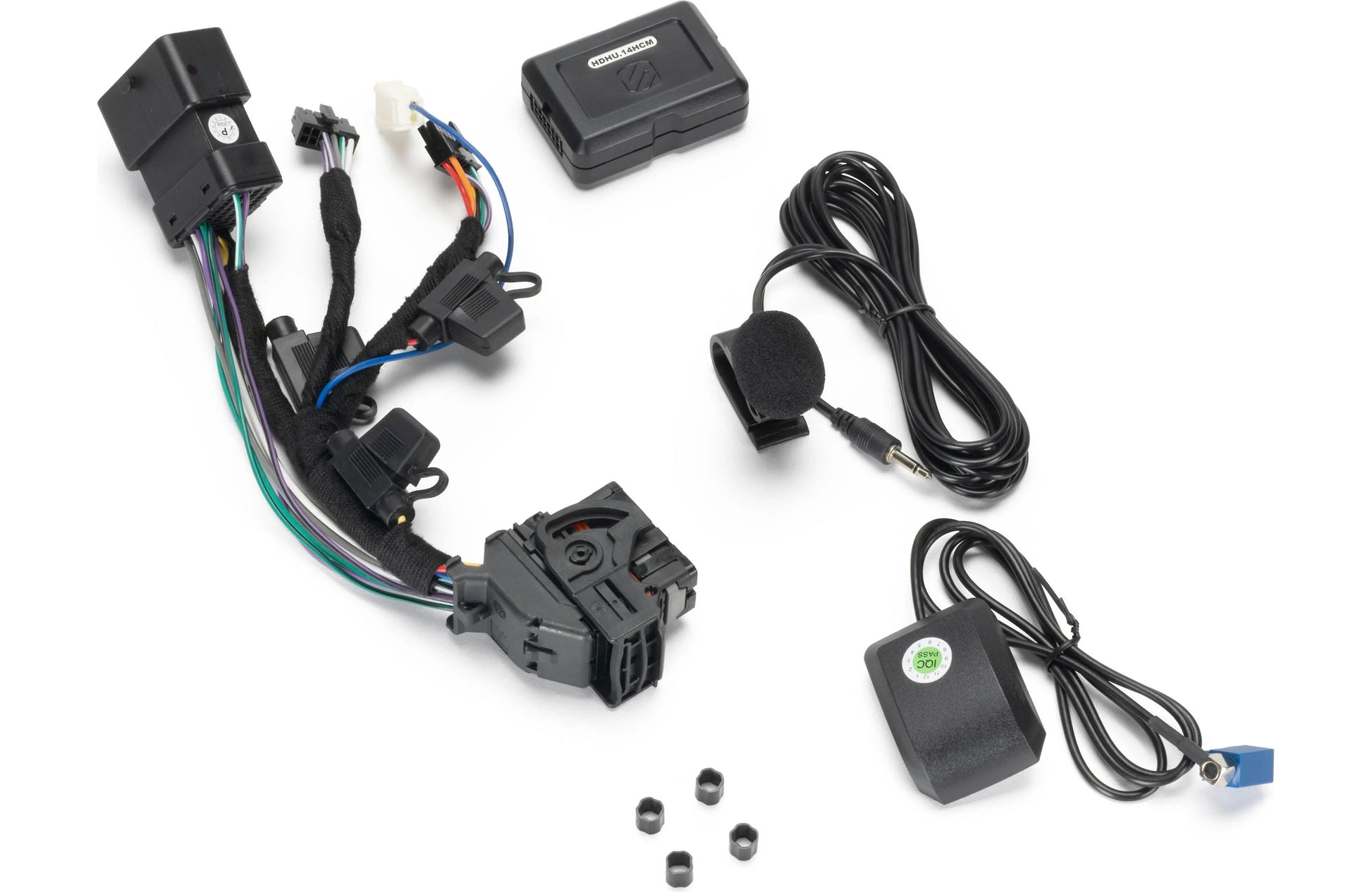

• includes handlebar interface module to retain handlebar controls
• includes optional external Bluetooth calling microphone
• includes optional external GPS antenna

Expandability:

• built-in active crossover with high pass filter and low pass filter to adjust speakers, subwoofer, and slope.

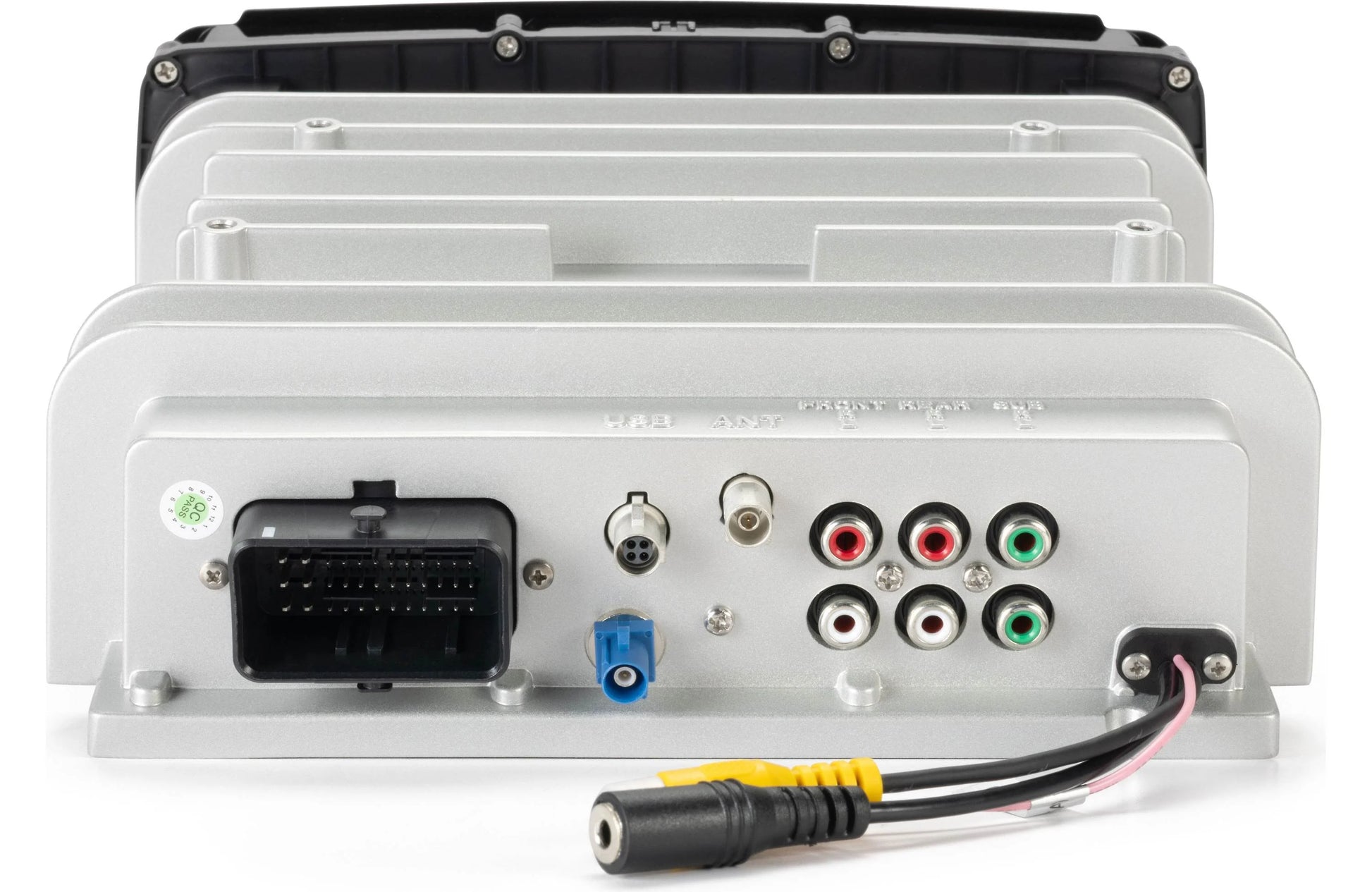

• inputs: rear USB-A port for OEM USB connection, backup camera input
• outputs: 6-channel preamp outputs (5-volt front, rear, subwoofer)
• warranty: 2 years
