Garmin

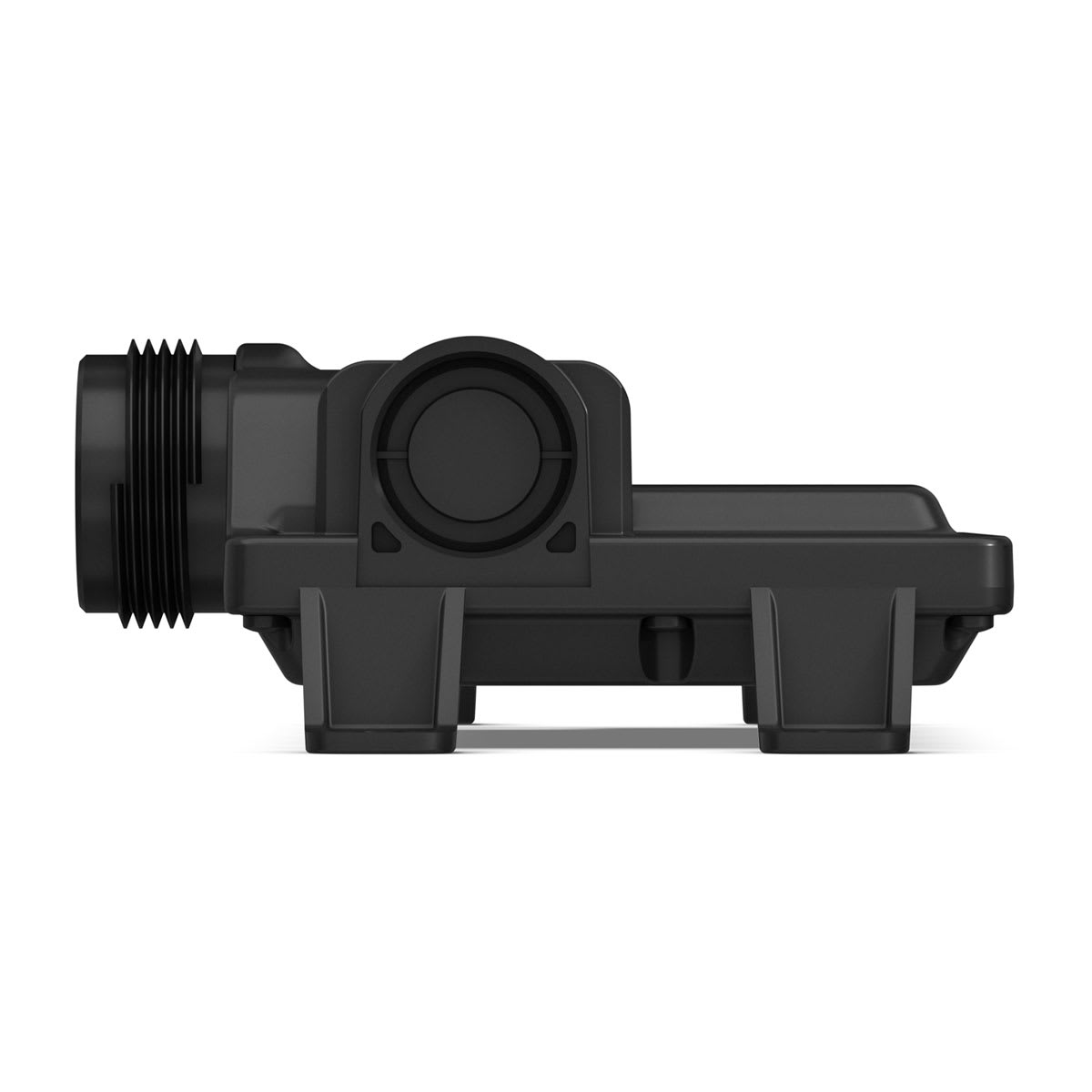

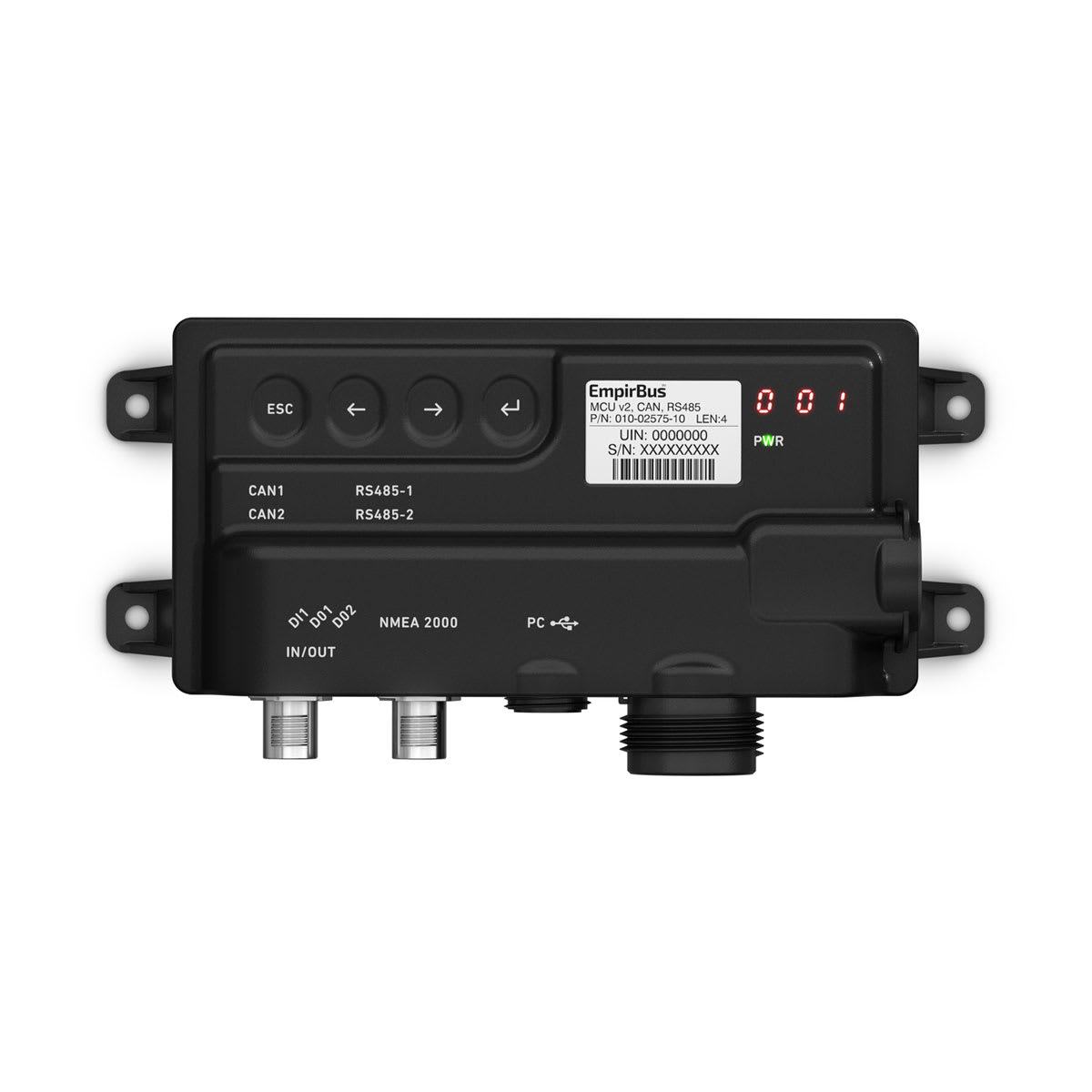

EmpirBus™ MCU v2

EmpirBus™ MCU v2

  • price-tag logoNew Launch
Regular price $1,699.99
Regular price Sale price $1,699.99
Save: $-1,699.99 (% Off)*
Sale Sold out
Shipping calculated at checkout.
  • cargo-truck logoFree shipping Over $99
Sold in last hours
  • free logo
    Fast, FREE Delivery

    Free, Fast, Doorstep Delight!

  • return logo
    Delivery & Returns

    Effortless Delivery, Easy Returns

View full details
  • Overview
  • Details
  • Accessories

Allowing you to control and monitor all onboard electronic systems from your Garmin chartplotter or compatible third-party display, the MCU device is an essential component of larger, more complex digital control installations. It is the central processor that drives the system and provides the computing power, intelligence and decision-making functions — plus coordination between the system’s distribution control modules (DCMs), including the NXT™ DCM and Connect 50™ DCM units from EmpirBus.

In addition, there are various interfaces for connection to external devices. The updated MCU v.2 boasts two auxiliary CAN ports and two RS485 ports that are galvanically isolated and can be configured for additional third-party integrations in parallel.

The MCU device talks to all the other system components via the NMEA 2000® network. Configuration files for the installation are stored in the MCU, so if a DC module is ever damaged it can simply be replaced, and it will be programmed by the MCU device. While the MCU is designed to support larger, more complex switching systems, on smaller systems one of the Connect 50 or other DCM units can be set up to function as the master control for the system.


Specifications:



      General
      Dimensions (WxHxD) 6.8" x 3.5" x 1.8" (17.3 x 8.9 x 3.25 cm)
      Weight 7.1 oz (200 g)
      Communication CAN-bus NMEA 2000® network LEN-4 2 Auxiliary CAN ports 2 Auxiliary RS485 ports 1 digital input 9-32V 2 digital output 100mA
      Ambient temperature -20° C to +55° C
      Enclosure water rating IP65
      Power supply
      Power supply Powered via NMEA 2000
      Power consumption Max/average 195 mA @ 9 volts / 165 mA @ 9 volts
      Supply voltage 9-32 volts DC
      Connector
      NMEA 2000 Micro 5-pin M12 male
      PC Mini USB
      Digital in/out, Aux CAN, Aux RS485 12-pin M12 male
      Lighting Features
      LED connection types RGB, RGBW, CRGBW, single channel
      Lighting modes Color pick, audio sync (color blend/audio spectrum), effects
      Premium control and setup via MFD or ActiveCaptain® app
      Control via Fusion Apollo™ Stereo
