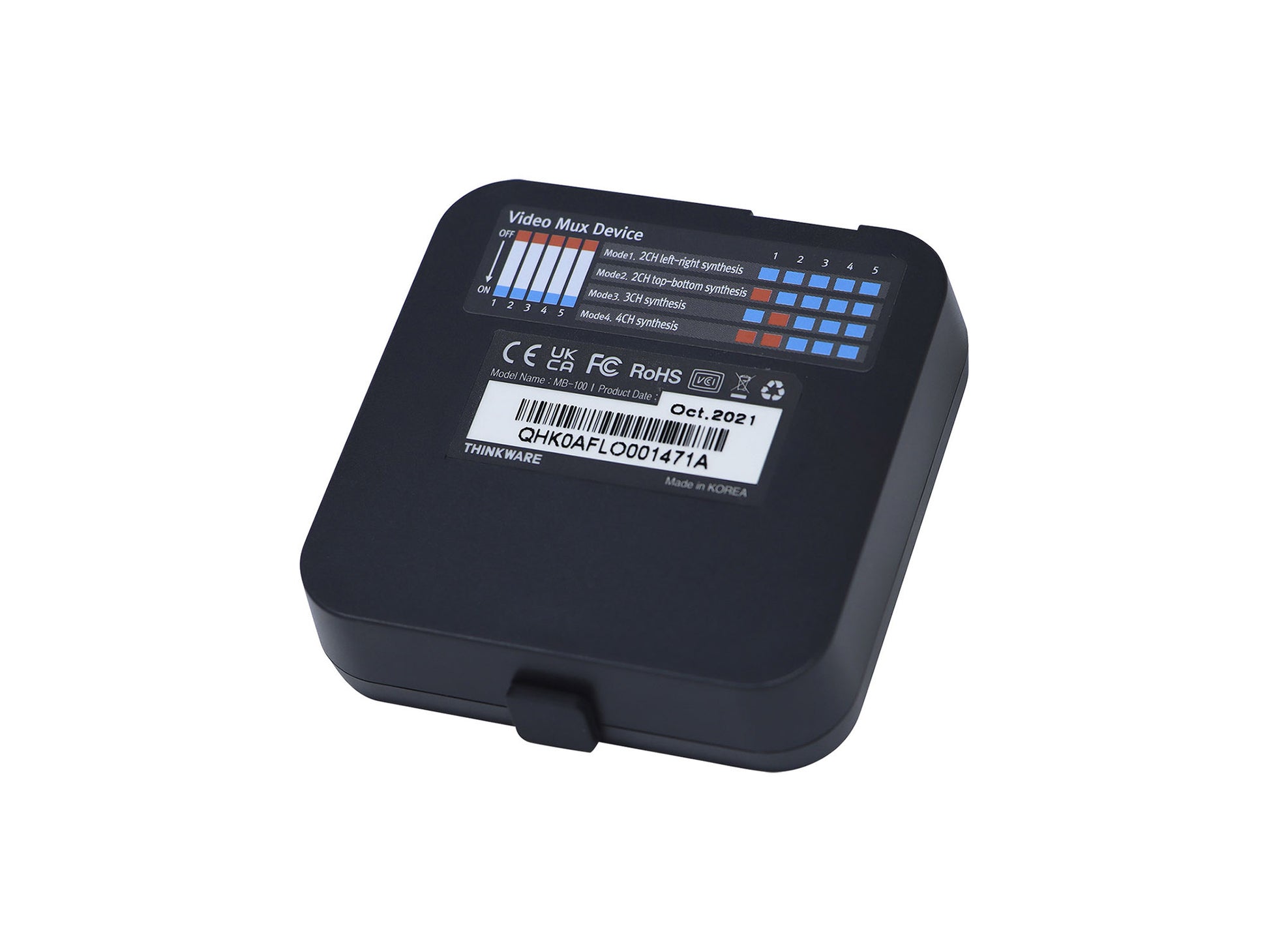

What is the Multiplexer Accessory?

Get total coverage by transforming your Thinkware Dash Cam into a multi-channel surveillance system with the Multiplexer Box accessory. Thanks to the modular design of the multiplexer, a combination of side, interior, and rearview cameras can be paired together with the main forward-facing dash cam.

Here’s what you get in the box

  • Multiplexer Box
  • Multiplexer Box Cable (with power cable)
  • V-Out Cable
  • Accessory Camera Adaptor - Q850, U1000 Plus (0.3m)
  • Rear View Camera Cable - ARC (7.5m)
  • Installation Guide

NOTE: The Multiplexer Box can ONLY be used as an add-on accessory to a compatible Thinkware Dash Cam. The Multiplexer Bundle by itself cannot be used to record driving footage.

Compatible dash cams: U1000 Plus, Q850, Q200, F200 PRO, F790, X800 and X700

Installation guide: How to Install the Multiplexer Box

Specifications:

  • Key:
    piano code switch
    composite screen can be configured according to switch combination
  • Power Source:
    2 (BAT, GND)
    DC 12 V ~ 24 V
    Cable length: 3 m
  • AV-IN (For optional camera connection):
    4 cables (CAM 1, CAM 2, CAM 3, CAM 4)
    2.5 pi Stereo-jack type
    AFHD
    Cable length to connecting connector: 15 cm
  • AV-OUT(For front camera connection):
    1 cable (AV-OUT)
    2.5 pi Stereo-jack type
    For front camera connection
    Cable length: 3 m
  • Recording Channel: Up to 4 Analog Full HD cameras can be input (total 5CH)
  • Composite Video: Full HD (1920 x 1080)  @ 30fps
  • Dimensions (WxDxH): 65 x 65 x 17.5 mm (2.56 x 2.56 x 0.69 inch)
  • Weight: 40.0 g (1.41 oz)
  • Storage Temperature:   -20°~ 70°C (-4°~ 158°F)
  • Operating Temperature:   -10°~ 60°C (14°~ 140°F)
