ThinkWare Multiplexer Bundle #1

ThinkWare Multiplexer Bundle #1

In stock

  • price-tag logoNew Launch
$249.99
$249.99
Save: $-249.99 (% Off)*
Sale Sold out
Shipping calculated at checkout.
  • cargo-truck logoFree shipping Over $99
Sold in last hours
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
  • free logo
    Fast, FREE Delivery

    Free, Fast, Doorstep Delight!

  • return logo
    Delivery & Returns

    Effortless Delivery, Easy Returns

View full details
  • Overview
  • Details
  • Accessories

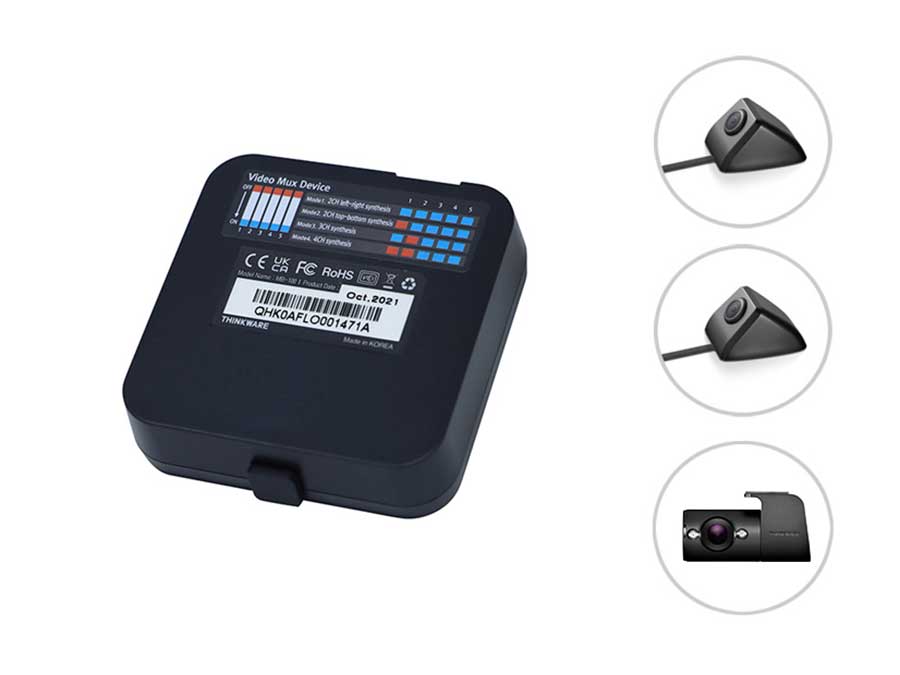

Here’s what you get in the box

The Multiplexer Bundle #1 contains 5 items.

  • 1 of Multiplexer Box
  • 2 of Exterior Side Camera
  • 1 of Interior Infrared Cabin Camera
  • 1 of Multiplexer Box Cable – U1000 Plus

NOTE: The Multiplexer Bundle can ONLY be used as an add-on accessory to a compatible Thinkware Dash Cam. The Multiplexer Bundle by itself cannot be used to record driving footage.

Compatible dash cams: U1000 Plus, Q850, Q200, F200 PRO, F790, X800 and X700

Installation guide: How to Install the Multiplexer box

Specifications:


Multiplexer Box

  • Key:
    piano code switch
    composite screen can be configured according to switch combination
  • Power Source:
    2 (BAT, GND)
    DC 12 V ~ 24 V
    Cable length: 3 m
  • AV-IN (For optional camera connection):
    4 cables (CAM 1, CAM 2, CAM 3, CAM 4)
    2.5 pi Stereo-jack type
    AFHD
    Cable length to connecting connector: 15 cm
  • AV-OUT(For front camera connection):
    1 cable (AV-OUT)
    2.5 pi Stereo-jack type
    For front camera connection
    Cable length: 3 m
  • Recording Channel: Up to 4 Analog Full HD cameras can be input (total 5CH)
  • Composite Video: Full HD (1920 x 1080)  @ 30 fps
  • Dimensions (WxDxH): 65 x 65 x 17.5 mm (2.56 x 2.56 x 0.69 inch)
  • Weight: 40.0 g (1.41 oz)
  • Storage Temperature:  -20°~ 70°C (-4°~ 158°F)
  • Operating Temperature:  -10°~ 60°C (14°~ 140°F)

Exterior Side View Camera

  • Resolution: Full HD (1920 x 1080)
  • Camera: 2.12 MP Pixelplus
  • Frame Rate: 30 fps
  • Viewing Angle: 129° (Diagonal)
  • Input power source: DC 5 V
  • Current Consumption: 140 mA
  • Dimensions(WxDxH): 61.05 x 30.5 x 25.0 mm (2.40 x 1.20 x 0.98 inch)
  • Weight: 57.0 g (2.01 oz)
  • Cable Length: 1.5 + 3.0 m (4.9 + 9.8 ft)
  • Storage Temperature: -20°~ 70°C (-4°~ 158°F)
  • Operating Temperature: -10°~ 60°C (14°~ 140°F)
  • Certifications: KC, CE, FCC, IC, RoHS, WEEE and VCCI

 Interior Infrared Cabin Camera

  • Resolution: Full HD (1920 x 1080)
  • Camera: 2.12 MP Pixelplus
  • Wavelength: 940 nm
  • Frame Rate: 30 fps
  • Viewing Angle: 160° (Diagonal)
  • Dimensions (WxDxH): 61.1 x 30.5 x 32.3 mm (2.41 x 1.20 x 1.27 inch)
  • Weight: 25.5 g (0.90 oz)
  • Cable Length: 50 cm (1.6 ft)
  • Storage Temperature: -20°~ 70°C (-4°~ 158°F)
  • Operating Temperature: -10°~ 60°C (14°~ 140°F)
