ThinkWare

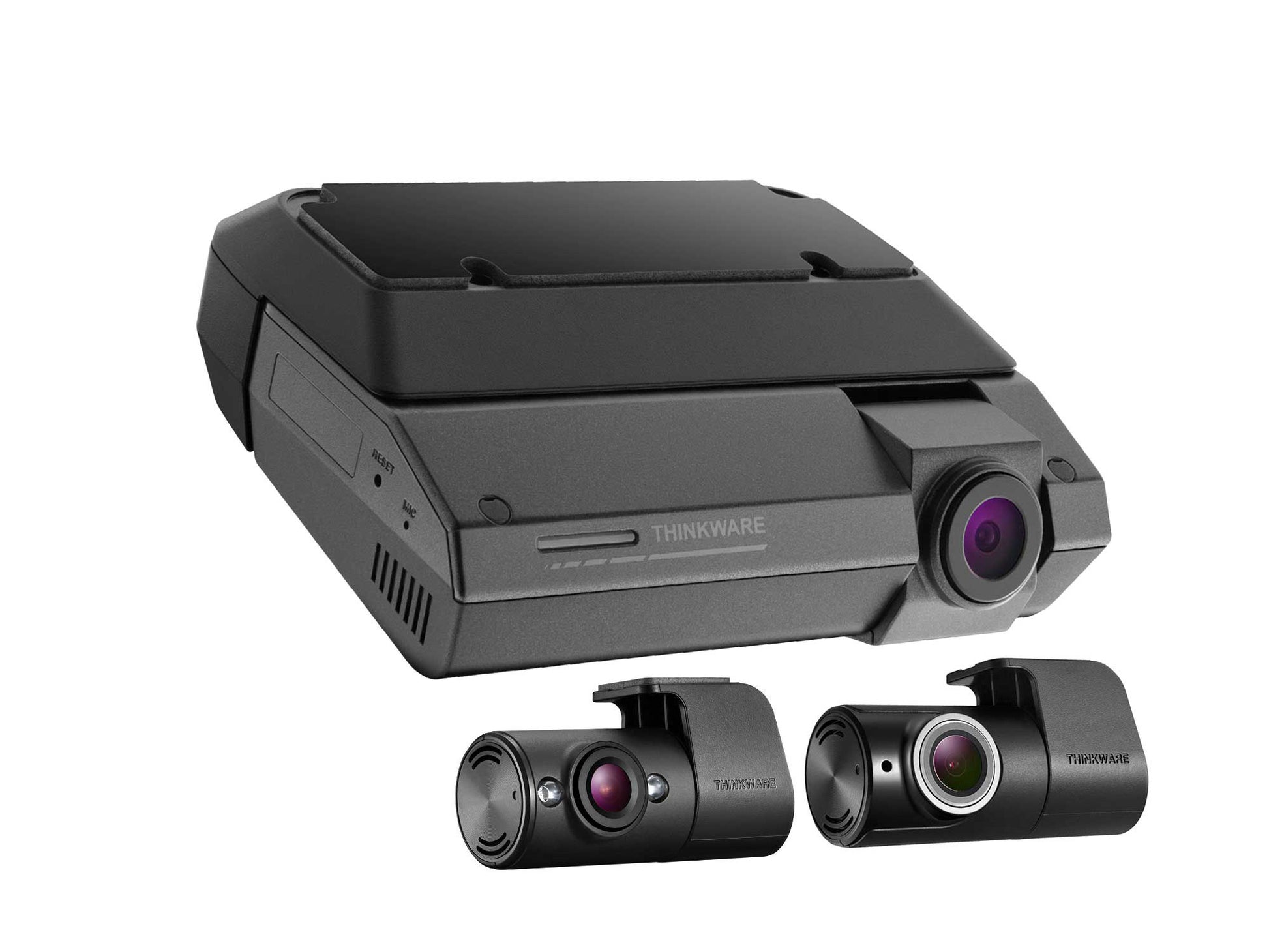

ThinkWare F790 Front & Rear + Cabin Dash Cam

In stock

Say hello to a clutter-free dashboard with Thinkware's F790. Thanks to the all-new Plugin mount and its innovative design, cables have been neatly integrated into the dash cam mount itself to simplify installation and keep the dashboard looking tidy. Thinkware’s proprietary Super NightVision 3.0 technology, coupled with HDR, enhances the F790’s Full HD night recording capabilities so you don’t miss important details when driving in dark conditions. The F790 also comes equipped with Dewarping Video technology to ensure that all front footage is recorded with minimal distortion, delivering a close-to-real view of the world. Boasting advanced video recording technology in an impeccable and sleek design, the F790 is the ultimate dash cam for your next road journey.

New Launch

$349.99

Save: $-349.99 (% Off)*

Sale Sold out

Shipping calculated at checkout.

Free shipping Over $99

Sold in last hours

Quantity

Fast, FREE Delivery
Free, Fast, Doorstep Delight!
Delivery & Returns
Effortless Delivery, Easy Returns

View full details

Overview
Details
Accessories

Powerful performance in a clutter-free design

Clear video quality with 2-Channel Full HD and HDR

Combining Full HD video quality with High Dynamic Range, the F790 records everything with improved video sharpness, detail and clarity. It records video footage in 1080p at30fps, and utilizes HDR to optimize the image quality by applying the appropriate contrast and exposure levels.

Experience minimal distortion with Dewarping Video technology

The F790’s front camera utilizes Dewarping Technology to minimize image distortions typically caused by a wide angle lens, and delivers a close-to-real image of the world.

Super Night Vision 3.0

Ideal for late night drivers, the F790 comes equipped with Thinkware’s latest Super Night Vision 3.0 technology, which boosts exposure levels in low light conditions and enhances video brightness so you don’t miss important details while driving at night.

An innovative design with Thinkware Dash Cam Plugin mount

The trailblazing design of the Thinkware Dash Cam Plugin mount makes mounting the F790 safe and easy, and keeps the dashboard looking tidy since both the power cable and GPS module are neatly integrated into the mount itself. Separating the power cable and GPS from the dash cam also reduces the risk of overheating.

Easy Wi-Fi
Device Pairing

Effortlessly pair your dash cam with any compatible Android or iOS device using the THINKWARE DASH CAM LINK app. Once connected, you can easily adjust settings, replay footage, and download your latest driving videos on the go.

Dual-band Wi-Fi and Built-in GPS

Enjoy the best connectivity in any environment with the F790’s dual-band Wi-Fi. Your iOS or Android smartphone can be connected to either the 2.4 GHz or 5 GHz bandwidth for faster file transfers. The built-in GPS makes it possible for you to embed data like location, time and speed in recorded videos, while also enabling the F790 to warn you of upcoming red light and speed cameras.

Parking Surveillance

Automatically activates when you turn off the ignition, capturing footage to provide video evidence of any incidents, such as hit-and-runs, while your vehicle is parked.

Parking Surveillance Mode requires Hardwiring Cable or OBD
-II Cable and installation
(professional installation recommended).

Time Lapse

Records at 2 frames per second (fps), enabling the dash cam to capture long durations of continuous footage while keeping power consumption low.

Energy saving mode 2.0

Conserves power by recording only when impacts are detected, allowing the dash cam to stay in Parking mode for extended periods.

Motion & Impact Detection

Automatically triggers a 20-second recording when motion or impact is detected, capturing 10 seconds before and after the event.

Advanced Driver Assistance Systems (ADAS)

A suite of features designed to enhance driving safety by reducing the risk of collisions and mitigating injury severity. These systems provide real-time audio alerts to help keep you aware of potential hazards on the road.

Front Vehicle Departure Warning (FVDW)

Notifies the driver when the vehicle ahead starts moving after being at a complete stop.

Forward Collision Warning System (FCWS)

Monitors the speed and distance of the vehicle ahead, alerting the driver when the following distance becomes unsafe at speeds over 40 km/h.

Lane Departure Warning System (LDWS)

Notifies the driver when the vehicle unintentionally drifts out of its lane at speeds over 50 km/h.

Safety Camera Alerts

Using its built-in GPS, the dash cam tracks your vehicle's speed and time data, providing alerts for upcoming red light and speed cameras.

Multiplexer Compatible

Convert the F790 into a 5-Channel dash cam for all-around, comprehensive surveillance. Up to 4 additional separate Full HD cameras (internal cabin IR, external left side, external right side, and rear camera) can be added to the F790 when paired with the Multiplexer TWA-MB100 accessory. During recording, the front camera footage is saved independently of the other cameras, and footage from any additional cameras is merged together into a separate video file.

Built-in 3-Axis G-Sensor

Automatically save a 20-second video clip upon detecting an impact (10s before and 10s after the incident). The footage is saved in a separate folder on the memory card for safety and easy file retrieval later on.

Anti-File Corruption

Proprietary file management system eliminates data corruption and improves the reliability of the memory card. It secures video files stored on the card, shielding against data loss and fragmentation for enhanced protection.

Built-in Microphone and Speaker

Add an extra dimension to your driving experience with crisp and clear audio capture.

Integrated Thermal Protection

Built-in thermal sensor actively monitors internal temperature levels, triggering an automatic shut-off in extreme temperatures. Integrated supercapacitor and thermal sensor enhance reliability in extreme temperatures.

Features

Front - Full HD (1920 x 1080) @30fps
Rear - Full HD (1920 x 1080) @30fps
2.1 MP
140° Wide Angle Lens
HDR - Front
Super Night Vision 3.0
Dewarping Technology
Advanced Video Clear Technology
Multiplexer Compatibility
HEVC Format H.265
Dual-Band Wi-Fi
Built-in GPS
ADAS (LDWS/FCWS/uFCWS/FVDW)
Safety Camera Alert (Speed & Red Light Camera)
Parking Surveillance Mode (Motion & Impact Detection, Time Lapse and Energy Saving Mode)*
Innovative Design with Thinkware Dash Cam Plugin Mount**
Up to 5CH Recording***
THINKWARE Dash Cam Link app
Supports MicroSD Cards up to 256 GB
Supercapacitor
Integrated Thermal Protection
Anti-File Corruption

* Requires Hardwiring Cable or OBD II Power Cable and installation for Parking Surveillance mode (professional installation recommended)
** F790 is only compatible with F790-specific 12V Power Cable and Hardwiring Cable
*** Requires optional Multiplexer and additional cameras

Specifications

Resolution:
Front - Full HD (1920 x 1080)
Rear - Full HD (1920 x 1080)
Camera:
Front - 2.1 MP CMOS
Front - 2.1 MP CMOS
Frame Rate:
Front - 30 fps
Rear - 30 fps
Viewing Angle:
Front - 140° (Diagonal)
Rear - 125° (Diagonal)
Dimensions(WxDxH):92 x 53.3 x 29.7 mm (3.6 x 2.1 x 1.16 in)
Storage Temperature: -20°~70° C (-4°~158° F)
Operating Temperature: -10°~ 60°C (14°~140° F)
Capacity: MicroSD card 16/32/64/128/256 GB (UHS-I)
Interface: DC-IN / V-IN / MicroSD Card Slot
Input Power: DC 12/24 V, Built-in Super Capacitor
GPS: Built-in
Languages: English (US, UK), Chinese (Simplified, Traditional, Traditional Hong Kong), French (Canada, France), German, Italian, Japanese, Korean, Portuguese, Russian, Spanish, Thai, Czech

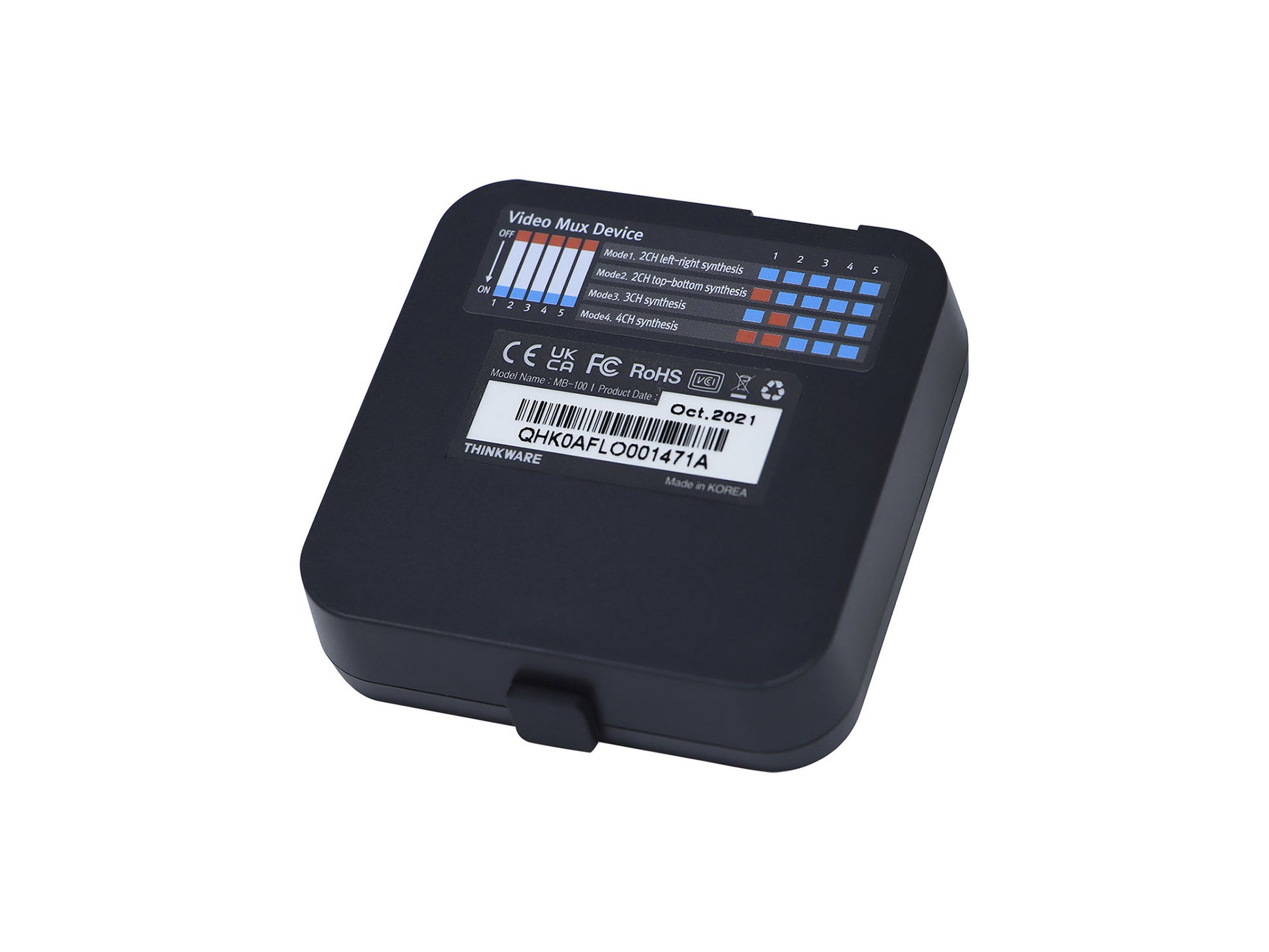

Multiplexer Box

Key:
piano code switch
composite screen can be configured according to switch combination
Power Source:
2 (BAT, GND)
DC 12 V ~ 24 V
Cable length: 3 m
AV-IN (For optional camera connection):
4 cables (CAM 1, CAM 2, CAM 3, CAM 4)
2.5 pi Stereo-jack type
AFHD
Cable length to connecting connector: 15 cm
AV-OUT(For front camera connection):
1 cable (AV-OUT)
2.5 pi Stereo-jack type
For front camera connection
Cable length: 3 m
Recording Channel: Up to 4 Analog Full HD cameras can be input (total 5CH)
Composite Video: Full HD (1920 x 1080) @ 30 fps
Dimensions (WxDxH): 65 x 65 x 17.5 mm (2.56 x 2.56 x 0.69 inch)
Weight: 40.0 g (1.41 oz)
Storage Temperature: -20°~ 70° C (-4°~ 158° F)
Operating Temperature: -10°~ 60° C (14°~ 140° F)

Interior Infrared Cabin Camera

Resolution: Full HD (1920 x 1080)
Camera: 2.12 MP Pixelplus
Wavelength: 940 nm
Frame Rate: 30 fps
Viewing Angle: 160° (Diagonal)
Dimensions (WxDxH): 61.1 x 30.5 x 32.3 mm (2.41 x 1.20 x 1.27 inch)
Weight: 25.5 g (0.90 oz)
Cable Length: 50 cm (1.6 ft)
Storage Temperature: -20°~ 70° C (-4°~ 158° F)
Operating Temperature: -10°~ 60° C (14°~ 140° F)
