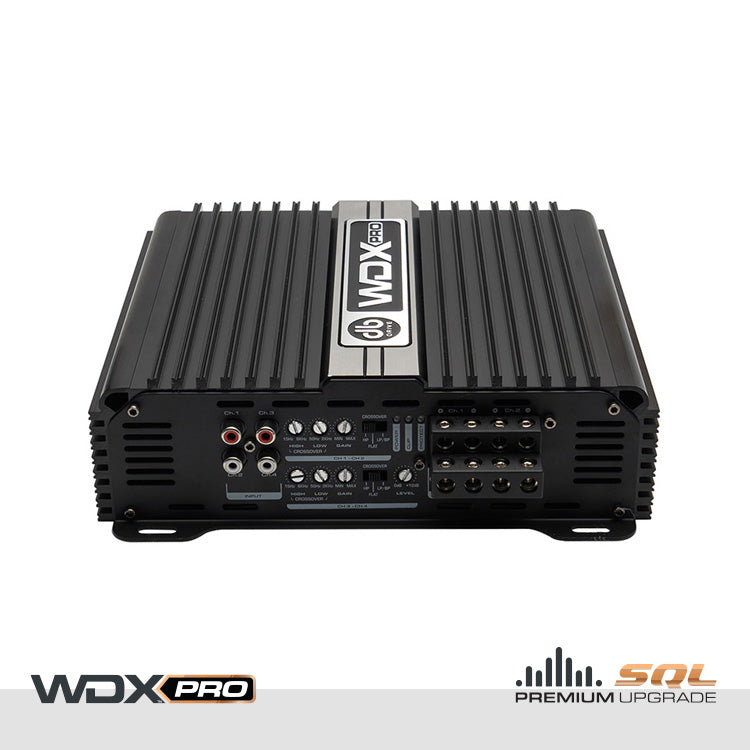

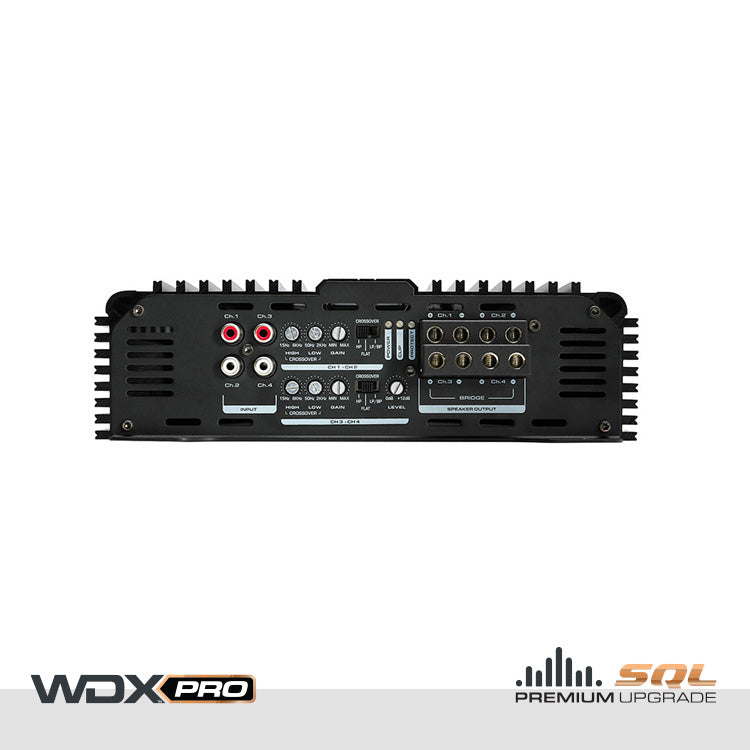

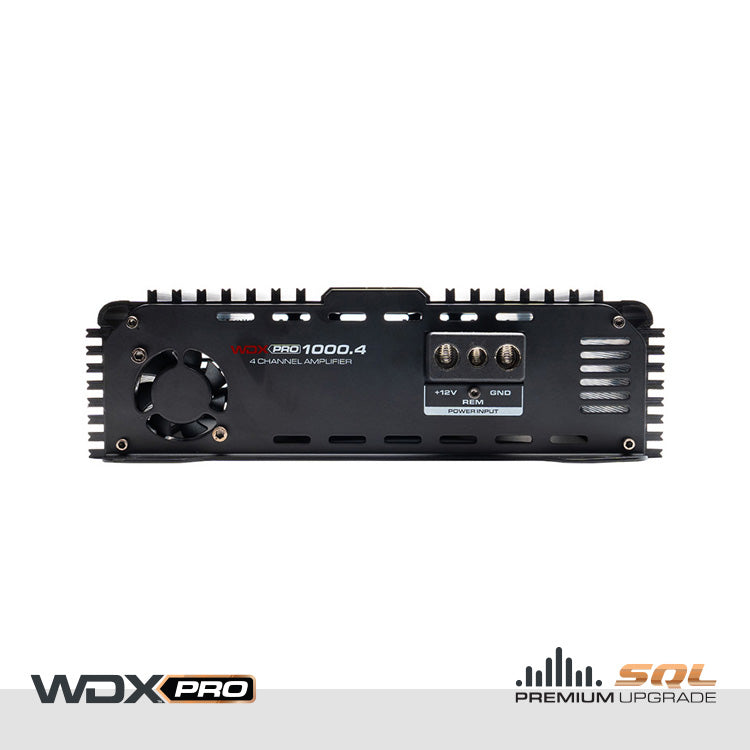

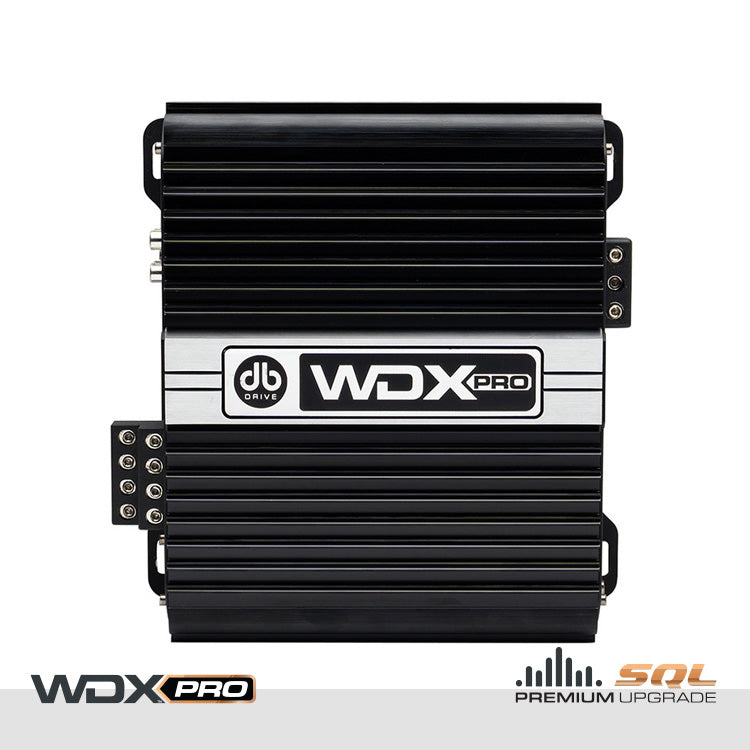

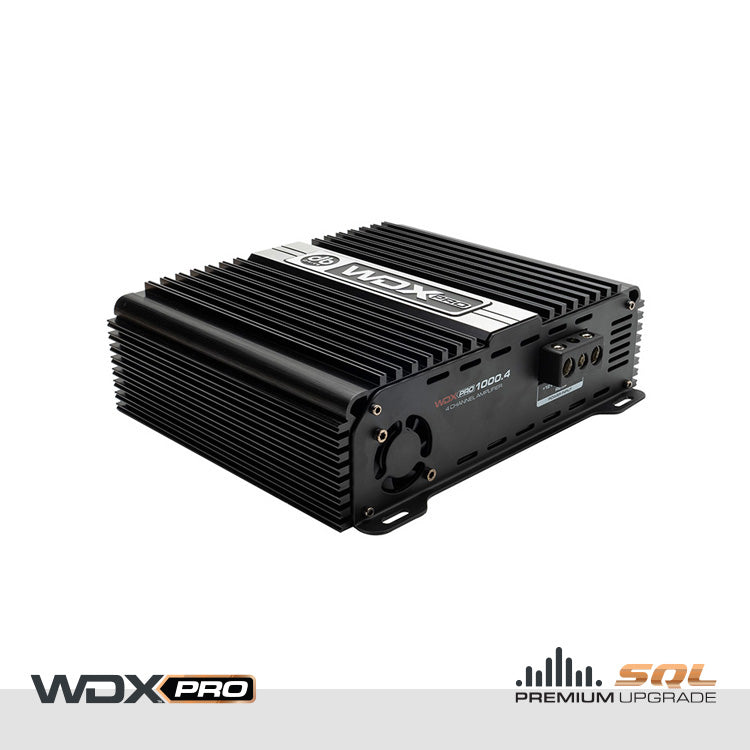

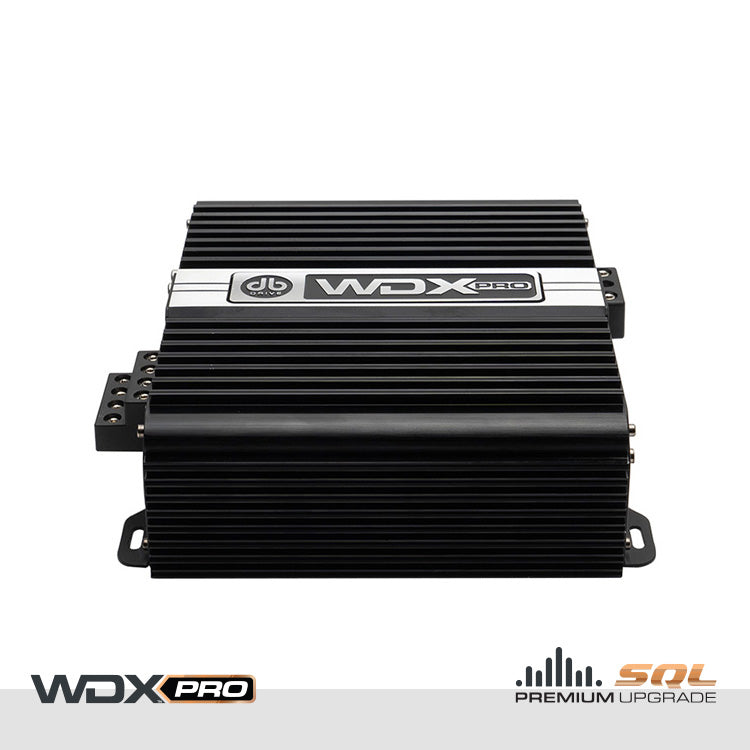

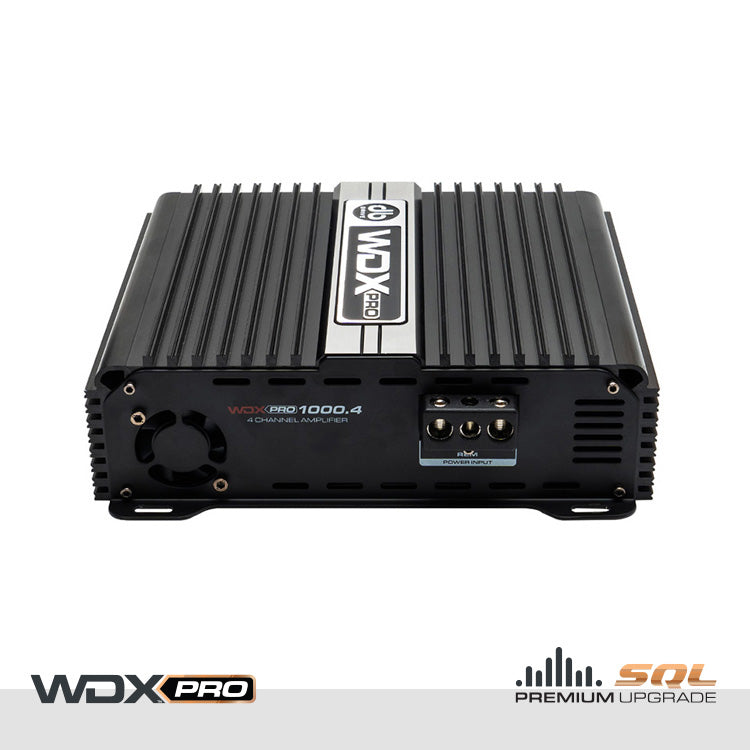

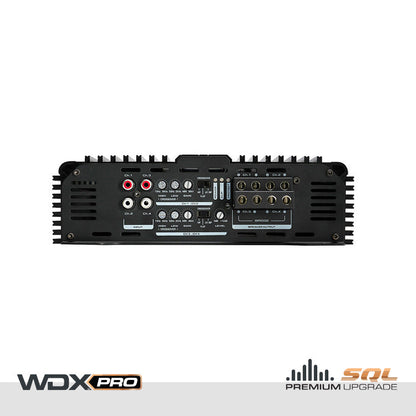

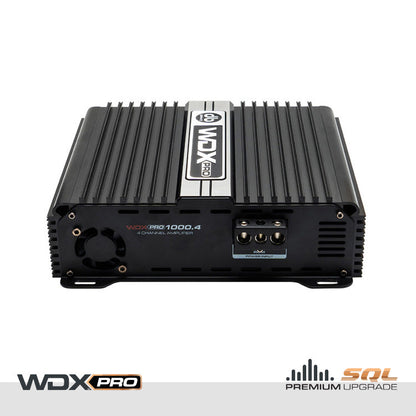

DB Drive WDX PRO1000.4 : 4-Channel Full-Range Class D Amplifier

DB Drive WDX PRO1000.4 : 4-Channel Full-Range Class D Amplifier

In stock

New Launch

$399.98

Save: $-399.98 (% Off)*

Sale Sold out

Shipping calculated at checkout.

Free shipping Over $99

Sold in last hours

Quantity

Fast, FREE Delivery
Free, Fast, Doorstep Delight!
Delivery & Returns
Effortless Delivery, Easy Returns

View full details

Overview
Details
Accessories

Features

300W X 4 Channel Class D Amplifier
ATC - Audiophile RCA Connectors
ACT - Adaptive Crossover Technology
High-efficiency Class Full Range Class D Technology
Direct Connect Speaker Terminals
4 Gauge Power Wire Inputs
APC - Audio Protection Circuit
SESI - Signal Evaluation Status Indicator
CHM - Collective Heat Management

Specifications

@ 14.4 volts
4 x 75 Watts @ 4 ohms
4 x 150 Watts @ 2 ohms
4 x 300 Watts @ 1 ohm
4 ohms (Bridged): 2 x 1500 Watts
Working Voltage: 12-15 Volts
Frequency Response: 15 Hz - 20k Hz
Signal to Noise Ratio: 96dB
ACT - Variable Crossover HP/BP/LP
Damping Factor: ?200
Low-Level Input: 6V - 0.2mV
Ch 1/2 High Pass Filter Variable: 15 Hz - 6k Hz
Ch 1/2 Low Pass Filter Variable: 50 Hz - 2k Hz
Ch 3/4 High Pass Filter Variable: 15 Hz - 6k Hz
Ch 3/4 Low Pass Filter Variable: 50 Hz - 2k Hz
Minimum working Impedance: 1 ohm stereo / 2 Ohms bridged

Description

Maximize your car audio with the DB Drive WDX PRO1000.4, a powerful 4-channel Class D amplifier built for high output and superior sound. Key Features: • Adaptive Crossover: Optimizes performance for tweeters, mids, and midbass. • CHM: Keeps the amp cool during extended use. • SESI Circuit: Monitors output to prevent overdriving and protect your gear. • Large-Gauge Terminals: Support 4-gauge wiring for high-output systems. With 300 Watts per channel at 1?, the WDX PRO1000.4 delivers clear, powerful sound, elevating your audio experience.
